SKU: RLT3

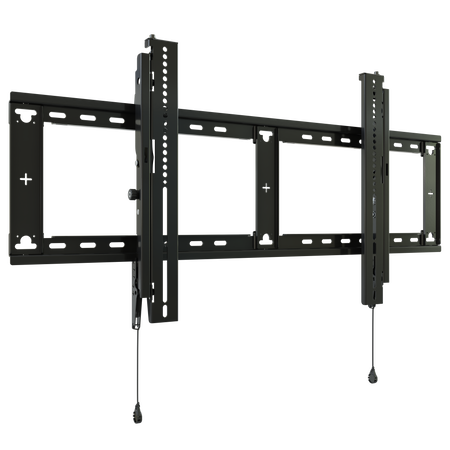

Chief RLT3 Large Fit™ Tilt Display Wall Mount

Chief

Fit™ Tilt Display Wall Mounts Series

Chief RLT3 is part of the Fit™ Tilt Display Wall Mount Series, designed to deliver a reliable and installer-friendly solution for mounting large flat panel displays from 43" to 86". Built for flexibility and performance, the RLT3 features a low-profile 2" (51 mm) depth, a heavy-duty wall plate that supports up to 200 lbs (90.7 kg), and accommodates VESA mounting patterns up to 915 x 450 mm.

This advanced design includes up to 12° of tilt adjustment, post-install leveling, a tool-free GlideLock™ lateral shift system, and an open wall plate for convenient outlet positioning. Engineered for professional and commercial use, the RLT3 ensures quick, accurate, and clean installations with full UL and TUV safety compliance.

Highlighted Features

  • Low-Profile Design: 2" (51 mm) depth offers a clean, space-saving appearance behind the display.
  • Post-Install Leveling: Fine-tune display alignment with a 0.75" (19 mm) screw adjustment; 10" (254 mm) ball end hex-key included.
  • Tilting Capability: Adjust the display up to 12° to optimize the viewing angle.
  • Open Wall Plate: Enables flexible positioning around power and data outlets during installation.
  • High Compatibility: Supports VESA mounting patterns up to 915 x 450 mm and screen sizes from 43" to 86".
  • Heavy-Duty Construction: Rigid wall plate supports displays up to 200 lbs (90.7 kg) and includes added mounting slots for adaptable installations.
  • Toolless GlideLock™: Provides lateral shift for precise screen positioning without the need for tools.
  • Magnetic Quick-Store Pull Cords: Snap neatly in place for accessible, clutter-free cable management.
  • Kickstand Feature: Allows temporary tilt for easy access to power and signal connections during setup or service.
  • Theft Deterrence: Compatible with optional security accessories (sold separately).
  • Certifications: UL and TUV safety standard approved for professional-grade reliability.

Chief RLT3 offers a streamlined, high-performance mounting solution for tilt installations in corporate, education, retail, and commercial AV environments. Its installer-focused features, broad compatibility, and certified durability make it an ideal choice for professional display mounting applications.

In stock
£58.12

Secure checkout

Friendly support

Hassle-free returns

Chief RLT3 is part of the Fit™ Tilt Display Wall Mount Series, designed for large flat panel displays ranging from 43" to 86". This advanced wall mount supports mounting patterns up to 915 x 450 mm and features a robust wall plate with 200 lbs (90.7 kg) weight capacity. With a 2" (51 mm) low-profile depth, up to 12° tilt adjustment, post-installation leveling, and toolless GlideLock™ lateral shift, the RLT3 ensures flexible installation with UL and TUV safety standard compliance.

Key Features

  • Low-Profile Design: 2" (51 mm) depth provides a sleek, space-saving installation.
  • Post-Install Leveling: 0.75" (19 mm) screw adjustment with included 10" (254 mm) ball end hex-key ensures precision leveling.
  • Tilting Capability: Adjust display up to 12° to achieve optimal viewing angles.
  • Open Wall Plate: Allows for flexible positioning around power and data wall boxes.
  • High Compatibility: Supports display mounting patterns up to 915 x 450 mm and screen sizes from 43" to 86".
  • Heavy-Duty Construction: Rigid wall plate supports up to 200 lbs (90.7 kg) and includes additional mounting slots for improved installation experience.
  • Toolless GlideLock™: Enables lateral shift and precise screen positioning without tools.
  • Magnetic Quick-Store Pull Cords: Allow easy access and cable concealment for a clean appearance.
  • Kickstand Feature: Facilitates easy access to connections during installation or servicing.
  • Theft Deterrence: Compatible with security accessories (sold separately).
  • Certifications: UL and TUV safety standards approved.

Specifications

Model RLT3
Typical Screen Size 43"–86" (1092 mm – 2184 mm)
Depth 2" (51 mm)
Height 19.2" (487 mm)
Width 38" (965 mm)
Manual Height Adjustment 0.75" (19.05 mm)
Minimum Depth 2" (5.08 cm)
Overall Dimensions 19.2" x 38" x 2" (487 x 965 x 51 mm)
Shipping Weight 18 lbs (8.15 kg)
Weight Capacity 200 lbs (90.7 kg)
Wall Stud Compatibility Dual Stud
Adjustability Tilt
Application Wall
Color Black
Orientation Landscape
Solution Type Universal
Tilt -12°
VESA Mounting Pattern 100 x 100 mm up to 915 x 450 mm

Chief RLT3 is the perfect solution for commercial and professional AV installations requiring a reliable, low-profile tilt mount. It combines robust support with installer-friendly features, broad compatibility, and industry-certified safety.
