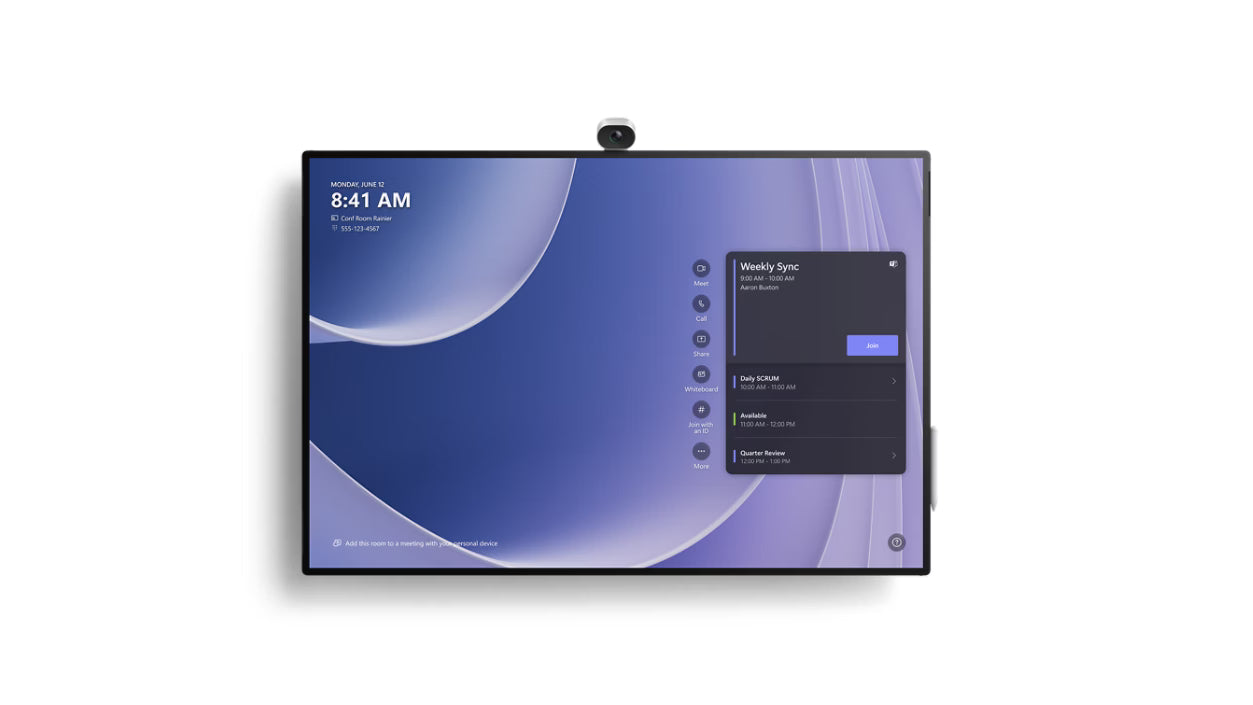

Microsoft Surface Hub 3 50" Interactive Display for Business
50-inch 4K Teams Rooms collaboration display with touch and camera
In stock
Regular price
£4,720.99
Secure Checkout
Warranty Protection
Hassle-Free Returns
The Microsoft Surface Hub 3 50" is a 50-inch all-in-one collaboration display purpose-built for Microsoft Teams Rooms on Windows, combining a 3840 x 2560 PixelSense 3:2 touchscreen with an Intel i5 processor, 32GB RAM, and 512GB SSD in a single wall or stand-mounted unit. The included Surface Hub Smart Camera delivers 4K video at 136-degree horizontal field of view with IntelliFrame automatic framing for Teams Rooms. A 3-way front-facing stereo speaker system across 10 drivers, paired with dual 8-element MEMS microphone arrays and Smart AV audio optimisation, ensures clear audio in portrait or landscape orientation. The aluminium and mineral-composite resin casing houses active dual-pen inking support for whiteboarding alongside meetings, with user-replaceable modular compute cartridge and camera for serviceability.
Key Features
- 3840 x 2560 PixelSense Display: 50-inch IPS LCD at 3:2 aspect ratio with 3840 x 2560 resolution, 8-bit colour, anti-glare coating, 15.5mm border, and in-cell touch with 10 simultaneous touch points and support for two active pens simultaneously.
- Intel i5 Processor with 32GB RAM and 512GB SSD: An Intel i5 processor with integrated graphics, 32GB memory, and 512GB solid-state storage provides the compute foundation for Microsoft Teams Rooms, whiteboarding, and concurrent application use without an external PC.
- 4K Surface Hub Smart Camera: The included 4K Surface Hub Smart Camera connects via a custom USB-C magnetic break-away mount to the top of the display, delivering 136-degree HFOV video with IntelliFrame automatic framing, tilt adjustment of plus or minus 20 degrees, and a magnetic privacy cover.
- 3-Way Stereo Speaker System: A 10-driver speaker configuration comprising 6 front-facing mid-range, 3 front-facing tweeter, and 1 rear bass driver covers the full 100Hz-12KHz range. Smart AV optimises audio output automatically for portrait or landscape orientation.
- Dual 8-Element MEMS Microphone Arrays: Two full-band 8-element MEMS microphone arrays provide wide-angle pickup across the room, with Smart AV orientation detection ensuring the active array is used in both portrait and landscape configurations.
- Active Dual-Pen Inking: Supports simultaneous dual-pen inking with the included Surface Hub Pen, and is compatible with Microsoft Surface Slim Pen and Slim Pen 2 for whiteboarding, annotation, and collaborative drawing during or alongside meetings.
- Connectivity and Networking: Wi-Fi 5 (802.11ac), Bluetooth 5.1, Gigabit Ethernet, and Microsoft Teams Cast. Ports include 4x USB-C (2 camera ports on display), 1x USB-A, Mini-DisplayPort output, HDMI input, and USB-C DisplayPort Alt-Mode input.
- TPM 2.0 Security and Doppler Occupancy Sensor: Trusted Platform Module 2.0 provides hardware-level security for device and data protection. A Doppler occupancy sensor, accelerometer, and gyroscope support presence detection and automatic meeting join workflows.
- User-Replaceable Modular Components: The modular compute cartridge with removable SSD, Surface Hub Smart Camera, and Surface Hub Pens are all customer-replaceable on-site, extending device lifespan and simplifying maintenance for IT teams across large deployments.
- Premium Aluminium Casing: Precision machined aluminium with mineral-composite resin casing in Platinum colour, with physical Power, Volume, and Source buttons. Compatible with height-adjustable and mobile stand accessories (sold separately).
Specifications
| Display Size | 50 inches |
| Display Resolution | 3,840 x 2,560 |
| Aspect Ratio | 3:2 |
| Display Type | PixelSense IPS LCD, Anti-glare, 8-bit colour |
| Border Width | 15.5mm |
| Touch | In-cell touch, 10 simultaneous touch points, 2 active pens |
| Processor | Intel i5 |
| Graphics | Intel iGPU |
| Memory | 32GB |
| Storage | 512GB SSD |
| Camera | Surface Hub Smart Camera, 4K, 136-degree HFOV, USB-C magnetic mount |
| Speakers | 3-way stereo: 6 front mid-range, 3 front tweeter, 1 rear bass (100Hz-12KHz) |
| Microphones | 2x 8-element full-band MEMS microphone arrays |
| Audio | Smart AV (auto-optimises for portrait/landscape orientation) |
| Pen Support | Active dual-pen inking; Surface Hub Pen (included); Surface Slim Pen / Slim Pen 2 compatible |
| Ports | 4x USB-C (2 camera ports), 1x USB-A, RJ45 Gigabit Ethernet, Mini-DisplayPort out, HDMI in, USB-C DisplayPort Alt-Mode in |
| Networking | Wi-Fi 5 (IEEE 802.11ac), Bluetooth 5.1, Gigabit Ethernet, Microsoft Teams Cast |
| Security | Trusted Platform Module (TPM) 2.0 |
| Sensors | Doppler occupancy, accelerometer, gyroscope |
| Software | Windows 11 IoT Enterprise with Microsoft Teams Rooms on Windows (configurable to Windows 11 Pro/Enterprise) |
| Casing | Precision machined aluminium with mineral-composite resin |
| Colour | Platinum |
| Physical Buttons | Power, Volume, Source |
| Dimensions (HxWxD) | 741 x 1,097 x 76 mm (29.2 x 43.2 x 3.0 inches) |
| Weight | 28 kg (61.6 lbs) |
| Warranty | 1-year limited hardware warranty |
What's in the Box
- Microsoft Surface Hub 3 50"
- Surface Hub Smart Camera (with privacy cover)
- Surface Hub Pen
- 3m AC Power Cable
- Quick Start Guide
Warranty
The Microsoft Surface Hub 3 50" is covered by the 1-year limited hardware warranty from Microsoft, providing peace of mind for professional and commercial deployments.
Application Examples
| Corporate Meeting Rooms | Installed as the primary display and collaboration device in small to medium meeting rooms, running Microsoft Teams Rooms natively for one-touch meeting join, content sharing, and whiteboarding without a separate PC, camera, or speaker system. |

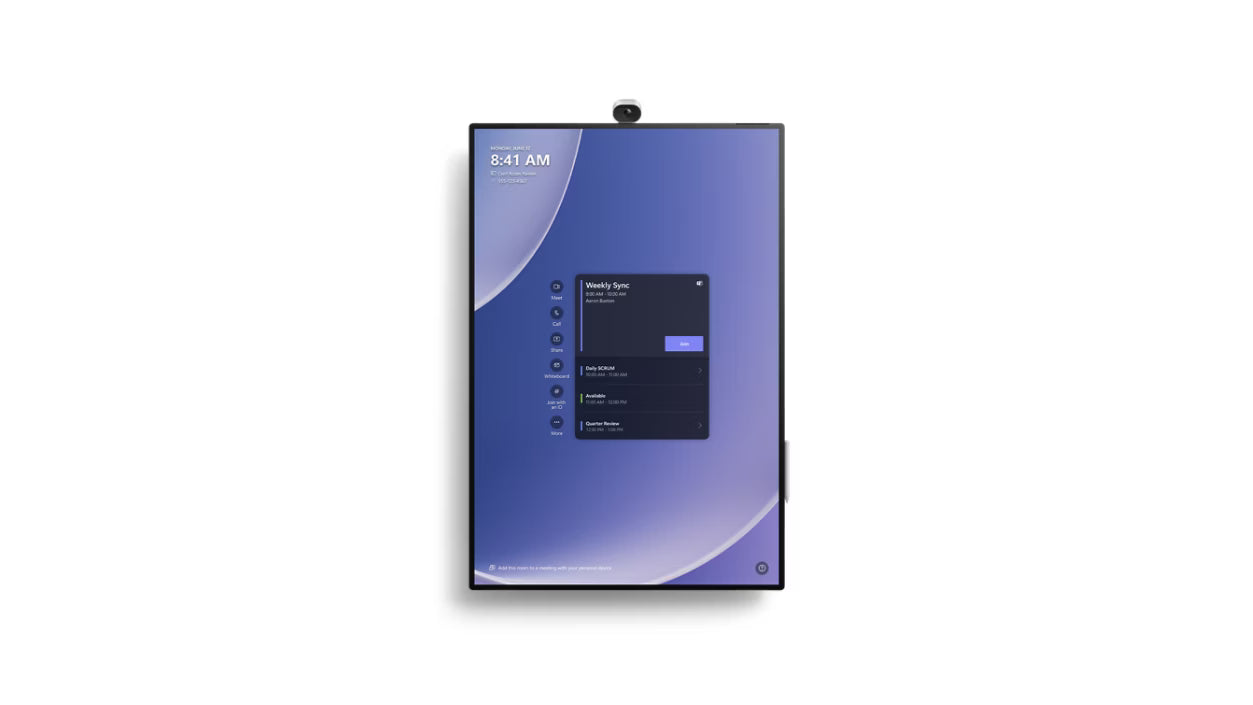

| Executive Offices and Leadership Spaces | Deployed in executive offices and board suites where a single premium device replaces a display, PC, camera, and whiteboard, with portrait orientation capability suited to high-end interior layouts. |
| Education Collaboration Spaces | Used in university collaboration rooms and tutorial spaces for interactive teaching, hybrid seminars, and group whiteboarding, with the 3:2 aspect ratio providing more vertical content space than a standard 16:9 display. |
| Hybrid Team Hubs | Placed in open-plan team areas as a shared collaboration hub for impromptu meetings, visual project reviews, and content annotation, with touch and pen support enabling natural interaction for both in-room and remote participants. |
| Managed Multi-Site Deployments | Deployed at scale across multiple office locations, with the modular compute cartridge enabling in-place upgrades, the removable SSD simplifying data management, and central administration through the Microsoft Teams admin centre. |
