Biamp MRB-S-SCR20-C
Meeting room bundle for huddle spaces / small rooms (up to 6 participants) with Pendant Microphone
Secure checkout
Friendly support
Hassle-free returns
The Biamp MRB-S-SCR20-C is a video conferencing bundle designed to provide exceptional audiovisual experiences in huddle rooms and small conference rooms. This bundle supports a Bring Your Own Device (BYOD) approach, allowing users to seamlessly integrate their PCs with leading conferencing platforms such as Microsoft Teams, Zoom, BlueJeans, and Google Meet.
Key Features
- BYOD Support: Seamlessly integrates with Windows and Mac PCs via a single USB connection.
- Superior Audio & Video Quality: The Vidi 250 camera delivers 4K resolution, a 120° field of view, and auto-framing, while the DCM-1 microphone ensures crystal-clear voice pickup.
- Beamtracking™ Microphone Technology: The DCM-1 pendant microphone features advanced Beamtracking™ for full 360-degree room coverage.
- Optimised Audio Processing: Includes automatic echo cancellation, noise reduction, and audio level adjustments for enhanced clarity.
- Auto Setup & Audio Calibration: Automatically validates connections, optimises room levels, and adjusts speaker EQ for improved performance.
- Pass-Through HDMI & USB Video: Supports pass-through HDMI connectivity for a single display and USB video output for dual-screen setups.
- Seamless Connectivity: Offers HDMI output, multiple USB ports, and Ethernet for flexible device integration.
- AI-Enhanced Conferencing: Intelligent framing and tracking ensure the best view of participants during meetings.
- Enterprise-Grade Security: Compliant with CE, UL, and RoHS standards to ensure safety and reliability.
- Remote Management: The system can be monitored and updated remotely via SNMP or the Devio System Administration Utility (SAU).
- Easy Installation: Ships with a mounting bracket for under–the–table installation.

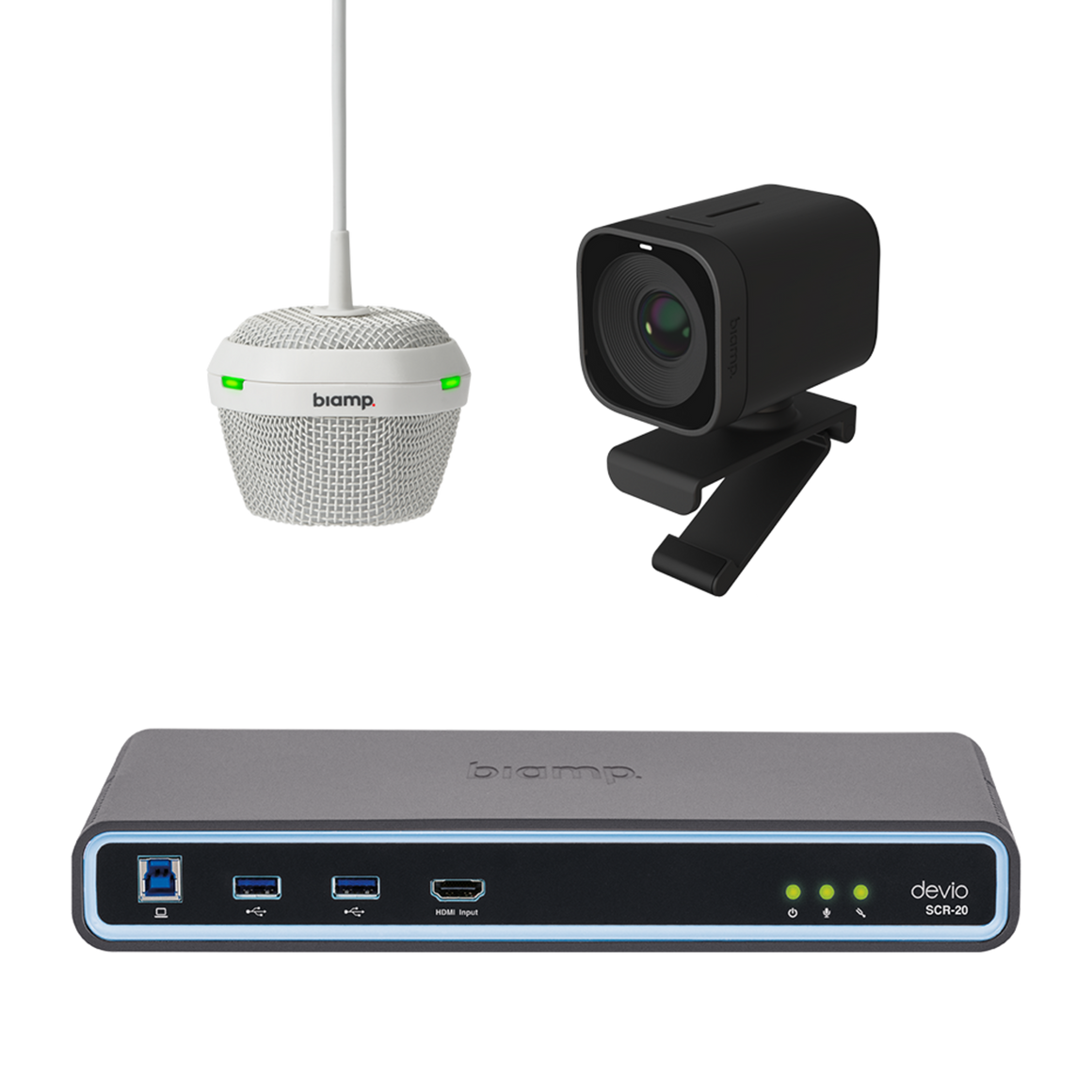

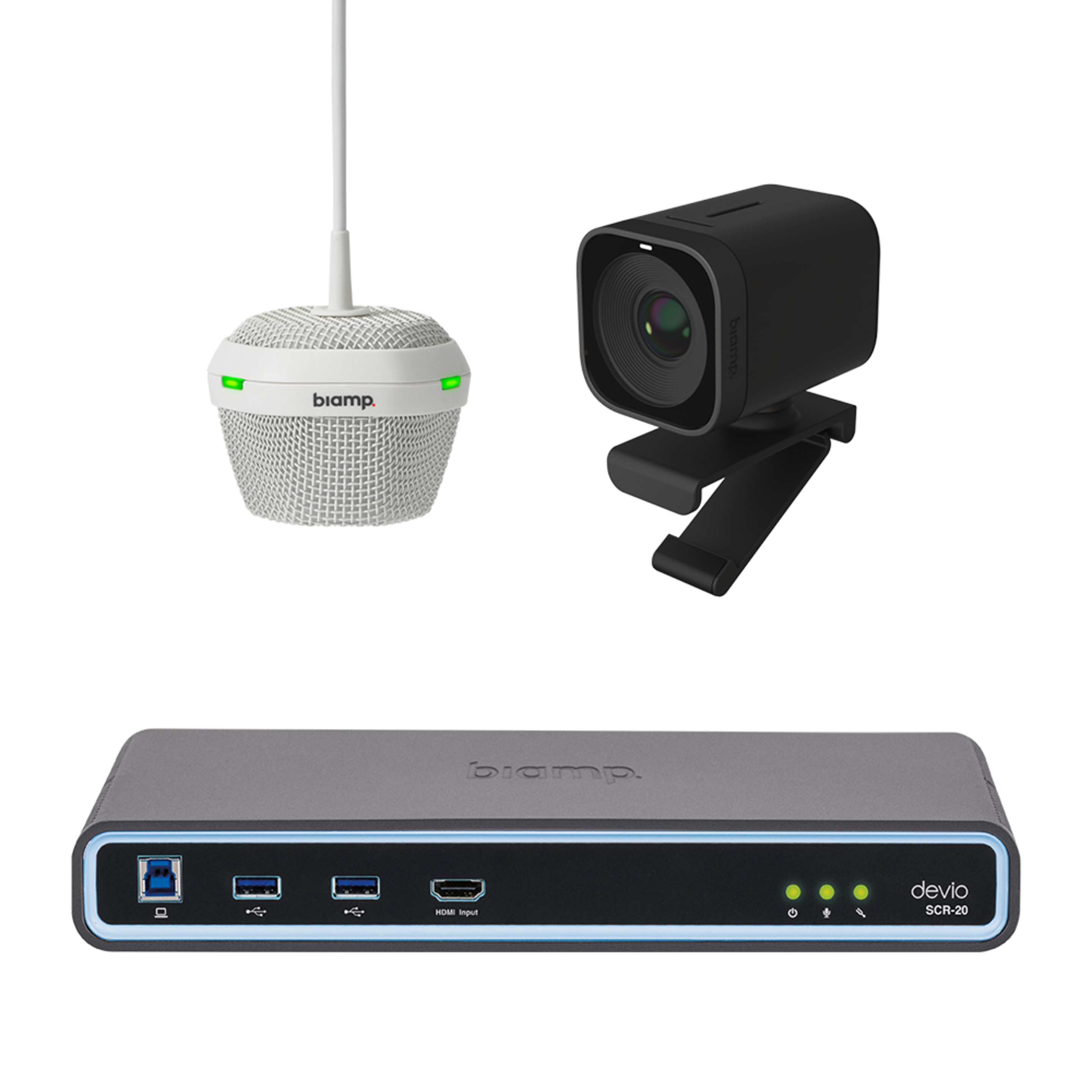

Room Bundle Includes
- (1) Devio SCR-20 Conferencing Hub
- (1) DCM-1 Pendant Microphone (White)
- (1) Vidi 250 Conferencing Camera
Specifications
| Feature | Devio SCR-20 Conferencing Hub | Vidi 250 Conferencing Camera | DCM-1 Pendant Microphone |
|---|---|---|---|
| Operating System Compatibility | Windows & macOS | - | - |
| Network Connection | RJ-45 with Ethernet cable (Cat 5e and above) | - | - |
| Video Inputs | 1x HDMI 2.0 (supports up to 1920 x 1080p @ 50/60 Hz) | - | - |
| Video Outputs | 2x HDMI 2.0 (supports up to 3840 x 2160p @ 30 Hz) | - | - |
| Audio Outputs | 1x USB Type-B, HDMI Audio, 1x RCA output, 1x Channel 20 Watts | - | - |
| USB Ports | 1x USB 3.0 (Type-B), 3x USB 3.0 (Type-A), 2x USB 2.0 (Type-A) | 1x USB 3.0 (Type-C) | - |
| Camera Sensor | - | 12 Megapixel with 5x digital zoom | - |
| Field of View | - | 120° Wide-Angle | - |
| Supported Video Resolutions | - | 640 x 480p (60 Hz), 720 x 480p (60 Hz), 720 x 576p (50 Hz), 1280 x 720p (50/60 Hz), 1920 x 1080p (50/60 Hz), *3840 x 2160p (30 Hz) *Supported on Output Port 1 only | - |
| Microphone Technology | - | - | 8-Element Digital Array |
| Frequency Response | - | - | 150 Hz - 16 kHz ±3 dB |
| Polar Pattern | - | - | Active Beamformed |
| Power Supply | 24V DC 60W | - | <1 W, phantom powered from plenum box |
| Dimensions (HxWxD) | 46mm x 284mm x 175mm | 50mm x 50mm x 70mm | 51mm x 63mm x 63mm |
| Weight | 900g | 160g | 170g |
The Biamp MRB-S-SCR20-C bundle ensures a high-quality video conferencing experience with superior AV performance, making it ideal for professional meeting spaces. With its enterprise-grade security and simple deployment, this bundle is the perfect solution for hybrid and remote collaboration.
