SKU: CSSLP15X10

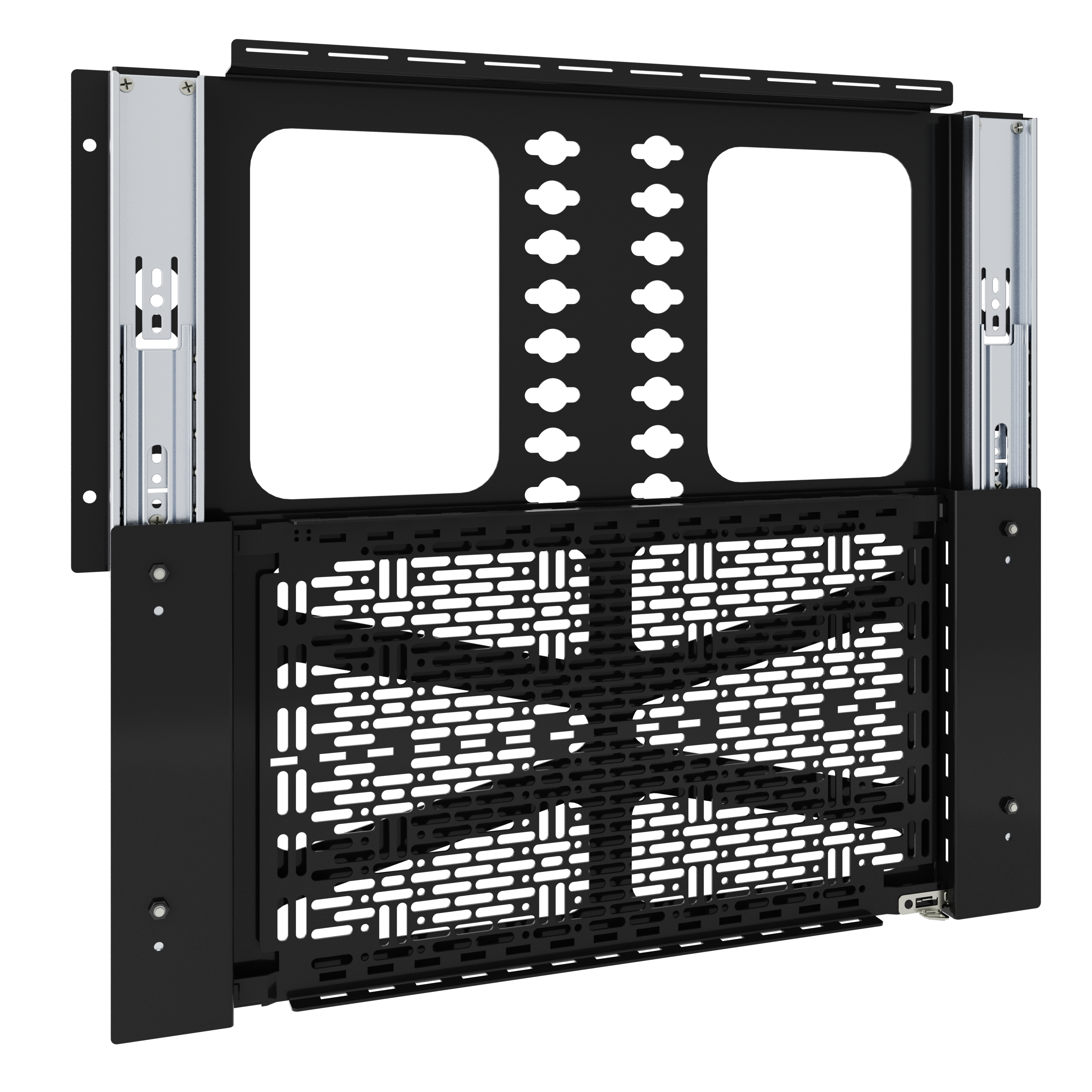

Chief CSSLP15X10 Proximity® Component Storage Slide-Lock Panel

Chief

Proximity® Component Storage Panels Series

Chief CSSLP15X10 is part of the Proximity® Component Storage Slide-Lock Panel Series, designed for easy, concealed mounting of AV equipment behind displays. Ideal for serviceability and accessibility, this panel slides out from the wall or Fusion® mount and includes a removable 15" x 10" Lever Lock™ plate for fast equipment access. With a weight capacity of 15 lbs (6.8 kg), it supports most small AV devices while maintaining a discreet and streamlined installation profile.

The CSSLP15X10 can attach to Fusion ceiling mounts (including LCM & LWM menu boards) or carts and stands when not wall-mounted.

Highlighted Features

  • Slide-Lock Panel: Push-to-open/close mechanism allows smooth access without panel removal.
  • Removable Lever Lock™ Plate: Tool-free 15" x 10" plate simplifies device servicing and upgrades.
  • Universal Mounting Pattern: Fits small AV components on a 9.85" x 15.86" (250 mm x 403 mm) footprint.
  • Flexible Mounting Options: Install left, right, or below the display; supports portrait or landscape orientation.
  • Integrated Compatibility: Works with Middle Atlantic Forward™ clips and cable management for clean, fast installation.
  • Quick Installation: Includes plastic rivets and push-button locking for simple operation behind the display.

Chief CSSLP15X10 offers a compact and smart storage solution for behind-display AV installations. Its versatile mounting options, tool-free access, and compatibility with popular accessory systems make it a go-to component for efficient system design in commercial and educational environments.

In stock
£138.42

Secure checkout

Friendly support

Hassle-free returns

Chief CSSLP15X10 is part of the Proximity® Component Storage Slide-Lock Panel Series, designed for easy, concealed mounting of AV equipment behind displays. Ideal for serviceability and accessibility, this panel slides out from the wall or Fusion® mount and includes a removable 15" x 10" Lever Lock™ plate for fast equipment access. With a weight capacity of 15 lbs (6.8 kg), it supports most small AV devices while maintaining a discreet and streamlined installation profile.

The CSSLP15X10 can attach to Fusion ceiling mounts (including LCM & LWM menu boards) or carts and stands when not wall-mounted.

Key Features

  • Slide-Lock Panel: Push-to-open/close mechanism allows smooth access without panel removal.
  • Removable Lever Lock™ Plate: Tool-free 15" x 10" plate simplifies device servicing and upgrades.
  • Universal Mounting Pattern: Fits small AV components on a 9.85" x 15.86" (250 mm x 403 mm) footprint.
  • Flexible Mounting Options: Install left, right, or below the display; supports portrait or landscape orientation.
  • Integrated Compatibility: Works with Middle Atlantic Forward™ clips and cable management for clean, fast installation.
  • Quick Installation: Includes plastic rivets and push-button locking for simple operation behind the display.

Specifications

Model CSSLP15X10
Typical Screen Size 50" (1270 mm) and up
Depth 1.39" (35 mm)
Extension 10" (254 mm)
Height 22.71" (577 mm)
Width 10.89" (272 mm)
Overall Dimensions 22.71" x 10.89" x 1.39" (577 mm x 272 mm x 35 mm)
Shipping Weight 10.1 lbs (4.58 kg)
Weight Capacity 15 lbs (6.8 kg)
Accessory Type Component Storage
Application Wall
Color Black
Mounting Method On-wall or Fusion Mount Extrusion
Orientation Landscape, Portrait
Solution Type Slide-Lock Panel

Chief CSSLP15X10 offers a compact and smart storage solution for behind-display AV installations. Its versatile mounting options, tool-free access, and compatibility with popular accessory systems make it a go-to component for efficient system design in commercial and educational environments.
