SKU: LVS1U

Chief LVS1U ConnexSys™ Video Wall Landscape Mounting System with Rails

Chief

ConnexSys™ Video Wall Mounting System Series

Chief LVS1U is part of the ConnexSys™ Video Wall Mounting System, engineered to address the most common video wall challenges—speed, alignment, serviceability, and rigidity. The innovative system allows installers to level each row once using a strut channel and then connect multiple mounts, making it a fast and scalable solution for large video wall arrays.

Highlighted Features

  • Fast Installation: Uses strut channel to connect mounts for quick row alignment, eliminating the need to level each mount individually.
  • Micro-Adjustability: Precise adjustments in all directions (height, lateral shift, and depth) for perfect screen alignment across video walls.
  • Multi-Display Capability: Supports seamless video wall integration for large-scale commercial display environments.
  • Built-In Rails: Pre-attached rails reduce installation time and ensure consistent alignment.

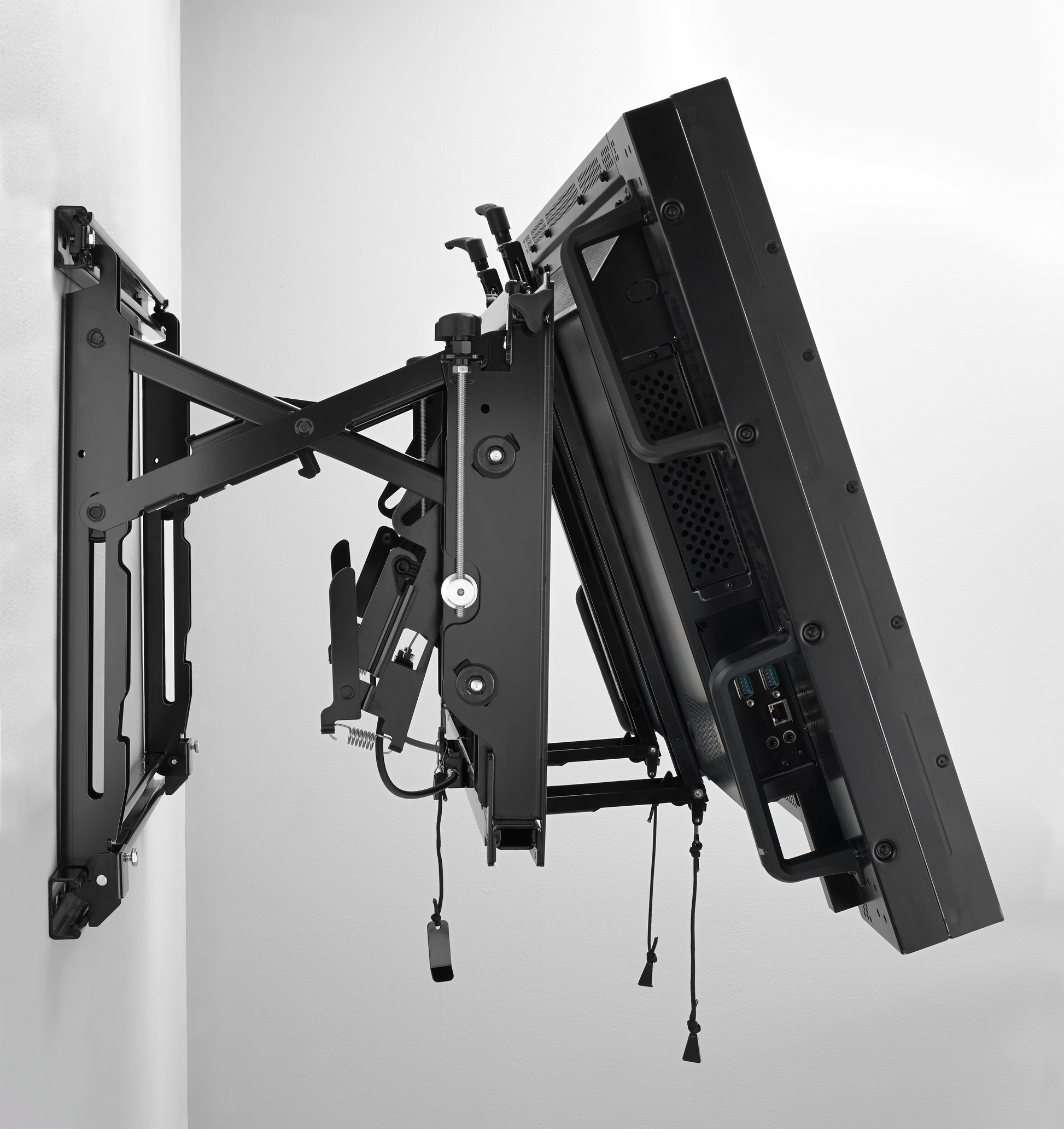

  • Serviceability: Pop-out mechanism allows quick and easy access to rear cabling and service areas.
  • High Weight Capacity: Supports displays up to 150 lbs (68 kg), suitable for a wide range of screen sizes.

Chief LVS1U is the go-to solution for professional video wall installations. Its rapid-install design, micro-adjustable precision, and built-in rail system make it an essential tool for AV professionals building large-scale, reliable display arrays.

In stock
£345.60

Secure Checkout

Warranty Protection

Hassle-Free Returns

Chief LVS1U is part of the ConnexSys™ Video Wall Mounting System, engineered to address the most common video wall challenges—speed, alignment, serviceability, and rigidity. The innovative system allows installers to level each row once using a strut channel and then connect multiple mounts, making it a fast and scalable solution for large video wall arrays.

LVS1U_3x2_flat



Key Features

  • Fast Installation: Uses strut channel to connect mounts for quick row alignment, eliminating the need to level each mount individually.
  • Micro-Adjustability: Precise adjustments in all directions (height, lateral shift, and depth) for perfect screen alignment across video walls.
  • Multi-Display Capability: Supports seamless video wall integration for large-scale commercial display environments.
  • Built-In Rails: Pre-attached rails reduce installation time and ensure consistent alignment.
  • Serviceability: Pop-out mechanism allows quick and easy access to rear cabling and service areas.
  • High Weight Capacity: Supports displays up to 150 lbs (68 kg), suitable for a wide range of screen sizes.

Specifications

Model LVS1U
Typical Screen Size 42" – 80" (1067 mm – 2032 mm)
Depth 4" (10.16 cm)
Minimum Depth 4" (101.6 mm)
Height 20.9" (53.09 cm)
Width 35.5" (90.17 cm)
Shipping Weight 44 lbs (19.96 kg)
Weight Capacity 150 lbs (68 kg)
Orientation Landscape
Number of Displays 1
Adjustability Extension, Micro-Adjustable, Height Adjustable, Lateral Shift
Application Wall
Color Black
Solution Type Universal
Special Features Multi-Display
Tilt +4° / -2.5°
VESA Mounting Pattern 200 x 100 mm – 700 x 400 mm
With Rails Yes
Certifications OSHPD, UL Listed

Chief LVS1U is the go-to solution for professional video wall installations. Its rapid-install design, micro-adjustable precision, and built-in rail system make it an essential tool for AV professionals building large-scale, reliable display arrays.
