SKU: MTM1U

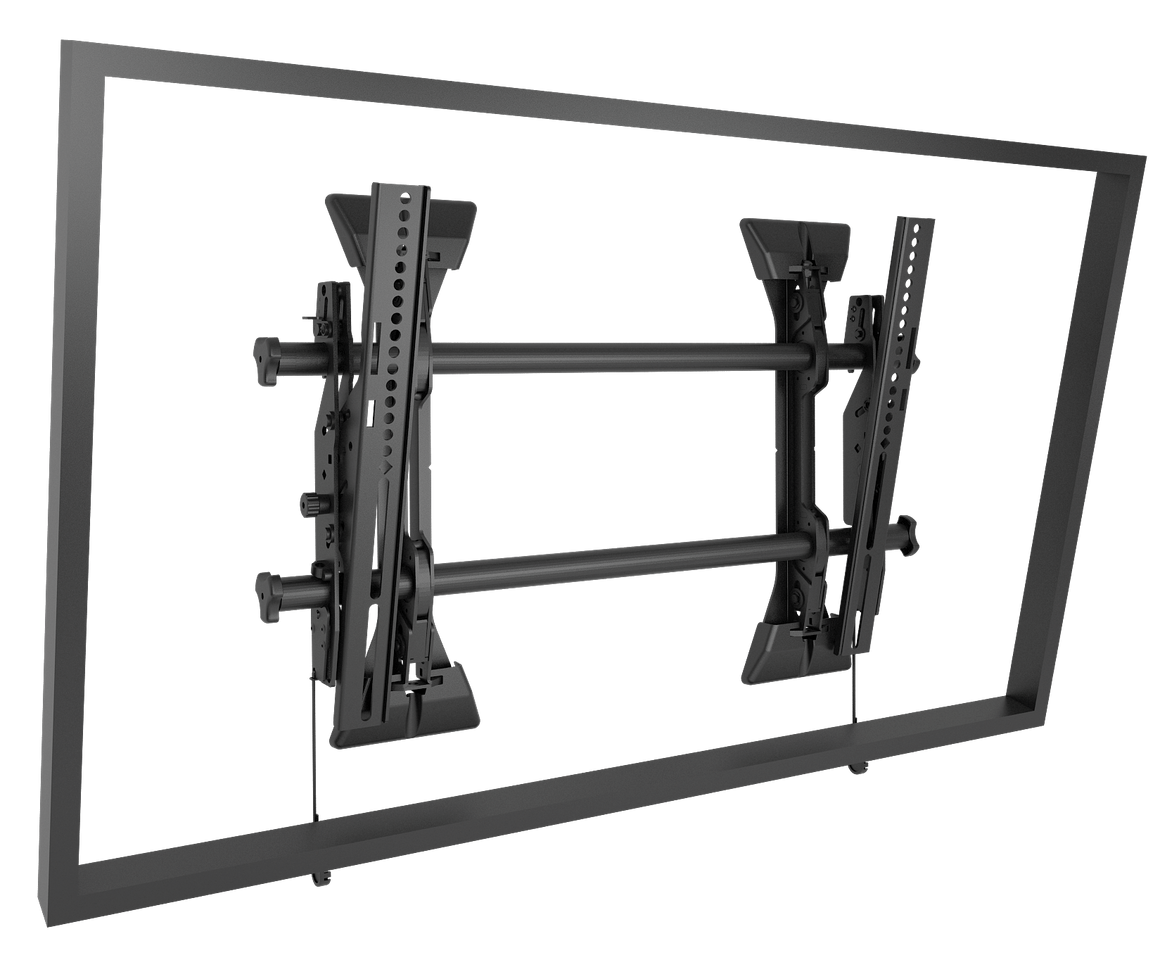

Chief MTM1U Medium Fusion® Micro-Adjustable Tilt Wall Mount

Chief

Fusion® Wall Tilt Series

Chief MTM1U is part of the Fusion® Tilt Wall Series, developed from direct installer feedback and on-site observations to deliver a stable, low-profile, and micro-adjustable mounting solution for medium-sized flat panel displays. Supporting screen sizes from 32" to 85", the MTM1U features Fusion® innovations such as Centerless™ Lateral Shift, ControlZone™ Height & Roll Adjustment, Centris® Tilt, and ClickConnect™ Latching — combining flexibility, fast setup, and robust display support.

Highlighted Features

  • ControlZone™ Adjustment: Provides post-installation fine-tuning of height and roll for the entire configuration, not just the display.
  • Centerless™ Lateral Shift: Allows up to 16" (406 mm) of lateral shift (8" left/right of uprights) for precise screen alignment. Dual-stud versions only.
  • Centris® Tilt: Enables effortless, tool-free tilt adjustment using the screen’s centre of gravity to maintain balance.
  • ClickConnect™: Audible, tool-free latching confirms when the screen securely engages with the mount. Includes cable stand access and magnetised cord storage.
  • Built-in Cable Stand: Allows easy access beneath the screen for streamlined cable routing.
  • Quick-Store Cords: Magnetised pull cords tuck neatly out of sight for a clean and professional finish.
  • Universal Compatibility: Designed to support a wide range of display sizes and VESA patterns.

Chief MTM1U is the ideal micro-adjustable wall mount for medium-sized displays in education, commercial, and public environments. Its smart design and installer-centric features ensure an efficient installation process and reliable long-term performance.

In stock
£126.62

Secure Checkout

Warranty Protection

Hassle-Free Returns

Chief MTM1U is part of the Fusion® Tilt Wall Series, developed from direct installer feedback and on-site observations to deliver a stable, low-profile, and micro-adjustable mounting solution for medium-sized flat panel displays. Supporting screen sizes from 32" to 85", the MTM1U features Fusion® innovations such as Centerless™ Lateral Shift, ControlZone™ Height & Roll Adjustment, Centris® Tilt, and ClickConnect™ Latching — combining flexibility, fast setup, and robust display support.

Key Features

  • ControlZone™ Adjustment: Provides post-installation fine-tuning of height and roll for the entire configuration, not just the display.
  • Centerless™ Lateral Shift: Allows up to 16" (406 mm) of lateral shift (8" left/right of uprights) for precise screen alignment. Dual-stud versions only.
  • Centris® Tilt: Enables effortless, tool-free tilt adjustment using the screen’s centre of gravity to maintain balance.
  • ClickConnect™: Audible, tool-free latching confirms when the screen securely engages with the mount. Includes cable stand access and magnetised cord storage.
  • Built-in Cable Stand: Allows easy access beneath the screen for streamlined cable routing.
  • Quick-Store Cords: Magnetised pull cords tuck neatly out of sight for a clean and professional finish.
  • Universal Compatibility: Designed to support a wide range of display sizes and VESA patterns.

Specifications

Model MTM1U
Typical Screen Size 32" – 85" (813 mm – 2165 mm)
Depth 2" (5.08 cm)
Height 17.3" (43.82 cm)
Width 25.8" (65.4 cm)
Manual Height Adjustment 1" (25.4 mm)
Minimum Depth 2" (5.08 cm)
Overall Dimensions 17.25" x 25.75" x 2" (432 x 654 x 51 mm)
Shipping Weight 19.3 lbs (8.76 kg)
Lateral Shift 12.9" (327 mm)
Weight Capacity 125 lbs (56.7 kg)
Orientation Landscape
Adjustability Height Adjustable, Lateral Shift, Micro-Adjustable, Tilt
Application Wall
Colour Black
Number of Displays 1
Solution Type Universal
Tilt +2° / -12°
VESA Mounting Pattern 100 x 100 mm – 850 x 400 mm
Certifications OSHPD, UL Listed

Chief MTM1U is the ideal micro-adjustable wall mount for medium-sized displays in education, commercial, and public environments. Its smart design and installer-centric features ensure an efficient installation process and reliable long-term performance.
