SKU: RLXT3

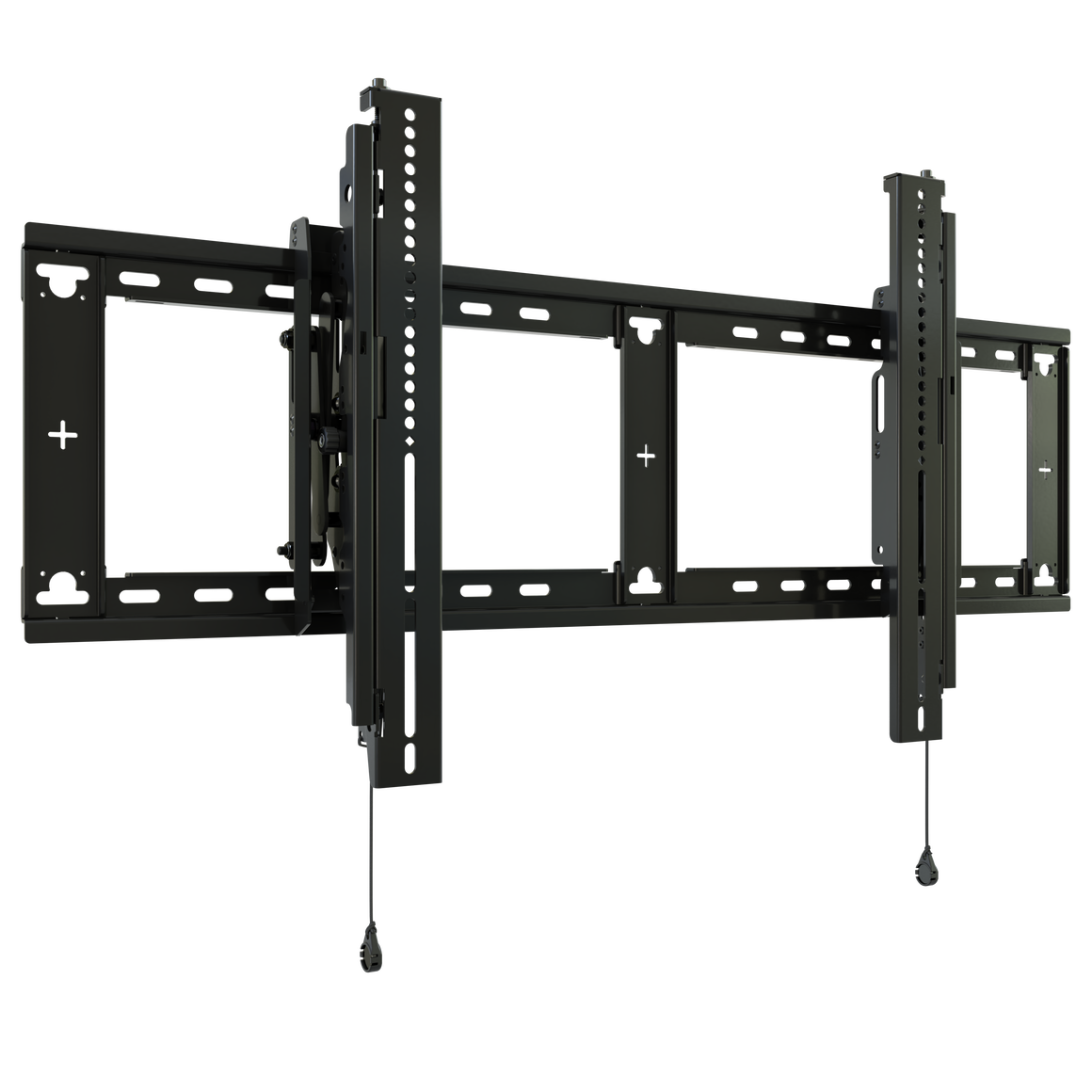

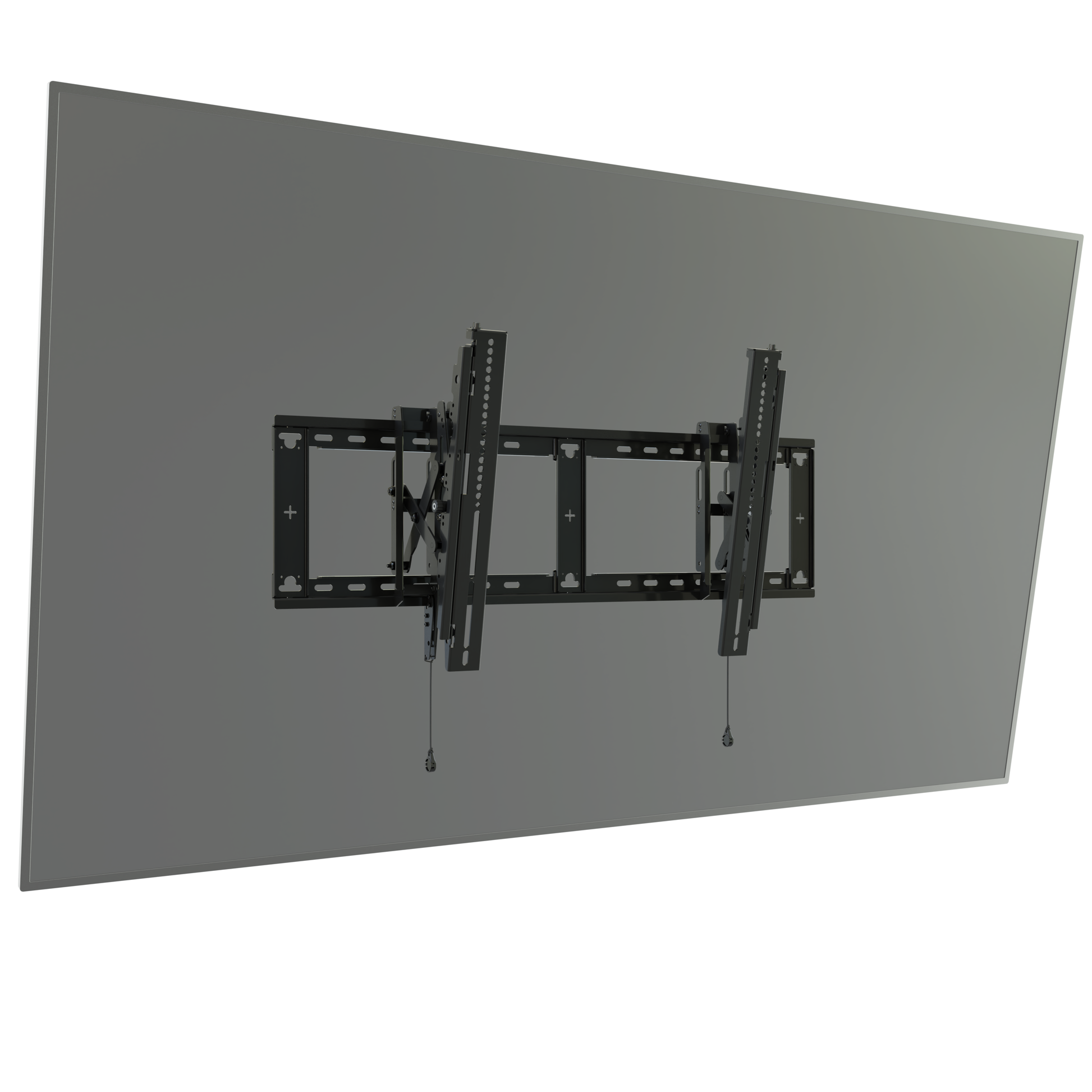

Chief RLXT3 Large Fit™ Extended Tilt Display Wall Mount

Chief

Fit™ Tilt Display Wall Mounts Series

Chief RLXT3 is part of the Fit™ Extended Tilt Display Wall Mount Series, designed for large flat panel displays ranging from 43" to 85". This robust mount supports display mounting patterns up to 863 x 450 mm and features a durable wall plate supporting up to 150 lbs (68 kg). It offers an extended reach of up to 6" (152 mm) from the wall and includes ±10° tilt capability, 0.75" (19 mm) post-installation leveling, and tool-free GlideLock™ lateral shift. UL and TUV safety compliance ensures dependable installation in commercial and professional settings.

Highlighted Features

  • Extended Low-Profile Design: Minimum depth of 2.67" (68 mm) and maximum extension up to 6" (152 mm) for flexible positioning.
  • Post-Install Leveling: 0.75" (19 mm) screw adjustment with included 10" (254 mm) ball end hex-key ensures precise leveling after installation.
  • Tilt Capability: Tilt the display ±10° forward or back for optimal viewing, especially on larger screens.
  • Open Wall Plate: Provides flexibility for positioning around power and data wall boxes.
  • High Compatibility: Supports display mounting patterns up to 863 x 450 mm and screen sizes from 43" to 85".
  • Heavy-Duty Wall Plate: Rigid structure supports displays up to 150 lbs (68 kg) and includes extra mounting slots for easier installation.
  • Toolless GlideLock™: Secures the display to the wall plate with lateral shift for precise alignment—no tools required.
  • Magnetic Quick-Store Pull Cords: Easy-to-access pull cords provide quick release and tuck away magnetically for a clean look.
  • Kickstand Feature: Allows easy access to cable connections during setup and servicing.
  • Theft Deterrence: Locking option available to secure the screen with a padlock or steel cable (not included).
  • Certifications: UL and TUV safety standard approved for professional-grade reliability.

Chief RLXT3 is a versatile solution ideal for AV professionals seeking an extended tilt mount that offers robust support and installer-friendly features. With its slim profile, wide compatibility, and enhanced adjustability, the RLXT3 delivers reliable performance for commercial, educational, and professional environments.

In stock
£68.74

Secure checkout

Friendly support

Hassle-free returns

Chief RLXT3 is part of the Fit™ Extended Tilt Display Wall Mount Series, designed for large flat panel displays ranging from 43" to 85". This robust mount supports display mounting patterns up to 863 x 450 mm and features a durable wall plate supporting up to 150 lbs (68 kg). It offers an extended reach of up to 6" (152 mm) from the wall and includes ±10° tilt capability, 0.75" (19 mm) post-installation leveling, and tool-free GlideLock™ lateral shift. UL and TUV safety compliance ensures dependable installation in commercial and professional settings.

Key Features

  • Extended Low-Profile Design: Minimum depth of 2.67" (68 mm) and maximum extension up to 6" (152 mm) for flexible positioning.
  • Post-Install Leveling: 0.75" (19 mm) screw adjustment with included 10" (254 mm) ball end hex-key ensures precise leveling after installation.
  • Tilt Capability: Tilt the display ±10° forward or back for optimal viewing, especially on larger screens.
  • Open Wall Plate: Provides flexibility for positioning around power and data wall boxes.
  • High Compatibility: Supports display mounting patterns up to 863 x 450 mm and screen sizes from 43" to 85".
  • Heavy-Duty Wall Plate: Rigid structure supports displays up to 150 lbs (68 kg) and includes extra mounting slots for easier installation.
  • Toolless GlideLock™: Secures the display to the wall plate with lateral shift for precise alignment—no tools required.
  • Magnetic Quick-Store Pull Cords: Easy-to-access pull cords provide quick release and tuck away magnetically for a clean look.
  • Kickstand Feature: Allows easy access to cable connections during setup and servicing.
  • Theft Deterrence: Locking option available to secure the screen with a padlock or steel cable (not included).
  • Certifications: UL and TUV safety standard approved for professional-grade reliability.

Specifications

Model RLXT3
Typical Screen Size 43"–85" (1092 mm – 2159 mm)
Depth 2.67" (68 mm)
Height 19.18" (487 mm)
Width 38" (965 mm)
Manual Height Adjustment 0.75" (19.05 mm)
Minimum Depth 2.67" (6.78 cm)
Maximum Extension 6" (152.4 mm)
Overall Dimensions 19.18" x 38" x 2.67" (487 x 965 x 68 mm)
Shipping Weight 21.2 lbs (9.6 kg)
Weight Capacity 150 lbs (68 kg)
Wall Stud Compatibility Dual Stud
Adjustability Extension, Tilt
Application Wall
Color Black
Orientation Landscape
Solution Type Universal
Tilt ±10°
VESA Mounting Pattern 100 x 100 mm up to 863 x 450 mm

Chief RLXT3 is a versatile solution ideal for AV professionals seeking an extended tilt mount that offers robust support and installer-friendly features. With its slim profile, wide compatibility, and enhanced adjustability, the RLXT3 delivers reliable performance for commercial, educational, and professional environments.
