SKU: TS325TU

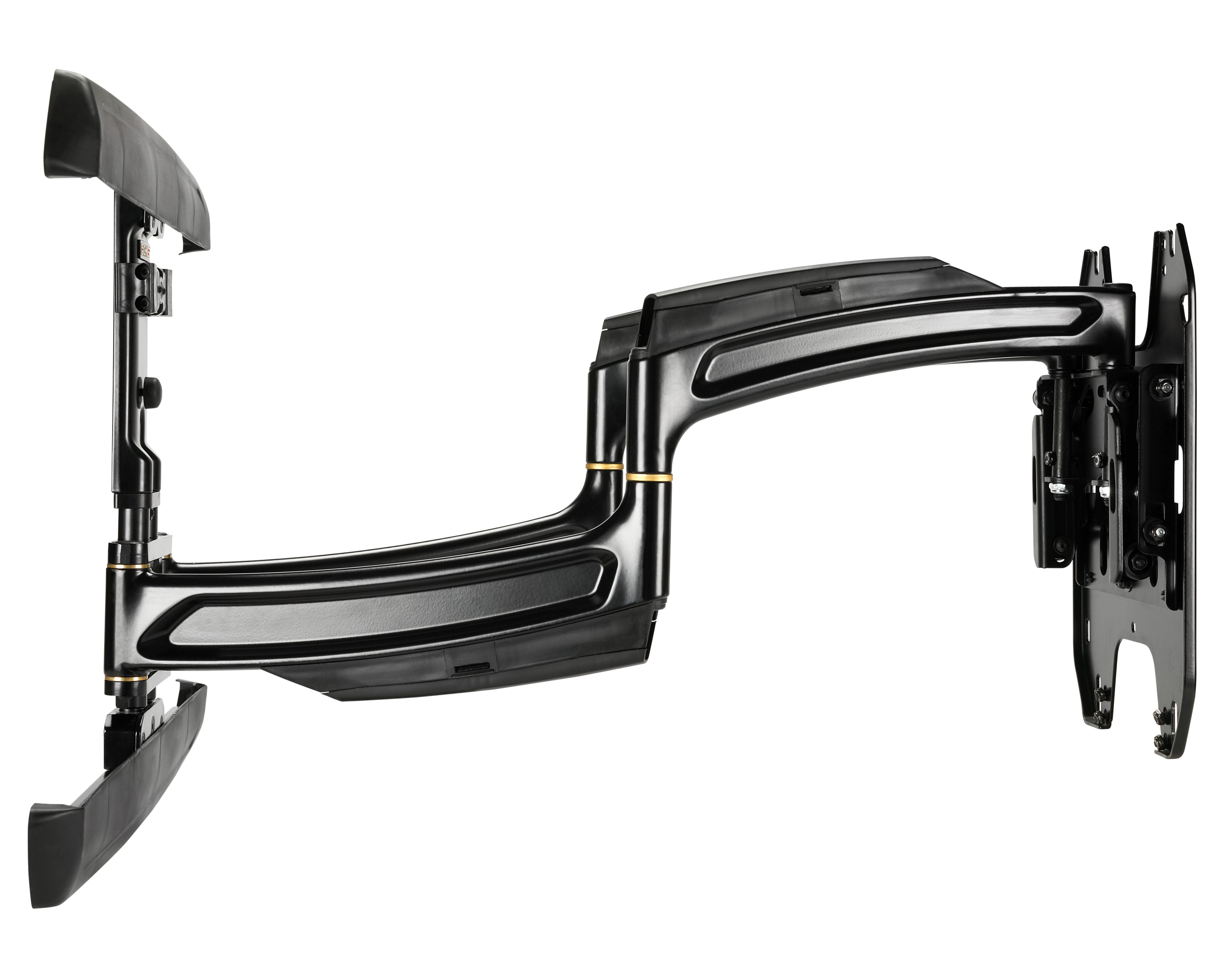

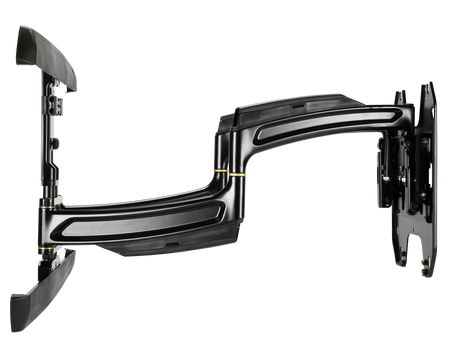

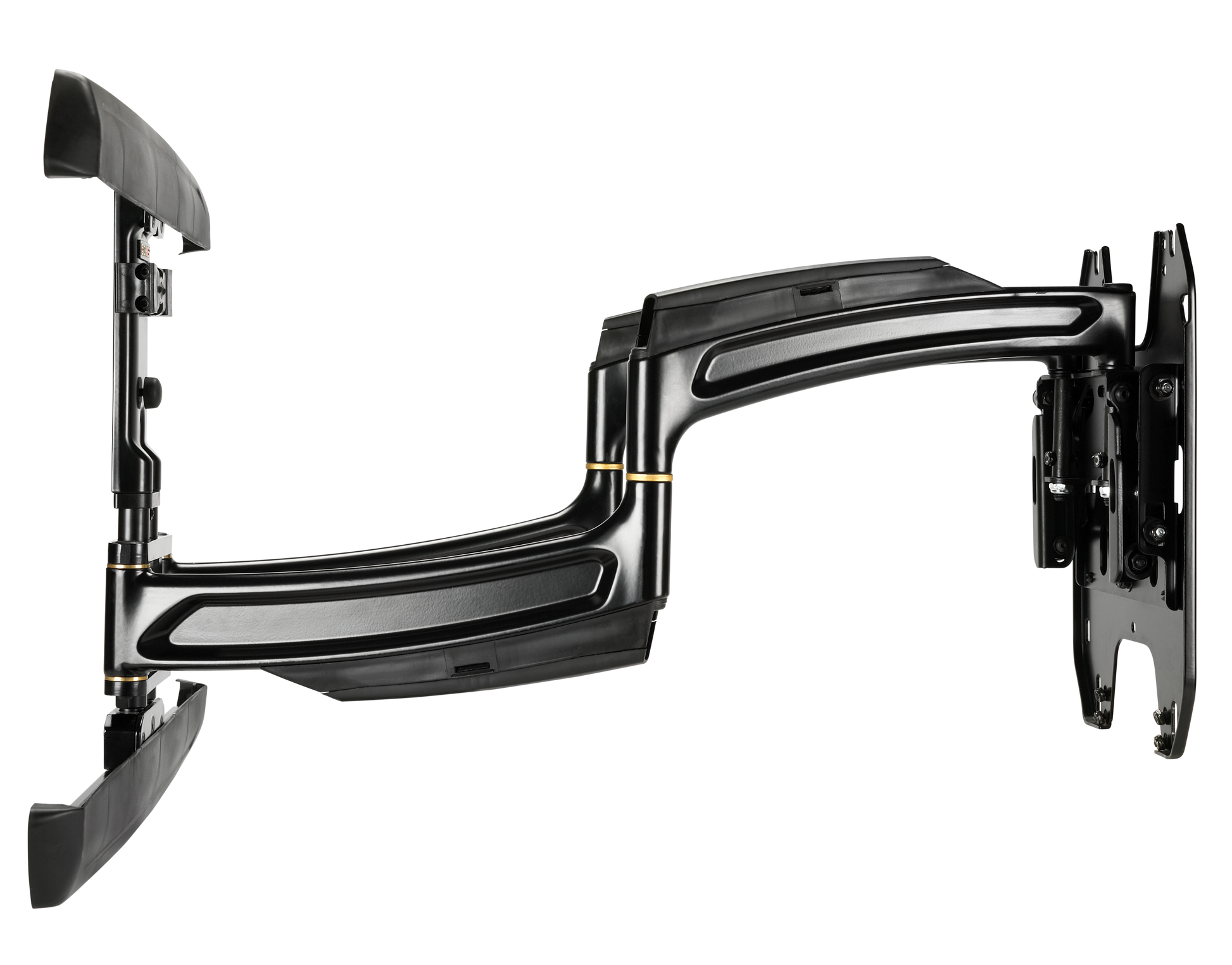

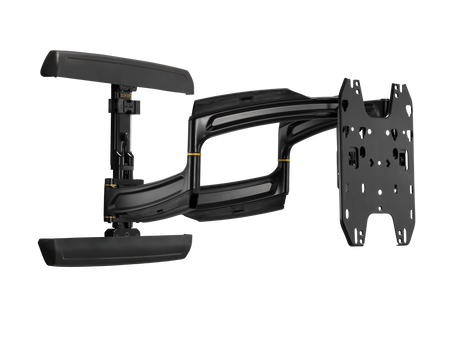

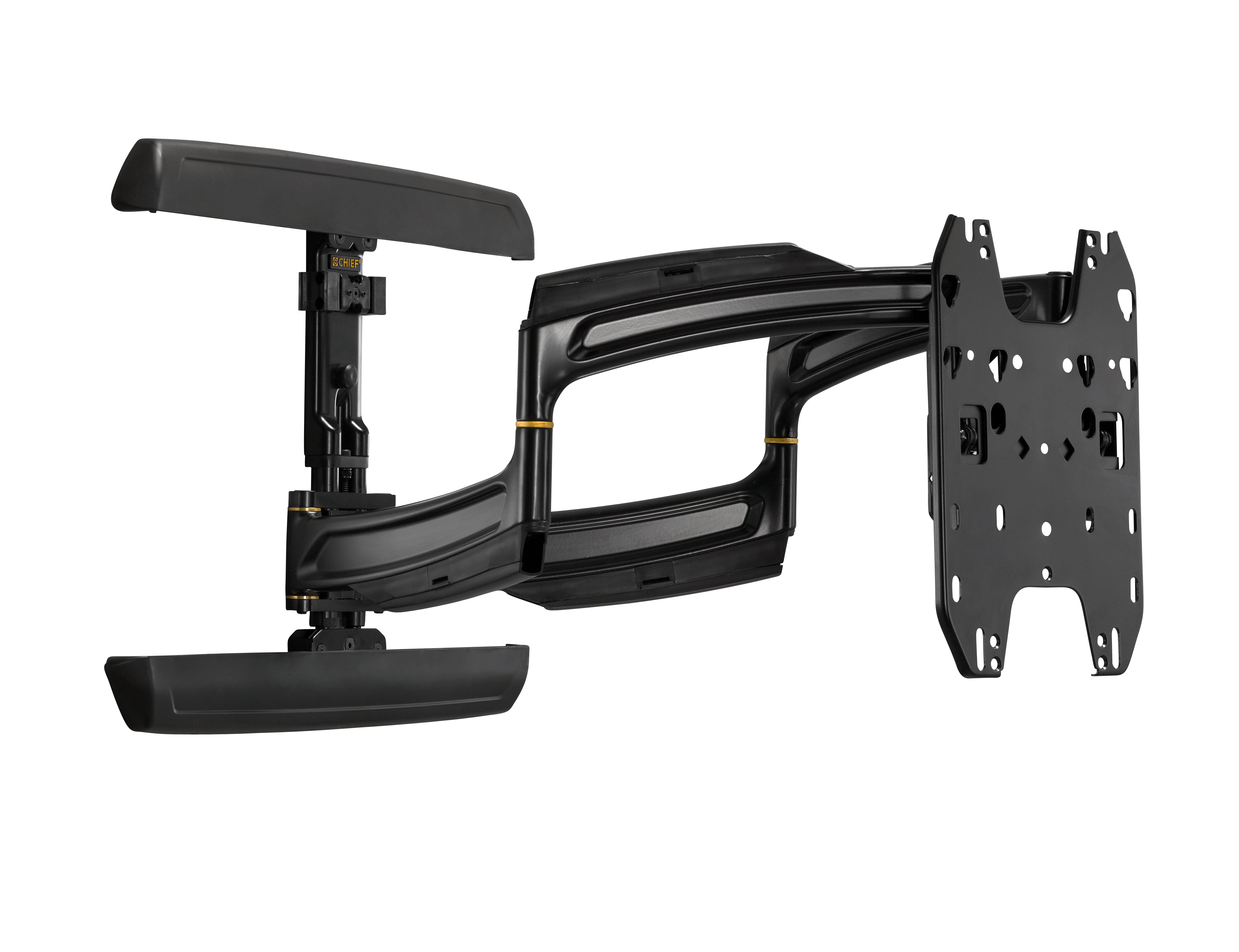

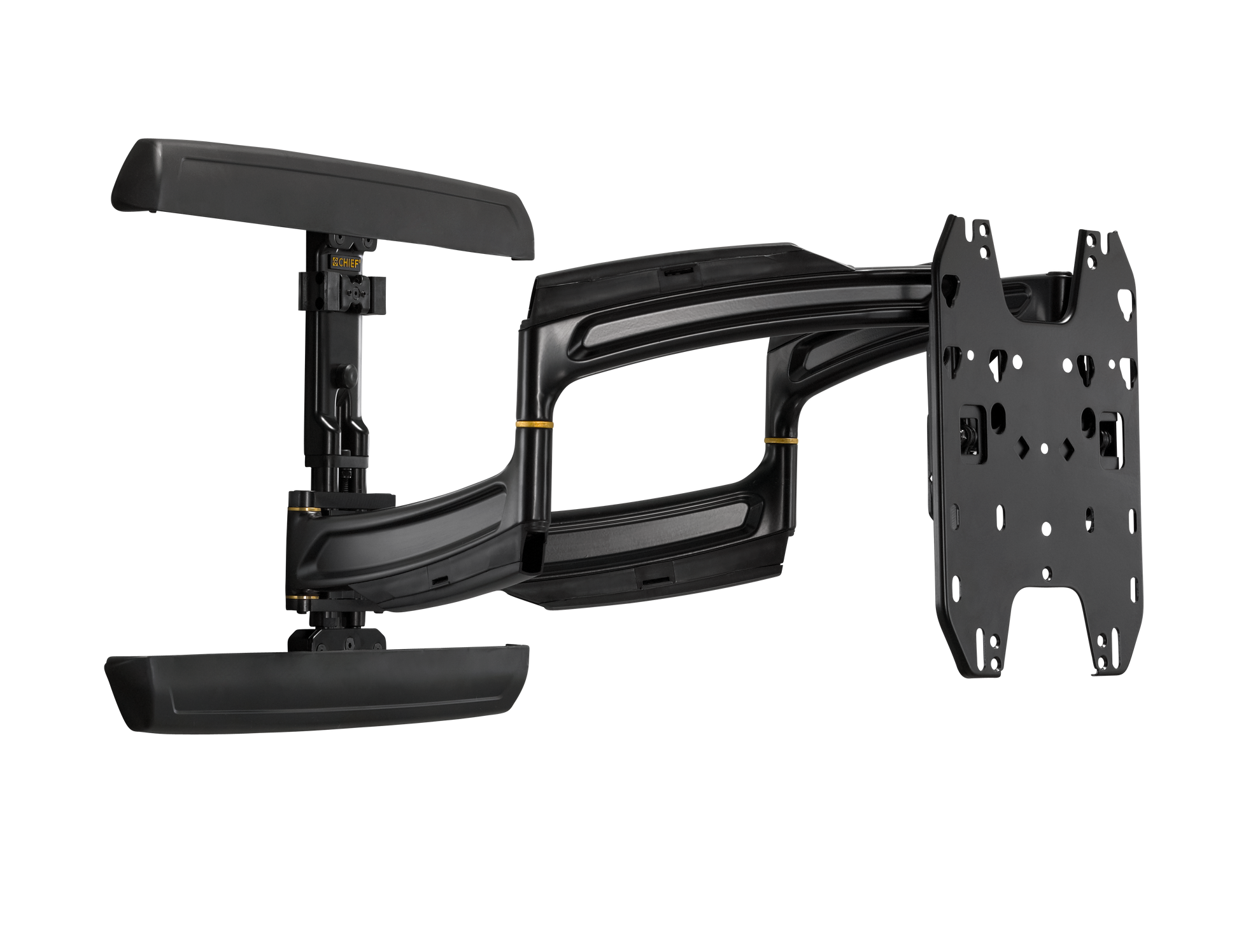

Chief TS325TU Medium Thinstall™ Dual Swing Arm Wall Display Mount - 25 Inch Extension

Chief

Thinstall™ Swing Arm Display Mount Series

Chief TS325TU is part of the Thinstall™ Swing Arm Display Mount Series, purpose-built for ultra-slim, full-motion wall mounting of medium flat panel displays. Designed to support screen sizes from 32" to 65", the TS325TU extends up to 25" (635 mm) while maintaining an ultra-low profile of just 1.8" (46 mm). It features tool-free fingertip tilt, Centerless™ lateral shift, and built-in cable management—ideal for commercial, education, and digital signage installations where space and aesthetics matter.

In-wall installation available when TA500 is purchased with the mount.

Highlighted Features

  • Full Extension: Dual swing arms extend the display up to 25" (635 mm) for flexible viewing angles.
  • Ultra Low-Profile: Collapses to just 1.8" (46 mm) from the wall for a sleek, minimal footprint.
  • ControlZone™ Height Adjustment: Allows precise post-installation height tuning up to 1" (25 mm).
  • Centerless™ Lateral Shift: Enables up to 15" (381 mm) of lateral movement for perfect screen positioning.
  • Centris® Tilt: Provides up to 15° of fingertip tilt to fine-tune the viewing experience.
  • Integrated Cable Management: Features tool-free, enclosed cable routing and open wall plate for easy access to power and signal paths.

Chief TS325TU is the go-to choice for AV professionals who need a robust, low-profile swing arm mount for medium displays. Its smooth extension, precise positioning, and clean aesthetic deliver top performance for modern commercial installations.

In stock
£284.60

Secure Checkout

Warranty Protection

Hassle-Free Returns

Chief TS325TU is part of the Thinstall™ Swing Arm Display Mount Series, purpose-built for ultra-slim, full-motion wall mounting of medium flat panel displays. Designed to support screen sizes from 32" to 65", the TS325TU extends up to 25" (635 mm) while maintaining an ultra-low profile of just 1.8" (46 mm). It features tool-free fingertip tilt, Centerless™ lateral shift, and built-in cable management—ideal for commercial, education, and digital signage installations where space and aesthetics matter.

In-wall installation available when TA500 is purchased with the mount.

Key Features

  • Full Extension: Dual swing arms extend the display up to 25" (635 mm) for flexible viewing angles.
  • Ultra Low-Profile: Collapses to just 1.8" (46 mm) from the wall for a sleek, minimal footprint.
  • ControlZone™ Height Adjustment: Allows precise post-installation height tuning up to 1" (25 mm).
  • Centerless™ Lateral Shift: Enables up to 15" (381 mm) of lateral movement for perfect screen positioning.
  • Centris® Tilt: Provides up to 15° of fingertip tilt to fine-tune the viewing experience.
  • Integrated Cable Management: Features tool-free, enclosed cable routing and open wall plate for easy access to power and signal paths.

Specifications

Model TS325TU
Typical Screen Size 32" – 65" (813 mm – 1651 mm)
Minimum Depth 1.8" (46 mm)
Maximum Extension 25" (635 mm)
Lateral Shift 15" (381 mm)
Tilt -15°
Weight Capacity 75 lbs (34 kg)
Orientation Landscape
Adjustability Extension, Swivel, Tilt, Micro-Adjustable, Height Adjustable, Lateral Shift
Post-Installation Levelling Roll Yes
Application Wall
Colour Black
Solution Type Universal
VESA Mounting Pattern 100 x 100 mm – 600 x 400 mm
Certifications OSHPD, UL Listed

Chief TS325TU is the go-to choice for AV professionals who need a robust, low-profile swing arm mount for medium displays. Its smooth extension, precise positioning, and clean aesthetic deliver top performance for modern commercial installations.
