SKU: XTM1U

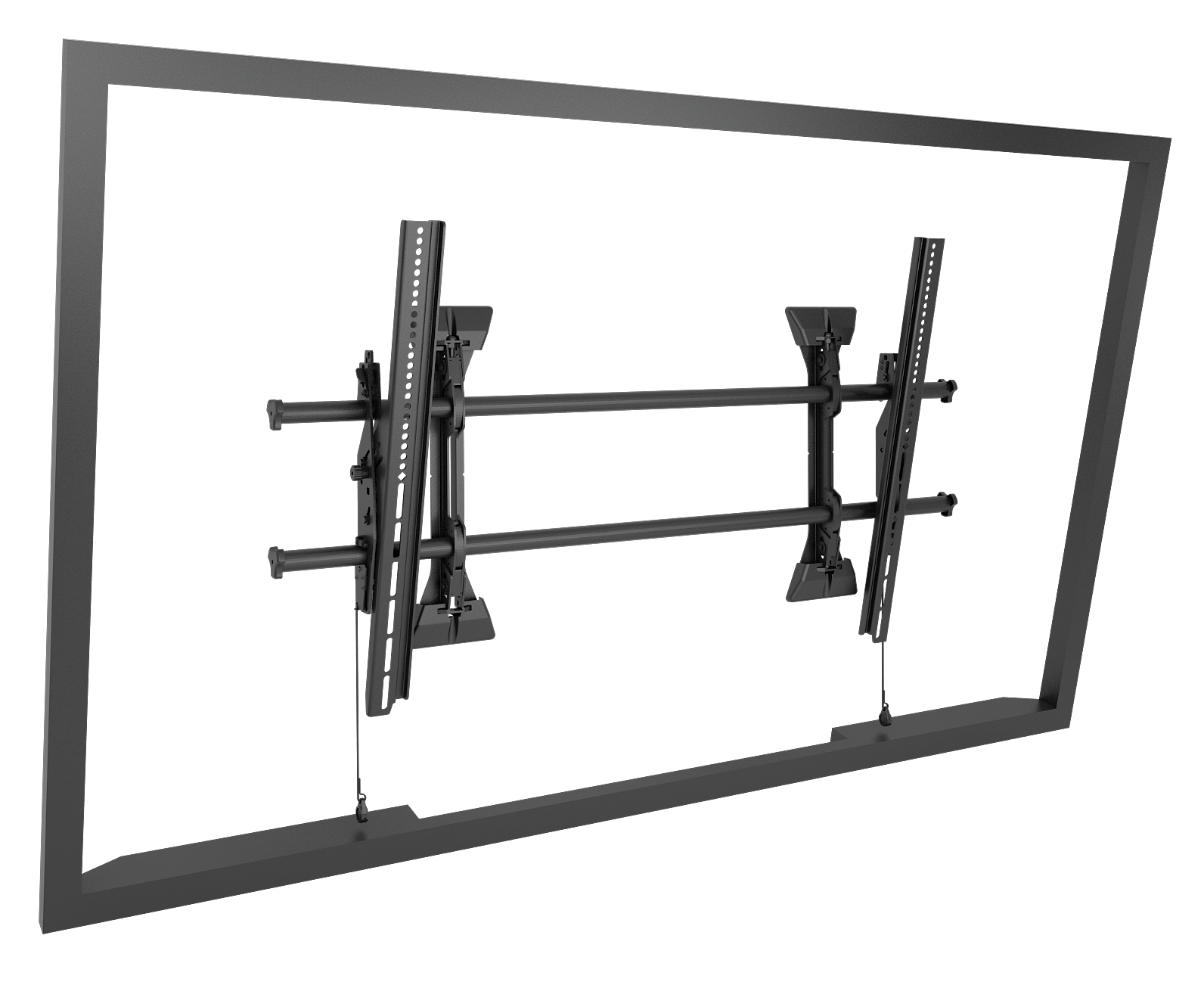

Chief XTM1U Extra-Large Fusion® Micro-Adjustable Tilt Wall Mount

Chief

Fusion® Wall Tilt Series

Chief XTM1U is part of the Fusion® Tilt Wall Series, developed with installer feedback to provide a stable, low-profile, and highly adjustable mounting solution for extra-large flat panel displays. Supporting screen sizes from 55" to 100", the XTM1U includes Fusion® features such as Centerless™ Lateral Shift, ControlZone™ Height & Roll Adjustment, Centris® Tilt, and ClickConnect™ Latching, delivering enhanced stability, rapid installation, straightforward cable management, and secure display mounting.

Highlighted Features

  • ControlZone™ Adjustment: Allows for post-installation fine-tuning of height and levelling for the entire configuration, not just the display.
  • Centerless™ Lateral Shift: Provides up to 16" (406 mm) of post-installation lateral shift (8" left/right of uprights) for precise screen alignment. Dual-stud versions only.
  • Centris® Tilt: Enables effortless, tool-free tilt adjustment using the centre of gravity to balance the screen.
  • ClickConnect™: Tool-free latching system gives audible feedback when the screen securely engages with the mount.
  • Built-in Cable Stand: Allows easy access beneath the screen to simplify cable routing.
  • Quick-Store Cords: Magnetic ends keep pull cords neatly stored and easily accessible.
  • Flexible Stud Mounting: Compatible with wall studs spaced 24" to 42" (610 mm – 1067 mm).
  • Universal Compatibility: Accommodates a broad range of large displays and VESA mounting patterns.

Chief XTM1U is the ideal tilt wall mount for extra-large displays in commercial, corporate, retail, or educational environments. Designed for quick setup and long-term stability, it offers exceptional value to AV professionals seeking a robust, installer-friendly mounting solution.

In stock
£210.00

Secure checkout

Friendly support

Hassle-free returns

Chief XTM1U is part of the Fusion® Tilt Wall Series, developed with installer feedback to provide a stable, low-profile, and highly adjustable mounting solution for extra-large flat panel displays. Supporting screen sizes from 55" to 100", the XTM1U includes Fusion® features such as Centerless™ Lateral Shift, ControlZone™ Height & Roll Adjustment, Centris® Tilt, and ClickConnect™ Latching, delivering enhanced stability, fast installation, straightforward cable management, and secure display mounting.

Key Features

  • ControlZone™ Adjustment: Allows for post-installation fine-tuning of height and levelling for the entire configuration, not just the display.
  • Centerless™ Lateral Shift: Provides up to 16" (406 mm) of post-installation lateral shift (8" left/right of uprights) for precise screen alignment. Dual-stud versions only.
  • Centris® Tilt: Enables effortless, tool-free tilt adjustment using the centre of gravity to balance the screen.
  • ClickConnect™: Tool-free latching system gives audible feedback when the screen securely engages with the mount.
  • Built-in Cable Stand: Allows easy access beneath the screen to simplify cable routing.
  • Quick-Store Cords: Magnetic ends keep pull cords neatly stored and easily accessible.
  • Flexible Stud Mounting: Compatible with wall studs spaced 24" to 42" (610 mm – 1067 mm).
  • Universal Compatibility: Accommodates a broad range of large displays and VESA mounting patterns.

Specifications

Model XTM1U
Typical Screen Size 55" - 100" (1397 mm - 2540 mm)
Depth 2.5" (6.35 cm)
Height 24.5" (62.23 cm)
Width 42.8" (108.58 cm)
Manual Height Adjustment 1" (25.4 mm)
Max Screen Size 15.24 cm (6 in)
Shipping Weight 27.2 lbs (12.36 kg)
Lateral Shift 21.4" (542 mm)
Wall Stud Compatibility 24" - 42" (610 mm – 1067 mm)
Weight Capacity 250 lbs (113.4 kg)
Orientation Landscape
Adjustability Height Adjustable, Lateral Shift, Micro-Adjustable, Tilt
Application Wall
Colour Black
Solution Type Universal
Tilt +5° / -12°
VESA Mounting Pattern 100 x 100 mm – 1070 x 800 mm
Certifications OSHPD, TUV, UL Listed

Chief XTM1U is the ideal tilt wall mount for extra-large displays in commercial, corporate, retail, or educational environments. Designed for fast setup and long-term stability, it provides outstanding value to AV professionals seeking dependable and adaptable display solutions.
