SKU: DGE-100

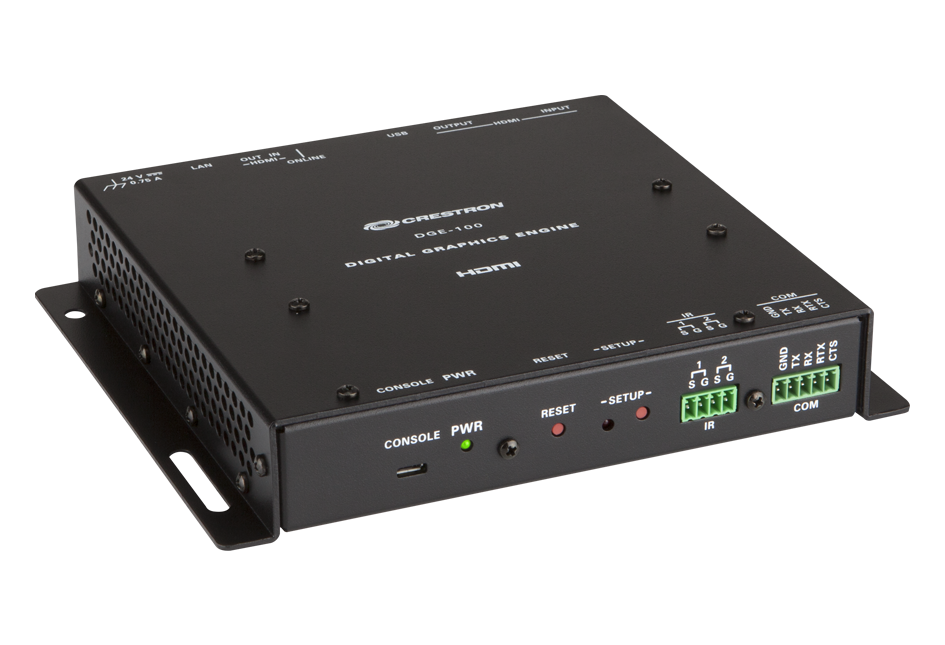

Crestron DGE-100

Crestron

Digital Graphics Engine 100

The Crestron DGE-100 is a versatile digital graphics engine that transforms HD touch screen displays into advanced control systems. It features Smart Graphics® technology, enabling a dynamic interface for controlling audio, video, lighting, shades, HVAC, security, and more. Designed for dual-window video display, interactive annotation, audio feedback, and web browsing, its compact design allows discreet installation behind displays, under tables, or within equipment racks.

Highlighted Features

  • Touch Screen Interface: Compatible with the Crestron TSD 2220 HD touch screen and third-party USB HID touch screens, supporting fluid gesture controls and customizable user interfaces.
  • On-Screen Menu (OSM): Provides an alternative control interface on video displays, navigable via remote or USB mouse, with fully customizable menus for non-touch screen applications.
  • HDMI Input and Output: Connects HD video sources, including AirMedia® gateways, with support for resolutions up to 1080p50.
  • HD Streaming Video: Receives live video from IP cameras and streaming encoders with native H.264 and MJPEG support.
  • Smart Graphics® Technology: Delivers dynamic graphical interfaces with animated feedback, fluid gestures, and embedded apps for a superior user experience.
  • Built-In Annotation: Enables real-time collaboration by allowing users to draw or write over video or whiteboard content, with support for remote multi-screen annotation.
  • Web Browser Integration: Provides access to web-based content and device control, eliminating the need for separate devices.
  • Enterprise-Grade Security: Ensures robust protection with 802.1X authentication, TLS encryption, and Active Directory® integration.

The Crestron DGE-100 offers a robust solution for modern control and collaboration needs. With advanced features, enterprise security, and a compact design, it is ideal for home, corporate, and government applications, enhancing functionality and user experience.

In stock
£1,388.40

Secure checkout

Friendly support

Hassle-free returns

The Crestron DGE-100 is a powerful digital graphics engine that transforms HD touch screen displays into advanced Crestron control systems. Designed with Smart Graphics® technology, it provides an intuitive and visually engaging interface for managing audio, video, lighting, shades, HVAC, security, and other system features. The DGE-100 is ideal for dual-window video display, interactive annotation, web browsing, and audio feedback. Its compact, low-profile design allows for discreet installation behind displays, under tables, or in lecterns and equipment racks.

Key Features

  • Touch Screen Graphics Engine: Supports the Crestron® TSD-2220 HD touch screen and third-party USB HID touch screens, offering fluid gesture controls and animated feedback through Smart Graphics® technology.
  • OSM (On-Screen Menu) Capability: Provides a fully customisable control menu displayed on a television or video screen, navigable via a remote or mouse, ideal for scenarios without a touch screen.
  • HD Streaming Video: Displays live video from IP cameras or streaming encoders, with support for H.264 and MJPEG formats.
  • HDMI® Input and Output: Connects high-definition video sources, including AirMedia® wireless presentation gateways, with support for resolutions up to 1080p50/60 and WUXGA.
  • Smart Graphics® Technology: Enables rich, interactive user interfaces with dynamic gestures, sliders, widgets, and embedded apps.
  • Built-In Annotation: Enhances collaboration by allowing users to write or draw on the screen over video or whiteboard displays.
  • Web Browser Integration: Facilitates access to online content and device control through a built-in web browser.
  • Compact Installation: Easily mounted on walls, ceilings, or under tables for a clean and unobtrusive setup.
  • Enterprise-Grade Security: Features 802.1X authentication, TLS encryption, Active Directory® integration, and XiO Cloud® for provisioning and management.

Specifications

Graphics Engine Smart Graphics® technology, scalable dual streaming video, multilingual annotation, and web browser integration
Languages Supports multiple languages for Smart Graphics®, on-screen keyboard, and web browsing
Memory 2 GB DDR3-SDRAM, 4 GB Flash, 1 GB max project size
Video Input/Output Input: HDMI (DVI and DisplayPort™ compatible), resolutions up to 1920x1080p50
Output: HDMI (DVI compatible), resolutions up to 1920x1080p50
Input Resolutions 640x480@60Hz, 720x480@60Hz (480p), 720x576@50Hz (576p), 800x600@60Hz, 848x480@60Hz, 852x480@60Hz, 854x480@60Hz, 1024x768@60Hz, 1024x852@60Hz, 1024x1024@60Hz, 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1365x1024@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@24Hz (1080p24), 1920x1080@25Hz (1080p25), 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60), plus any other resolution allowed by HDMI up to 148MHz pixel clock. Note: Interlaced video is not supported
Output Resolutions 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz1, 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x800@60Hz1, 1366x768@60Hz1, 1440x900@60Hz1, 1600x900@60Hz2, 1600x1200@60Hz, 1680x1050@60Hz2, 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60), 1920x1200@60Hz. [Note:1 The output resolution is with or without reduced blanking. 2 The output resolution is with reduced blanking only.]
Streaming Decoder H.264, MPEG-4, AAC stereo, up to 25 Mbps, up to 1080p50
Audio HDMI input/output, 2-channel LPCM, Audio Feedback Format MP3
Connectivity Ethernet, HDMI, RS-232, IR/serial, USB HID, and PoE (802.3at Type 1 compliant)
Power Powered via PoE or included power pack (8 W typical consumption)
Environmental Temperature: 32°F to 104°F (0°C to 40°C)
Humidity: 10% to 90% RH (non-condensing)
Heat Dissipation: 27.3 BTU/hr
Dimensions Height: 6.42 in. (163 mm)
Width: 7.40 in. (188 mm)
Depth: 1.35 in. (35 mm)
Weight 19.6 oz (554 g)

The Crestron DGE-100 delivers robust performance, advanced features, and enterprise-grade security to meet the demands of modern control, collaboration, and display solutions. Whether used in a home, corporate, or government environment, the DGE-100 enhances user experience and operational efficiency with its versatile and compact design.
