SKU: IV-CAM-I20-B

Crestron IV-CAM-I20

Crestron

1 Beyond i20 Intelligent PTZ Camera, 20x Optical Zoom

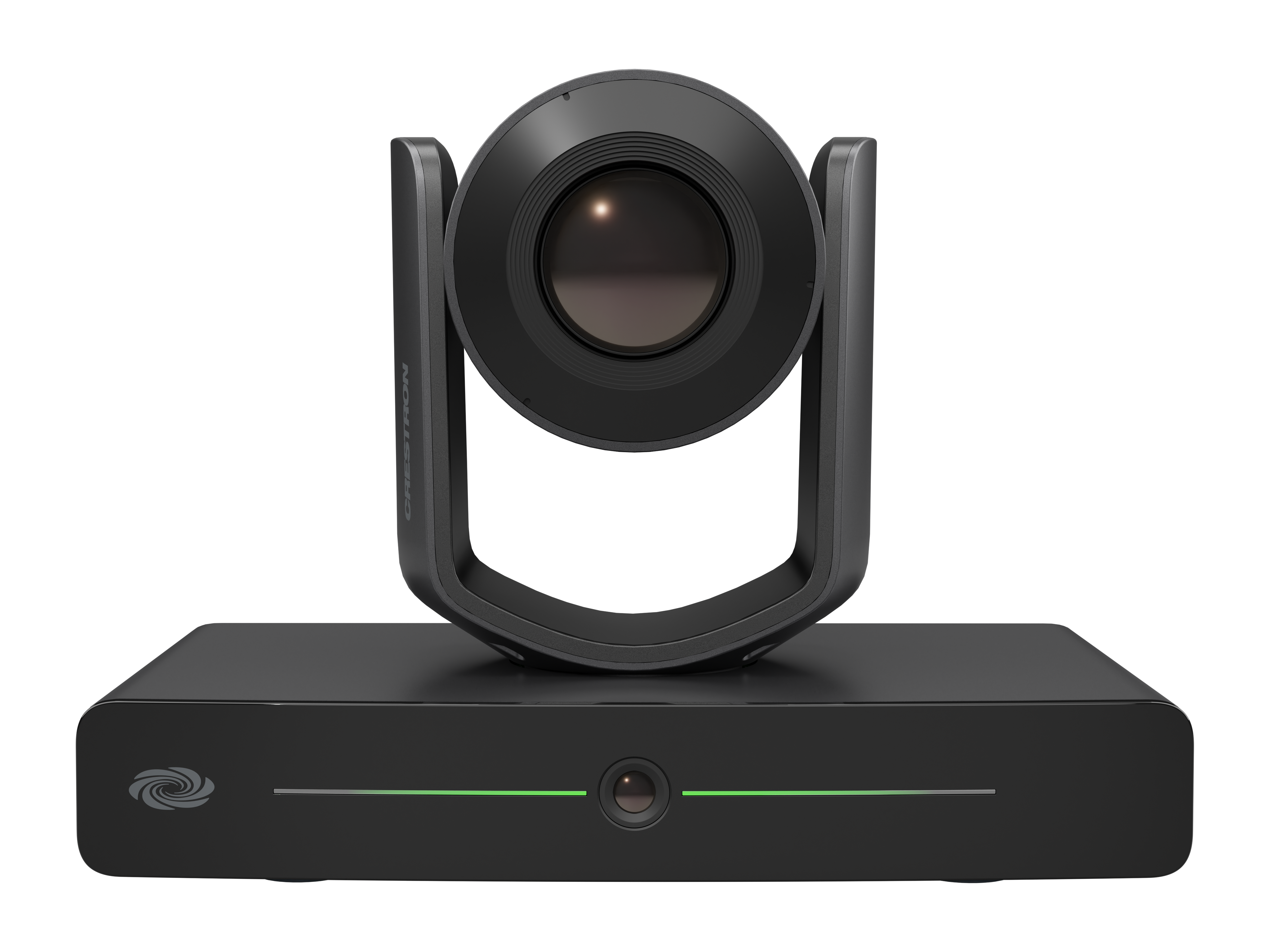

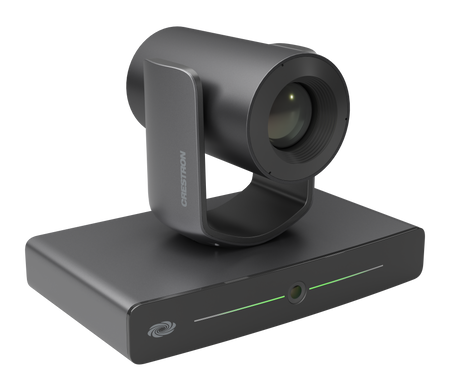

The Crestron IV-CAM-I20-B is a high-quality intelligent PTZ camera designed for advanced video conferencing and tracking in large to extra-large meeting spaces, training rooms, and classrooms. Leveraging visual AI, the camera automatically tracks or frames presenters and groups, ensuring precise and seamless coverage for professional applications. Its dual-camera design, including a wide-angle reference camera and PTZ camera, delivers smooth and accurate tracking without requiring an external system. Available in Moon Gray and Bright White colours, it is designed to suit a variety of environments.

Highlighted Features

  • Presenter Tracking: Utilises visual AI to smoothly track a single presenter within a configurable presentation area. Blocking Zones prevent tracking of unintended subjects or displays. The recommended tracking range is 4.6m (15ft) to 15m (50ft).
  • Group Tracking: Tracks multiple presenters using visual AI, keeping all participants in the frame within large to extra-large spaces such as training rooms and classrooms. The wide-angle reference camera continuously detects participants entering or leaving the presentation area, and the PTZ camera adjusts accordingly.
  • Preset Zones: Visual AI frames a dedicated area of the room. When a participant enters the Preset Zone, the camera automatically displays that area, regardless of other participants' actions.
  • Automate VX Compatible: Integrates with Crestron's Automate VX multi-camera systems for dynamic speaker tracking. The camera provides presenter tracking and active participant close-ups within a range of 15m (50ft).
  • Certified for Conferencing Software: Compatible with Microsoft Teams® and Zoom Rooms® via the rear USB port, enabling direct integration with conferencing platforms.
  • High-Quality Video: Equipped with a Sony® CMOS sensor supporting resolutions up to 1080p60, ensuring sharp, professional video quality.
  • 20x Optical Zoom: Offers precise zooming capabilities for tracking distances up to 15m (50ft).
  • Networked Power, Viewing, and Control: Simplifies installation with a single Ethernet cable providing PoE power, NDI®|HX video, viewing, and control.
  • Flexible Mounting Options: Ships with a colour-matched IVA-WMT-BRKT Wall Mount Bracket and is compatible with the IV-CAMA-UMB Universal Mounting Bracket and IVA-CMT-BRKT Mount Ceiling Bracket (both sold separately).
  • Advanced Configuration: Easily configured and managed using the Crestron 1 Beyond Camera Manager software for an optimised user experience.

The Crestron IV-CAM-I20-B combines advanced visual AI technology, high-definition video, and flexible integration options to deliver exceptional video conferencing and tracking capabilities. Its compatibility with Automate VX systems and leading conferencing software ensures reliable, high-performance collaboration solutions for modern meeting and training environments.

In stock
£6,304.80

Secure checkout

Friendly support

Hassle-free returns

The Crestron IV-CAM-I20 is a high-quality intelligent PTZ camera designed to provide precise video tracking for large to extra-large meeting spaces, classrooms, and training rooms. Powered by advanced visual AI, the camera automatically tracks and frames presenters or groups without requiring an external system. With dual-camera technology, the wide-angle reference camera directs the PTZ camera, delivering smooth and accurate tracking for professional video conferencing and recording applications.

Key Features

  • Presenter Tracking: Utilises visual AI to smoothly track a single moving presenter within a designated presentation area. Blocking Zones prevent tracking of unintended subjects or displays. The tracking range is 4.6m (15ft) to 15m (50ft).
  • Group Tracking: Tracks multiple presenters in large spaces using visual AI, keeping all participants in frame as they move around the room.
  • Preset Zones: Automatically frames a dedicated area of the room using visual AI. When a participant enters the Preset Zone, the camera displays the area regardless of who is speaking.
  • High-Quality Video: Equipped with a Sony® CMOS sensor, the camera supports up to 1080p60 resolution for sharp, professional-grade video quality.
  • Automate VX Compatible: Works with Crestron Automate VX multi-camera systems for dynamic speaker tracking and room coverage up to 15m (50ft).
  • Certified for Conferencing Software: Compatible with Microsoft Teams® and Zoom Rooms®, with USB connectivity for seamless integration.
  • Networked Power and Control: Simplifies installation with a single Ethernet cable providing PoE power, NDI®|HX video, and control.
  • Flexible Mounting Options: Ships with a colour-matched IVA-WMT-BRKT Wall Mount Bracket and is compatible with the IV-CAMA-UMB Universal Mounting Bracket and IVA-CMT-BRKTJ Mount Ceiling Bracket (sold separately).
  • 20x Optical Zoom: Provides precise zooming capabilities for tracking distances up to 15m (50ft) from participants or presenters.
  • Available in Moon Gray and Bright White Colours: Designed to match a variety of room aesthetics.
  • Advanced Configuration: Easily configured and managed using the Crestron 1 Beyond Camera Manager software.

Specifications

Image Sensor 1/2.8 in. Sony® CMOS Sensor
Resolution Up to 1080p60
Optical Zoom 20x
Focal Length F=5.2–94 mm
Field of View (PTZ) Horizontal: 56.45°
Shutter Speed 1/50 – 1/10,000 sec
Iris F1.5–F3.0
Minimum Illumination 2 lux
Pan/Tilt Angle Pan: -130° to 130°, Tilt: -30° to 90°
Pan/Tilt Speed Pan: 0.2° – 90°/s, Tilt: 0.2° – 70°/s
Preset Positions Up to 256 configurable presets

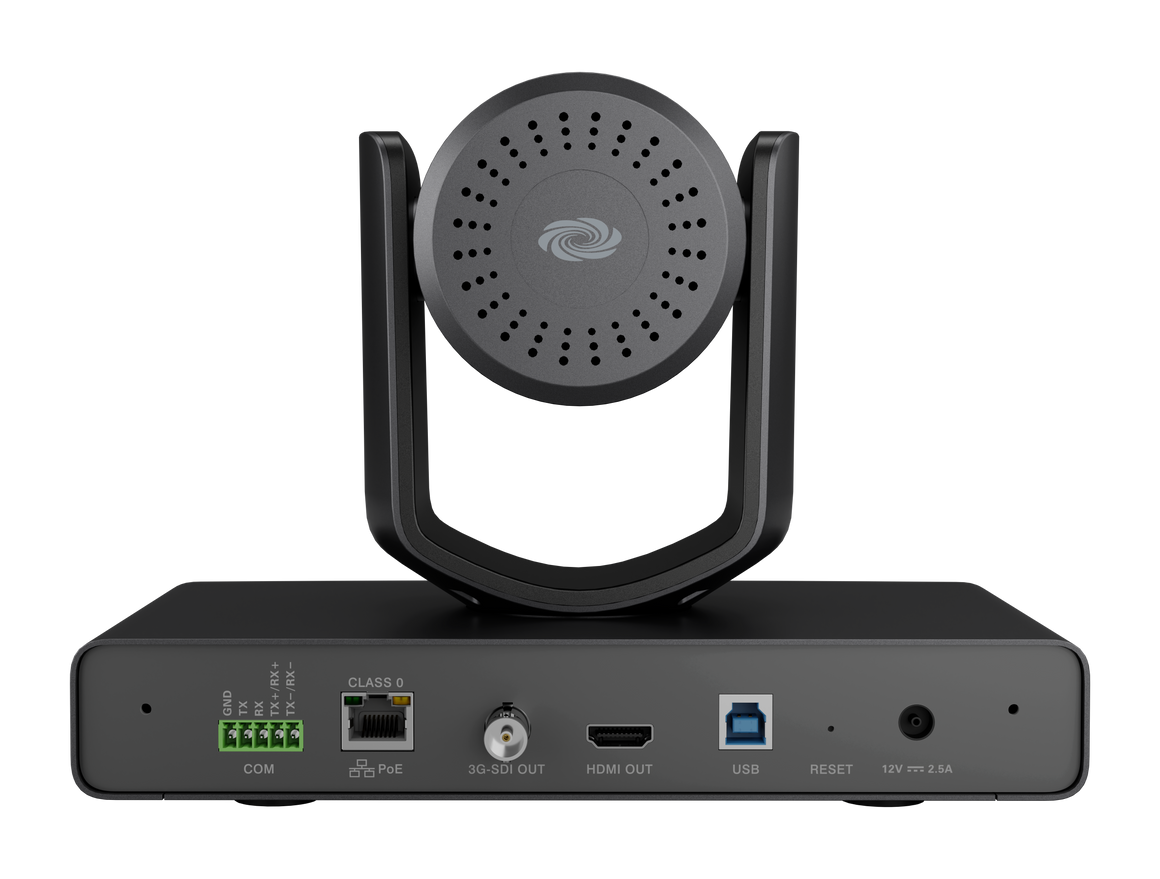

Video Outputs 3G-SDI, HDMI®, USB, NDI®|HX, ONVIF, RTSP, UVC
Signal Formats SDI or HDMI: 1080p60/59.94/50/30/29.94/25, 720p60/59.94/50
USB: 1080p30/25, 720p30/25, 360p30
Power 12VDC, 2.5A, 50/60 Hz; Power over Ethernet (PoE, IEEE 802.3af Class 3)
Power Pack Crestron PW-1225DU (sold separately)
Mounting Options IVA-WMT-BRKT (included), IV-CAMA-UMB, IVA-CMT-BRKTJ (sold separately)
Dimensions 6.51 in. x 8.90 in. x 5.86 in. (165 mm x 226 mm x 149 mm)
Weight 4.11 lb (1.86 kg)
Environmental 32° to 104°F (0° to 40°C); 10% to 90% RH (non-condensing)

The Crestron IV-CAM-I20 is a versatile and intelligent PTZ camera designed to deliver professional video coverage for large-scale training rooms, classrooms, and conference spaces. Its advanced visual AI tracking, high-resolution video, and flexible integration options make it the ideal choice for high-performance collaboration and conferencing environments.
