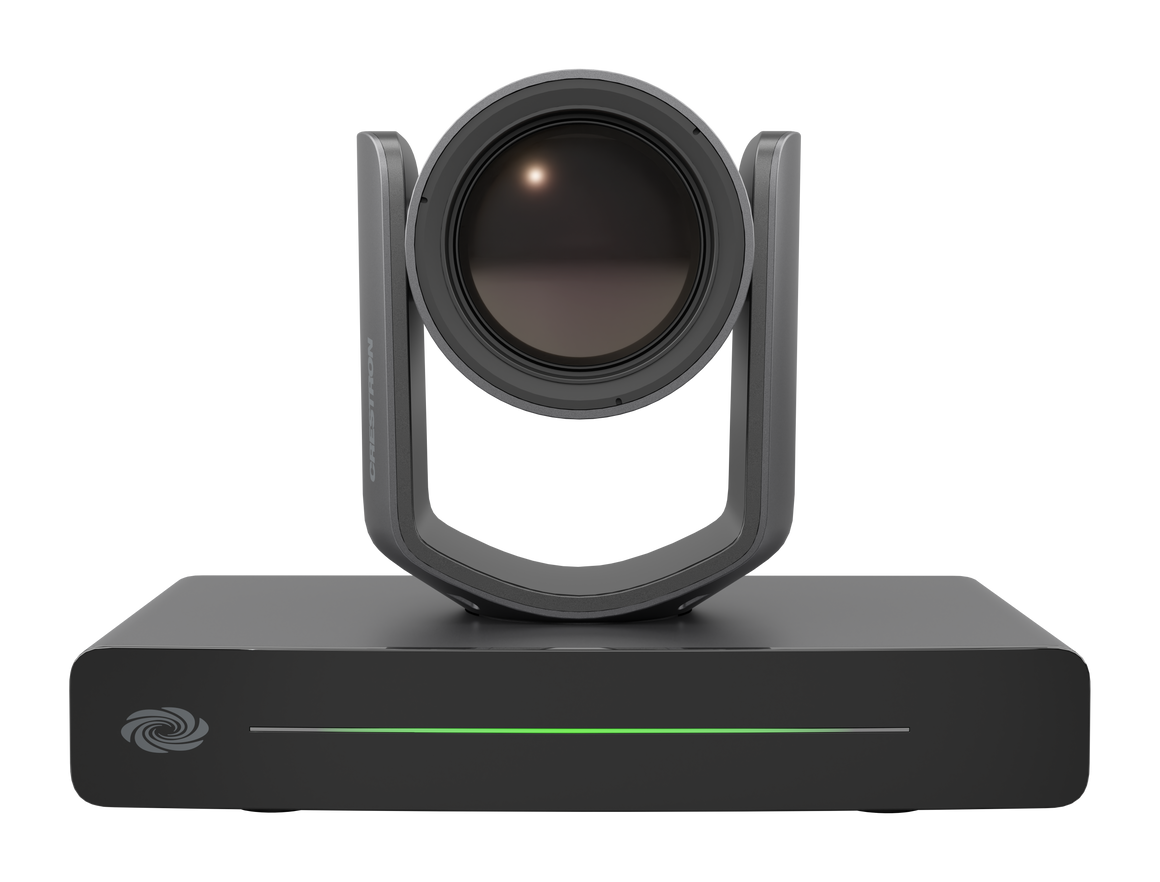

SKU: IV-CAM-P12-B

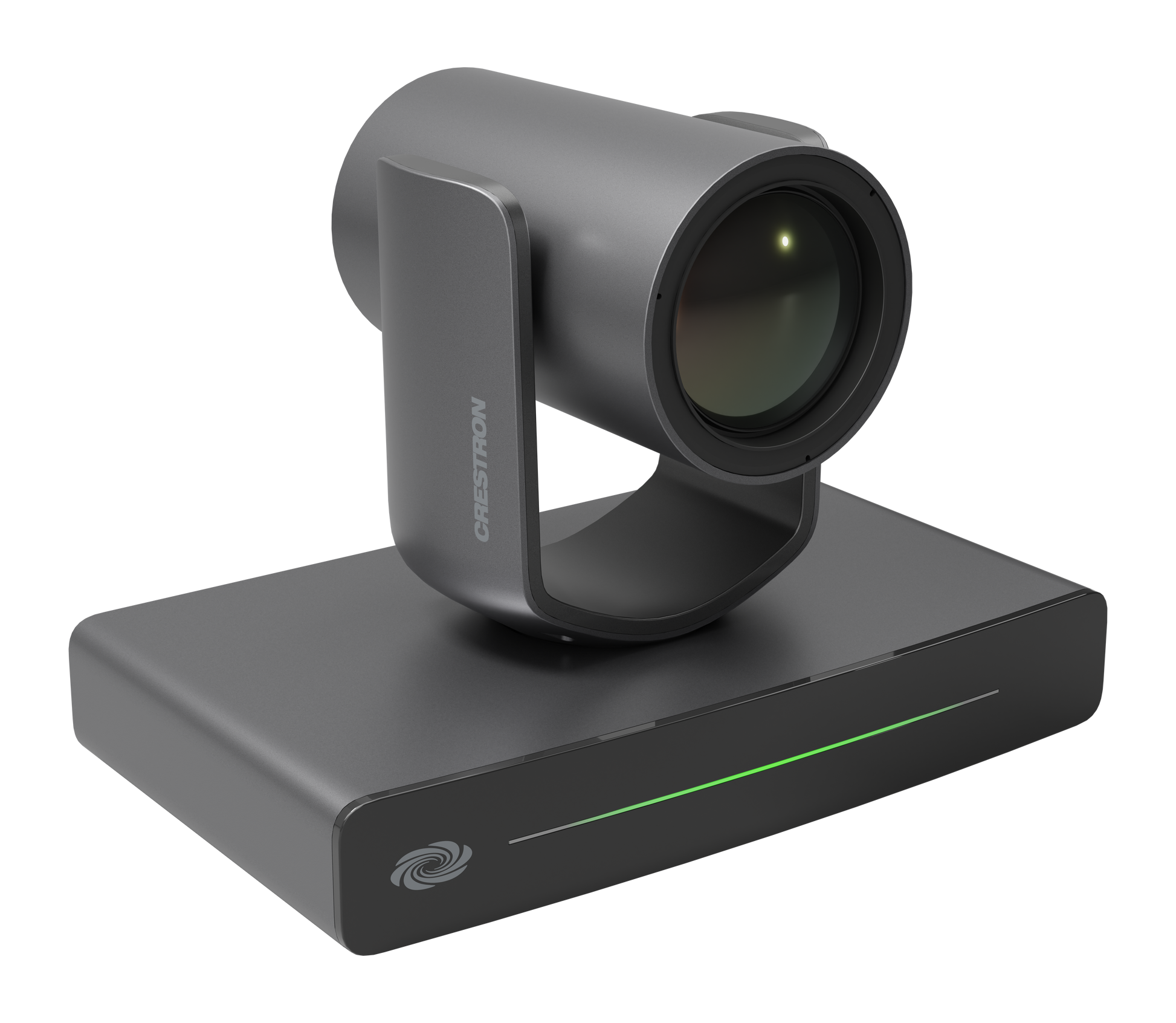

Crestron IV-CAM-P12

Crestron

1 Beyond p12 PTZ Camera, 12x Optical Zoom

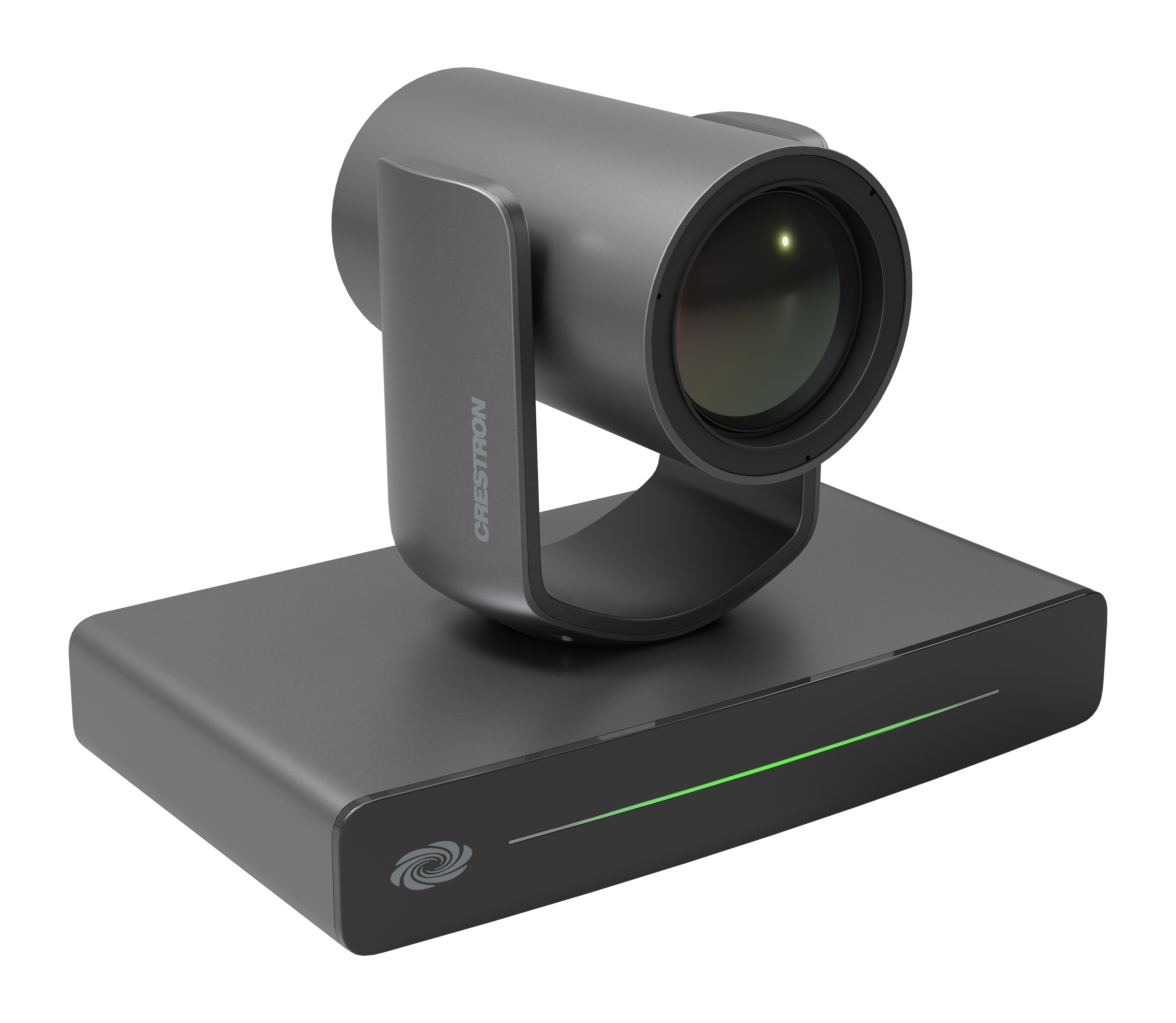

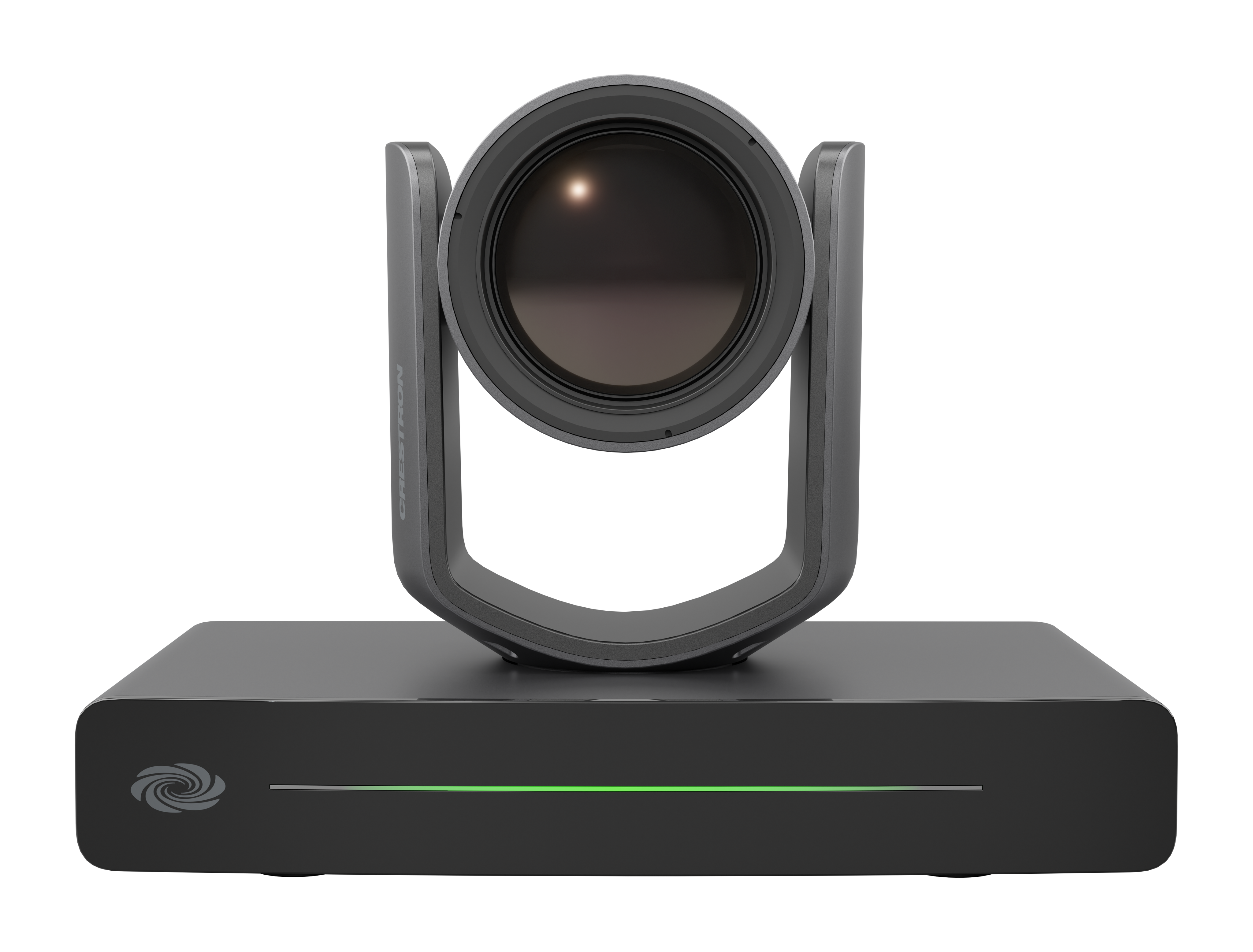

The Crestron IV-CAM-P12 is a high-quality PTZ camera that outputs up to 1080p60 resolution video. The IV-CAM-P12 is ideal for meetings in medium to large spaces where one camera needs to capture several areas of the room. It can be used with the IV-SAM-VX2-S Crestron 1 Beyond Automate VX as part of a complete multi-camera switching solution. The IV-CAM-P12 supports a single Ethernet connection and provides power (PoE), viewing, and control on a network.

Highlighted Features

  • Automate VX Compatible: The IV-CAM-P12 camera works seamlessly with Automate VX multi-camera speaker tracking systems. Use it for close-up shots of active speaking participants in medium to large spaces.

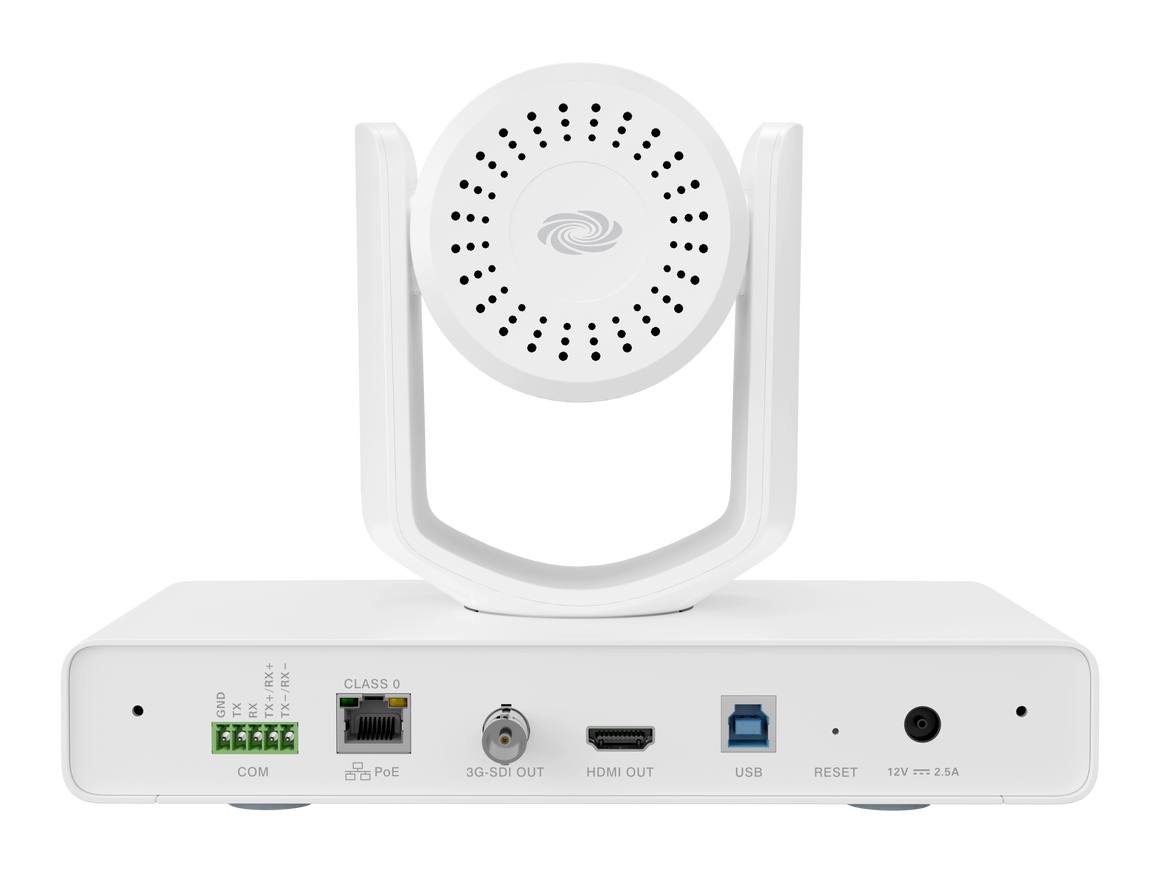

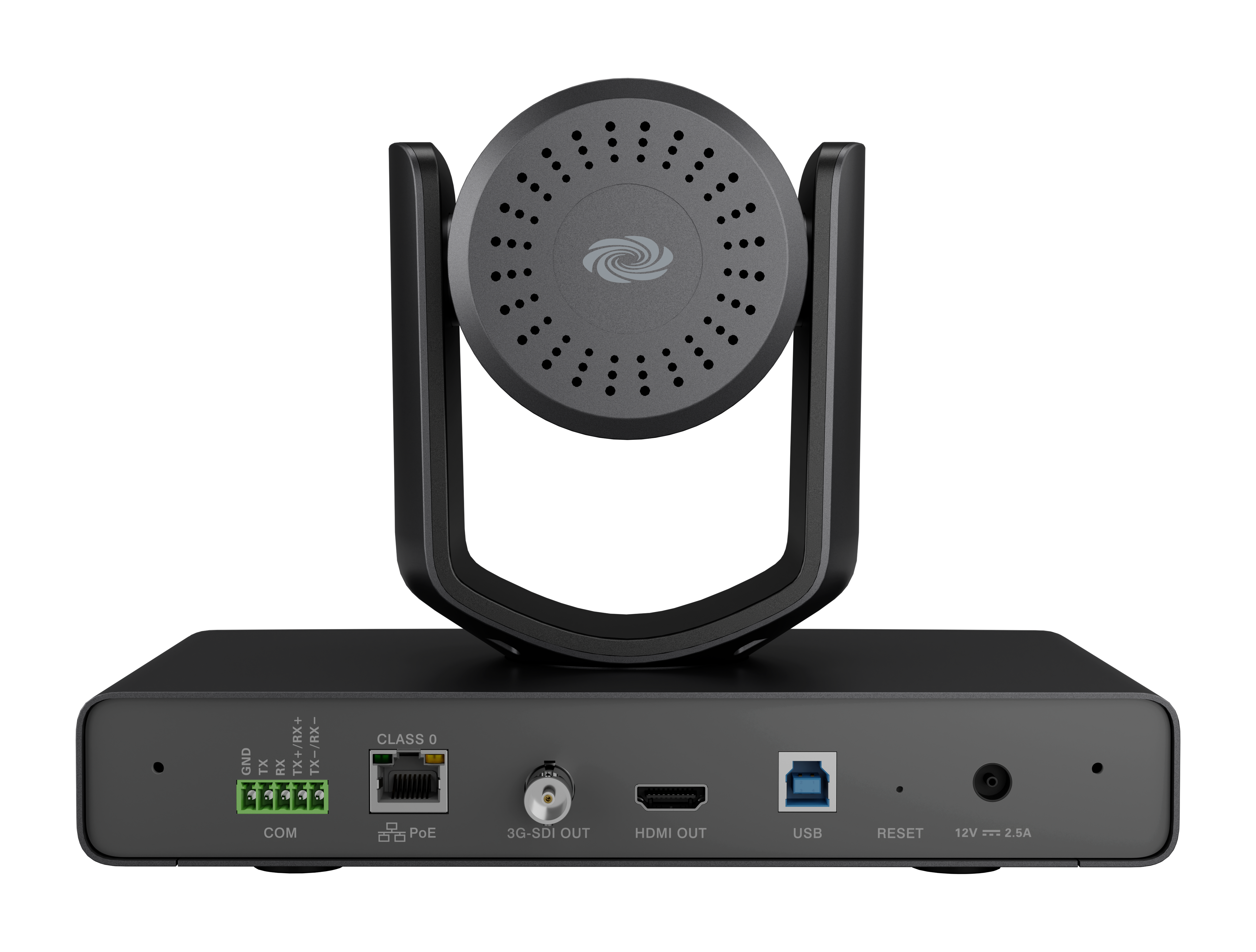

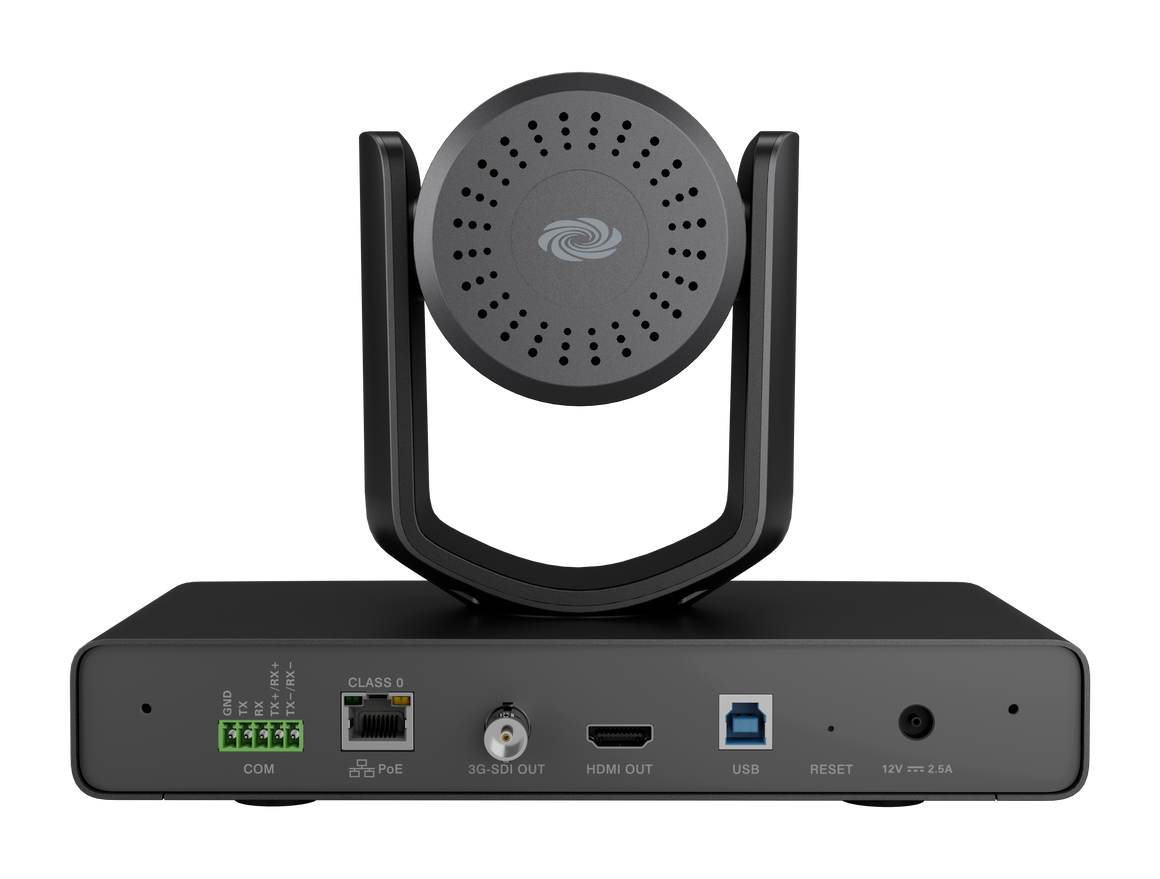

  • Certified for Conferencing Software: The IV-CAM-P12 is certified for Microsoft Teams® and Zoom Rooms® conferencing software. Use the rear USB port to connect a USB cable to a compatible codec for conferencing software use.
  • High-Quality Video: A high-quality Sony® CMOS sensor enables the camera to output up to 1080p60 resolution video, ensuring sharp and clear visuals for meetings.

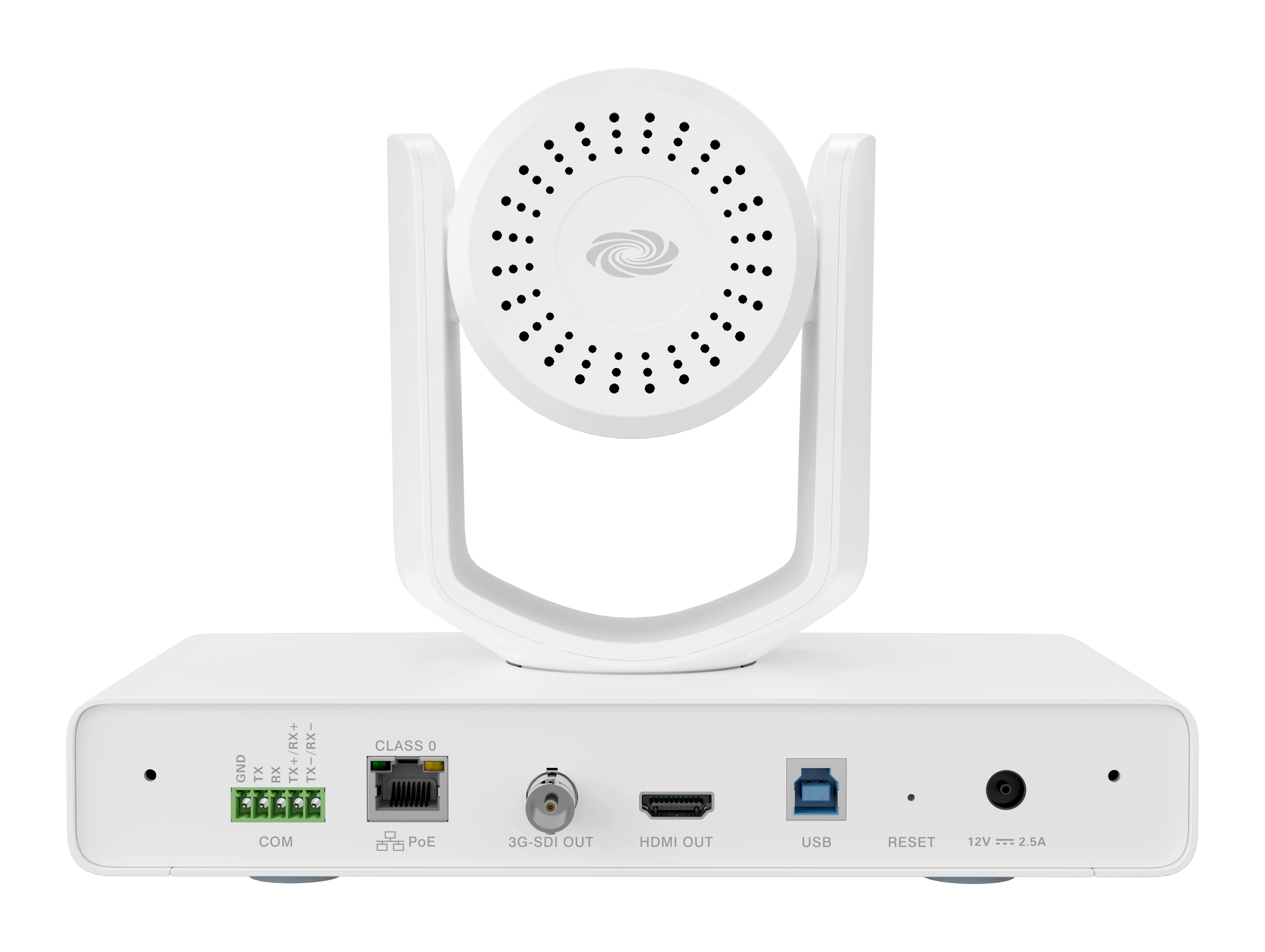

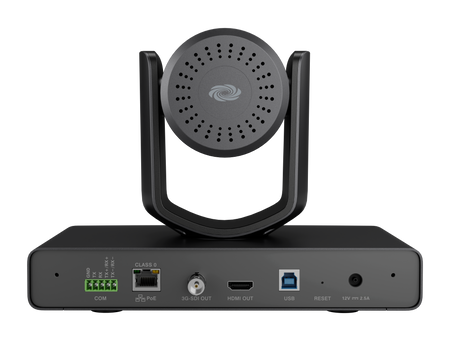

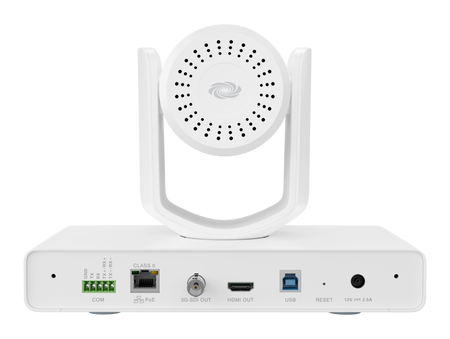

  • Networked Power, Viewing, and Control: Connect a single Ethernet cable to power the camera (PoE), view the video, set up, and control the IV-CAM-P12 over the network.
  • Flexible Mounting Options: The IV-CAM-P12 ships with the colour-matched IV-CAMA-UMB Universal Mounting Bracket. It is also compatible with the IVA-WMT-BRKT Wall Mount Bracket and IVA-CMT-BRKTJ Mount Ceiling Bracket (both sold separately).
  • Image Flip: Supports optional inverted mounting, ensuring flexible installation options for any room setup.

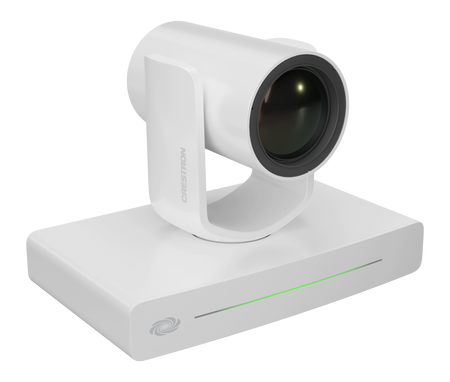

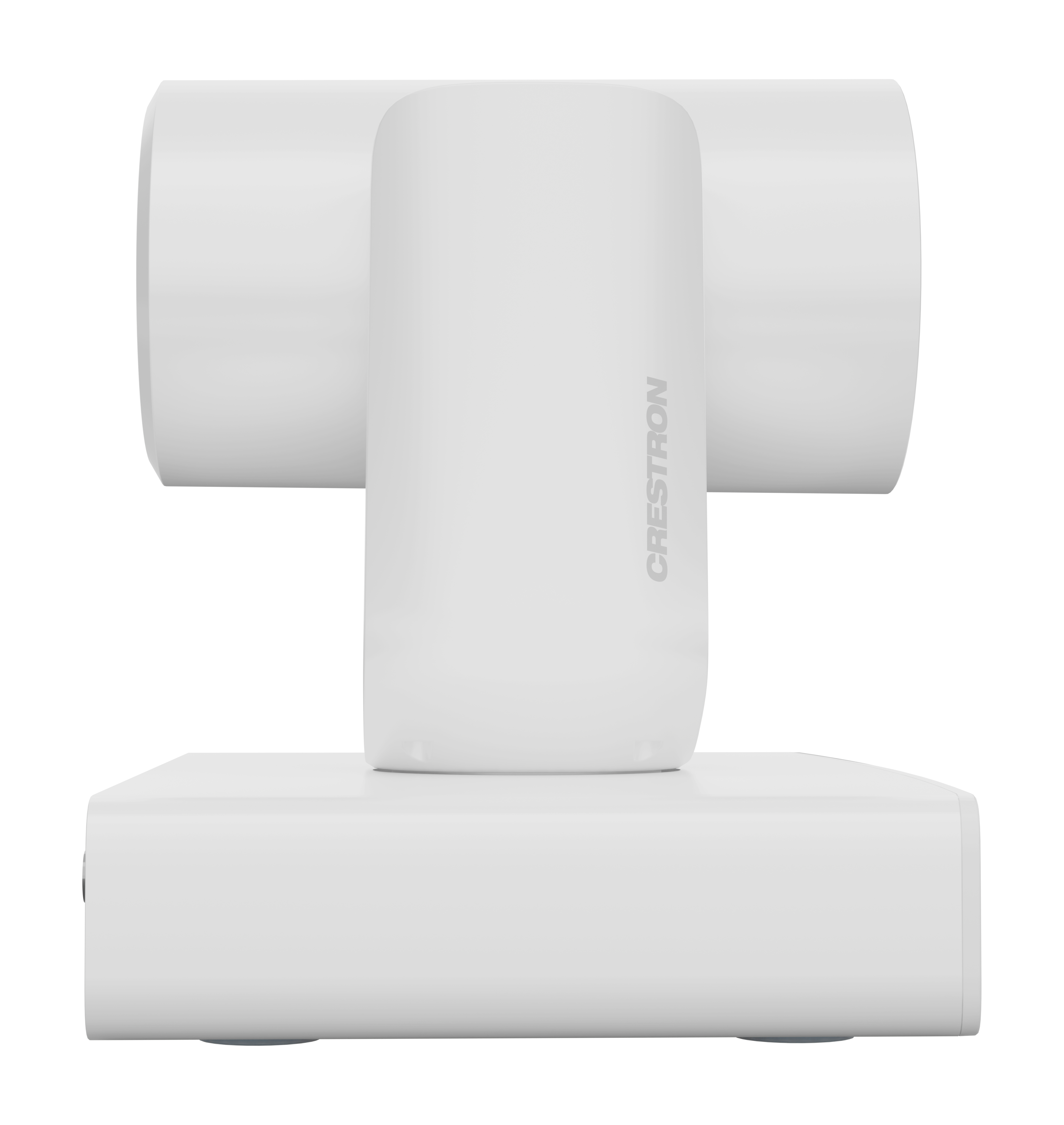

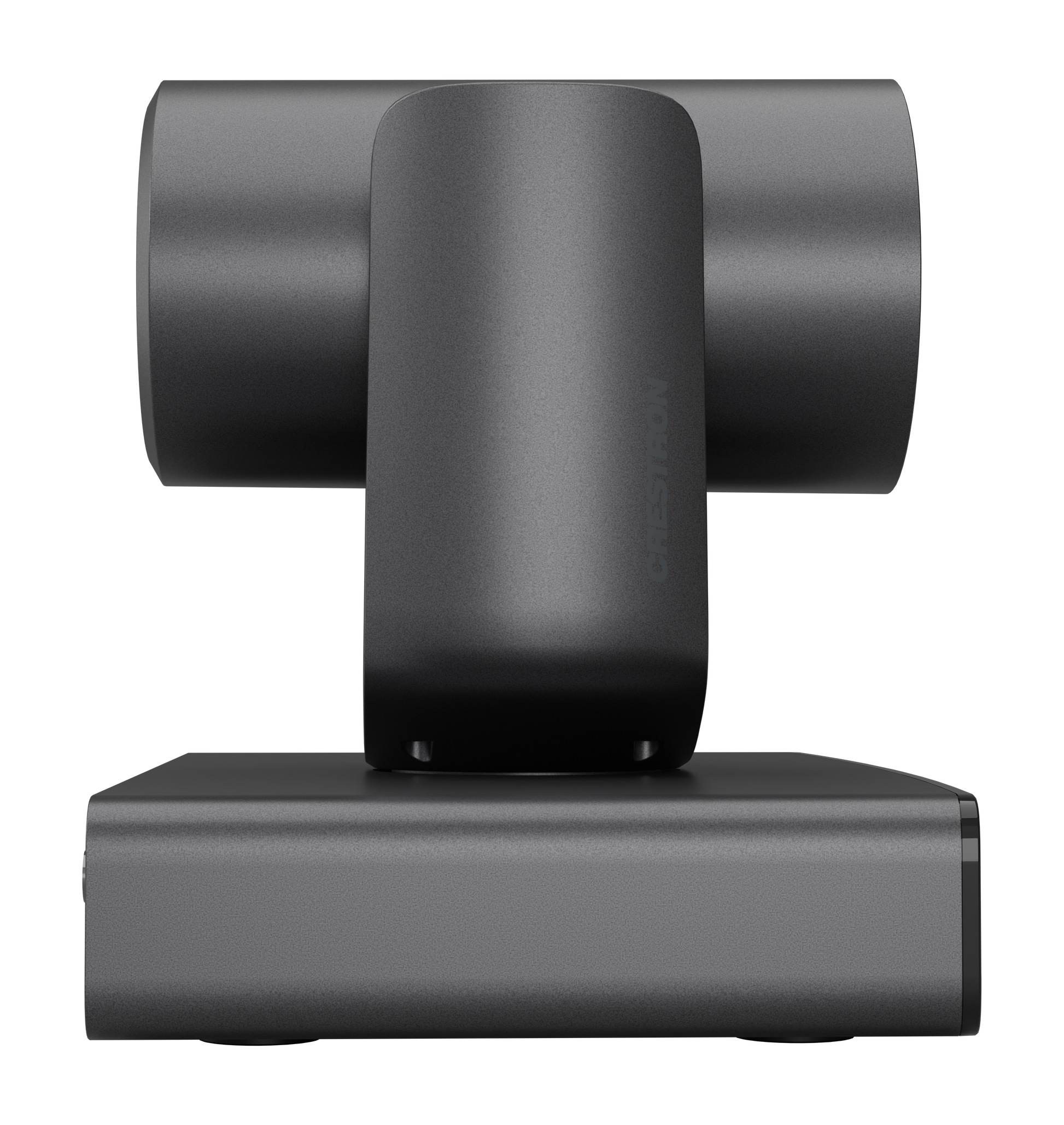

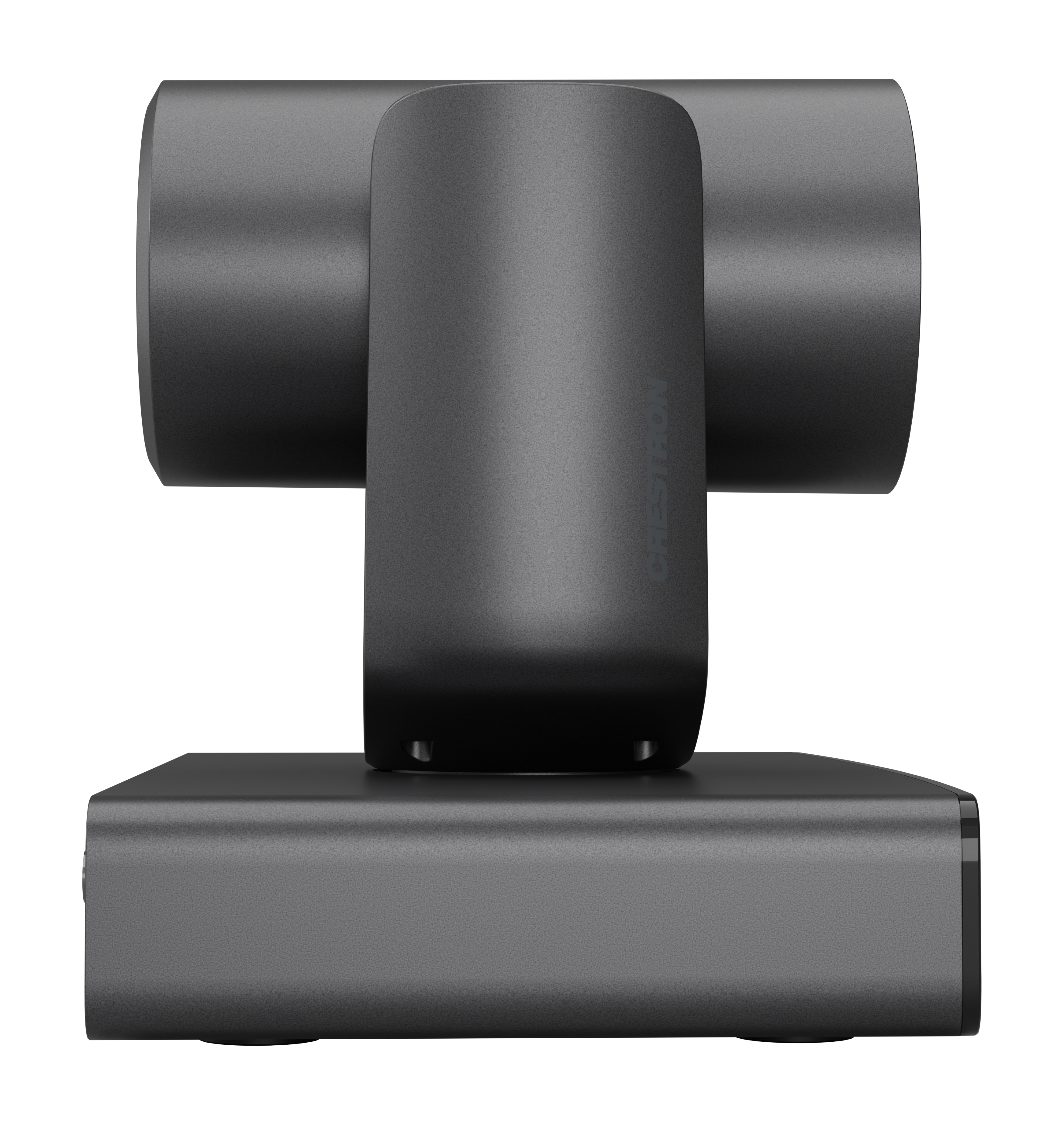

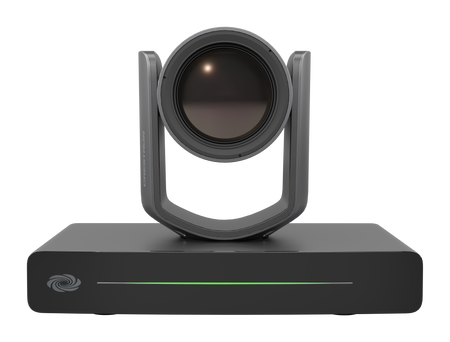

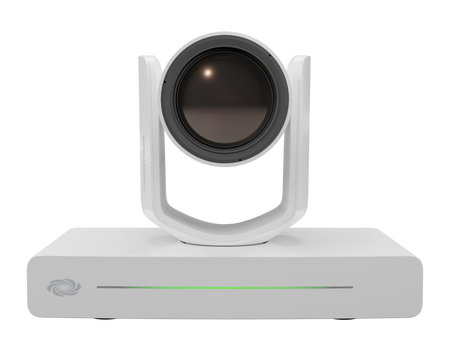

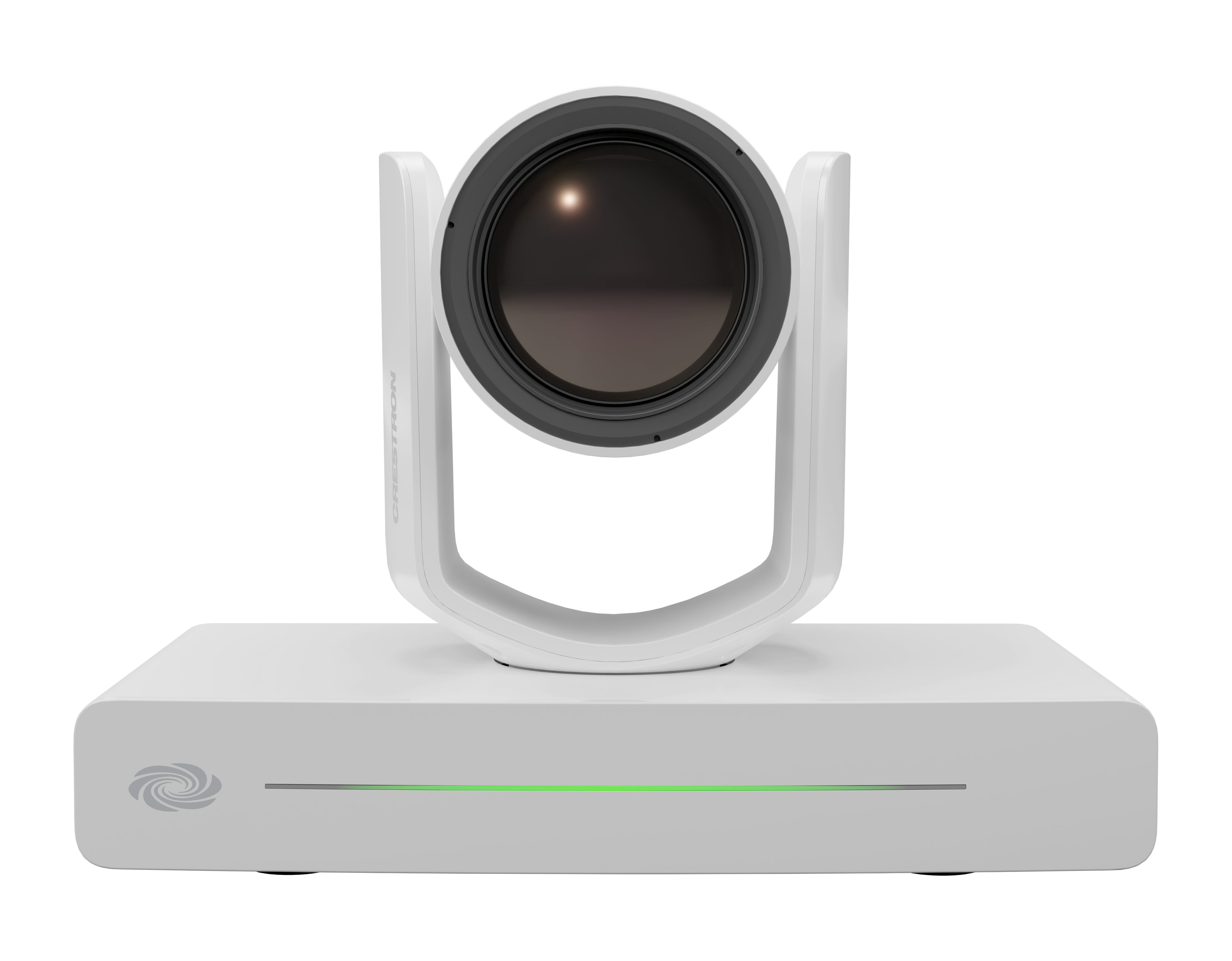

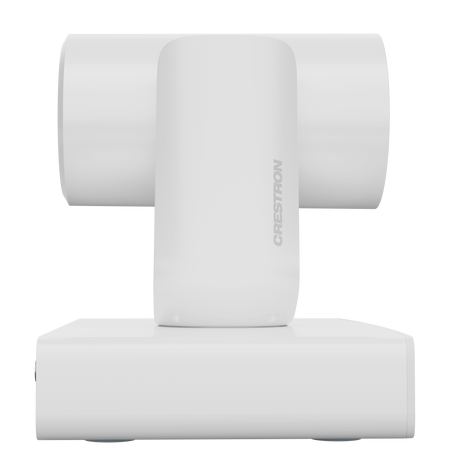

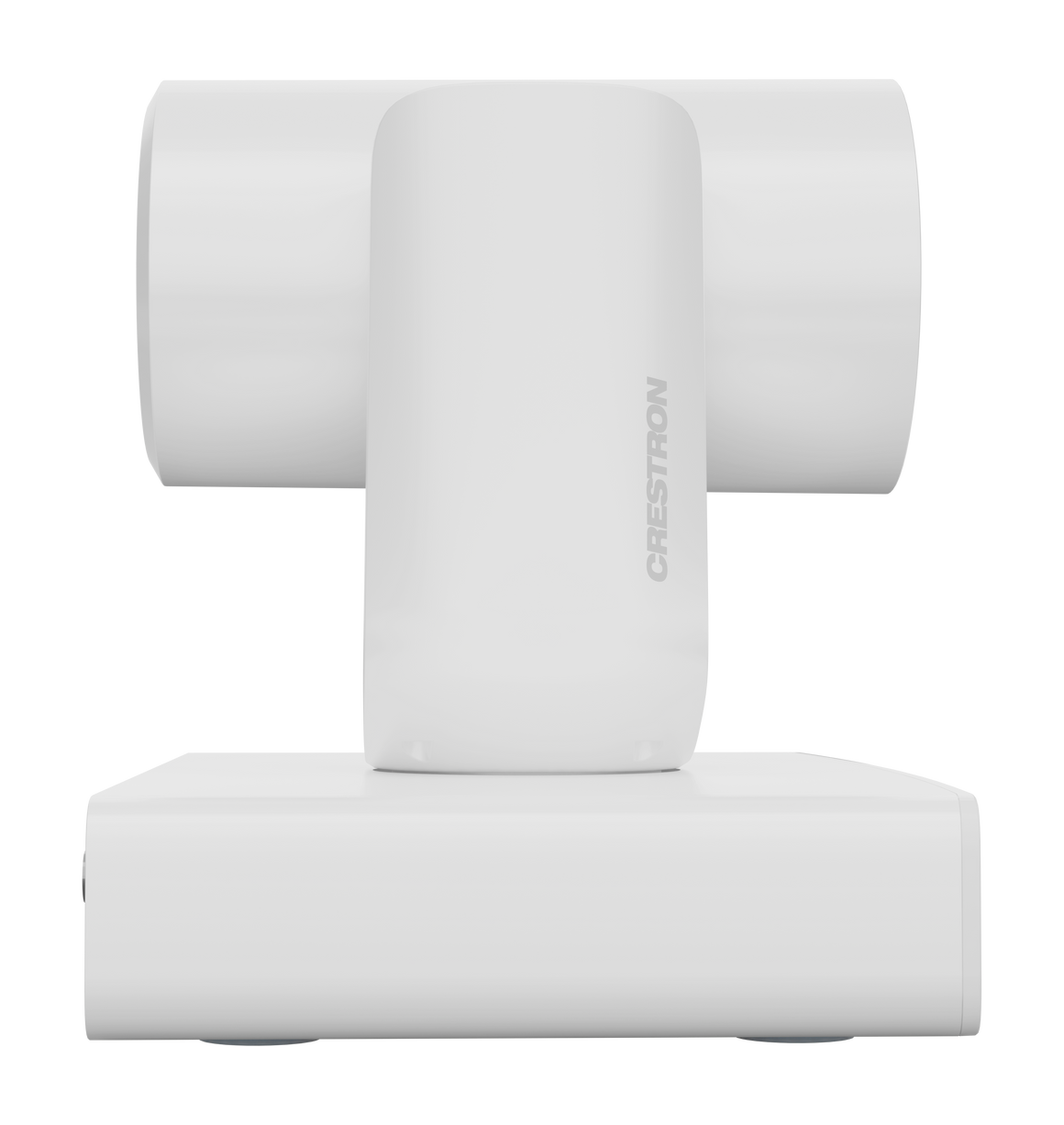

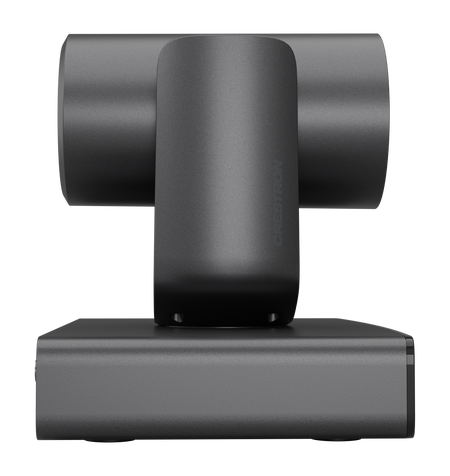

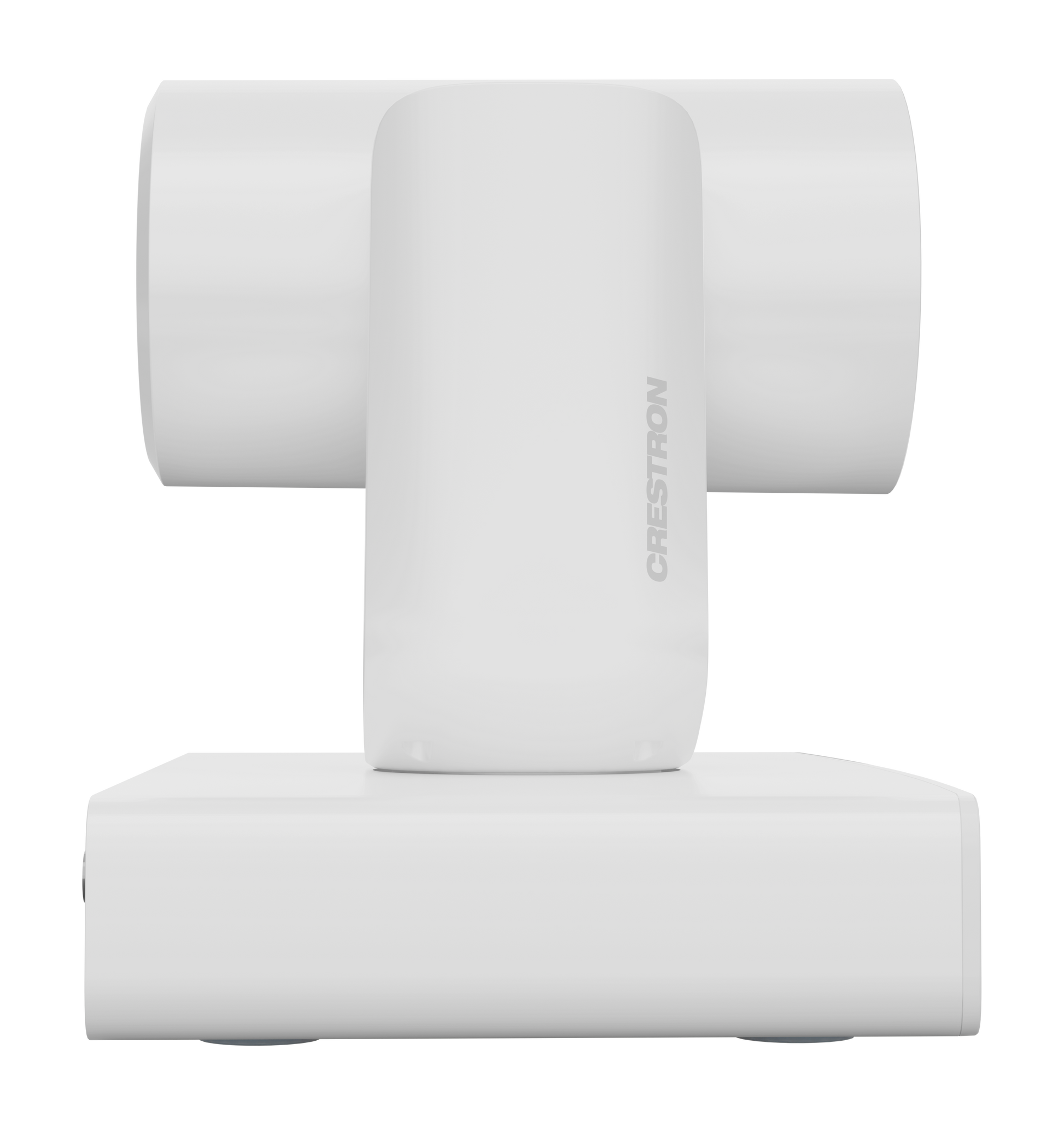

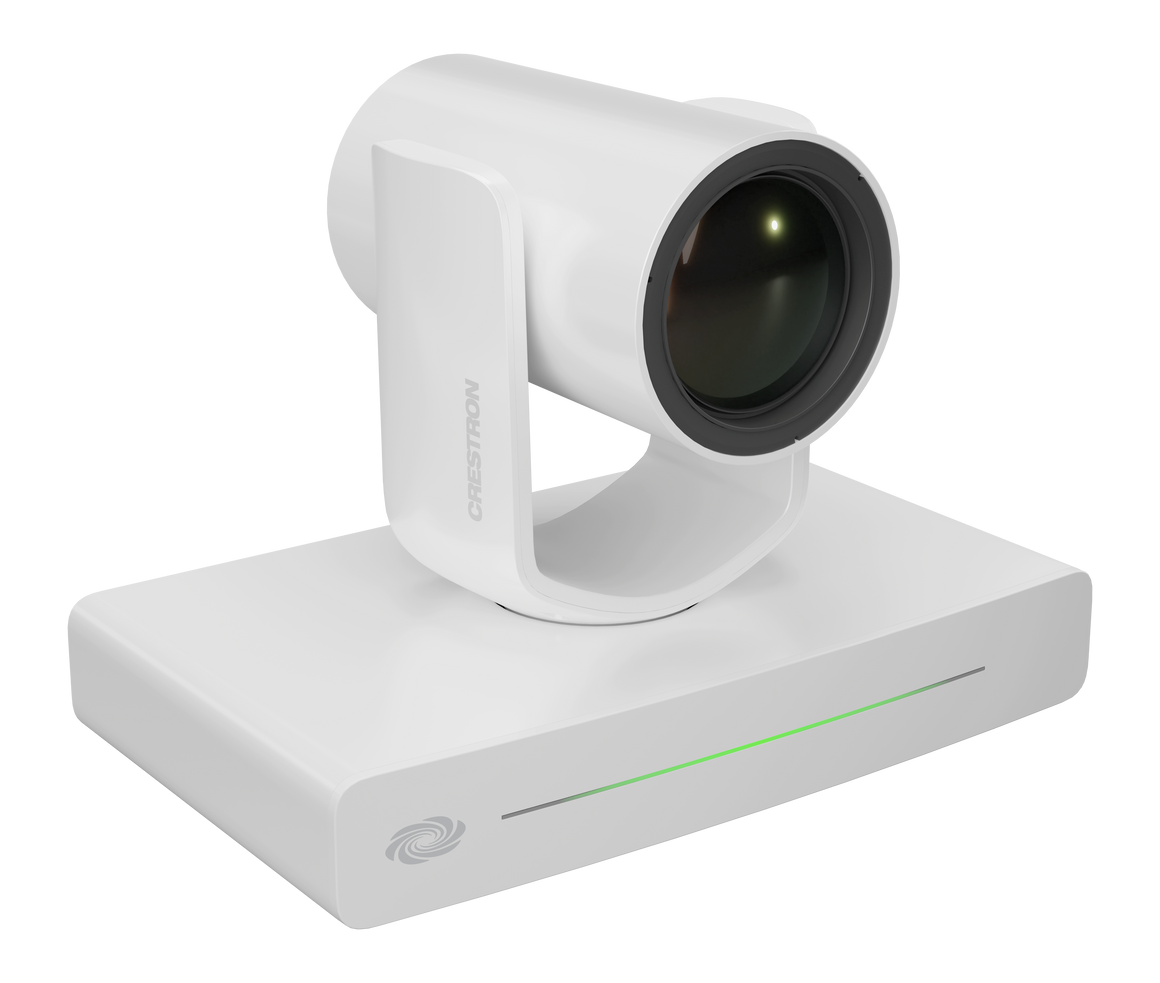

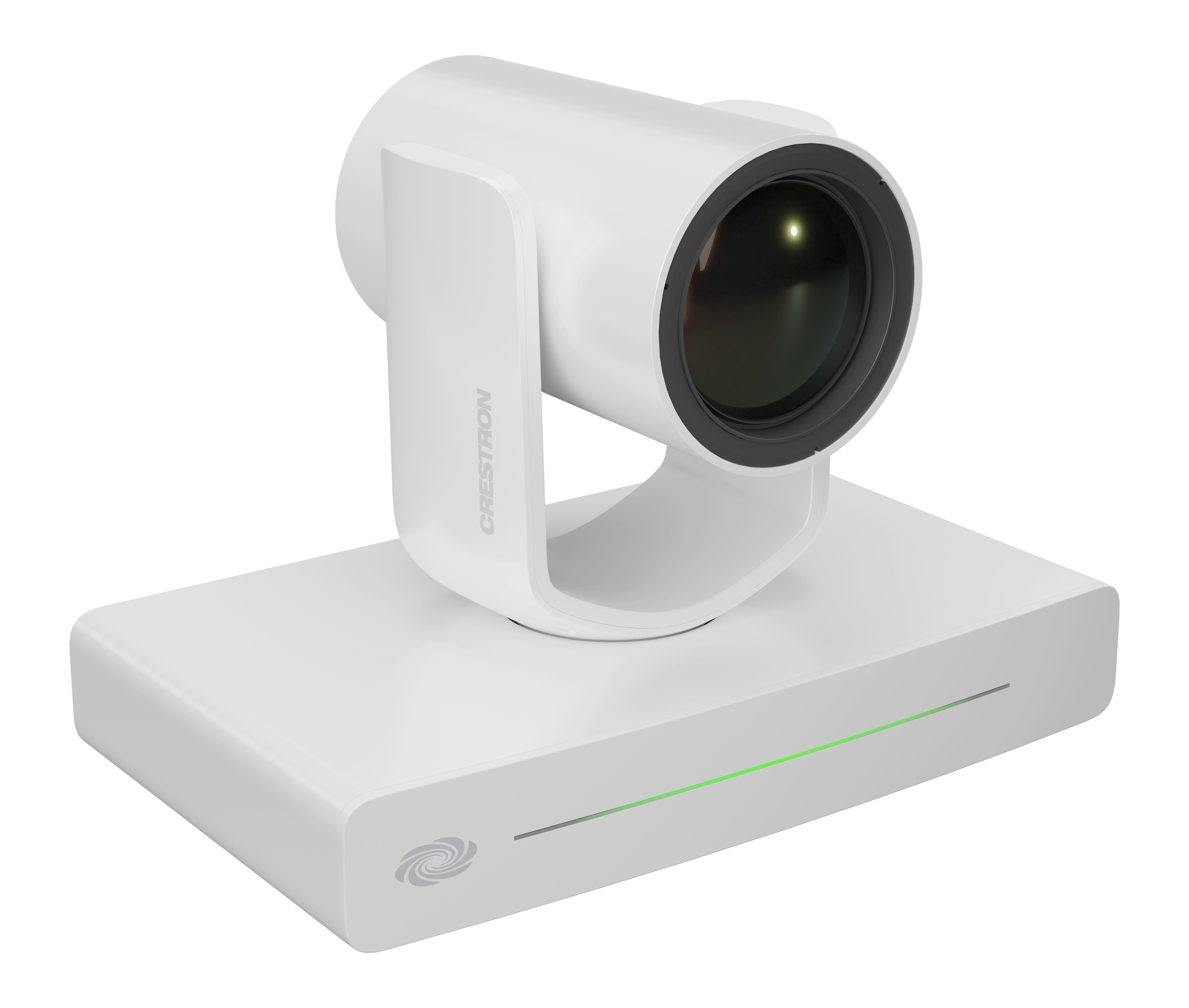

  • Available in Moon Gray and Bright White Colours: Designed to complement modern meeting spaces with multiple colour options.
  • Easy Configuration: Use the Crestron 1 Beyond Camera Manager software to easily configure and manage the camera from a connected computer.
  • Single Cable Operation: Simplifies deployment with a single Ethernet connection for power, viewing, and control, while supporting NDI®|HX video streaming.
In stock
£2,628.00

Secure checkout

Friendly support

Hassle-free returns

The Crestron IV-CAM-P12 is a high-quality PTZ camera designed for medium to large meeting spaces where precise video capture is required. It outputs video resolutions up to 1080p60 and integrates seamlessly into Crestron's multi-camera speaker tracking systems, such as the Automate VX. With advanced capabilities, single-cable Ethernet connectivity, and flexible mounting options, the IV-CAM-P12 ensures professional-quality video conferencing.

Key Features

  • High-Quality Video: Features a Sony® CMOS sensor that supports up to 1080p60 resolution video, delivering sharp and clear images.
  • Automate VX Compatible: Works seamlessly with Crestron Automate VX multi-camera systems for dynamic speaker tracking and room coverage.
  • Networked Power and Control: A single Ethernet connection provides PoE power, video viewing, setup, and camera control over the network.
  • Certified for Conferencing: Optimised for Microsoft Teams® and Zoom Rooms® with USB connectivity for direct integration into video conferencing platforms.
  • Flexible Mounting Options: Ships with a colour-matched universal mounting bracket. Compatible with wall and ceiling mounting brackets for versatile installation.
  • Image Flip: Allows for inverted mounting to suit various room setups.
  • Available in Moon Gray and Bright White Colours: Designed to match a variety of room aesthetics.
  • Easy Configuration: Use Crestron 1 Beyond Camera Manager software to configure and manage the camera efficiently.

Specifications

Image Sensor 1/2.8 in. Sony® CMOS Sensor
Resolution Up to 1080p60
Optical Zoom 12x
Field of View 67.68° Horizontal
Shutter Speed 1/50 – 1/10,000 sec
Pan/Tilt Angle Pan: -130° to 130°, Tilt: -30° to 90°
Pan/Tilt Speed Pan: 0.2° – 90°/s, Tilt: 0.2° – 70°/s
Preset Positions Up to 256 configurable presets
Connectivity 3G-SDI, HDMI®, USB, NDI®|HX, ONVIF, RTSP, UVC
Control Protocol VISCA/TCP, VISCA/UDP, PELCO-D, PELCO-P, ONVIF
Streaming NDI®|HX, RTSP, RTMP
Power 12VDC, 2.5A, 50/60 Hz; Power over Ethernet (PoE, IEEE 802.3af Class 3)
Power Pack Crestron PW-1225DU (sold separately)
Mounting Options IV-CAMA-UMB (included), IVA-WMT-BRKT, IVA-CMT-BRKTJ (sold separately)
Dimensions 6.55 in. x 8.89 in. x 5.86 in. (166 mm x 226 mm x 149 mm)
Weight 4.12 lb (1.87 kg)
Environmental 32° to 104°F (0° to 40°C); 10% to 90% RH (non-condensing)

The Crestron IV-CAM-P12 provides professional-quality video capture, networked control, and seamless integration with conferencing platforms. Designed for modern meeting environments, it ensures precise, dynamic video coverage and flexible installation options for a superior collaboration experience.
