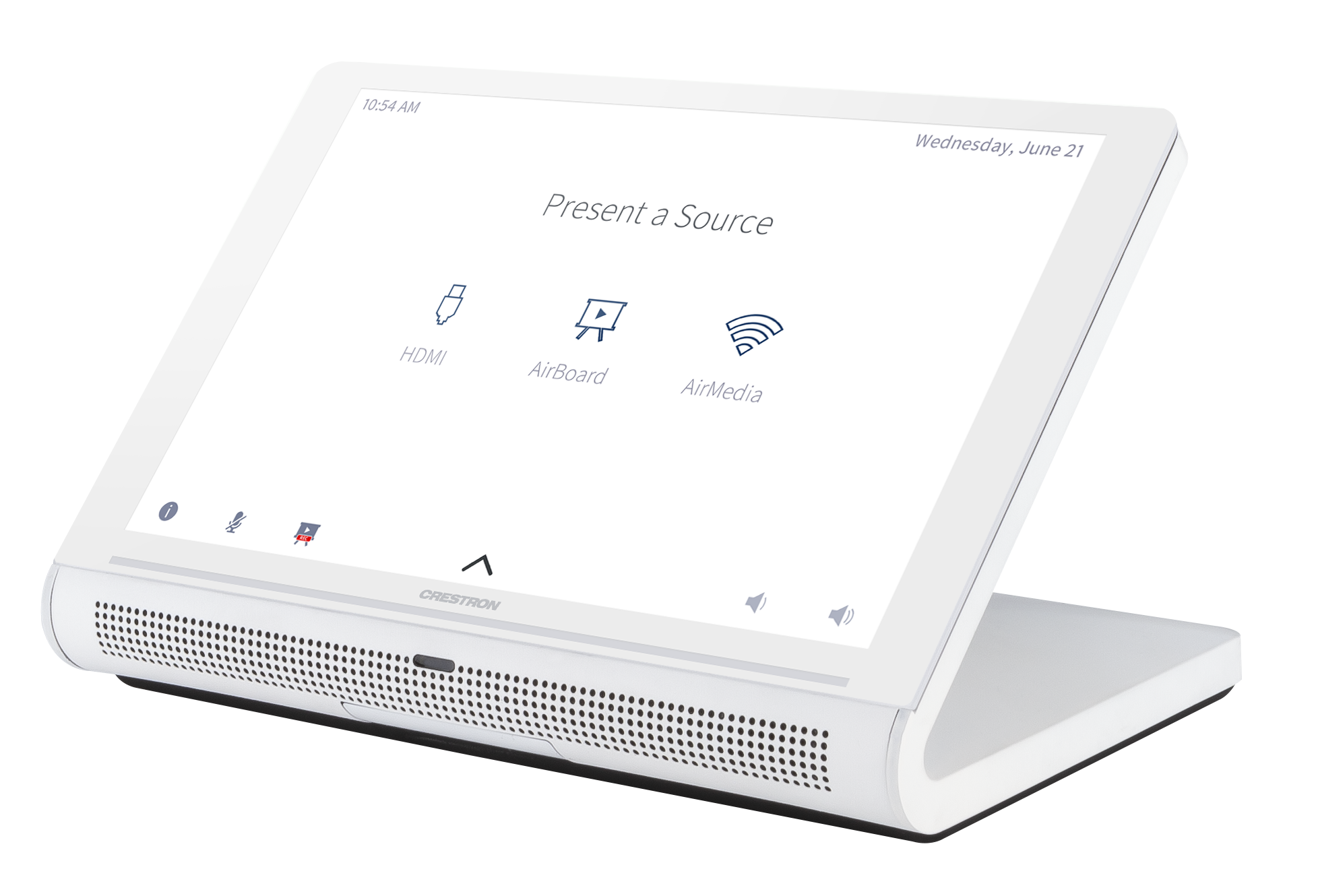

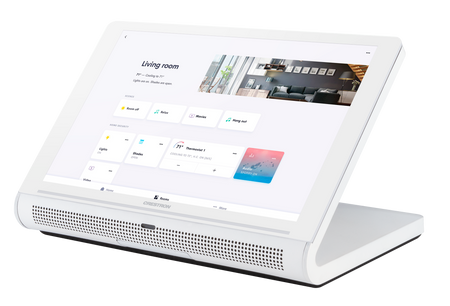

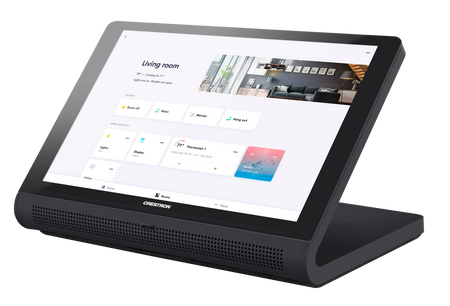

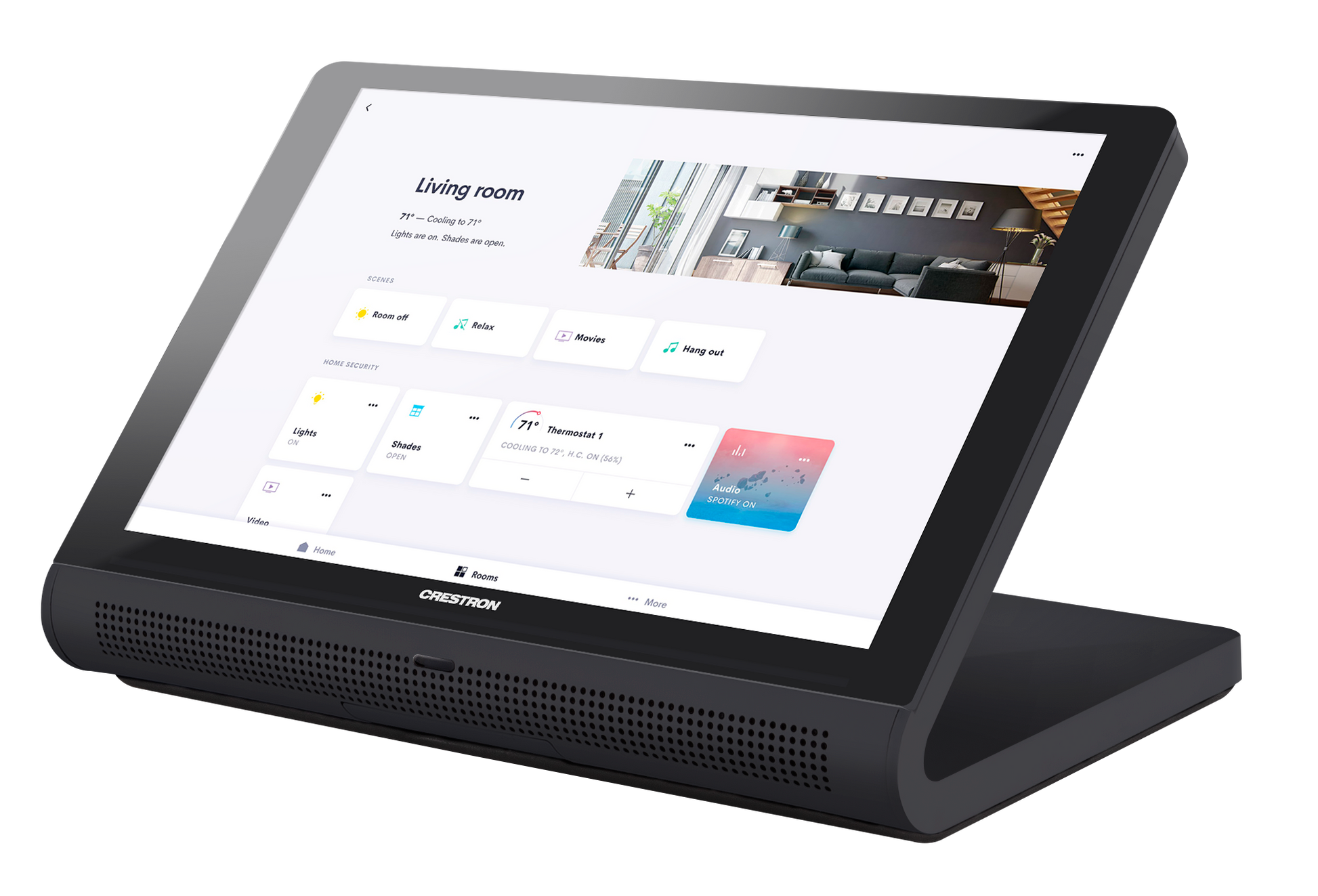

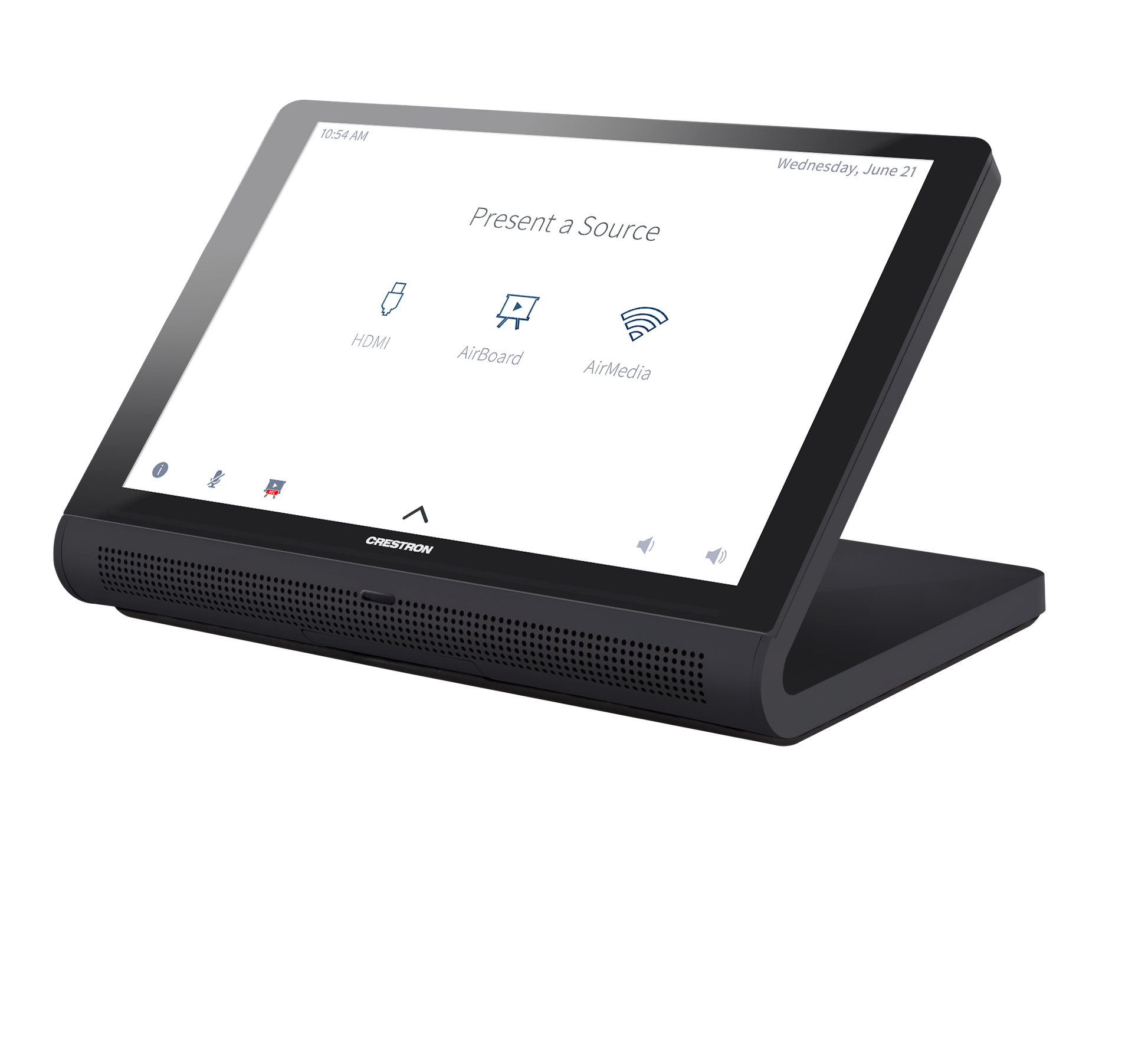

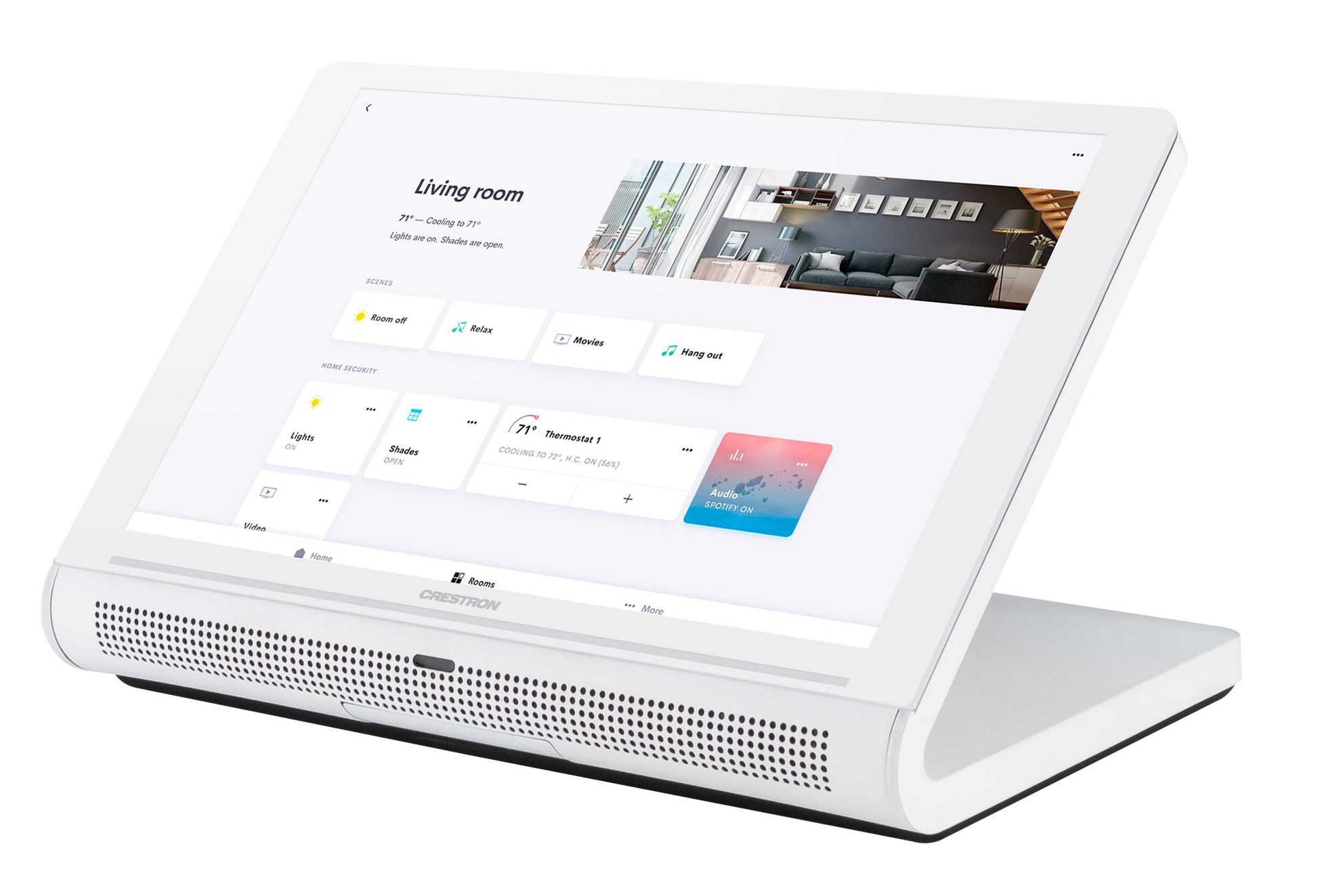

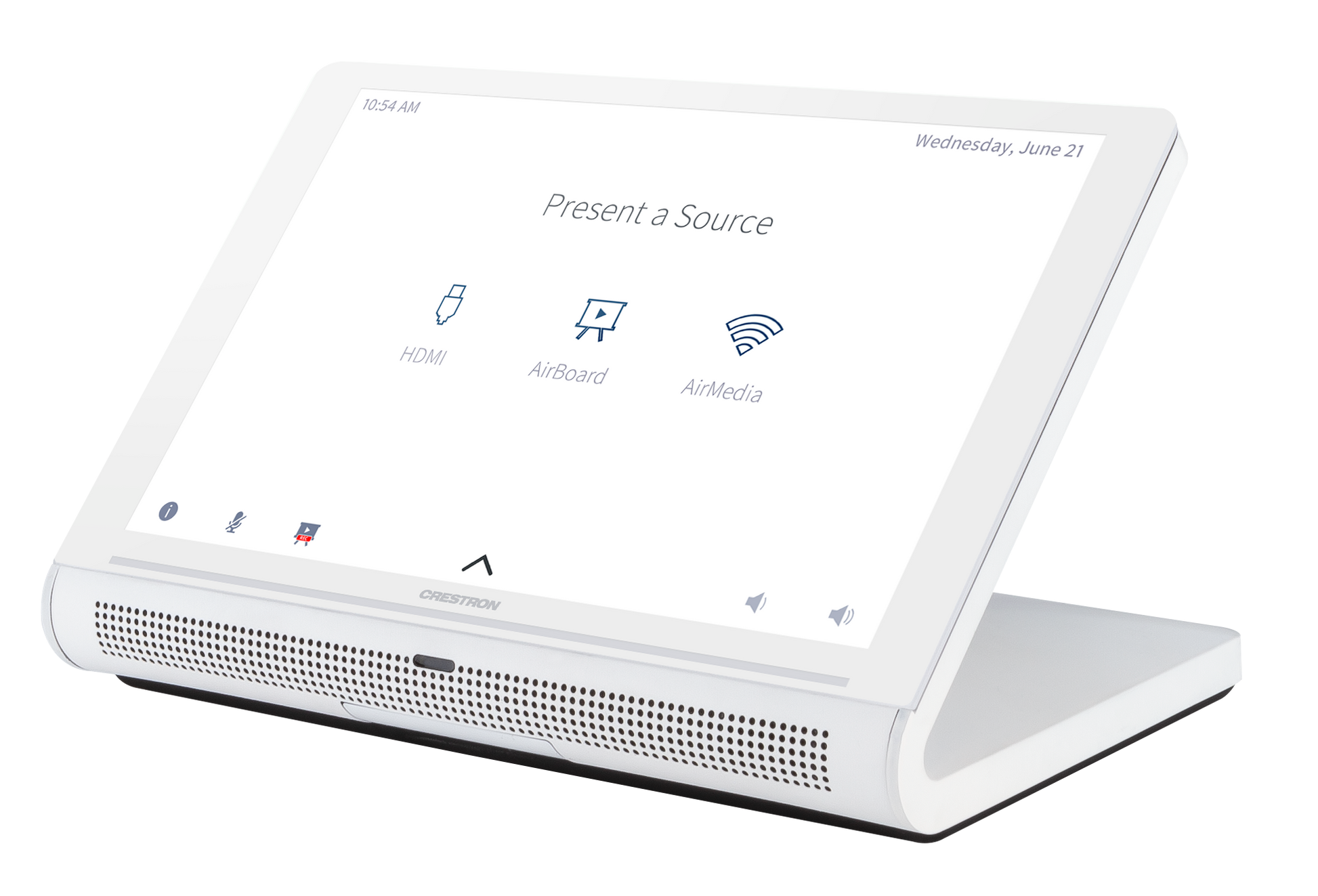

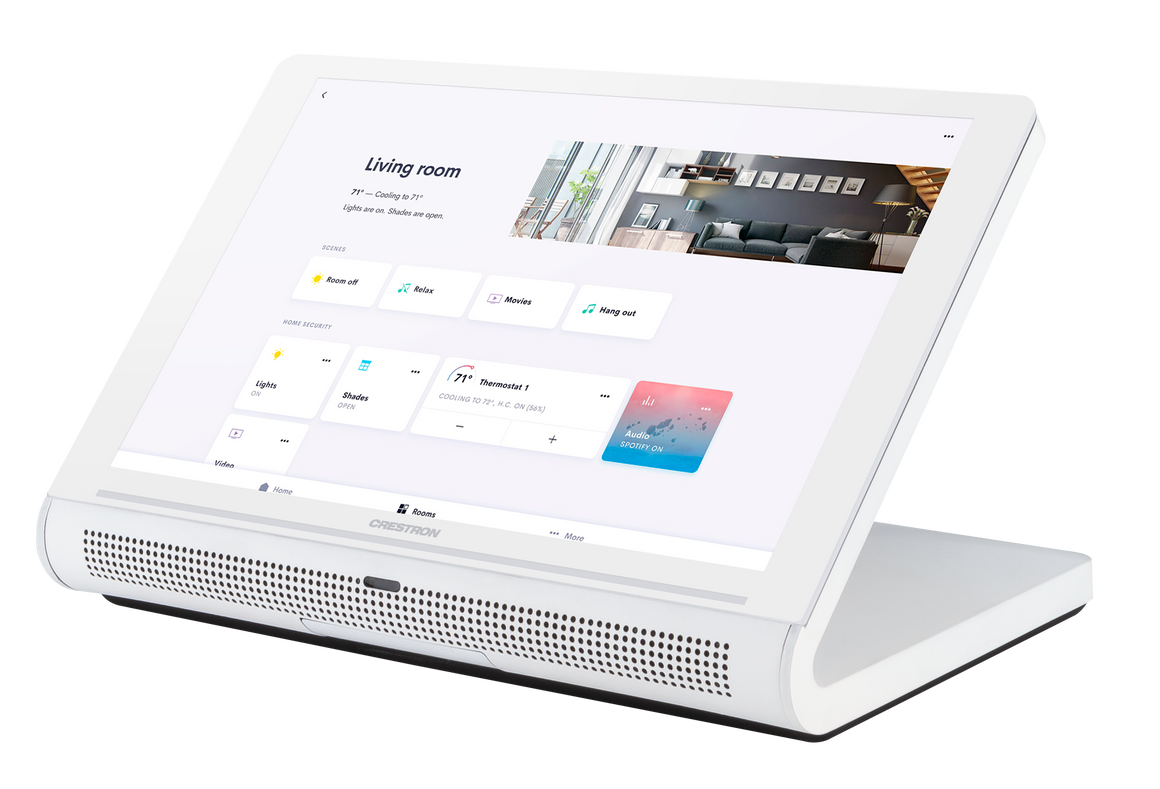

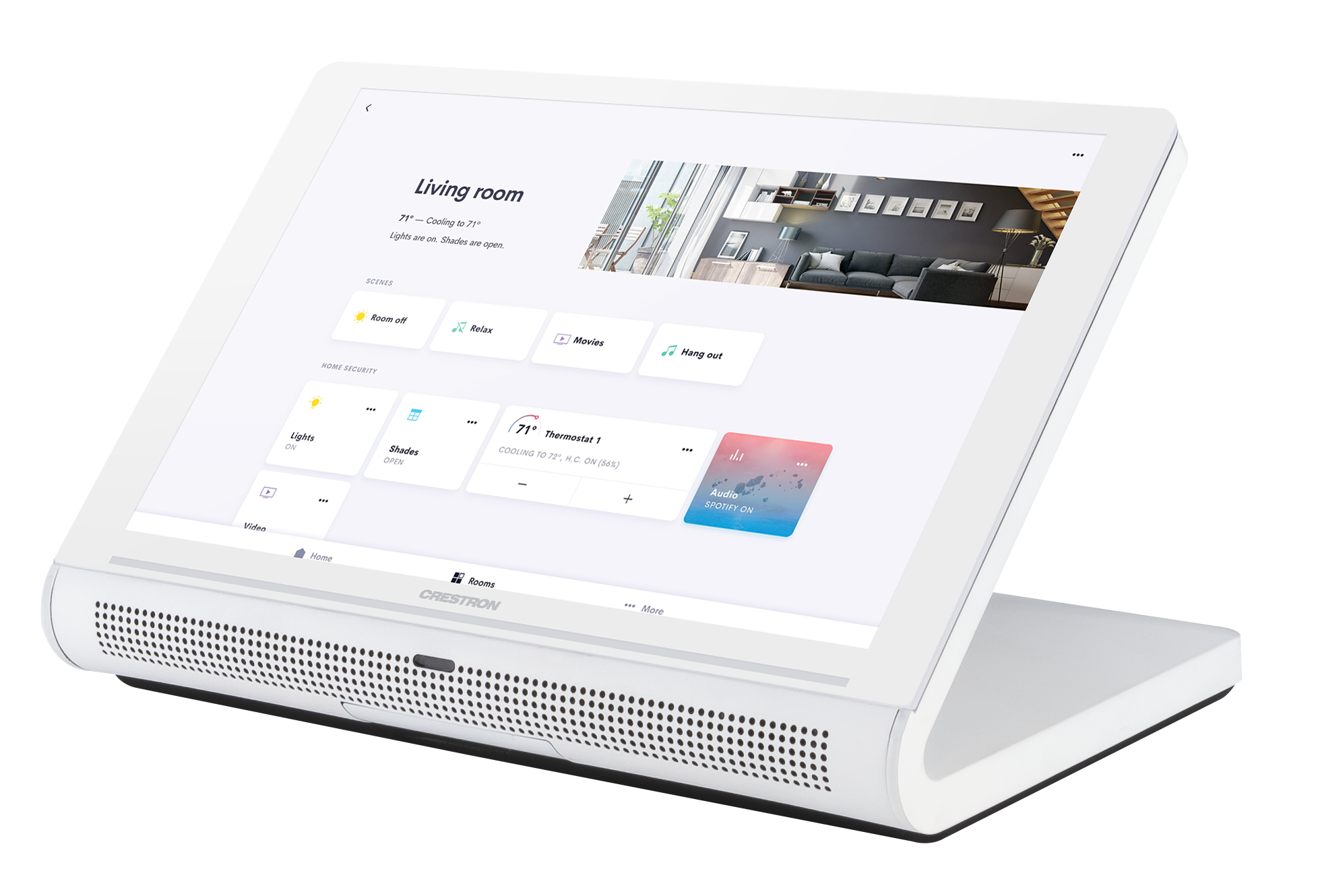

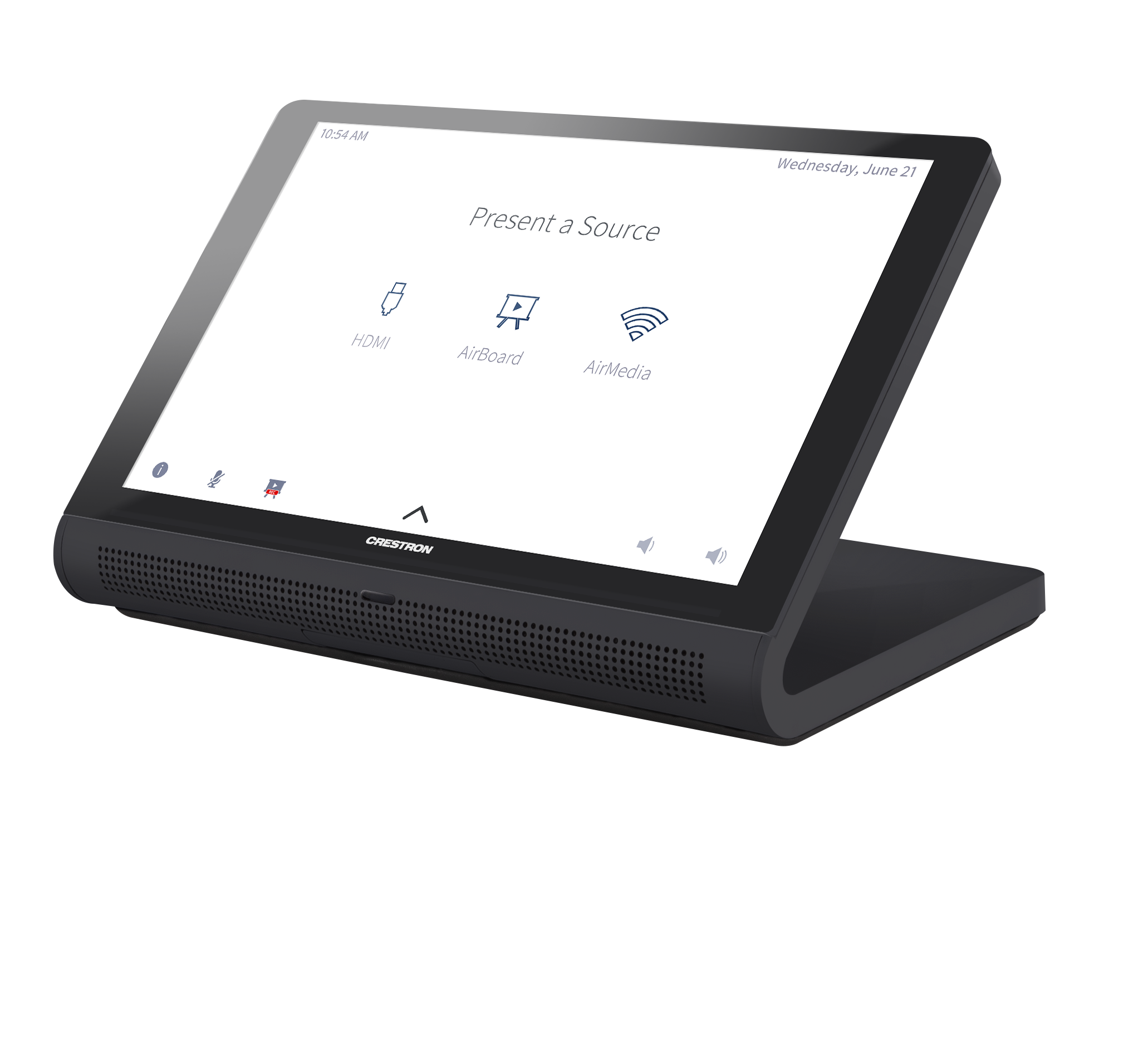

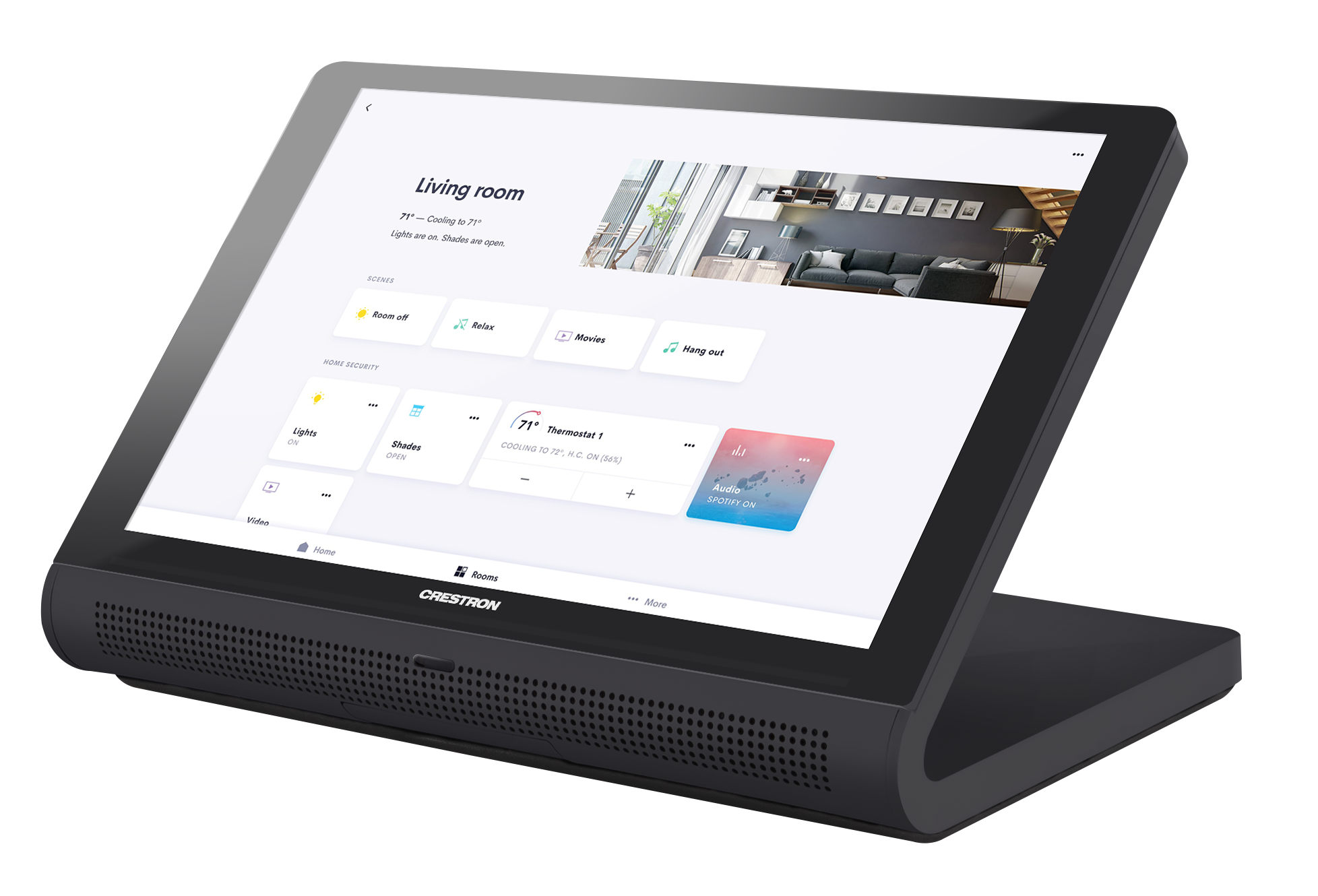

The Crestron TS-770 is a versatile and modern tabletop touch screen designed for a wide range of residential and enterprise applications. Featuring a sleek design and a high-resolution 7" in. capacitive touch screen display, the TS-770 offers a customisable, user-friendly interface with support for Smart Graphics® technology, HTML5-based custom UI projects, and advanced features such as voice recognition, Rava® SIP intercom, and video streaming. The device supports PoE and Wi-Fi® connectivity, allowing for flexible deployment in homes, boardrooms, classrooms, and beyond.

Key Features

  • Advanced Touch Screen Control: Provides an intuitive interface for controlling technology in homes, offices, and meeting spaces, with customisable controls and real-time feedback.
  • Custom-Programmable Virtual Buttons: Includes preconfigured virtual buttons for Power, Home, Lights, Up, Down, and Microphone, all of which can be customised via a Crestron control system.
  • Dynamic User Interfaces: Supports HTML5 User Interface and Smart Graphics for dynamic, visually engaging UIs with features like animated feedback, drag-and-drop objects, and customisable themes.
  • Voice Recognition: Executes voice commands for functions such as turning devices on/off, adjusting lighting, or playing media.
  • Streaming Video: Displays live video from IP cameras or streaming encoders with native support for H.265, H.264, and MJPEG formats.
  • Rava SIP Intercom: Enables hands-free VoIP communication with other Rava-enabled devices and integration with SIP-compatible phone systems.

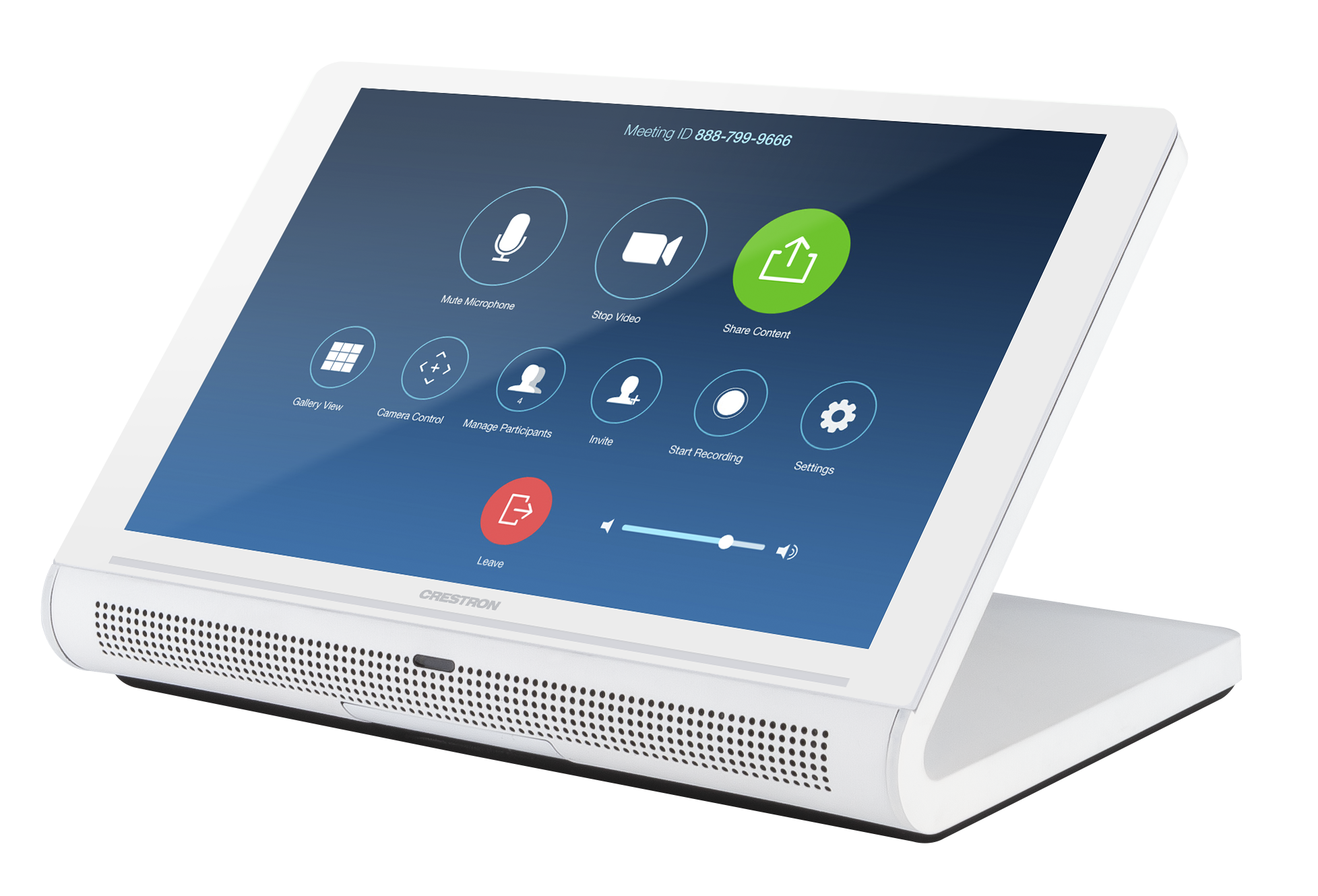

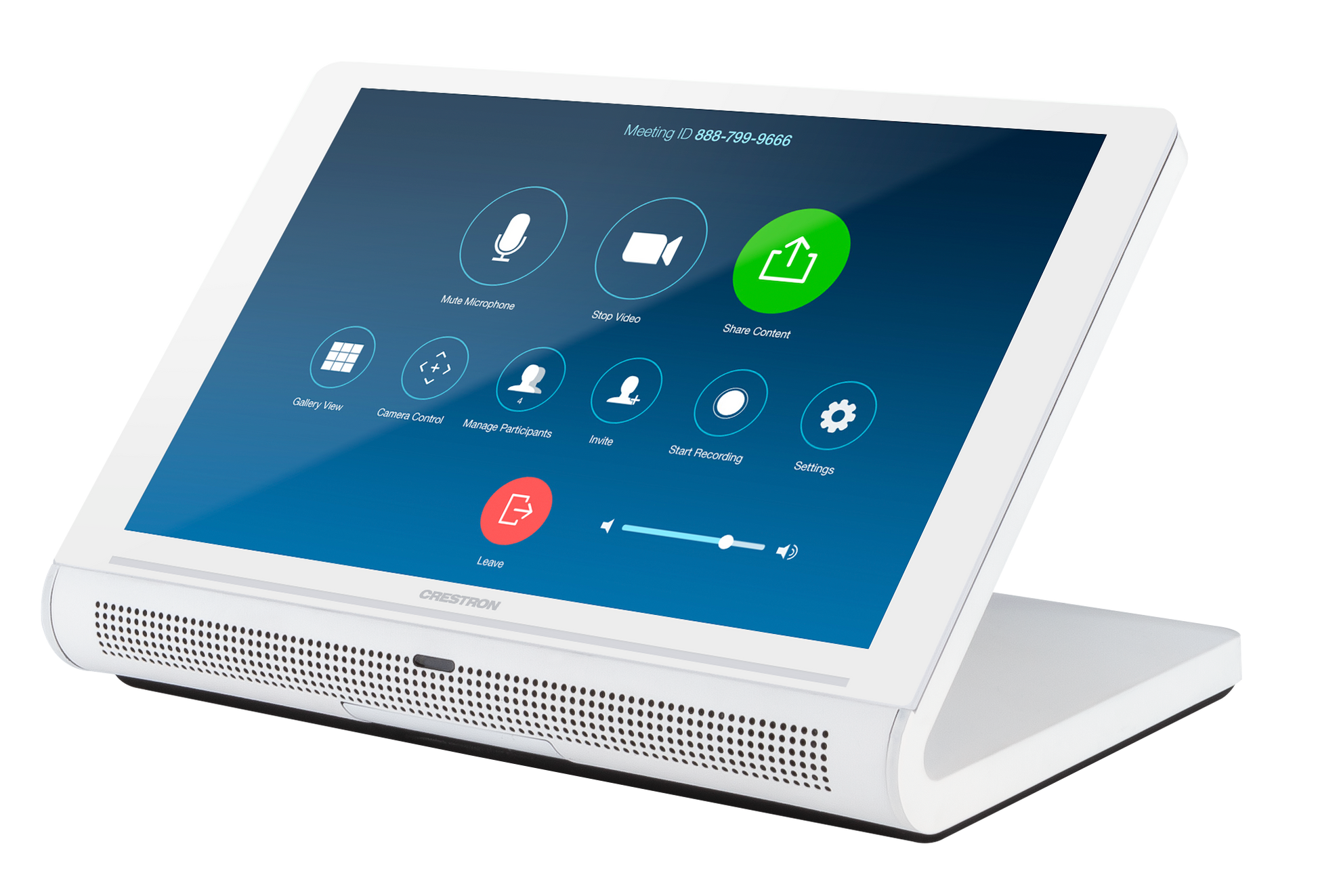

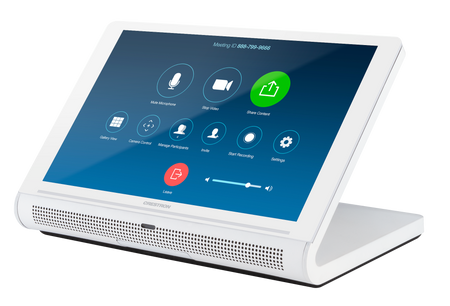

  • Room Scheduling and Conferencing Apps: Runs native apps for Crestron Room Scheduling and Zoom Rooms™, providing seamless integration with enterprise platforms.
  • Sonos App: Enables whole-house music control with Sonos speakers and Crestron DM-NAX products, offering enhanced audio performance, integration, and regular updates.
  • Wireless Connectivity: Supports both Ethernet and Wi-Fi® for flexible installation options.
  • Enterprise-Grade Security: Includes robust security features such as 802.1X authentication, TLS encryption, and Active Directory® integration.
  • XiO Cloud Service: Compatible with the XiO Cloud® platform for remote provisioning, monitoring, and management.

Specifications

Display 7 in. (178 mm) capacitive touch screen, 1920 x 800 WXGA resolution
Graphics Engine Supports HTML5 and Smart Graphics technologies

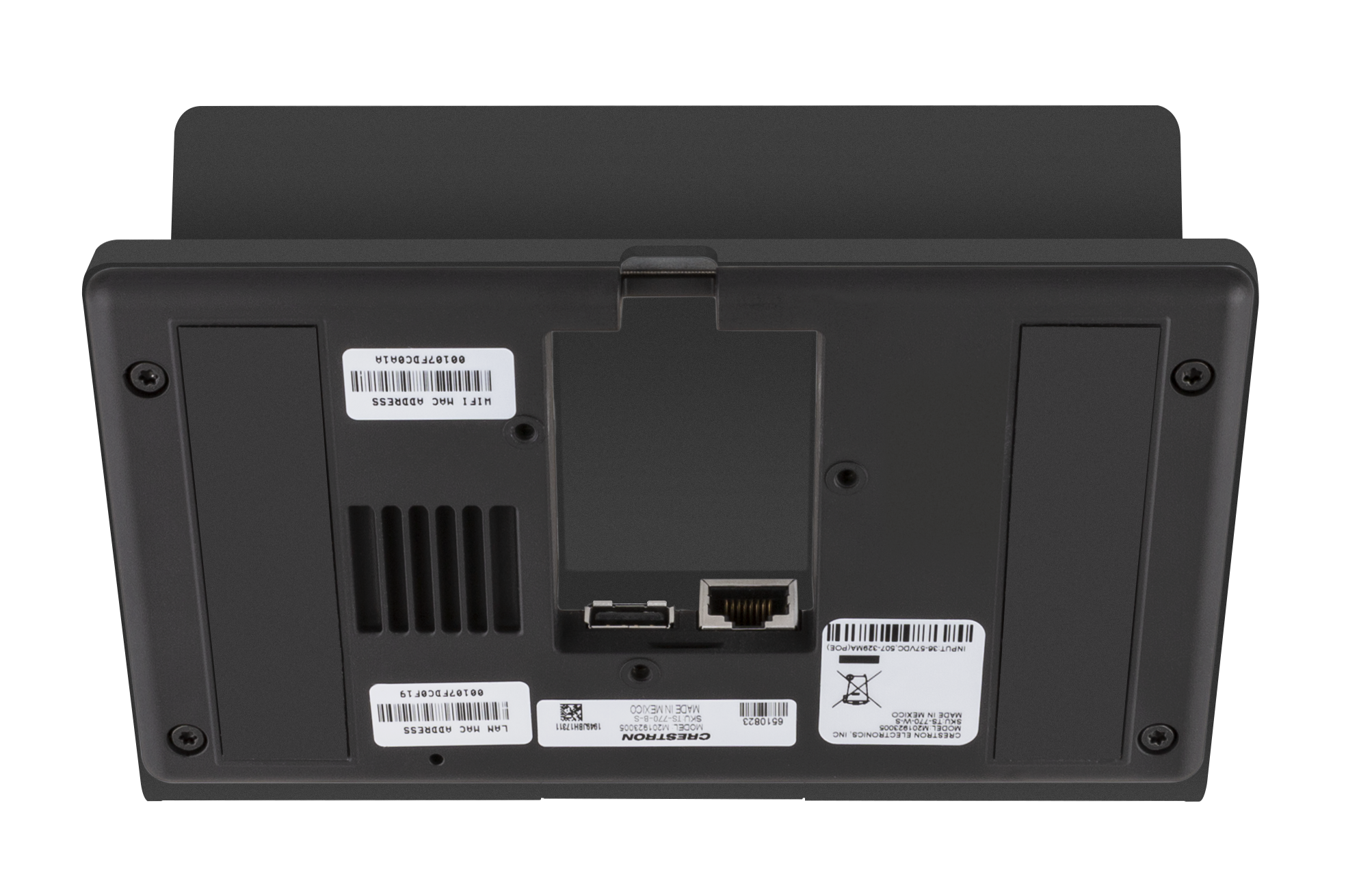

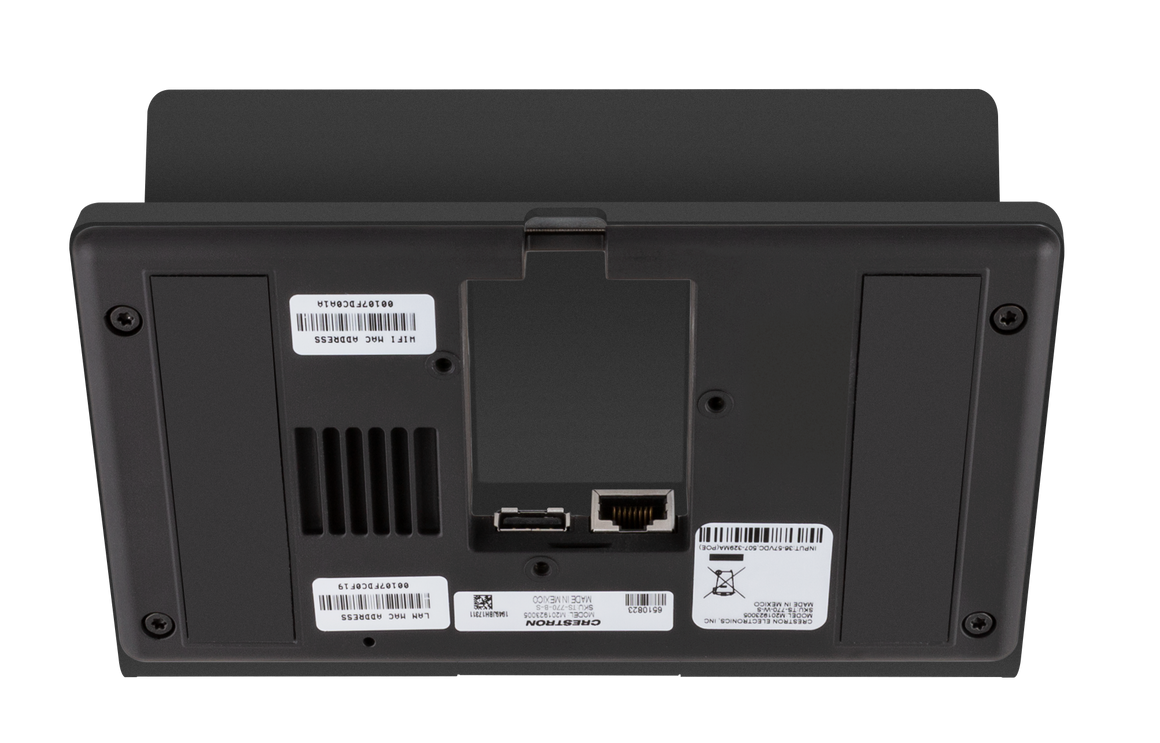

Connectivity Ethernet (PoE), Wi-Fi, USB 2.0
Streaming Decoder H.265, H.264, and MJPEG support
Voice Recognition Supports voice commands for device control
Audio Built-in microphone and speakers with Rava SIP Intercom
Languages Supports a wide range of languages for Smart Graphics, Onscreen Keyboard, and Room Scheduling
Power PoE or PoE+
Dimensions Height: 4.02 in. (102 mm); Width: 6.87 in. (175 mm); Depth: 4.37 in. (111 mm)
Weight 1.33 lb (0.61 kg)
