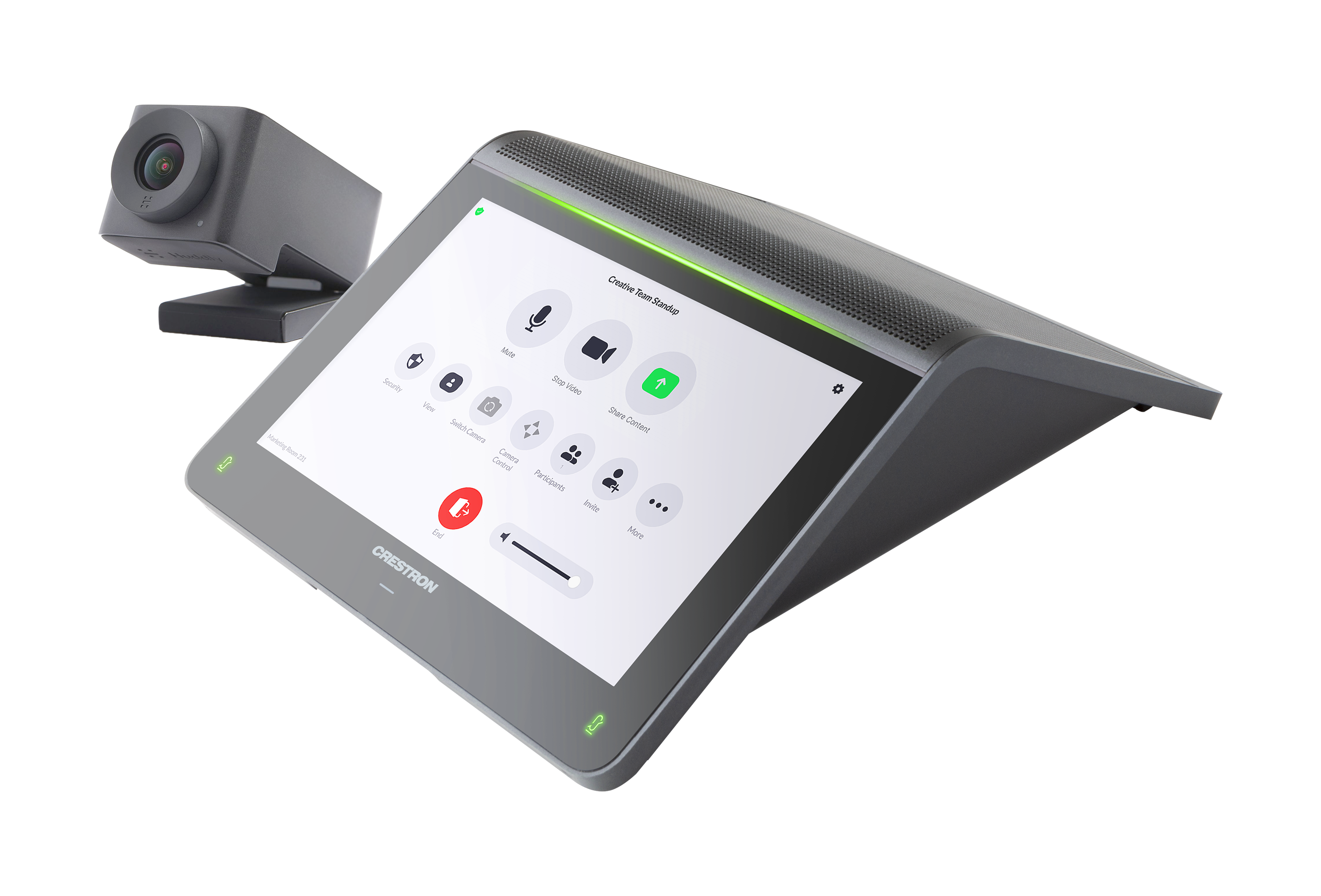

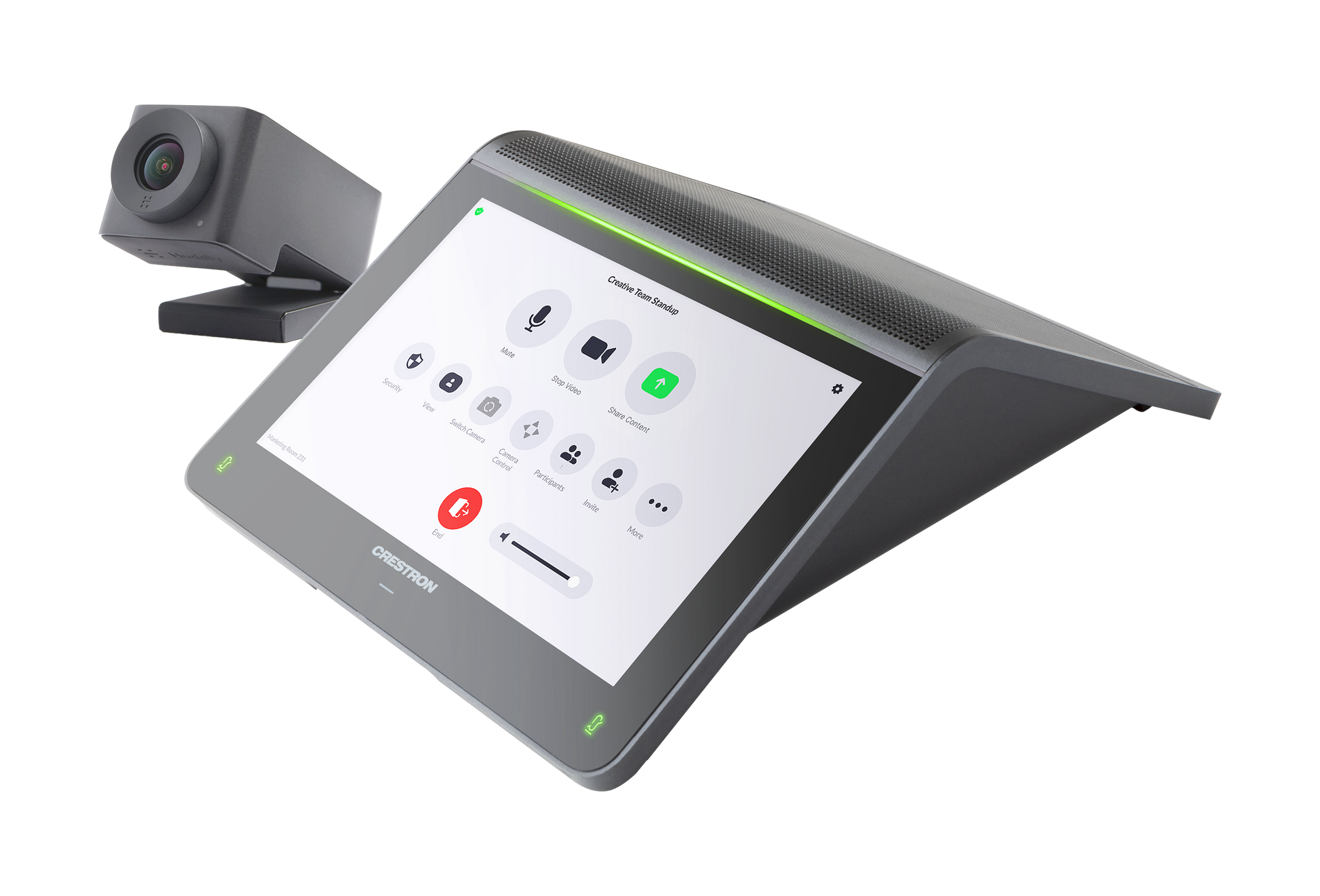

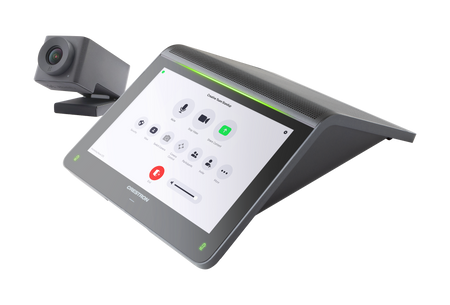

The Crestron UC-MM30-Z-I provides a compact and effective video conferencing solution tailored for small rooms. Designed for use with Zoom Rooms® software, it supports up to three video displays (not included) and features a Crestron Flex tabletop conference device, collaboration camera, UC bracket assembly, PoE injector, and essential cables. This system combines enterprise-grade security, an intuitive user interface, and seamless integration to create an exceptional conferencing experience.

Key Features

  • Native Zoom Rooms® Software Experience: Delivers a complete Zoom Rooms interface, enabling one-touch meeting joins and seamless collaboration with audio and video connectivity.

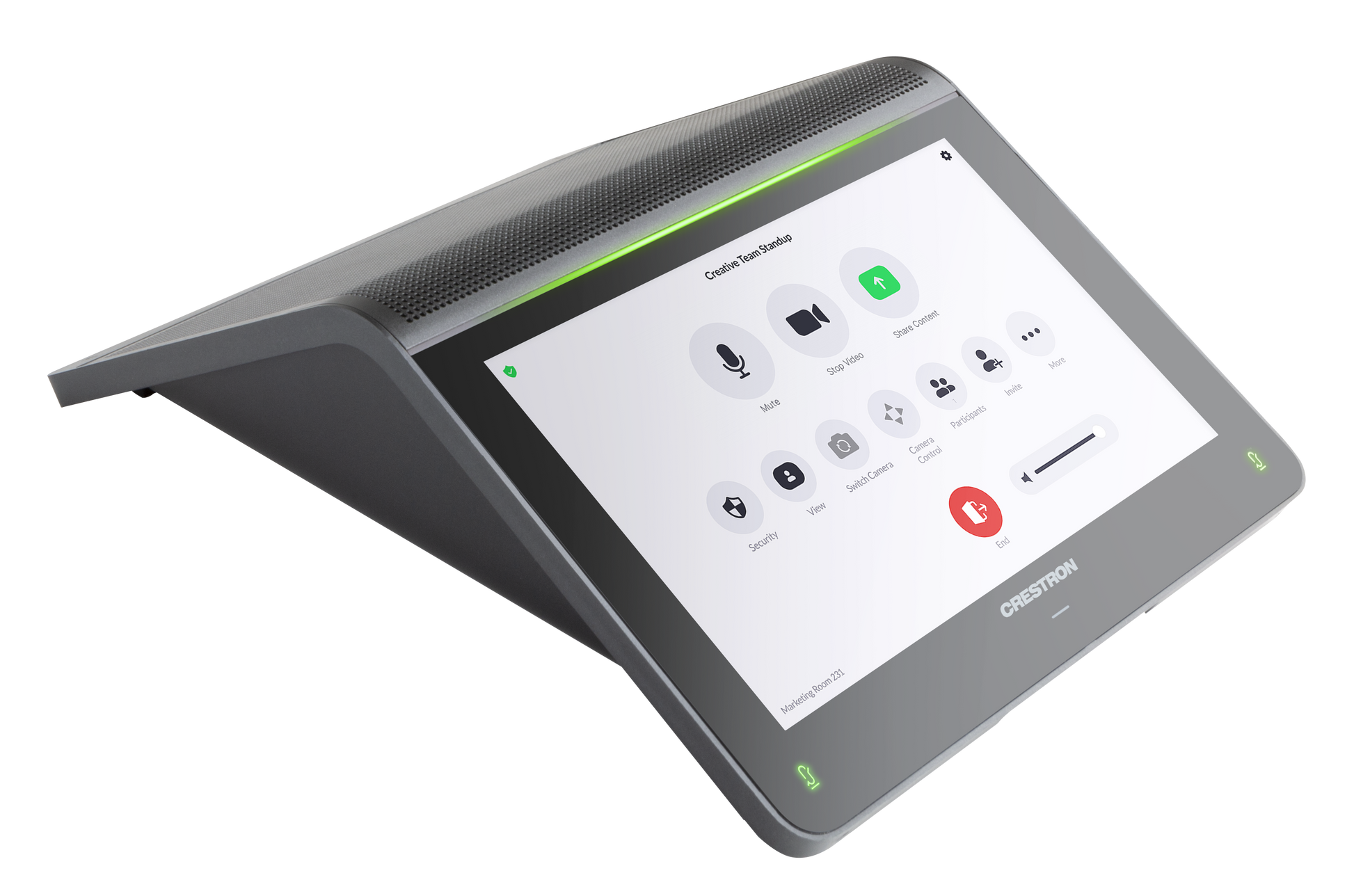

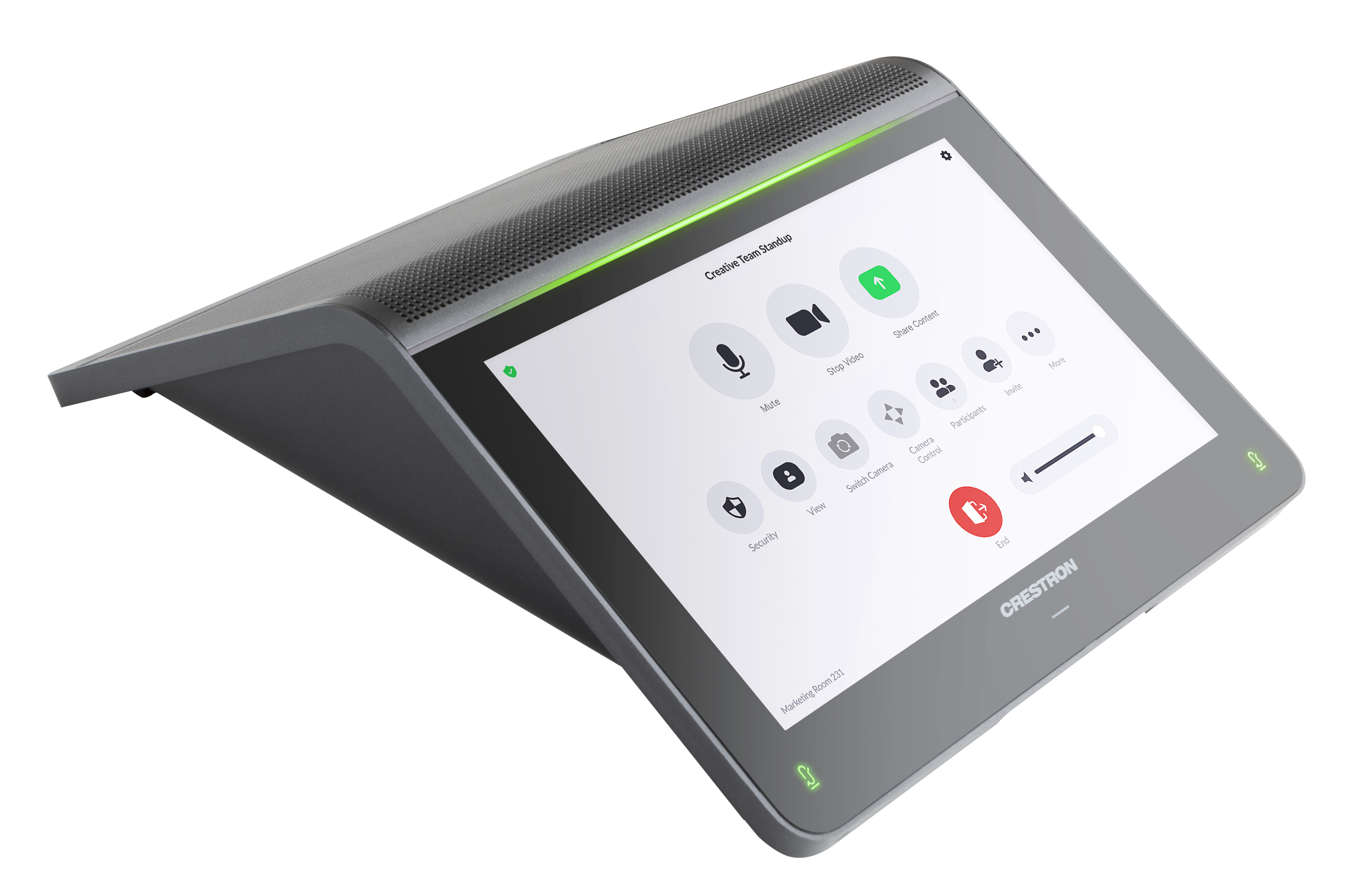

  • Intuitive User Interface with Impressive Audio: Includes a 7-inch HD color touch screen and an integrated AEC-enabled USB speakerphone that provides full-duplex wideband audio performance for clear, natural conversations.

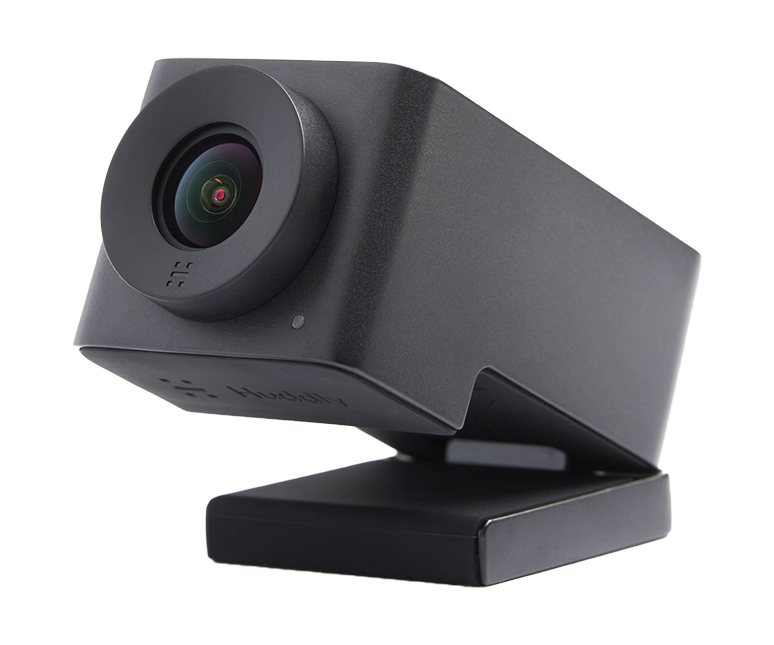

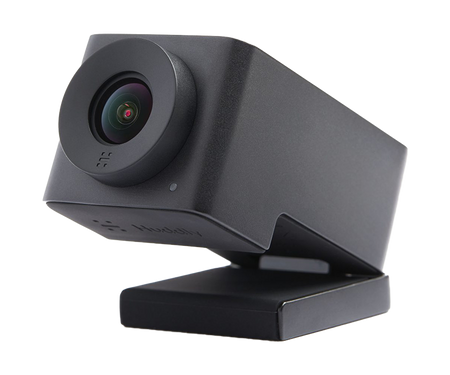

  • High-Definition Video Conferencing: The included collaboration camera (CCS-CAM-USB-F-400) features an ultra-wide 150° diagonal field of view to capture the entire conference room. It delivers Full HD 1080p resolution with advanced video processing for a sharp and clear image.

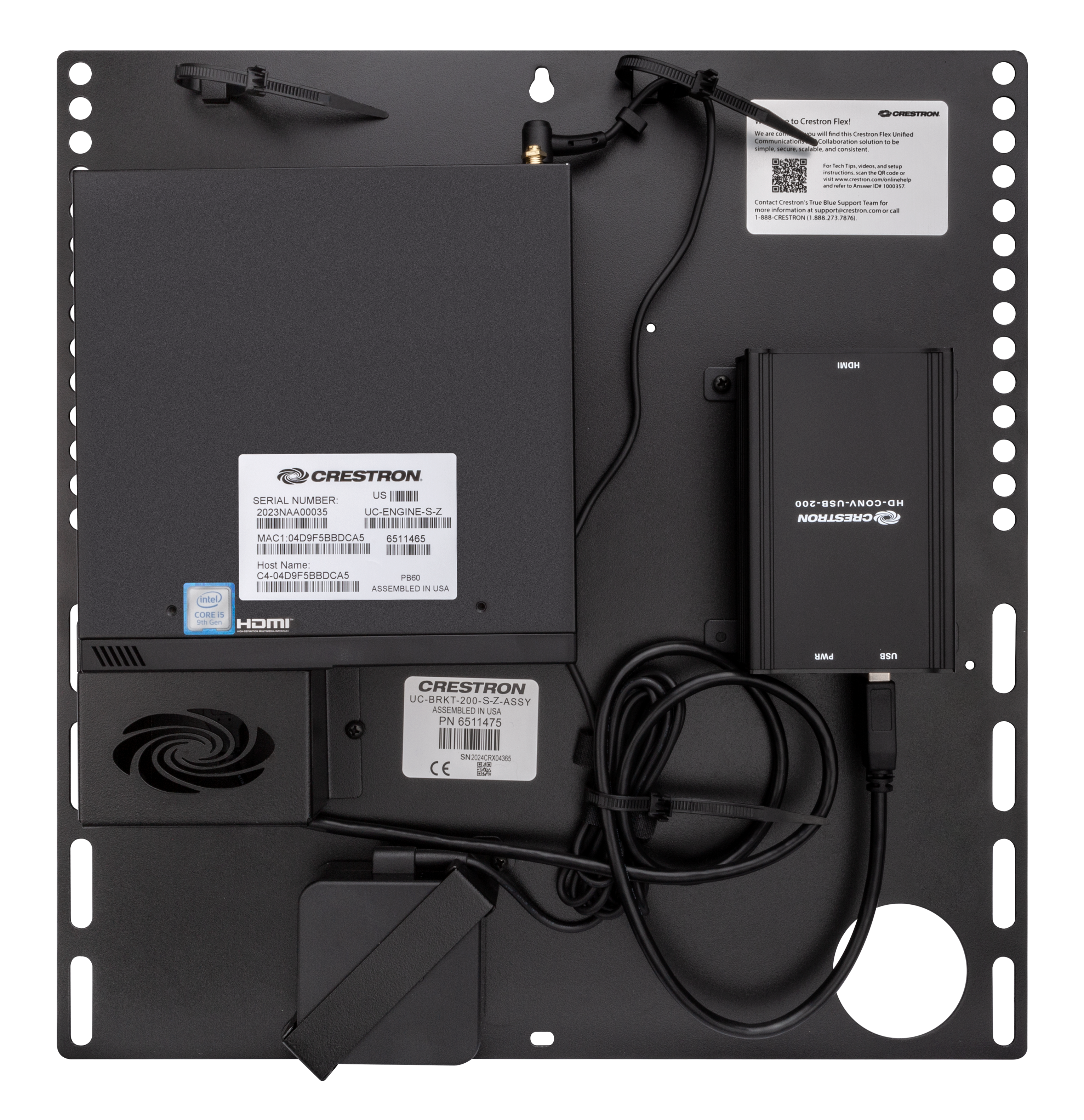

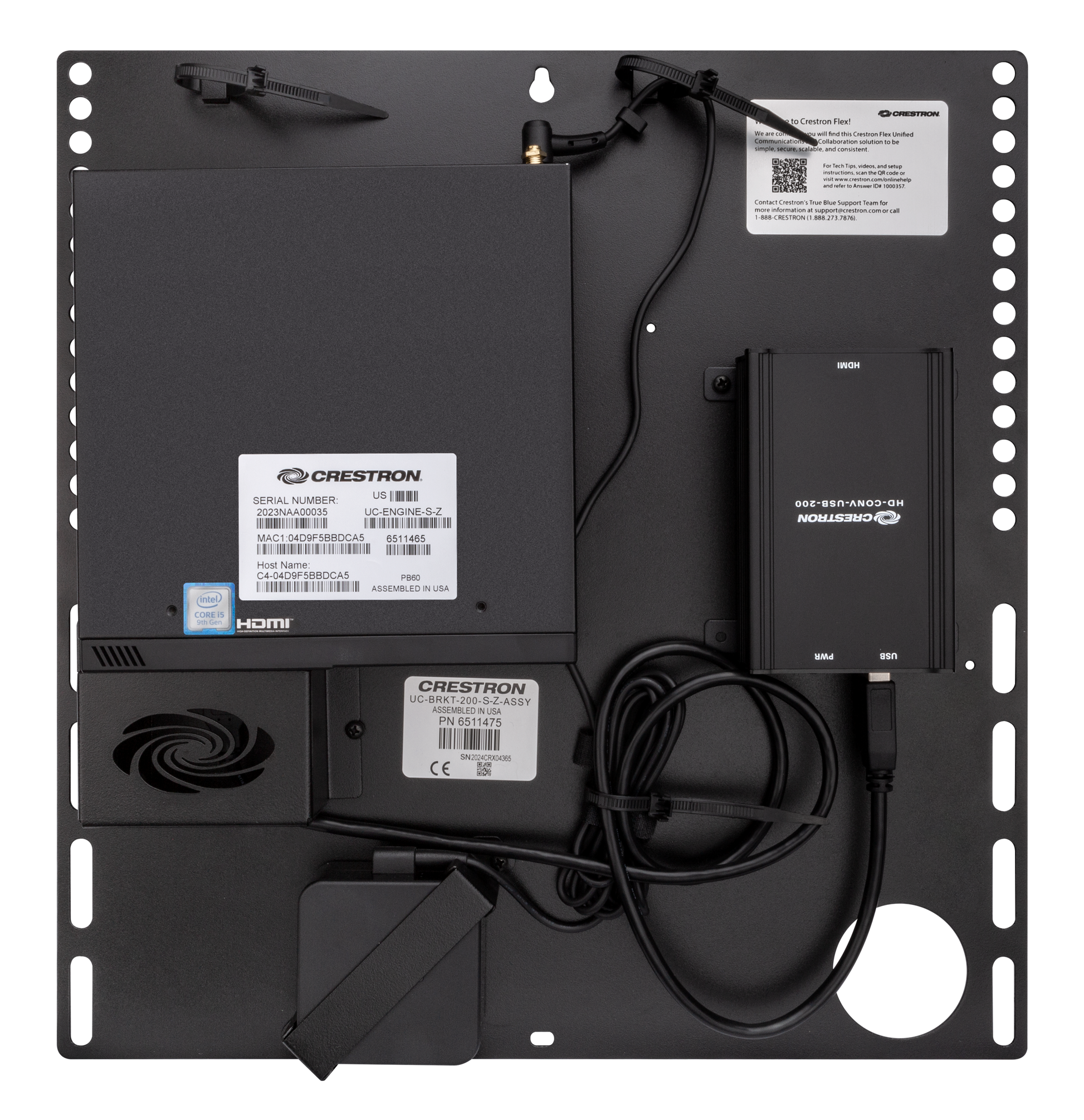

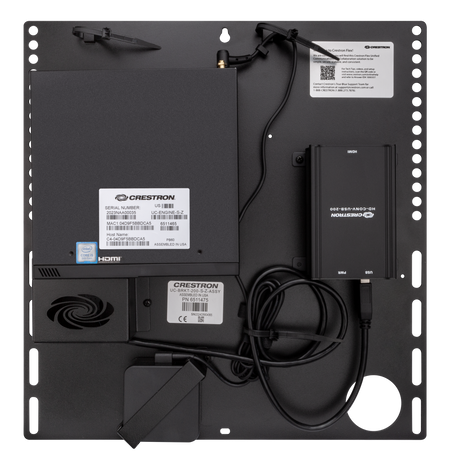

  • Simplified Deployment: The preassembled UC Bracket Assembly ensures streamlined installation and can be mounted on a wall or attached to the rear of a display for a clean setup.
  • Enterprise-Grade Security: Crestron Flex is designed to meet the needs of enterprise environments, offering secure communication across corporate, university, medical, military, or government facilities.
  • Easy Provisioning and Device Management: Compatible with the XiO Cloud® service (available separately), enabling IT managers to provision, monitor, and manage thousands of devices with system alerts and automated updates.
  • Premium Support: Optional Crestron Flex Care subscription provides 24/7 remote technical support, extended warranties, and expedited replacements for added peace of mind.

Specifications

UC Engine Intel® Core™ processor with Windows® 10 IoT Enterprise OS, 100/1000 Mbps Ethernet connectivity
Touch Screen 7 in. (178 mm) capacitive multi-touch TFT LCD, 1280 x 800 resolution
Content Sharing Supports HDMI content sharing
Display Output Supports up to three video displays (1080p resolution; displays not included)
Audio Support Integrated AEC-enabled USB speakerphone for wideband audio
Camera 12 MP collaboration camera with 150° diagonal field of view, Full HD 1080p at 30 fps;
Advanced aspherical optics and 12 MP CMOS sensor for clear image quality.
Speaker Full range speaker;
Amplifier Power: 7 W (rated power);
Output Volume: 83 ±3 dBA @1m 1 kHz;
Frequency Response: 100 Hz - 20 kHz
Microphones (4) Built-in omnidirectional, digital MEMS microphones with 360° audio pickup;
Maximum pickup range: 10 ft (3 m) typical
Occupancy Sensor Approx. 10 ft (3 m) PIR range in front of touch screen
Mounting Preassembled UC Bracket Assembly supports wall or VESA-compliant mounts
Ethernet 100 Mbps auto-switching with auto-negotiation and auto-discovery
Power UC Engine: 100-240 VAC, 50/60 Hz adapter; Tabletop Device: PoE+ injector included
Dimensions (UC Bracket Assembly) Height: 15.00 in. (381 mm); Width: 14.50 in. (368 mm); Depth: 1.87 in. (48 mm);
Weight: 7.7 lb (3.5 kg)
Dimensions (Camera) Height: 1.40 in. (36 mm); Width: 1.60 in. (41 mm); Depth: 2.82 in. (72 mm);
Weight: 4.2 oz (120 g)
Dimensions (Tabletop Conferencing System) Height: 3.02 in. (77 mm); Width: 7.17 in. (182 mm); Depth: 9.61 in. (244 mm);
Weight: 2.1 lb (0.96 kg)
Optional Service Crestron Flex Care: 24/7 remote support, extended warranty, and advanced replacements
Management Compatible with XiO Cloud® service for provisioning and device management

The Crestron UC-MM30-Z-I is an ideal solution for professional video conferencing in small meeting rooms, offering seamless Zoom Rooms integration, intuitive touch control, and enterprise-grade performance.
