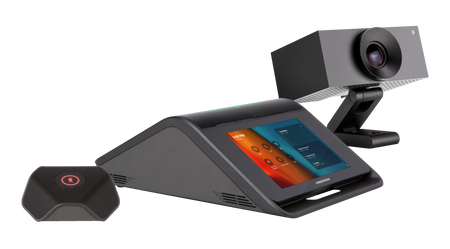

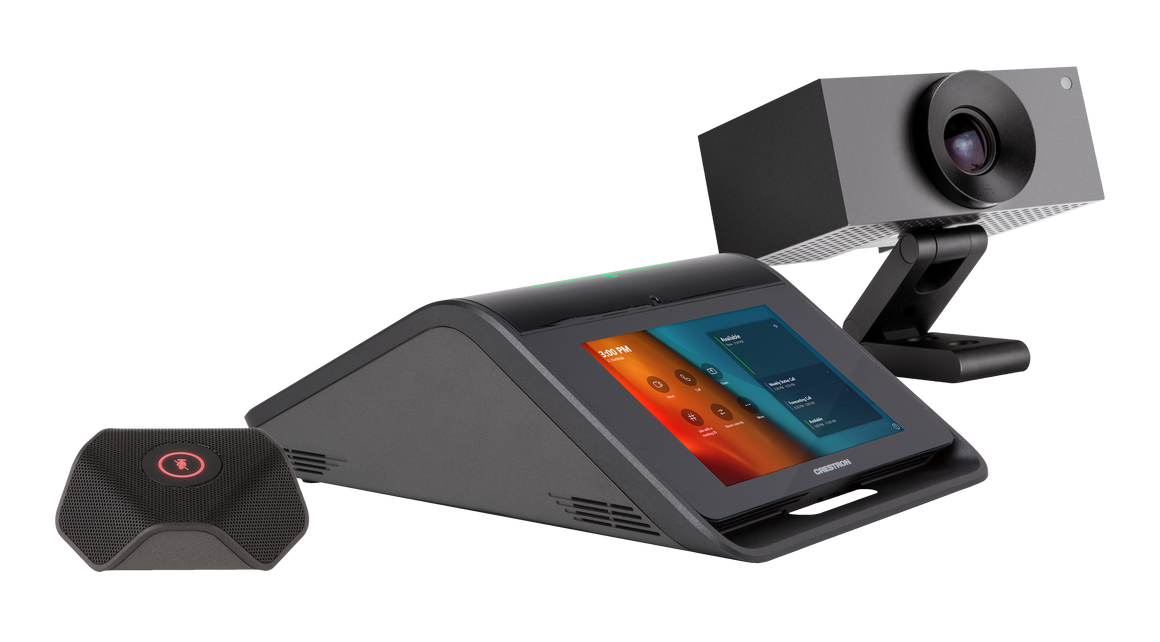

The Crestron UC-MX70-T is a large room video conferencing solution tailored for Microsoft Teams® Rooms software. This all-in-one system includes a Crestron Flex tabletop conferencing device, AI collaboration camera, UC bracket assembly, microphone pod, power supply, and essential cables. It supports single or dual video displays (not included) and is designed to deliver enterprise-grade performance, intuitive operation, and seamless collaboration.

Key Features

  • Native Microsoft Teams® Rooms Experience: Offers a consistent user interface with one-touch join functionality, seamless collaboration, and integration with Microsoft Teams® Rooms environments.

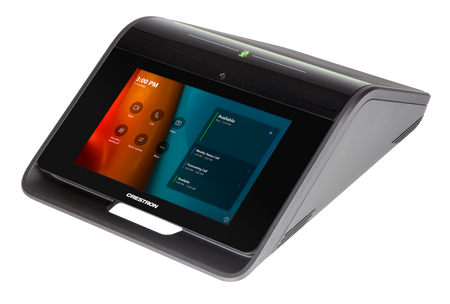

  • Intuitive User Interface and Superior Audio: Features a 7-inch HD colour capacitive touch screen and an integrated AEC-enabled USB speakerphone with full-duplex wideband audio for clear and natural communication.
  • High-Definition Video Conferencing: Includes the UC-CAM-L1 AI collaboration camera with a 103° diagonal field of view, 20.30 MP CMOS sensor, and Full HD 1080p resolution. Genius Framing technology auto-frames participants for optimal viewing.
  • Bring Your Own Device (BYOD): Allows users to connect their laptops and utilise their preferred UC conferencing platform. The content ingest device switches input automatically and returns to Microsoft Teams when disconnected.

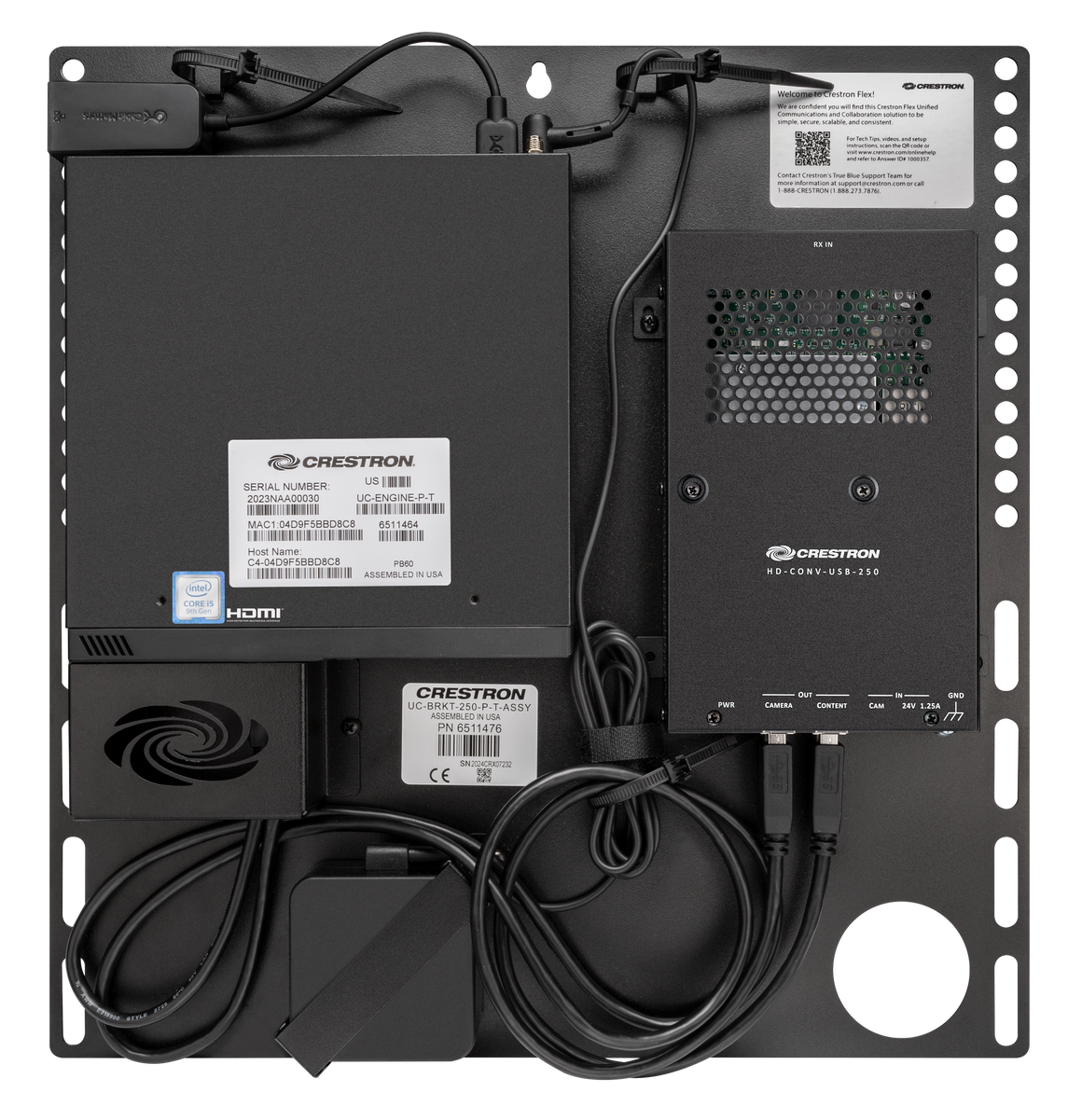

  • Simplified Installation: The preassembled UC Bracket Assembly offers flexible wall or display mounting and enables direct connection to the tabletop device, streamlining installation.
  • Crestron Control System Integration: Enables optional touch screen control of lighting, shades, climate, and AV systems with integration via a Crestron control system.
  • Enterprise-Grade Security: Built in collaboration with Microsoft, this system ensures secure communication across SMB, enterprise, government, and education networks.
  • Easy Device Management: Supports XiO Cloud® for centralised provisioning, monitoring, and system alerts for IT management and deployment scalability.
  • Premium Support: Optional Crestron Flex Care subscription provides 24/7 technical support, extended warranty, and advanced replacements for peace of mind.
  • Dual Control Option: Supports an additional TS- or TSW-70 series 10.1 in. touch screen for enhanced room control.

Specifications

UC Engine Intel® Core® processor with Windows® 10 IoT Enterprise OS, 100/1000 Mbps Ethernet connectivity

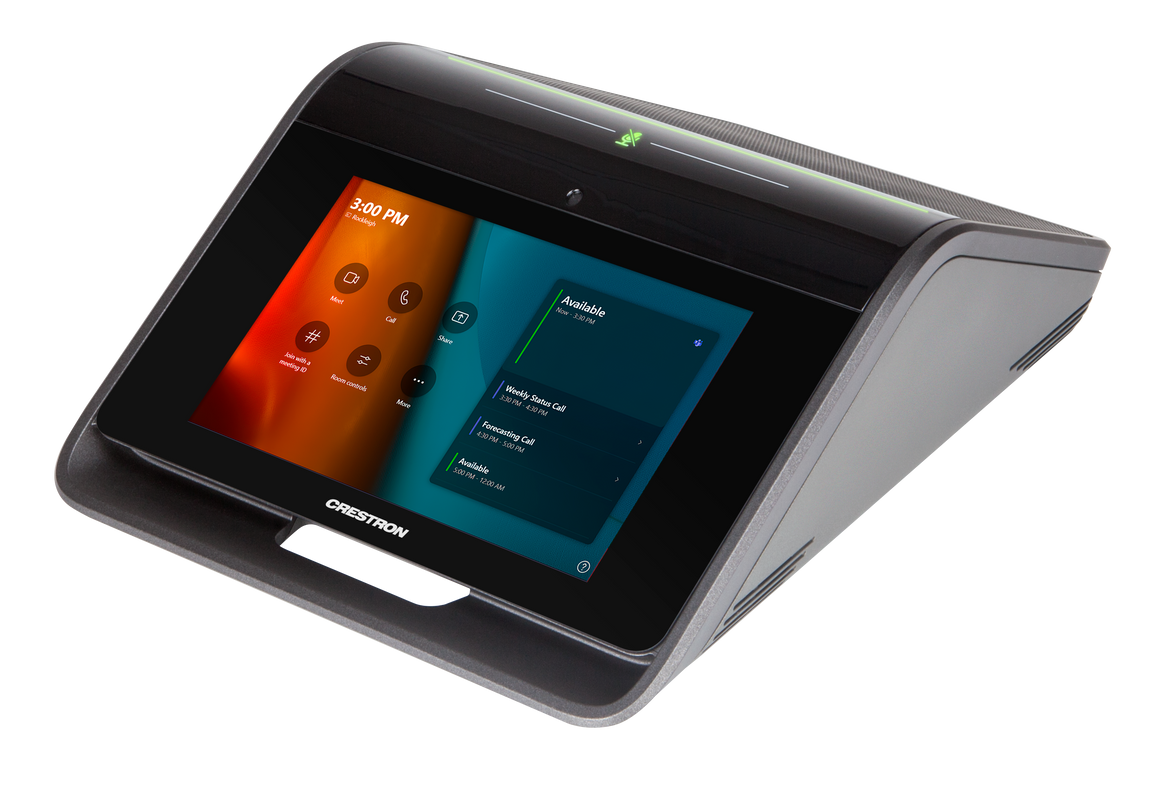

Touch Screen 7 in. (178 mm) capacitive multi-touch TFT LCD, 1280 x 800 resolution

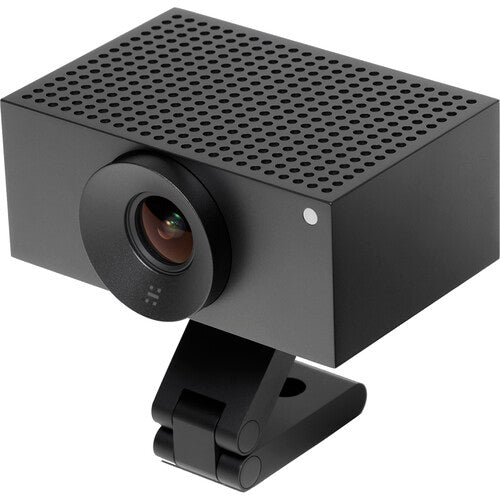

Collaboration Camera
  • Field of View: 103° diagonal, 92° horizontal, 65° vertical
  • Resolution: Full HD 1080p at 30 fps
  • Sensor: 20.30 MP CMOS with advanced image processing
  • Genius Framing: Auto-frames people in the room
Audio Support Integrated AEC-enabled USB speakerphone for full-duplex wideband audio

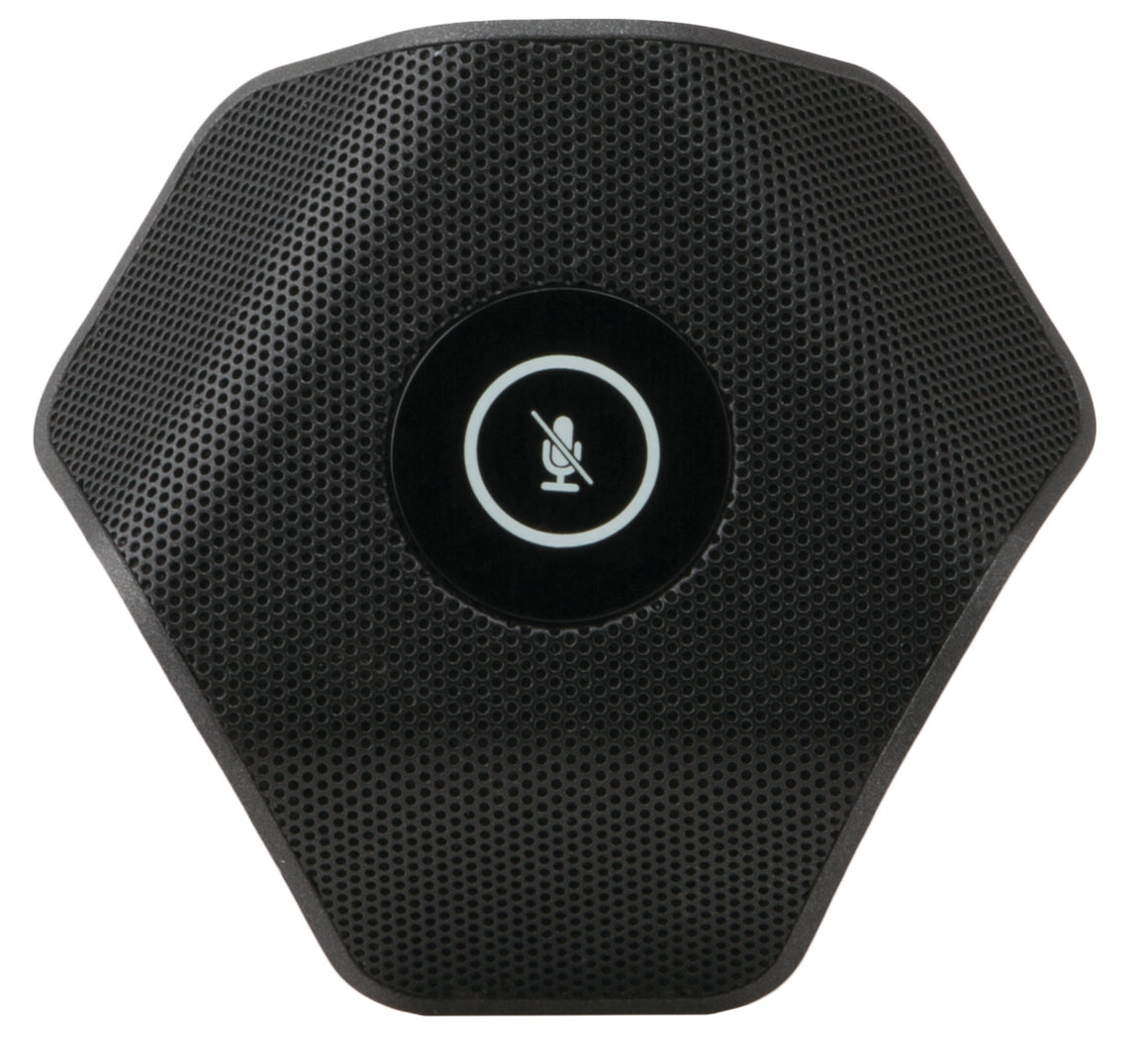

Microphones
  • 360° quad microphone array
  • Pickup Range: 20 ft (6 m) typical
Extension Microphones Supports up to two mic pods, model CCS-UCA-MIC (sold separately)
Occupancy Sensor 6 ft (1.83 m) PIR range in front of the touch screen
Mounting UC Bracket Assembly supports wall or VESA-compliant mounts
Ethernet 100 Mbps, auto-switching, autonegotiation, autodiscovery, DHCP, TCP/IP, and more
Power 24 VDC via external 100-240 VAC, 50/60 Hz power pack (model PW-2420RU included)
Dimensions (UC Bracket Assembly)
  • Height: 15.00 in. (381 mm)
  • Width: 14.50 in. (368 mm)
  • Depth: 1.87 in. (48 mm)
  • Weight: 8.0 lb (3.7 kg)
Dimensions (Camera)
  • Height: 2.1 in. (53 mm)
  • Width: 4.8 in. (122 mm)
  • Depth: 3.5 in. (89 mm)
  • Weight: 1.3 lb (0.6 kg)
Dimensions (Tabletop Device)
  • Height: 4.11 in. (104 mm)
  • Width: 8.92 in. (227 mm)
  • Depth: 12.74 in. (324 mm)
  • Weight: 5.5 lb (2.5 kg)
Optional Service Crestron Flex Care: 24/7 remote support, extended warranty, and expedited replacements

The Crestron UC-MX70-T is a powerful and flexible video conferencing solution for large rooms, offering a premium Microsoft Teams Rooms experience with support for BYOD, enterprise security, intuitive controls, and AI-driven video and audio performance.
