Harman Professional Cinema Room Audio System - Gold Bundle
Audio System Bundle for Cinema Room
Secure Checkout
Warranty Protection
Hassle-Free Returns
The Harman Professional Cinema Room Audio System Gold Bundle is a premium, high-performance audio package designed for dedicated movie rooms, VIP suites, small screening rooms, and immersive presentation spaces. It combines powerful JBL front speakers, dedicated surround speakers, and a high-impact 18" subwoofer with professional cinema amplifiers to deliver clear dialogue, rich music, deep bass, and fully immersive surround sound. Once installed, the system works seamlessly in the background—users simply press play and enjoy a true cinema experience.
Key Features
- Complete Professional Cinema System: Includes 3 × JBL AC26 front speakers, 4 × JBL 8320 surround speakers, 1 × JBL ASB6118 subwoofer, and 1 × JBL DSi SA4 plus 1 × JBL DSi LA4 cinema amplifier—everything needed for a powerful, fully balanced cinema room.
- Clear & Detailed Front Sound: JBL AC26 speakers use dual 6.5" woofers and a precision high-frequency driver to make dialogue, music, and on-screen action sound clean and intelligible across the entire seating area.
- Immersive Surround Effects: JBL 8320 speakers create an enveloping listening experience, reproducing ambient effects, motion cues, and soundtrack details that enhance the realism of films and games.
- Deep, Cinematic Bass: The JBL ASB6118 18" subwoofer delivers powerful low-frequency impact, bringing weight and excitement to action scenes, music scores, and dramatic moments.
- Cinema-Grade Amplification: The JBL DSi SA4 and LA4 amplifiers provide clean, reliable power along with built-in processing and JBL loudspeaker presets, ensuring the system is tuned for optimal performance and long-term protection.
- Simple Daily Operation: After setup, users operate the system with their standard cinema or media controls, no technical training required for everyday use.
- Professional Reliability: Designed using JBL’s proven cinema and installation components, the system is built for consistent performance in both commercial and high-end residential environments.
Specifications

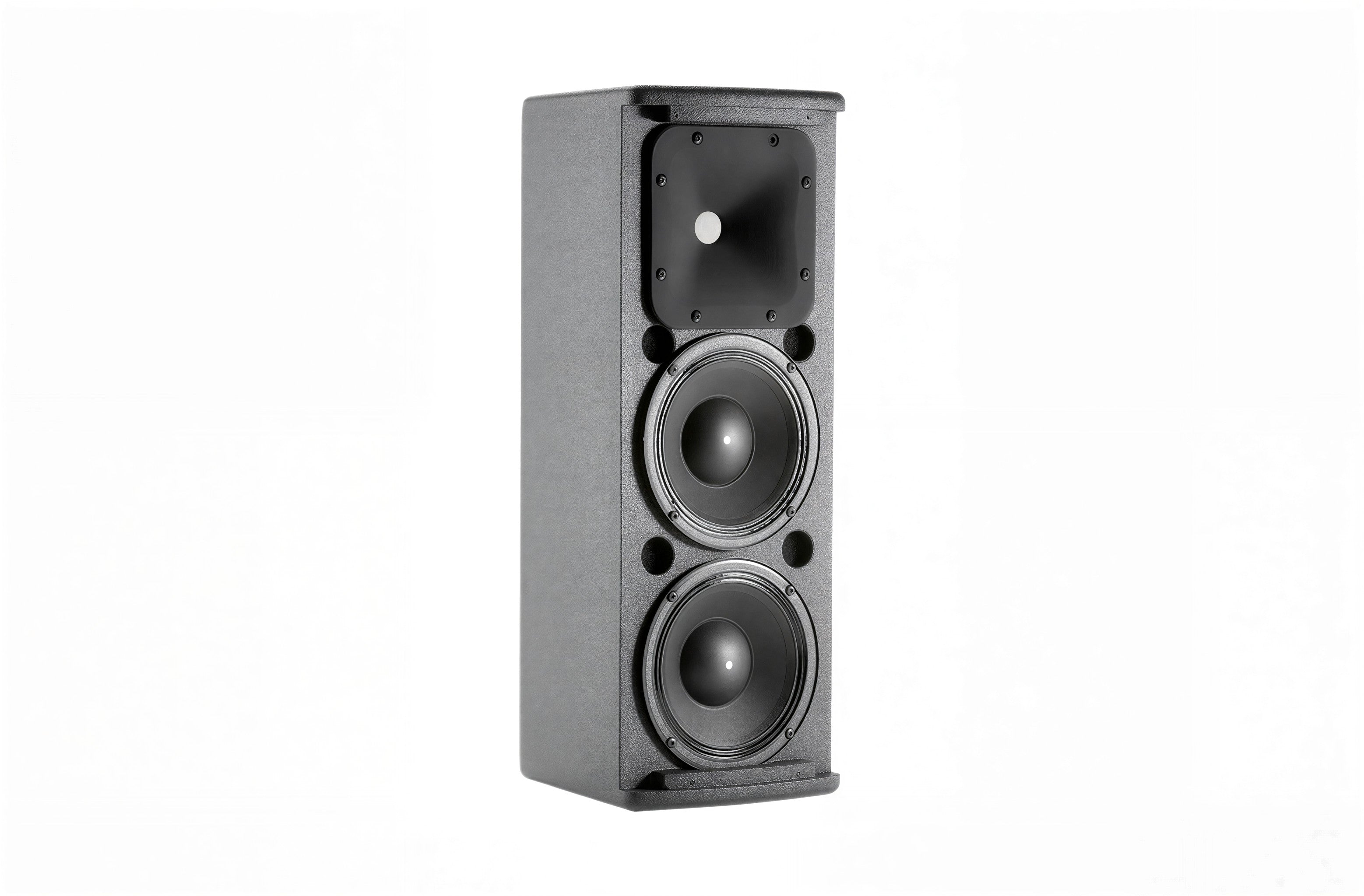

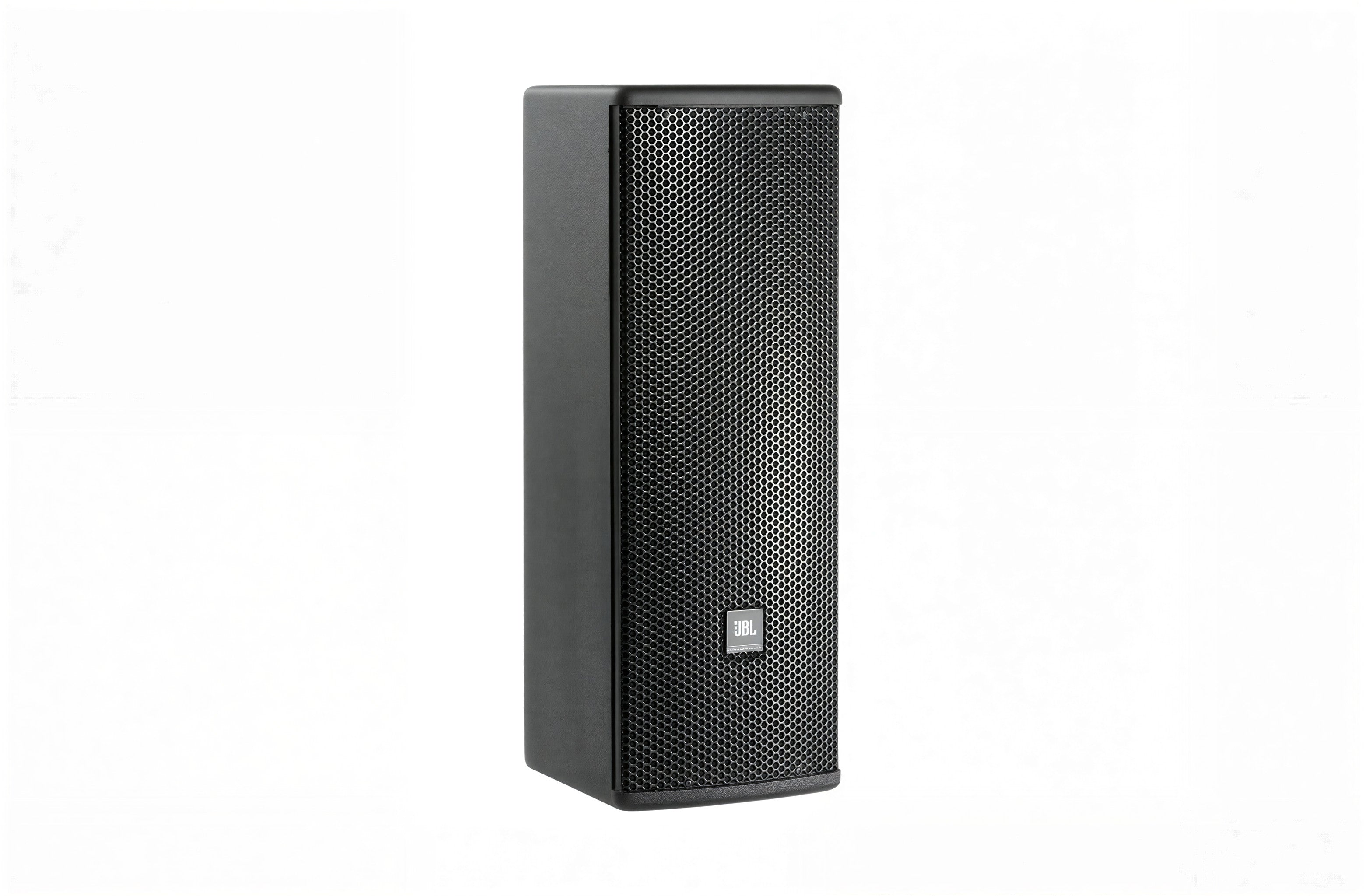

An ultra-compact dual 6.5" two-way loudspeaker designed for clear, powerful front-of-room sound. Ideal for cinema screen channels and high-quality foreground audio where space is limited.
| Type | Ultra compact 2-way loudspeaker with dual 6.5" LF drivers |
| Frequency Range (-10 dB) | 55 Hz – 20 kHz |
| Frequency Response (±3 dB) | 70 Hz – 18 kHz |
| Coverage | 90° × 90° (horizontal × vertical) |
| Sensitivity (1 W @ 1 m) | 92 dB SPL |
| Long-Term Power Rating | 180 W continuous / 360 W program / 720 W peak |
| AES Power Rating | 350 W |
| Rated Maximum SPL (1 m) | 117 dB |
| Nominal Impedance | 8 Ω |
| LF Drivers | 2 × 165 mm (6.5") JBL 226J LF transducers |
| HF Driver | 1 × 25 mm (1") exit compression driver (2414H) on PT™ waveguide |
| Dimensions (H × W × D) | 539.8 × 199.4 × 226.1 mm (21.3 × 7.8 × 8.9 in) |
| Weight | 11.0 kg (24.3 lb) each |

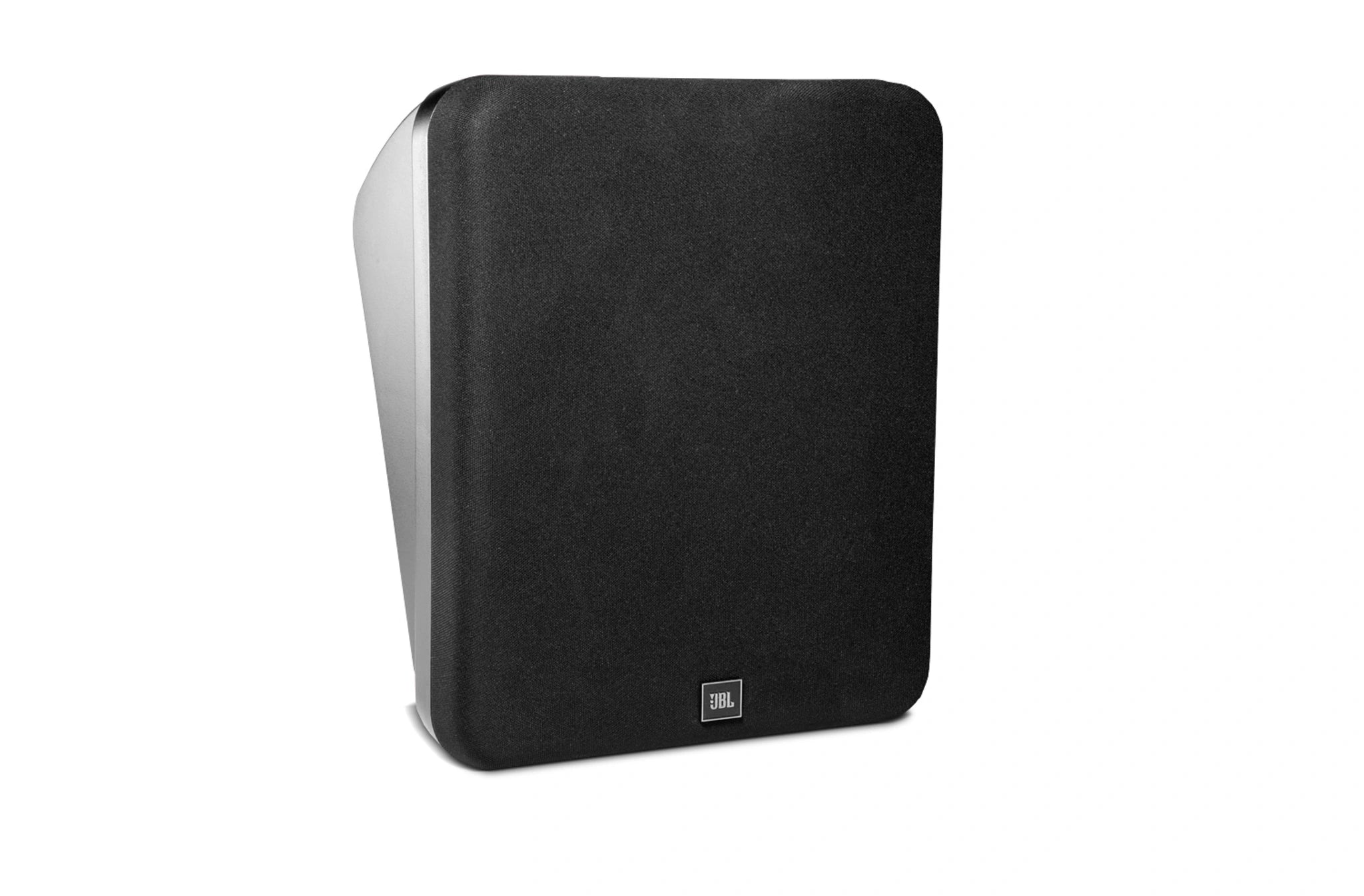

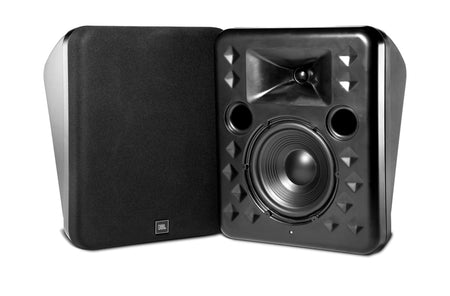

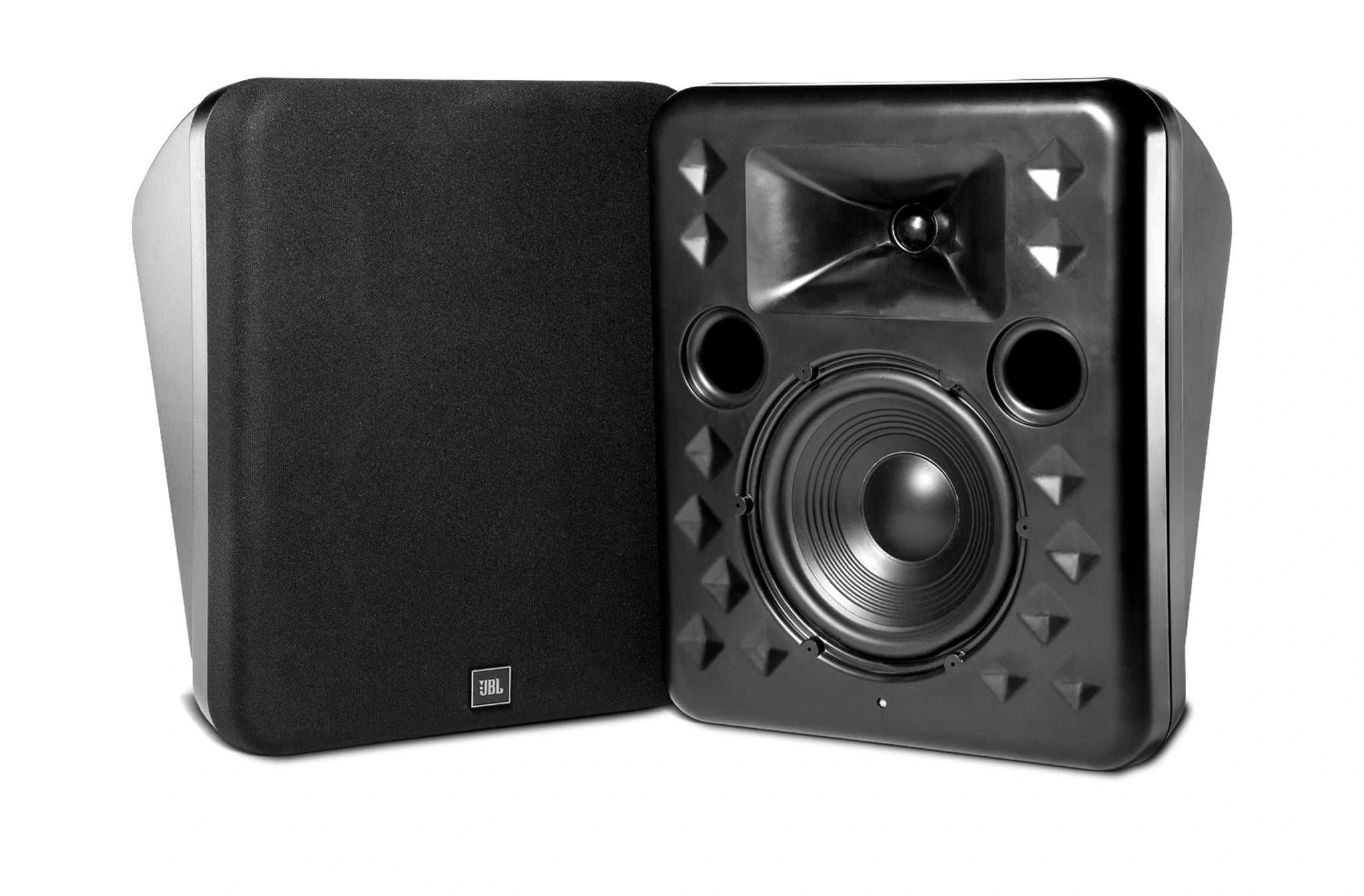

A compact, purpose-built cinema surround loudspeaker offering wide coverage, high power handling, and extended response for modern digital cinema soundtracks.
| Type | Two-way compact cinema surround speaker |
| Frequency Range (-10 dB) | 50 Hz – 20 kHz |
| Frequency Response (±3 dB) | 65 Hz – 18 kHz |
| Input Power Handling (AES 2 hr) | 150 W (IEC/pink noise) |
| Input Power Handling (AES 100 hr) | 70 W (IEC/pink noise) |
| Sensitivity (1 W @ 1 m) | 94 dB SPL half-space / 91 dB SPL free-field |
| Maximum Peak SPL (1 m) | 122 dB |
| Maximum Continuous SPL (1 m) | 116 dB |
| Nominal Impedance | 8 Ω |
| Coverage (H × V, -6 dB) | 100° horizontal × 90° vertical (400 Hz – 12 kHz, average) |
| LF Driver | 200 mm (8") long-throw woofer, 38 mm (1.5") voice coil |
| HF Driver | 25 mm (1") soft dome driver |
| Dimensions (H × W × D) | 406 × 343 × 224 mm (16.0 × 13.5 × 8.8 in) |
| Net Weight | 5.0 kg (11 lb) each |

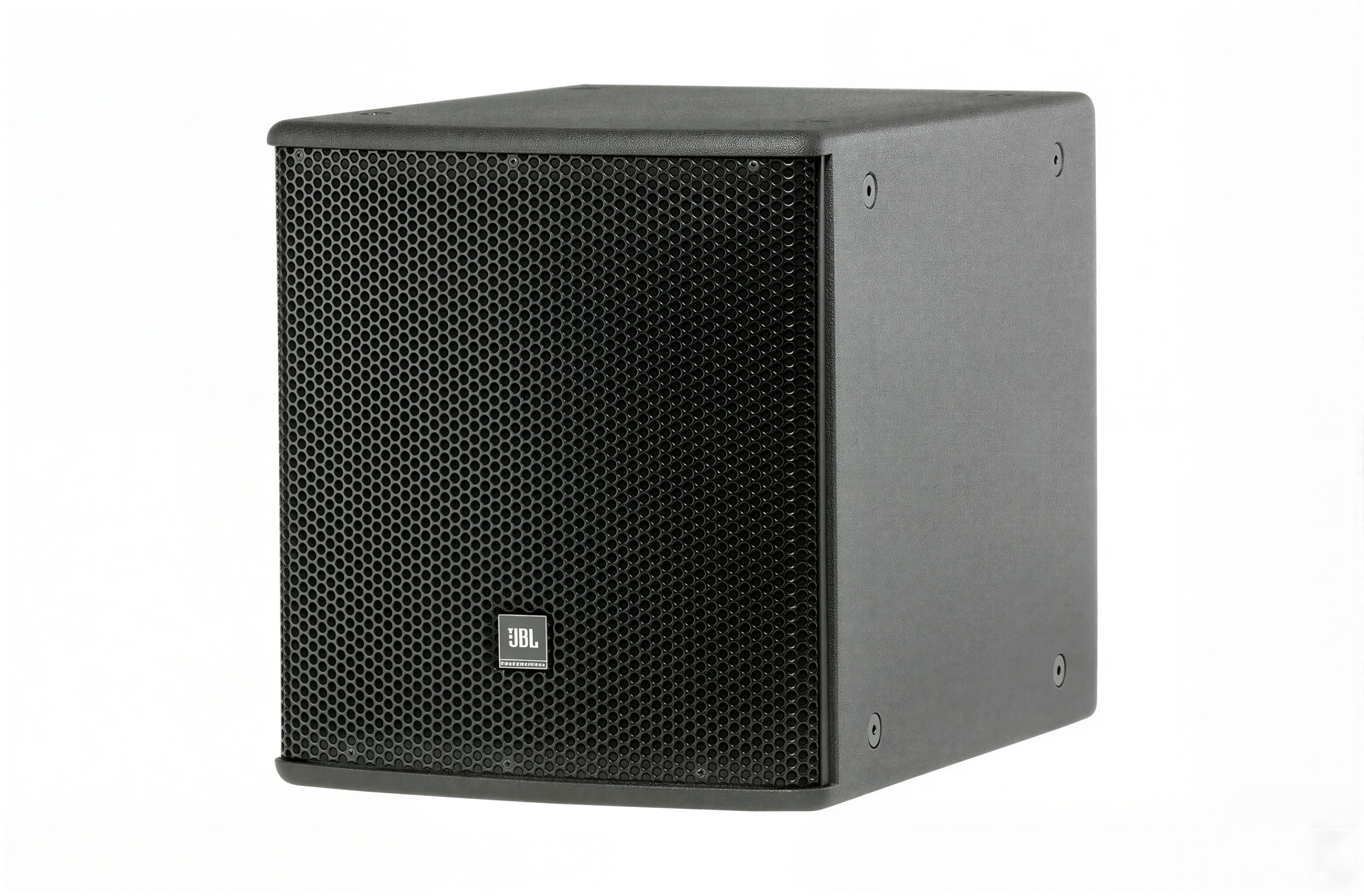

A high-power single 18" subwoofer designed to deliver deep, high-impact bass for cinema and live sound applications, with high output and low distortion in a vented enclosure.
| Type | High-power single 18" vented subwoofer |
| Frequency Range (-10 dB) | 28 Hz – 1 kHz |
| Frequency Response (±3 dB) | 35 Hz – 1 kHz |
| Transducer Power Rating (AES) | 1200 W (4800 W peak), 2 hours |
| Long-Term System Power Rating | 800 W (3200 W peak), 100 hours |
| System Sensitivity (30–100 Hz) | 98 dB SPL (1 W @ 1 m) |
| Maximum SPL (30–100 Hz) | 129 dB continuous average / 135 dB peak |
| Nominal Impedance | 8 Ω |
| LF Driver | 1 × JBL 2242H 460 mm (18") SVG™ driver, 100 mm (4") voice coil |
| Dimensions (H × W × D) | 548 × 561 × 816 mm |
| Net Weight | 44.5 kg (98 lb) |
Four-channel dedicated cinema amplifiers with high-efficiency DriveCore technology, built-in 96 kHz DSP, JBL loudspeaker tunings, and robust power output for screen, surround, and subwoofer channels.
| Type | 4-channel cinema power amplifiers with integrated DSP (DSi SA4 & DSi LA4) |
| Channels | 4 per amplifier |
| Rated Power (SA4, per channel @ 8 Ω) | 350 W (higher power into lower impedances) |
| Rated Power (LA4, per channel @ 8 Ω) | 1200 W (higher power into lower impedances) |
| DSP Processing | 96 kHz / 32-bit floating-point; FIR filters, parametric EQ, delay, LevelMAX™ limiting |
| JBL Speaker Tunings | Built-in presets for JBL cinema loudspeakers to simplify setup and optimization |
| Control & Monitoring | Ethernet-based control, remote monitoring, and integration with cinema control systems (model dependent) |
| Form Factor | 2U rack-mount chassis |
| Net Weight | 10.5 kg (23.15 lb) each |
| Typical Use | SA4 for screen and surround channels, LA4 for subwoofers and high-power front channels |

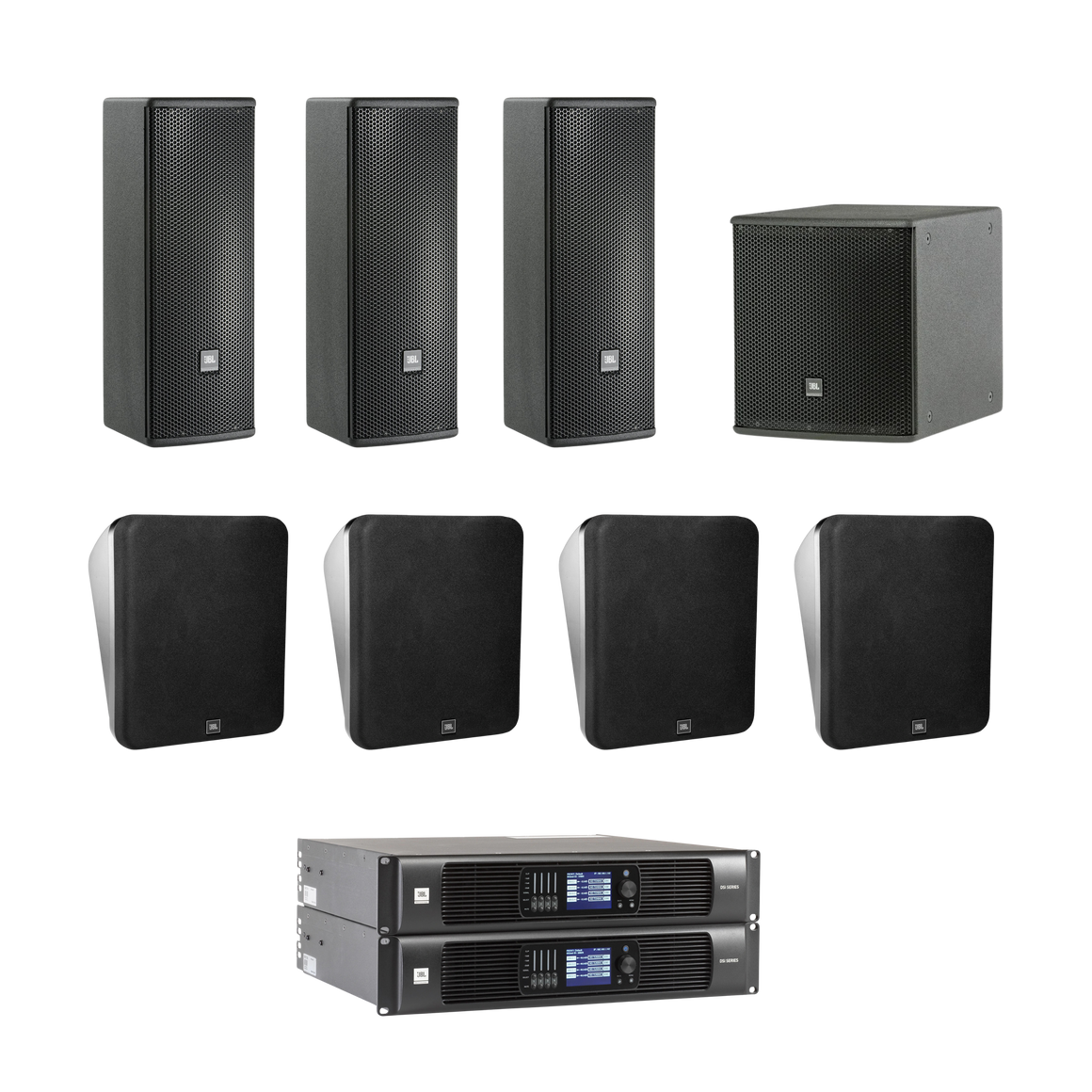

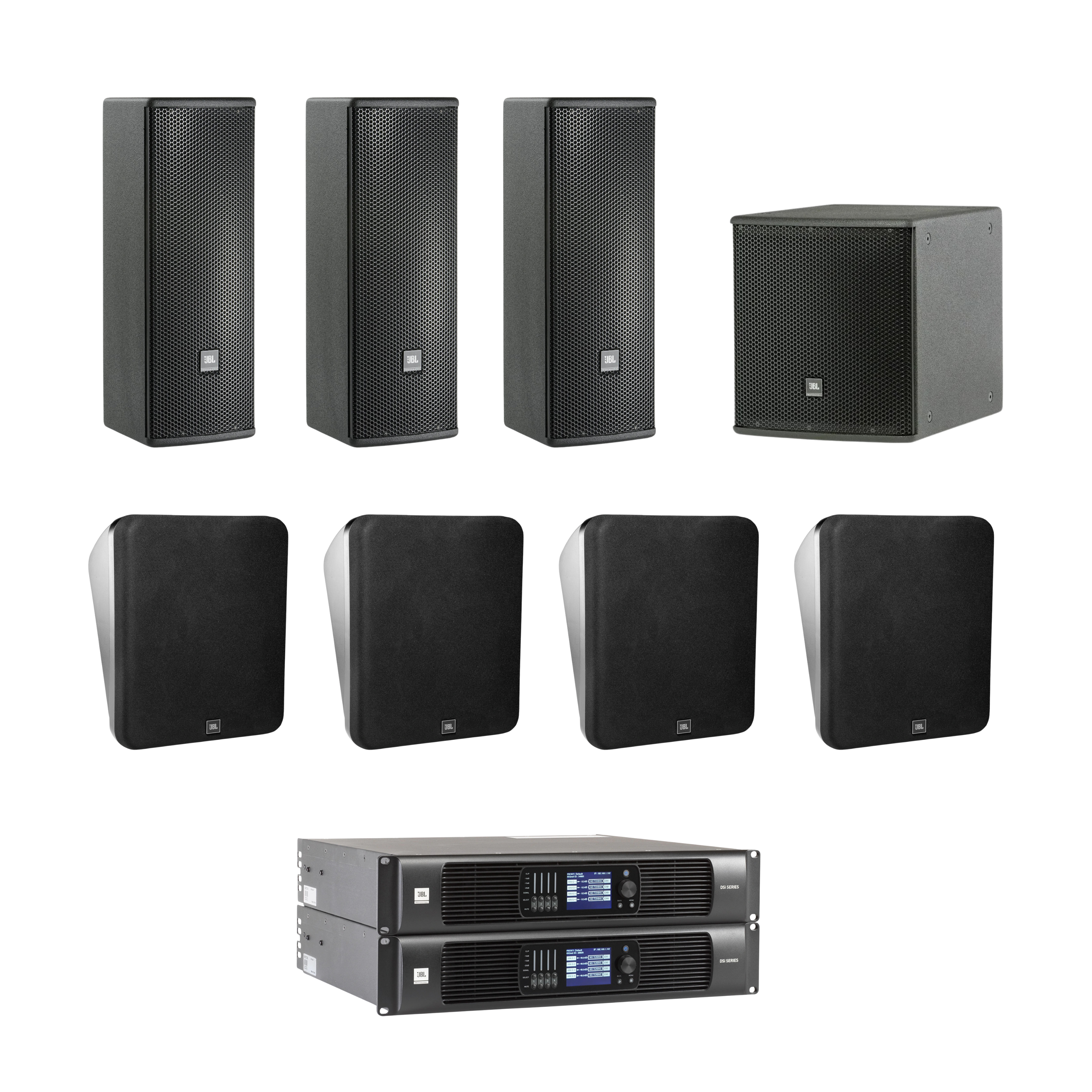

Bundle Includes
- Front Loudspeakers: 3 × JBL AC26
- Surround Loudspeakers: 4 × JBL 8320
- Subwoofer: 1 × JBL ASB6118
- Amplification: 1 × JBL DSi SA4 + 1 × JBL DSi LA4 cinema amplifier
Application Examples
| Cinema & Screening Rooms | Delivers clear dialogue, powerful music, and immersive surround sound for movies and series. |
| Presentation & Experience Suites | Ideal for premium demos, product launches, and immersive brand experiences. |
| Corporate Theatres | Supports screenings, town halls, and video-based presentations with cinema-quality sound. |
The Harman Professional Cinema Room Audio System Gold Bundle combines JBL AC26 front speakers, 8320 surround loudspeakers, the ASB6118 subwoofer, and DSi SA4/LA4 cinema amplification to deliver a powerful, reliable, and immersive audio experience for premium cinema and media environments.
