The Harman Professional Common Room Audio System Silver Bundle is a complete, easy-to-use audio solution designed for common rooms, lounges, breakout areas, classrooms, meeting zones, and shared spaces. Featuring premium JBL surface-mount loudspeakers, reliable Crown amplification, advanced BSS signal processing, and intuitive BSS wall control, this system delivers clear, consistent sound for background music, presentations, and general-purpose audio needs. With all-day reliability and simple operation, it provides a professional, user-friendly way to enhance shared environments.
Key Features
- Complete Bundle for Simplified Installation: Includes speakers, amplifier, DSP, and wall controller, everything needed for a professional audio system in common rooms and shared spaces.
- Wide, Even Coverage: JBL Control 25-1 speakers provide smooth, balanced sound with 100° × 100° dispersion, ideal for background music and multipurpose audio.
- Designed for Shared Environments: Delivers reliable performance throughout the day for lounges, breakout areas, study spaces, and collaborative environments, powered by the Crown CTD-2125 amplifier and BSS BLU-50v2 DSP.
- Clean & Versatile Installation: Compact, modern speakers mount easily on walls or ceilings and complement any room design.
- Simple Daily Control: The BSS EC-4BV allows users to adjust volume and select audio sources effortlessly, with no technical training required.
- Professional Reliability: Durable commercial-grade components from JBL, Crown, and BSS ensure long-term dependable operation.
- Scalable & Flexible: Ideal for medium-sized rooms with the option to expand or integrate into larger building-wide audio systems.
Specifications

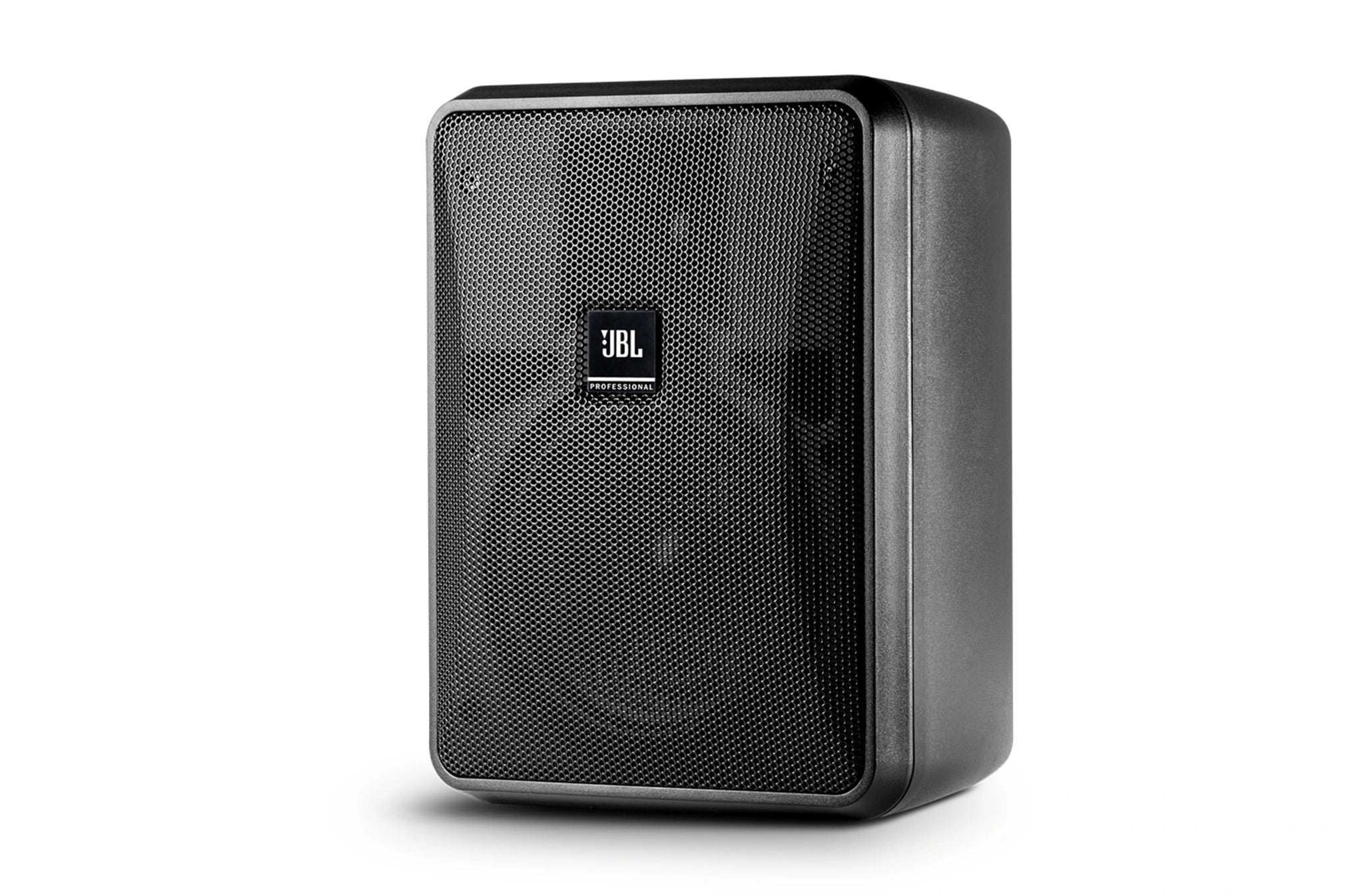

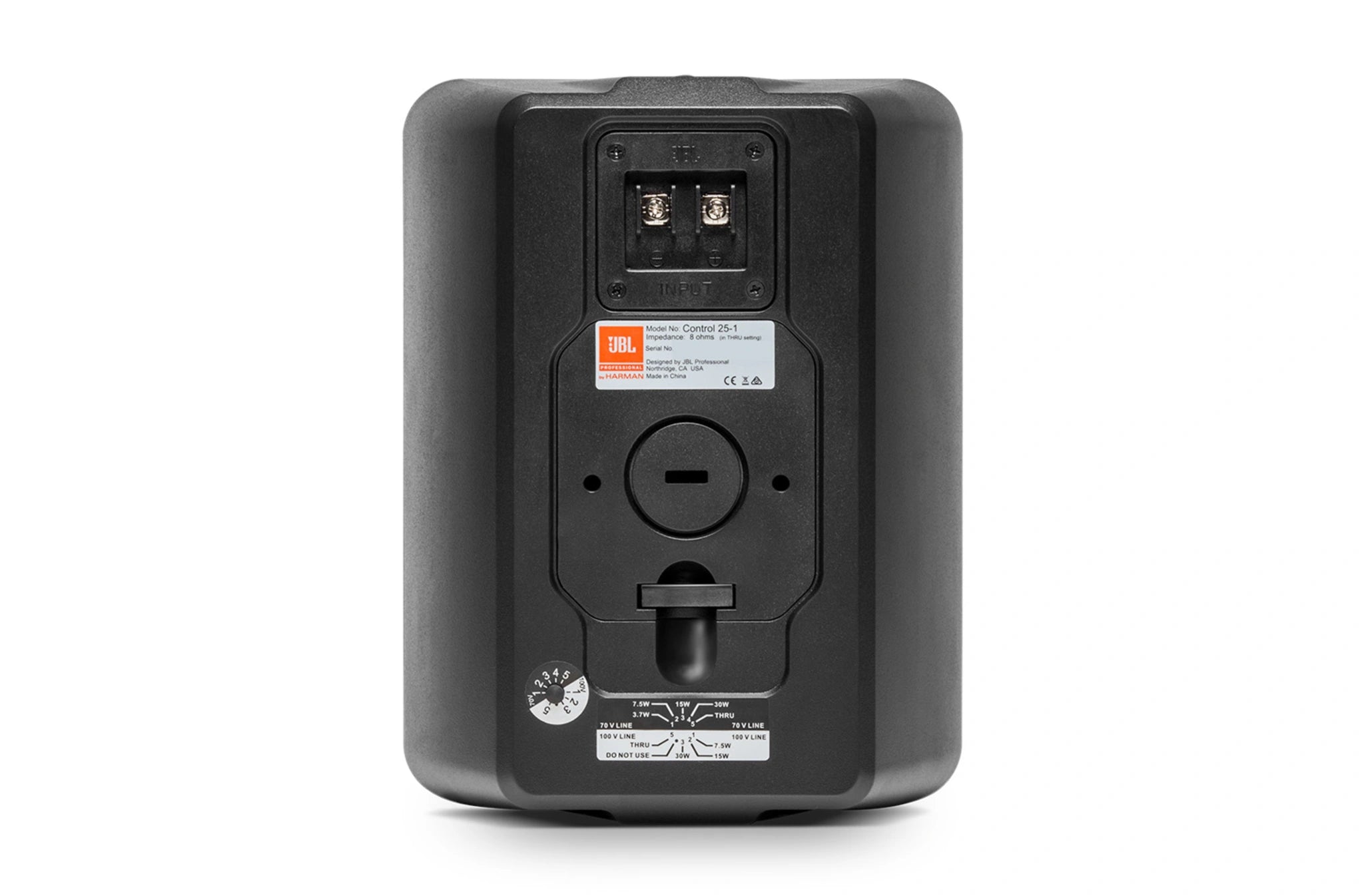

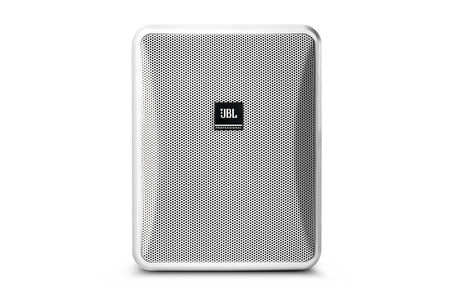

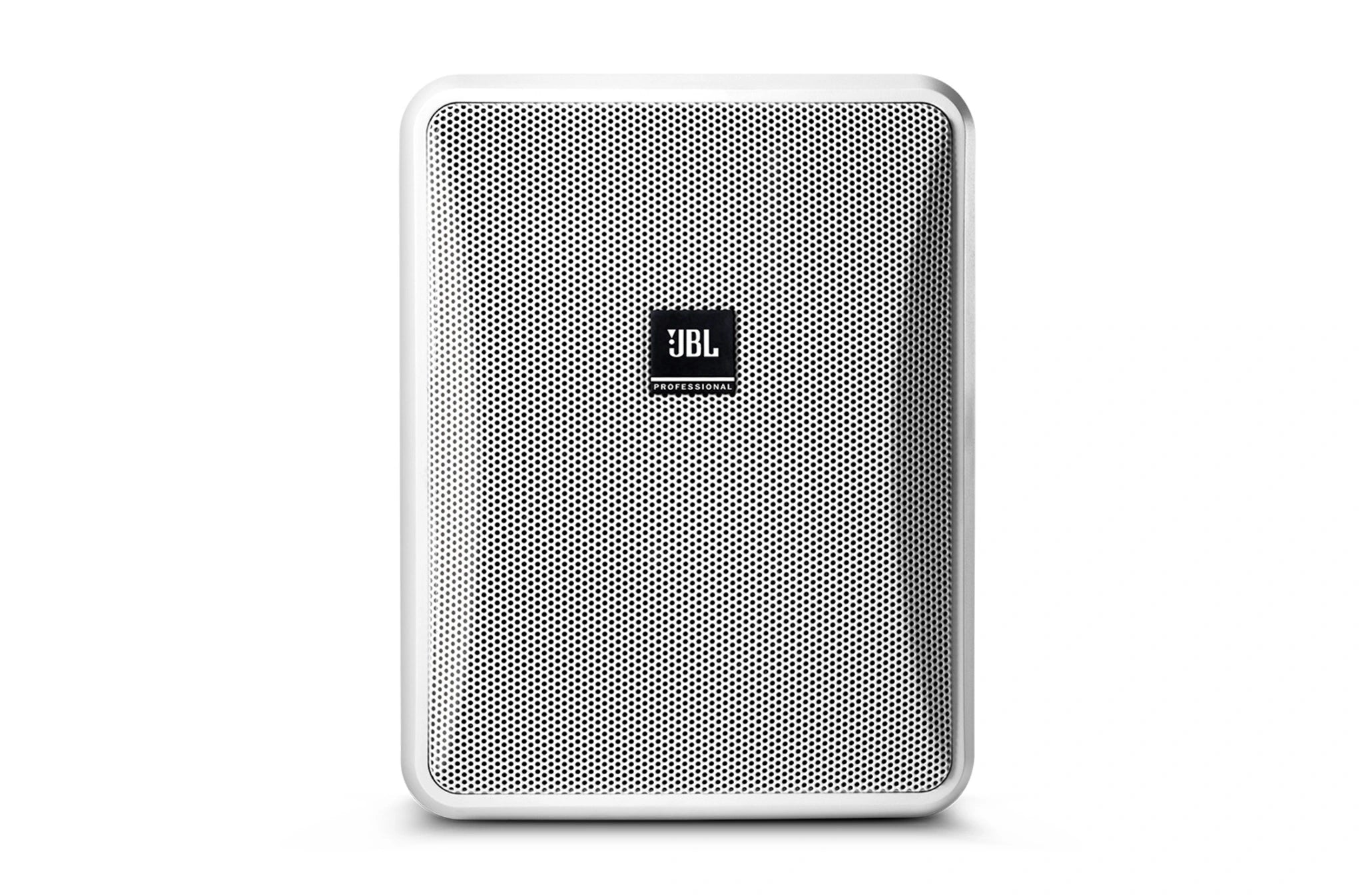

A compact indoor/outdoor 5.25" speaker that offers rich, natural sound with excellent clarity. Its wide 100° × 100° coverage makes it ideal for foreground or background audio in lounges, classrooms, meeting spaces, and multipurpose common rooms.
| Type | Two-way surface-mount speaker (indoor/outdoor rated) |
| Frequency Range | 60 Hz – 20 kHz |
| Driver Components | 5.25" fiberglass woofer + 0.75" PEI diaphragm tweeter |
| Coverage | 100° × 100° |
| Sensitivity | 90 dB (1W/1m) |
| Power Handling | 100 W continuous pink noise / 200 W program (8Ω) |

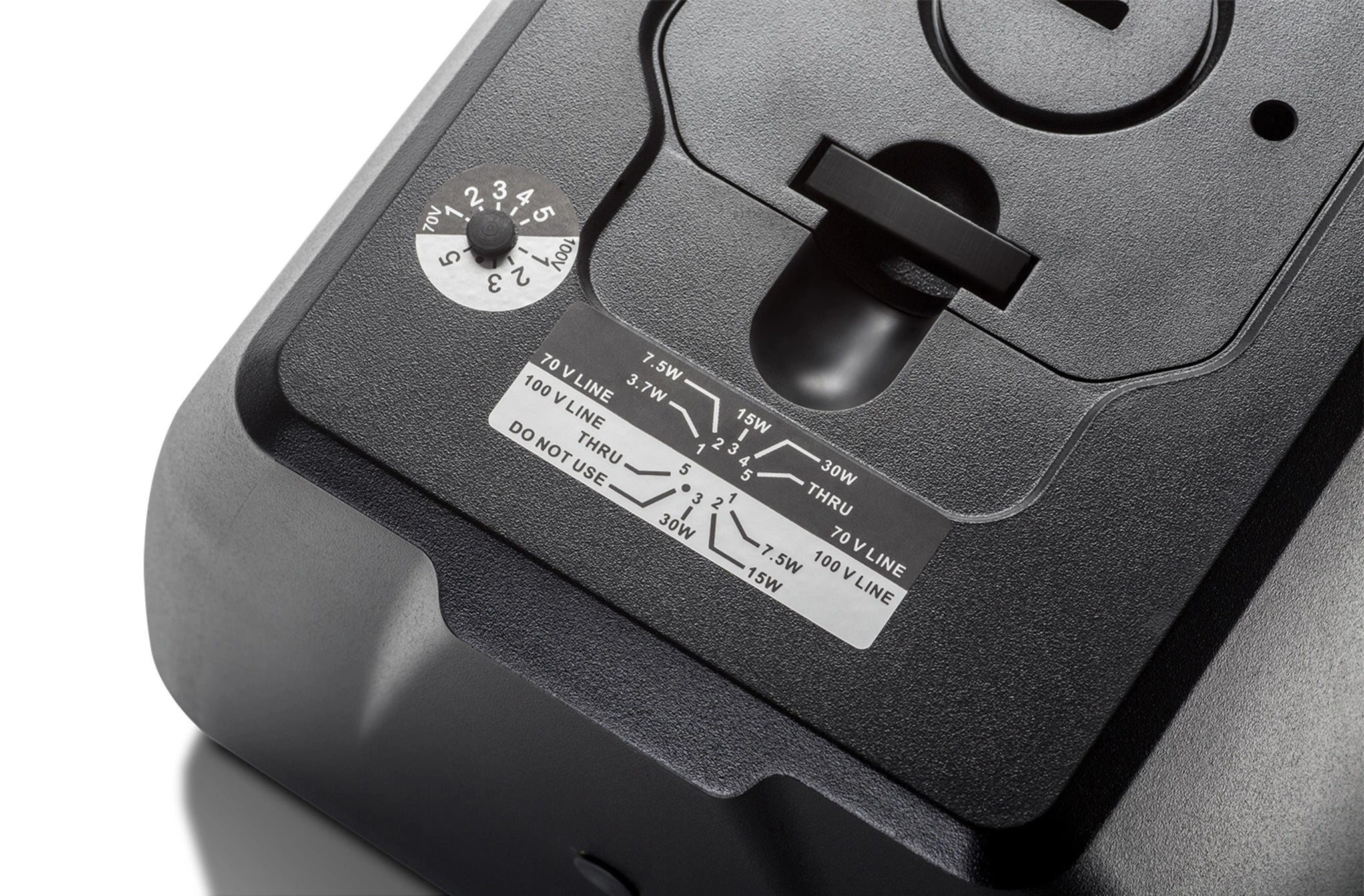

| Transformer Taps | 30 W, 15 W, 7.5 W, 3.7 W (70V) / 30 W, 15 W, 7.5 W (100V) |
| Impedance | 8 Ω nominal (THRU setting) |
| Weather Resistance | IP-44 rating; fiberglass cone, WeatherEdge™ surround |
| Dimensions | 243 × 188 × 145 mm |
| Colour Options | Black or White |
| Weight | 3.4 kg (7.5 lbs) each |

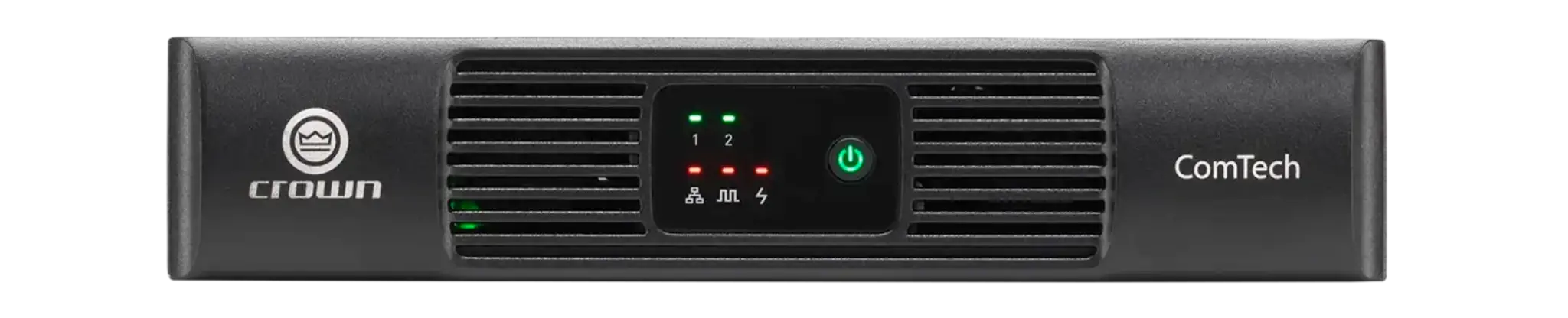

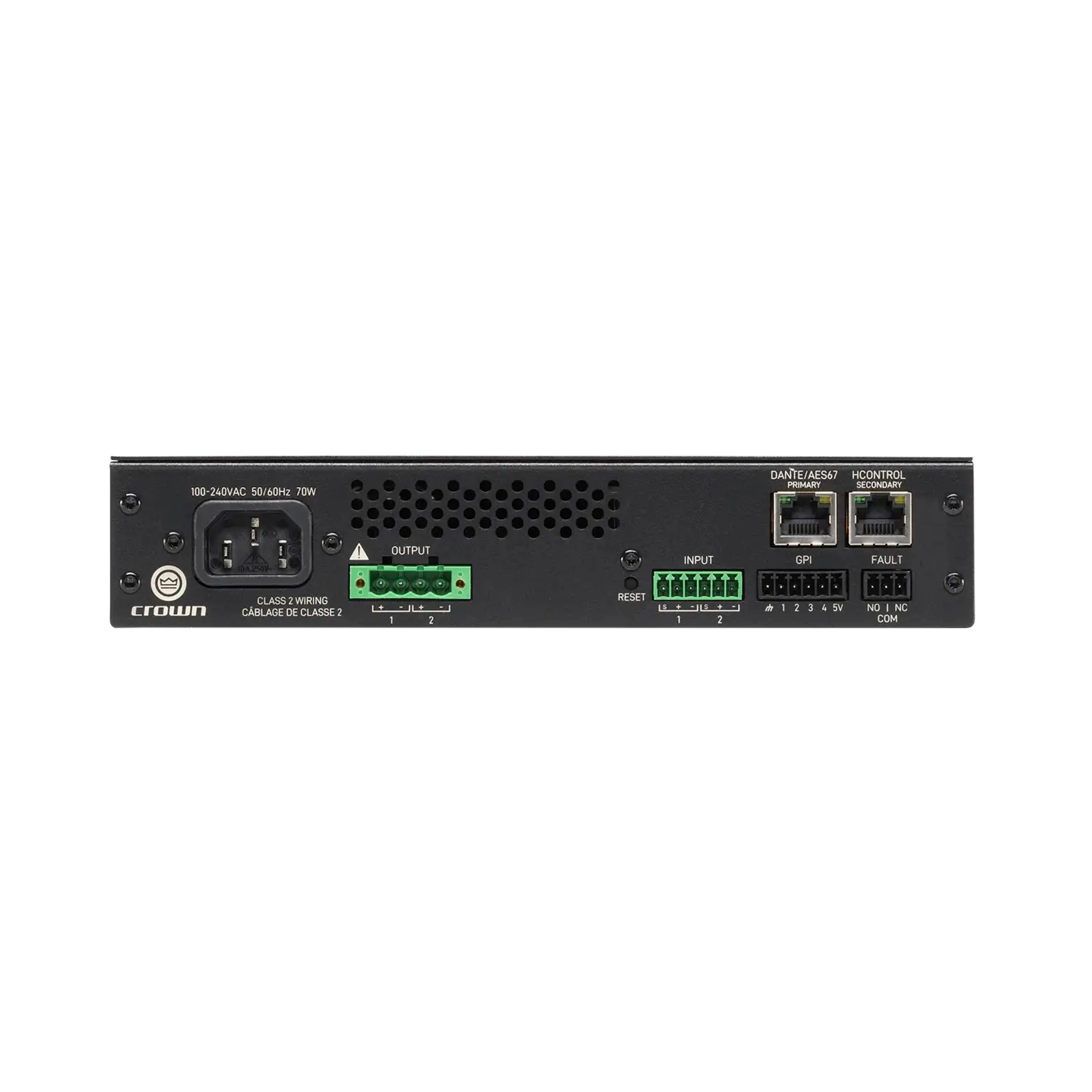

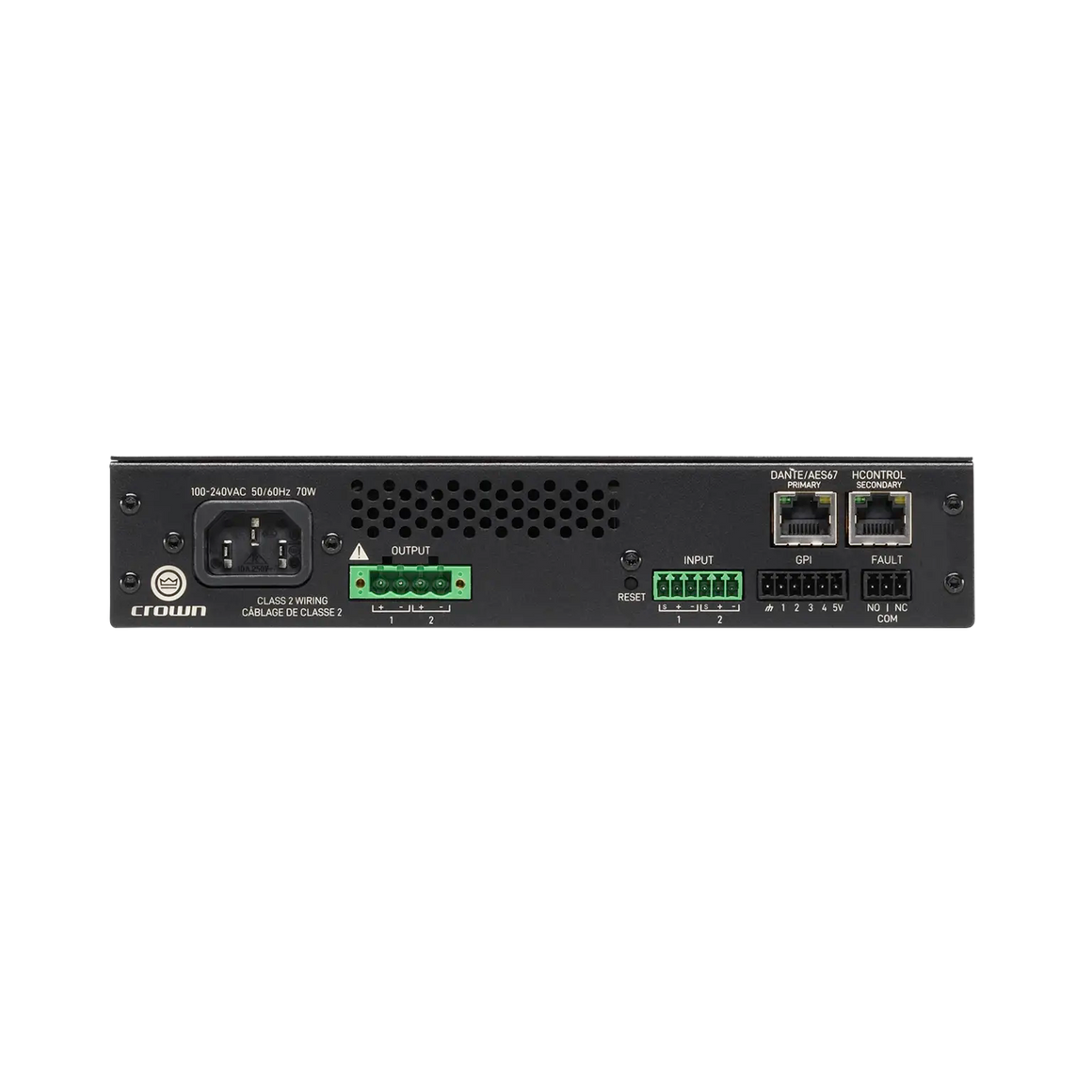

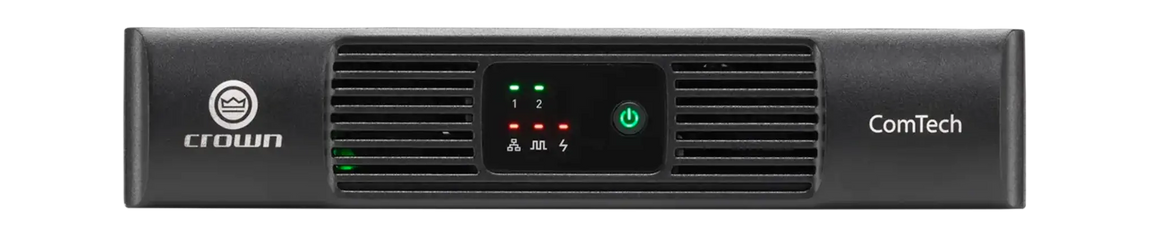

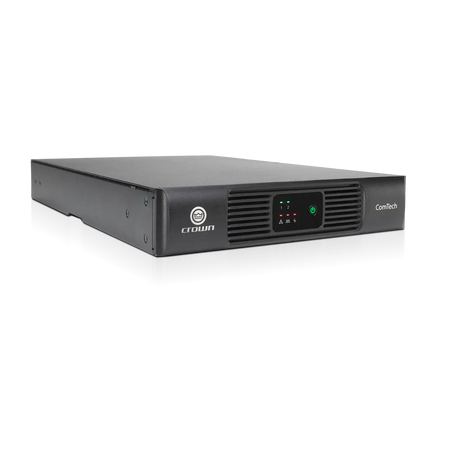

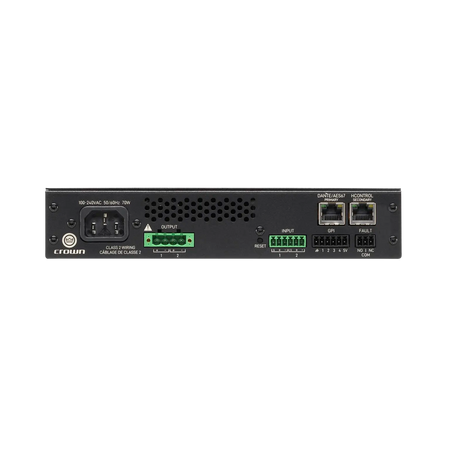

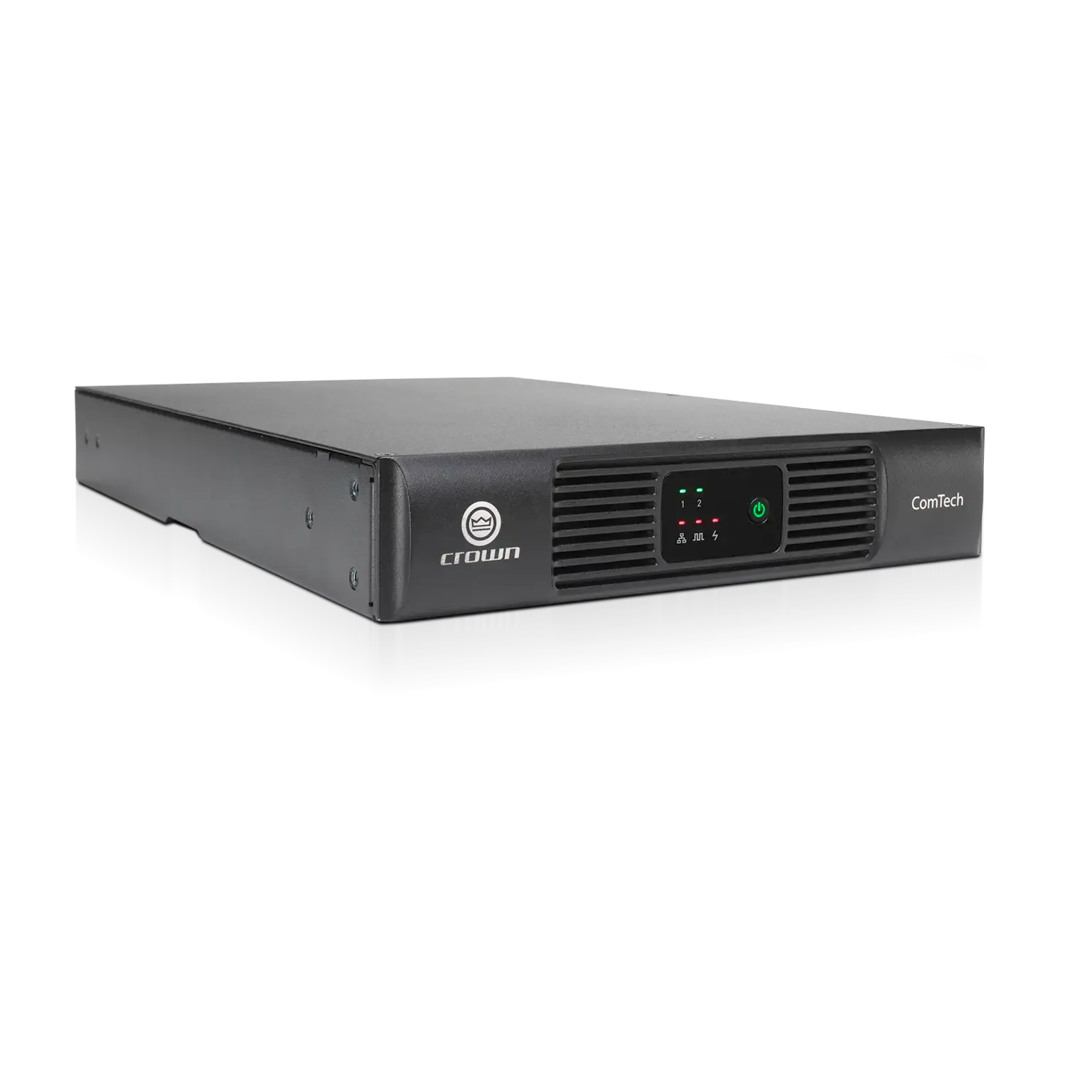

A 2-channel commercial amplifier delivering dependable 125 W per channel with built-in DSP and power sharing. Perfect for multipurpose rooms and installations requiring clean, reliable amplification for JBL speakers.
| Channels | 2 |
| Power Output | 125 W × 2 (8Ω / 4Ω / 70V / 100V) |
| Power Sharing | Yes – distributes available power between channels |
| DSP | Built-in DSP with JBL speaker tunings |
| Inputs | Analog + Dante/AES67 network audio |
| Signal-to-Noise Ratio | 104 dB (analog), 113 dB (Dante) |
| Frequency Response | 20 Hz – 20 kHz |
| Dimensions | 358 × 220 × 43 mm (1RU half-rack) |
| Weight | 2.9 kg (6.4 lbs) |

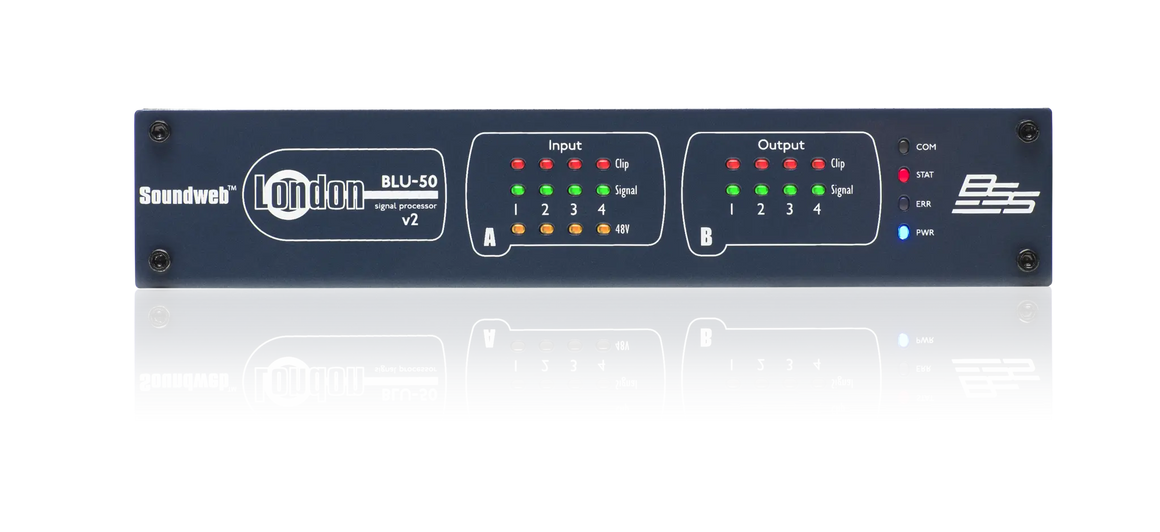

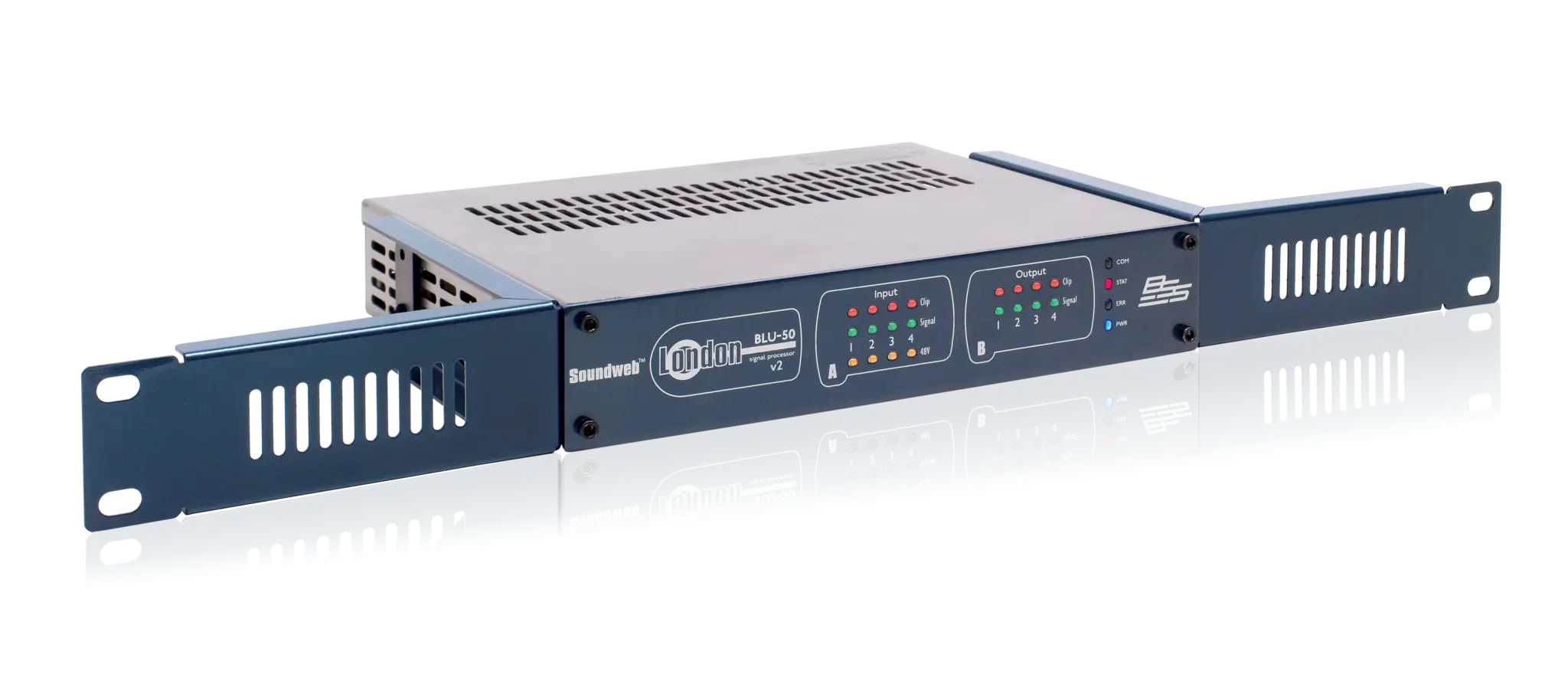

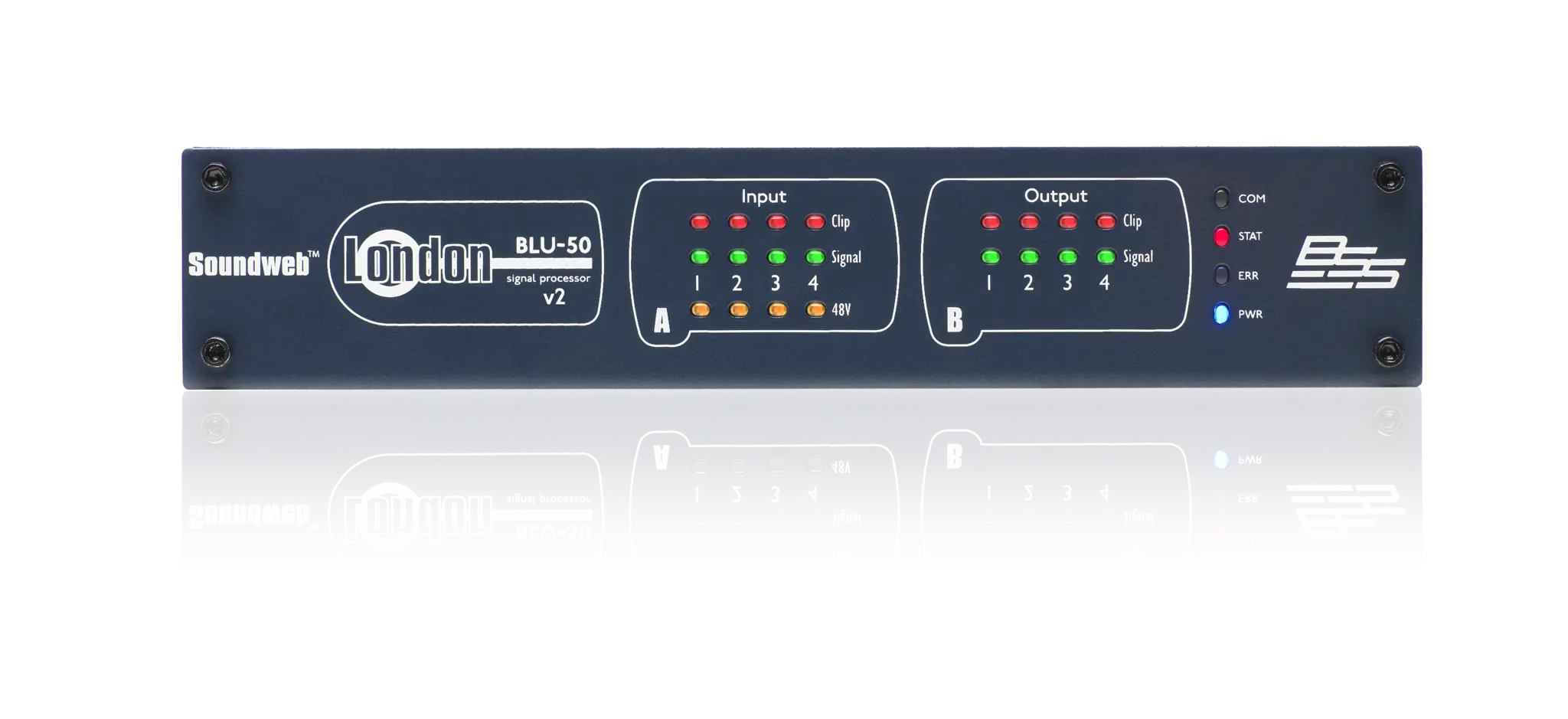

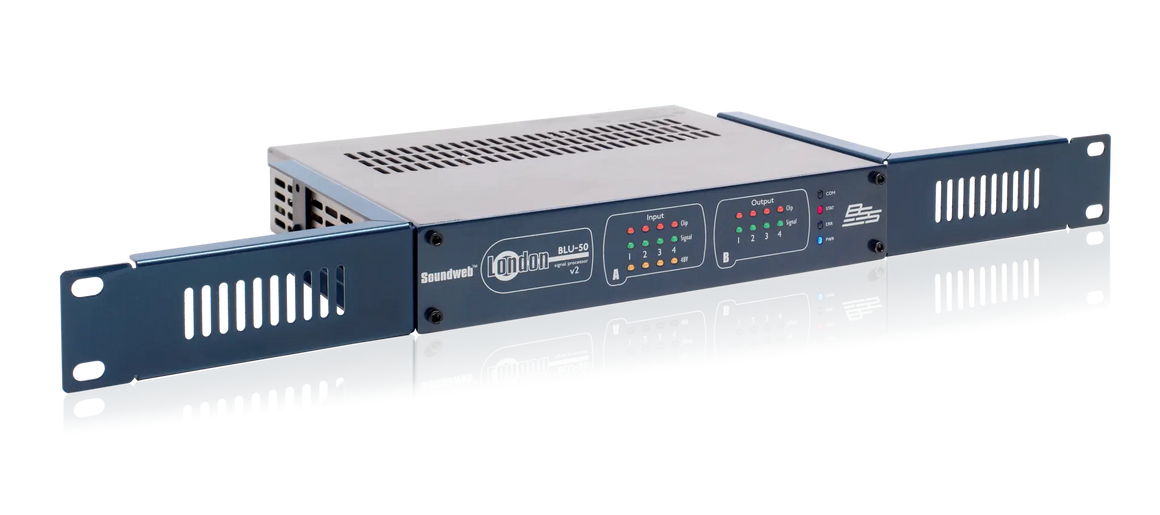

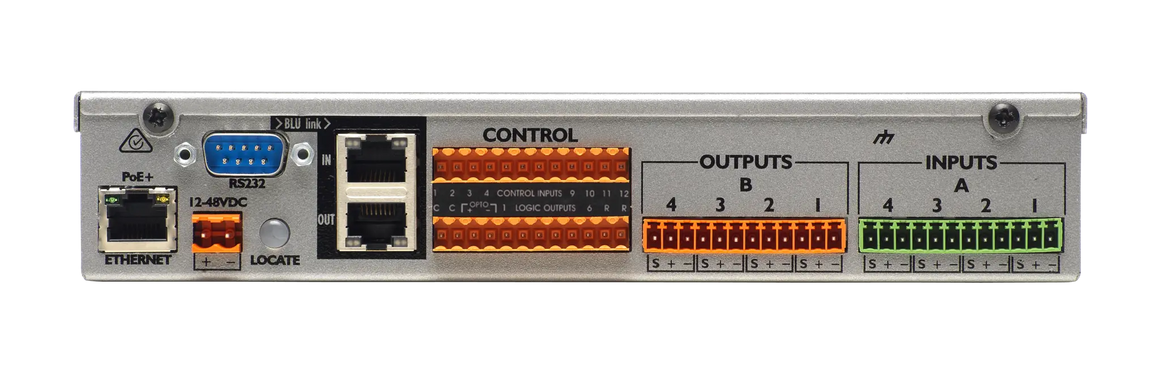

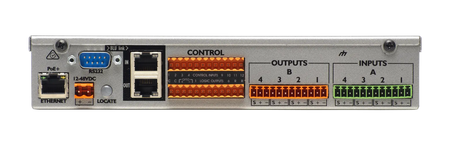

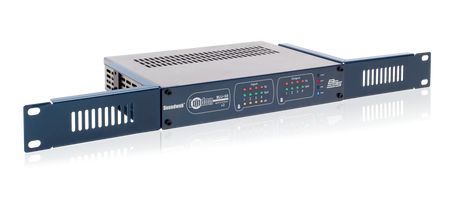

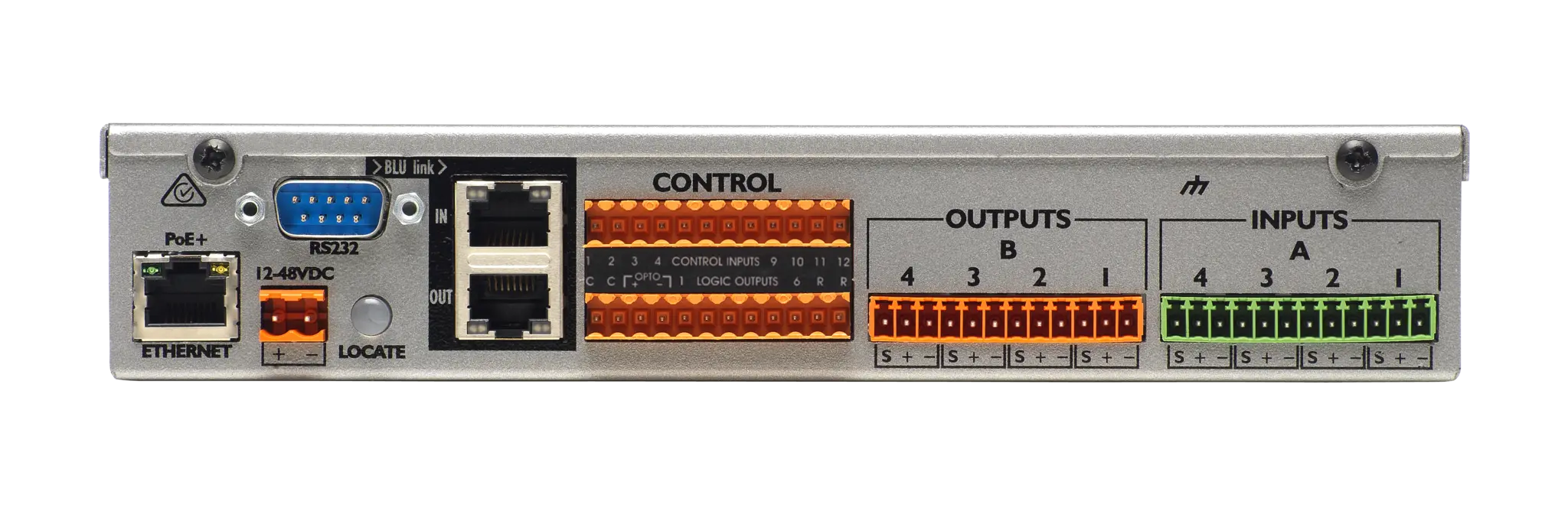

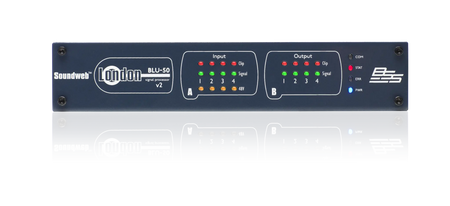

A compact digital signal processor that manages routing, tuning, and optimisation of your audio system. It ensures even, high-quality sound across the entire room while supporting remote monitoring and configuration.
| Inputs / Outputs | 4 analog inputs + 4 analog outputs |
| Digital Audio | 48-channel BLU link (low-latency bus) |
| Phantom Power | 48 V selectable (per input) |
| Logic I/O | 12 control inputs + 6 logic outputs |
| Control Software | Configured via HiQnet London Architect |
| Power | PoE+ or 12–48 V DC |
| Mounting | Rack-, wall-, or desk-mountable |
| Dimensions | 219 × 197 × 41 mm |
| Weight | 1.28 kg (2.82 lbs) |

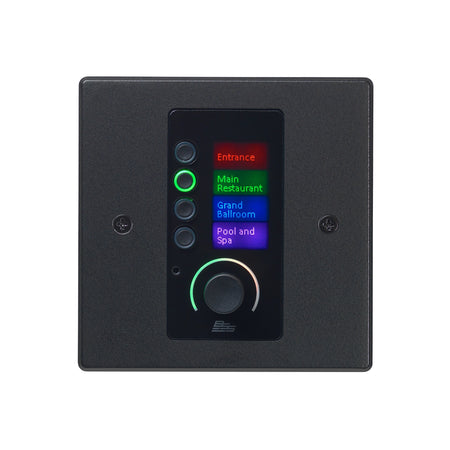

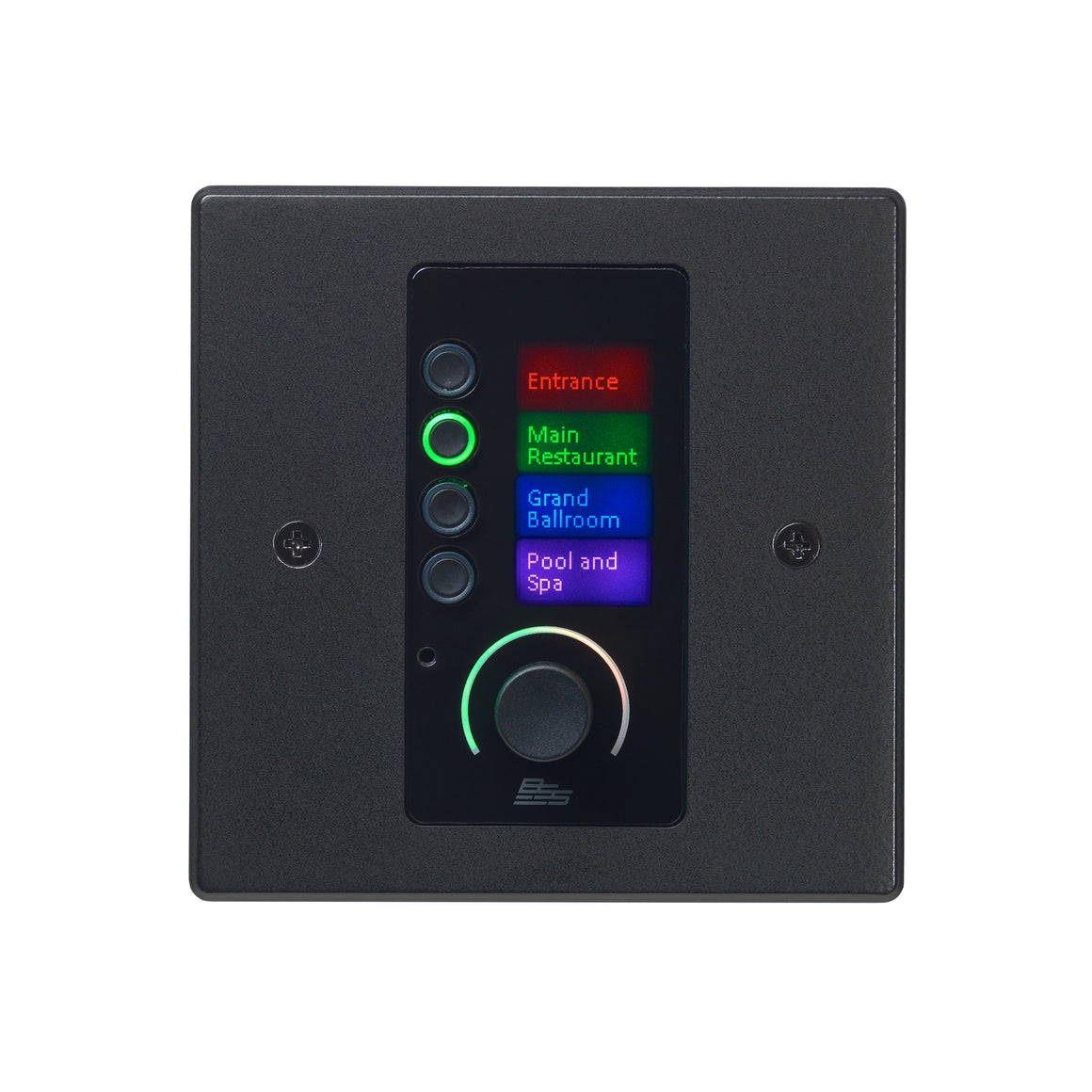

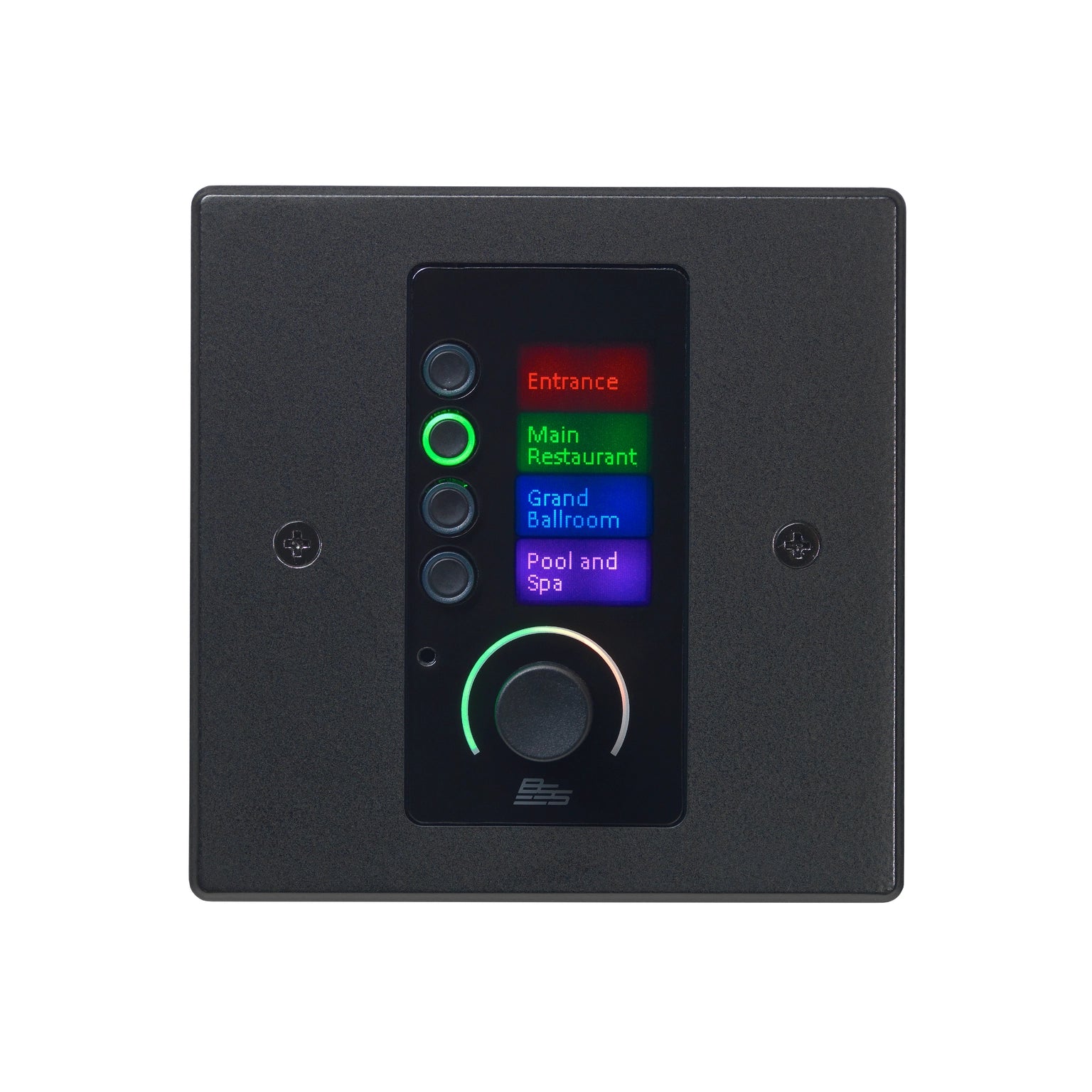

An intuitive wall-mounted control panel featuring a volume knob, 4-programmable multicolour buttons, and a clear LCD display. It allows staff to easily adjust audio levels and sources without needing technical training.
| User Controls | Push/rotary encoder, encoder ring, 4-programmable multicolour buttons, LCD screen |
| Display | 64 × 128-pixel LCD |
| Power | PoE (Power over Ethernet) |
| Modes | 1-zone, 4-zone, or hybrid |
| Lockout | Remote lock + PIN unlock |
| Max Cable Length | 100 m (328 ft) |
| Colour Options | Black or White |
| Form Factor | Single-gang (EU Version) |
| Weight | 0.5 kg (1 lb) |

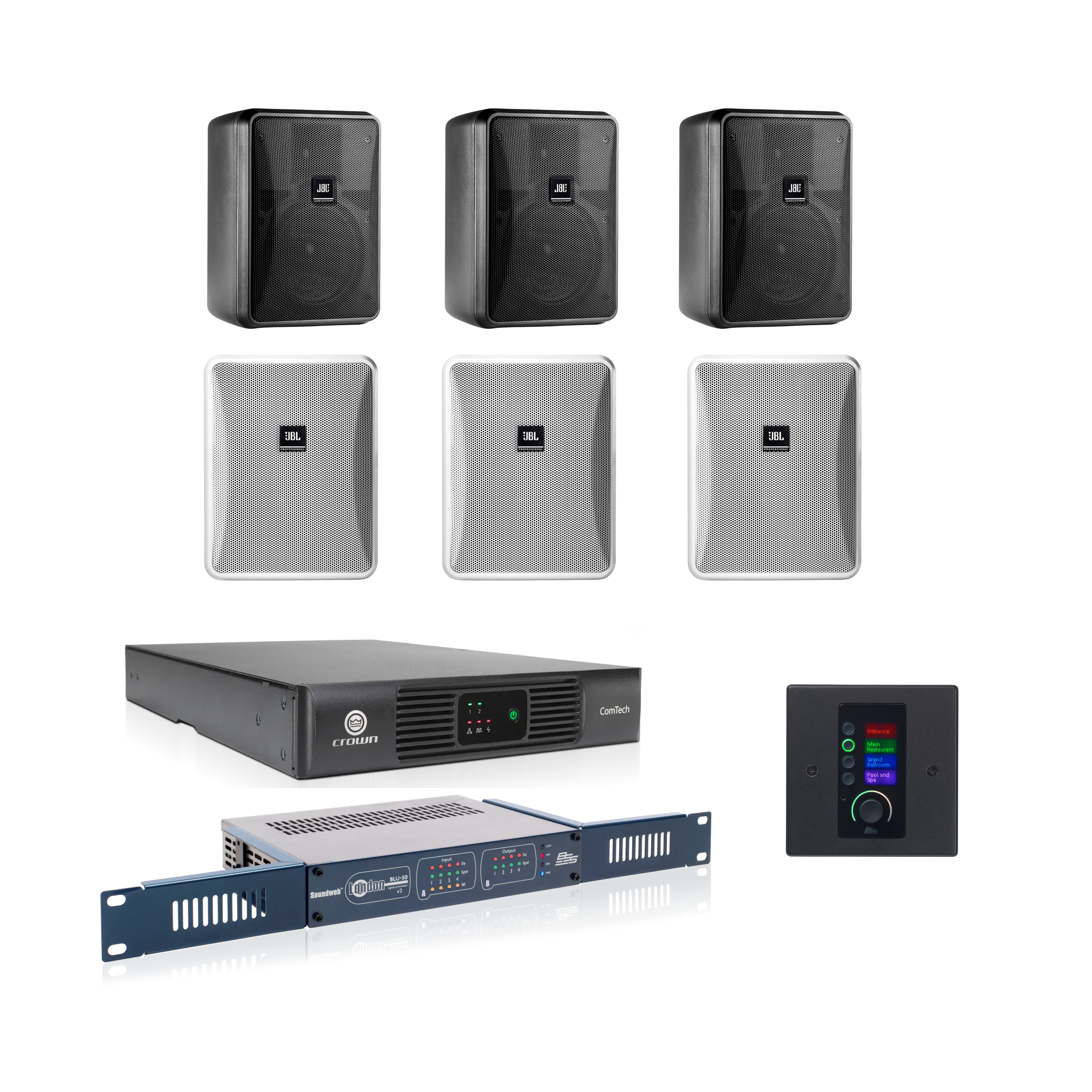

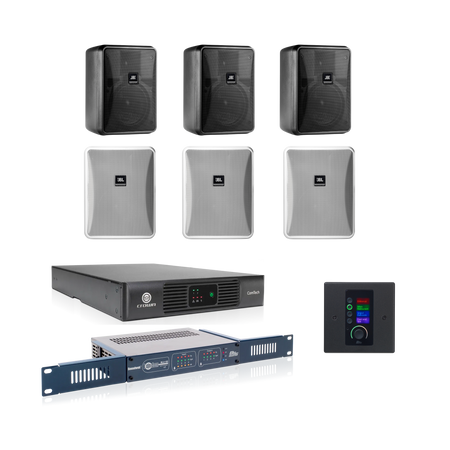

Bundle Includes
- Speakers: 6 × JBL Control 25-1
- Wall Control: 1 × BSS EC-4BV
- Amplifier: 1 × Crown CTD-2125
- DSP: 1 × BSS BLU-50v2
Application Examples
| Common Rooms & Lounges | Provide warm, clear background sound for relaxation, collaboration, or casual meetings. |
| Education Spaces | Enhance presentations, group work, and study sessions with consistent audio coverage. |
| Corporate Breakout Areas | Deliver smooth background audio with simple staff controls. |
| Recreation Areas | Durable speakers suitable for both indoor and sheltered outdoor common spaces. |
| Hospitality Lounges | Clean, modern installation that blends seamlessly with interior design. |
The Harman Professional Common Room Audio System Silver Bundle provides high-quality sound, intuitive control, and commercial-grade reliability. With premium components from JBL, Crown, and BSS, it delivers a scalable professional audio solution ideal for shared environments of all types.
