Harman Professional Warehouse Audio System - Gold Bundle
Audio System Bundle for Warehouse
Secure Checkout
Warranty Protection
Hassle-Free Returns
The Harman Professional Warehouse Audio System Gold Bundle is a high-coverage, industrial-grade audio solution built for large warehouses, logistics centres, production floors, and distribution hubs. Using sixteen JBL Control 65P/T pendant loudspeakers, a high-power Crown CTD8125 amplifier, advanced BSS BLU-50v2 processing, and a flexible BSS EC-8BV wall controller, the system delivers clear paging, safety announcements, and background music across expansive open-ceiling environments. Designed for continuous operation, it provides reliable communication and wide, even coverage while remaining simple for supervisors and staff to operate.
Key Features
- Complete Industrial Audio Package: Includes 16 × JBL Control 65P/T pendant speakers, 1 × Crown CTD8125 amplifier, 1 × BSS BLU-50v2 DSP, and 1 × BSS EC-8BV wall controller for a fully integrated warehouse sound system.
- Wide, Even Sound Distribution: JBL Control 65P/T speakers provide 120° conical coverage using RBI® waveguide technology, helping announcements and alerts remain clear across aisles, racking, and open production spaces.
- Enhanced Paging Clarity: Full-range two-way pendant design ensures strong speech intelligibility for safety messages, shift calls, and operational instructions while still supporting background music.
- High-Capacity Amplification: The Crown CTD8125 supplies 8 × 125 W channels with power sharing, supporting larger loudspeaker counts and longer cable runs typical of warehouse and industrial layouts.
- Smart System Processing: The BSS BLU-50v2 DSP handles routing, EQ, dynamics, limiting, and protection with a 4-in / 4-out architecture and 48-channel BLU link digital audio bus for scalable system designs.
- Supervisor-Friendly Wall Control: The BSS EC-8BV controller provides a rotary encoder, eight programmable buttons, and dual LCD displays so staff can adjust volume and select sources quickly without AV expertise.
- Built for Industrial Ceilings: Each pendant includes rugged suspension hardware and steel cables for secure installation in high, open-ceiling environments.
- Reliable, Continuous Operation: All components are commercial-grade and designed for long-term use in demanding, high-activity warehouse conditions.
Specifications
A full-range pendant loudspeaker designed for open-ceiling industrial spaces, offering wide coverage, clear speech, and consistent background music performance.
| System Type | Two-way pendant loudspeaker with RBI® waveguide |
| Drivers | 5.25" LF driver + 0.75" soft-dome HF driver |
| Frequency Range (–10 dB) | 55 Hz – 20 kHz |
| Frequency Response (±3 dB) | 78 Hz – 18 kHz |
| Coverage | 120° conical |
| Power Handling | 75 W continuous / 150 W program |
| Transformer Taps | 70V: 60/30/15/7.5 W; 100V: 60/30/15 W |
| Nominal Impedance | 8 Ω (bypass) |
| Maximum SPL | 105 dB continuous / 111 dB peak |
| Environmental | IP44; exceeds Mil-Spec 810 tests |
| Dimensions | 234 mm diameter × 259 mm height |
| Weight | 3.7 kg (8 lb) |
| Colour Options | Black or White |
| Included Hardware | Two 4.5 m steel suspension cables with adjustable fasteners |

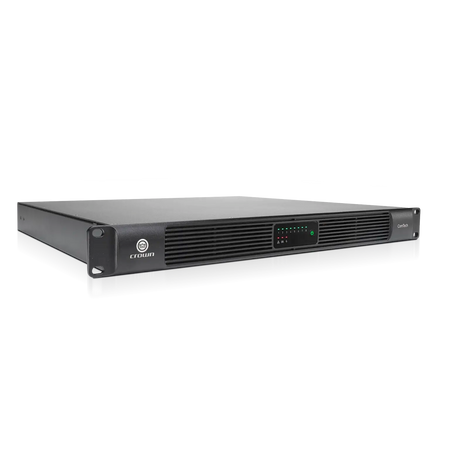

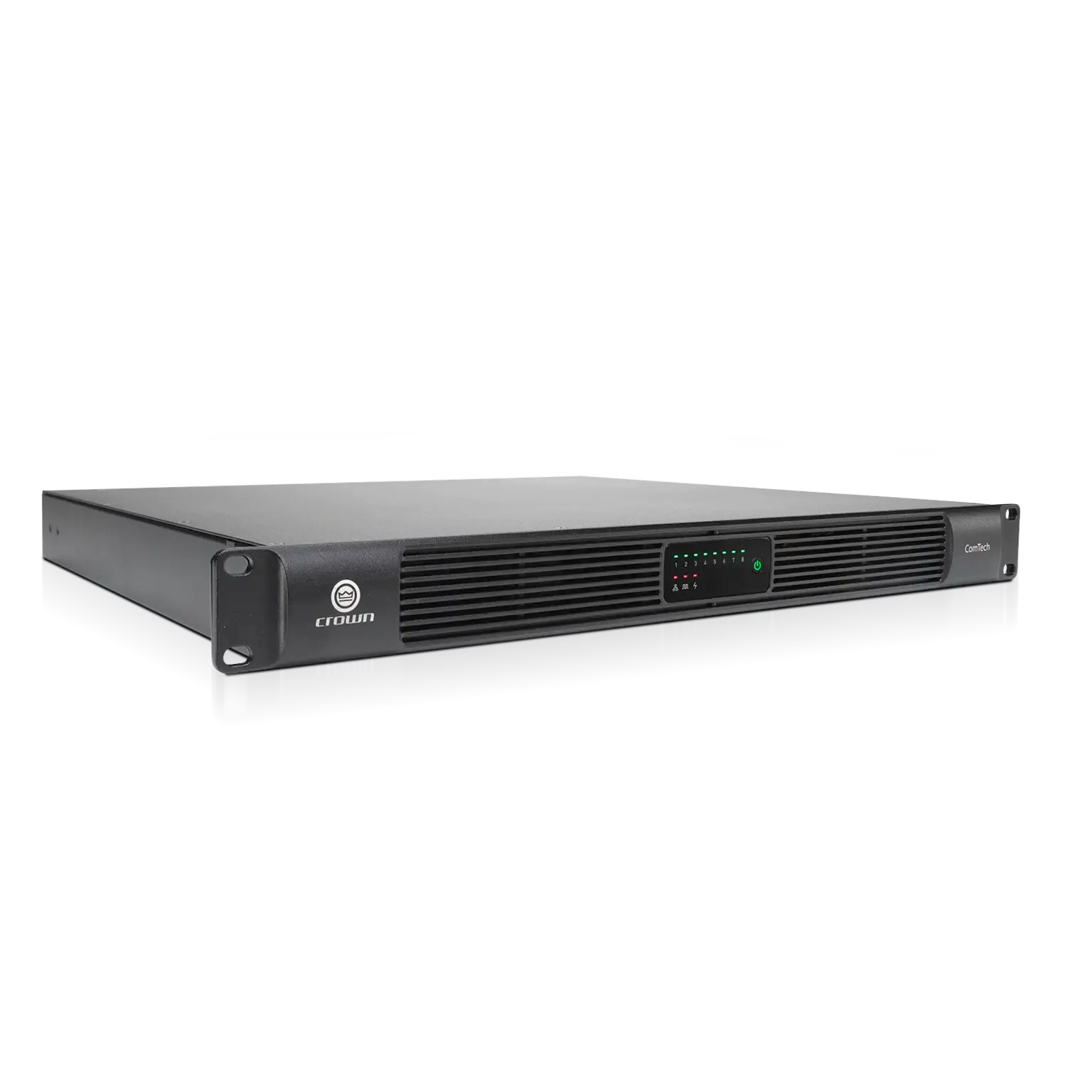

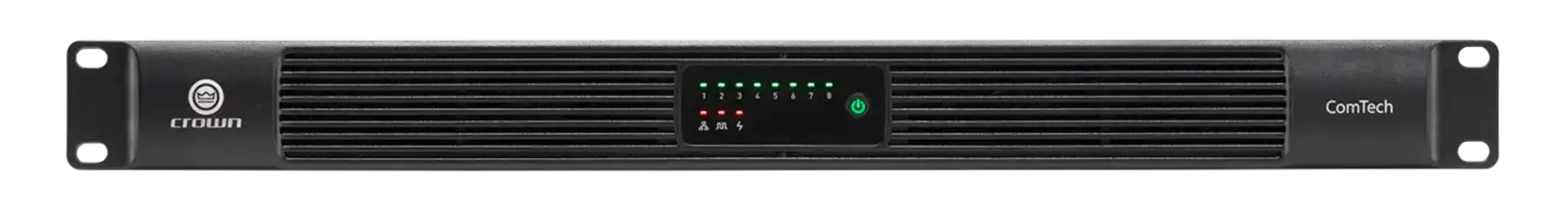

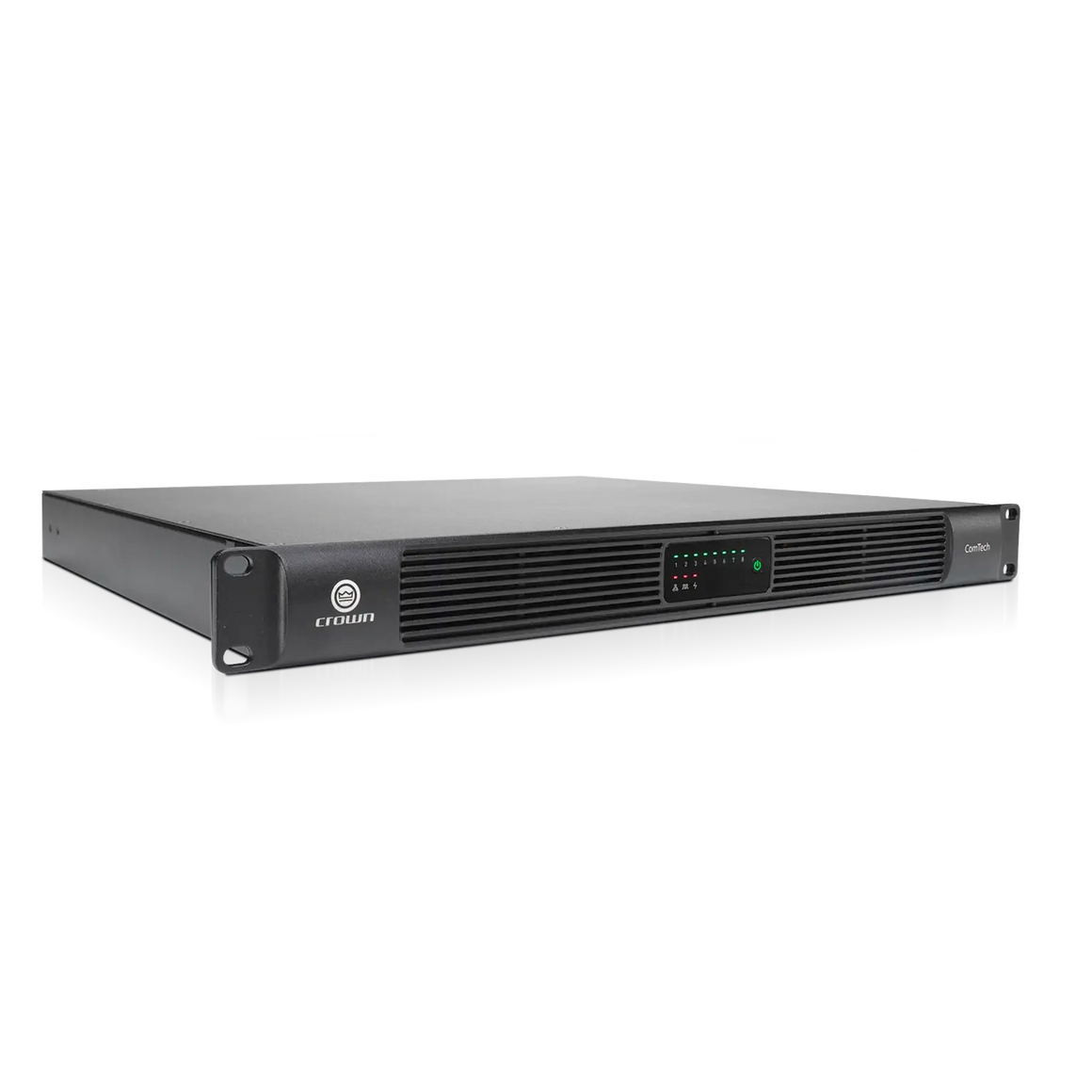

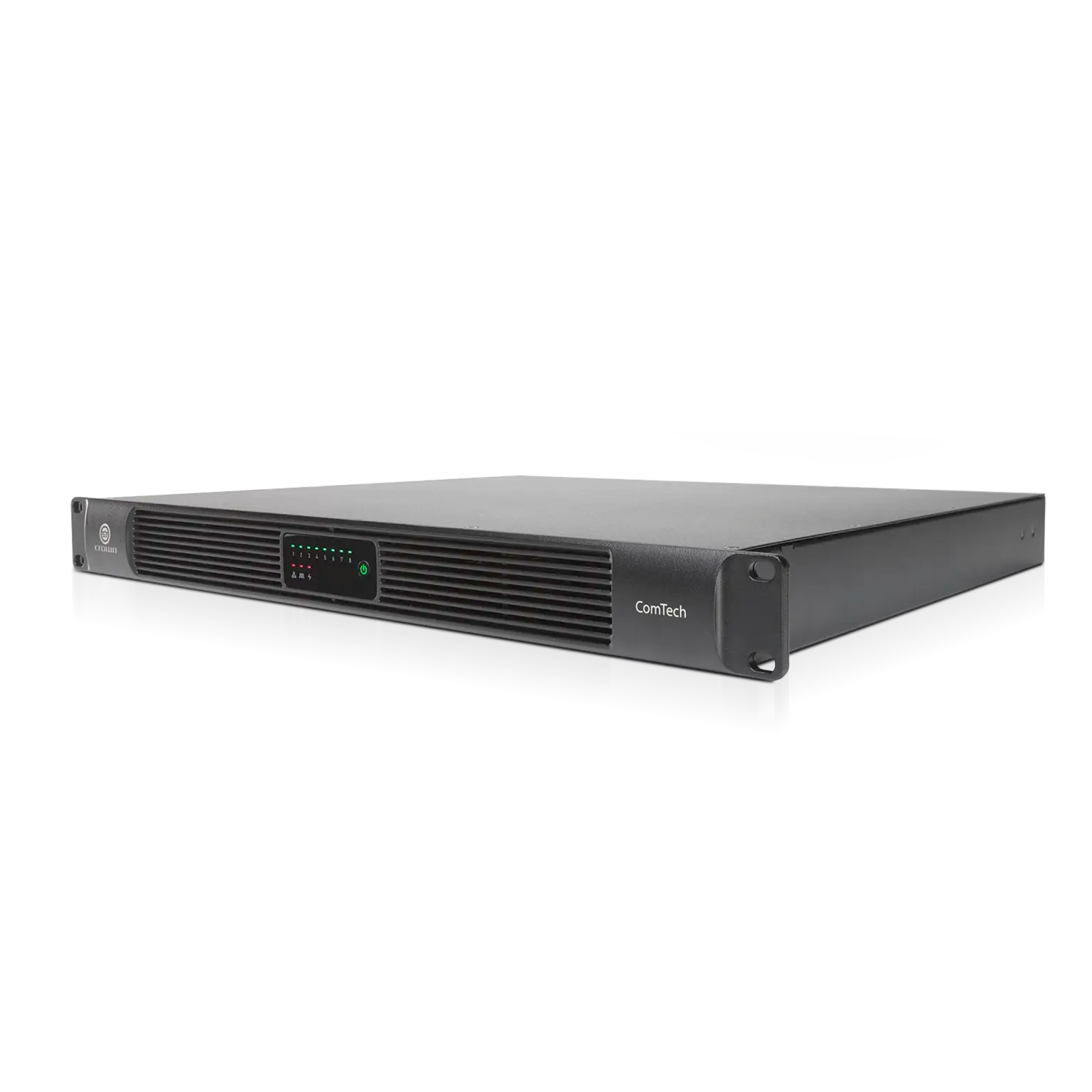

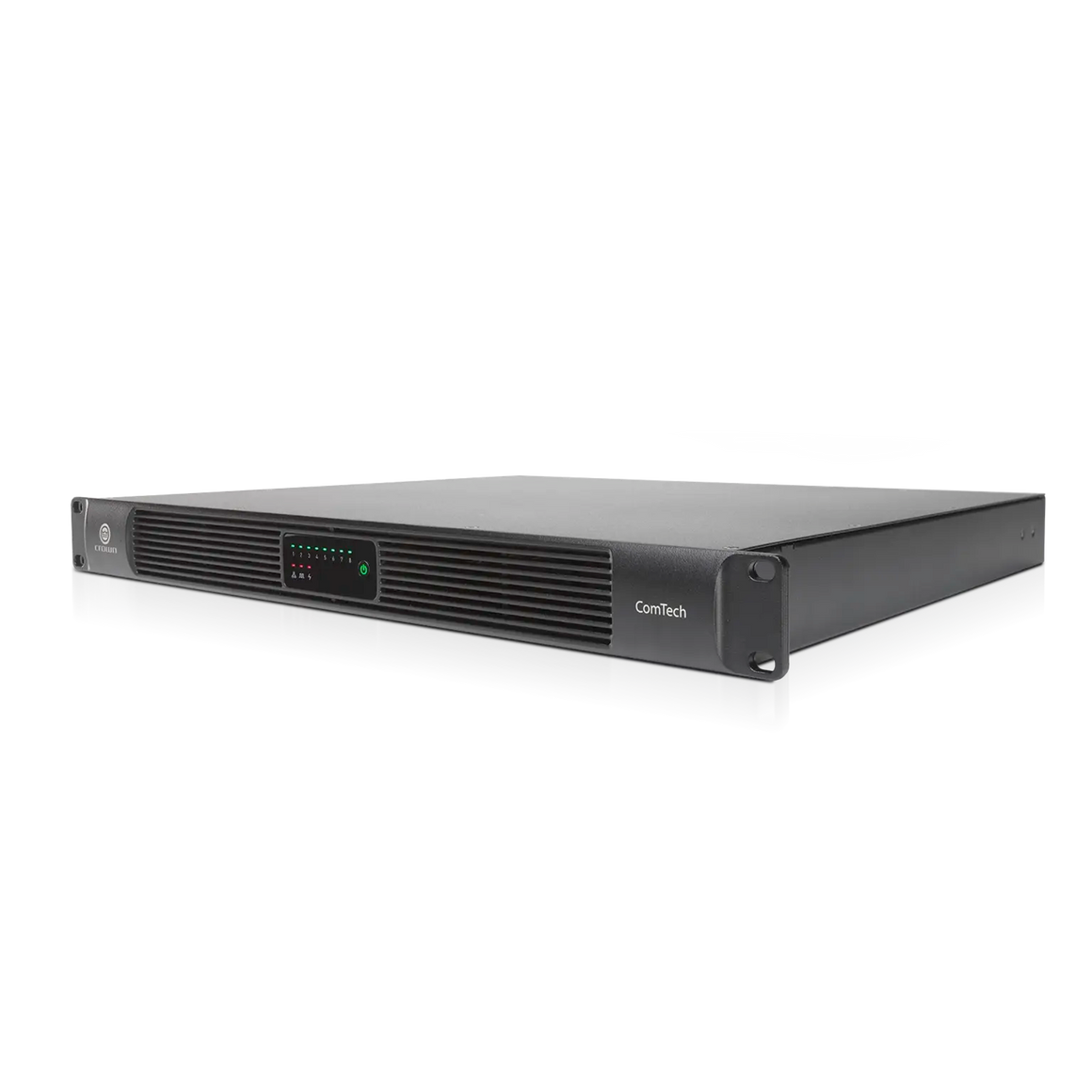

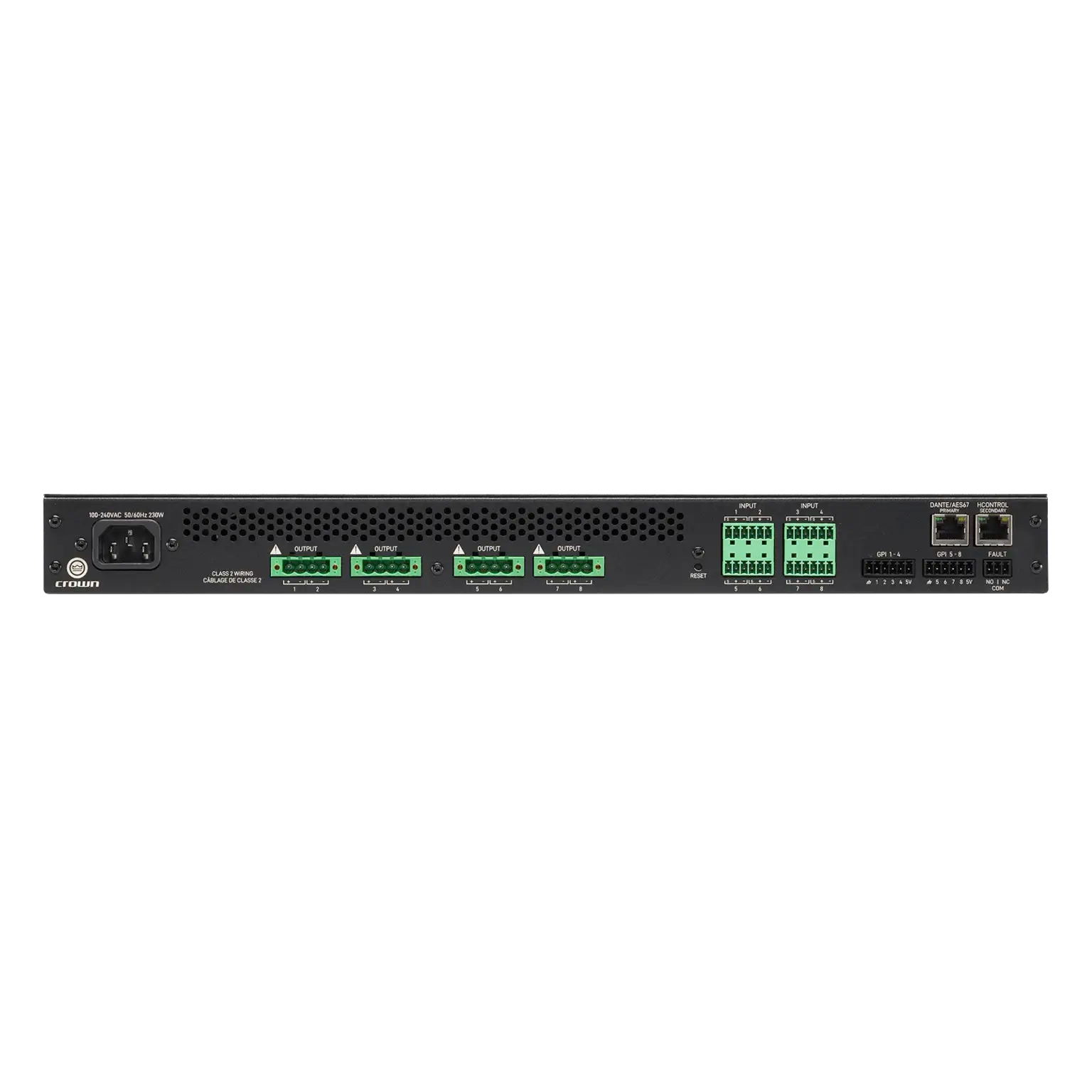

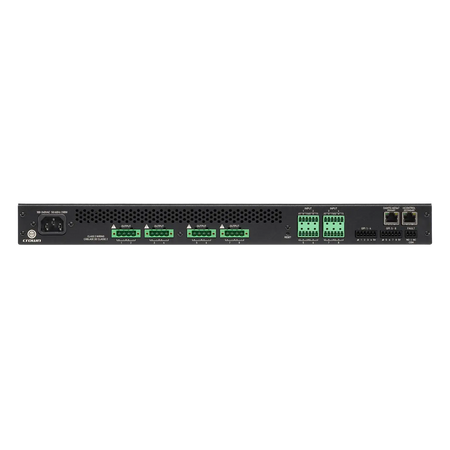

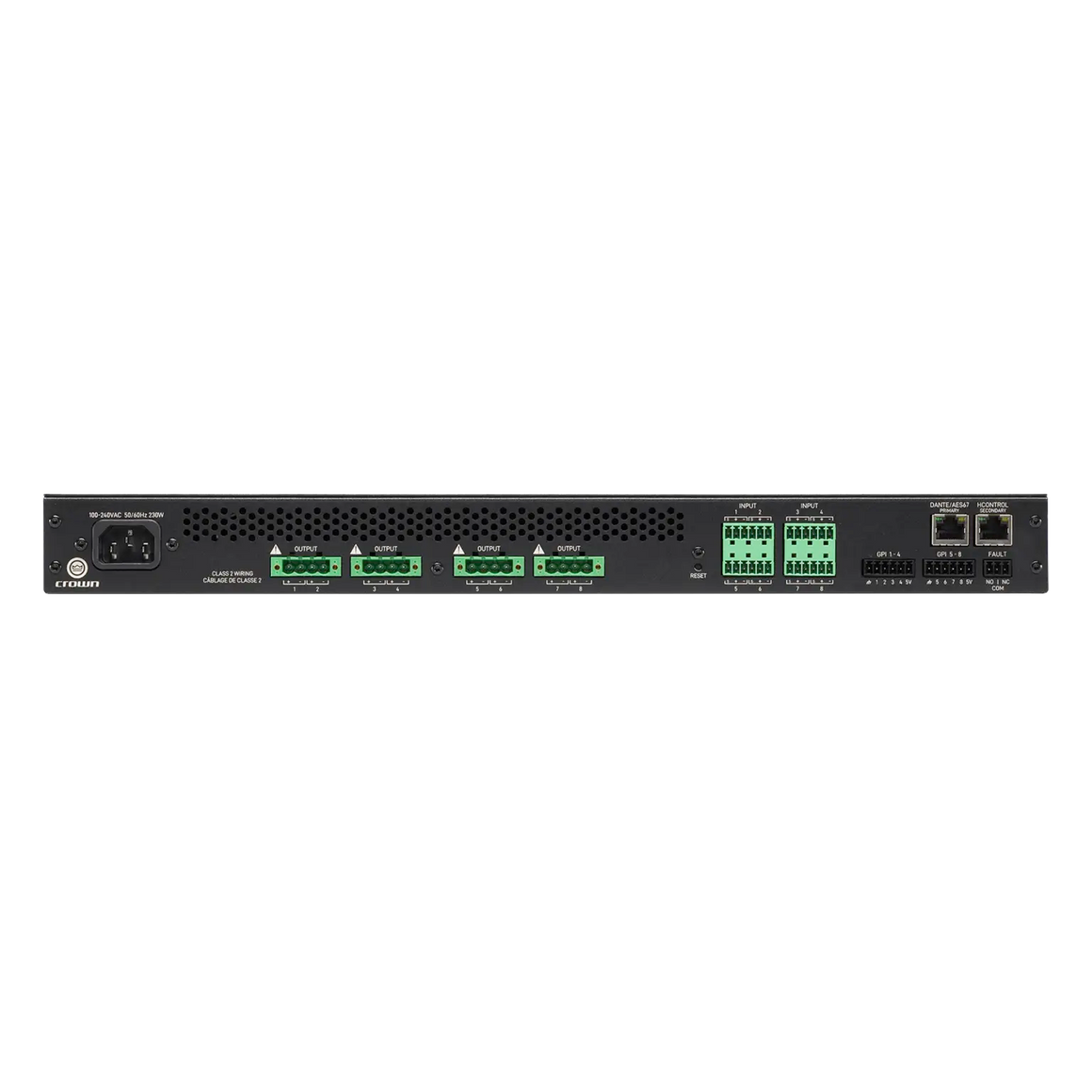

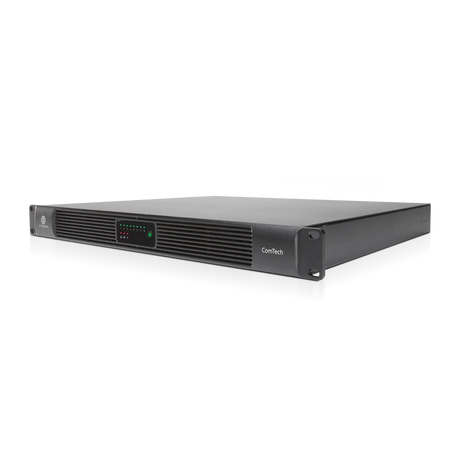

An 8-channel commercial amplifier offering 125 W per channel, built-in DSP, power sharing, and support for both low-impedance and 70V/100V distributed speaker lines.
| Channels | 8 |
| Output Power | 125 W × 8 (4/8 Ω, 70V, 100V) |
| Power Sharing | Yes (automatic between paired channels) |
| Amplifier Type | High-efficiency Class D |
| DSP | Built-in DSP with EQ, limiting, delay and JBL loudspeaker presets |
| Inputs | Analog Euroblock connectors |
| Signal-to-Noise Ratio | Typically > 100 dB |
| Form Factor | 1RU half-rack (rack-mountable with optional kit) |
| Net Weight | 5.9 kg (13 lbs) |
A compact open-architecture processor providing essential DSP functions, system protection, and a 48-channel BLU link digital audio bus for scalable installations.
| Inputs / Outputs | 4 analog inputs + 4 analog outputs |
| Digital Audio | 48-channel BLU link |
| Phantom Power | 48 V per input (selectable) |
| Logic I/O | 12 control inputs + 6 logic outputs |
| Processing | EQ, filters, dynamics, limiting, delay, routing, logic |
| Power | PoE+ or 12–48 V DC |
| Dimensions | 219 × 197 × 41 mm |
| Weight | 1.28 kg (2.82 lb) |
A wall-mounted Ethernet controller offering flexible, intuitive control of zones, levels, and sources in warehouse and industrial environments.
| User Controls | 1 push/rotary encoder, encoder ring, 8 programmable multi-colour buttons, 2 LCD displays |
| Power | PoE (Power over Ethernet) |
| Network Cable Length | Up to 100 m (328 ft) |
| Security | Remote lock/unlock and PIN-based local unlock |
| Form Factor | Dual-gang EU-style wall plate |
| Colour Options | Black or White |
| Net Weight | 0.75 kg (1.54 lb) |

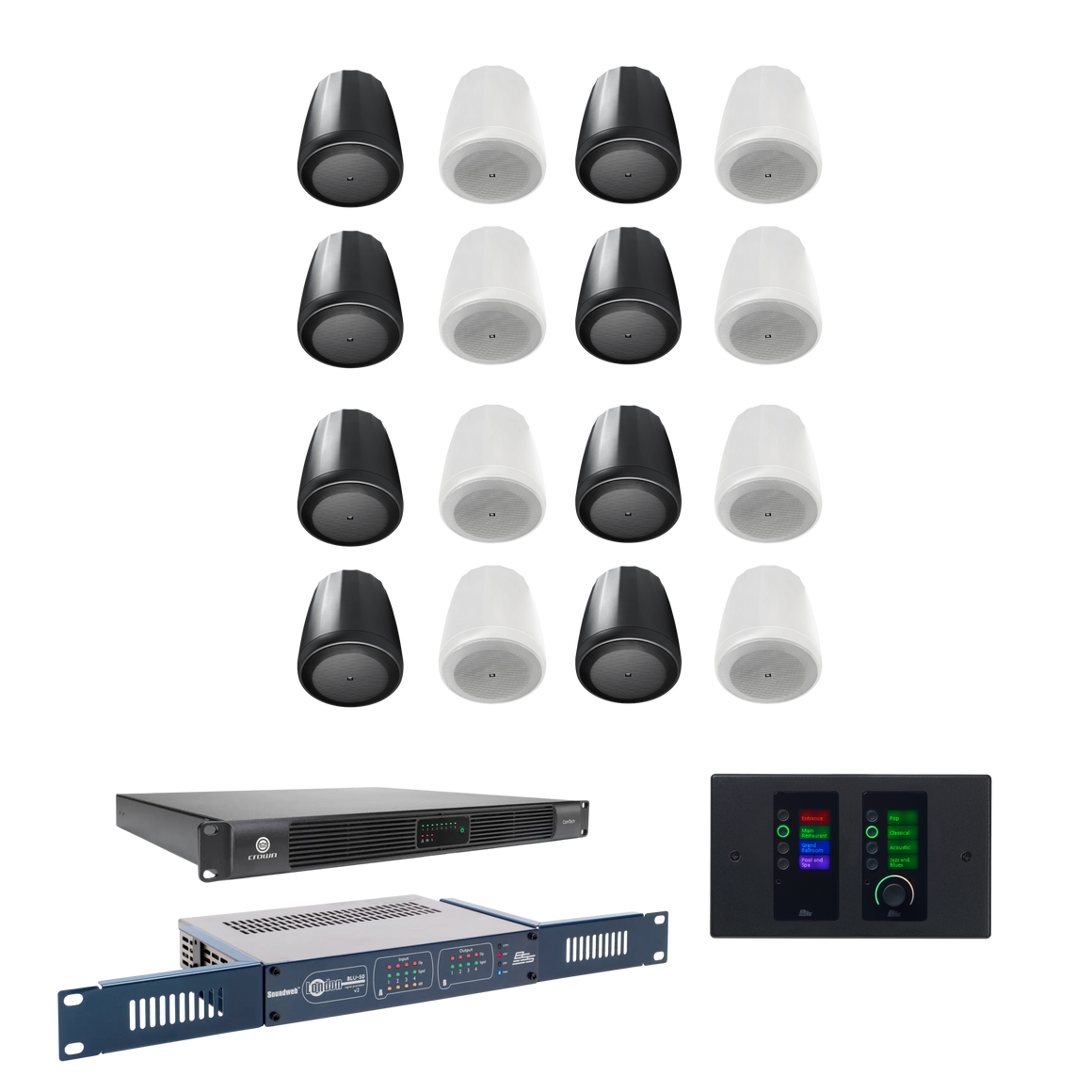

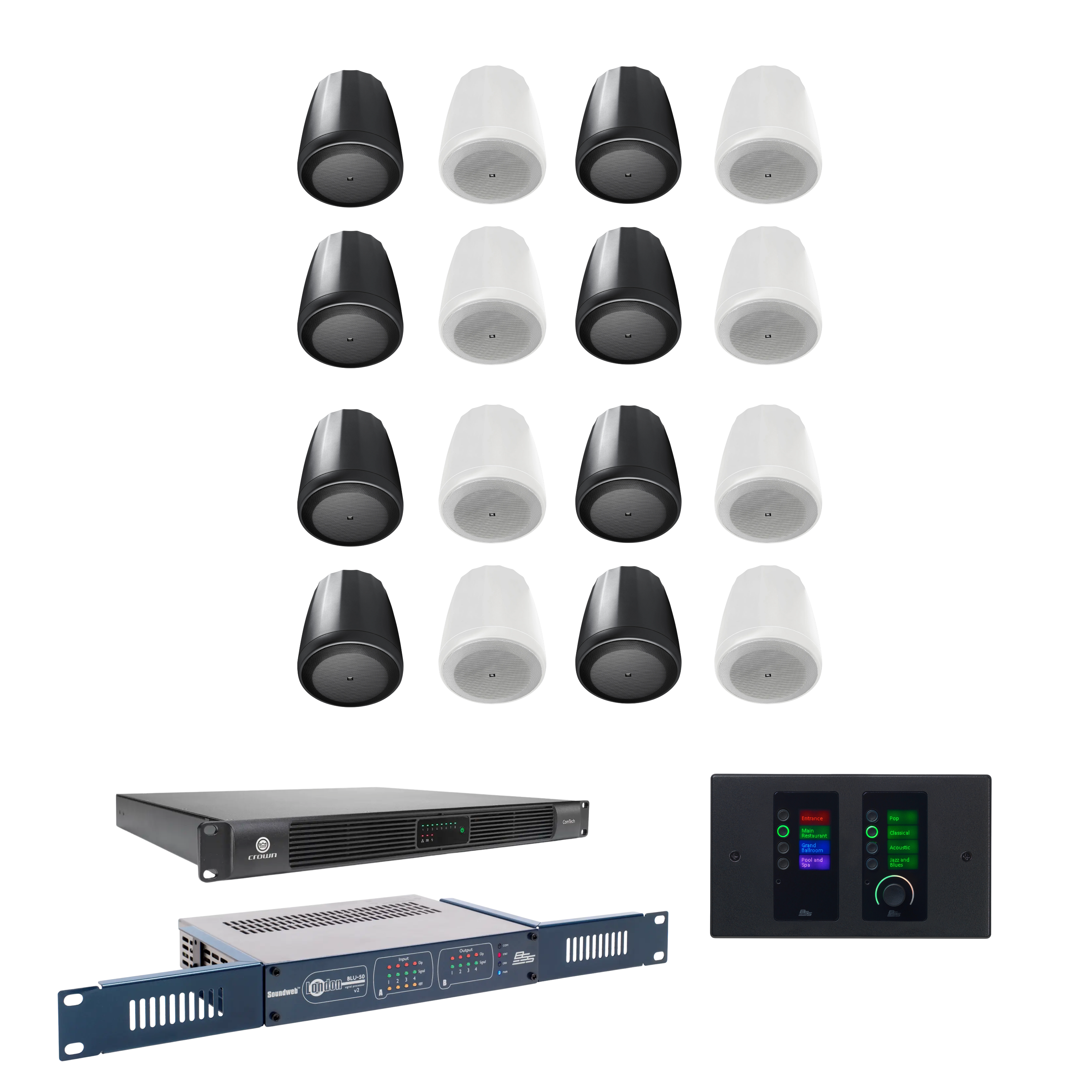

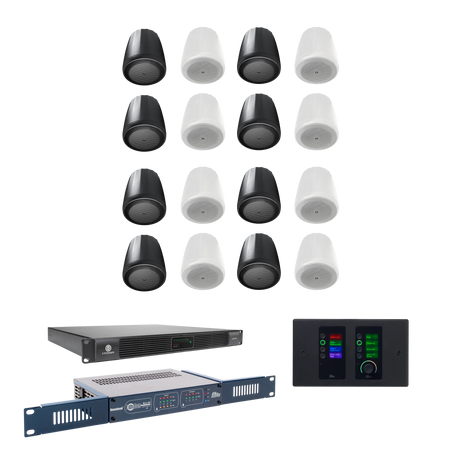

Bundle Includes
- Loudspeakers: 16 × JBL Control 65P/T pendant speakers
- Amplifier: 1 × Crown CTD8125
- DSP: 1 × BSS BLU-50v2
- Wall Controller: 1 × BSS EC-8BV
Application Examples
| Warehouses | Delivers clear paging, safety announcements, and background audio across large aisles and storage areas. |
| Distribution Centres | Supports reliable communication and alerts across busy loading bays and sorting zones. |
| Manufacturing Floors | Provides intelligible speech and background music in noisy production environments. |
| Back-of-House & Logistics Areas | Improves coordination, staff messaging, and general workplace communication. |
| Storage & Packing Zones | Pendant speakers ensure even coverage where wall-mounted speakers are impractical. |
The Harman Professional Warehouse Audio System Gold Bundle provides strong coverage, clear announcements, and easy day-to-day operation by combining JBL pendant loudspeakers with Crown amplification and BSS control and processing, delivering a warehouse-ready audio solution for modern industrial facilities.
