SKU: DS-D4512CB108-2FQ

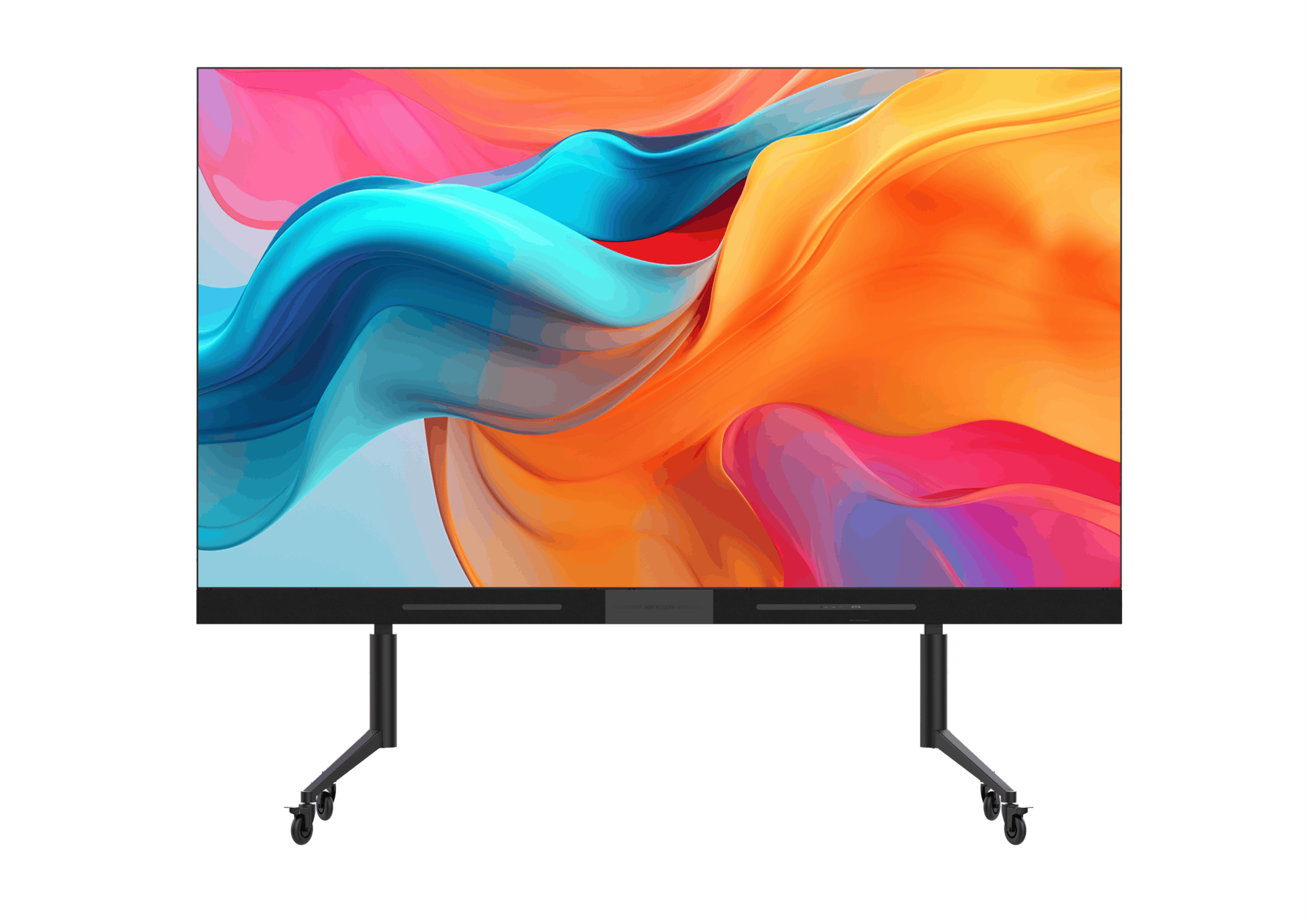

Hikvision DS-D4512CB108-2FQ 108-Inch LED AIO Display (Non-Touch)

Hikvision

108" All-in-One LED Display

The Hikvision DS-D4512CB108-2FQ 108-Inch LED AIO Display (Non-Touch) (DS-D4512CB108-2FQ) 108-inch integrated LED display eliminates the need for separate display and computing infrastructure. Flexible dual-OS approach enables selection of Android 12 or Windows 10 based on application requirements. 1.25mm pixel pitch delivers smooth imagery without visible pixelation at typical viewing distances. Integrated wall-mounting bracket enables straightforward installation without complex rigging. 4K input support via HDMI enables future-proof integration with emerging content sources.

Highlighted Features

  • 108" 1.25mm Pixel Pitch LED: 108-inch full-colour indoor LED at 1.25mm pitch with 1920×1080 and 600cd/m² post-calibration brightness
  • Dual OS: Android 12 or Windows 10: Switch between Android 12 (A76+A55, 16GB RAM) and Windows 10 (i5-11390H) for any use case
  • 600cd/m² Calibrated Brightness: 600cd/m² post-calibration brightness for commanding visual presence in large conference rooms
  • Built-In Wall Bracket: Integrated wall-mounting bracket supplied as standard — optional mobile floor stand available separately
  • 4× HDMI Inputs: Four HDMI inputs for multiple simultaneous source connections and dynamic content switching

The DS-D4512CB108-2FQ is the optimal choice for organisations seeking an all-in-one large-format LED display solution with integrated computing and flexible operating system selection.

In stock
£17,066.40

Secure Checkout

Warranty Protection

Hassle-Free Returns

The Hikvision DS-D4512CB108-2FQ is a premium integrated LED display solution combining imaging, computing and audio into a single modular system. The 108-inch diagonal delivers 1920x1080 resolution with 1.25mm pixel pitch across a large surface area. Organisations can select either Android 12 or Windows 10 operating system based on application requirements, with powerful processors and substantial storage in both configurations. The 600cd/m² brightness after calibration ensures visibility in typical indoor environments.

Key Features

  • 108-inch diagonal provides commanding visual presence in large venues
  • 1.25mm pixel pitch delivers smooth imagery without visible pixelation
  • 16:9 aspect ratio optimised for standard video and presentation content
  • 640,000 dots per square metre provides adequate resolution for detailed content
  • 600cd/m² brightness suitable for bright indoor environments
  • Glue-on board mounting ensures stable LED module connectivity
  • Flexible OS selection enables optimisation for specific applications
  • Android 12 version with Cortex-A76 quad-core 1.5GHz processor
  • Windows 10 version with Intel i5-11390H processor
  • 16GB RAM and 256GB storage in both configurations

Specifications

Diagonal Inches 108
Display Type Full-colour LED
resolution 1920x1080
Pixel Pitch Mm 1.25
Pixel Density 640,000 dots per square metre
Mounting Type Glue on board
Brightness Nits 600
Colour Space Full-colour
Aspect Ratio 16:9
Android Processor Cortex-A76 4-core 1.5GHz
Android Ram 16GB
Android Storage 256GB
Windows Processor Intel Core i5-11390H
Windows Ram 16GB
Windows Storage 256GB
Video Input HDMI 4x HDMI
Audio Input 1x line in
Maximum Power 1500W
Power Supply 110-240VAC
Operating Environment Indoor
Dimensions Without Base Mm 2411.6 x 1475.9 x 47.1
Weight 85
transportation 1 wooden box
Optional Stand DP-D40XCB22-4X4-Q3-NS-Q4-ZY/108
material Aluminum frame with LED modules

What's in the Box

  • LED display modules
  • Integrated wall-mounting bracket
  • Power supply
  • Installation and user documentation
  • Optional stand available separately

Warranty

The Hikvision DS-D4512CB108-2FQ 108-Inch LED AIO Display (Non-Touch) is backed by the 3-year manufacturer warranty, providing peace of mind for professional and commercial installations.
