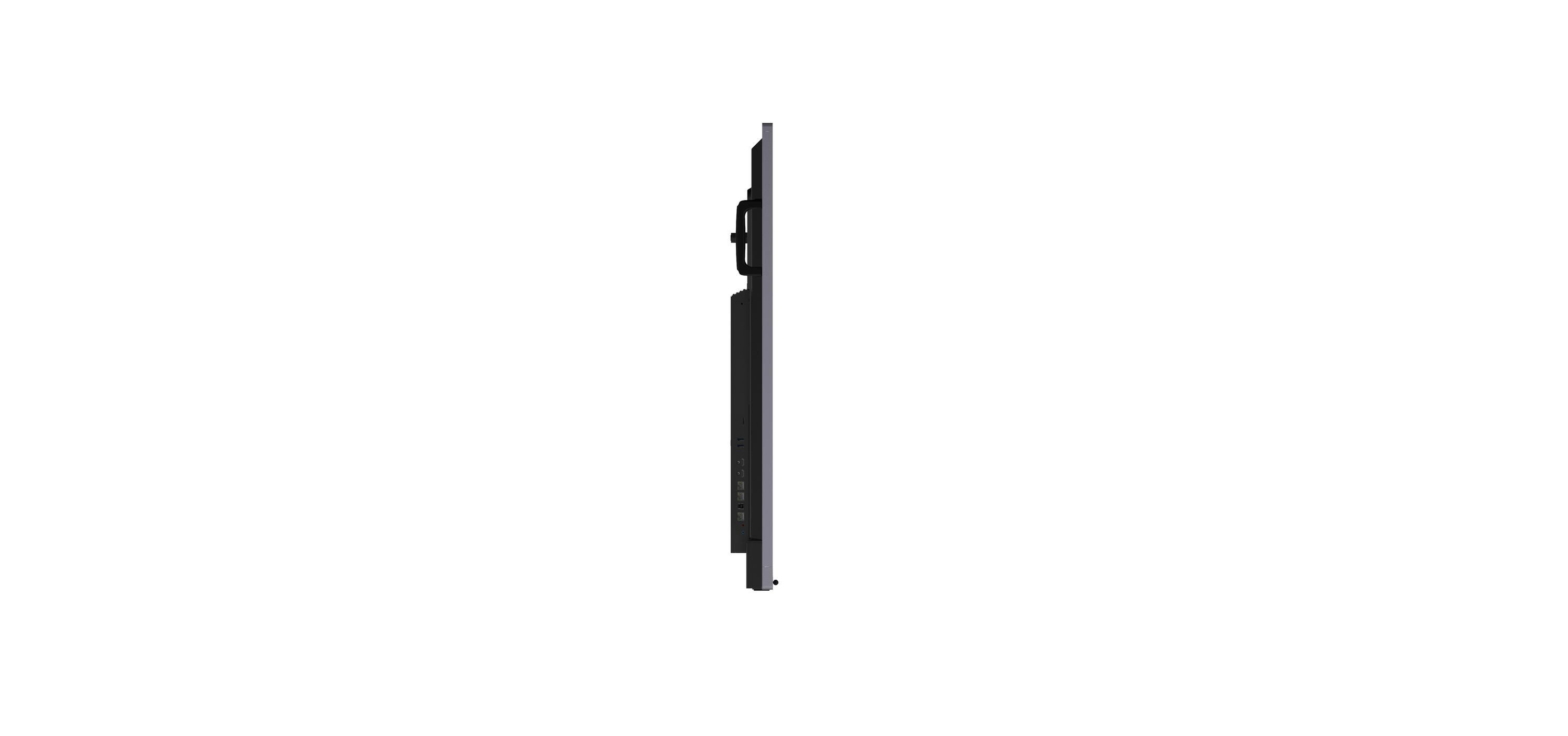

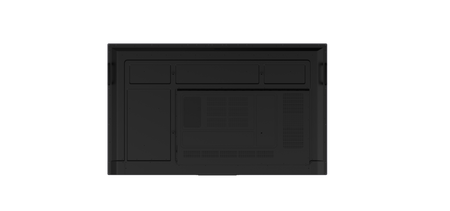

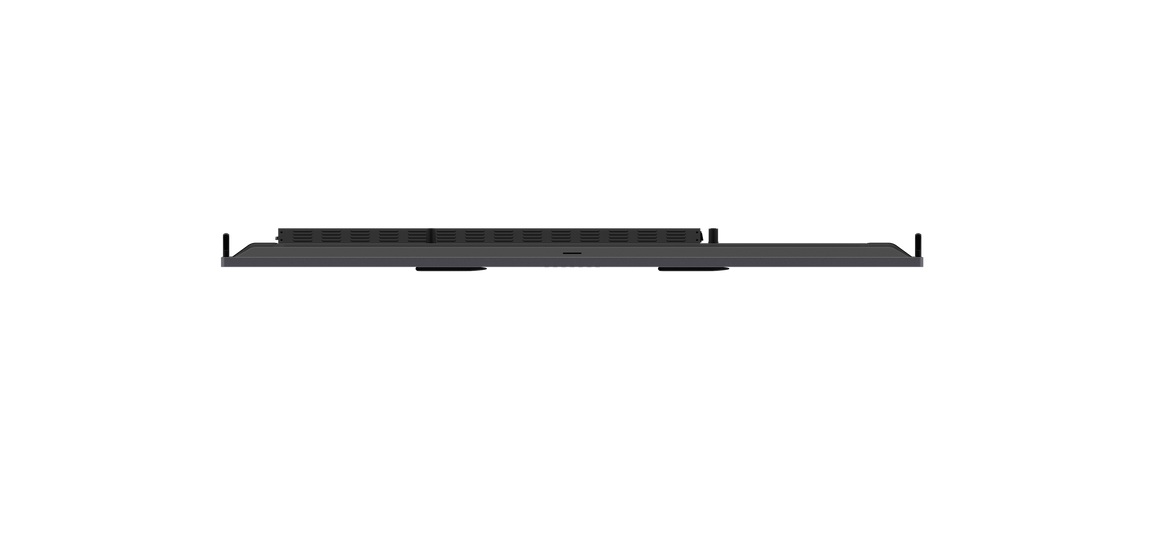

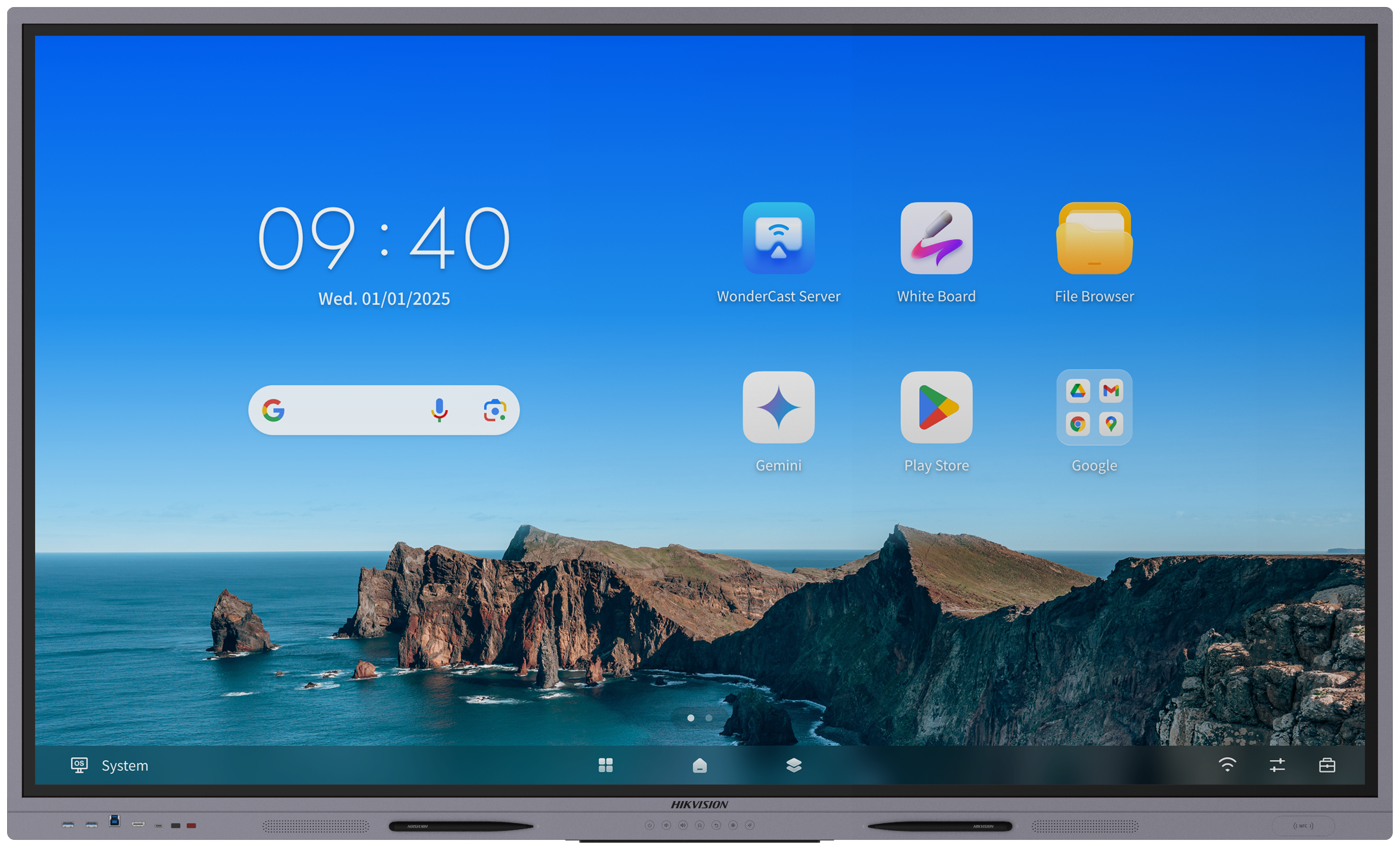

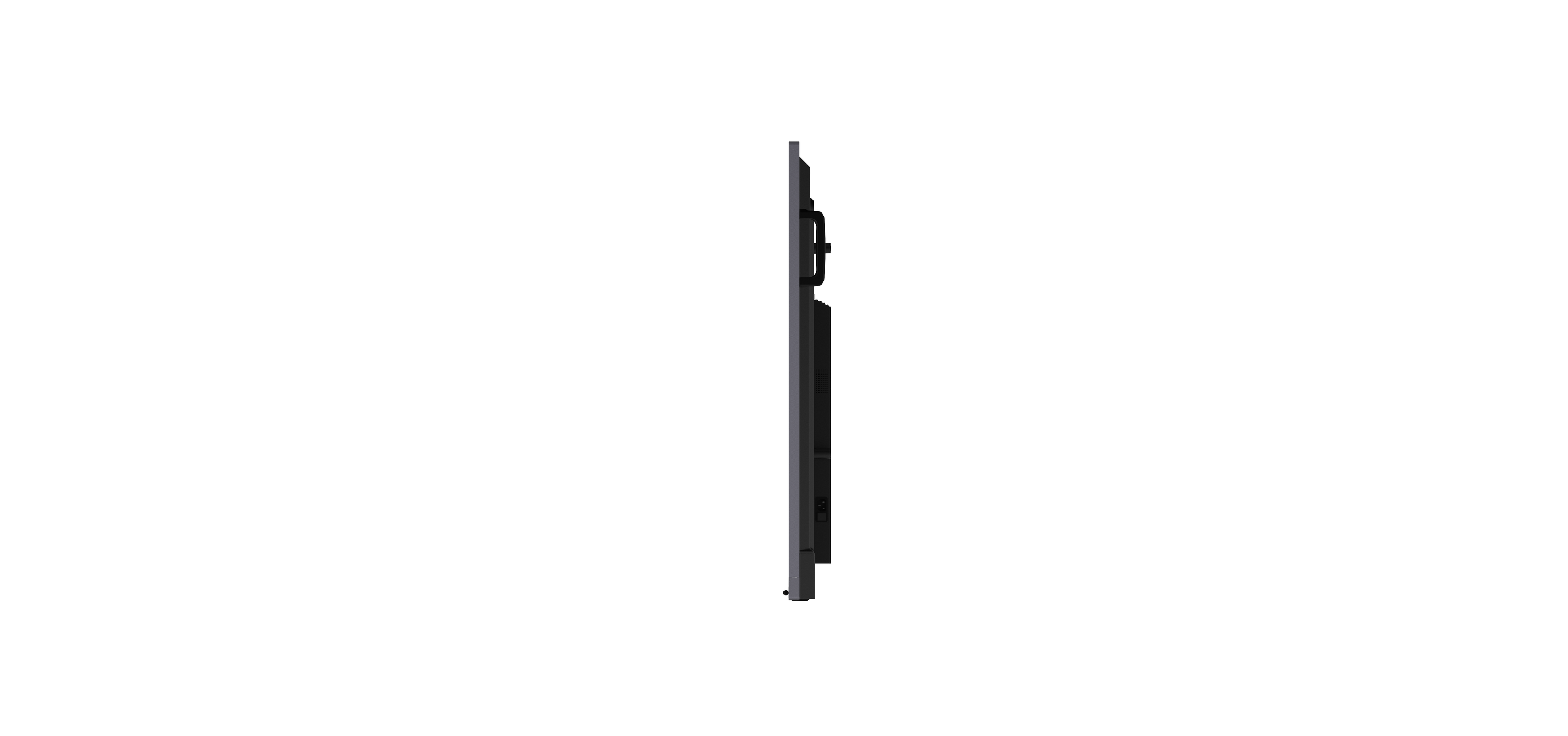

Hikvision DS-D5A86RB/A3 86" 4K Interactive Flat Panel Display
86" 4K Interactive Flat Panel Display
In stock
Regular price
£2,205.62
Secure Checkout
Warranty Protection
Hassle-Free Returns
The DS-D5A86RB/A3 delivers an 86-inch interactive display designed for large-scale venues and high-occupancy spaces. Its IPS panel ensures consistent colour reproduction across 1895 mm of viewable width, while the 50-point infrared touch system responds instantly to input across the expansive surface. With 3840×2160 resolution, 400cd/m² brightness, and Android 14 processing, it serves simultaneous users in lecture halls, auditoriums, and convention centres.
Key Features
- WiFi 6 and Dual Gigabit LAN: 802.11ax 2×2 MIMO plus dual RJ45 networking — ensures reliable content distribution and network app streaming for auditorium deployment
- High Brightness 400cd/m²: Maintains visibility in well-lit large venues with natural daylight exposure — suitable for ground-floor foyer and exhibition spaces
- Zero-Lamination Construction: Direct touch-glass bonding eliminates air pockets — reduces reflection and improves touch sensitivity across the 86-inch canvas
- Quad USB Expansion: 2× USB 3.0 front + 2× USB 2.0 rear + 1× USB-C (15W charging) — connects cameras, keyboards, wireless mics, and external media
- NFC Tap-to-Connect: 13.56MHz NFC (ISO 14443A/B) — visitors and staff pair mobile devices by tapping the display frame
- Bluetooth 5.4 Wireless Control: Pairs with conference room AV control systems and remote presentation devices over extended distance — simplifies operation for inexperienced users
- Dual Audio Output: 2× 20W built-in speakers + SPDIF output jack — routes audio to external amplifier for venues exceeding 200 seats
- 9H Tempered Anti-Glare Glass: Withstands daily contact and cleaning solvents — rated for 7 years of continuous public deployment
- RS-232 Serial Integration: Rear serial port enables integration with building automation, lecture capture systems, and classroom management platforms
Specifications
| Display Size | 86 inches (diagonal) |
| Resolution | 3840×2160 @ 60Hz |
| Panel Type | IPS, LED backlight (DLED) |
| Brightness | 400 cd/m² |
| Contrast | 1200:1 static / 15000:1 dynamic |
| Response Time | 5 ms |
| Colour Gamut | 72% NTSC |
| Viewing Angle | 178° (H) / 178° (V) |
| Pixel Pitch | 0.164mm (H) × 0.493mm (V) |
| Display Area | 1895.04 × 1065.96 mm |
| Surface Treatment | Anti-glare glass, 25% haze, 9H/7 Mohs hardness, zero lamination |
| Backlight Lifespan | 50,000 hours (7×16H usage) |
| Touch System | Infrared, 50-point |
| Touch Response | ≤5 ms |
| Touch Precision | ±0.5 mm |
| Touch Resolution | 32,768 × 32,768 |
| Minimum Touch Object | ≥1.5 mm |
| Operating System | Android 14 EDLA |
| CPU | Quad-core A72 × 4 (2.2 GHz) + A53 × 4 (1.8 GHz) |
| GPU | Mali-G52 MC3 |
| RAM | 8 GB |
| Storage | 128 GB |
| Audio Output | 1 × RCA (Rear) |
| Bluetooth | 5.4 |
| NFC | 13.56 MHz (ISO 14443A/B) |
| WiFi | 802.11a/b/g/n/ac/ax (2×2 MIMO), supports WiFi 6 |
| Light Sensor | Yes |
| Humidity Sensor | No |
| HDMI Input | 3 × HDMI 2.1 (Front ×1, Rear ×2); HDCP 2.3/2.0/1.4; HDMI1 CEC & ARC |
| Audio Input | 1 × RCA (Rear) |
| USB 3.0 | 2 × (Front) |
| USB 2.0 | 2 × (Rear) |
| USB-C | 1 × (Front, USB 3.0, 15 W charging) |
| Network | 2 × LAN 1000 Mbps (Rear) |
| Touch Interface | 1 × USB 2.0 (Front), 1 × USB 2.0 (Rear) |
| Serial | 1 × RS-232 (Rear) |
| Power Input | 100-240 VAC |
| Standby Power | ≤0.5 W |
| Average Operating Power | <210 W |
| Dimensions (without bracket) | 1957.04 × 1156.5 × 95.8 mm |
| Weight | 52.38 kg |
| VESA Mount | 800 × 600 mm |
| Colour | Black |
| Warranty | 5-year manufacturer warranty |
What's in the Box
- Wall mount bracket
- Hook
- User manual
- Touch writing pen
- Packing list
- Power cable
- Remote control
Application Examples
| Convention Centre Keynote | Speakers use the 86-inch display to present to 300+ attendees, annotating slides with the 50-point touch whilst audience sits 10 metres away |
| Medical Training Simulation | Surgical teams interact with anatomical models and procedure checklists on the massive display, collaborating in real time |
| Financial Trading Floor | Traders monitor live market data dashboards projected onto the 86-inch IPS panel with consistent colour accuracy from across the room |
| University Amphitheatre Lecture | Professors display molecular models and experimental data, using touch to manipulate 3D representations for 150+ enrolled students |
