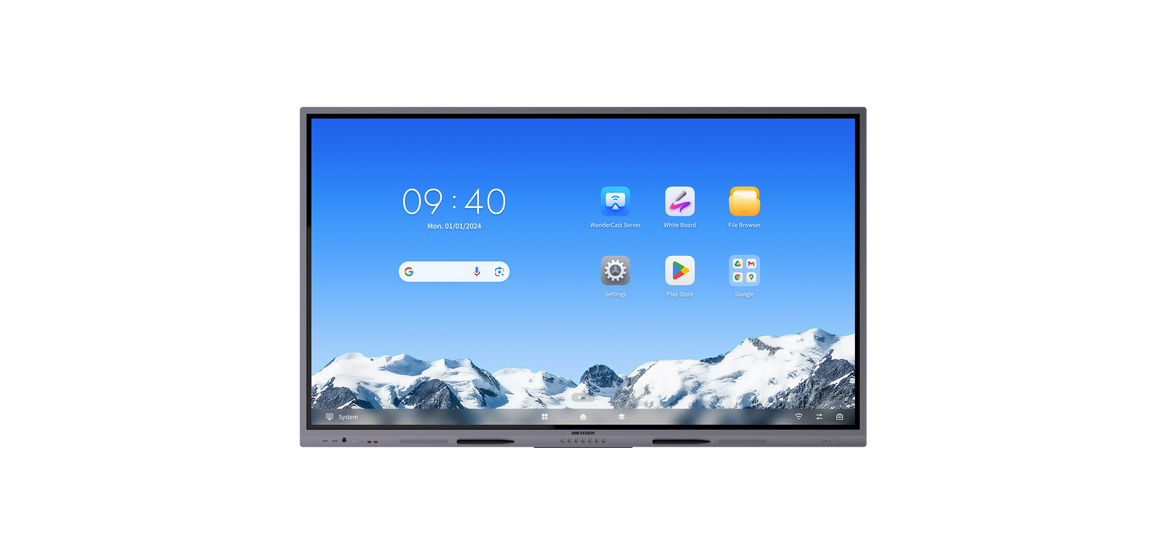

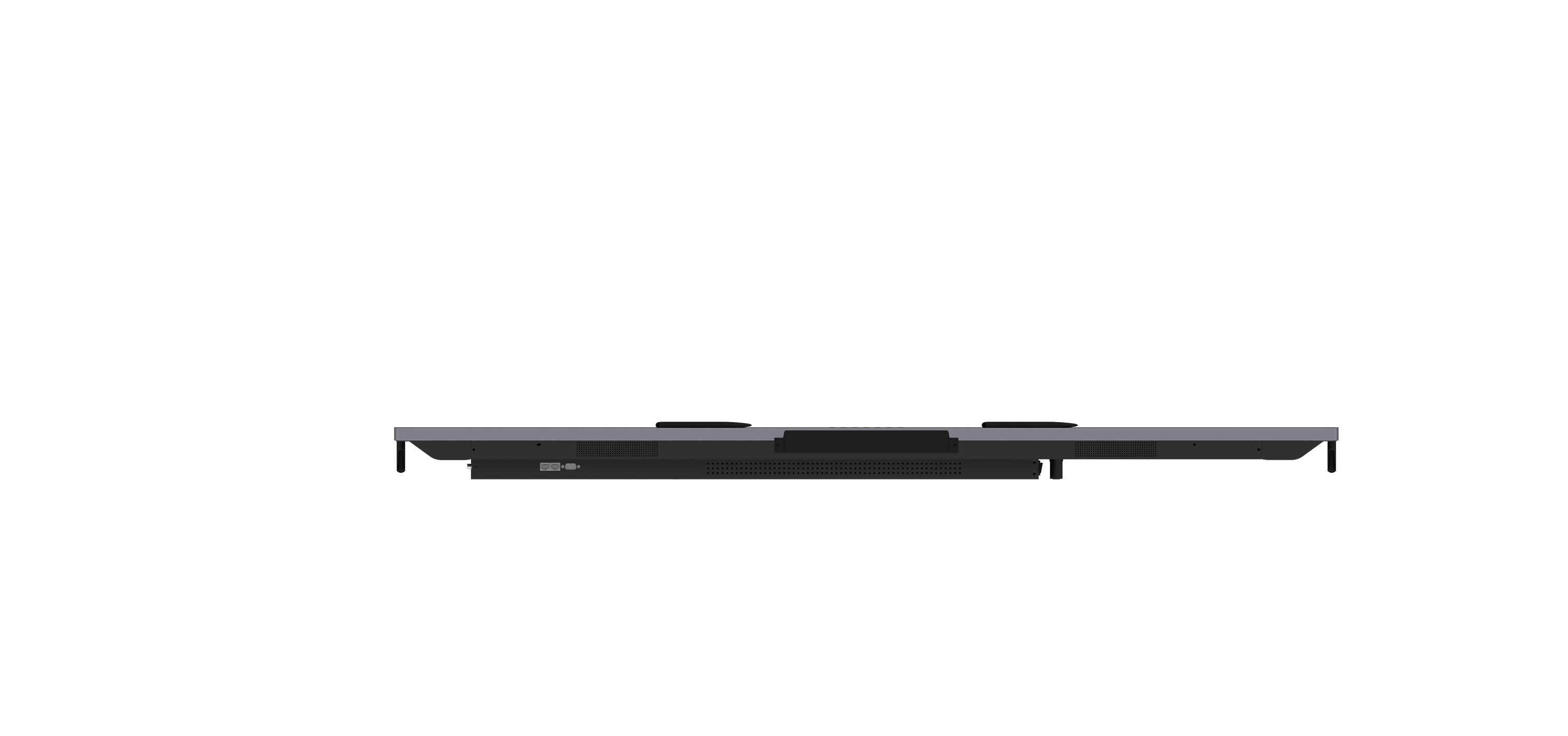

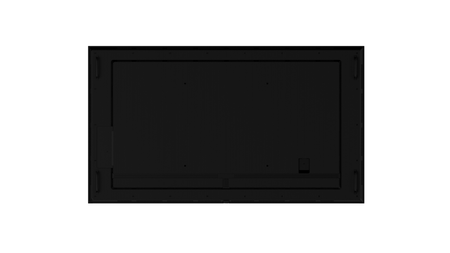

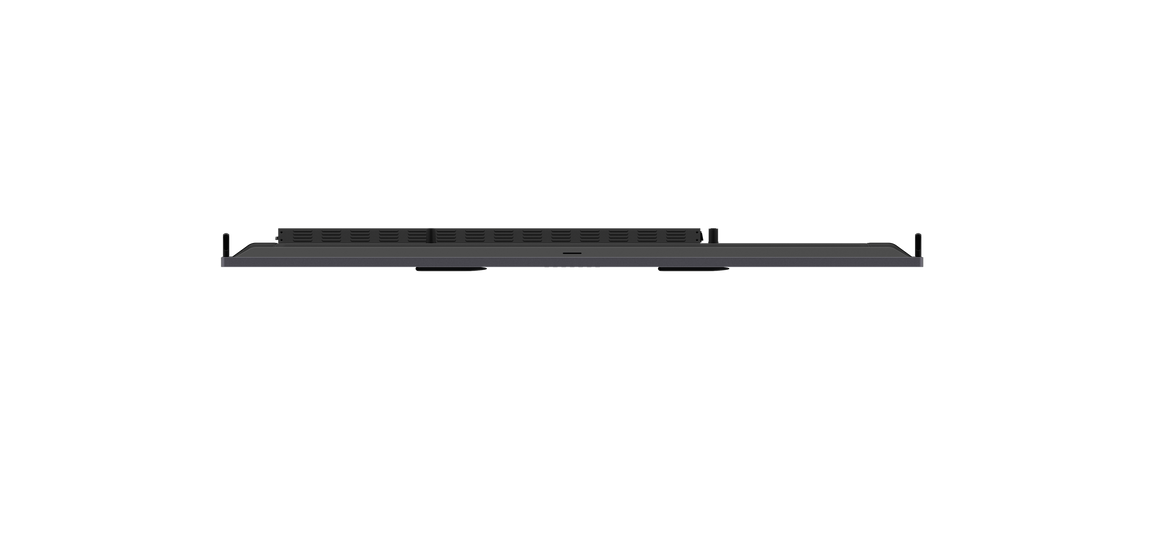

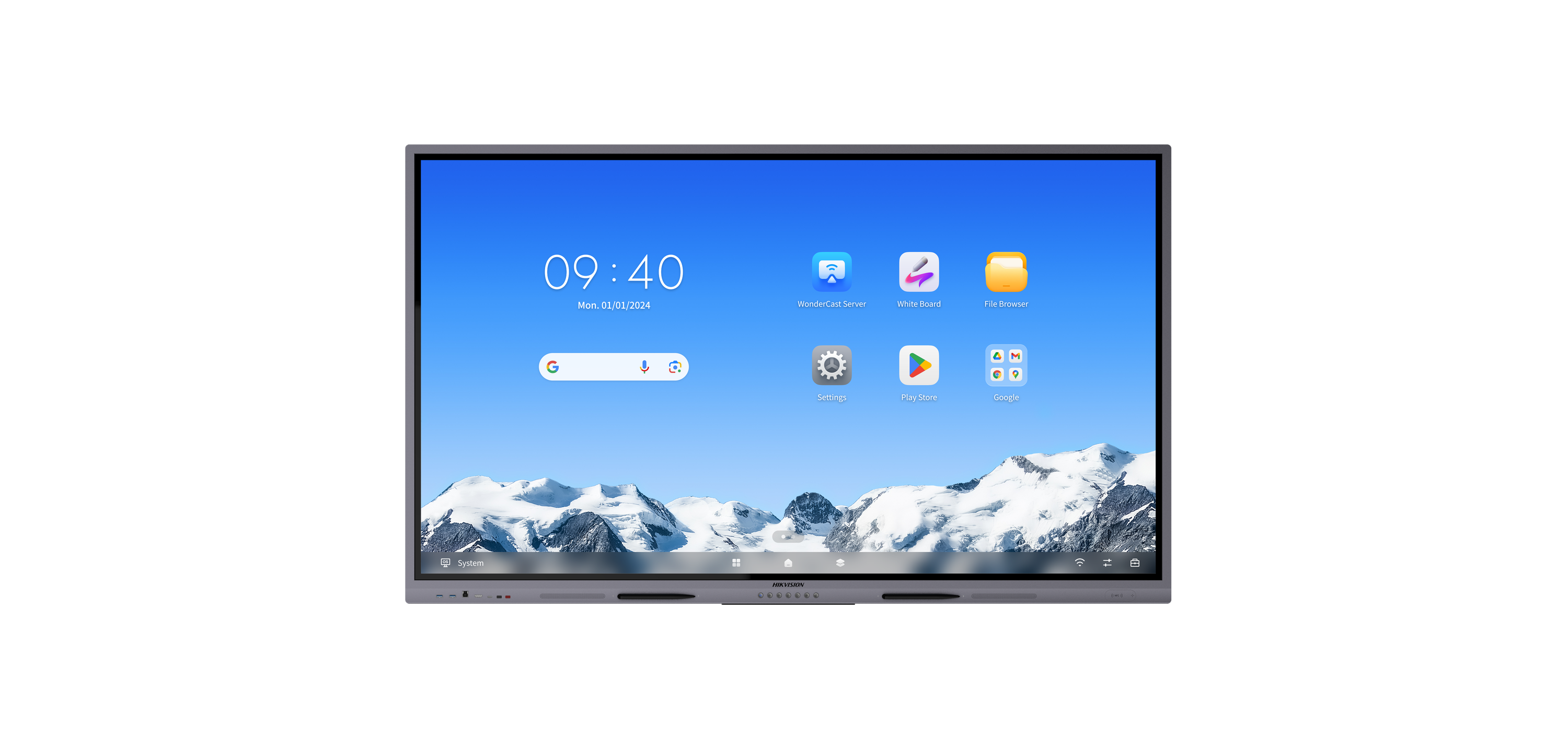

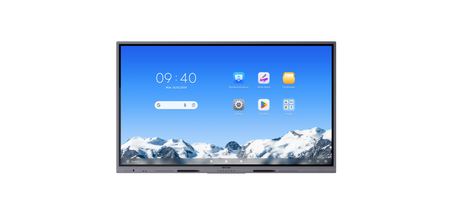

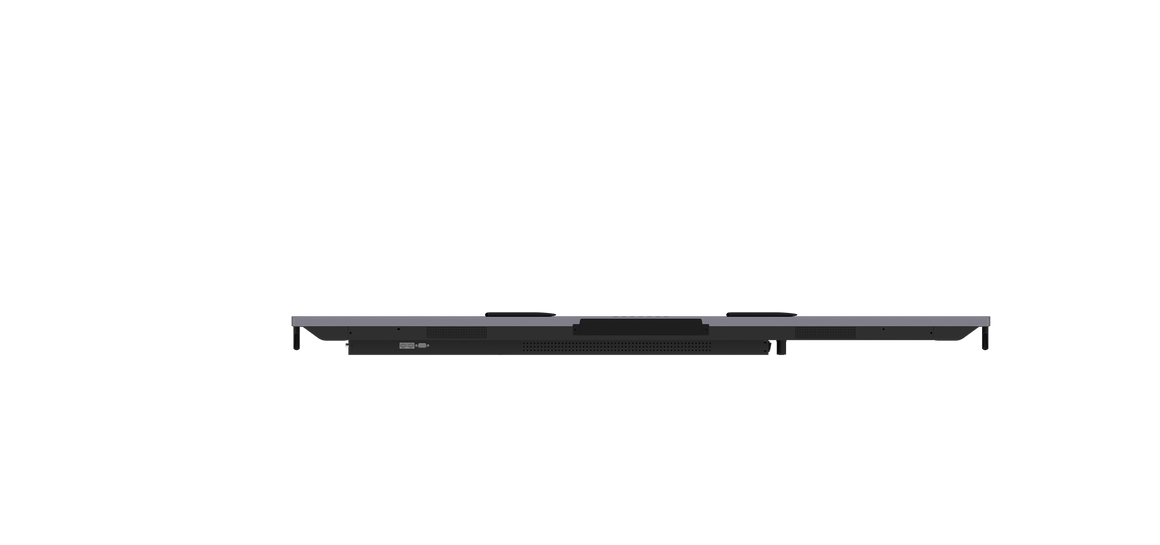

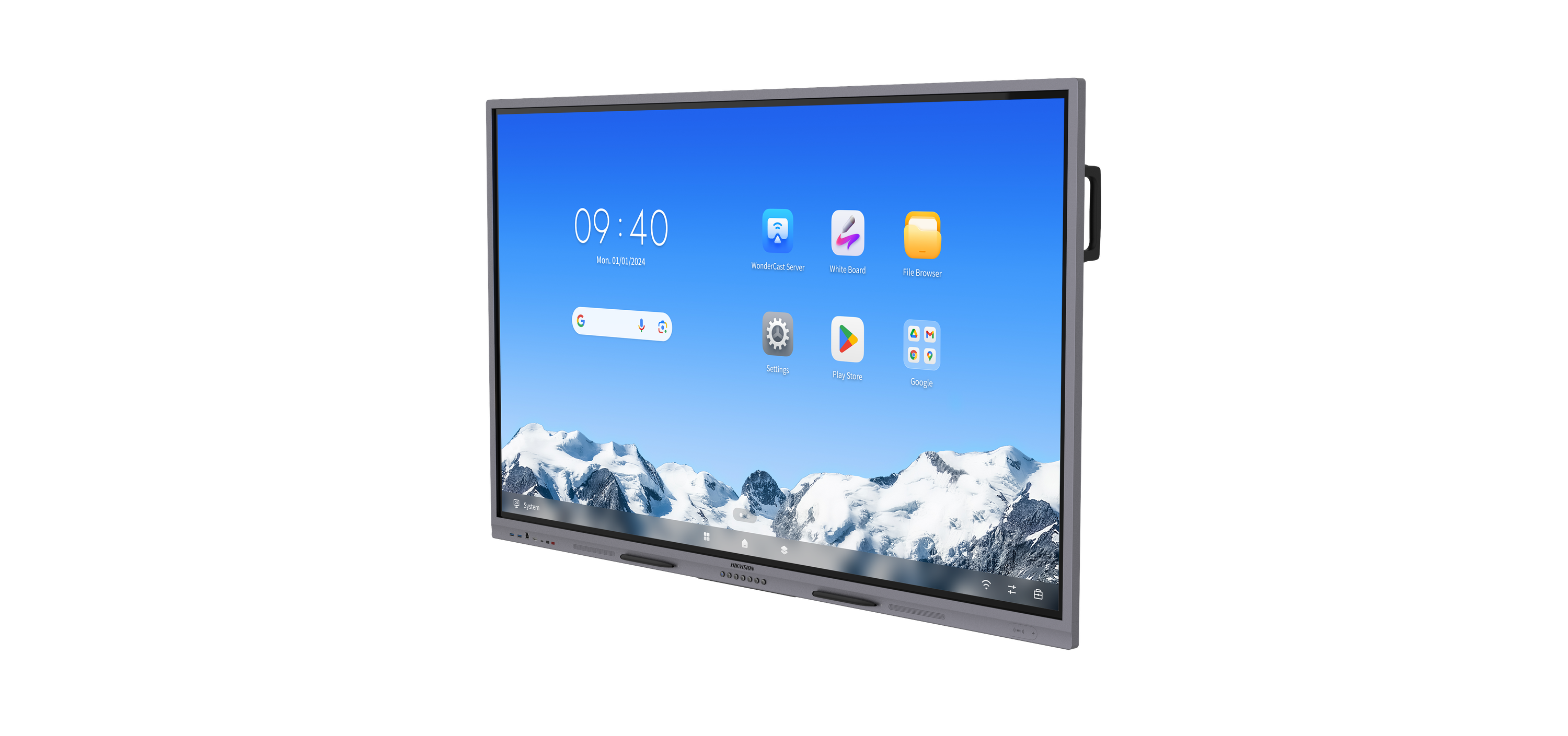

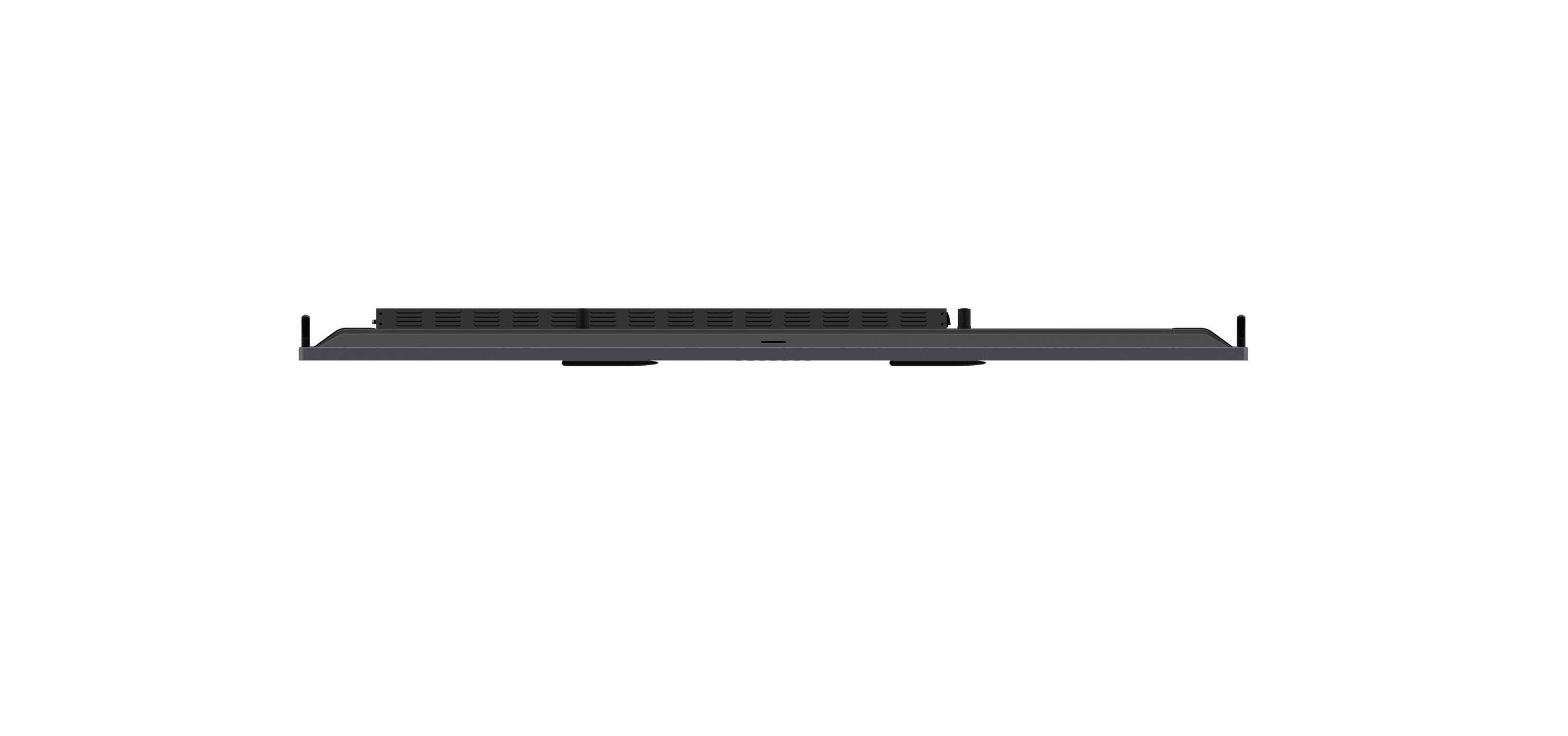

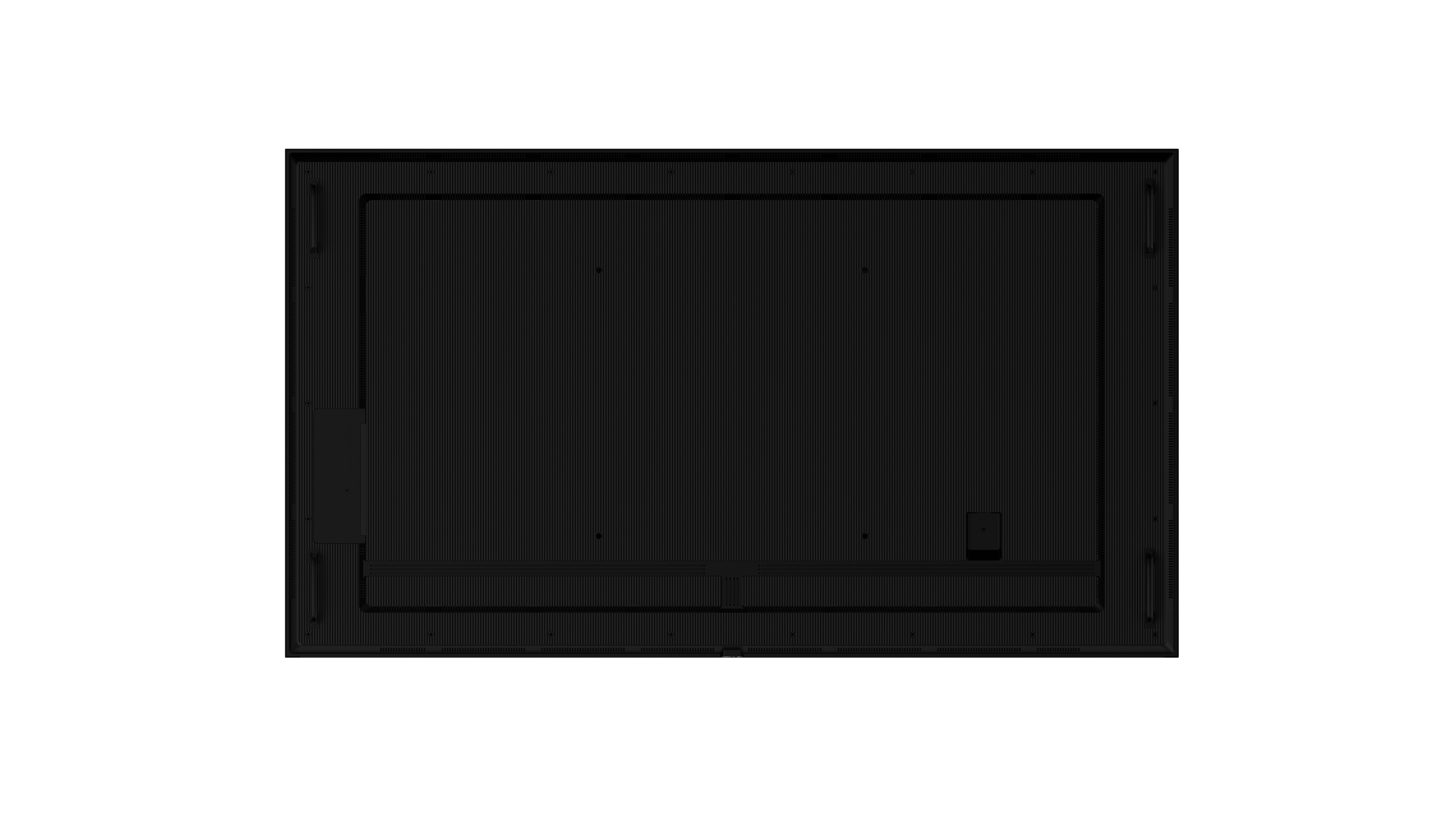

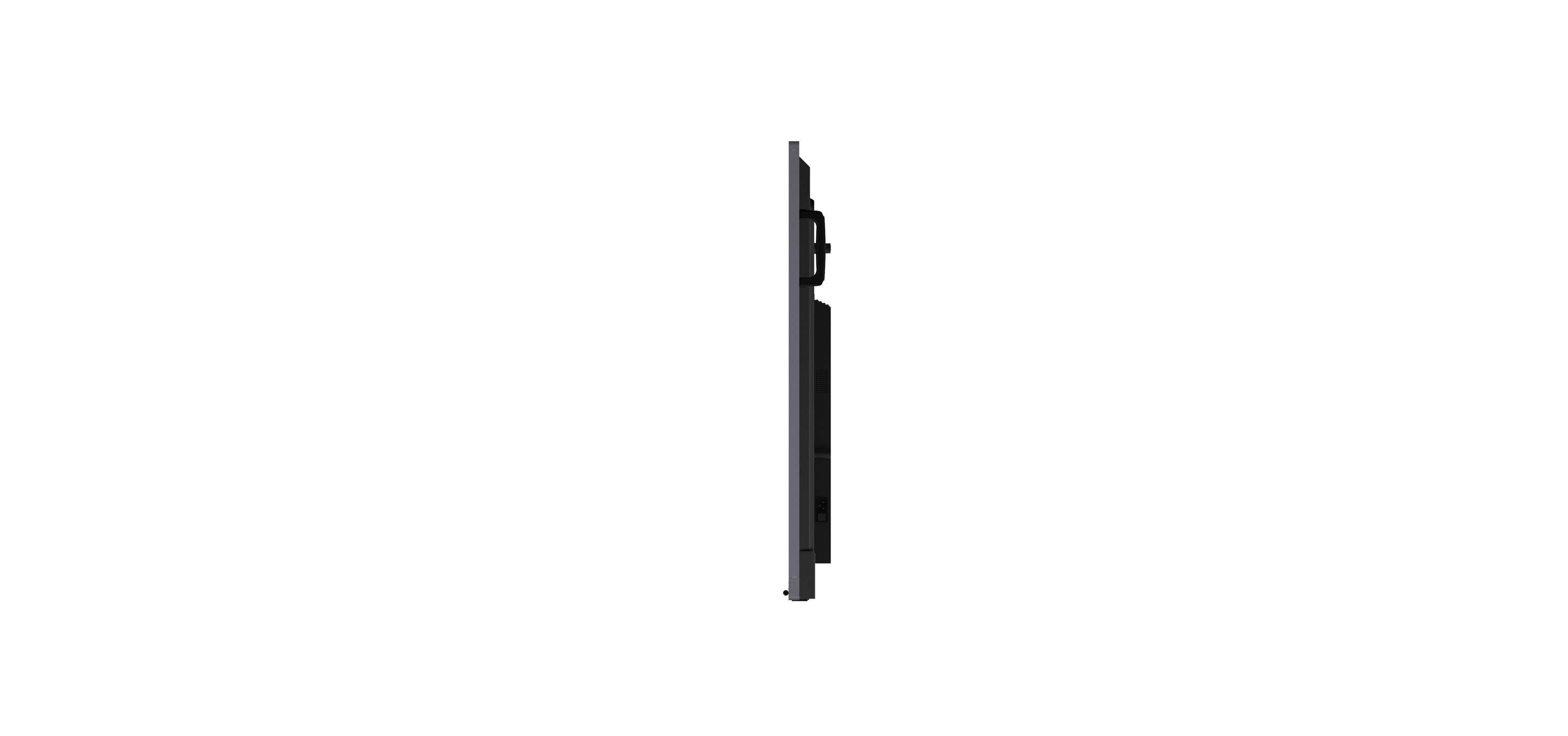

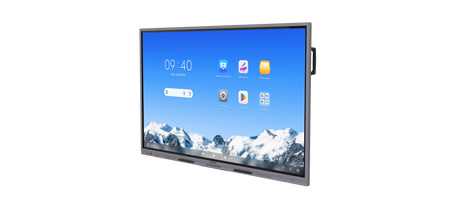

Hikvision DS-D5C86RB/A2L 86" 4K Ultra Plus Interactive Flat Panel Display
86" 4K Ultra Plus Interactive Display
In stock
Regular price
£2,672.91
Secure Checkout
Warranty Protection
Hassle-Free Returns
The DS-D5C86RB/A2L completes the Ultra Plus A series at 86 inches, delivering maximum interactive surface with professional-grade specifications. Its IPS panel provides 1200:1 static contrast and anti-glare, anti-fingerprint glass for high-touch public environments. The 480cd/m² brightness, A76 processor, ≤2ms touch response, and integrated environmental sensors combine for demanding applications in auditoriums, convention centres, and research facilities.
Key Features
- ≤2ms Touch Response Across 86 Inches: Professional-grade responsiveness for precision work and large-scale collaborative annotation
- Dual Gigabit Ethernet: Network teaming or failover for mission-critical content distribution to satellite displays
- 4× USB 3.0 High-Speed Connectivity: Supports simultaneous connection of 4K camera, graphics tablet, SSD, and microphone array with zero bottlenecks
- Dual USB-C with 100W Power Delivery: Rear port supplies up to 100W for charging large displays or external compute devices whilst supporting video input
- HDMI 2.0 Output + SPDIF: Records or streams presentations whilst maintaining local 4K output; integrates with professional audio systems
- VESA 800×600mm Heavy-Duty Mount: Commercial-grade bracket rated for ceiling suspension and permanent wall installation in high-vibration environments
- Zero-Lamination IPS Construction: Direct touch layer bonding minimises glare and optical aberrations across the 86-inch surface
- Extended Cable Bundle: Includes 3.5m HDMI 2.0 and 3m USB cables for flexible room layouts in large venues
- WiFi 6 and Bluetooth 5.4: Wireless presentation capability and remote control operation across large meeting spaces
Specifications
| Display Size | 86 inches (diagonal) |
| Resolution | 3840×2160 @ 60Hz |
| Panel Type | IPS, LED backlight (DLED) |
| Brightness | 480 cd/m² |
| Contrast | 1200:1 static / 15000:1 dynamic |
| Response Time | 5 ms |
| Colour Gamut | 72% NTSC |
| Viewing Angle | 178° (H) / 178° (V) |
| Display Area | 1895.04 × 1065.96 mm |
| Surface Treatment | Anti-glare, anti-fingerprint glass, 25% haze, 9H/7 Mohs hardness, zero lamination |
| Backlight Lifespan | 50,000 hours (7×16H usage) |
| Touch System | Infrared, 50-point |
| Touch Response | ≤2 ms |
| Touch Precision | ±0.5 mm |
| Touch Resolution | 32,768 × 32,768 |
| Minimum Touch Object | ≥1.5 mm |
| Operating System | Android 14 EDLA |
| CPU | Quad-core A76 × 4 (2.4 GHz) + A55 × 4 (1.8 GHz) |
| GPU | Mali-G610 MC4 |
| RAM | 8 GB |
| Storage | 128 GB |
| Audio Output | 1 × (Rear) |
| Bluetooth | 5.4 |
| NFC | 13.56 MHz (ISO 14443A/B/15693) |
| WiFi | 802.11a/b/g/n/ac/ax (2×2 MIMO), supports WiFi 6 |
| Light Sensor | Yes |
| Humidity Sensor | Yes (±1.5% RH) |
| Temperature Sensor | Yes (±0.1°C) |
| HDMI Input | 1 × HDMI 2.0 (Front), 2 × HDMI 2.0 (Rear); HDCP 2.3/2.0/1.4; CEC support; Audio ×1 (Rear) |
| HDMI Output | 1 × HDMI 2.0 (Rear) |
| SPDIF Output | 1 × (Rear) |
| USB 3.0 | 4 × (Front ×2, Rear ×2) |
| USB 2.0 | 1 × (Rear) |
| USB-C | 2 × (Front USB 2.0; Rear USB 2.0 100 W charging + DP IN 1.2) |
| Network | 2 × LAN 1000 Mbps (Rear) |
| Touch Interface | 1 × USB 3.0 (Front), 2 × USB 2.0 (Rear) |
| Serial | 1 × RS-232 (Rear) |
| Power Input | 100-240 VAC |
| Standby Power | ≤0.5 W |
| Average Operating Power | <274 W |
| Dimensions (without bracket) | 1960.4 × 1158.2 × 82.5 mm |
| Weight | 58.5 kg |
| VESA Mount | 800 × 600 mm |
| Colour | Black |
| Warranty | 5-year manufacturer warranty |
What's in the Box
- Wall mount bracket
- Hook
- User manual
- Touch writing pen
- Packing list
- 3 m touch USB cable
- 3.5 m HDMI 2.0 cable
- 3 m power cable
- Remote control
- Screen cleaning cloth
Application Examples
| Convention Floor Showcase Display | Technology vendors use the 86-inch panel to demonstrate real-time data visualisations and interactive applications to streams of foot traffic |
| Surgical Training Amphitheatre | Medical students observe live surgical procedures on the massive display whilst instructors annotate anatomy and technique in real time |
| Financial Services Collaboration Hub | Trading teams gather around the 86-inch panel to monitor market data, execute multi-user trades, and annotate risk assessments |
| Museum Interactive Exhibit | Visitors explore digital collections and augmented experiences on the 86-inch panel using multi-touch gestures without wiring or calibration |
