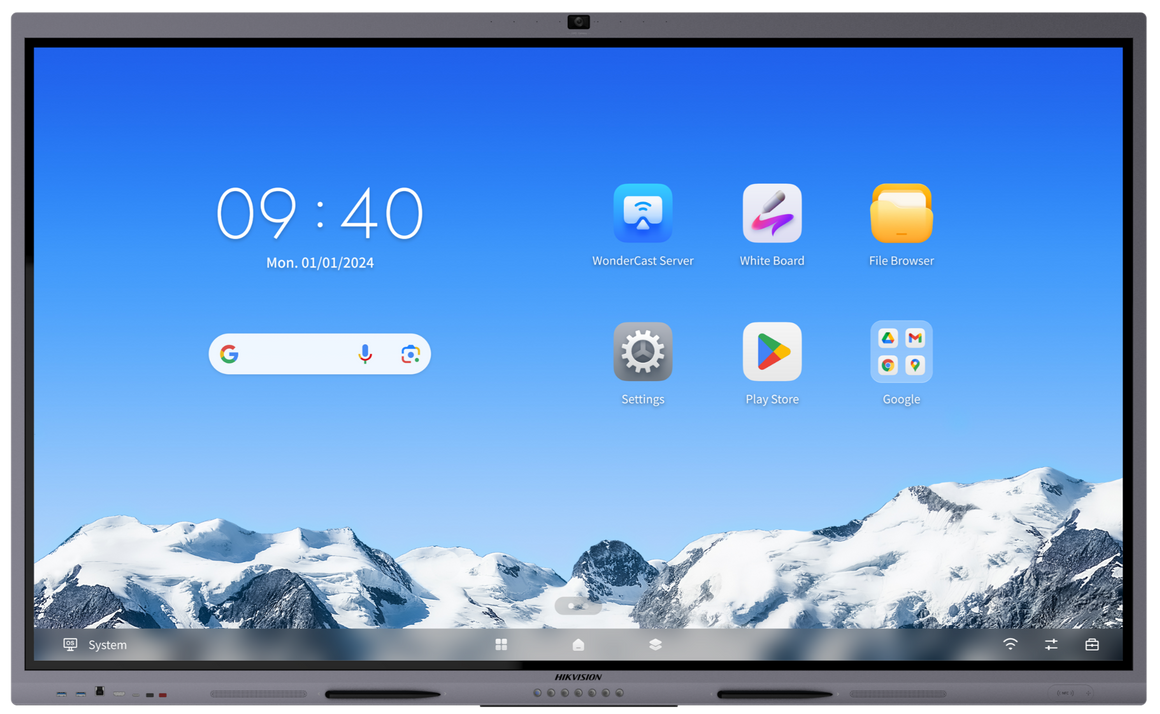

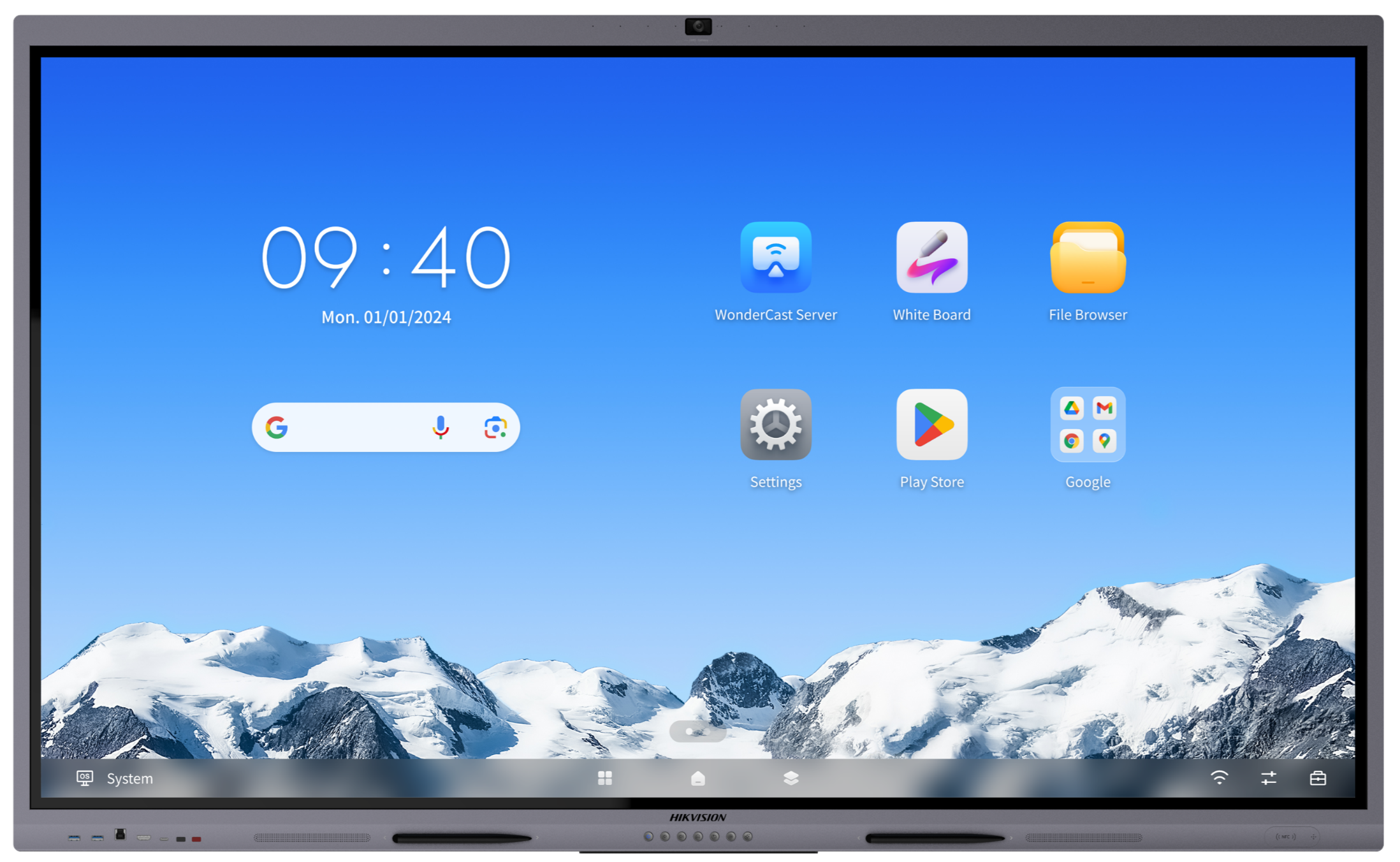

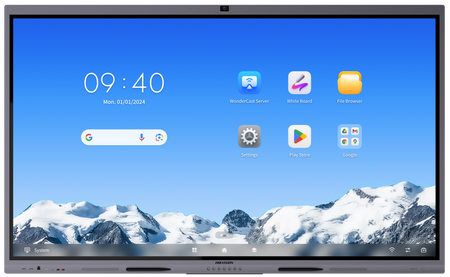

Hikvision DS-D5C86RB/B2L 86" 4K Ultra Plus Interactive Flat Panel with Built-In AI Camera
86" 4K Interactive Display with AI Camera
In stock
Regular price
£3,375.00
Secure Checkout
Warranty Protection
Hassle-Free Returns
The DS-D5C86RB/B2L completes the AI-integrated range with an 86-inch IPS panel, built-in 48MP camera, and professional-grade 8-mic array. This configuration suits large auditoriums and convention centres where integrated video conferencing eliminates external camera installations. The anti-glare, anti-fingerprint glass surface withstands frequent public interaction whilst the camera's 93.4 degrees FOV captures entire audience sections without repositioning.
Key Features
- Professional Audio Processing: Adaptive gain, noise reduction, sound source localisation — natural conversation quality for broadcast and archive
- Intelligent Device Switching: Automatic Android/OPS/PC detection — eliminates source selection during presentation transitions
- VESA 800×600mm Mount: Commercial-grade bracket rated for 58+ kg displays; supports ceiling suspension in auditorium configurations
- Dual Gigabit LAN: Network teaming or failover for simultaneous streaming to multiple remote viewing locations
- 4× USB 3.0 + Dual USB-C: Full peripheral expansion: document cameras, graphics tablets, external recording devices, and compute modules
- HDMI 2.0 Output + SPDIF: Records presentations locally and streams to remote archival systems; integrates with professional venue audio
- 50,000-Hour Backlight: Certified for 7 years continuous use in auditoriums scheduled 16 hours daily
- Integrated Solution: Eliminates need for separate camera rigs, microphone stands, speaker systems, and control panels
- Android 14 Native Apps: Runs Zoom, Teams, Google Meet, Panopto lecture capture, WebEx, and OBS Studio directly
Specifications
| Display Size | 86 inches (diagonal) |
| Resolution | 3840×2160 @ 60Hz |
| Panel Type | IPS, LED backlight (DLED) |
| Brightness | 480 cd/m² |
| Contrast | 1200:1 static / 15000:1 dynamic |
| Response Time | 5 ms |
| Display Area | 1895.04 × 1065.96 mm |
| Surface Treatment | Anti-glare, anti-fingerprint glass, 25% haze, 9H/7 Mohs hardness, zero lamination |
| Touch System | Infrared, 50-point |
| Touch Response | ≤2 ms |
| Camera Resolution | 48 MP (photos) / 8 MP (video) |
| Camera Video | Up to 4K resolution |
| Camera FOV | 93.4 degrees diagonal / 84.5 degrees horizontal / 54.1 degrees vertical |
| Camera Distortion | ≤2.5% |
| Camera Features | 3D DNR, face detection, auto WB, auto purple edge removal, auto defogging, shadow correction |
| Camera Switching | Intelligent switching between Android/OPS/PC input |
| Microphone Array | 8-mic omnidirectional |
| Microphone Pickup | 12 metres radius |
| Microphone Sampling | 32 kHz |
| Microphone Sensitivity | 16 bit |
| Microphone Features | Echo reduction, smart noise cancellation, dereverberation, adaptive noise reduction, adaptive echo cancellation, auto gain, sound source localisation, digital beamforming |
| Operating System | Android 14 EDLA |
| CPU | Quad-core A76 × 4 (2.4 GHz) + A55 × 4 (1.8 GHz) |
| GPU | Mali-G610 MC4 |
| RAM | 8 GB |
| Storage | 128 GB |
| Audio Output | 2 × 20 W + 25 W speaker system |
| Bluetooth | 5.4 |
| WiFi | 802.11a/b/g/n/ac/ax (2×2 MIMO) |
| HDMI Input | 1 × HDMI 2.0 (Front), 2 × HDMI 2.0 (Rear); HDCP 2.3/2.0/1.4; CEC support |
| USB 3.0 | 4 × (Front ×2, Rear ×2) |
| USB 2.0 | 1 × (Rear) |
| USB-C | 2 × (Front USB 2.0; Rear USB 2.0 100 W charging + DP IN 1.2) |
| Network | 2 × LAN 1000 Mbps (Rear) |
| Serial | 1 × RS-232 (Rear) |
| Power Input | 100-240 VAC |
| Average Operating Power | <274 W |
| Dimensions (without wall bracket) | 1960.4 × 1173.7 × 82.5 mm |
| Weight | 58.9 kg |
| VESA Mount | 800 × 600 mm |
| Warranty | 5-year manufacturer warranty |
What's in the Box
- Wall mount bracket
- Hook
- User manual
- Touch writing pen
- Packing list
- 3 m touch USB cable
- 3.5 m HDMI 2.0 cable
- 3 m power cable
- Remote control
- Screen cleaning cloth
Application Examples
| International Conference Keynote | Speaker presents to 200+ audience members in auditorium whilst remote participants stream to three continents via integrated camera and 8-mic audio |
| University Lecture Capture | Professor's presentation, annotations, and audience Q&A captured simultaneously via built-in camera and microphone array for asynchronous student viewing |
| Product Launch Event | Marketing team demos new product on 86-inch panel; integrated camera shows product interaction; 8-mics relay customer feedback to remote executive team |
| Medical Symposium Broadcast | Surgeons present live procedure demonstrations to 100+ in-room attendees and 500+ remote clinicians via auditorium's integrated video conferencing platform |
