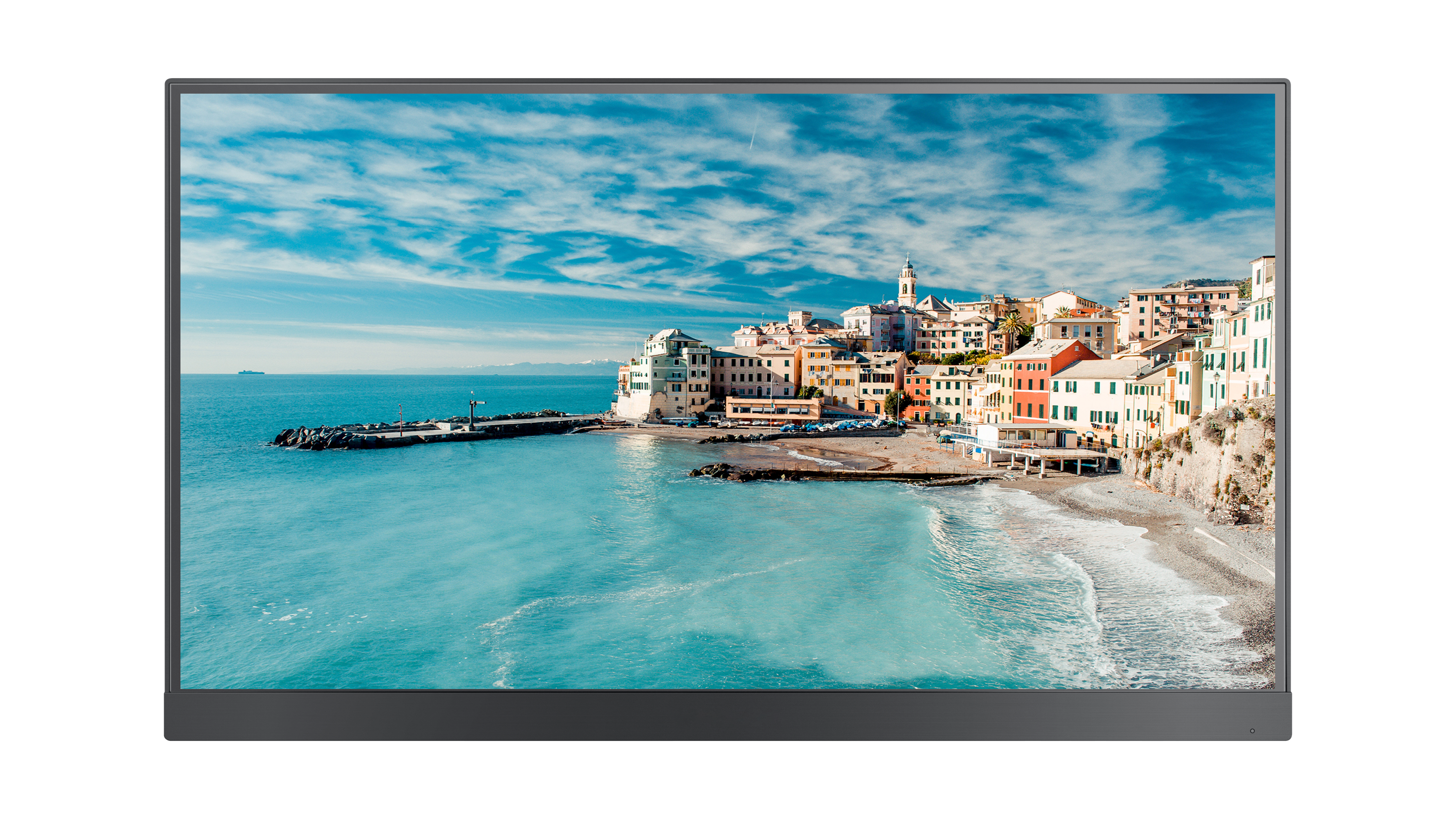

Hikvision DS-D6022FN-B 21.5" Android 8.1 Wall-Mounted Digital Signage
SKU: DS-D6022FN-B

Hikvision DS-D6022FN-B 21.5" Android 8.1 Wall-Mounted Digital Signage

Hikvision

21.5" Android 8.1 Wall-Mounted Signage Display

The Hikvision DS-D6022FN-B 21.5" Android 8.1 Wall-Mounted Digital Signage (DS-D6022FN-B) delivers 1920×1080 Full HD digital signage from a compact 21.5-inch wall-mounted display running Android 8.1 on a Cortex-A17 quad-core at 1.6GHz with 2GB RAM and 16GB storage. Built-in Wi-Fi, LAN, USB 2.0, Bluetooth 4.0, and TF card support flexible deployment, while dual 5W speakers provide integrated audio for multimedia content in reception areas, retail spaces, and public corridors.

Highlighted Features

  • 21.5" 1080p ELED Display: 1920×1080 at 250cd/m² on an industrial A+ ELED panel -- ideal for compact indoor signage at close to medium viewing distances
  • Android 8.1 Content Scheduling: Cortex-A17 4-core 1.6GHz, 2GB RAM, 16GB; scheduled video, image, PDF, and web content -- ideal for managed signage deployments
  • Wi-Fi, LAN, BT 4.0: Dual-band Wi-Fi, wired LAN, Bluetooth 4.0, and USB 2.0 -- ideal for flexible wired and wireless deployment
  • Slim 42mm Wall-Mount Profile: 492×290×42mm at 3.03kg with 7×24h reliability -- ideal for narrow wall niches and corridors
  • Dual 5W Speakers: Two 8Ω 5W built-in speakers -- ideal for multimedia content in quiet to medium-noise environments

The Hikvision DS-D6022FN-B 21.5" Android 8.1 Wall-Mounted Digital Signage is the ideal solution for compact indoor signage in reception areas, retail display points, and public corridors requiring reliable content delivery in a slim, wall-mounted format.

In stock
£265.00

Secure Checkout

Warranty Protection

Hassle-Free Returns

The Hikvision DS-D6022FN-B 21.5" Android 8.1 Wall-Mounted Digital Signage provides reliable compact indoor digital signage for environments requiring continuous managed content delivery. The 1920×1080 ELED-backlit panel at 250cd/m² delivers clear imagery, and Android 8.1 with Cortex-A17 handles scheduled delivery of video, images, PDF, and web content. Wi-Fi, LAN, USB 2.0, TF card, and Bluetooth 4.0 cover all deployment scenarios, and dual 5W speakers integrate audio for multimedia content.

Key Features

  • 21.5" 1080p ELED: 1920×1080 at 250cd/m², 3000:1 contrast, 6.5ms, 72% NTSC, 178° viewing
  • Android 8.1 Platform: Cortex-A17 4-core 1.6GHz, 2GB RAM, 16GB; supports video, image, PDF, web, and live video
  • Flexible Connectivity: LAN, Wi-Fi, USB2.0×2, TF card, Bluetooth 4.0×2, Audio In/Out
  • Centralised Management: Remote timed startup/shutdown, brightness/volume control, and content updates via CMS
  • Slim 42mm Profile: 492×290×42mm at 3.03kg, 7×24h rated

Specifications

Screen Size 21.5"
Resolution 1920×1080@60Hz
Brightness 250cd/m²
Contrast 3000:1
Backlight ELED
Response 6.5ms
OS Android 8.1
CPU Cortex-A17 4-core, 1.6GHz
RAM 2GB
Storage 16GB
Connectivity LAN, Wi-Fi, USB2.0×2, TF Card, BT4.0×2
Speakers 2×8Ω 5W
Power 100–240VAC, ≤40W
Dims 492.36×289.68×41.88mm
Weight 3.03kg

What's in the Box

  • Wall-mounted backboard × 1
  • Screws M3 × 6
  • Power cord × 1
  • Remote control × 1
  • Battery × 2
  • Screw package × 1

Warranty

The Hikvision DS-D6022FN-B 21.5" Android 8.1 Wall-Mounted Digital Signage is backed by the 3-year manufacturer warranty, providing peace of mind for professional installations.

Application Examples

Reception Signage Welcome messages, company news, and visitor information at reception desks
Retail Point-of-Sale Product promotions and pricing at till points and display areas
Education Corridors Timetables and campus announcements in school and university corridors
