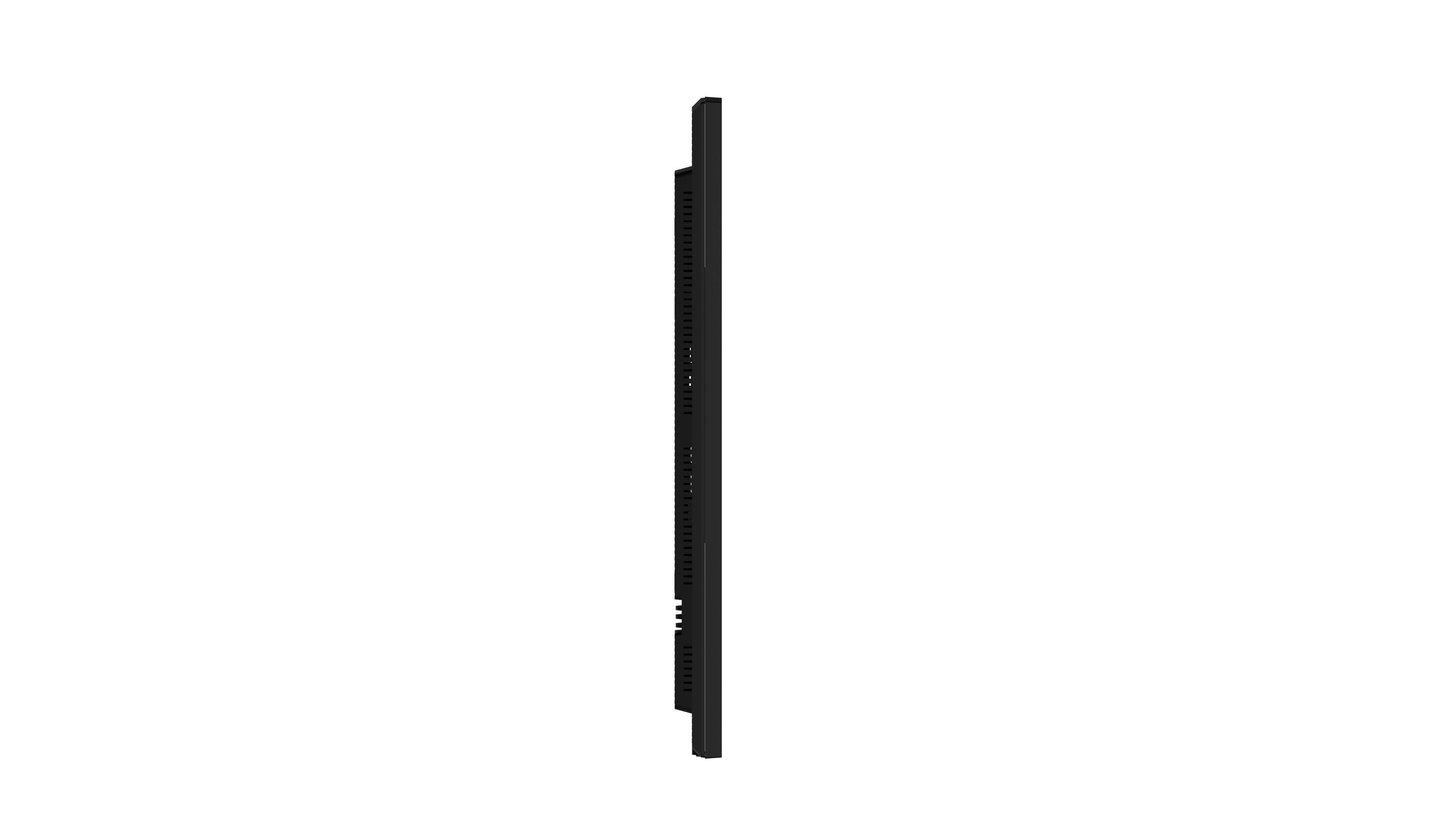

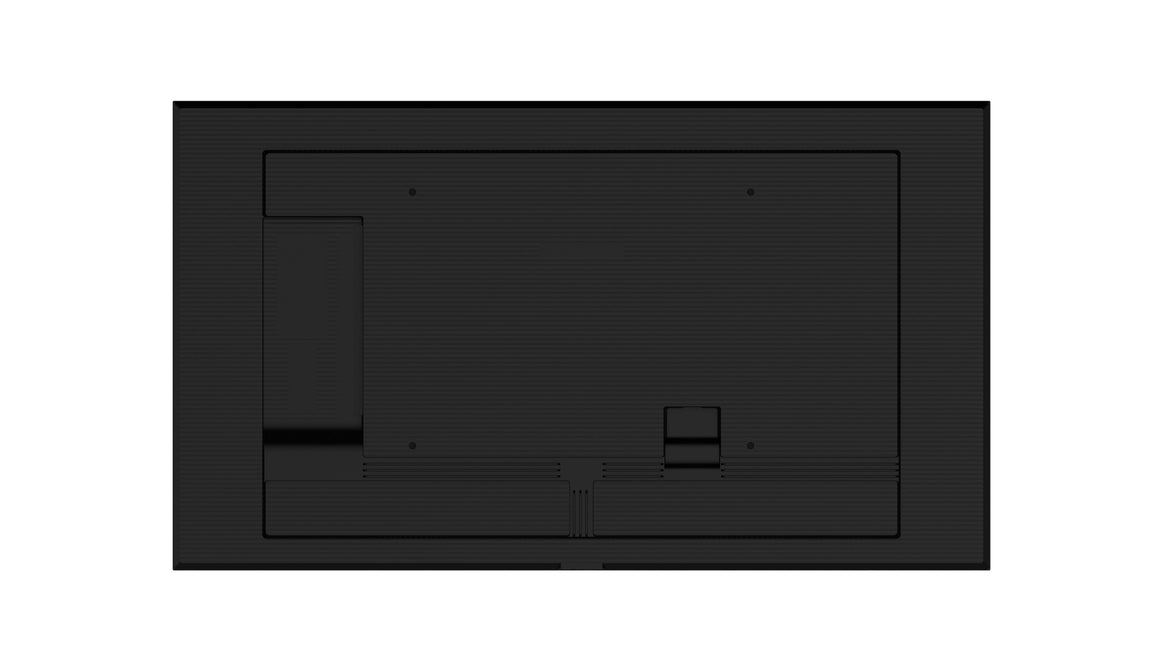

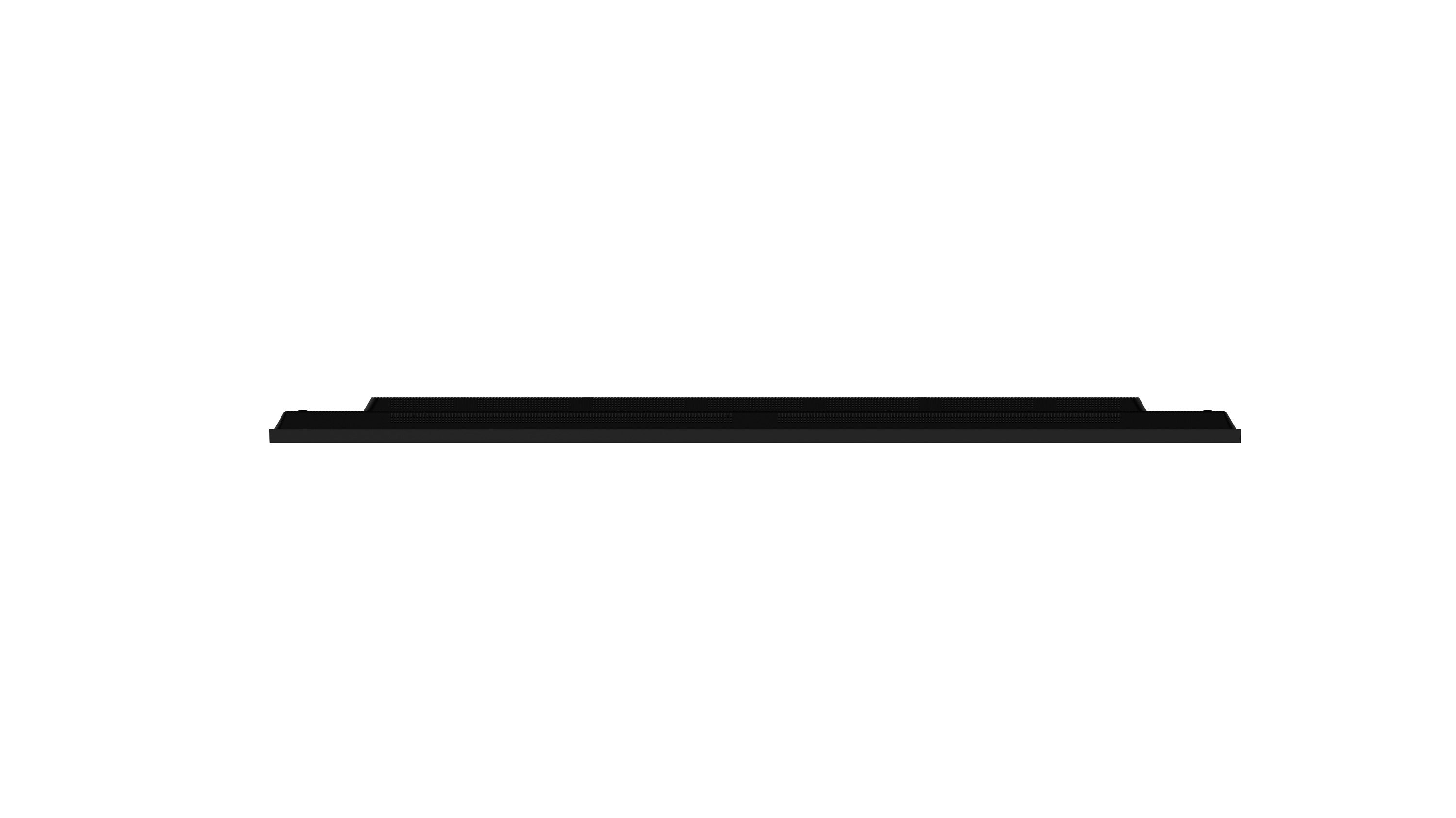

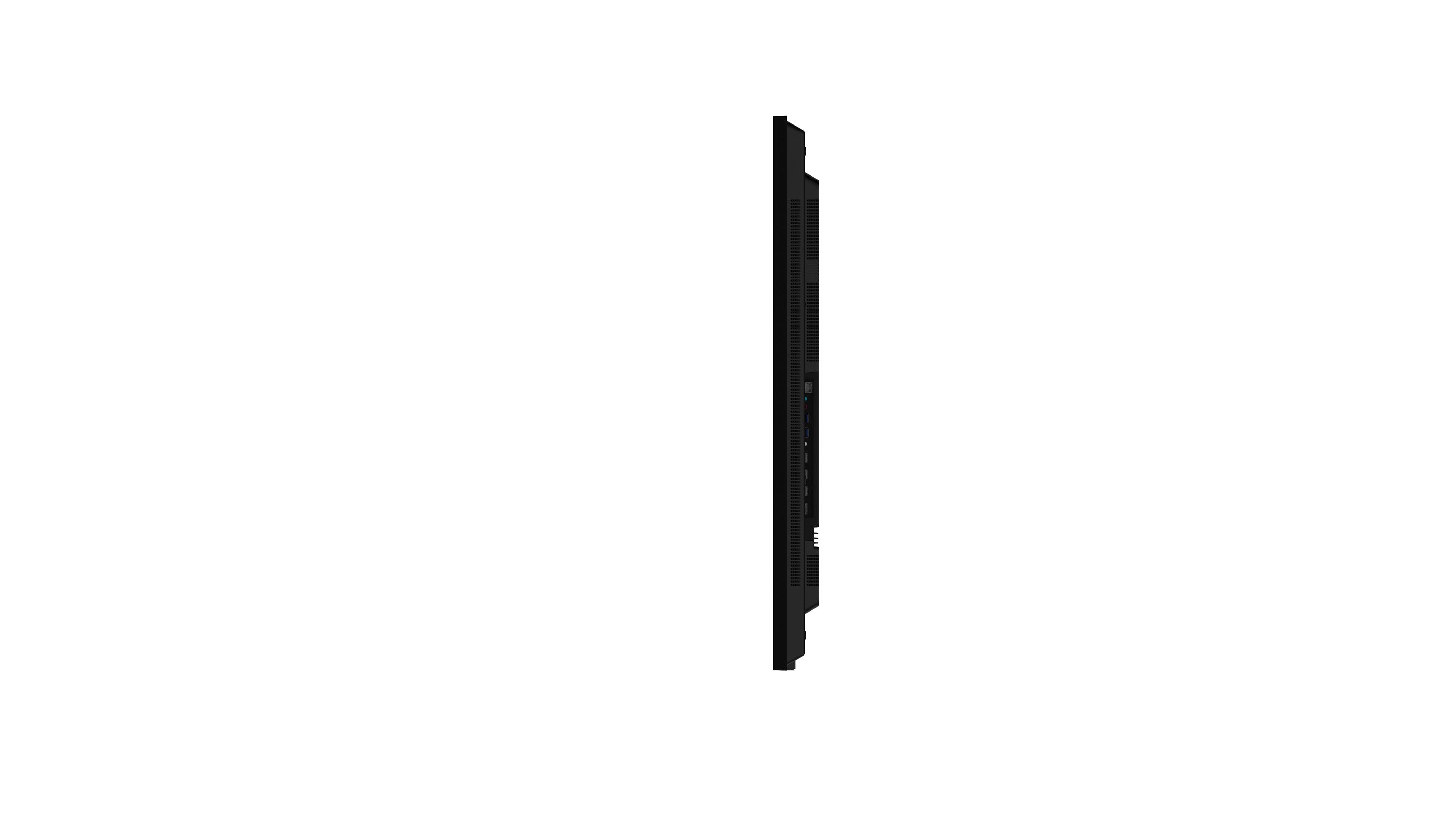

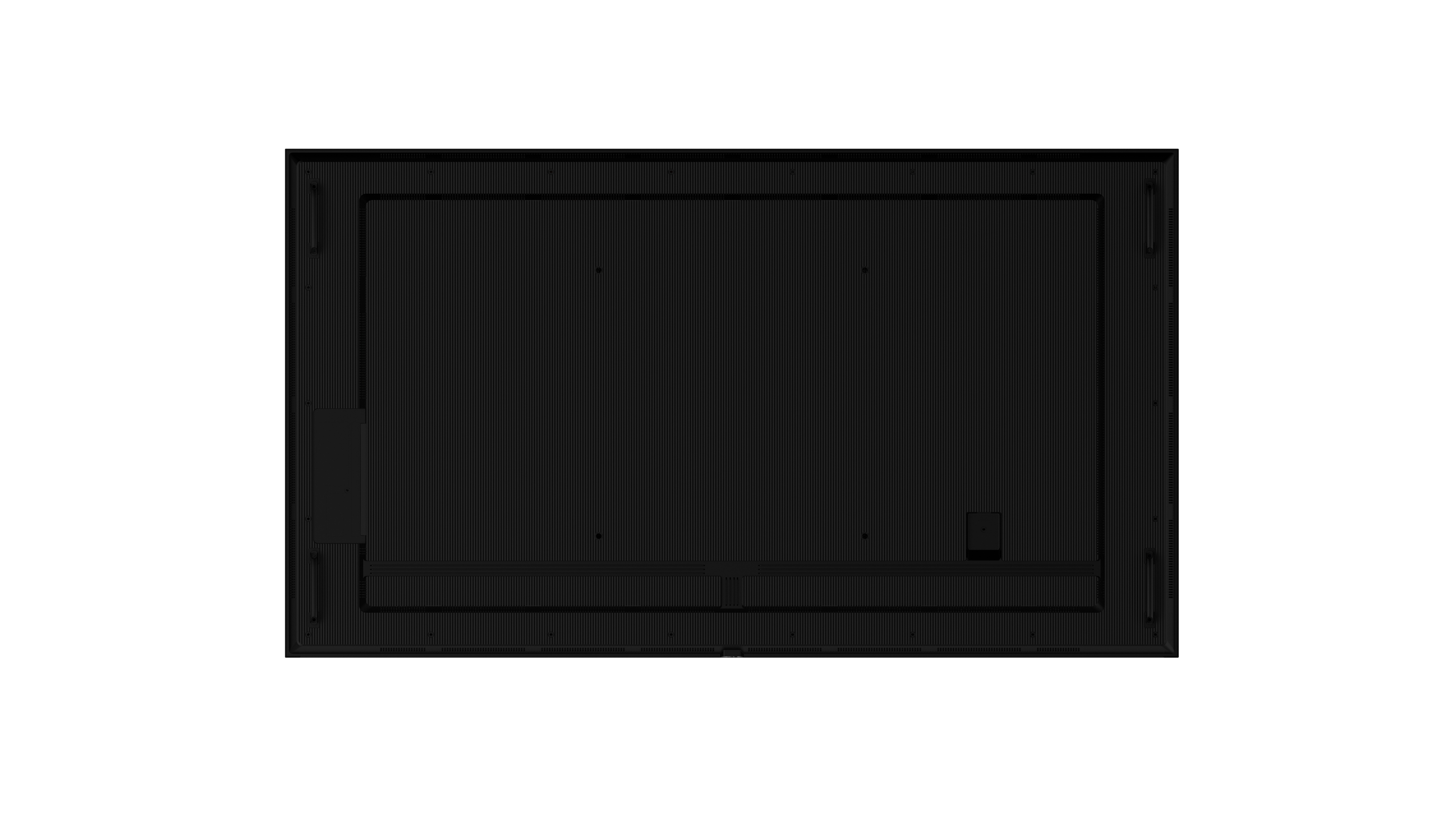

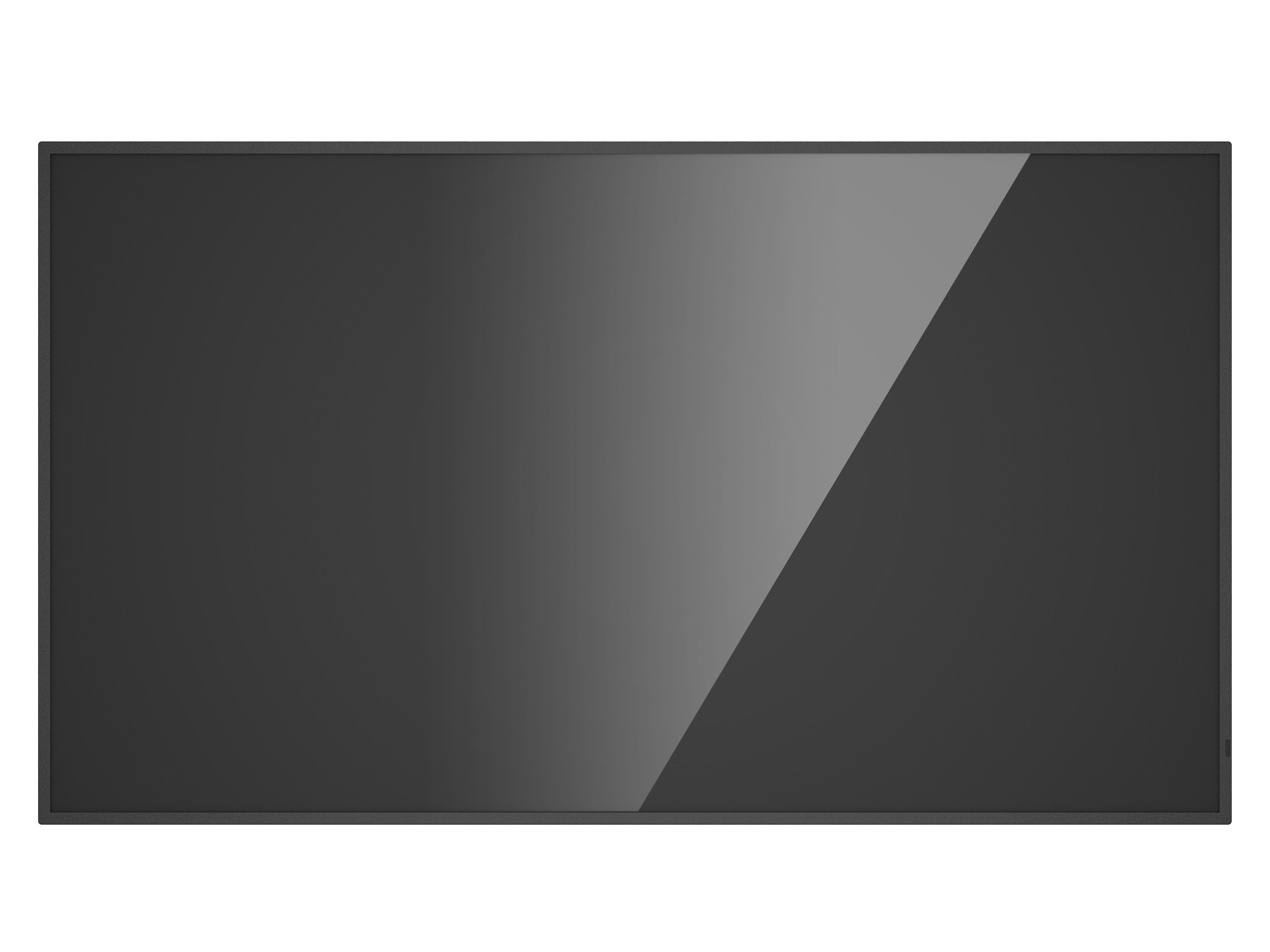

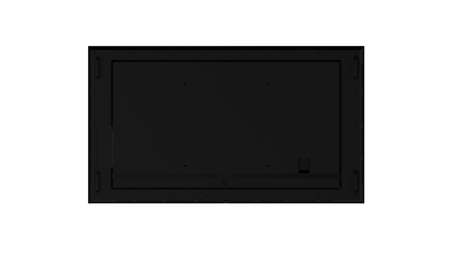

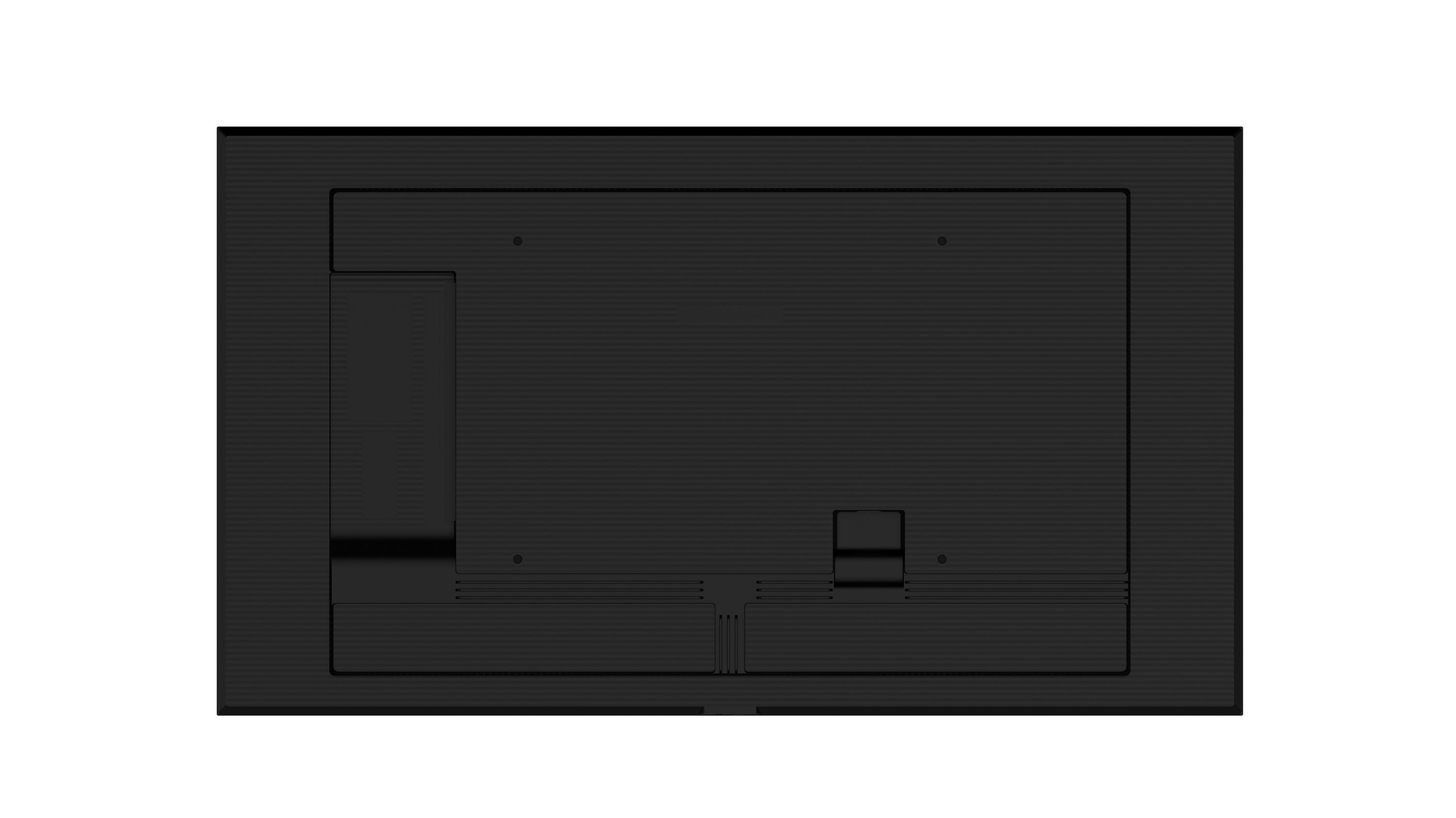

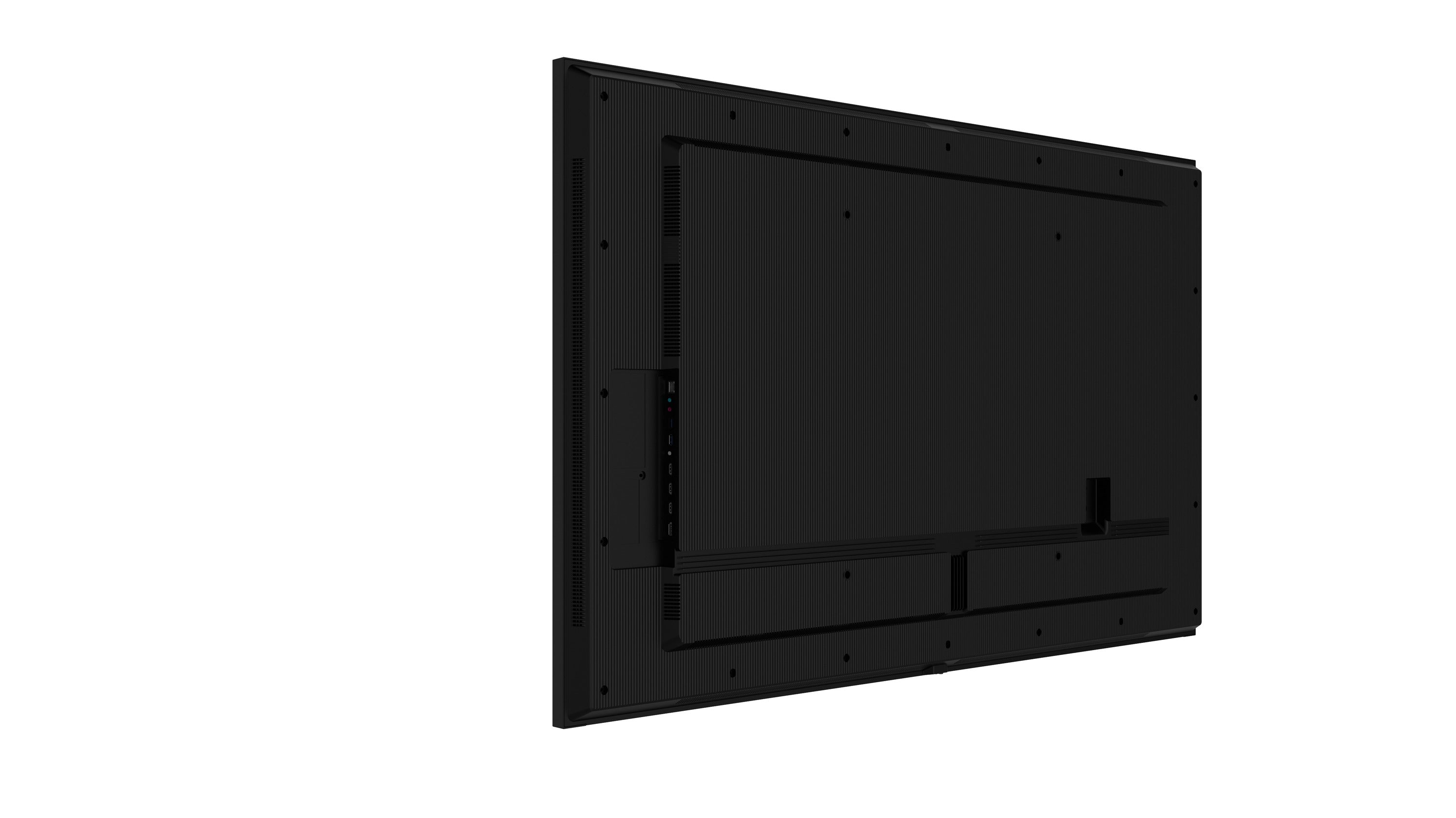

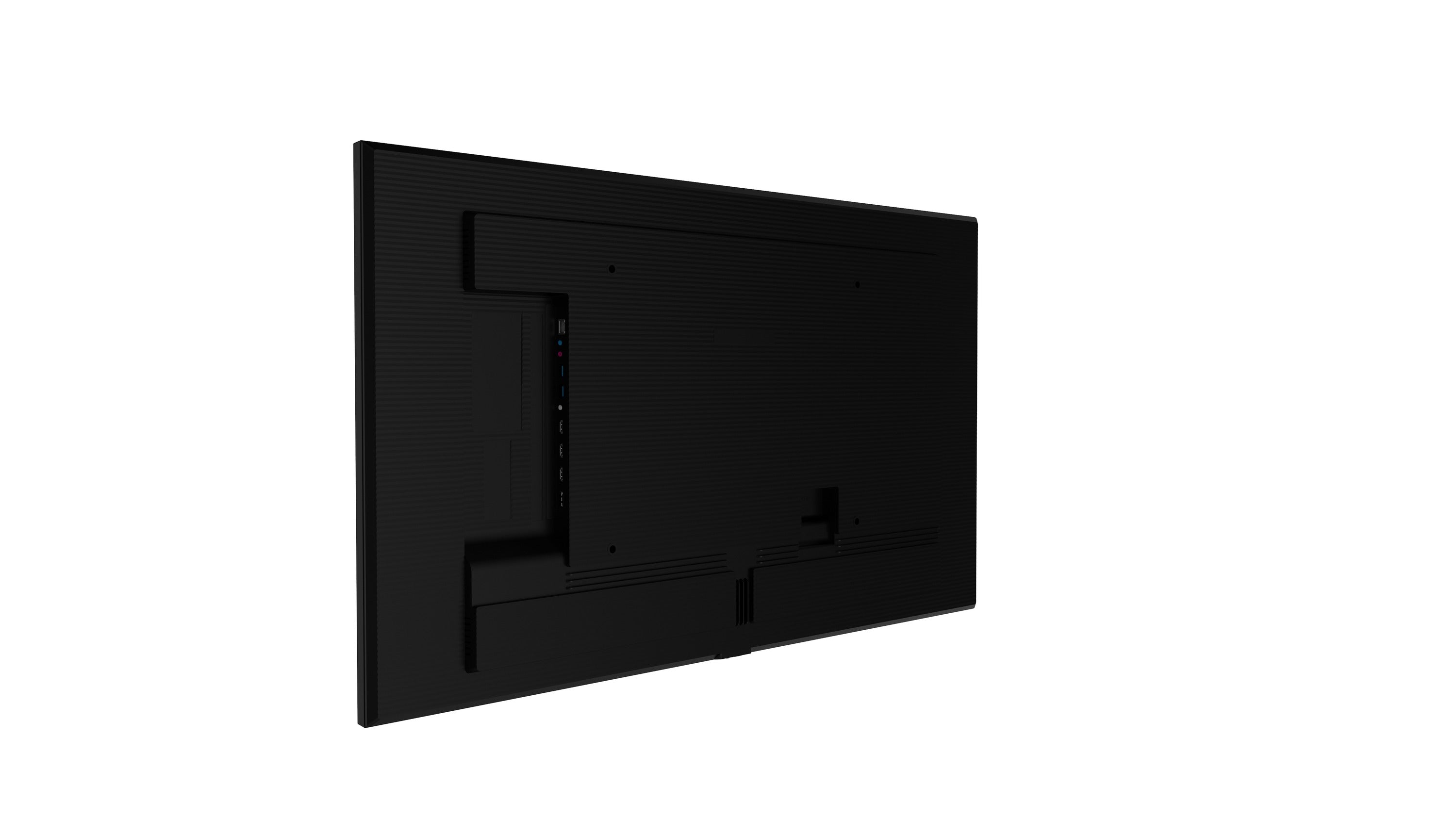

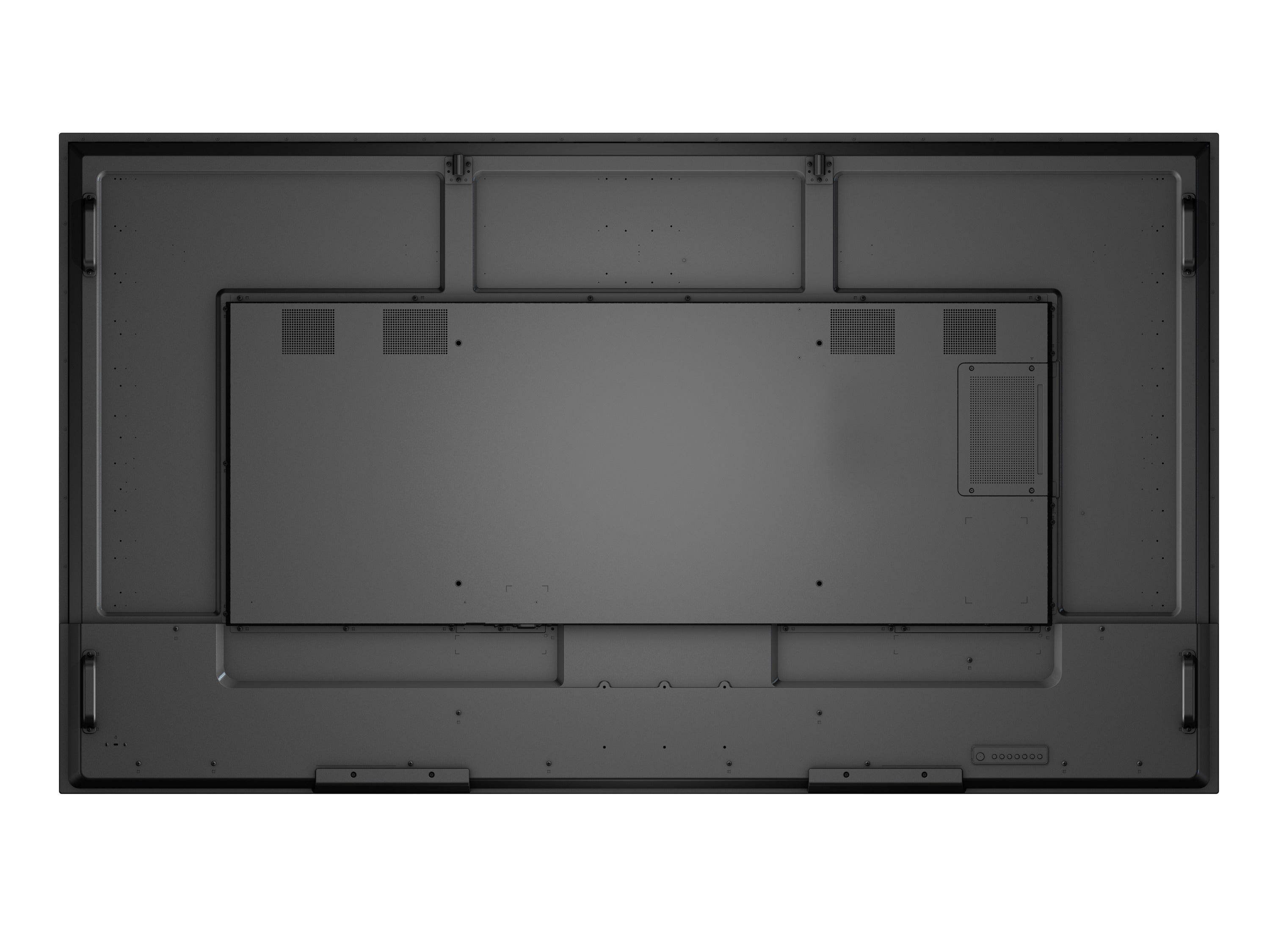

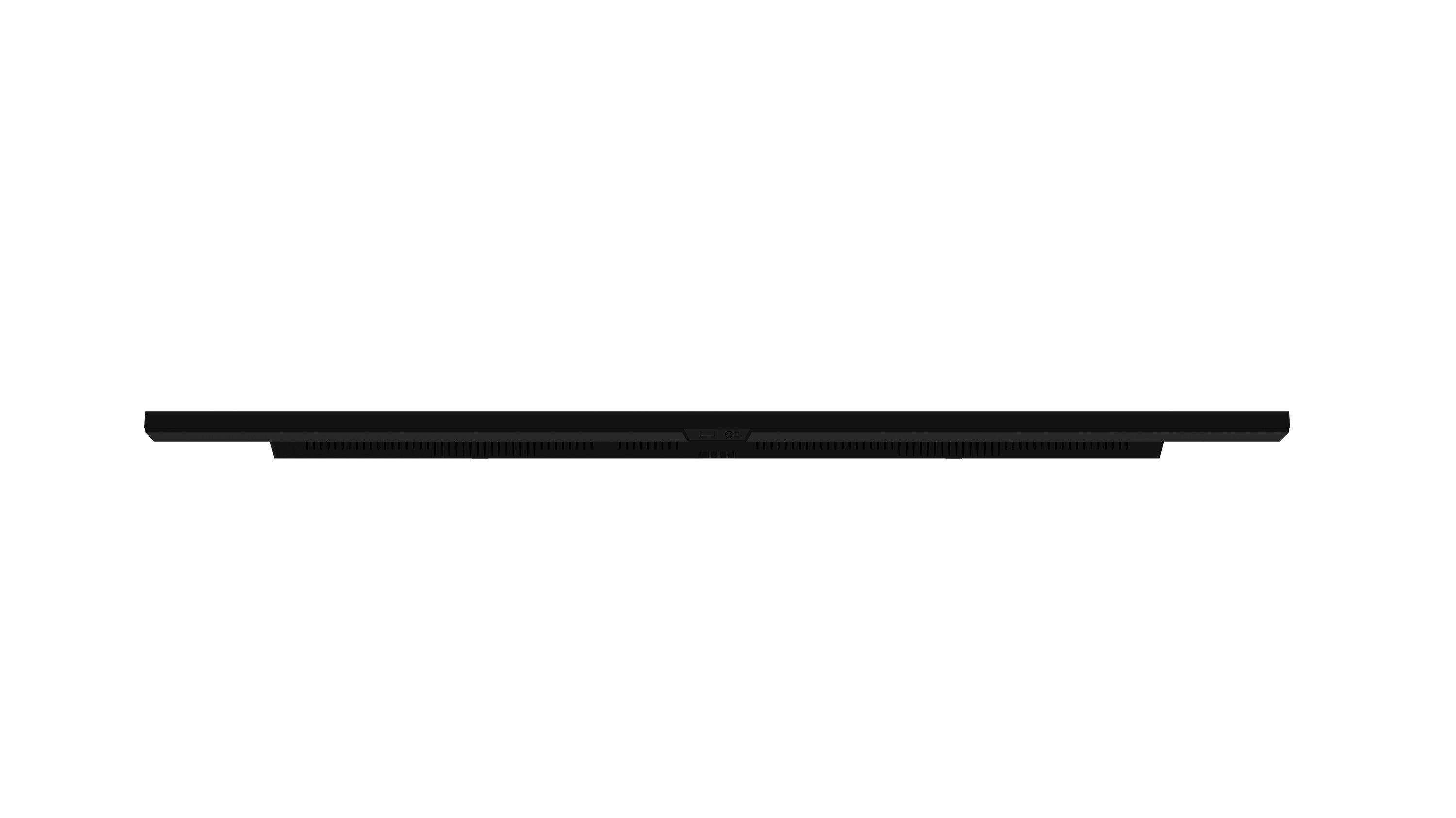

Hikvision DS-D6086UN 86-Inch 4K Android 8.0 Digital Signage Display
86" 4K Android 8.0 Signage Display
Secure Checkout
Warranty Protection
Hassle-Free Returns
The Hikvision DS-D6086UN is an older generation digital signage display featuring an 86-inch D-LED panel with 3840x2160 4K resolution. This model operates on Android 8.0 rather than the current Android 13, and features different processor architecture (Cortex-A73 and A53 cores) and older connectivity specifications including DVI-I, legacy HDMI 2.0 and DisplayPort 1.2. It remains suitable for organisations with existing DS-D6086UN infrastructure, but newer models in the DP series offer more current technology and enhanced capabilities.
Key Features
- 86-inch ultra-large form factor for maximum visual presence
- 3840x2160 4K resolution delivers detailed imagery
- D-LED backlighting provides superior contrast
- 500cd/m² brightness suitable for lit environments
- 1200:1 contrast ratio for visual separation
- 1.07G colour levels (8-bit+FRC) for smooth gradations
- 13ms response time reflects older generation display technology
- 72% NTSC colour gamut adequate for standard signage applications
- Older Cortex-A73 and A53 processor architecture
- 3GB RAM and 32GB storage typical of older generation specifications
Specifications
| Screen Size | 86 inches |
| resolution | 3840x2160 4K |
| Backlight Type | D-LED |
| brightness | 500cd/m² |
| Contrast Ratio | 1200:1 |
| Colour Depth | 1.07G (8-bit+FRC) |
| Response Time | 13ms |
| Colour Gamut | 72% NTSC |
| Active Area Mm | 1895.04 x 1065.96 |
| Pixel Pitch Mm | 0.4935 x 0.4935 |
| Operating System | Android 8.0 |
| processor | Cortex-A73x2 + Cortex-A53x2 at 1.7GHz |
| ram | 3GB |
| storage | 32GB |
| Dvi I Input | 1x DVI-I |
| HDMI Input | 2x HDMI 2.0 |
| Displayport Input | 1x DP 1.2 |
| Displayport Output | 1x DP 1.2 output |
| speakers | 10W |
| usb | 2x USB 2.0 |
| Tf Card Slot | Yes |
| ethernet | 1x RJ45 1Gbps |
| wifi | Yes |
| bluetooth | Not listed |
| Power Typical | 375W ±10% |
| Maximum Power | 570W |
| Operating Temperature | Not specified |
| Operating Humidity | Not specified |
| Dimensions | 1929 x 1100 x 95.3 |
| Weight | 49.5 |
| material | Metal and plastic |
| note | This is an older model with Android 8.0 and older connectivity specifications. Not recommended for new installations. |
What's in the Box
- Power cord
- Remote control
- User manual
- Warranty card
Warranty
The Hikvision DS-D6086UN 86-Inch 4K Android 8.0 Digital Signage Display is backed by the 3-year manufacturer warranty, providing peace of mind for professional and commercial installations.
