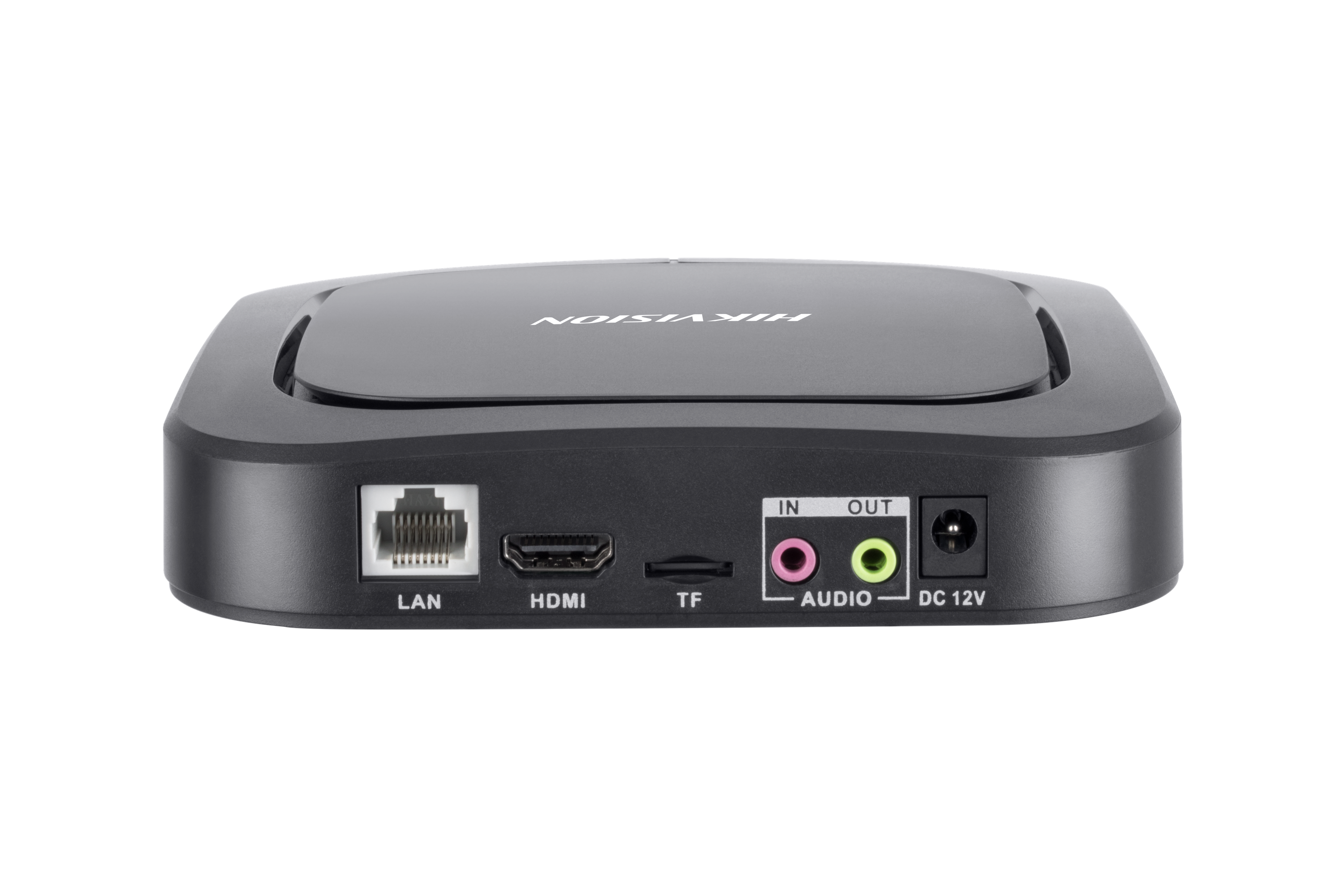

Hikvision DS-D60E-B Digital Signage Media Box
SKU: DS-D60E-B

Hikvision DS-D60E-B Digital Signage Media Box

Hikvision

Android 8.1 Digital Signage Media Box

The Hikvision DS-D60E-B Digital Signage Media Box (DS-D60E-B) transforms any standard HDMI monitor or LCD video wall into a managed digital signage screen, running Android 8.1 on a Cortex-A17 quad-core processor at 1.6GHz with 2GB RAM and 16GB EMMC storage. With a compact 145×145×32mm footprint and HDMI output, it delivers scheduled content delivery across video, images, PDF, web pages, and streaming media to any connected display. LAN, Wi-Fi, USB 2.0 × 2, and Bluetooth 4.0 provide flexible wired and wireless deployment options, and the 12V 2A power supply keeps operating costs low. Ideal for organisations adding signage capability to existing displays without replacing hardware.

Highlighted Features

  • Android 8.1 Signage Platform: Cortex-A17 4-core 1.6GHz, 2GB RAM, 16GB EMMC supports video, image, PDF, web, and streaming content — ideal for managed signage without replacing existing display hardware
  • Universal HDMI Output: HDMI output connects to any HDMI-compatible monitor, LCD video wall, or large-format display — ideal for adding signage capability to existing screens
  • Flexible Content Scheduling: Free scheduling by day, week, or loop with district play modes and 5-level organisation permissions — ideal for multi-site signage network management
  • Wi-Fi, LAN, and Bluetooth 4.0: Dual wireless and wired network connectivity with Bluetooth 4.0 — ideal for deployment in locations with or without dedicated cabling
  • Ultra-Compact 145mm Square Design: 145×145×32mm footprint at just 0.6kg enables discreet installation behind any display — ideal for space-constrained retail and corporate mounting points

The Hikvision DS-D60E-B Digital Signage Media Box is the ideal solution for organisations converting existing monitors, video walls, and displays into managed digital signage screens. Whether for retail promotions, corporate communications, or public information displays, it delivers scheduled content management in an ultra-compact, low-cost unit.

In stock
£181.16

Secure Checkout

Warranty Protection

Hassle-Free Returns

The Hikvision DS-D60E-B Digital Signage Media Box provides a low-cost path to managed digital signage without replacing existing display hardware. Running Android 8.1 on a Cortex-A17 quad-core processor with 2GB RAM and 16GB EMMC storage, it handles scheduled delivery of video, images, PDF documents, web pages, and streaming media to any HDMI-connected screen. The compact 145×145×32mm unit is powered via a 12V 2A adapter and connects to networks via wired LAN, Wi-Fi, or Bluetooth 4.0, with two USB 2.0 ports for local media storage. Centralised CMS management supports remote content scheduling, timed startup/shutdown, and screenshot preview across single and multi-screen deployments.

Key Features

  • Android 8.1 Content Platform: Cortex-A17 4-core 1.6GHz, 2GB RAM, 16GB EMMC; supports video (MP4, AVI, MKV, MOV), images (JPG, PNG, BMP, GIF), PDF, web pages, and streaming media
  • HDMI Output to Any Display: HDMI output delivers content to any compatible monitor, video wall panel, or large-format commercial display without requiring a hardware upgrade
  • Flexible Content Scheduling: Free scheduling by day, week, or loop; district play of multiple materials; 5-level organisation permission management for multi-site CMS deployments
  • Centralised Remote Management: Remote timed startup/shutdown, brightness and volume control, screenshot preview, and content updates via the HikCentral or compatible CMS platform
  • Wi-Fi, LAN, USB, Bluetooth: LAN × 1, Wi-Fi, USB 2.0 × 2, and Bluetooth 4.0 for flexible wired, wireless, and local media deployment scenarios
  • Ultra-Compact 0.6kg Design: 145×145×32mm form factor at 0.6kg for discreet installation behind displays, in AV racks, or within signage enclosures
  • 12V Low-Power Operation: 12VAC 2A power supply with ≤1W standby consumption for energy-efficient continuous signage operation

Specifications

Operating System Android 8.1
Processor Cortex-A17 4-core, 1.6GHz
RAM 2GB
Storage 16GB (EMMC)
Video Output HDMI OUT × 1
Audio Input AUDIO IN × 1
Audio Output AUDIO OUT × 1
Network LAN × 1, Wi-Fi
USB USB 2.0 × 2
Bluetooth BT 4.0
Power Supply 12VAC, 2A
Standby Consumption ≤1W
Working Temperature 0°C to 40°C
Working Humidity 10% to 90% RH
Dimensions 145 × 145 × 31.89mm
Net Weight 0.6kg

What's in the Box

  • Power adaptor × 1
  • Remote control × 1
  • HDMI cable × 1
  • Quick start guide × 1

Warranty

The Hikvision DS-D60E-B Digital Signage Media Box is backed by the 3-year manufacturer warranty, providing peace of mind for every installation.

Application Examples

Upgrading Existing Displays Connect to existing HDMI monitors and video wall panels to add managed digital signage capability without hardware replacement
Retail Promotional Content Schedule product promotions, pricing, and brand content across multiple retail screens from a centralised CMS platform
Corporate Information Screens Deliver company news, dashboards, and visitor information to lobby and corridor displays on a timed schedule
Public Venue Signage Provide wayfinding, event, and information content at transport hubs, healthcare waiting areas, and public facilities
