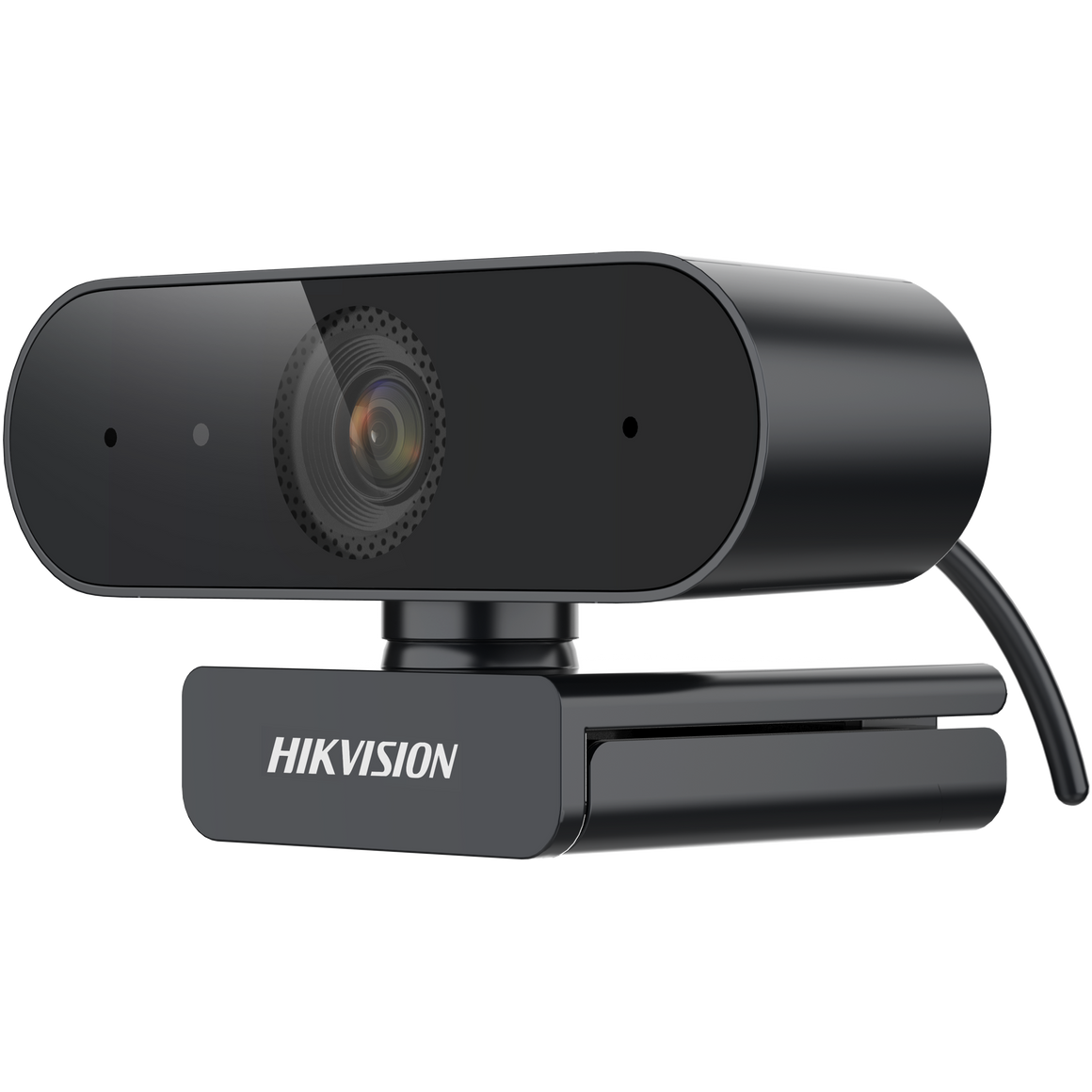

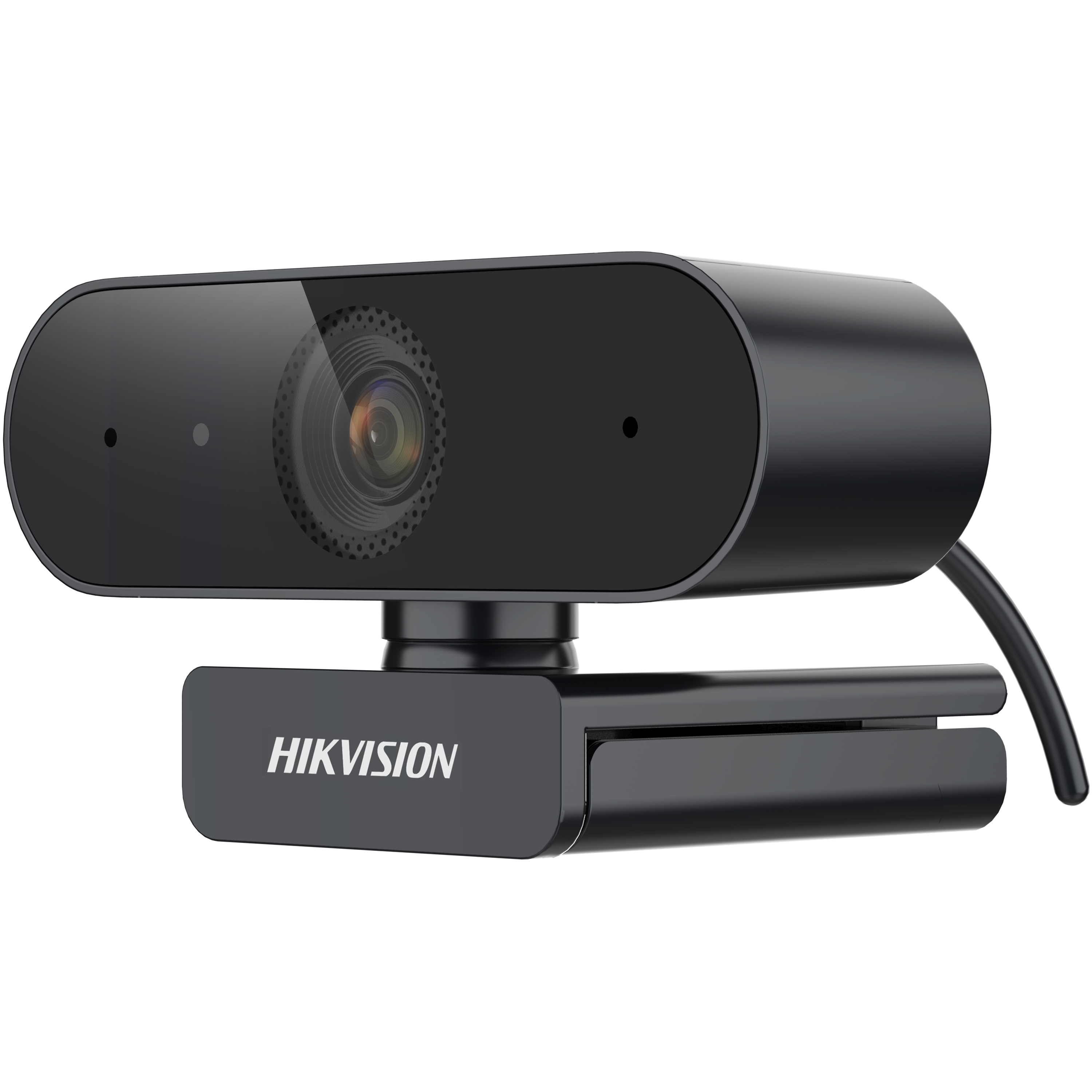

Hikvision DS-U04 4MP USB Web Camera with Built-In Microphone
SKU: DS-U04

Hikvision DS-U04 4MP USB Web Camera with Built-In Microphone

Hikvision

4MP Fixed-Focus USB Web Camera

The Hikvision DS-U04 4MP USB Web Camera with Built-In Microphone (DS-U04) 4MP CMOS sensor captures 2560x1440 resolution, providing double the vertical pixels of standard 1080p cameras for superior detail. Exceptional 0.1 Lux sensitivity at F1.2 aperture enables operation in poorly lit office environments without supplementary lighting. Fixed 3.6mm M8 lens provides consistent imaging across the 0.5 metre to infinity focus range. Built-in microphone with 16kHz sampling provides basic audio capture for video calls and presentations. USB 2.0 Type-A connection with 1.5 metre cable requires no external power, enabling simple installation on any computer.

Highlighted Features

  • 4MP 2560×1440 Resolution: 4MP CMOS at 2560×1440 for superior clarity on high-resolution displays and professional recordings
  • 0.1 Lux Low-Light: 0.1 Lux@F1.2 AGC sensitivity for reliable operation even in poorly lit meeting rooms
  • Built-In Microphone: Built-in microphone with 16kHz sampling for audio alongside video without additional hardware
  • USB 2.0 Plug-and-Play: USB 2.0 Type-A with 1.5m cable — no drivers, no external power, instant compatibility
  • Compact 89g Design: 80.16×48.6×42.18mm and just 89g for discreet mounting on monitors, desks or tripods

The DS-U04 is ideal for quality-conscious organisations, professional recording environments and applications where superior resolution justifies the modest additional cost compared to 2MP alternatives.

In stock
£55.20

Secure Checkout

Warranty Protection

Hassle-Free Returns

The Hikvision DS-U04 elevates video conferencing to high resolution, capturing 4MP 2560x1440 imagery suitable for premium recording and display on high-resolution monitors. The fixed 3.6mm lens maintains consistent focus across the full depth of field, whilst exceptional 0.1 Lux sensitivity enables operation in typical office lighting. The built-in microphone and USB 2.0 connection make the U04 a complete video conferencing solution without external peripherals.

Key Features

  • 4MP CMOS sensor captures 2560x1440 resolution providing double the vertical pixels of 1080p cameras
  • Up to 30 frames per second motion capture delivers smooth video without jitter or stuttering
  • PAL and NTSC mode support ensures compatibility with video systems worldwide
  • 24/7 colour operation maintains consistent colour fidelity throughout day and night
  • 0.1 Lux sensitivity at F1.2 aperture enables operation in typical office lighting without external lamps
  • Fixed 3.6mm lens with M8 threaded mounting enables lens replacement if specific optical properties are required
  • Pan 360 degrees and tilt -15 to +15 degrees allows flexible mounting on articulating arms
  • 80 degree horizontal and 50 degree vertical field of view centres framing on typical meeting areas
  • MJPG and YUV compression modes optimise video for different bandwidth and codec requirements
  • Lightweight 89g plastic construction enables mounting on any standard monitor arm or bracket

Specifications

sensor 4MP CMOS
resolution 2560x1440
sensitivity 0.1 Lux at F1.2
Video Standards PAL and NTSC
Colour Mode 24/7 colour
Lens 3.6mm M8
Horizontal FOV 80 degrees
Vertical FOV 50 degrees
Diagonal FOV 88 degrees
Minimum Focus Distance 0.5 metres
Maximum Focus Distance Infinity
pan 360 degrees
tilt -15 to +15 degrees
Compression Modes MJPG and YUV
Max Frame Rate 30 frames per second
usb USB 2.0 Type-A
USB Cable Length 1.5 metres
microphone Built-in
Sampling Rate 16kHz
Power Input DC 5V ±5%
Maximum Power 1.2W
material Plastic
Operating Temperature -10 to +45 degrees Celsius
Operating Humidity up to 90% RH non-condensing
Dimensions 80.16 x 48.6 x 42.18
Weight 0.089

What's in the Box

  • Camera
  • Quick start guide

Warranty

The Hikvision DS-U04 4MP USB Web Camera with Built-In Microphone is backed by the 2-year manufacturer warranty, providing peace of mind for professional and commercial installations.
