Hikvision DS-UAC-S1V
SKU: DS-UAC-S1V

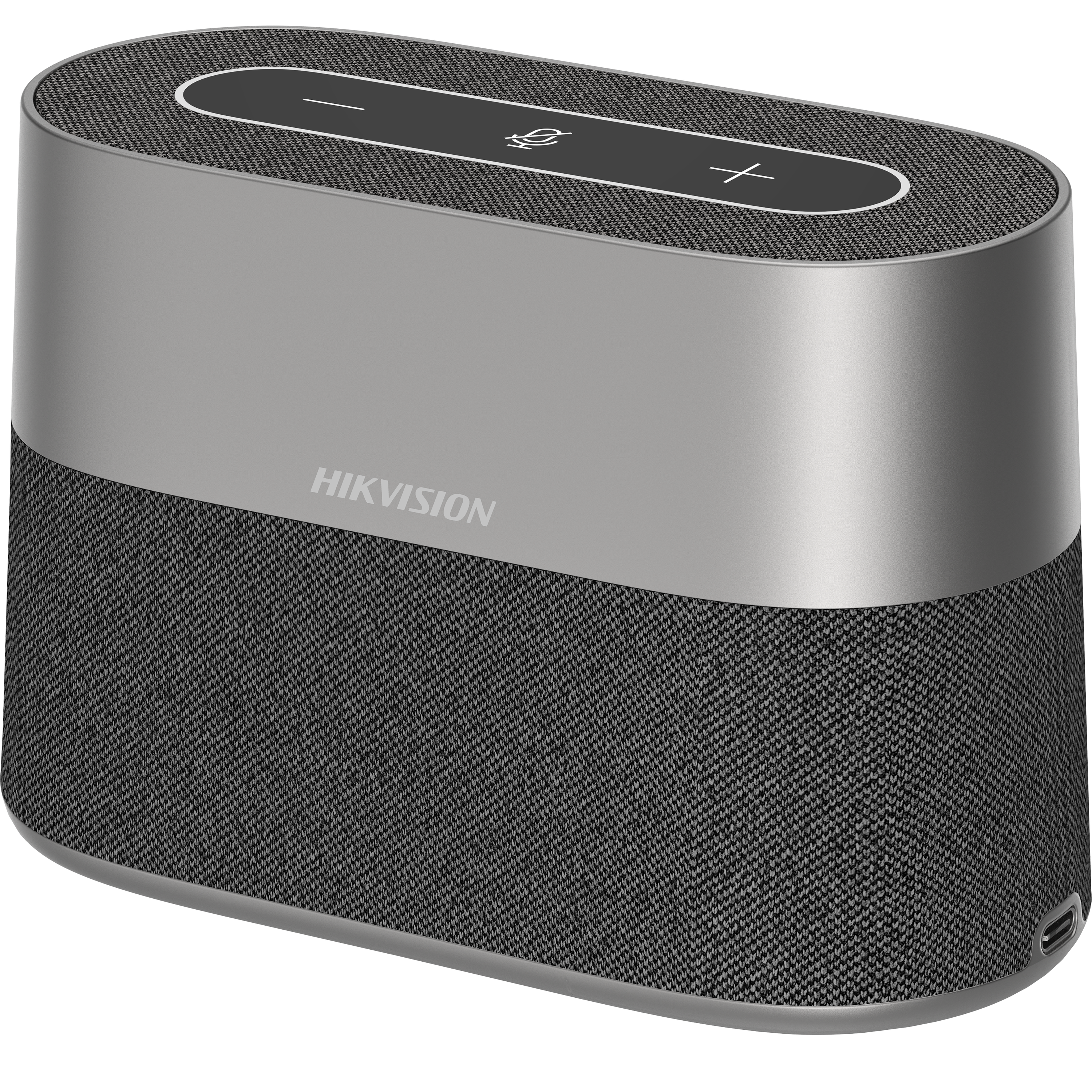

Hikvision DS-UAC-S1V 8-Mic Array USB Conference Speakerphone

Hikvision

8-Mic Array USB Conference Speakerphone

The Hikvision DS-UAC-S1V 8-Mic Array USB Conference Speakerphone (DS-UAC-S1V) 8-microphone MEMS array with 360 degree omnidirectional coverage captures clear dialogue from all meeting participants regardless of position. 5 metre pickup radius enables comprehensive audio capture across typical mid-sized conference rooms without supplementary microphones. Sophisticated audio processing including automatic echo cancellation, adaptive noise suppression and automatic gain control maintains intelligible dialogue in challenging acoustic environments. 3W integrated speaker with 81dB output level provides clear audio reinforcement throughout meeting spaces. Rechargeable 7.2V 3700mAh battery enables 4-6 hours of wireless operation, ideal for flexible meeting room deployment.

Highlighted Features

  • 8-Mic Array, 5m Pickup: 8-microphone MEMS array with 5m radius and beamforming for comprehensive room audio coverage
  • 3W Speaker, 8m Range: 3W speaker at 81dBSPL@1m with 8m effective range for clear audio reinforcement in medium rooms
  • Professional 3A Processing: AEC, ANS and AGC processing for clean, stable dialogue in any room noise environment
  • Built-In Rechargeable Battery: 7.2V/3700mAh battery for 4–6 hours of cordless use — no power cable needed during sessions
  • USB Type-C Connection: USB Type-C with 2m cable for simple, universal connection to any conferencing platform or device

The DS-UAC-S1V is ideal for organisations seeking premium integrated speakerphone capability with the flexibility of both wired and wireless operation across multiple meeting spaces.

In stock
£273.62

Secure Checkout

Warranty Protection

Hassle-Free Returns

The Hikvision DS-UAC-S1V is a premium USB speakerphone designed for organisations seeking integrated audio capture and reinforcement without the complexity of separate microphone and speaker systems. The 8-element microphone array provides 360 degree omnidirectional coverage with 5 metre pickup radius, whilst the 3W integrated speaker delivers clear audio reinforcement throughout mid-sized meeting spaces. USB Type-C connectivity with a rechargeable battery enables both wired and wireless operation.

Key Features

  • 8-microphone MEMS array with 360 degree omnidirectional pattern ensures equal sensitivity from all directions
  • 5 metre pickup radius captures clear dialogue from all meeting participants across mid-sized conference rooms
  • 100Hz to 10kHz frequency response captures the full range of speech intelligibility
  • 85dB signal-to-noise ratio provides exceptional clarity in typical office environments
  • Dynamic range of 102dB accommodates whispered dialogue through moderately loud speakers
  • 130dBSPL maximum sound pressure level ensures clean capturing of unexpected loud events
  • Sophisticated beamforming focuses audio capture towards active speakers and away from ambient noise
  • Automatic echo cancellation prevents feedback when audio is routed back through the speaker
  • Adaptive noise suppression intelligently removes air-conditioning and ventilation noise whilst preserving speech
  • Automatic gain control maintains consistent audio levels regardless of speaker distance or volume

Specifications

Microphone Type 8-element MEMS array
Pickup Pattern 360 degree omnidirectional
Pickup Distance 5 metres
Frequency Response 100Hz to 10kHz
Signal-to-Noise Ratio 85dB
Sensitivity -38dBV/Pa
Sampling Rate 16, 32, and 48kHz
Microphone Dynamic Range 102dB
Microphone Max Spl 130dBSPL
Microphone Distortion 0.15% at 94dBSPL
Audio Processing Beamforming, AEC, ANS, AGC
Speaker Power 3W
Speaker Output Level 81dBSPL at 1 metre
Speaker Range 8 metres
Speaker THD Less than 1% at 1kHz
Speaker Frequency Range 150Hz to 15kHz
Speaker Driver Size 45mm
Speaker Impedance 4 ohms
battery 7.2V 3700mAh
Battery Operation Time 4-6 hours
Battery Charging Temperature 0 to +45 degrees Celsius
usb Type-C
USB Cable Length 2 metres
Power Input 5VDC
Maximum Power 4.8W
Compatible Operating Systems Windows XP, 7, 8, 10, 11; Android 8.1+; Linux 4.14+; macOS 10.12+
Operating Temperature -10 to +45 degrees Celsius
Operating Humidity up to 90% RH non-condensing
Dimensions 142.2 x 93.9 x 69.2
Weight 0.62
colour Silver grey

What's in the Box

  • Speakerphone
  • USB cable
  • Quick start guide

Warranty

The Hikvision DS-UAC-S1V 8-Mic Array USB Conference Speakerphone is backed by the 2-year manufacturer warranty, providing peace of mind for professional and commercial installations.
