SKU: DS-UAC-S2V

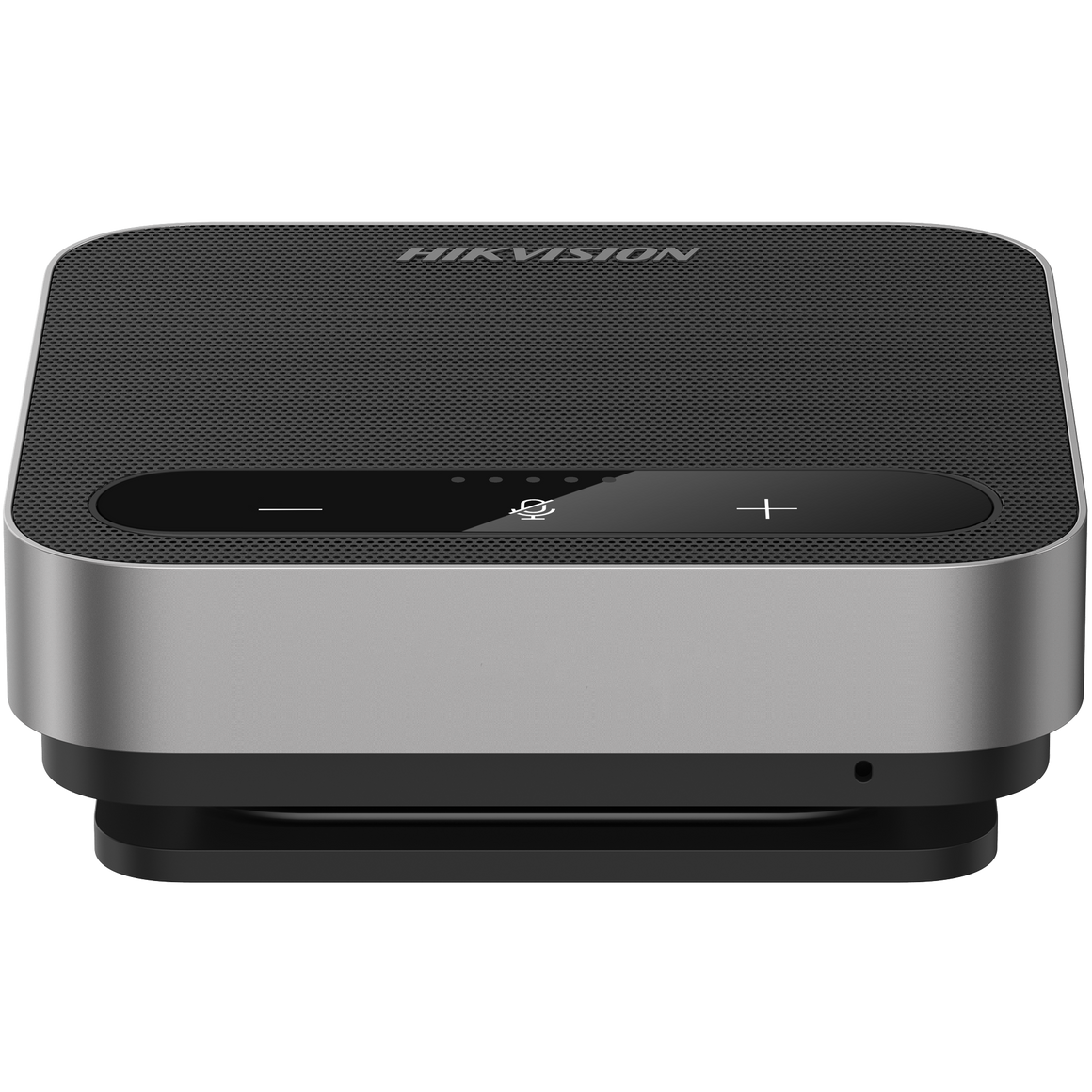

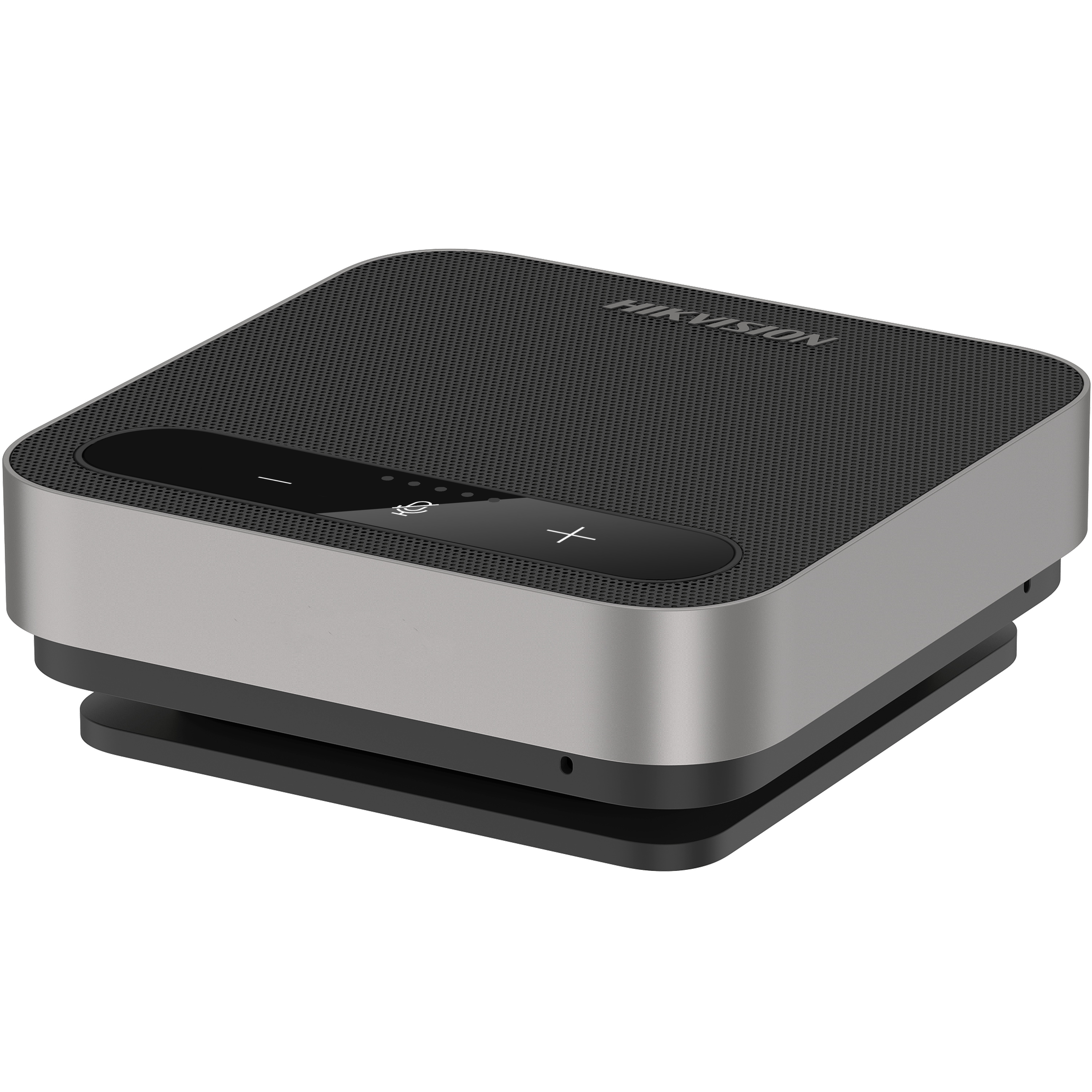

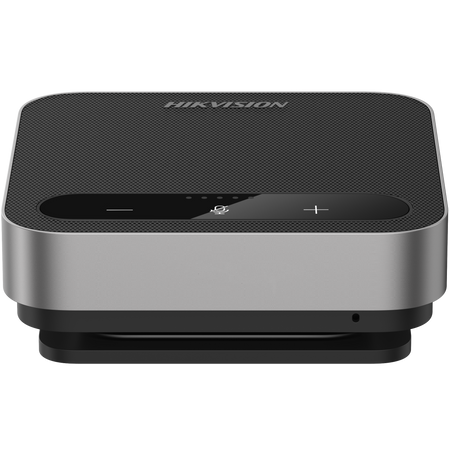

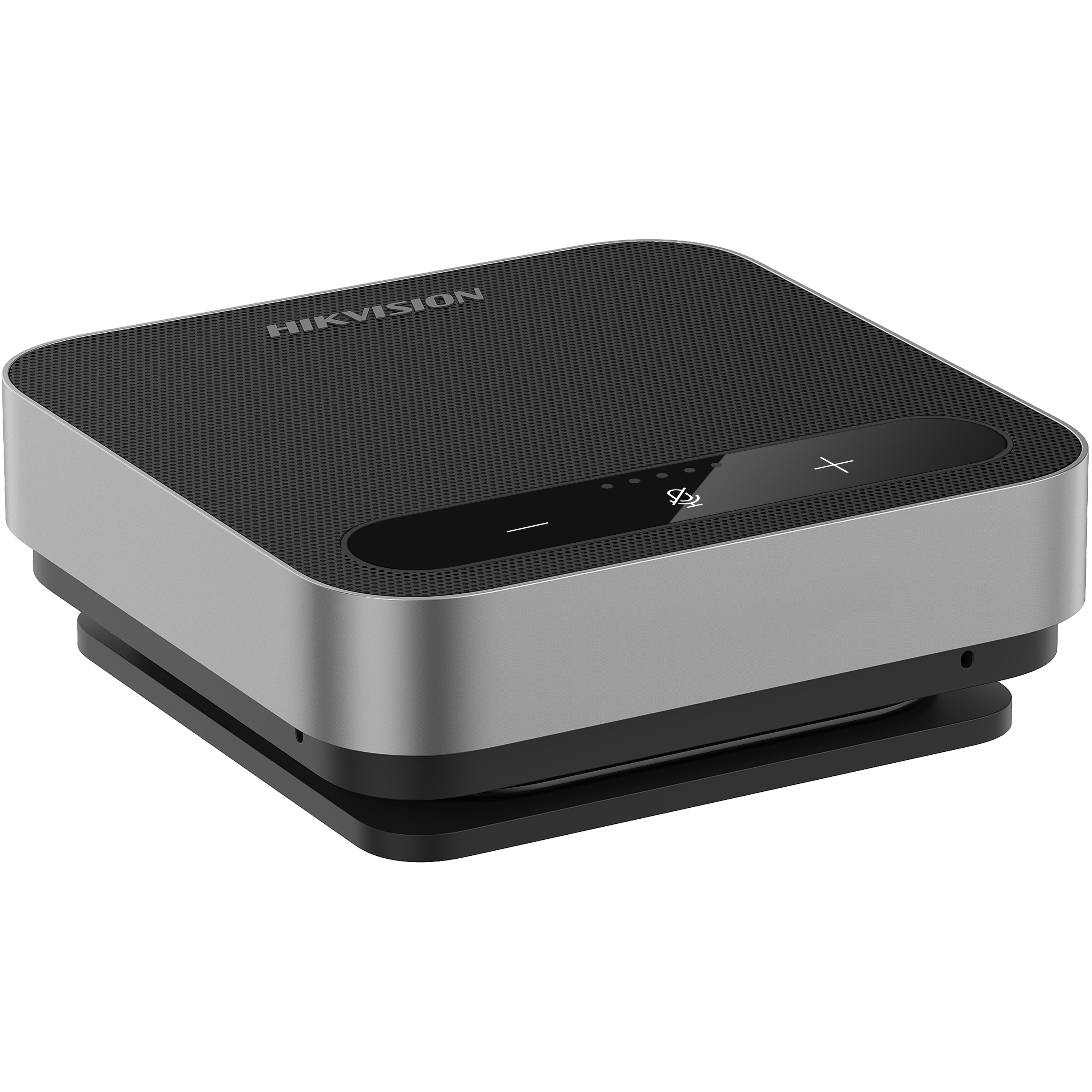

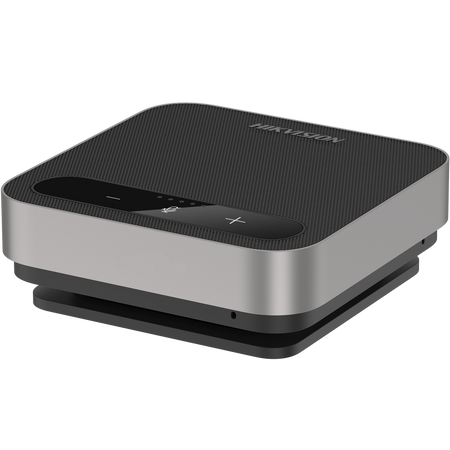

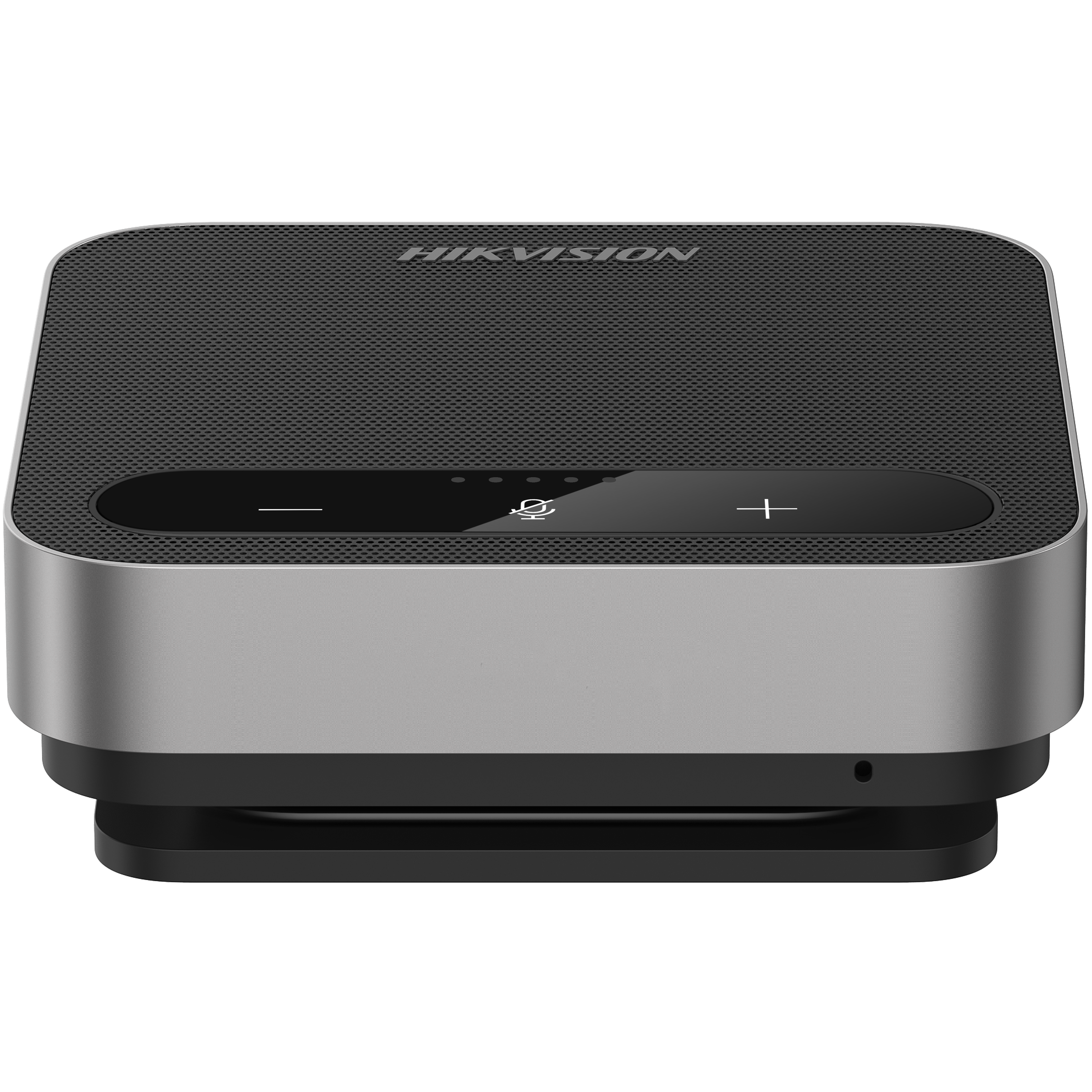

Hikvision DS-UAC-S2V Compact 4-Mic USB Conference Speakerphone

Hikvision

Compact 4-Mic USB Conference Speakerphone

The Hikvision DS-UAC-S2V Compact 4-Mic USB Conference Speakerphone (DS-UAC-S2V) Compact 4-microphone MEMS array with 360 degree omnidirectional coverage optimised for smaller meeting spaces and team huddles. 3 metre pickup radius is calibrated for intimate team meetings and small conference rooms where larger arrays would be over-engineered. Sophisticated audio processing including automatic echo cancellation, adaptive noise suppression and automatic gain control compensates for small room acoustics. 3W integrated speaker with 82dB output level provides clear audio reinforcement across smaller spaces. Minimalist 120mm x 120mm square form factor fits naturally into any meeting table aesthetic.

Highlighted Features

  • Compact 4-Mic Array: 4-microphone MEMS array with 3m pickup in a 120×120mm body — ideal for small meeting rooms
  • 3W Speaker, 5m Range: 3W speaker at 82dBSPL@1m with 5m effective range for clear audio in compact spaces
  • AEC/ANS/AGC Processing: Acoustic echo cancellation, noise suppression and auto gain for clean dialogue in tight spaces
  • Minimalist Square Design: 120×120×41.4mm footprint sits unobtrusively on any meeting table, desk or conference surface
  • USB Plug-and-Play: USB Type-A with 0.9m cable — no drivers, instant compatibility with all major conferencing platforms

The DS-UAC-S2V is the optimal choice for small businesses, startup companies and organisations operating primarily from huddle rooms and informal meeting spaces where larger speakerphones would be over-provisioned.

In stock
£113.10

Secure Checkout

Warranty Protection

Hassle-Free Returns

The Hikvision DS-UAC-S2V delivers integrated audio capture and reinforcement in the most compact form factor available in the Hikvision audio product range. The 4-element microphone array provides 360 degree omnidirectional coverage optimised for smaller spaces, with a 3 metre pickup radius suitable for intimate team meetings and huddle rooms. The integrated 3W speaker provides clear audio reinforcement without requiring separate audio infrastructure.

Key Features

  • Compact 4-microphone MEMS array with 360 degree omnidirectional pattern suited to small rooms
  • 3 metre pickup radius captures clear dialogue from participants in informal huddle room settings
  • 100Hz to 8kHz frequency response captures the essential range of speech intelligibility
  • 66dB signal-to-noise ratio appropriate for typical office background noise levels
  • 94dB dynamic range accommodates natural speech variation without requiring gain adjustment
  • 124dBSPL maximum sound pressure level ensures clean capturing of unexpected loud events
  • Automatic echo cancellation prevents feedback when audio is routed back through the speaker
  • Adaptive noise suppression intelligently removes office ambient noise whilst preserving dialogue
  • Automatic gain control maintains consistent audio levels regardless of speaker position within the pickup area
  • 3W speaker delivers clear audio reinforcement to participants seated around the meeting table

Specifications

Microphone Type 4-element MEMS array
Pickup Pattern 360 degree omnidirectional
Pickup Distance 3 metres
Frequency Response 100Hz to 8kHz
Signal-to-Noise Ratio 66dB
Sensitivity -38dBV/Pa
Sampling Rate 16kHz
Microphone Dynamic Range 94dB
Microphone Max Spl 124dBSPL
Microphone Distortion 0.15% at 94dBSPL
Audio Processing AEC, ANS, AGC
Speaker Power 3W
Speaker Output Level 82dBSPL at 1 metre
Speaker Range 5 metres
Speaker THD Less than 3% at 1kHz
Speaker Frequency Range 150Hz to 16kHz
usb Type-A
USB Cable Length 0.9 metres
Power Input 5VDC
Maximum Power 4.5W
Compatible Operating Systems Windows XP, 7, 8, 10, 11; Android 8.1+; Linux 4.14+; macOS 10.12+
Operating Temperature 0 to +45 degrees Celsius
Operating Humidity up to 90% RH non-condensing
Dimensions 120 x 120 x 41.4
Weight 0.35
material Plastic

What's in the Box

  • Speakerphone
  • USB cable
  • Quick start guide

Warranty

The Hikvision DS-UAC-S2V Compact 4-Mic USB Conference Speakerphone is backed by the 2-year manufacturer warranty, providing peace of mind for professional and commercial installations.
