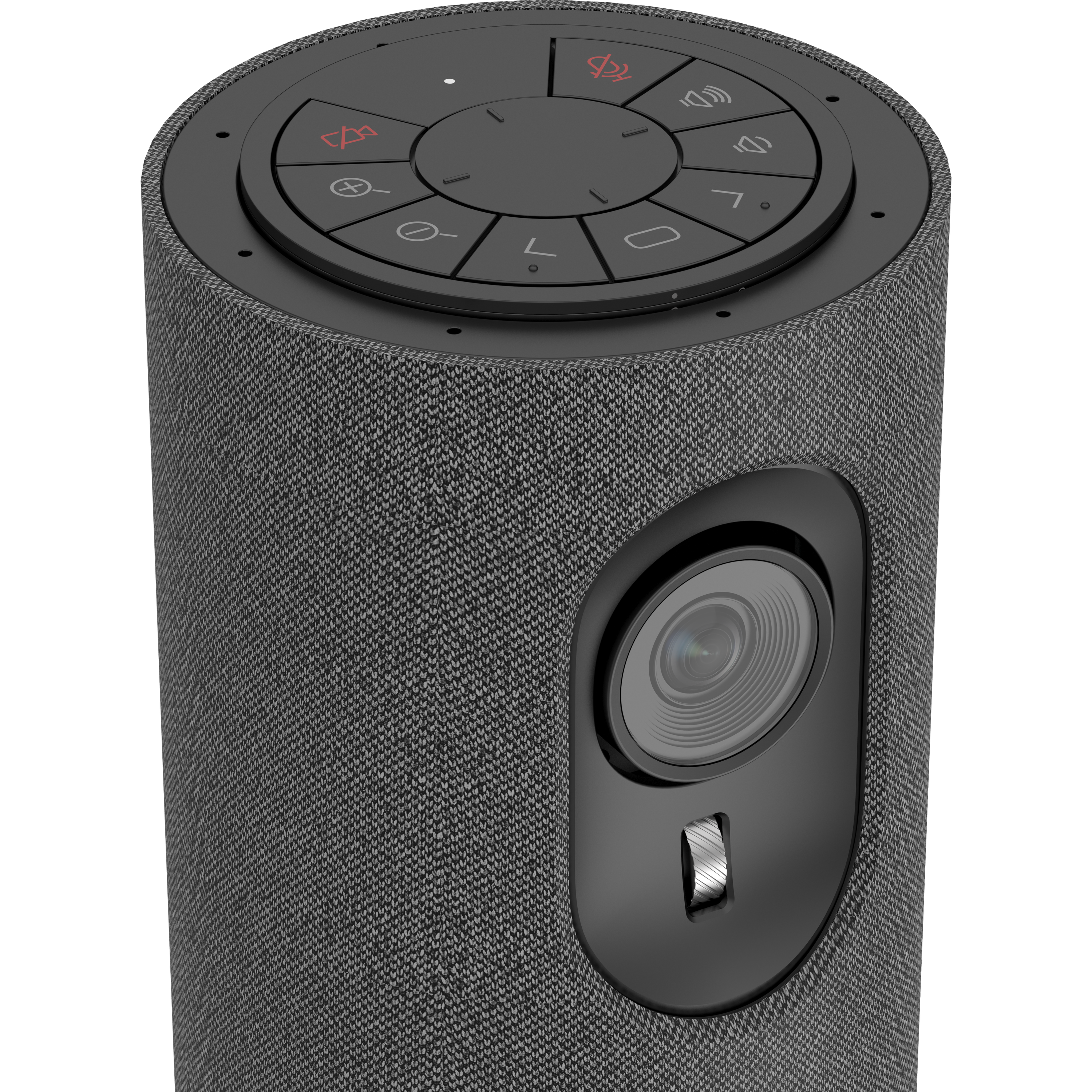

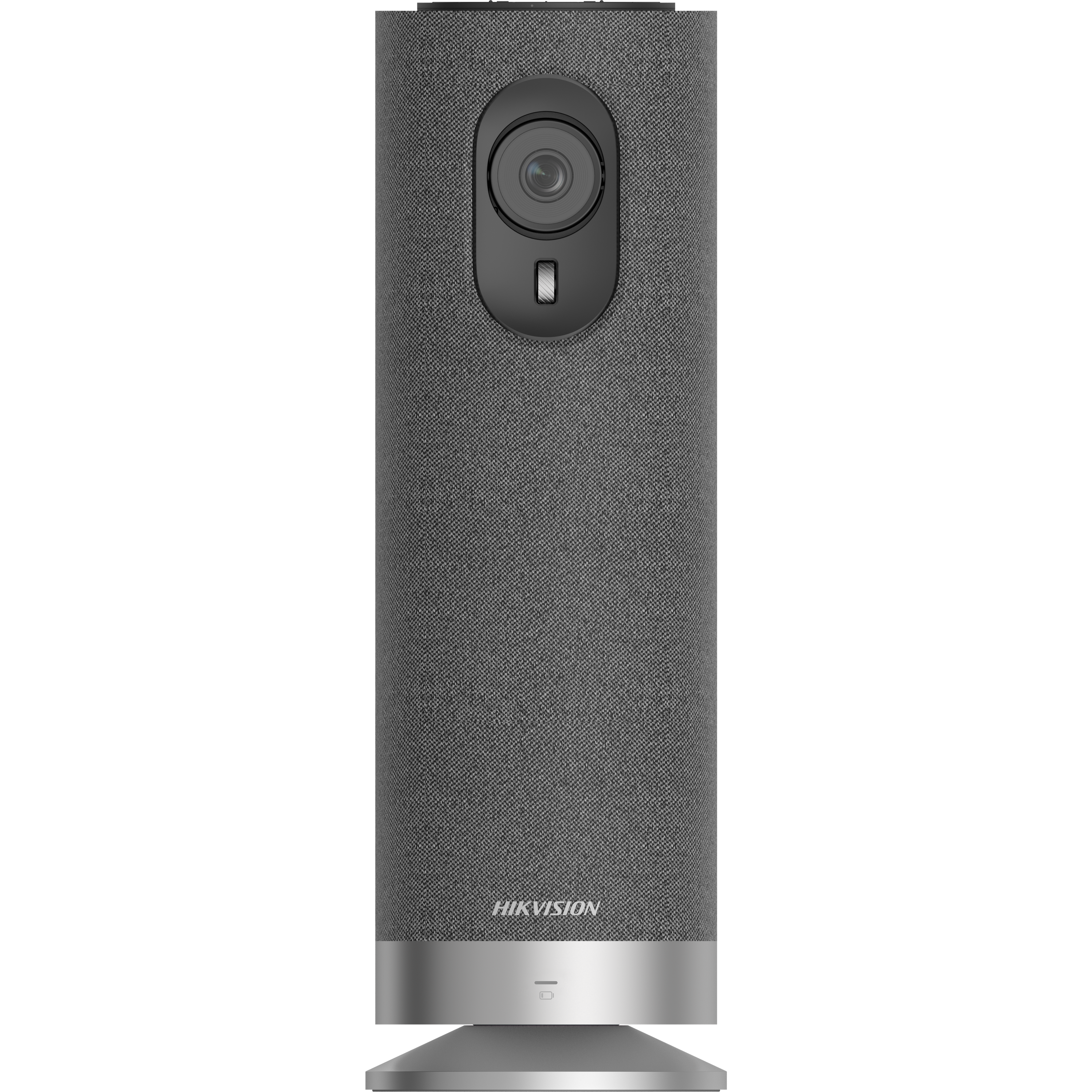

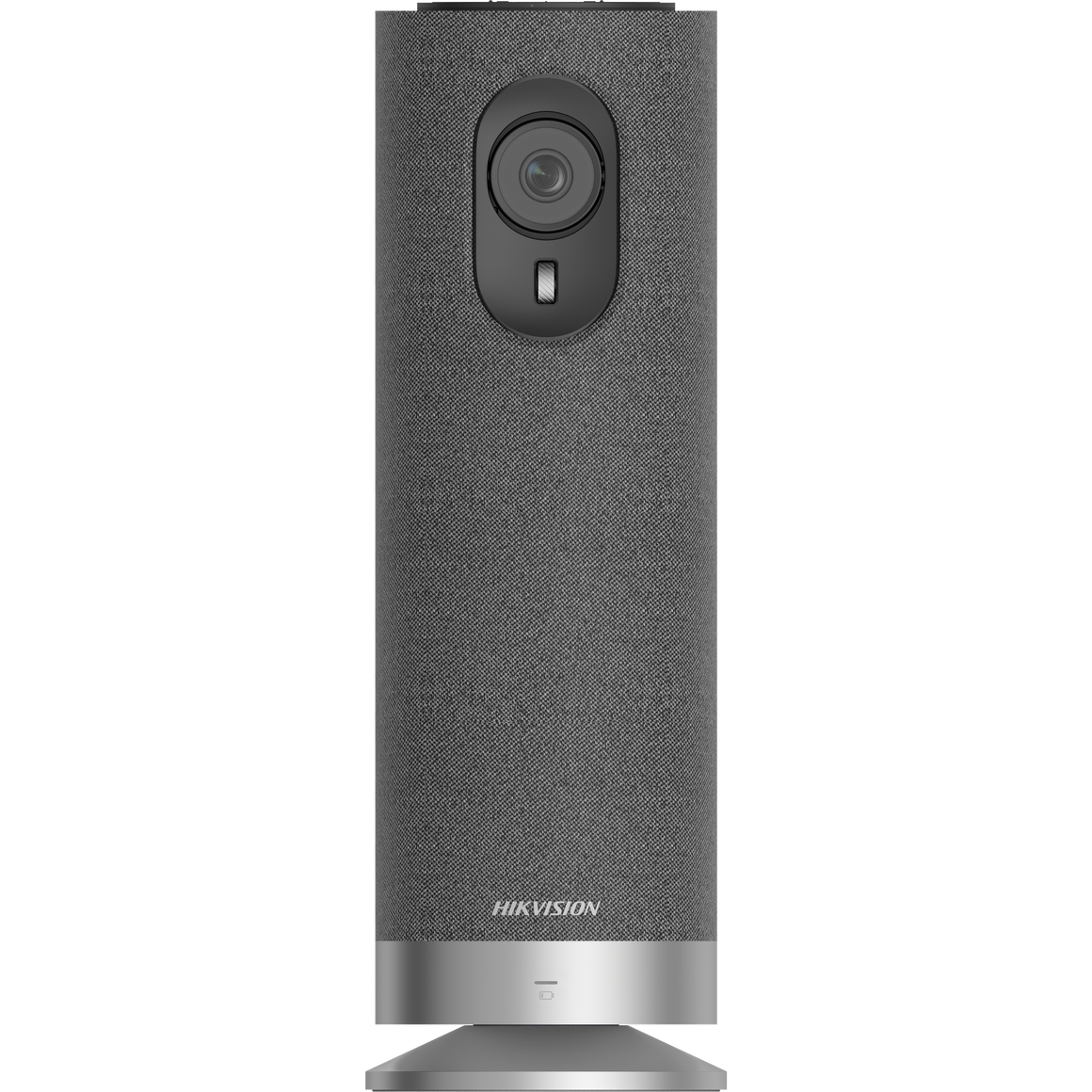

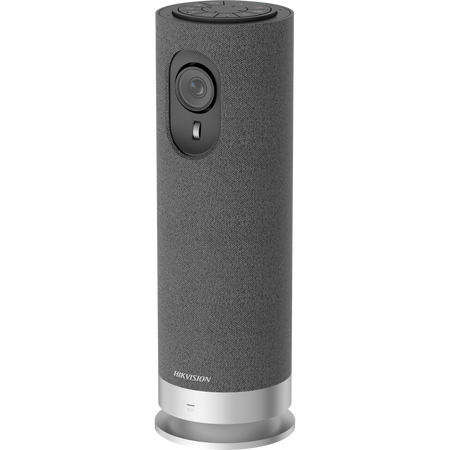

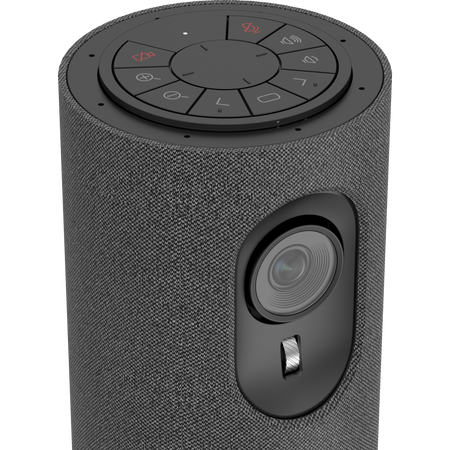

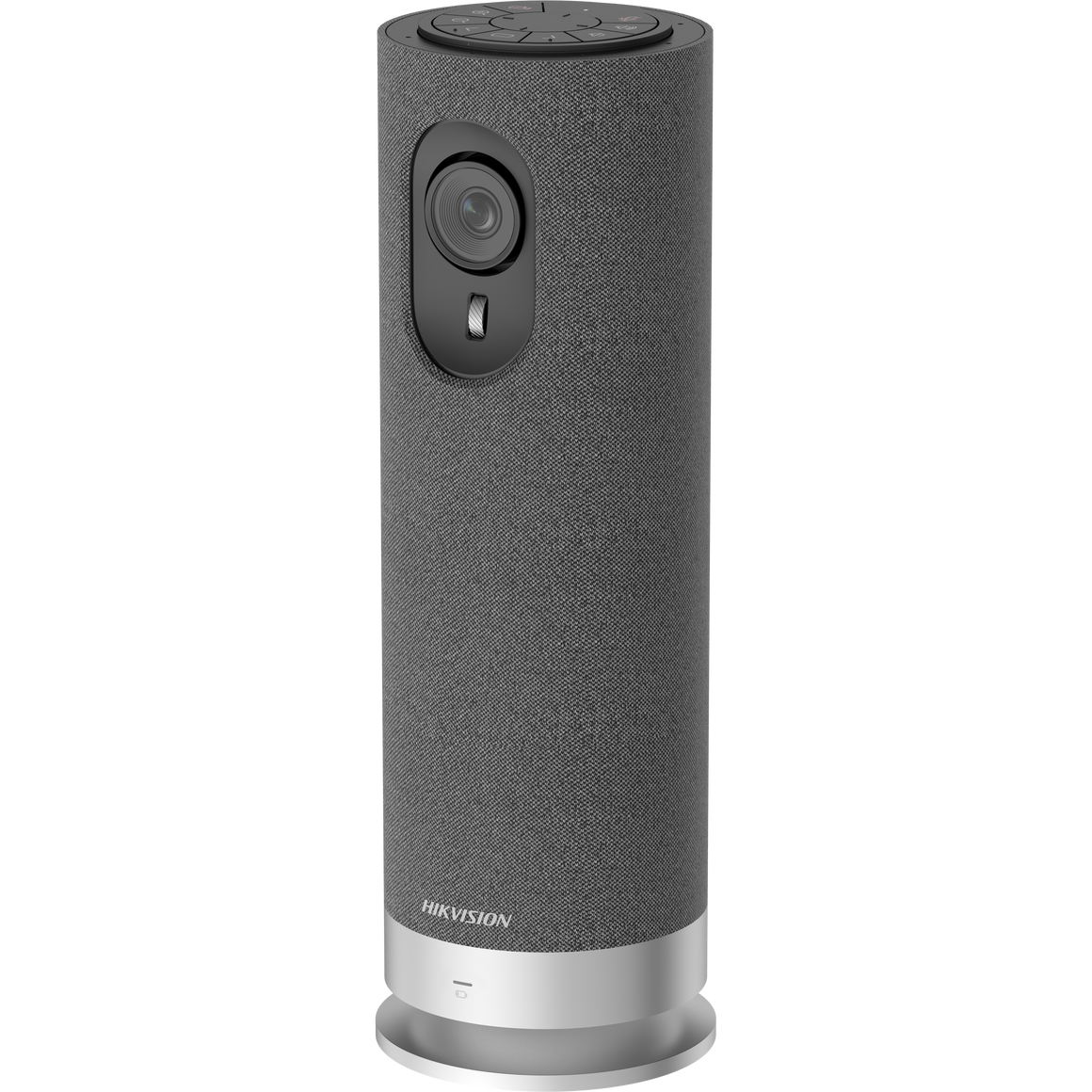

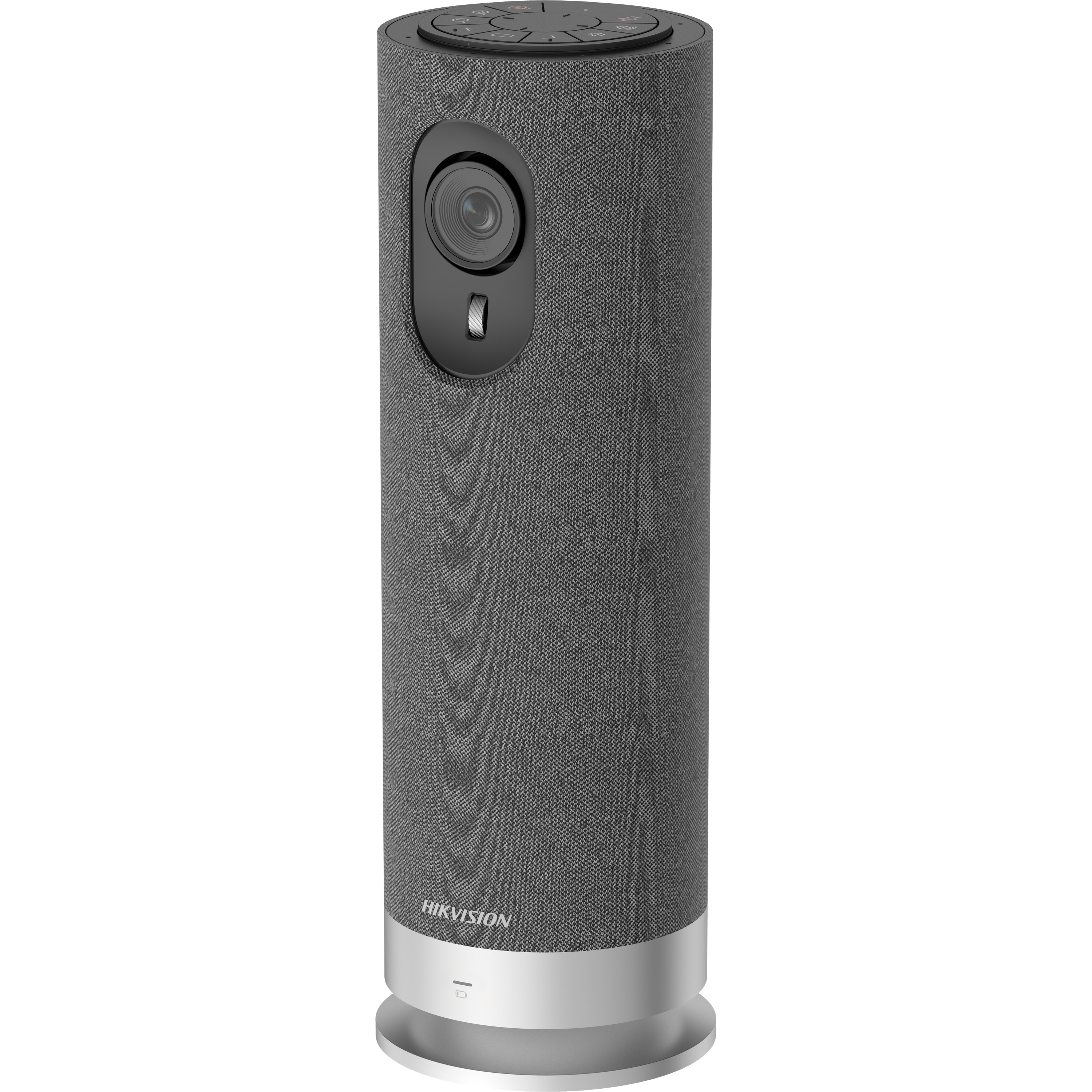

Hikvision DS-UVC-X12 Portable Conference Camera with 4-Mic Array and Speaker
Portable Conference Camera with Speaker
Secure Checkout
Warranty Protection
Hassle-Free Returns

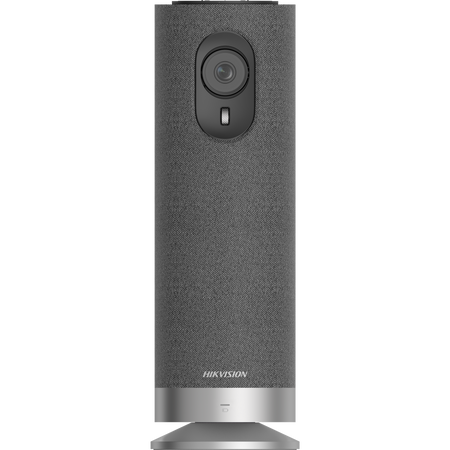

The Hikvision DS-UVC-X12 is engineered for professionals who need video conferencing capability anywhere. This remarkably compact camera combines a 2MP 1080p imager with an integrated 4-microphone audio array, 5W speaker and 2450mAh rechargeable battery, enabling standalone operation without external power or audio equipment. The portable form factor and silver grey finish make it equally at home in a meeting room, on a desk or carried between locations.
Key Features
- 2MP imaging resolution at 1920x1080 delivers sharp detail across all standard display sizes
- Exceptional 0.1 Lux sensitivity enables operation in dimly lit environments without external lighting
- Fixed 2.8mm lens with 110 degree horizontal and 75 degree vertical field of view covers typical meeting room perspectives
- 2x optical zoom capability allows flexible framing without moving the camera itself
- Wide dynamic range processing of 120dB or greater handles high-contrast lighting conditions
- 4-microphone MEMS array with 360 degree coverage picks up speech from all meeting participants
- Sophisticated audio processing including automatic echo cancellation, adaptive noise suppression and automatic gain control
- 5W speaker with 87dB output level and 170Hz to 20kHz frequency response provides natural, intelligible audio
- Rechargeable 7.2V 2450mAh battery supports 2-4 hours of continuous operation between charges
- USB 3.0 Type-C connection enables simultaneous charging and operation for extended deployment
Specifications
| sensor | 1/2.7 inch 2MP WDR CMOS |
| resolution | 1920x1080 |
| sensitivity | 0.1 Lux at F2.2 |
| Lens | 2.8mm |
| Horizontal FOV | 110 degrees |
| Vertical FOV | 75 degrees |
| Diagonal FOV | 120 degrees |
| Minimum Focus Distance | 0.3 metres |
| Tilt Adjustment | -10 to +10 degrees |
| Optical Zoom | 2x |
| wdr | 120dB or greater |
| Microphone Type | 4-element MEMS array |
| Pickup Pattern | 360 degree omnidirectional |
| Pickup Distance | 5 metres |
| Frequency Response | 100Hz to 8kHz |
| Sensitivity | -38dBV/Pa |
| Signal-to-Noise Ratio | 66dB |
| Sampling Rate | 16kHz and 48kHz |
| Audio Processing | AEC, ANS, AGC |
| Speaker Power | 5W |
| Speaker Output Level | 87dBSPL at 1 metre |
| Speaker Range | 8 metres |
| Speaker Frequency Range | 170Hz to 20kHz |
| Speaker THD | Less than 3% at 1kHz |
| battery | 7.2V 2450mAh lithium |
| Battery | 5VDC at 1A typical |
| Charging Temperature | 0 to +45 degrees Celsius |
| usb | Type-C USB 3.0 |
| USB Cable Length | 2 metres |
| Power Input | 5VDC ±5% |
| Maximum Power | 4.5W |
| Compatible Operating Systems | Windows 7, 8, 10, 11; Android 8.1+; Linux 4.14+; macOS 10.12+; Chrome OS |
| material | Plastic with cloth and metal base |
| Operating Temperature | -10 to +45 degrees Celsius |
| Operating Humidity | up to 90% RH non-condensing |
| Dimensions | Diameter 91.7 x height 271.3 |
| Weight | 0.93 |
| colour | Silver grey |
What's in the Box
- Camera
- Privacy shutter
- Remote control with battery
- USB 3.0 cable 2 metres
- User manual card
Warranty
The Hikvision DS-UVC-X12 Portable Conference Camera with 4-Mic Array and Speaker is backed by the 2-year manufacturer warranty, providing peace of mind for professional and commercial installations.
