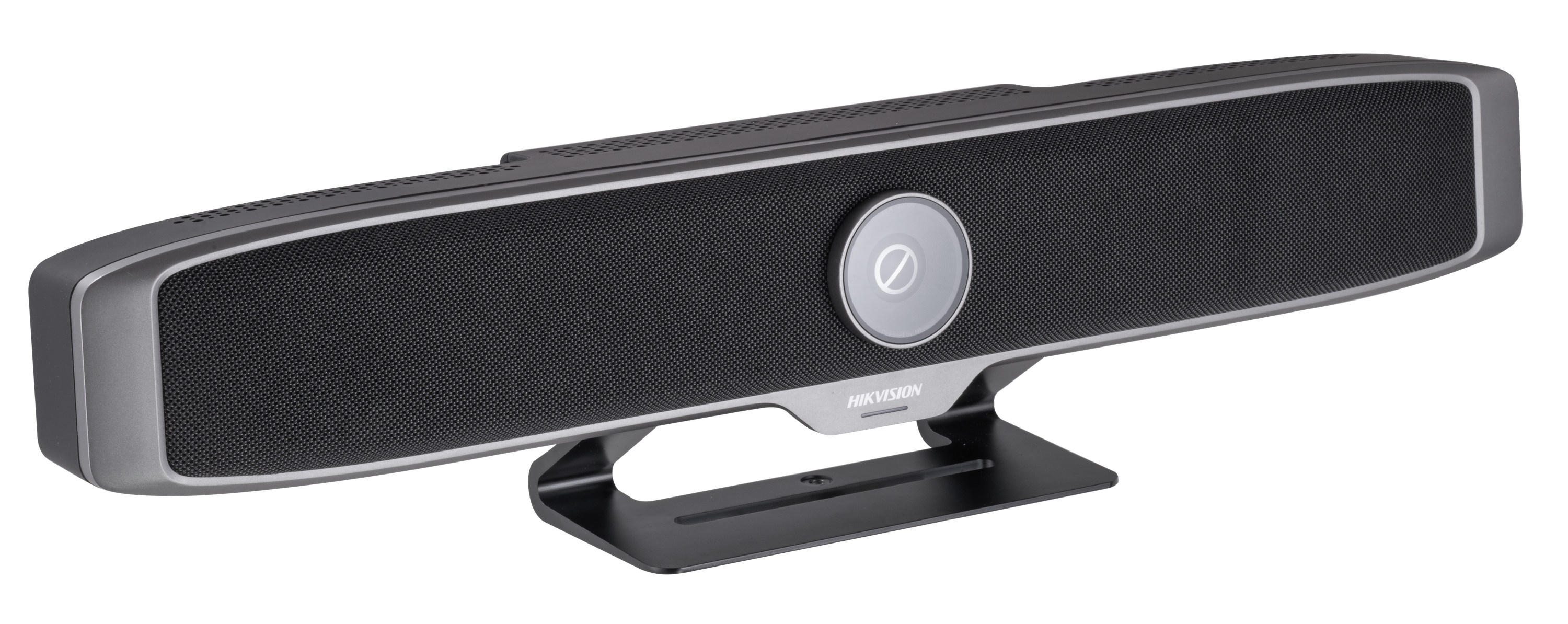

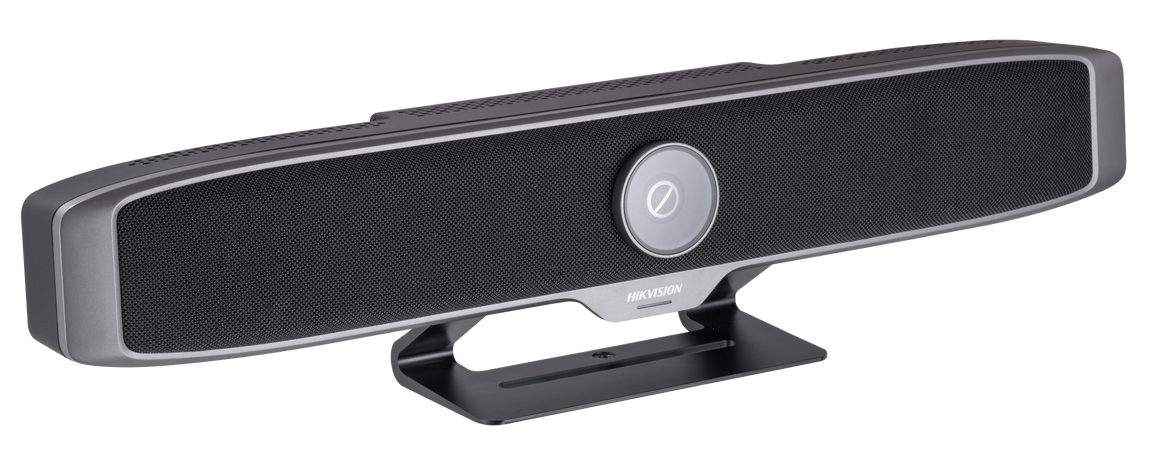

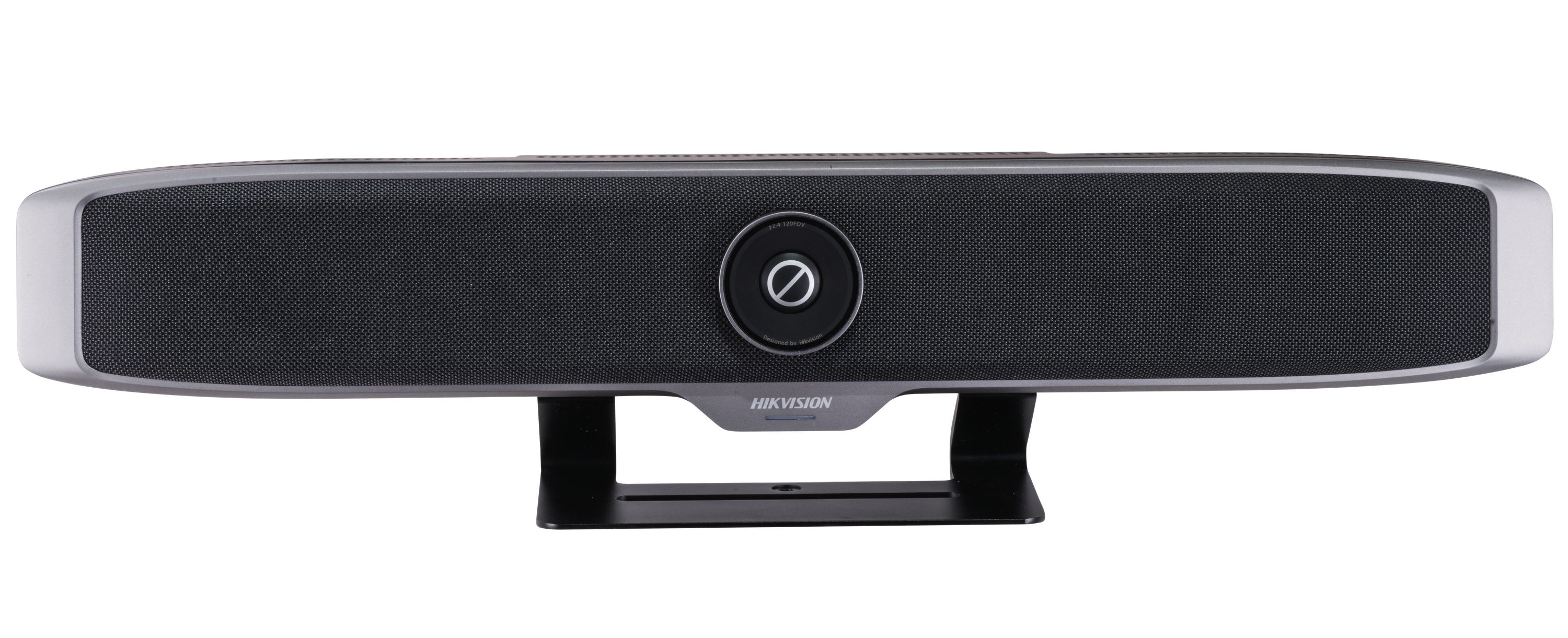

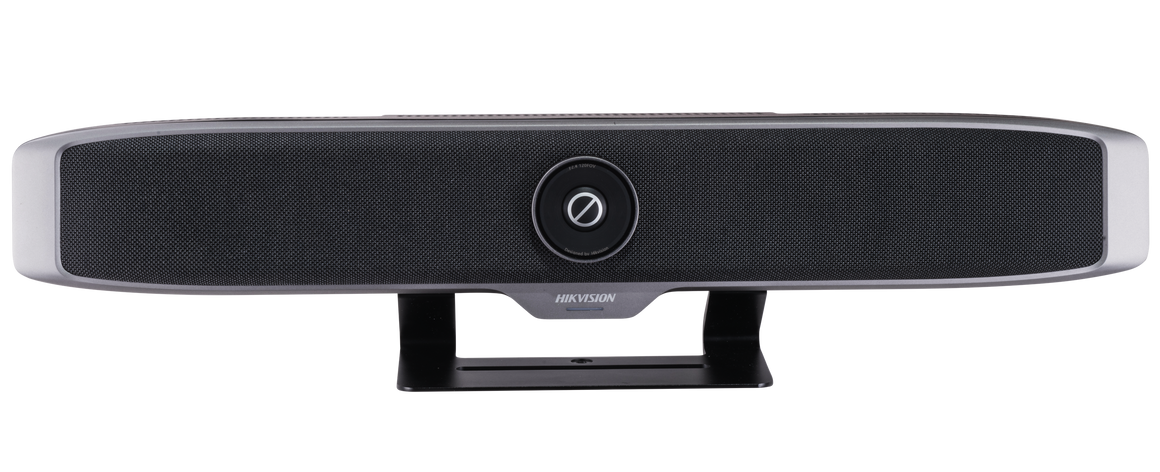

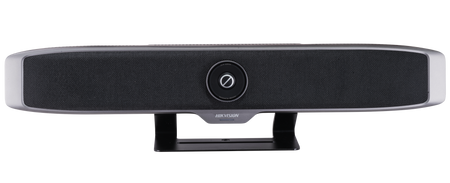

Hikvision iDS-UVC-X28-B 4K All-in-One Video Bar with 8-Mic Array and Speaker
4K All-in-One Video Conferencing Bar
Secure Checkout
Warranty Protection
Hassle-Free Returns
The Hikvision iDS-UVC-X28-B represents the ultimate expression of integrated video conferencing technology. This premium all-in-one video bar combines an 8MP 4K camera, 8-element omnidirectional microphone array, 10W integrated speaker and full Android 12 operating system into a single elegant bar-shaped device. The result is a complete plug-and-play video conferencing solution that eliminates the need for separate cameras, speakerphones or microphone arrays, whilst maintaining professional broadcast-quality imaging.
Key Features
- 8MP 4K imaging at 30fps provides four times the detail of 1080p across all display sizes
- 109.9 degree horizontal field of view enables complete meeting room coverage from the screen position
- 3x electronic pan-tilt-zoom (e-PTZ) capability allows flexible framing adjustments within the captured image
- Automatic exposure and white balance maintain optimal image quality across varying lighting conditions
- 8-microphone array with 6 metre pickup radius captures clear audio from all meeting participants
- Advanced audio processing including automatic echo cancellation prevents feedback in speaker-on-speaker scenarios
- Adaptive noise suppression removes ambient noise whilst preserving speech intelligibility
- Automatic gain control maintains consistent volume levels regardless of speaker distance
- 10W speaker with 78dB output level provides clear audio reinforcement without requiring separate speaker systems
- Electronic privacy cover disables both video and microphone inputs when meetings conclude
Specifications
| sensor | 1/2.8 inch 8MP CMOS |
| resolution | 4K |
| Maximum Frame Rate | 30 frames per second |
| Horizontal FOV | 109.9 degrees |
| Vertical FOV | 74.6 degrees |
| Diagonal FOV | 118.8 degrees |
| aperture | f/2.5 |
| Focus Distance | 2.02mm |
| Privacy Cover | Electronic |
| Electronic PTZ | 3x |
| Auto Exposure | Yes |
| Auto White Balance | Yes |
| dnr | 2D and 3D |
| presets | 5 |
| Smart Features | Auto framing, speaker tracking, smart gallery |
| Microphone Type | 8-element MEMS array |
| Pickup Pattern | 360 degree omnidirectional |
| Pickup Distance | 6 metres |
| Frequency Response | 100Hz to 20kHz |
| Sensitivity | -38dB |
| Signal-to-Noise Ratio | 65dB |
| Sampling Rate | 48kHz |
| Audio Processing | AEC, ANS, AGC, intelligent noise reduction |
| Speaker Power | 10W |
| Speaker Output Level | 78dB ±3dB |
| Speaker Frequency Range | 240Hz base frequency |
| Operating System | HIK WonderOS (Android 12) |
| ram | 8GB |
| storage | 16GB |
| HDMI Input | 1x HDMI IN (4K@30) |
| Wireless Mirroring | 4K@30 |
| Wireless Camera Input | 1080P@30 |
| HDMI Output | 2x HDMI OUT (4K@60) |
| USB Video Output | USB-C UVC (1080P@30 MJPEG) |
| Audio Connectors | 3.5mm line in and line out |
| network | 1x 1Gbps Ethernet |
| usb | 1x USB3.0 Type-C, 2x USB2.0 Type-A |
| wireless | Wi-Fi 2.4G and 5G, Bluetooth 5.0 (remote), 2.4G audio Bluetooth |
| BYOM Support | Via wireless dongle |
| Power Input | DC 12V/2A |
| Power Consumption | 24W |
| Compatible Operating Systems | Windows 7, 10, 11; macOS |
| Operating Temperature | 0 to +40 degrees Celsius |
| Operating Humidity | 10 to 80% RH non-condensing |
| Dimensions | 616 x 145 x 104.23 |
| Weight | 2.49 |
| material | Plastic and metal |
What's in the Box
- Remote control
- Two batteries
- AC power adapter with EU/DE plug
- Wall mounting bracket
- NFC sticker
- Expansion screw
- Quick start guide
- Regulatory information
- Thank you card
- USB 3.0 cable 5 metres (USB-C to USB-A)
- DS-D5SC3B-W wireless dongle (BYOM support)
Warranty
The Hikvision iDS-UVC-X28-B 4K All-in-One Video Bar with 8-Mic Array and Speaker is backed by the 2-year manufacturer warranty, providing peace of mind for professional and commercial installations.
