SKU: 13750089

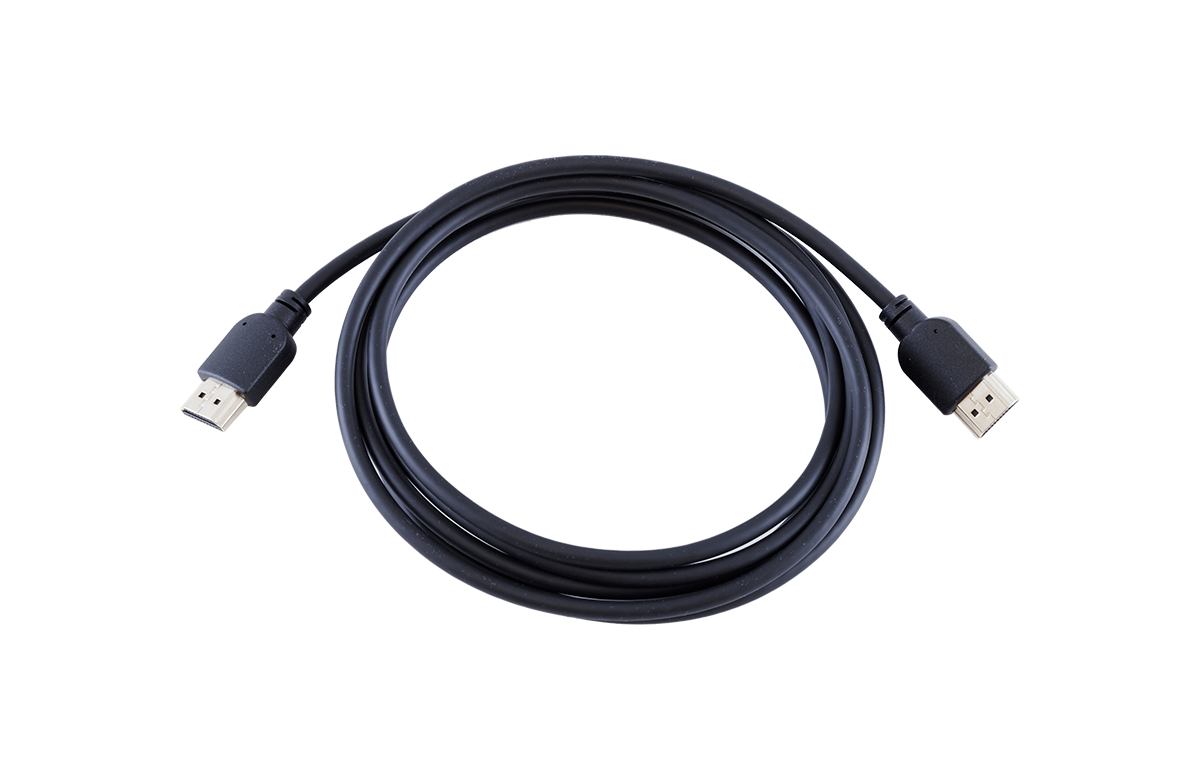

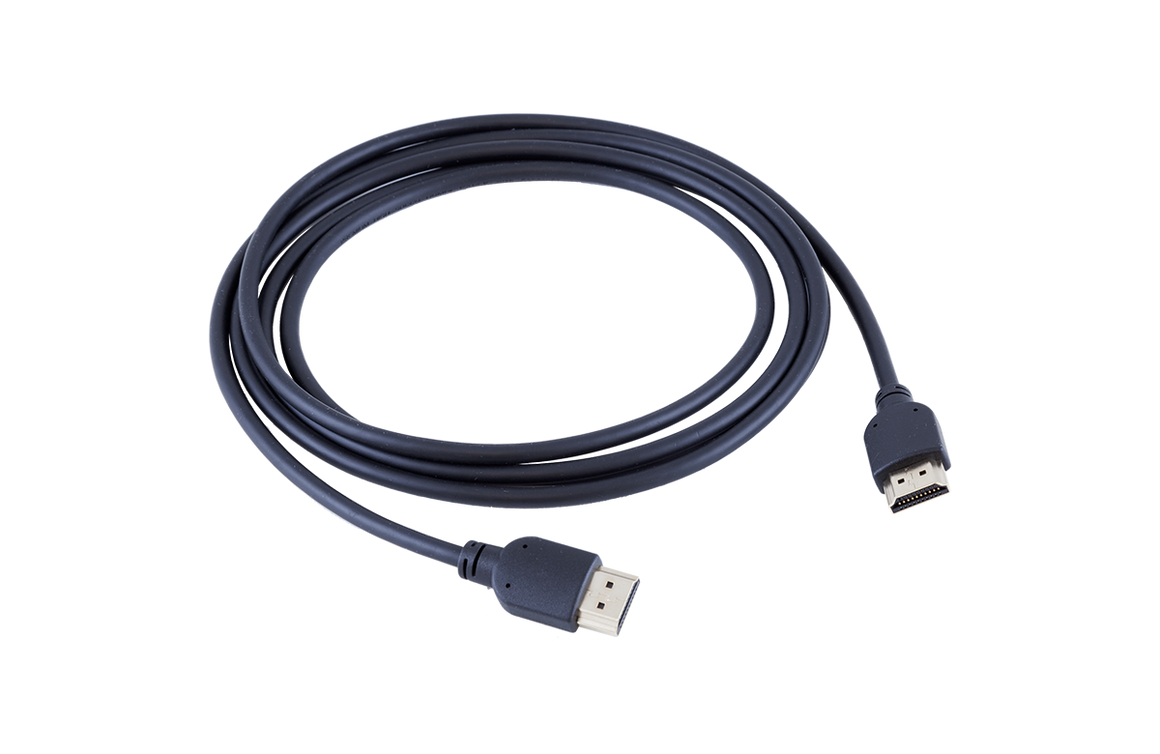

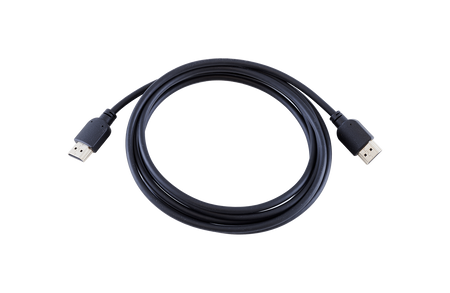

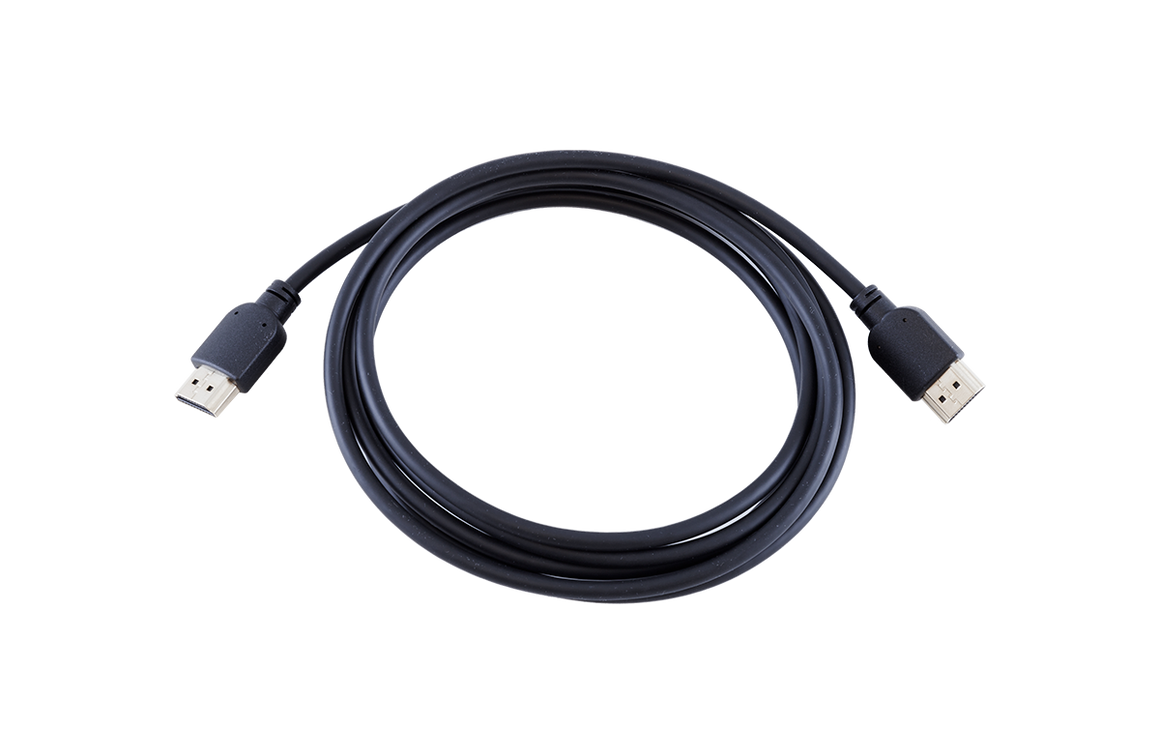

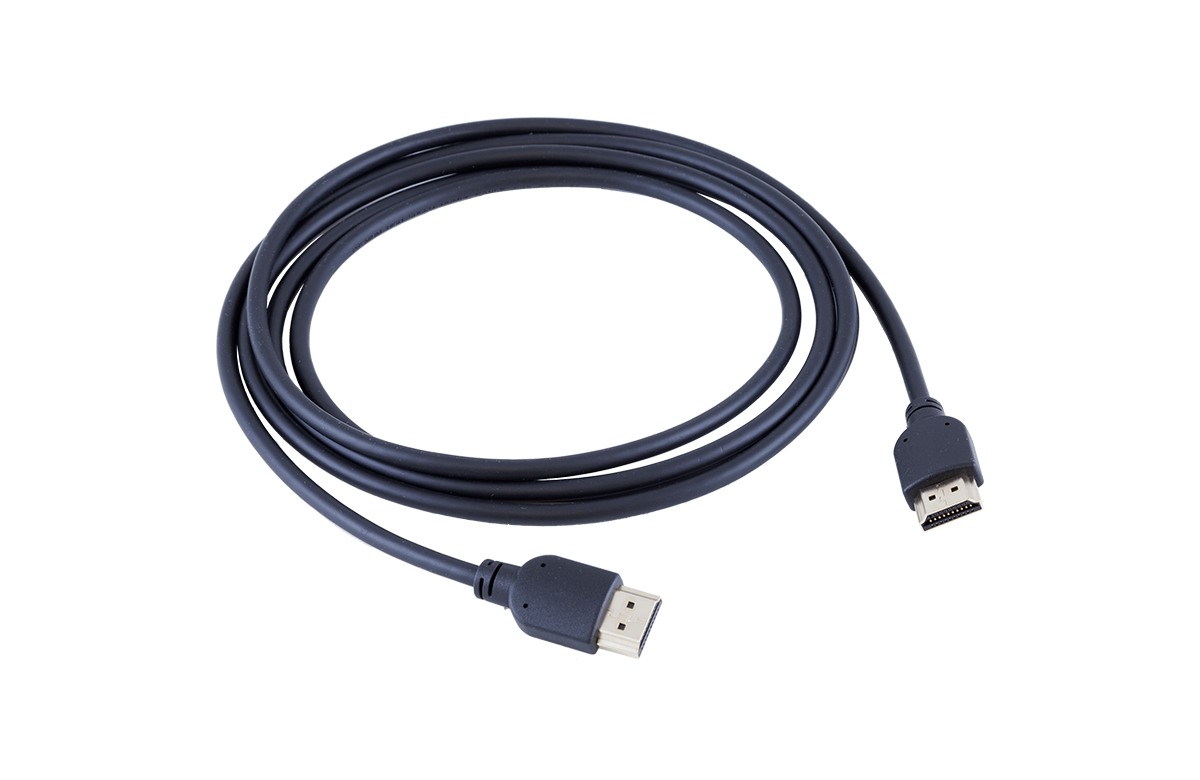

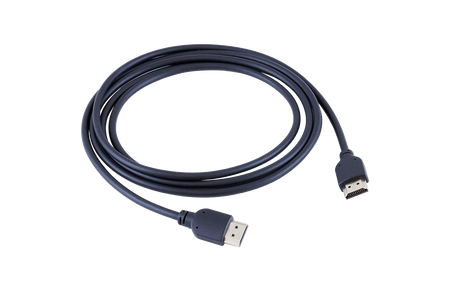

Lightware CAB-HDMI20-PHS0100F 1m HDMI Cable 2.0b Flexy Cable

Lightware

Premium 1m High-Speed HDMI 2.0b cable for 4K60 4:4:4 HDR video and multi-channel audio

The Lightware CAB-HDMI20-PHS100F is a 1-metre premium High-Speed HDMI 2.0b flexy cable. It supports bandwidth up to 18Gbps, 4K@60Hz RGB 4:4:4, HDR10, Dolby Vision, HLG, and advanced audio formats including Dolby TrueHD, DTS-HD Master Audio, and Dolby Atmos. Thin and flexible with robust shielding, it protects against EMI and is suitable for tight installations while maintaining high durability and reliability.

Highlighted Features

  • Up to 18Gbps for uncompressed UHD video.
  • Handles 4096×2160 @ 60Hz with HDR10, Dolby Vision, and HLG.
  • Supports Dolby TrueHD, DTS-HD Master Audio, and Dolby Atmos.
  • Thin TPE jacket, robust shielding, 18mm bending radius.
  • HDCP 2.3, EDID, CEC, ARC, HEC, DDC, DisplayID supported.

The Lightware CAB-HDMI20-PHS100F is the ideal choice for professional AV installations in corporate and public sector where uncompromising video and audio performance are required.

In stock
£19.20

Secure checkout

Friendly support

Hassle-free returns

The Lightware CAB-HDMI20-PHS100F is a 1-metre premium High-Speed HDMI 2.0b flexy cable, designed for tight spaces and professional AV installations. With bandwidth up to 18Gbps, it supports 4K@60Hz at RGB 4:4:4, HDR10, Dolby Vision, HLG, and advanced audio formats including Dolby TrueHD, DTS-HD Master Audio, and Dolby Atmos. Its thin, flexible TPE jacket and robust shielding provide EMI protection, durability, and easy routing. Fully compliant with HDMI 2.0b, it supports HDCP 2.3, CEC, ARC, HEC, EDID, and DisplayID.

Key Features

  • High Bandwidth: Up to 18Gbps for uncompressed UHD video.
  • 4K60 & HDR Support: Handles 4096×2160 @ 60Hz with RGB 4:4:4 colour sampling, HDR10, Dolby Vision, and HLG.
  • Advanced Audio: Supports Dolby TrueHD, DTS-HD Master Audio, and Dolby Atmos.
  • Full HDMI 2.0b Features: HDCP 2.3, EDID, CEC, DDC, HEC, ARC, and DisplayID support.
  • Durable & Flexible: Thin TPE jacket, robust shielding for EMI protection, 18mm bending radius.
  • High Reliability: Mating durability up to 10,000 cycles and 6kg pulling force.
  • No External Power Needed: Powered directly through HDMI interface.

Specifications

HDMI Standards 2.0b (18Gbps)
Video Format Up to 4096x2160@60Hz RGB 4:4:4, HDR10, Dolby Vision, HLG
Data Rate 18Gbps
Control Signal HDCP 2.3, EDID, CEC, DDC, HEC, ARC, DisplayID
Connector Type HDMI Type A Plug, Gold-plated
Audio Support Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos
Cable Length 1 m
Outer Diameter 4.5 mm
Jacket Material Flexible TPE
Bending Radius 18 mm
Material Copper, 34 AWG
Power No external power required
Operating Temperature 0–50 °C
Humidity 0–80% RH
Pulling Force 6kg
Mating Durability 10,000 cycles
Environmental Compliance RoHS, REACH (EC 1907/2006)
Flammability Rating TPE FT-2

Supported Resolutions

  • 8K 7680x4320 @ 30Hz, 8b 4:2:0
  • 5K 5120x2160 @ 60Hz, 8/10/12b 4:2:0 or 30Hz 4:4:4
  • 4K 4096x2160 @ 60Hz, 8/10/12b 4:4:4 or 4:2:0
  • UHD 3840x2160 @ 60Hz, 8/10/12b 4:4:4 or 4:2:0
  • UWQHD 3440x1440 @ 120/60Hz, 8/16b 4:4:4
  • QHD 2560x1440 @ 120/60Hz, 8/10b 4:4:4
  • UWQHD 2560x1080 @ 60Hz, 8/12/16b 4:4:4
  • WUXGA 1920x1200 @ 60Hz, 8/12/16b 4:4:4
  • FHD 1920x1080 @ 120/60/30Hz, 8/10/12/16b 4:4:4
  • HD 1280x720 @ 60/30Hz, 8/10/12/16b 4:4:4
