SKU: 13750092

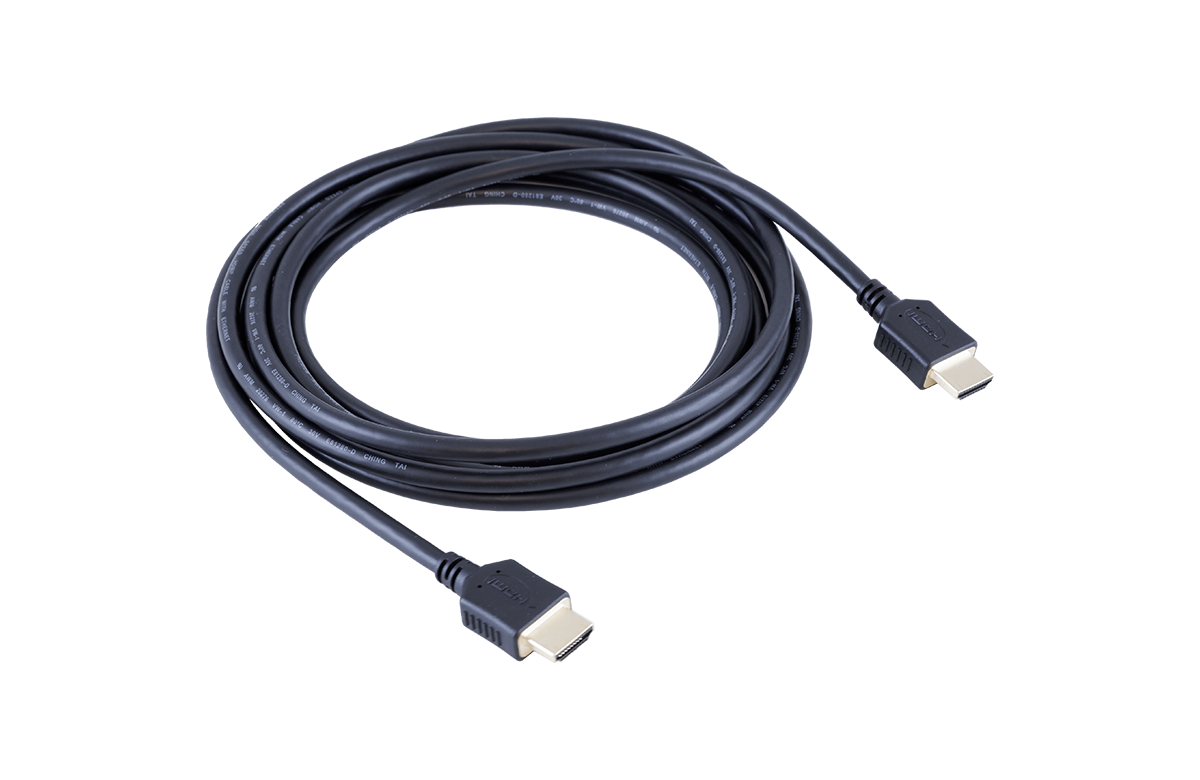

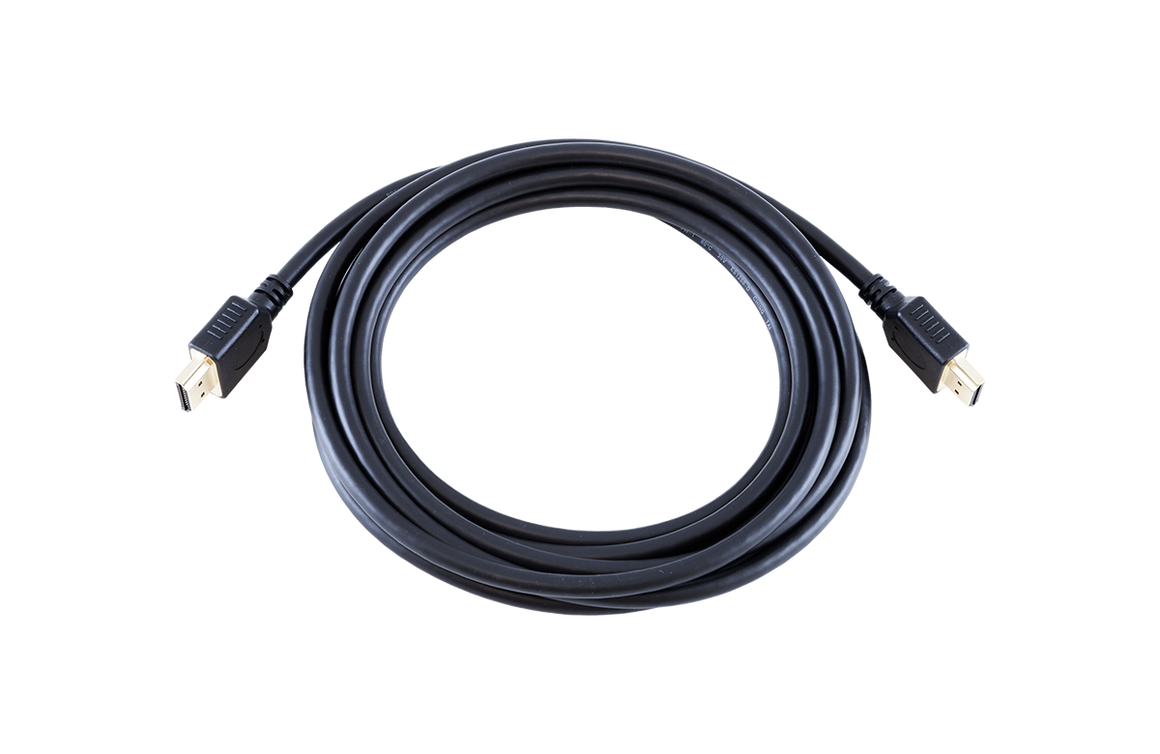

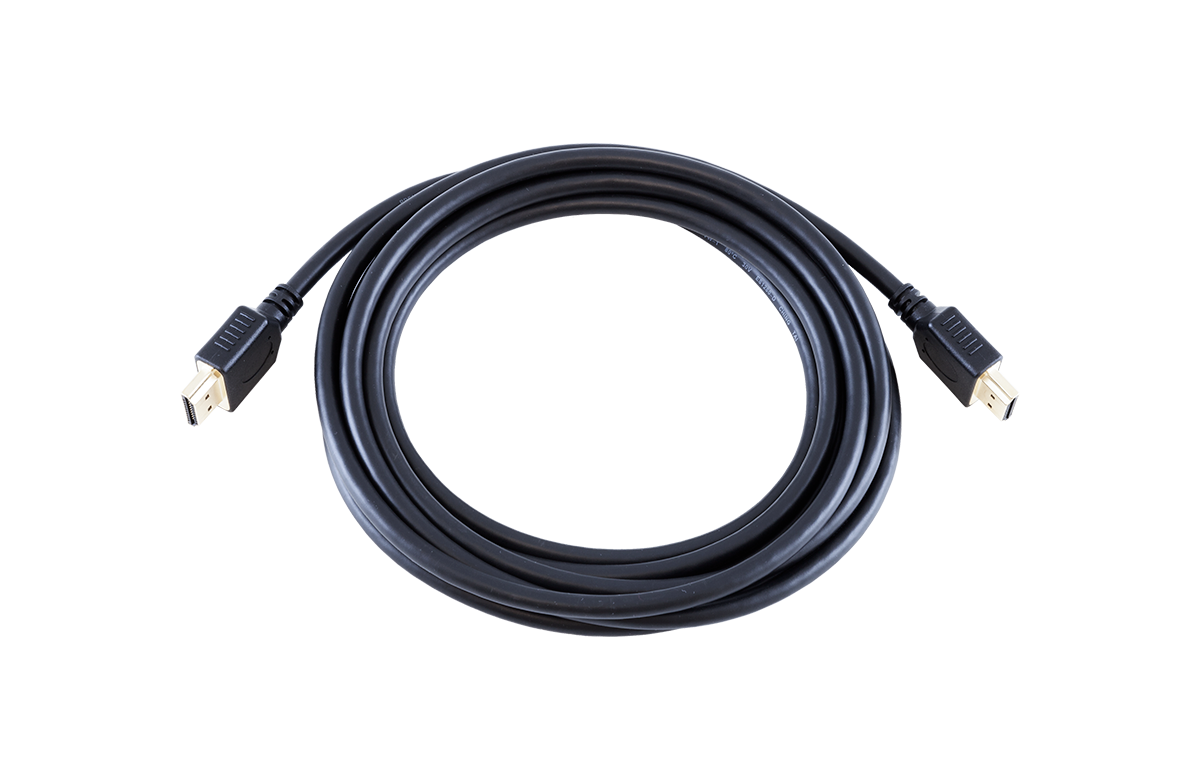

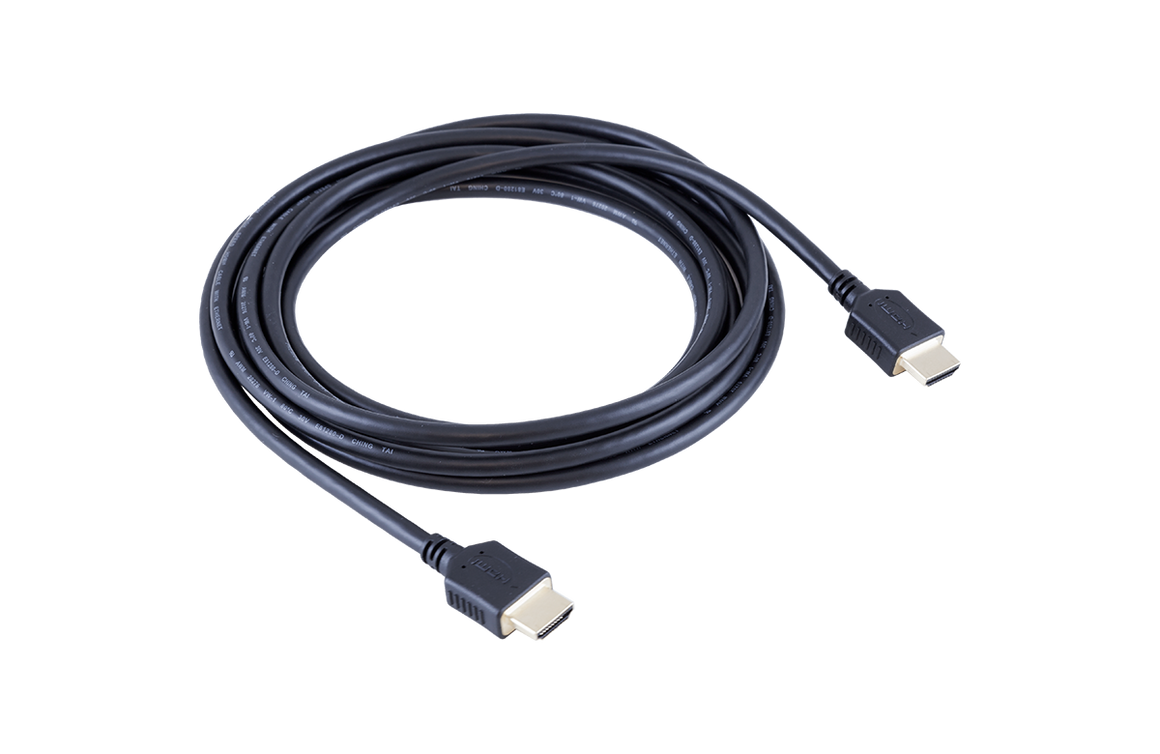

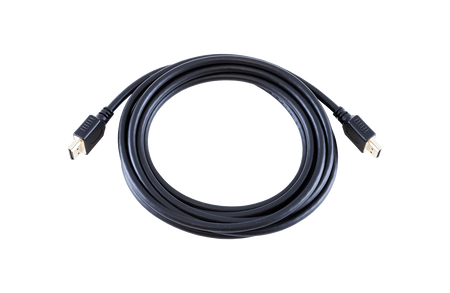

Lightware CAB-HDMI20-PHS0300P 3m HDMI 2.0b Cable

Lightware

3m Premium High Speed HDMI 2.0b cable

The CAB-HDMI20-PHS500P is a premium 3-metre High-Speed HDMI 2.0b cable, delivering full 4K60 4:4:4 video with HDR, Dolby Vision, and multi-channel audio for professional AV installations.

Key Features

  • High Bandwidth: Supports up to 18Gbps for uncompressed UHD video and high-quality audio.
  • HDR & Dolby Vision: Full support for HDR10, Dolby Vision, and HLG video formats.
  • Immersive Audio: Dolby TrueHD, DTS-HD Master Audio, and Dolby Atmos compatibility.
  • CEC, ARC & HEC: Enables control, audio return, and HDMI Ethernet Channel functions.
  • Durable Construction: Gold-plated connectors, reinforced PVC jacket, and robust shielding.

The CAB-HDMI20-PHS500P is ideal for professional AV environments requiring high-fidelity video and audio over short to medium distances, perfect for studios, meeting rooms, and high-end AV installations in corporate and public sector.

In stock
£28.80

Secure checkout

Friendly support

Hassle-free returns

The Lightware CAB-HDMI20-PHS300P  is a premium 3m High-Speed HDMI 2.0b cable. Engineered for professional AV installations, it delivers up to 18 Gbps bandwidth, supporting 4K60 4:4:4 video, HDR10, Dolby Vision, HLG, and multi-channel audio formats including Dolby TrueHD, DTS-HD Master Audio, and Dolby Atmos. The cable also supports CEC, ARC, and HDMI Ethernet Channel (HEC) control, with a robust shielding design providing enhanced durability and EMI protection for reliable performance.

Key Features

  • High Bandwidth: Up to 18 Gbps for uncompressed UHD video and high-bitrate audio.
  • HDR & Advanced Video: Supports HDR10, Dolby Vision, HLG, and full 4K60 4:4:4 colour sampling.
  • Audio Compatibility: Dolby TrueHD, DTS-HD Master Audio, and Dolby Atmos support.
  • Control Support: CEC, Audio Return Channel (ARC), and HDMI Ethernet Channel (HEC).
  • Robust Construction: Gold-plated connectors, flexible PVC jacket, and enhanced EMI shielding.
  • Professional-Grade: Reliable signal integrity, with bending radius 22.8 mm and pulling force up to 12 kg.
  • Durable and Safe: Copper 30 AWG core, PVC UL VW-1 flammability rating, RoHS and REACH compliant.

Specifications

HDMI Standard 2.0b (18 Gbps)
Video Format Up to 4096×2160@60Hz RGB 4:4:4
Audio Support Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos
Control CEC, ARC, HEC, HDCP 2.3, EDID, DDC
Connector HDMI Type A Plug, gold-plated
Colour Black
Outer Diameter 5.7 mm
Jacket Flexible PVC
Bending Radius 22.8 mm
Core Material Copper, 30 AWG
Operating Temperature 0 °C to 50 °C
Humidity 0–80 % RH
Pulling Force 12 kg
Mating Durability 10,000 cycles
Compliance RoHS, REACH, PVC UL VW-1
