SKU: 13750090

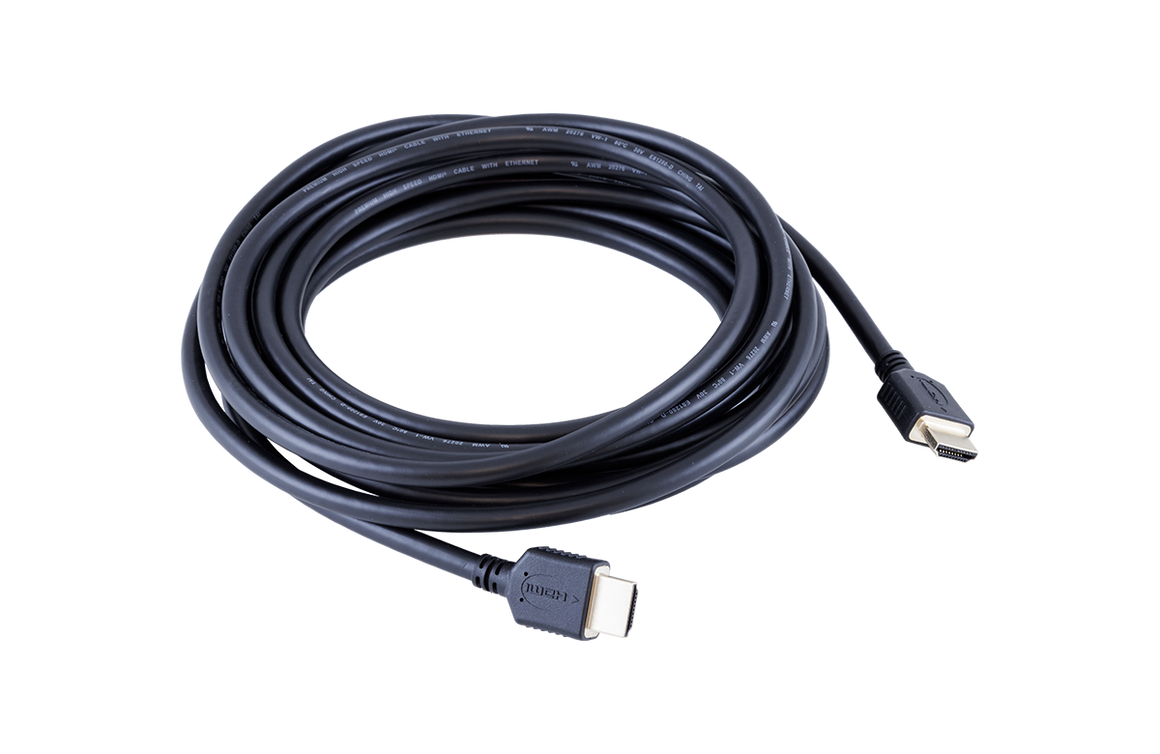

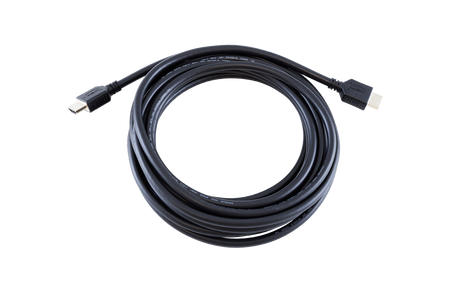

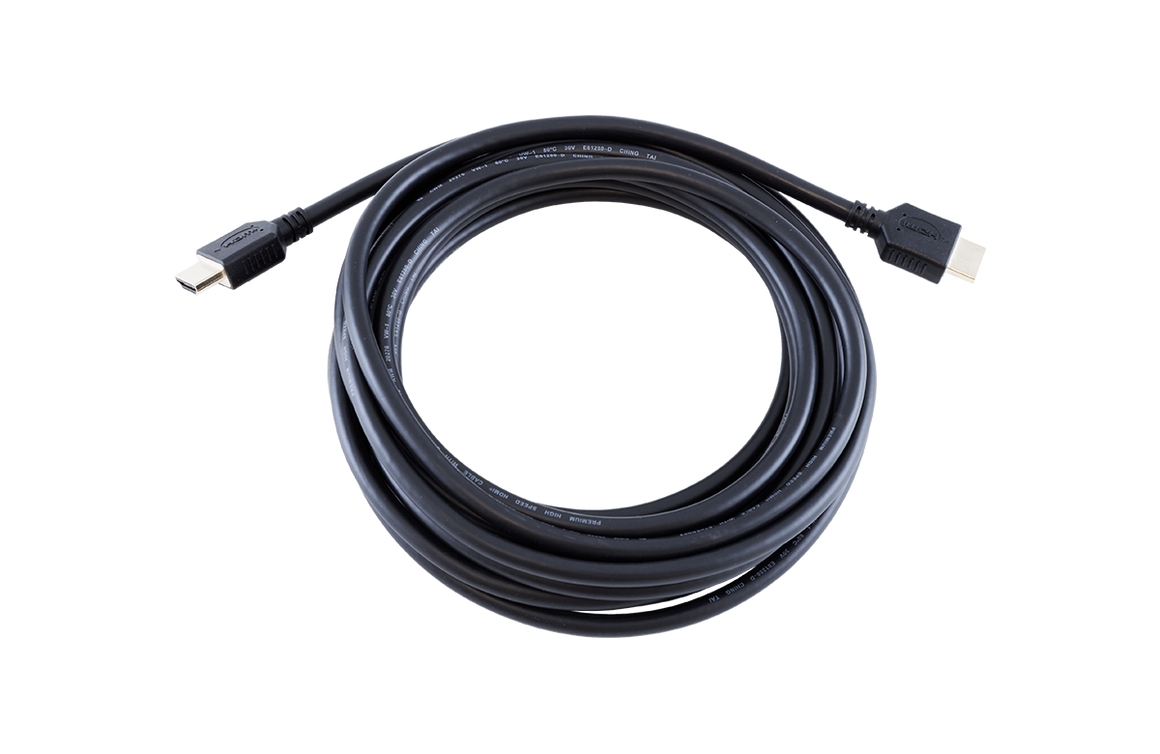

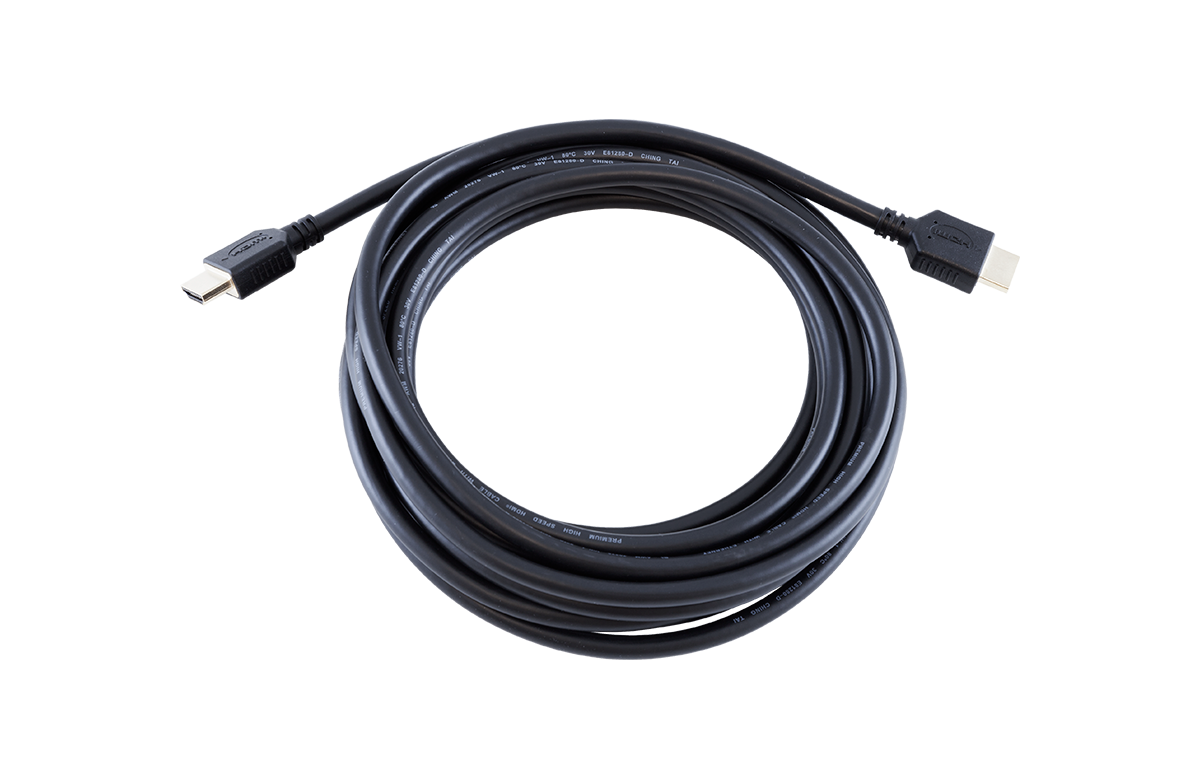

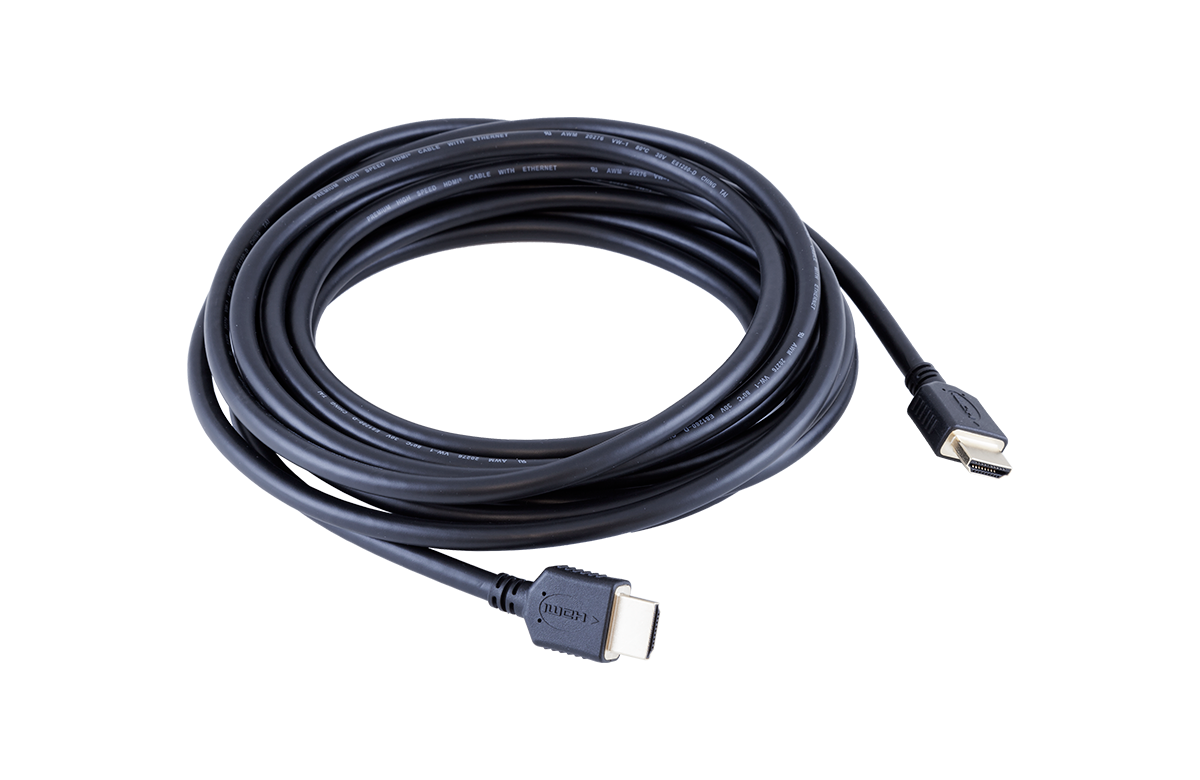

Lightware CAB-HDMI20-PHS0500P 5m HDMI 2.0b Cable

Lightware

5m Premium High Speed HDMI 2.0b cable

The CAB-HDMI20-PHS700P is a premium 5-metre High-Speed HDMI 2.0b cable, delivering uncompressed 4K60 4:4:4 video, HDR, and multi-channel audio with robust shielding for professional AV applications.

Key Features

  • High Bandwidth: Supports up to 18Gbps for uncompressed UHD video and high-bitrate audio.
  • HDR & Dolby Vision Support: Enables HDR10, Dolby Vision, and HLG video formats.
  • Audio Support: Dolby TrueHD, DTS-HD Master Audio, and Dolby Atmos.
  • CEC, ARC & HEC: Full HDMI control, Audio Return Channel, and Ethernet connectivity.
  • Durable Build: Gold-plated connectors, Kevlar reinforcement, and PVC jacket.

The CAB-HDMI20-PHS700P is perfect for professional AV installations, including corporate and public sector, where uncompromised video and audio quality over short to medium distances is essential.

In stock
£48.00

Secure checkout

Friendly support

Hassle-free returns

The Lightware CAB-HDMI20-PHS500P is a premium 5m High-Speed HDMI 2.0b cable. It supports video resolutions up to 4K60 4:4:4 with HDR10, Dolby Vision, and HLG, as well as high-quality audio formats including Dolby TrueHD, DTS-HD Master Audio, and Dolby Atmos. With support for Consumer Electronics Control (CEC), Audio Return Channel (ARC), and HDMI Ethernet Channel (HEC), this cable ensures reliable connectivity and performance. Its robust shield design provides enhanced EMI protection, making it ideal for professional AV installations.

Key Features

  • High Bandwidth: Supports up to 18Gbps for uncompressed UHD video and high-bitrate audio.
  • HDR & Advanced Video Support: Compatible with HDR10, Dolby Vision, and HLG video formats.
  • 4K60 4:4:4 Video: Supports up to 4096x2160 resolution at 60Hz with full RGB 4:4:4 colour sampling.
  • Immersive Audio: Dolby TrueHD, DTS-HD Master Audio, and Dolby Atmos support.
  • CEC, ARC & HEC: Enables control signalling, audio return, and networked HDMI functionality.
  • Robust Shielding: Extra protection against electromagnetic interference (EMI).
  • Durable Construction: Gold-plated connectors, flexible PVC jacket, and reinforced cable design.
  • Professional Reliability: RoHS and REACH compliant, designed for repeated installations.

Specifications

HDMI Standard 2.0b (18Gbps)
Video Resolution Up to 4096x2160@60Hz, RGB 4:4:4
Audio Support Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos
Control & Features CEC, ARC, HEC, EDID, HDCP 2.3
Connector Type HDMI Type A, Gold-Plated
Cable Material Copper 28AWG, PVC jacket, Kevlar reinforcement
Diameter 6.5mm
Bending Radius 26mm
Pulling Force 12kg
Mating Durability 10,000 cycles
Operating Temperature 0–50 °C
Humidity 0–80% RH
Compliance RoHS, REACH, PVC UL VW-1
