SKU: 91560007

Lightware MMX2-4x1-H20 HDMI 2.0 Switcher

Lightware

HDMI 2.0 switcher with audio de-embedding and occupancy sensor integration

The Lightware MMX2-4x1-H20 is a compact HDMI 2.0 matrix switcher with four inputs and one output, supporting uncompressed 4K60 4:4:4 video, audio de-embedding, and secure corporate Ethernet integration.

Key Features

  • 4x1 HDMI Matrix Switching: Route four inputs to one output at up to 18Gbps.
  • Audio De-embedding: Extract audio to balanced Phoenix connectors with adjustable volume.
  • Secure Network Integration: SSL and HTTPS support for IT-compliant installations.
  • Automated Room Control: GPIO, RS-232, and occupancy sensor support.
  • Silent Fanless Design: Reliable passive cooling for professional environments.

The MMX2-4x1-H20 is designed for corporate and public sector AV setups requiring reliable switching, audio flexibility, and secure control integration.

In stock
£892.80

Secure Checkout

Warranty Protection

Hassle-Free Returns

The Lightware MMX2-4x1-H20 is a compact HDMI 2.0 matrix switcher designed for modern collaboration spaces. It allows seamless switching between in-room computers and BYOD devices, supporting video and audio up to 4K60 4:4:4. With breakout audio, occupancy sensor input, and multiple control options, it delivers both performance and flexibility. Secure corporate Ethernet integration ensures compliance with IT standards, while fanless cooling and audio de-embedding make it ideal for professional AV environments.

Key Features

  • 4x1 HDMI Matrix Switching: Four HDMI inputs to one independent HDMI output with support for 4K60 4:4:4.
  • Audio De-embedding: Extract audio to balanced Phoenix (Euroblock) outputs with adjustable volume.
  • Occupancy Sensor Input: Enables automated room control features.
  • Secure Network Integration: SSL and HTTPS support for IT-compliant installations.
  • Multiple Control Options: RS-232, GPIO, Ethernet, and Lightware Device Controller software.
  • Uncompressed HDMI 2.0 Transmission: Up to 18Gbps with HDCP 2.2 compliance.
  • Fanless Design: Silent and reliable for professional installations.
  • Compact Housing: Fits seamlessly into corporate and education environments.

Specifications

Video Resolution Up to UHD/4K@60Hz 4:4:4
Signal Type HDMI 2.0, HDMI 1.x, DVI
Maximum Data Rate 18Gbps
Pixel Clock 600 MHz
Content Protection HDCP 1.x, HDCP 2.2

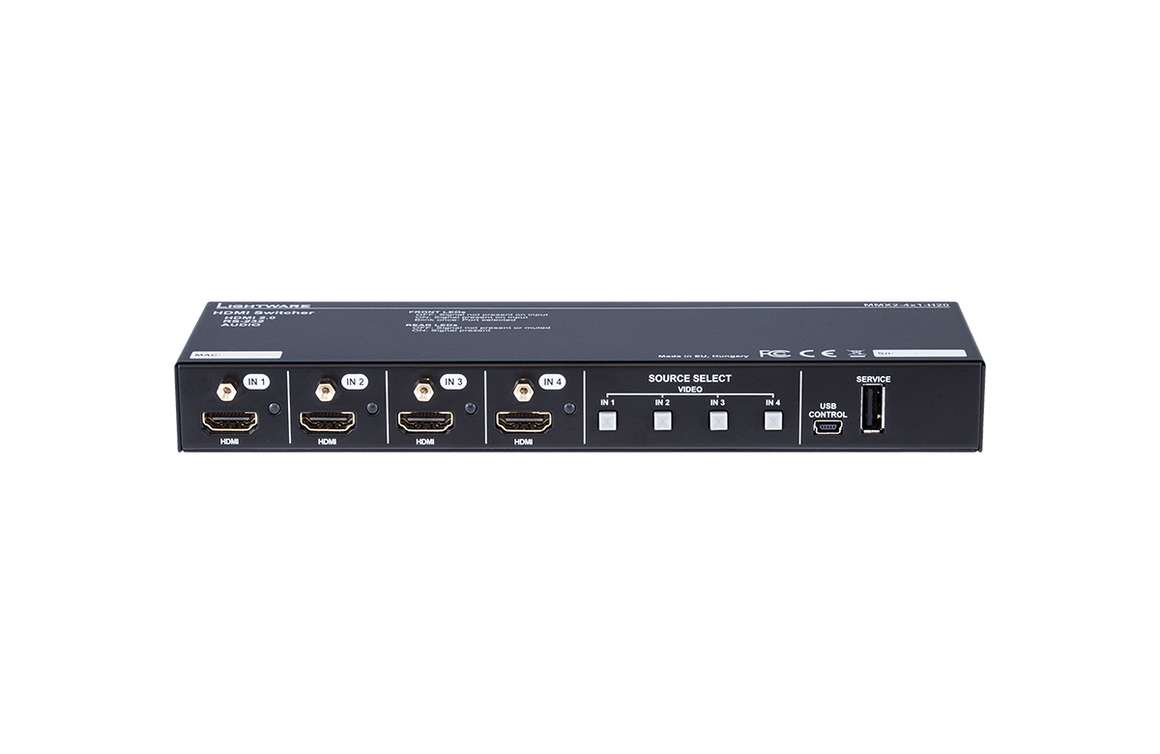

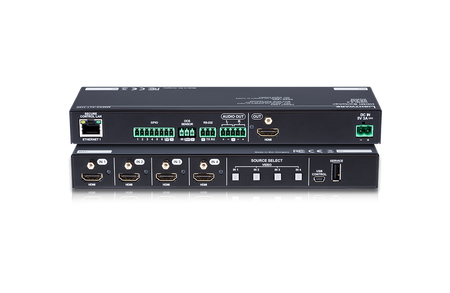

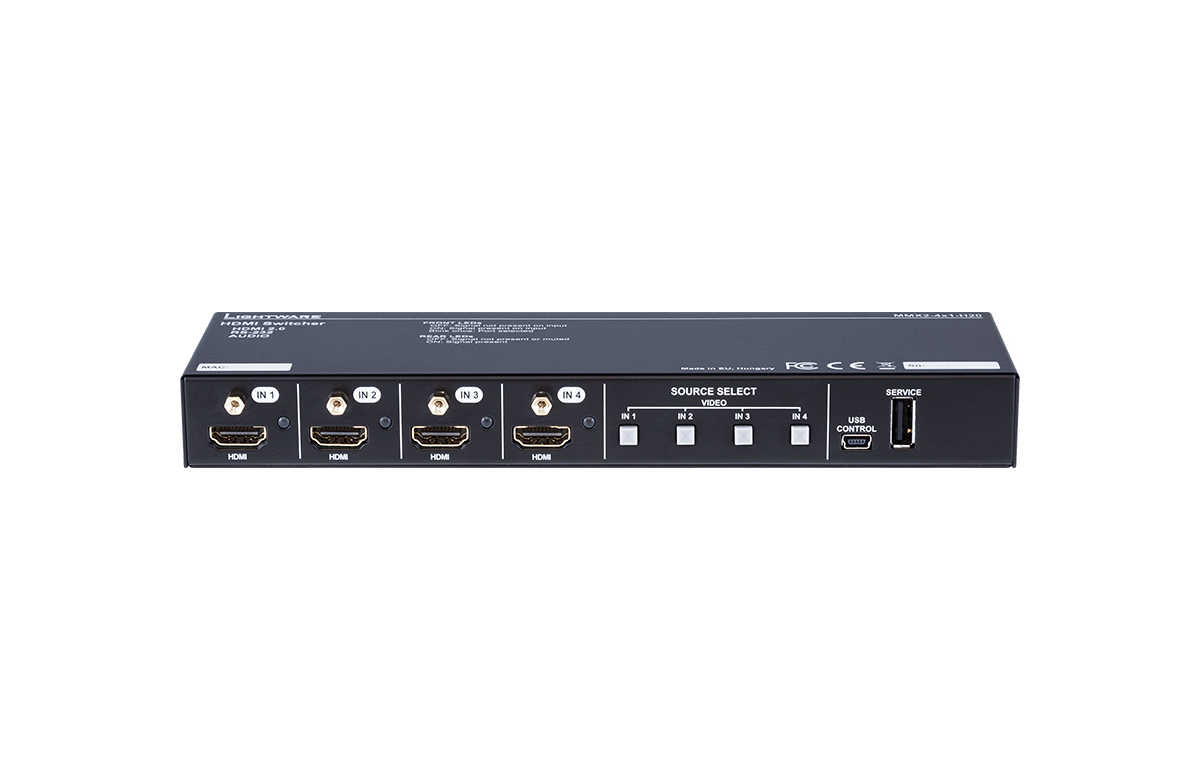

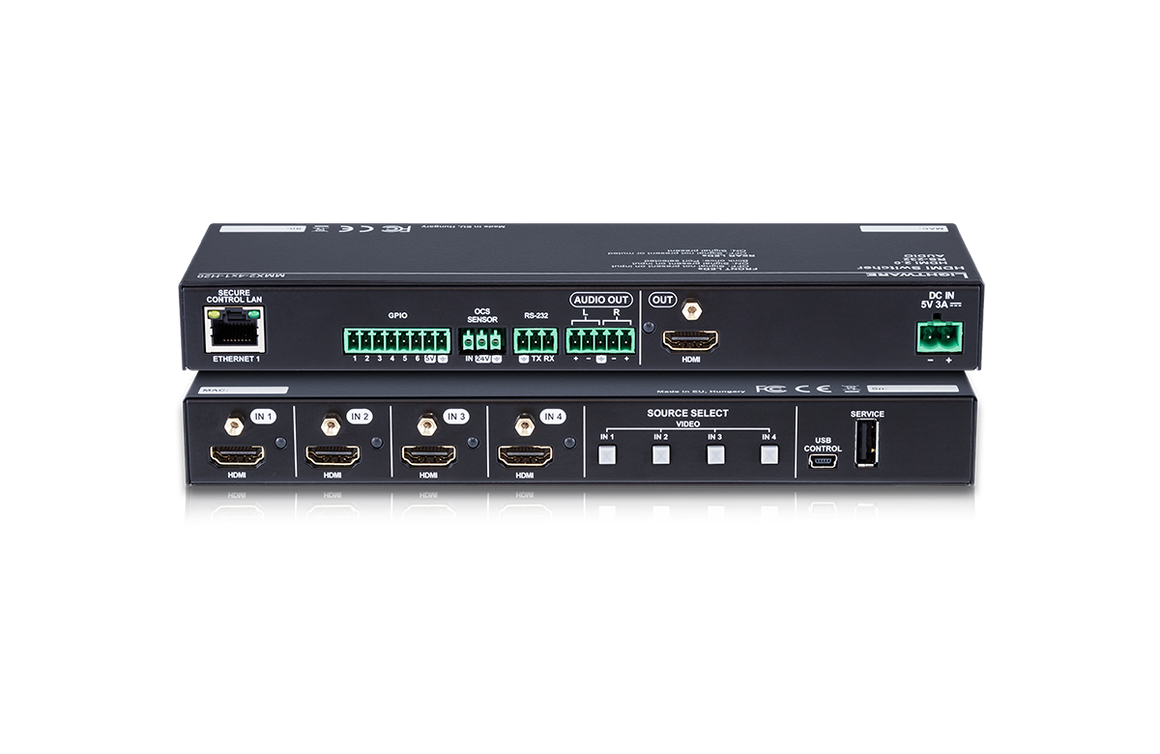

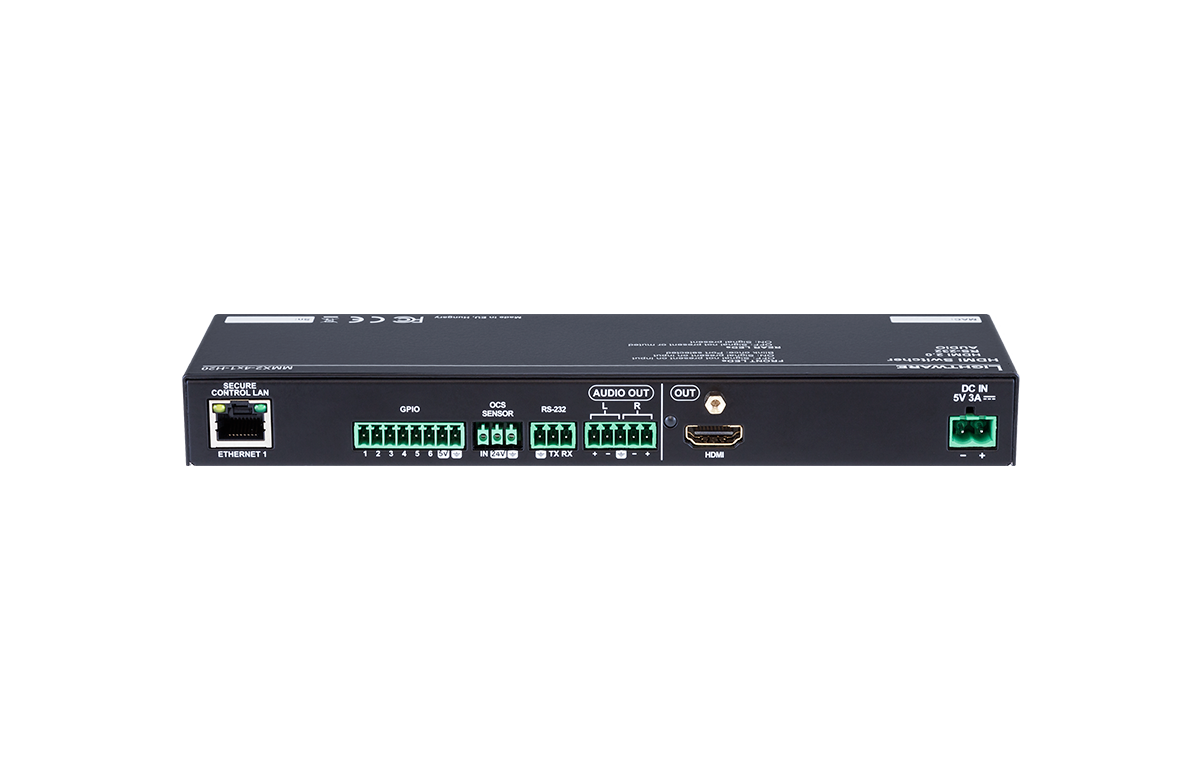

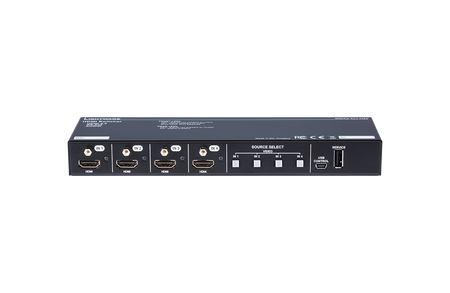

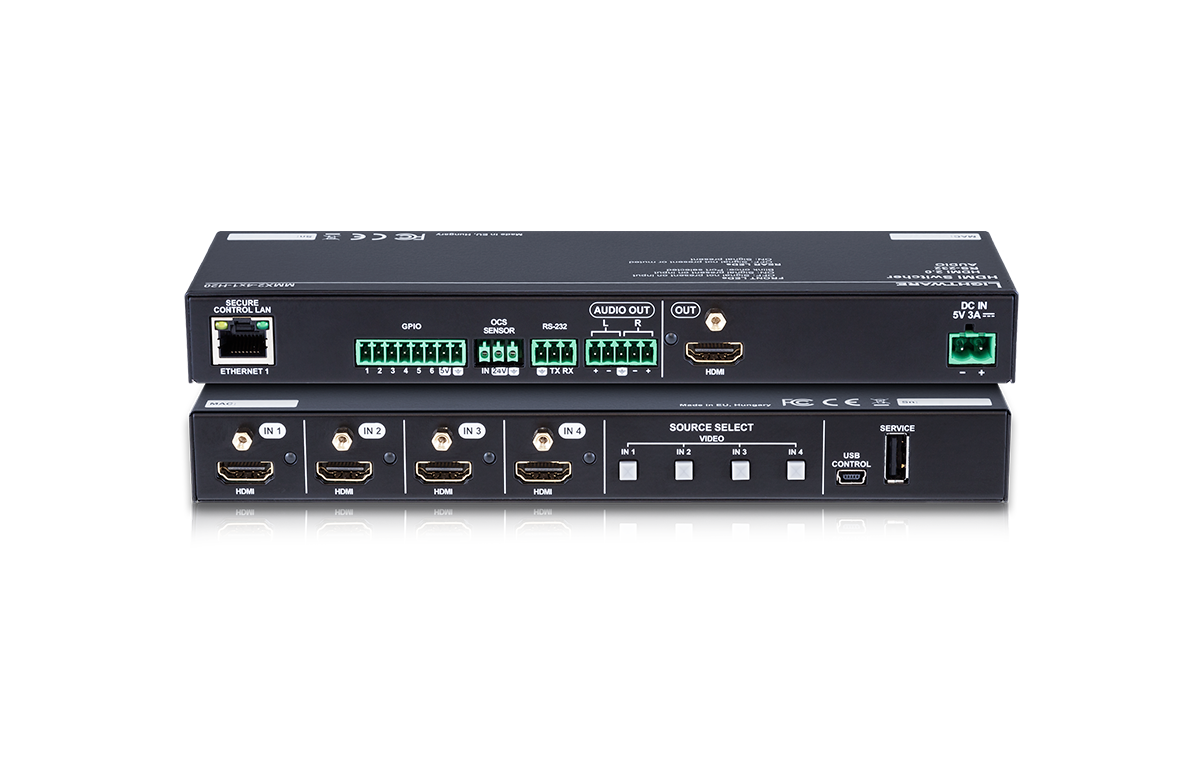

Inputs 4 × HDMI Type A with screw locking
Outputs 1 × HDMI Type A with screw locking
Audio Pass-through & de-embedding (LPCM up to 2 channels)

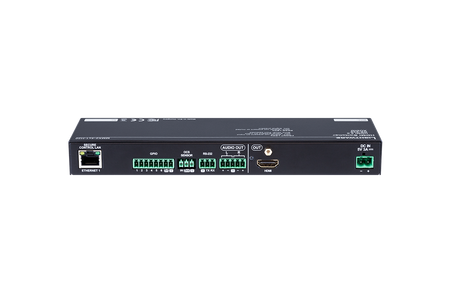

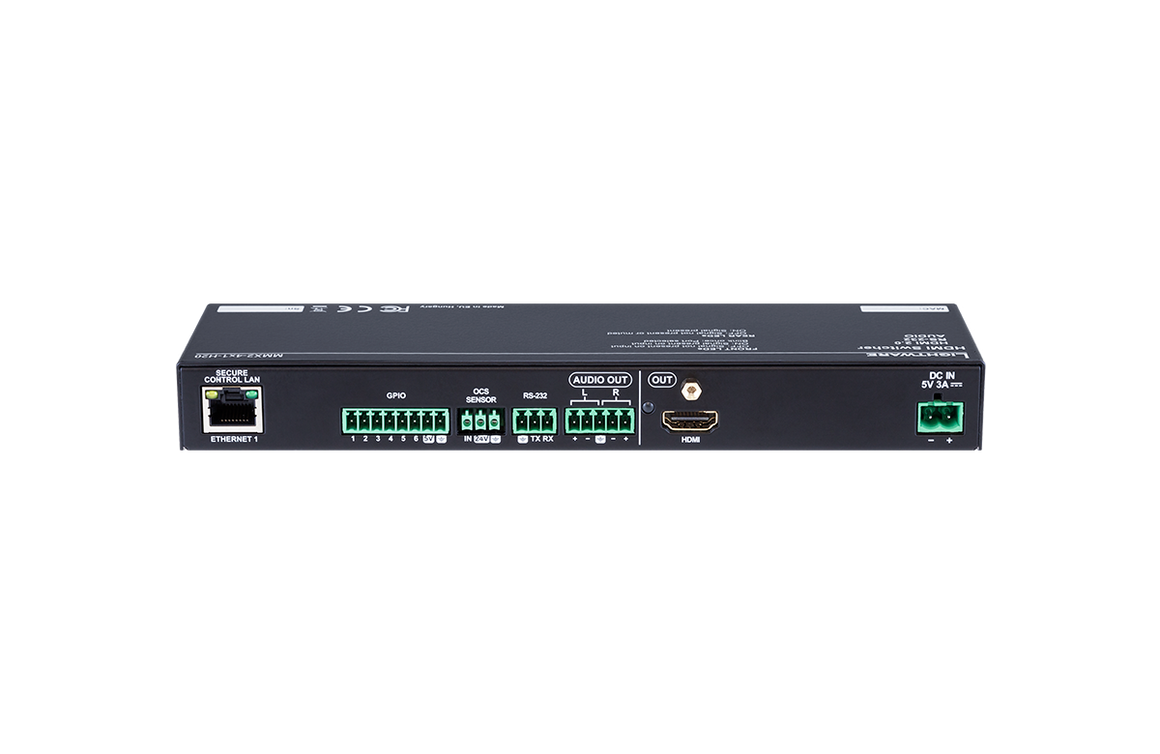

Ethernet Control 1 × 100Base-T RJ-45 (Secure Control)
RS-232 1 × 3-pin Phoenix, 9600–115200 baud
GPIO 8-pin Phoenix
Occupancy Sensor 3-pin Phoenix (24V)
USB 1 × Mini USB Type B (service), 1 × USB Type A (future use)
Power External 5V/3A adaptor

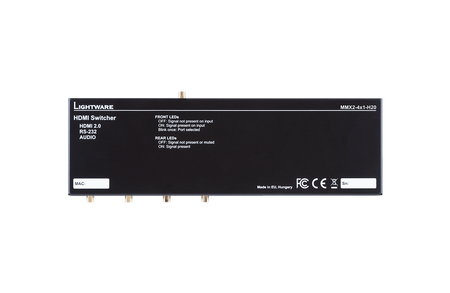

Dimensions 221 × 26 × 68 mm
Operating Conditions 0–50 °C, 0–90% RH (non-condensing)
Transportation Conditions -20–70 °C, 0–95% RH (non-condensing)
Compliance EN 55032, IEC 61000, FCC
Warranty 3 years
