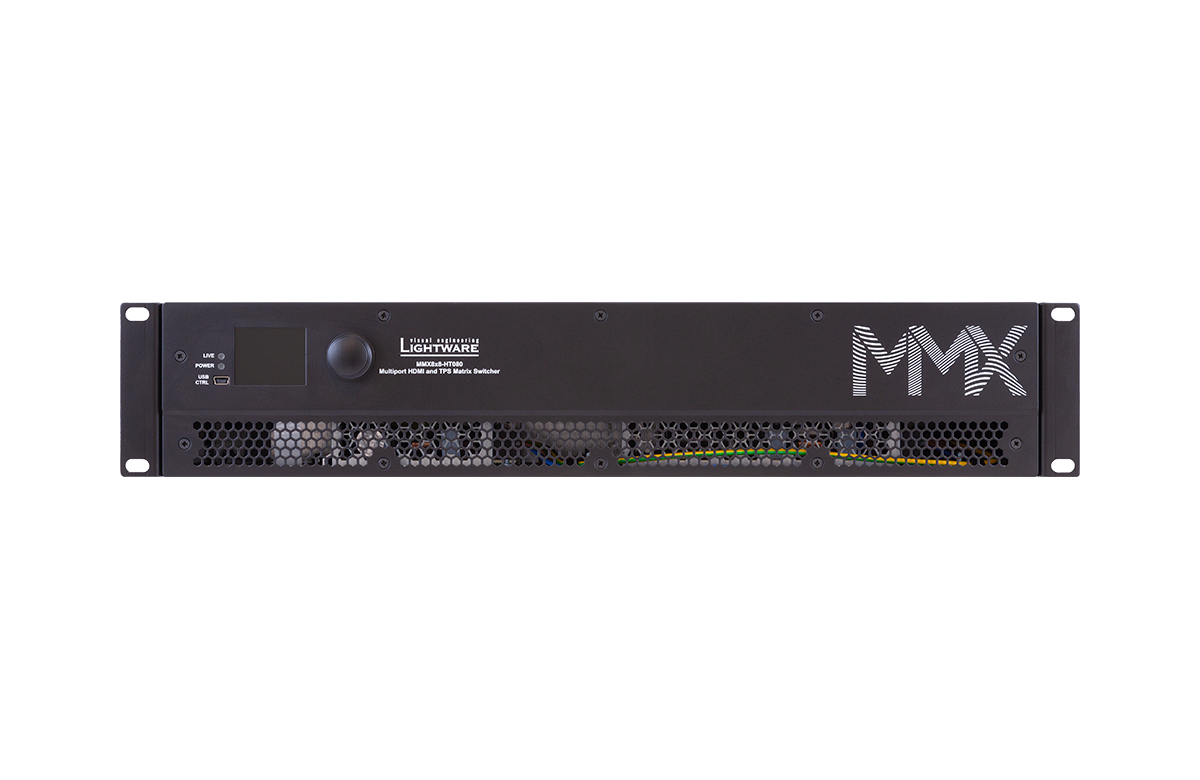

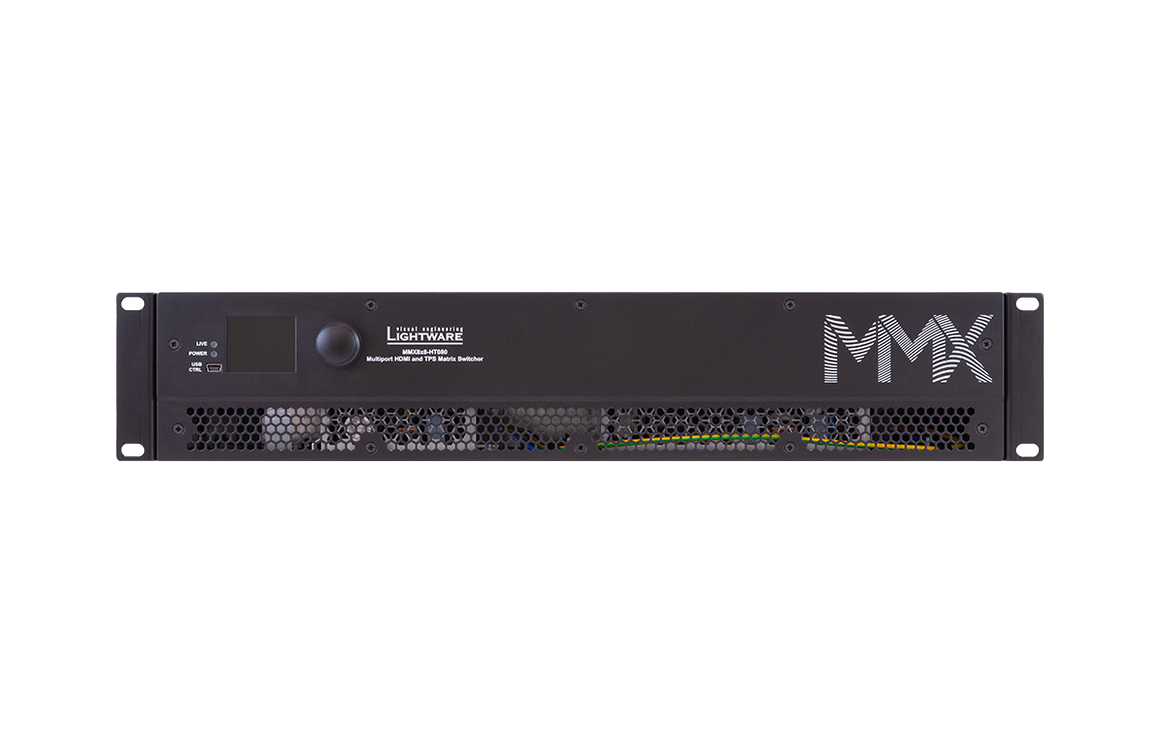

Black electronic equipment with 'Lightware' and 'MMX' branding on a white background

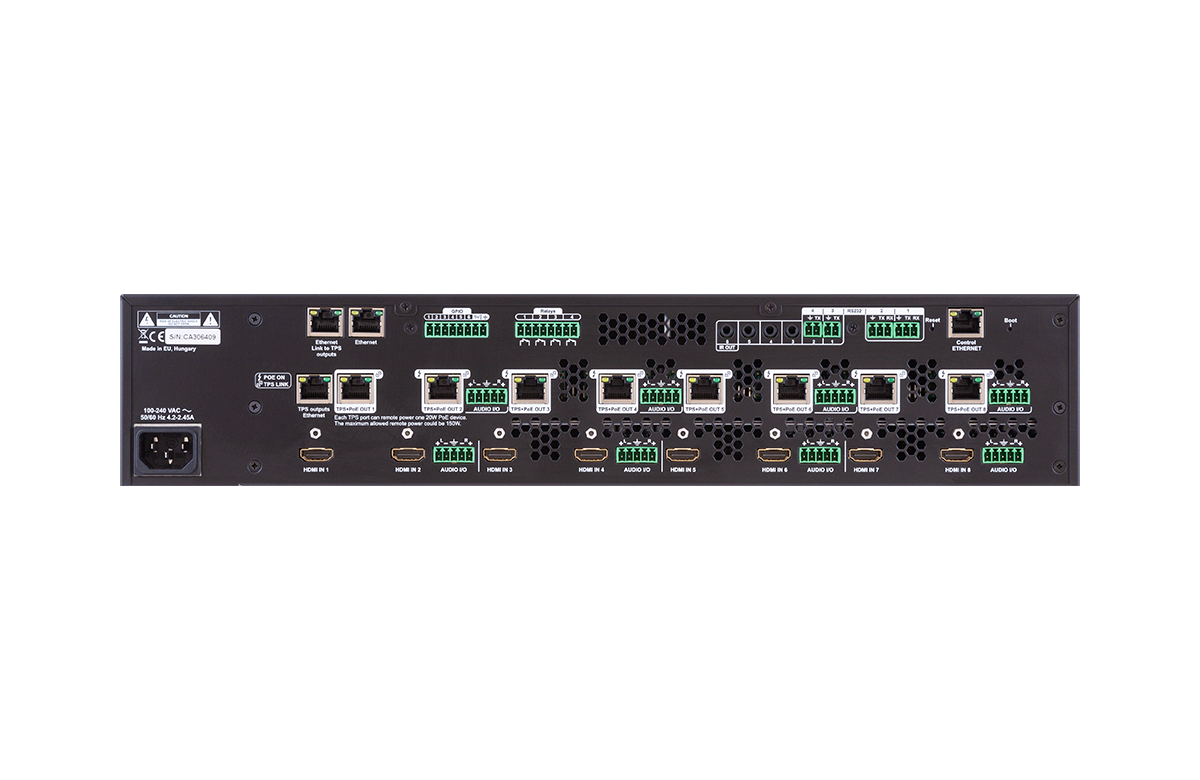

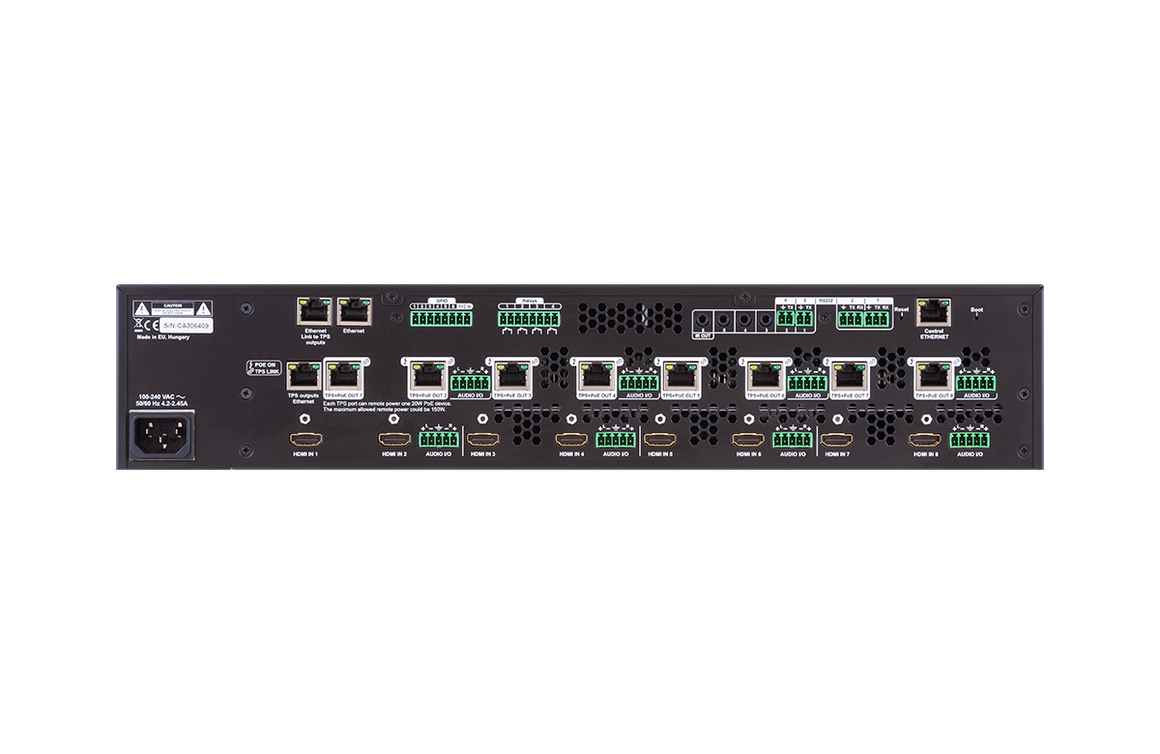

Back view of a network switch with multiple ports on a white background

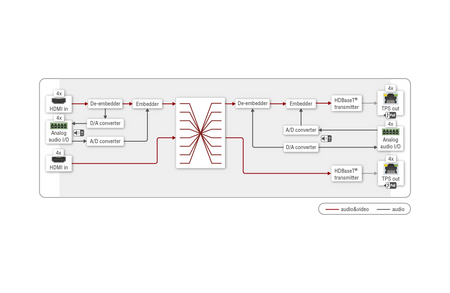

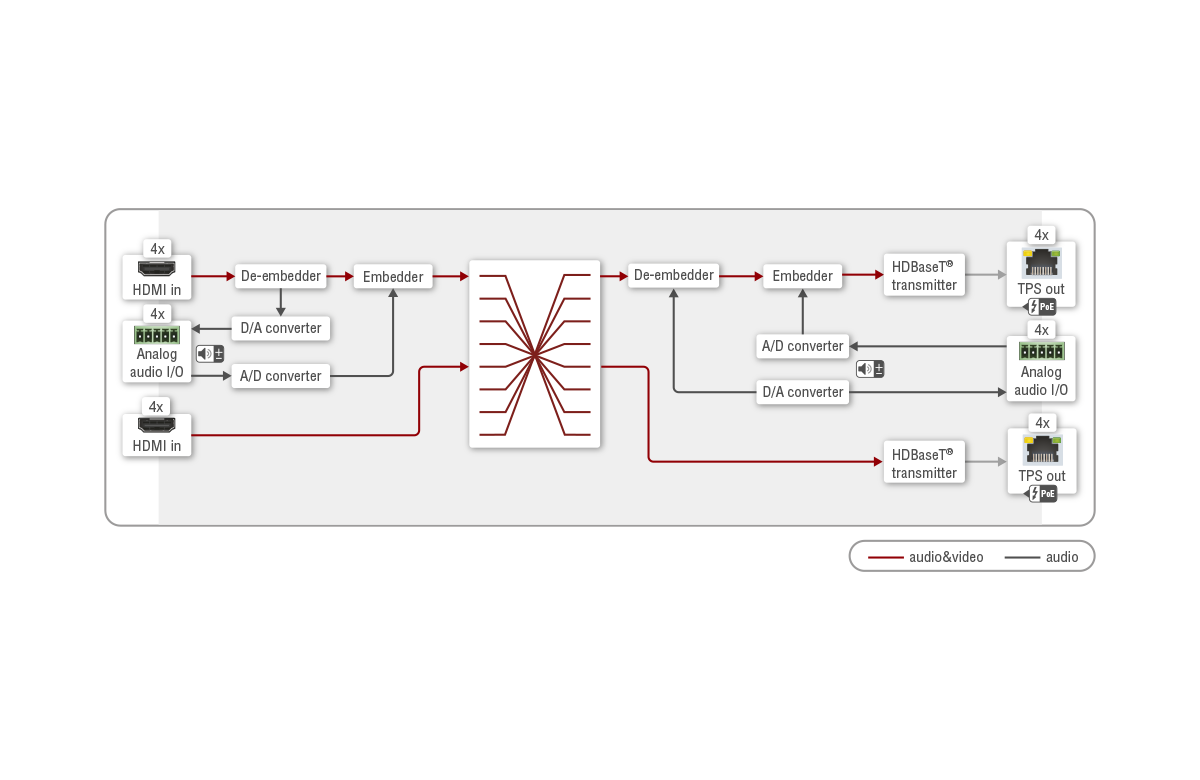

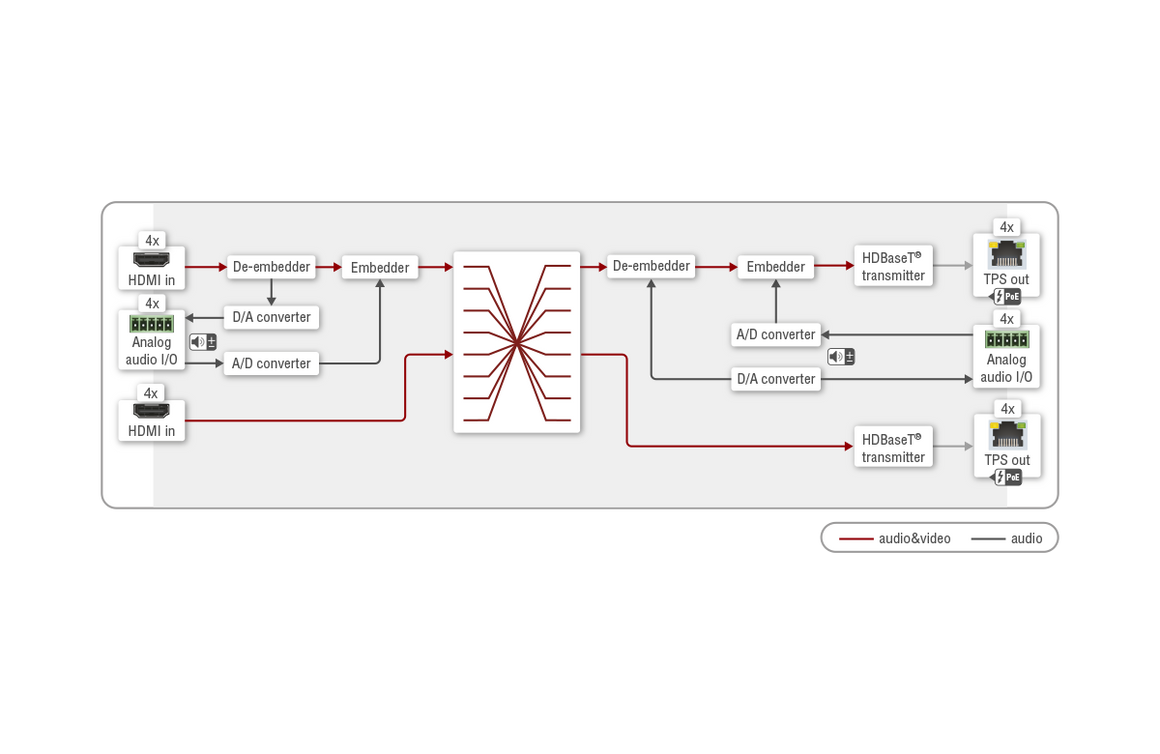

Diagram of a video and audio signal flow with various connectors and labels on a white background.
Black electronic equipment with 'Lightware' and 'MMX' branding on a white background
Back view of a network switch with multiple ports on a white background
Diagram of a video and audio signal flow with various connectors and labels on a white background.
SKU: 91310087

Lightware MMX8x8-HT080 8x8 HDMI/TPS Matrix Switcher

Lightware

8x8 HDMI and TPS matrix switcher with 4K/UHD support, balanced audio, and long-distance signal extension.

The Lightware MMX8x8-HT080 is a professional 8x8 HDMI and TPS matrix switcher designed for conference rooms, offering 4K/UHD video support, long-distance transmission, and flexible audio integration.

Key Features

  • 8x8 Matrix Switching: Eight HDMI inputs and eight TPS2 outputs for versatile AV routing.
  • 4K / UHD Support: Up to 4K30 RGB 4:4:4 or 4K60 YCbCr 4:2:0 with 3D and HDCP compliance.
  • Long-Distance Extension: Up to 170m signal transmission over CAT7 cable with TPS Long Reach mode.
  • Balanced Audio Integration: Configurable Phoenix connectors allow audio embedding and de-embedding.
  • Advanced Control Options: RS-232, Ethernet, USB, IR, GPIO, and Event Manager automation.

The Lightware MMX8x8-HT080 is an ideal solution for professional AV environments where reliable 4K distribution, flexible audio management, and centralised control are essential, perfect for corporate and public sector.

In stock
£8,035.20

Secure Checkout

Warranty Protection

14 - Day Returns

The Lightware MMX8x8-HT080 is a standalone HDMI and TPS matrix switcher designed specifically for conference room environments. With eight HDMI inputs and eight TPS2 outputs, it supports 4K/UHD video (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0), 3D, and HDCP, delivering flexible and professional-grade signal management. Featuring advanced EDID management, balanced analogue audio ports, built-in PoE, and long-distance transmission up to 170m over a single CAT6 cable, this matrix ensures reliable and high-quality AV distribution. Control is provided via RS-232, Ethernet, USB, or the built-in Event Manager automation system, with compatibility for HDBaseT devices and major control platforms.

Key Features

  • 8x8 Matrix Switching: Eight HDMI inputs and eight TPS2 (HDBaseT) outputs for versatile AV routing.
  • 4K / UHD Support: Up to 4096x2160 @30Hz (RGB 4:4:4) or 60Hz (YCbCr 4:2:0) with full 3D and HDCP compliance.
  • Extended Transmission: Up to 170m over CAT6/7 cable with Long Reach TPS mode.
  • Balanced Analogue Audio: Eight 5-pole Phoenix connectors configurable as inputs or outputs.
  • PoE Capability: 48V remote powering of connected TPS2 devices for simplified installations.
  • Advanced EDID Management: Force resolution and lock output format to meet system requirements.
  • Comprehensive Control: RS-232, Ethernet, USB, IR, GPIO, and built-in Event Manager automation.
  • Signal Integrity: Pixel Accurate Reclocking with zero latency and no video compression.
  • Flexible Integration: Compatible with HDBaseT extenders and displays, Crestron, and Barco platforms.
  • Compact & Robust: Fanless design with mounting options for rack, furniture, or truss installations.

Specifications

Video Inputs 8 × HDMI
Video Outputs 8 × TPS2 (HDBaseT)
Maximum Resolution 4096x2160 @30Hz RGB 4:4:4 / 3840x2160 @60Hz YCbCr 4:2:0
Audio Connectivity 8 × Balanced 5-pole Phoenix (configurable input/output)
Extension Distance Up to 170m over CAT7 (1080p, Long Reach mode)
Control Interfaces RS-232, Ethernet (TCP/IP), USB, IR, Relay, GPIO
Event Manager Built-in automation feature for system-wide control
PoE Support 48V PoE on all TPS2 outputs
Compliance HDMI 1.4, HDCP 1.4, DVI 1.0
Power Consumption 108W (max)
Mounting Options Rack, furniture, or truss mounting
