SKU: 91120041

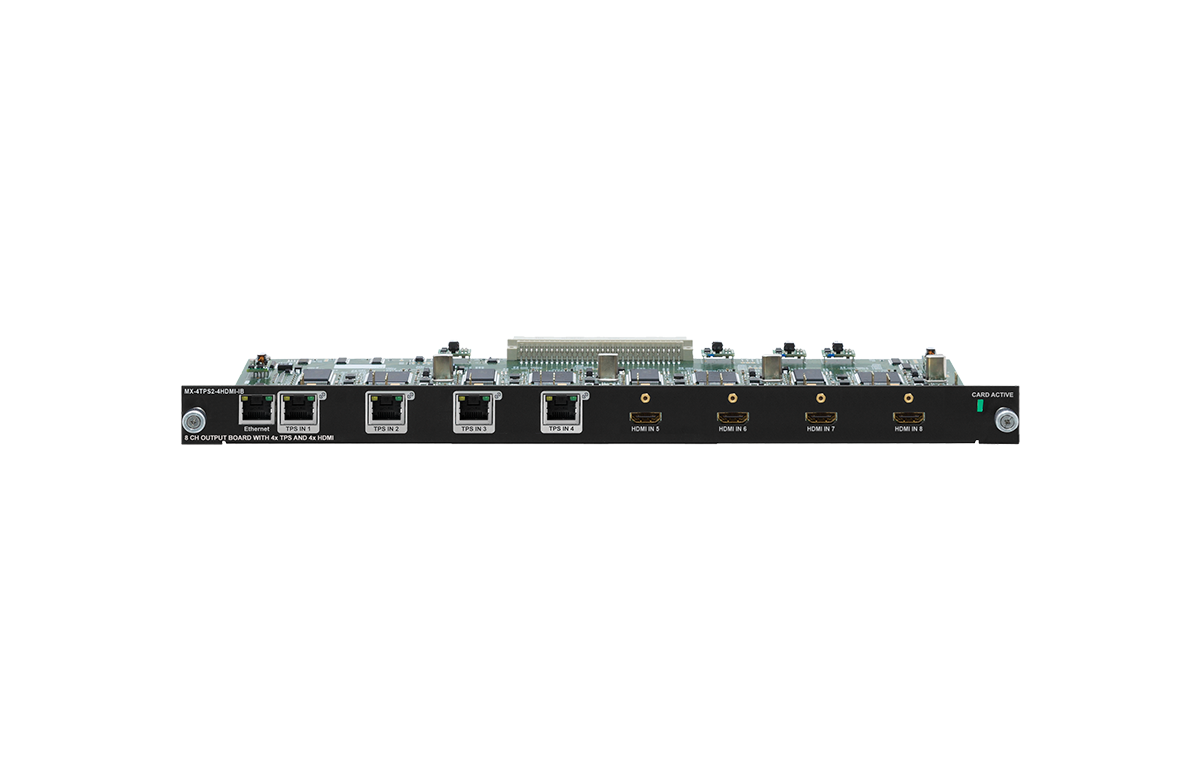

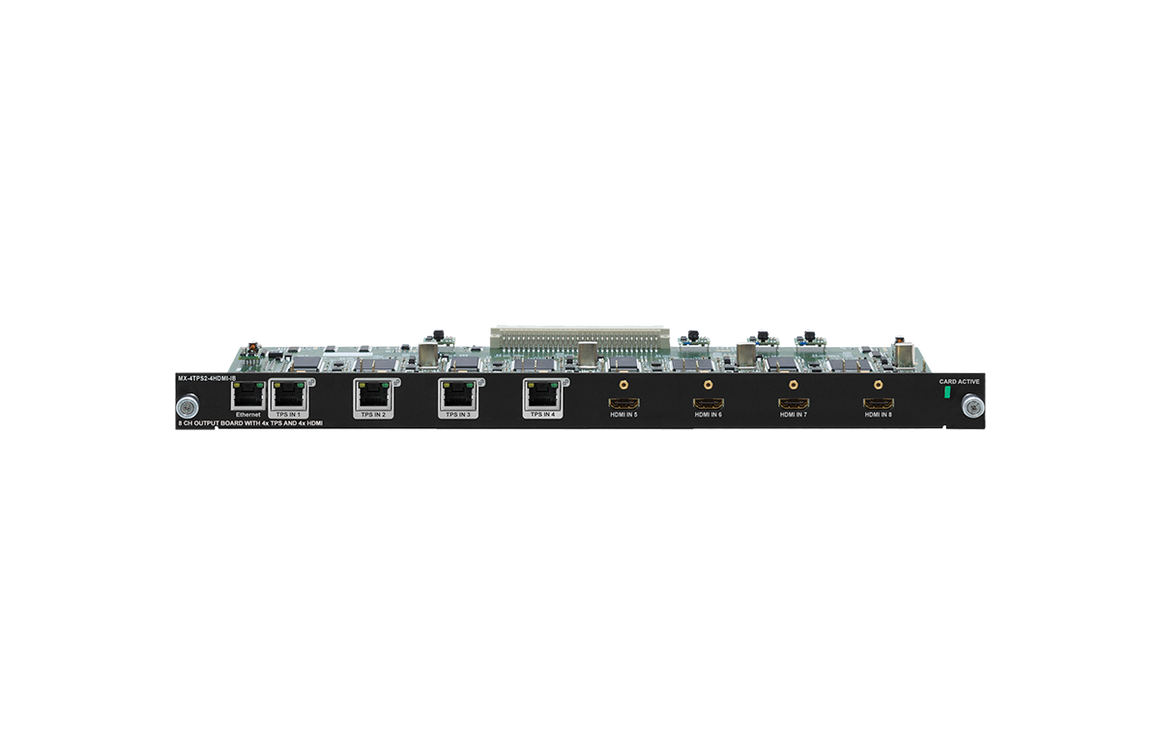

Lightware MX-4TPS2-4HDMI-IB TPS and HDMI Combo Input Board for Ethernet, Audio, and Control

Lightware

High-performance HDMI & HDBaseT™ combo input board with audio, Ethernet, and RS-232 extension for professional AV systems.

The Lightware MX‑4TPS2-4HDMI-IB is a combination input board with four HDMI and four HDBaseT™ inputs, supporting HDMI 1.4, audio, Ethernet, and RS-232 extension for professional AV installations.

Key Features

  • High-Resolution Support: 4K/UHD, 1080p @ 120 Hz, and 3D signals handled with Pixel Accurate Reclocking.
  • Audio Handling: Embedded HDMI audio, optional analog stereo or S/PDIF add-ons, supporting all standard formats.
  • Extended Transmission: HDBaseT™ up to 120 m, Long Reach mode up to 170 m over CAT5/6/7 cables.
  • Control & Automation: Bi-directional RS-232 and Ethernet extension with uplink port for networked AV control.
  • Professional Features: Advanced EDID Management, Frame Detector, HDCP enable/disable, deep colour, Dolby TrueHD, and DTS-HD audio support.

The MX‑4TPS2-4HDMI-IB is ideal for professional AV environments requiring flexible video input options, robust audio management, and long-distance transmission over a single CAT cable, perfect for corporate and public sector.

In stock
£6,134.40

Secure Checkout

Warranty Protection

Hassle-Free Returns

The Lightware MX‑4TPS2-4HDMI-IB is a combination input board offering four HDMI and four HDBaseT™ single CAT inputs, providing HDMI 1.4, audio, Ethernet, and RS-232 extension over a single CAT5/6/7 cable. Supporting HDBaseT™ transmission up to 120 m and Long Reach mode up to 170 m, it enables 4K/UHD (30 Hz RGB 4:4:4, 60 Hz YCbCr 4:2:0), 1080p @ 120 Hz, and 3D signal formats. Advanced features include Pixel Accurate Reclocking, HDCP enable/disable, Advanced EDID Management, Frame Detector, and compatibility with deep colour, Dolby TrueHD, and DTS‑HD audio.

Key Features

  • Mixed Input Board: Four HDMI and four HDBaseT™ inputs for maximum AV flexibility.
  • High-Resolution Support: 4K/UHD at 30 Hz RGB 4:4:4 or 60 Hz YCbCr 4:2:0, 1080p @ 120 Hz, and 3D signals.
  • Audio Handling: HDMI embedded audio, optional analog stereo or S/PDIF add-ons, compatible with all HDMI audio formats.
  • Extended Transmission: HDBaseT™ up to 120 m, Long Reach mode up to 170 m over CAT5/6/7 cables.
  • Control & Automation: Bi-directional RS-232 and Ethernet extension, uplink Ethernet (10/100 Mbps), and compatible with networked AV control systems.
  • Advanced Professional Features: Pixel Accurate Reclocking, Advanced EDID Management, Frame Detector, HDCP enable/disable, and deep colour support.
  • High Compatibility: Supports HDMI 1.4, DVI, HDCP, and all standard video resolutions including UHD and 3D.
  • Flexible Audio Add-ons: Configurations include analog stereo, S/PDIF, PoE-enabled options for extended flexibility.
  • Compact and Reliable: Designed for integration into professional AV routing frames.
  • Enhanced AV Performance: Optimises video quality and ensures system flexibility for complex AV installations.

Specifications

Input Ports 4 × HDMI 1.4, 4 × HDBaseT™ (single CAT5/6/7)
Audio Add-ons None, Analog Stereo, S/PDIF (varies by model)
PoE Support Optional on specific models
Video Resolutions Up to 4K/UHD 30 Hz RGB 4:4:4 / 60 Hz YCbCr 4:2:0; 1080p @ 120 Hz; 2560×1600; 2048×2048; 3D formats
Ethernet 10/100 Mbps, bi-directional via HDMI/TPS; 1 × uplink port
Control Bi-directional RS-232 and Ethernet extension
Professional Features Pixel Accurate Reclocking, Advanced EDID Management, Frame Detector, HDCP enable/disable, Deep Colour, Dolby TrueHD, DTS-HD audio
Max Transmission Distance HDBaseT™: 120 m, Long Reach mode: 170 m
Weight Varies by model
