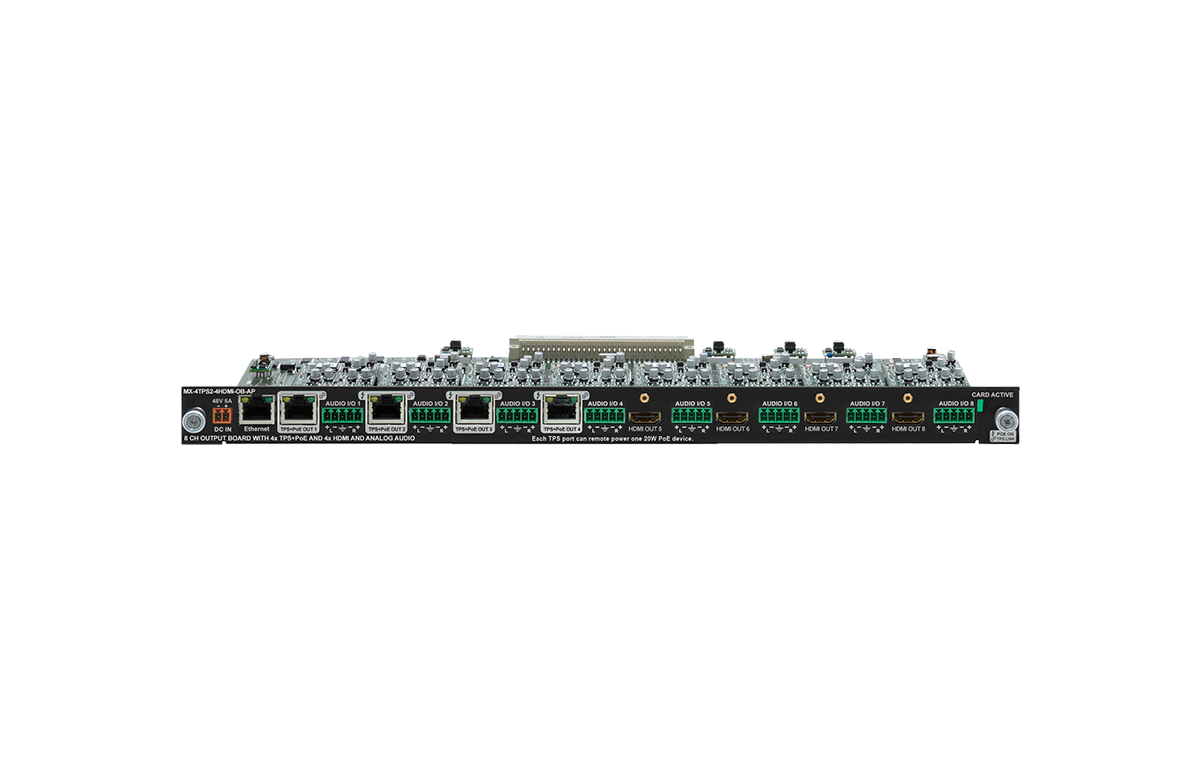

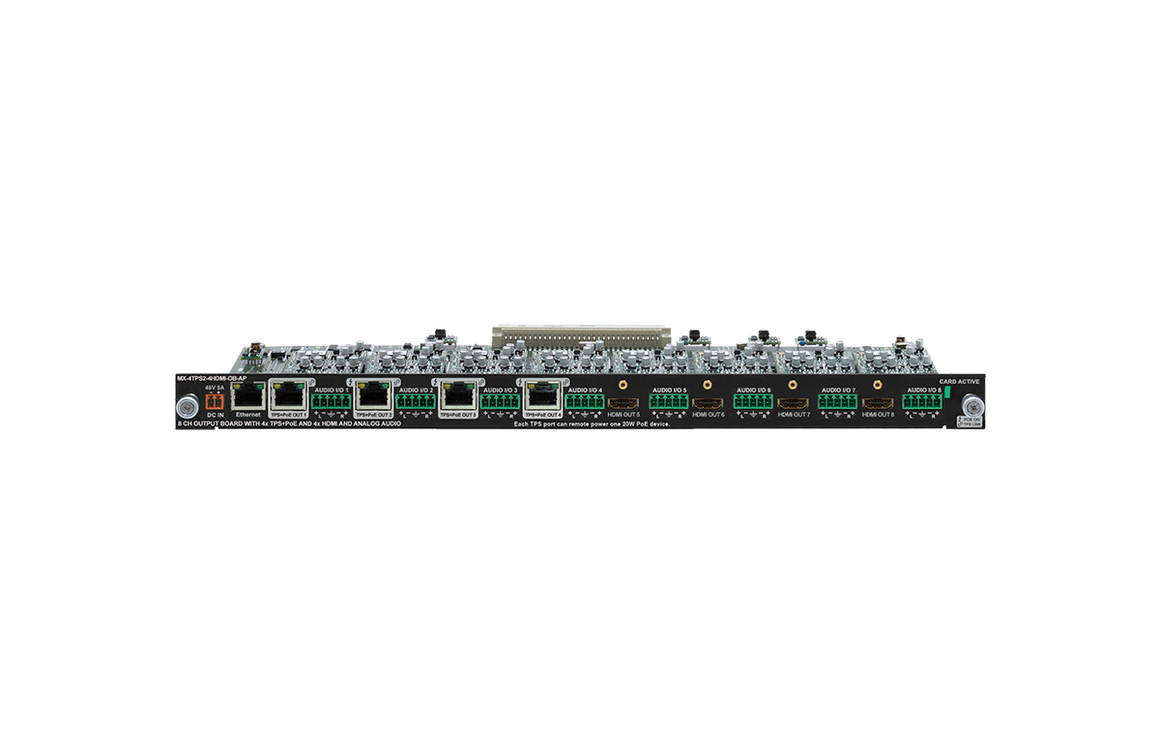

Lightware MX-4TPS2-4HDMI-OB-AP TPS and HDMI Combo Output Board with Analog Audio and PoE

Lightware

HDMI and HDBaseT output board with analogue audio and PoE for Lightware MX matrix switchers.

The Lightware MX-4TPS2-4HDMI-OB-AP is a professional output board for MX series matrix switchers, combining four HDMI and four HDBaseT™ outputs with analogue audio and PoE support for advanced AV integration.

Key Features

  • Hybrid Outputs: Four HDMI and four HDBaseT™ with simultaneous transmission.
  • Extended Range: Up to 120m in HDBaseT™ mode, 170m in Long Reach mode.
  • Analogue Audio: Bi-directional stereo audio with volume and EQ controls.
  • PoE Support: Remote powering with 48V PoE injector compatibility.
  • Advanced Signal Handling: Pixel Accurate Reclocking, EDID Management, Frame Detector.

The MX-4TPS2-4HDMI-OB-AP is ideal for professional AV environments requiring long-distance video transmission with audio integration and PoE, perfect for corporate, public sector, and large-scale installations.

In stock
£6,134.40

Secure Checkout

Warranty Protection

14 - Day Returns

The Lightware MX-4TPS2-4HDMI-OB-AP is a professional output board designed for Lightware MX series matrix switchers. It features four HDMI 1.4 outputs and four HDBaseT™ outputs, supporting video, audio, Ethernet, and RS-232 extension over a single CAT5/6/7 cable. With transmission distances of up to 120 metres in HDBaseT™ mode and 170 metres in Long Reach mode, it ensures flexible and reliable connectivity for advanced AV installations. This model includes both analogue audio add-on and PoE functionality, making it an ideal solution for corporate, education, and large-scale integration projects.

Key Features

  • Hybrid Output Design: Four HDMI and four HDBaseT™ outputs with simultaneous transmission.
  • Extended Distance: Up to 120m over CAT5/6/7 in HDBaseT™ mode, 170m in Long Reach mode.
  • Analogue Audio Add-On: Bi-directional configurable stereo audio with 5-pole Phoenix connector.
  • PoE Compatibility: Remote powering with 48V PoE support and on/off switching.
  • Video Formats: 4K/UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0), 1080p @120Hz, 2560×1600, 2048×2048.
  • Audio Support: Full HDMI audio, Dolby TrueHD, DTS-HD, stereo PCM embedding/de-embedding.
  • Advanced EDID Management: Optimised device compatibility and configuration.
  • Pixel Accurate Reclocking: Ensures flawless image quality without jitter.
  • Frame Detector: Monitors incoming video signals for troubleshooting.
  • Compliance: HDMI 1.4, DVI, and HDCP compatible with or without HDCP.

Specifications

Outputs 4 × HDMI (Type A)
4 × HDBaseT™ (RJ45, CAT5/6/7)
Transmission Distance Up to 120m in HDBaseT™ mode
Up to 170m in Long Reach mode
Video Standards HDMI 1.4, DVI, HDCP compliant
4K/UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0)
Audio Support All HDMI audio formats, Dolby TrueHD, DTS-HD
Stereo PCM up to 96kHz de-embedding
Embedded digital PCM (48kHz)
Audio Add-On Bi-directional configurable analogue stereo
Volume, gain, balance, bass/treble, phase invert
PoE 48V remote powering with PSU48vp
PoE on/off control
Advanced Features Pixel Accurate Reclocking, EDID Management, Frame Detector
Compliance HDMI 1.4, DVI, HDCP
