SKU: 91130049

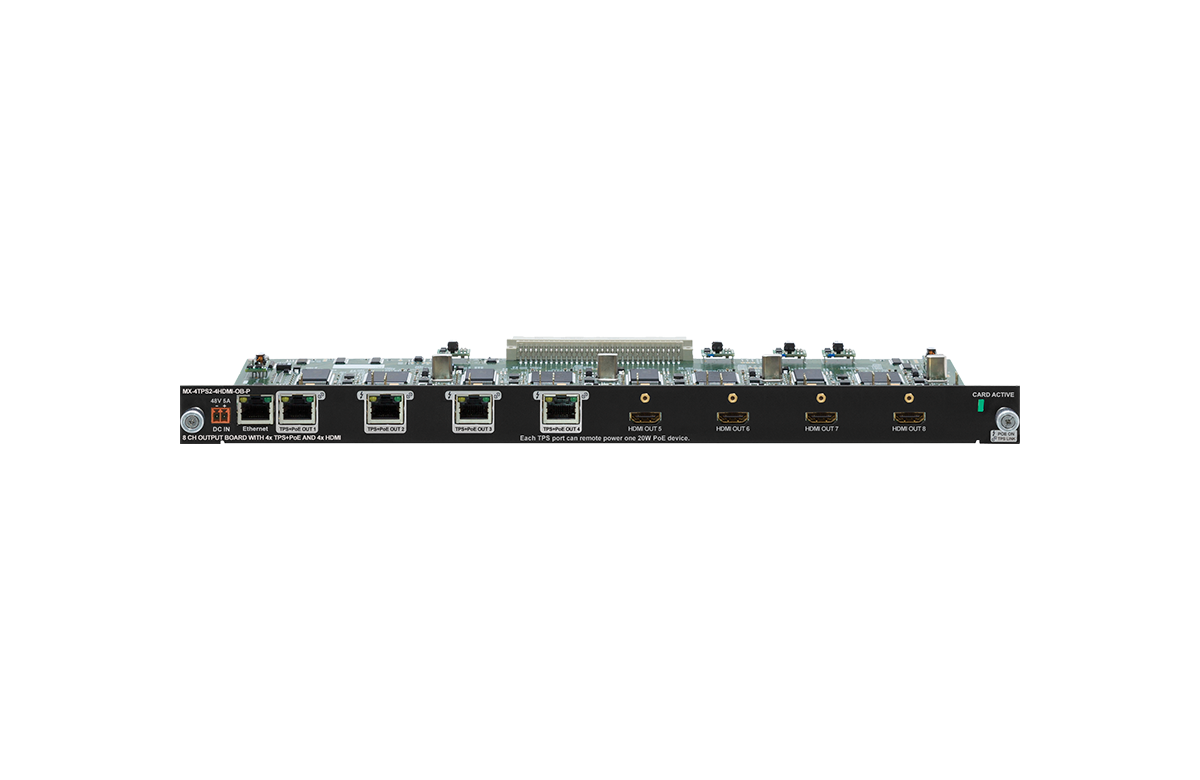

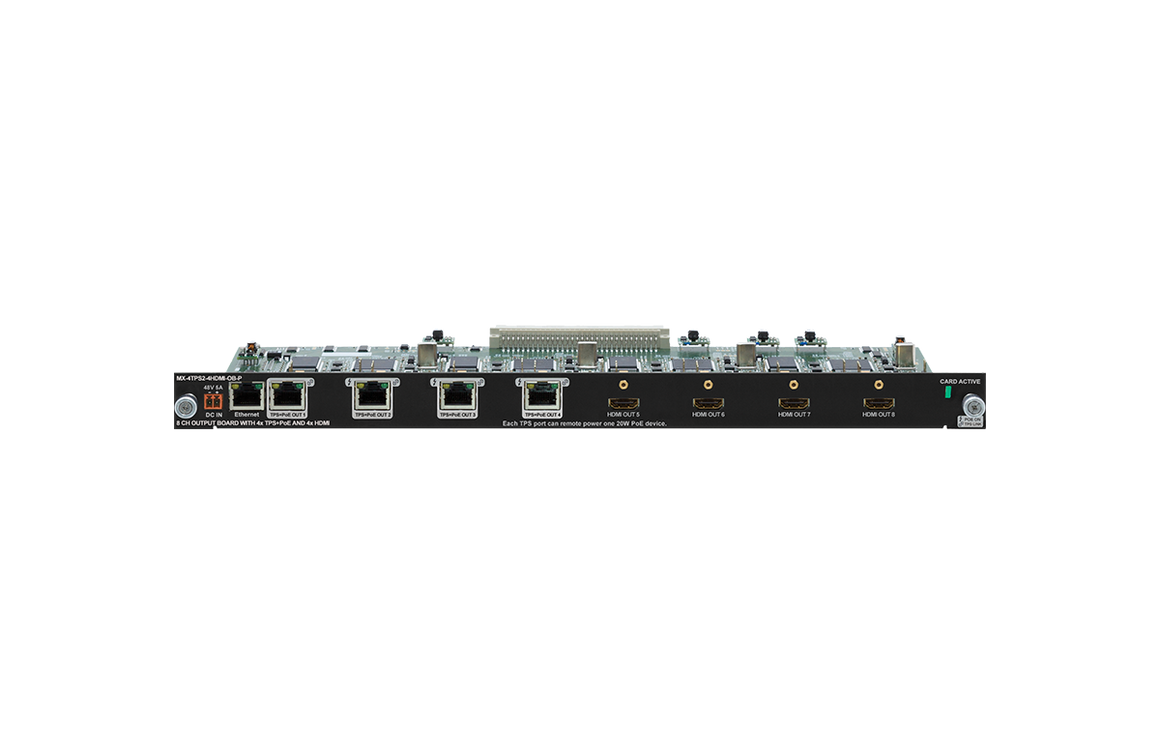

Lightware MX-4TPS2-4HDMI-OB-P TPS and HDMI Combo Output Board with PoE

Lightware

Advanced HDMI and HDBaseT™ output board with PoE remote powering

The MX-4TPS2-4HDMI-OB-P is a professional output board with four HDMI and four HDBaseT™ single CAT outputs, supporting UHD resolutions up to 4K, audio, Ethernet, and RS-232 extension. With PoE remote powering and advanced HDMI features, it ensures reliable and flexible integration in Lightware matrix switcher systems.

Key Features

  • Dual Output Design: Four HDMI and four HDBaseT™ outputs for flexible connectivity.
  • Extended Transmission: Up to 120m in HDBaseT™ mode and 170m in Long Reach mode.
  • PoE Remote Powering: Supports 48V PoE with remote on/off switching and feedback.
  • 4K/UHD Support: Handles 4K@30Hz 4:4:4 and 4K@60Hz 4:2:0 resolutions.
  • Advanced HDMI Features: EDID management, Pixel Accurate Reclocking, and Frame Detector.

The MX-4TPS2-4HDMI-OB-P is ideal for professional AV environments where reliable long-distance HDMI and HDBaseT™ signal extension with PoE remote powering is required, perfect for corporate and public sector.

In stock
£5,304.00

Secure Checkout

Warranty Protection

14 - Day Returns

The Lightware MX-4TPS2-4HDMI-OB-P is a combination output board featuring four HDMI and four HDBaseT™ single CAT outputs. It supports HDMI 1.4, audio, Ethernet, and RS-232 extension over a single CAT5/6/7 cable, reaching up to 120m in HDBaseT™ mode and up to 170m in Long Reach mode. With PoE functionality, it enables remote powering with on/off switching and feedback, making it ideal for flexible, professional AV matrix switcher installations.

Key Features

  • Dual Output Design: Four HDMI and four HDBaseT™ single CAT outputs for maximum versatility.
  • Extended Transmission: Up to 120m in HDBaseT™ mode and 170m in Long Reach mode over CAT5/6/7 cabling.
  • 4K/UHD Support: Handles 4K@30Hz RGB 4:4:4 and 4K@60Hz YCbCr 4:2:0 resolutions, as well as 1080p@120Hz.
  • PoE Remote Powering: Supports 48V PoE with remote on/off switching and status feedback.
  • Advanced HDMI Features: HDMI 1.4 with 3D, deep colour, Dolby TrueHD, DTS-HD, and EDID management.
  • Pixel Accurate Reclocking: Ensures stable signal transmission without jitter or loss.
  • Integrated Control: Ethernet and RS-232 pass-through over CAT cable.
  • Compatibility: Fully compliant with DVI and HDCP with or without encryption.

Specifications

Outputs 4 × HDMI, 4 × HDBaseT (RJ45)
Video Standards HDMI 1.4, DVI, HDCP compliant
Resolutions Up to 4K (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0), 1080p@120Hz, 2560×1600, 2048×2048
Transmission Distance Up to 120m (HDBaseT™), 170m (Long Reach mode)
Audio Support All HDMI formats, Dolby TrueHD, DTS-HD
Ethernet 10/100 Mbps transmission
Control RS-232, Ethernet passthrough
Power (PoE) 48V PoE compatible, remote powering with on/off switching and status feedback
Additional Features Pixel Accurate Reclocking, Advanced EDID Management, Frame Detector
