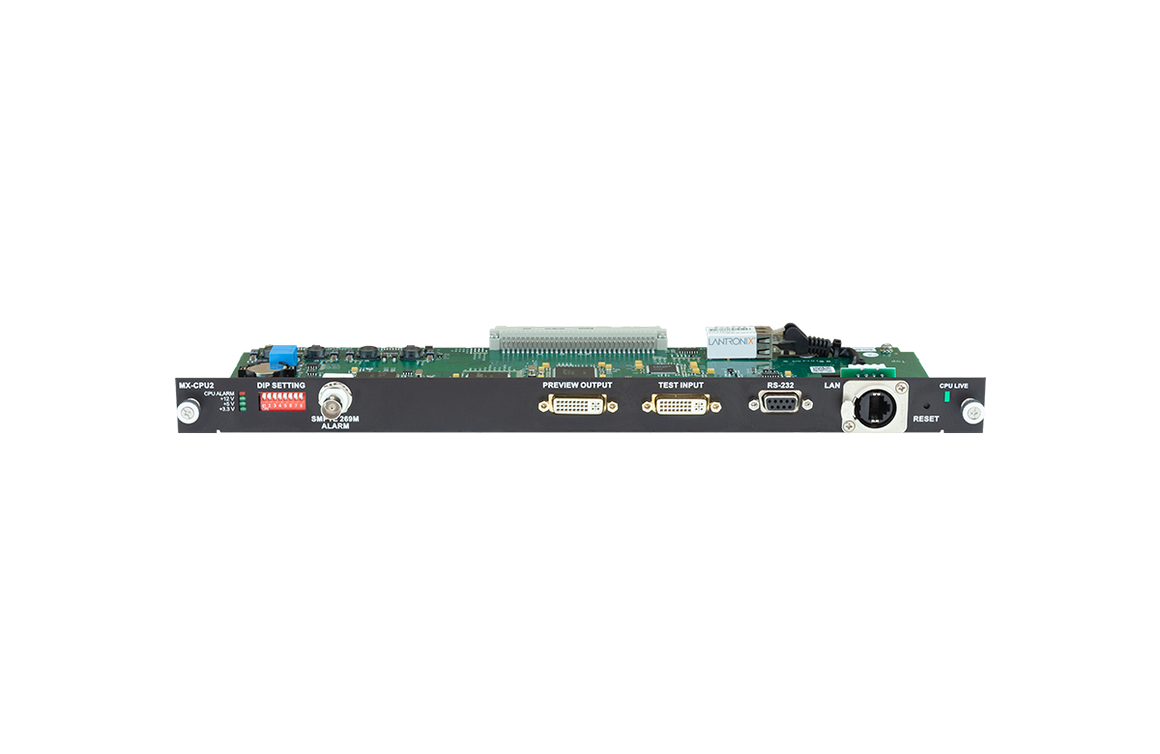

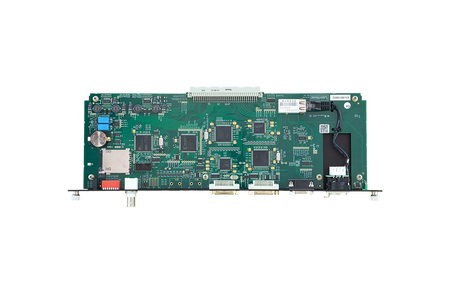

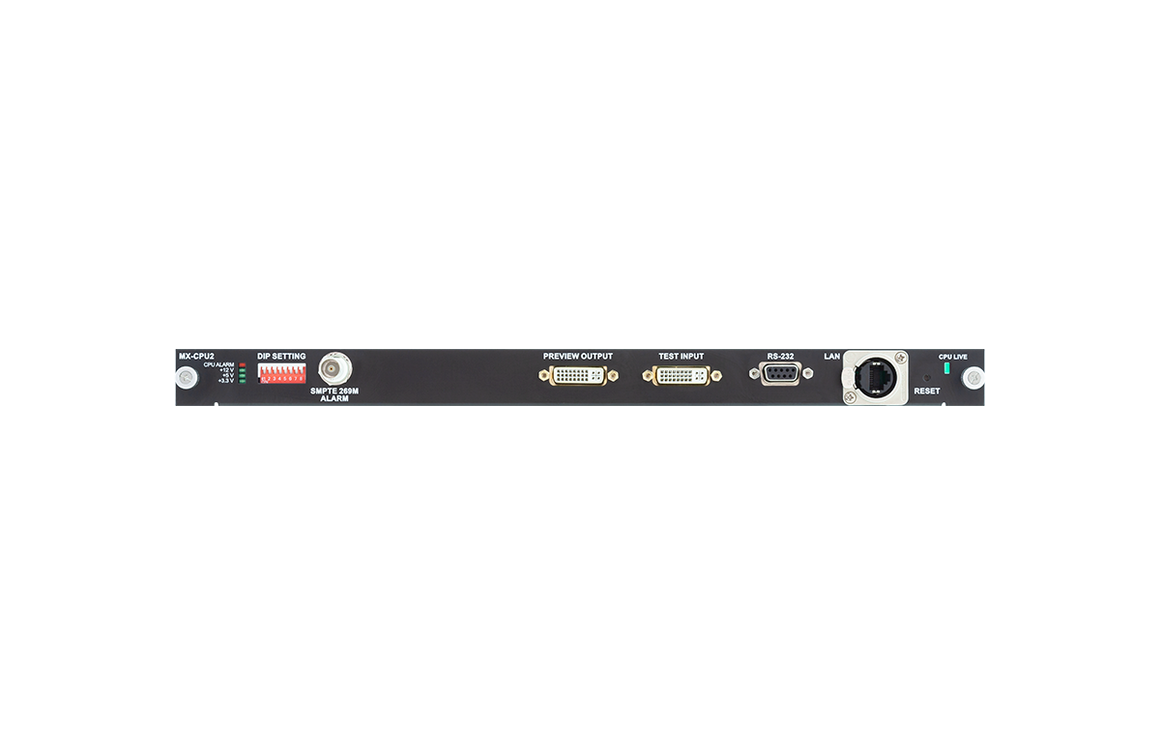

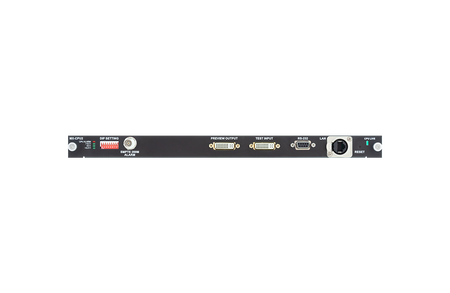

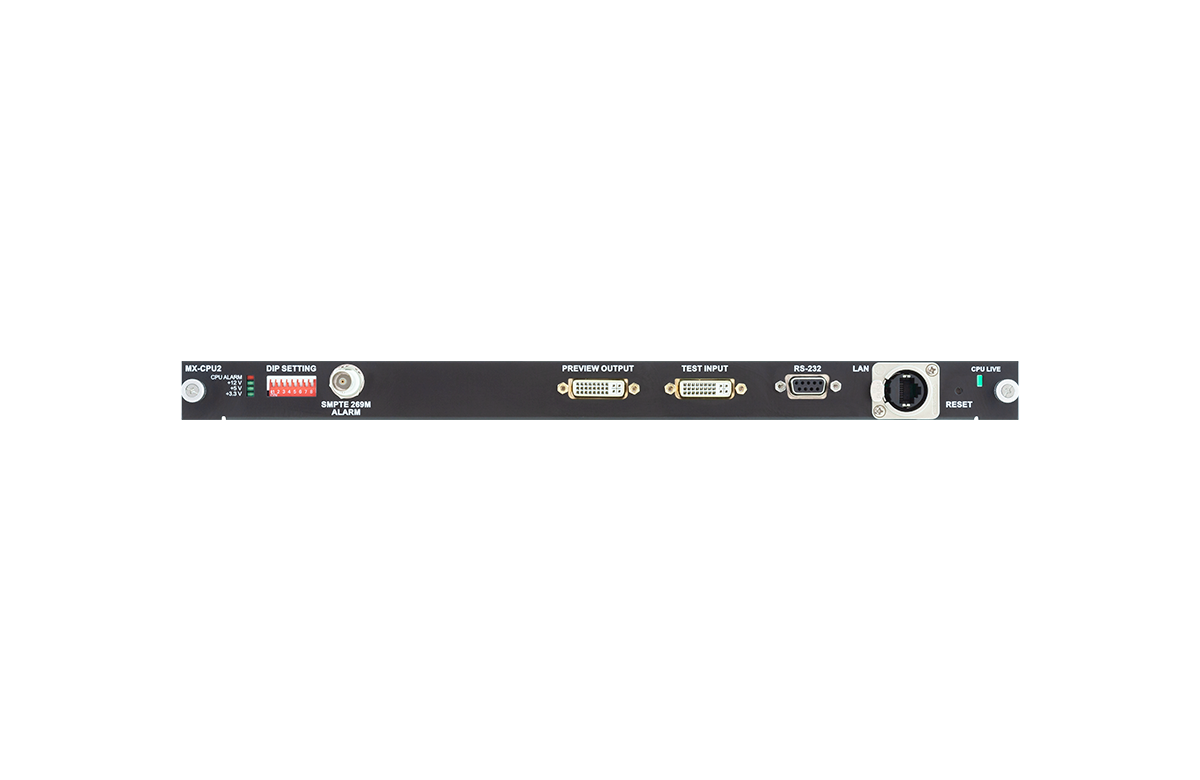

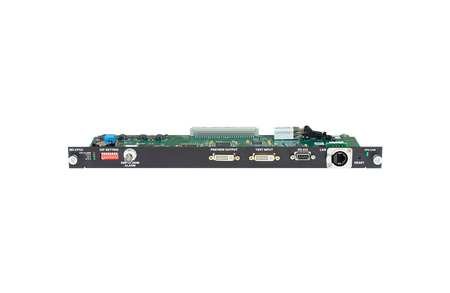

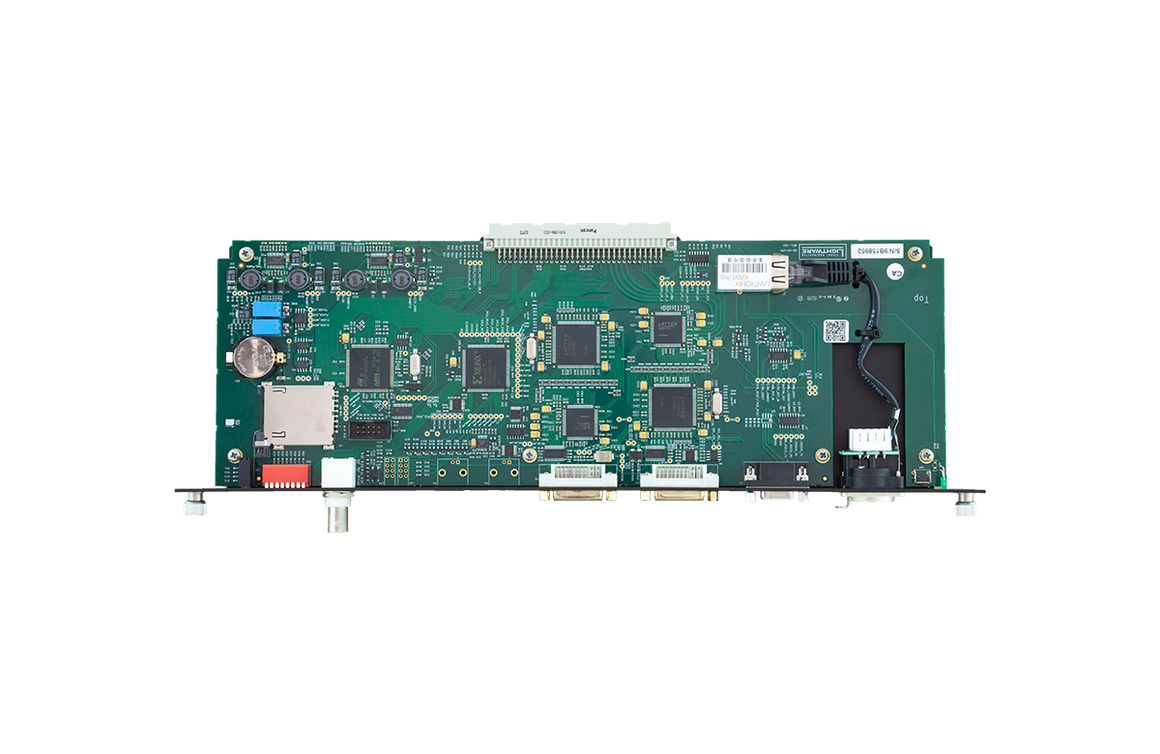

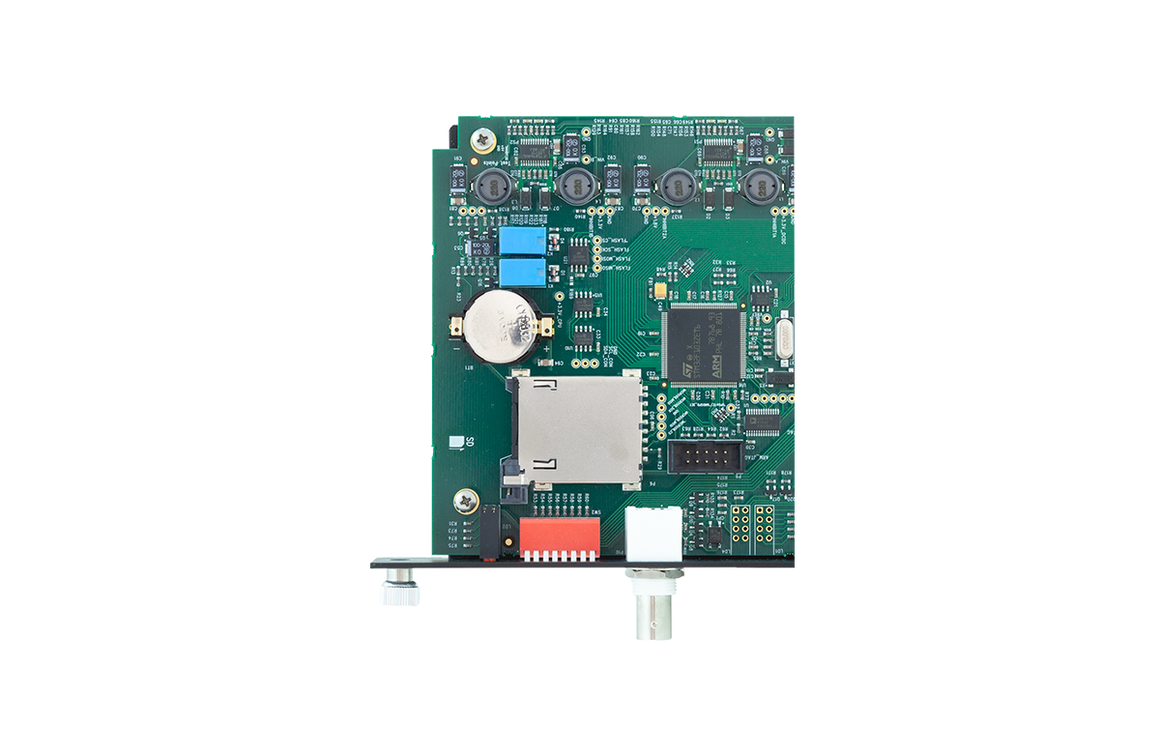

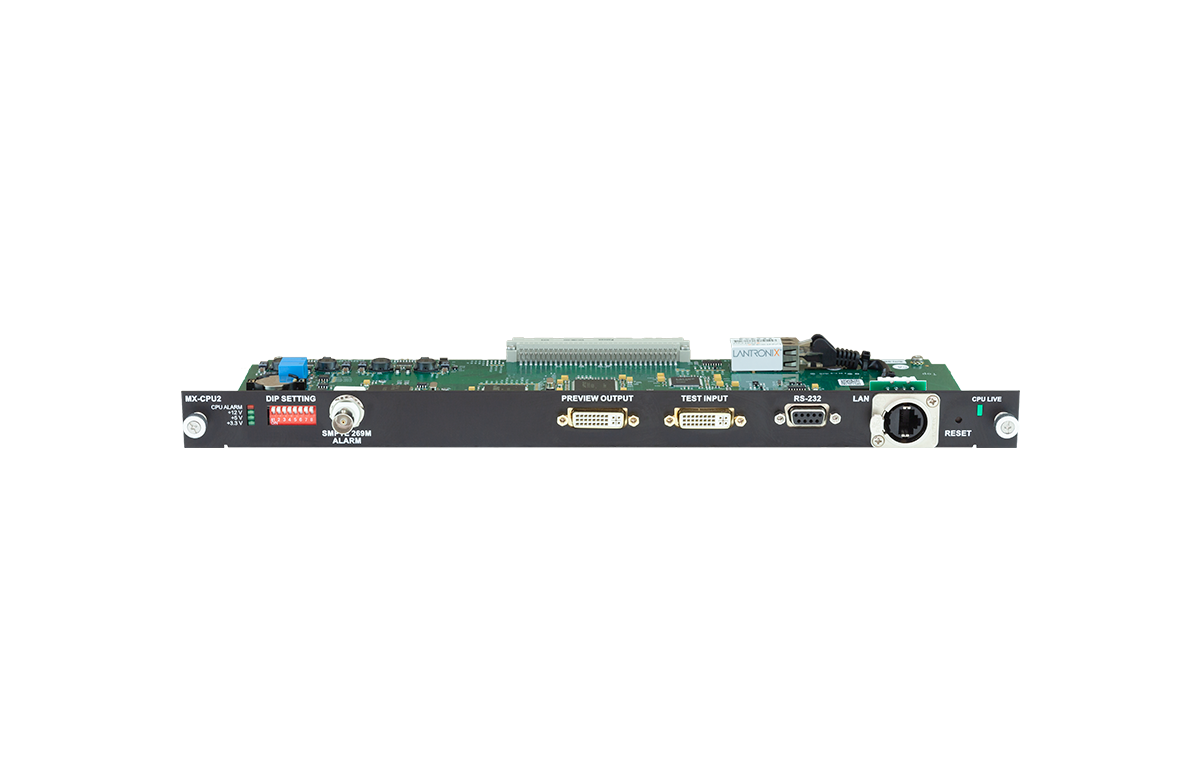

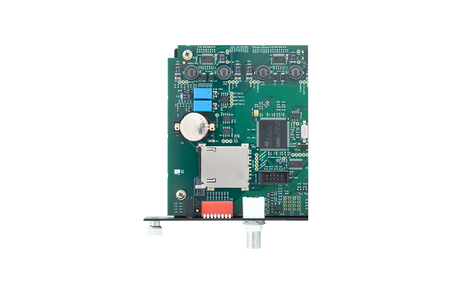

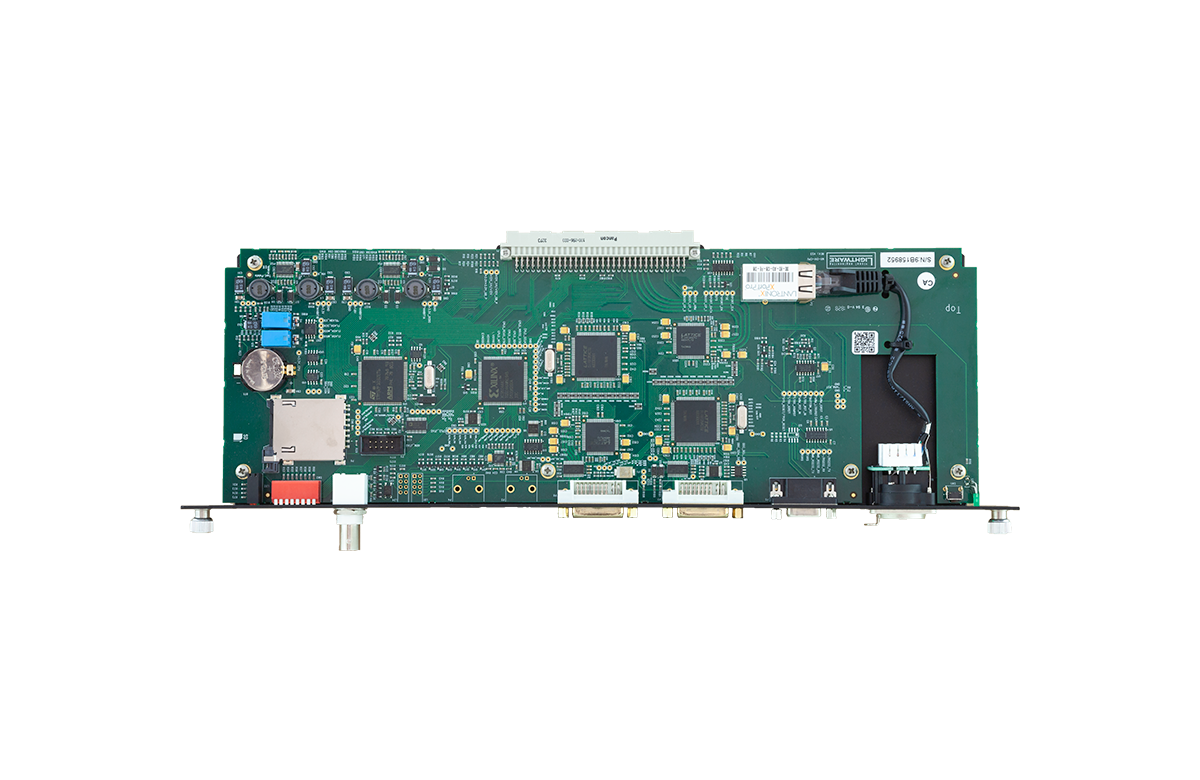

Lightware MX-CPU2 Processor Board for Modular Matrix Frames

The Lightware MX-CPU2 is an advanced processor board designed as a direct replacement for the original CPU board in Lightware MX Hybrid Modular Matrix Frames. It enhances system performance with additional input and output ports supporting DVI and 3D HDMI signals, both encrypted and unencrypted, alongside powerful tools such as Frame Detector, Input Signal Analysis, Advanced EDID Management, and Pixel Accurate Reclocking. With simple installation and robust control options, the MX-CPU2 is the ideal upgrade for professional AV routing systems.

Key Features

• Additional Input/Output Ports: Converts a 16x16 matrix to 17x17 or 32x32 to 33x33, with DVI and HDMI 3D support.
• Frame Detector & Input Signal Analysis: Provides detailed video and audio signal diagnostics, ensuring reliable system performance.
• Advanced EDID Management: Stores over 100 EDID files with extensive factory presets and custom file creation via Lightware Device Controller.
• Pixel Accurate Reclocking: Regenerates signals to eliminate jitter and maintain stable, sharp output quality.
• HDCP Compatibility: Fully compliant with HDCP, supporting mixed HDCP and non-HDCP systems with non-blocking architecture.
• Red Screen Alert: Warns when protected content is switched to a non-compliant display.
• Flexible Control Options: Ruggedised EtherCON LAN for multiple TCP/IP and web controls, plus RS-232 for third-party integration.
• Simple Upgrade: Easy two-screw installation for replacing the existing CPU board.

Specifications

Use Case

• Centralised AV Processing: Manage and control multiple MX matrix frames, routing HDMI, DVI, audio, and control signals efficiently in corporate environments, education facilities, and control rooms, ensuring seamless signal distribution and advanced system integration.
