SKU: 91310073

Lightware MX2-24x24-DH-24DPio-A-R DisplayPort Matrix Switcher

Lightware

High-performance 24×24 DisplayPort matrix switcher with audio and redundant PSU

The MX2-24x24-DH-24DPio-A-R is a 24×24 DisplayPort 1.2 matrix switcher with full audio integration and dual redundant power supply, delivering 4K UHD @60Hz, HDR10/10+, and Dolby Vision for professional AV environments.

Highlighted Features

  • High-Density DisplayPort Switching: 24×24 ports ensure simultaneous connectivity for all inputs and outputs.
  • Audio Integration: Supports embedding and de-embedding via analogue 5-pole Phoenix connectors.
  • Pixel Accurate Reclocking: Maintains perfect image quality on every input channel.
  • Advanced EDID Management: Full control over device compatibility and signal integrity.
  • Redundant Power Supply: Dual Neutrik PowerCON connectors for uninterrupted operation.

The MX2-24x24-DH-24DPio-A-R is ideal for corporate, public sector, and permanent AV installations requiring reliable, high-quality video and audio management.

In stock
£40,233.60

Secure Checkout

Warranty Protection

14 - Day Returns

The Lightware MX2-24x24-DH-24DPio-A-R is a professional 24×24 DisplayPort 1.2 matrix switcher with full audio integration and redundant power supply, designed for demanding AV environments. Supporting 4K UHD @60Hz with RGB 4:4:4, HDR10, HDR10+, and Dolby Vision, it ensures uncompromied video and audio quality. Proprietary Lightware technologies like Pixel Accurate Reclocking and Advanced EDID Management guarantee flawless signal transmission, while the built-in web interface, RS-232, USB, and Ethercon control provide flexible management. Dual redundant Neutrik PowerCON inputs and reinforced connectors make it ideal for live events, control rooms, and permanent installations.

Key Features

  • Full 24×24 DisplayPort Switching: High-density matrix supporting all inputs and outputs simultaneously.
  • Audio Integration: Embed or de-embed audio through 8 analog inputs and 24 analog outputs using 5-pole Phoenix connectors.
  • 4K UHD Resolution: Supports 4096×2160 @60Hz, RGB 4:4:4, HDR10/10+, and Dolby Vision.
  • Pixel Accurate Reclocking: Ensures perfect image quality on every input channel.
  • Advanced EDID Management: Full control over device compatibility and signal integrity.
  • Flexible Control: Built-in website, front panel LCD, push buttons, rotary switch, RS-232, USB, and Ethernet.
  • Redundant Power Supply: Dual Neutrik PowerCON connectors for uninterrupted operation.
  • Front-to-Back Cooling: Efficient airflow for long-term reliability.
  • Live-Use Ready: Rugged build with reinforced connectors for high-stress environments.

Specifications

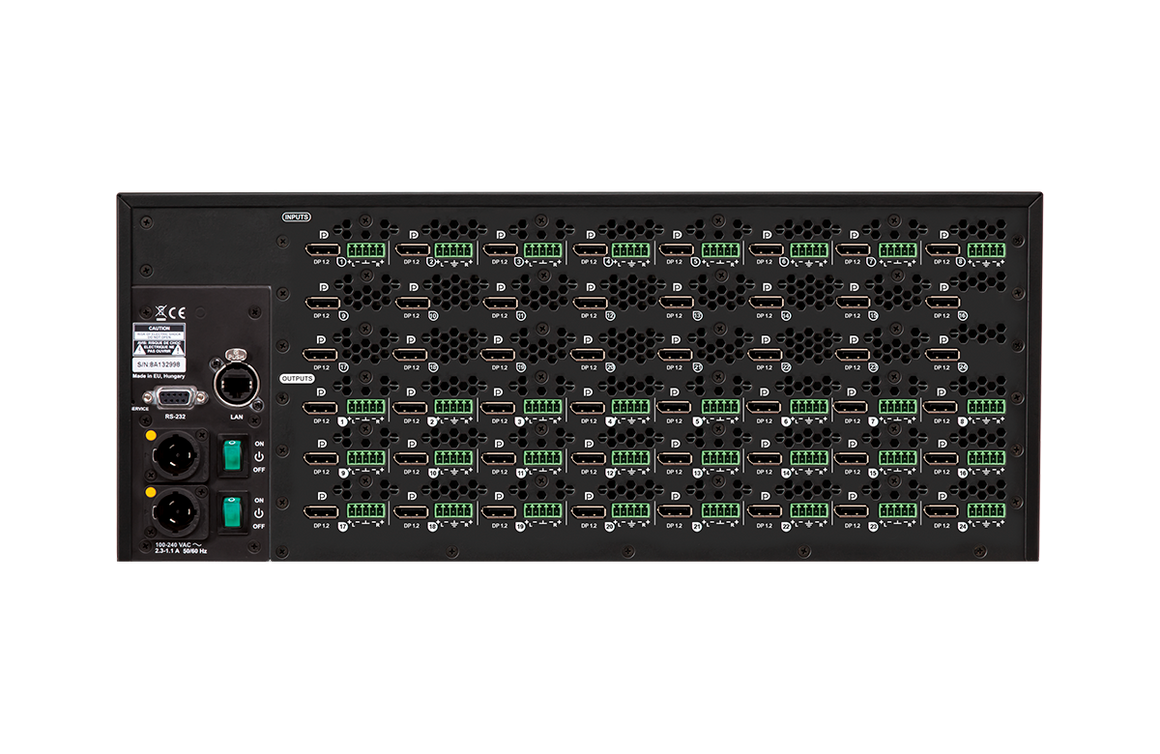

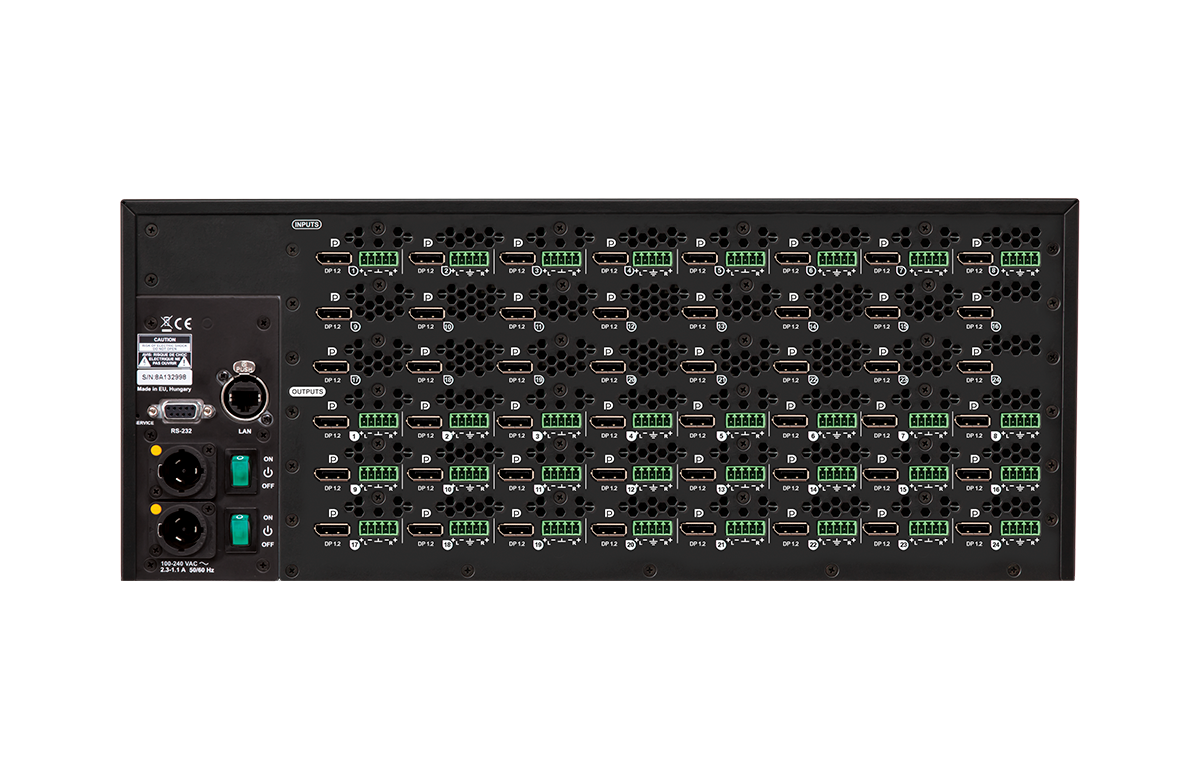

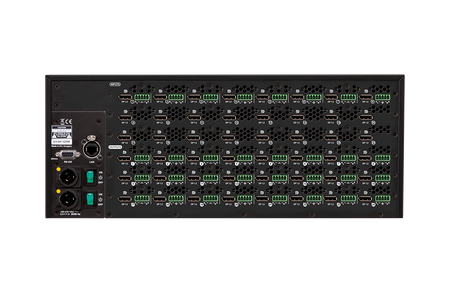

Inputs 24 × DisplayPort 1.2
Outputs 24 × DisplayPort 1.2
Audio Inputs 8 × Stereo, balanced, 5-pole Phoenix
Audio Outputs 24 × Stereo, balanced, 5-pole Phoenix

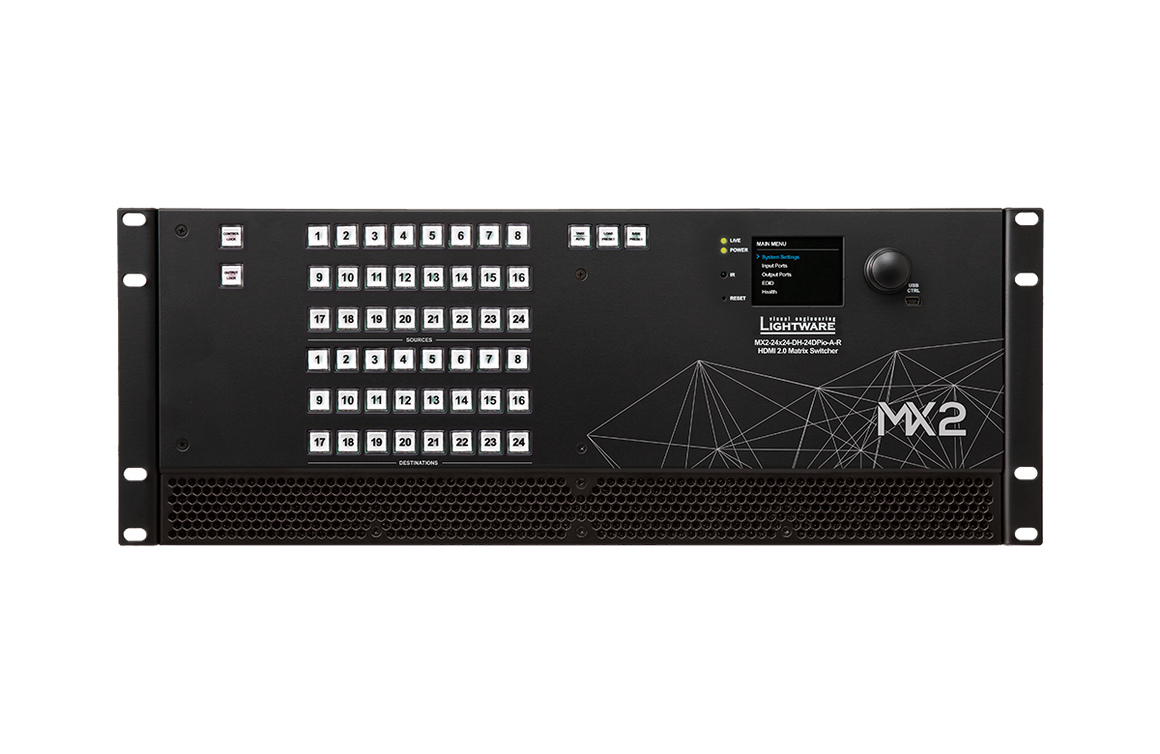

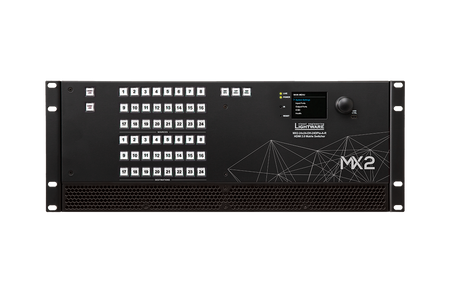

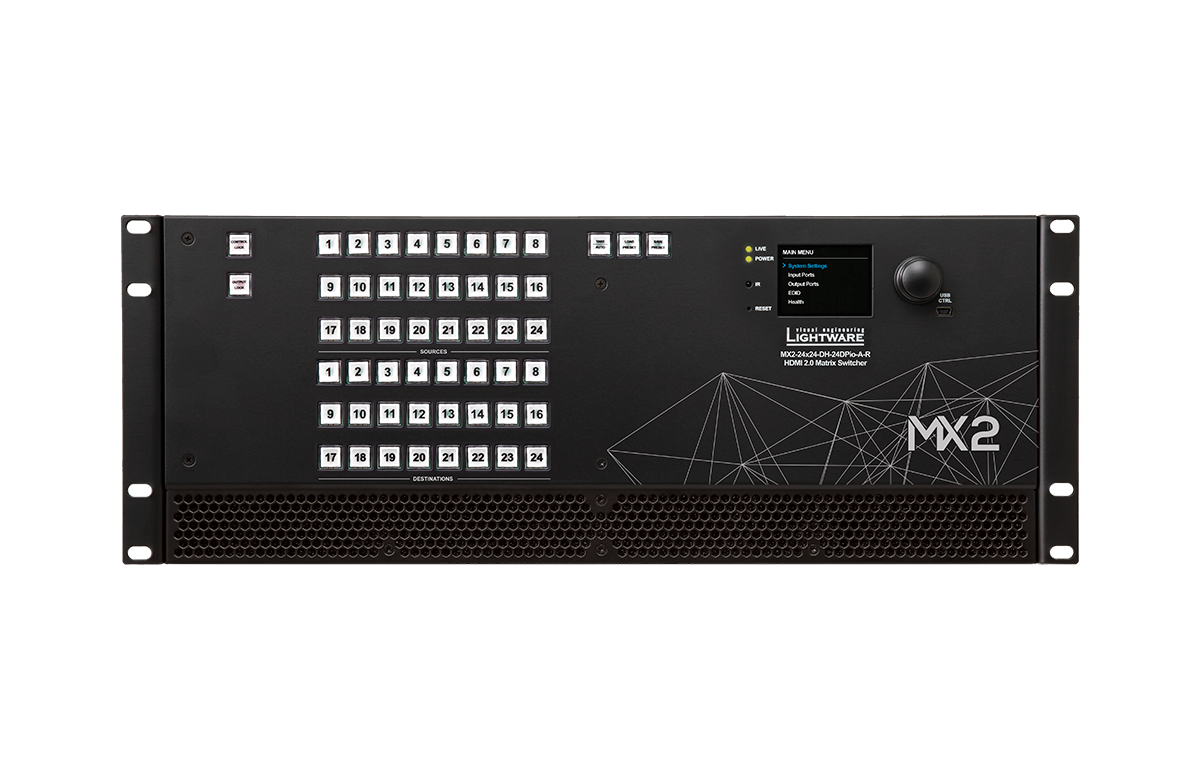

Front Panel I/O LCD menu, push buttons, rotary switch
Redundant Power Supply 2 × Neutrik PowerCON True1, 110/220V
Control RS-232, USB, Ethercon, built-in web interface
Resolution Up to 4096×2160 @60Hz, RGB 4:4:4 / YCbCr 4:4:4
Bandwidth 18 Gbps per port
Mounting 4RU, rack mountable, removable ears
Cooling Front-to-back airflow



Application Examples

Live Events / Rental Corporate / Enterprise
  • FOH patch matrix: Route 8× graphics laptops, 4× media servers, and 12× camera/IMAG feeds to LED processors, projectors, and confidence monitors with zero-frame delay and 18 Gbps per-port bandwidth.
  • LED wall drive: Distribute 4K60 HDR feeds to multiple LED processors (main wall + side banners) while mirroring to record/stream encoders; -R redundant PSU ensures continuous uptime for critical events.
  • Presentation switching: Switch keynote laptops and show graphics seamlessly to stage projectors and backstage preview; Pixel Accurate Reclocking and Advanced EDID Management keep sources locked.
  • 5K ultrawide sessions: Deliver 5120×2160@60Hz (21:9) ultrawide content to LED canvases while simultaneously routing 4K60 feeds to recorders or broadcast systems.
  • Embedded audio handoff: Use Phoenix audio I/O to embed analog feeds into the video signal path or de-embed program/aux channels to PA, DSP, or intercom systems.
  • HDR/Dolby Vision: Native HDR10, HDR10+, and Dolby Vision support guarantees uncompromised image quality on large-format LED and projection systems.

Note: MX2 is a matrix switcher; video wall scaling and composition are handled by the LED processor or external scaler.
  • All-hands & overflow: Route stage PC, VC codec, and BYOD sources to auditorium displays, overflow rooms, and capture/streaming systems; HDCP 2.2/1.4 cross-conversion ensures compatibility with diverse sources.
  • 21:9 collaboration: Feed 5120×2160 ultrawide to “Front Row” Teams Rooms while mirroring 4K60 signals to side monitors and capture devices.
  • Divisible spaces: Non-blocking 24×24 routing allows operators to quickly reconfigure A/B/C rooms, with intuitive control via front-panel LCD, rotary switch, or web interface.
  • Ops/NOC video walls: Distribute multiple HDMI 2.0/DP 1.2 workstation outputs to large monitoring walls or video processors with zero-frame delay switching.
  • Training & capture: De-embed up to 24 balanced stereo outputs to DSP, recorders, or assistive listening systems while maintaining video feeds to projectors/displays.
  • Compliance & reliability: CE/UL certified, 4RU rack-mountable chassis with front-to-back cooling and dual PowerCON True1 connectors for redundant power.
