Lightware TPX-2x1-TX20-RX107 Taurus TPX Trasmitter and Receiver Bundle
High-resolution 4K60 video and USB-C/HDMI signal extension bundle: UCX-2x1-TPX-TX20 and HDMI-UCX-TPX-RX107
In stock
Regular price
£2,918.40
Secure Checkout
Warranty Protection
Hassle-Free Returns

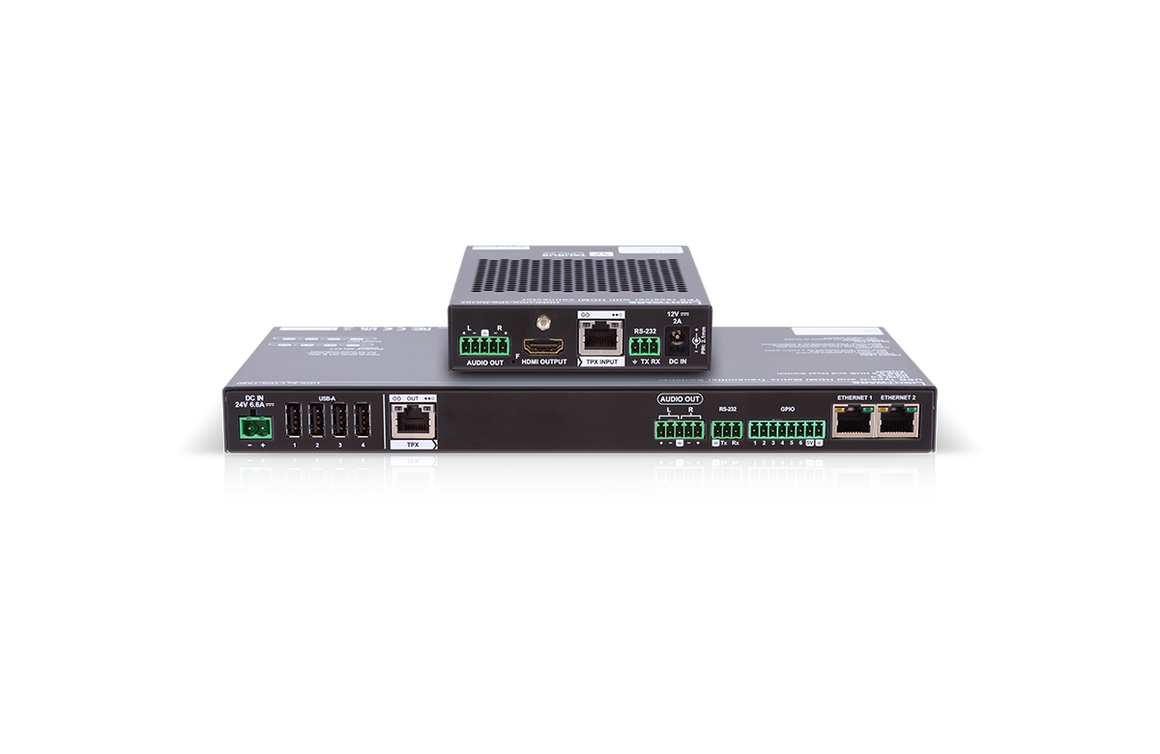

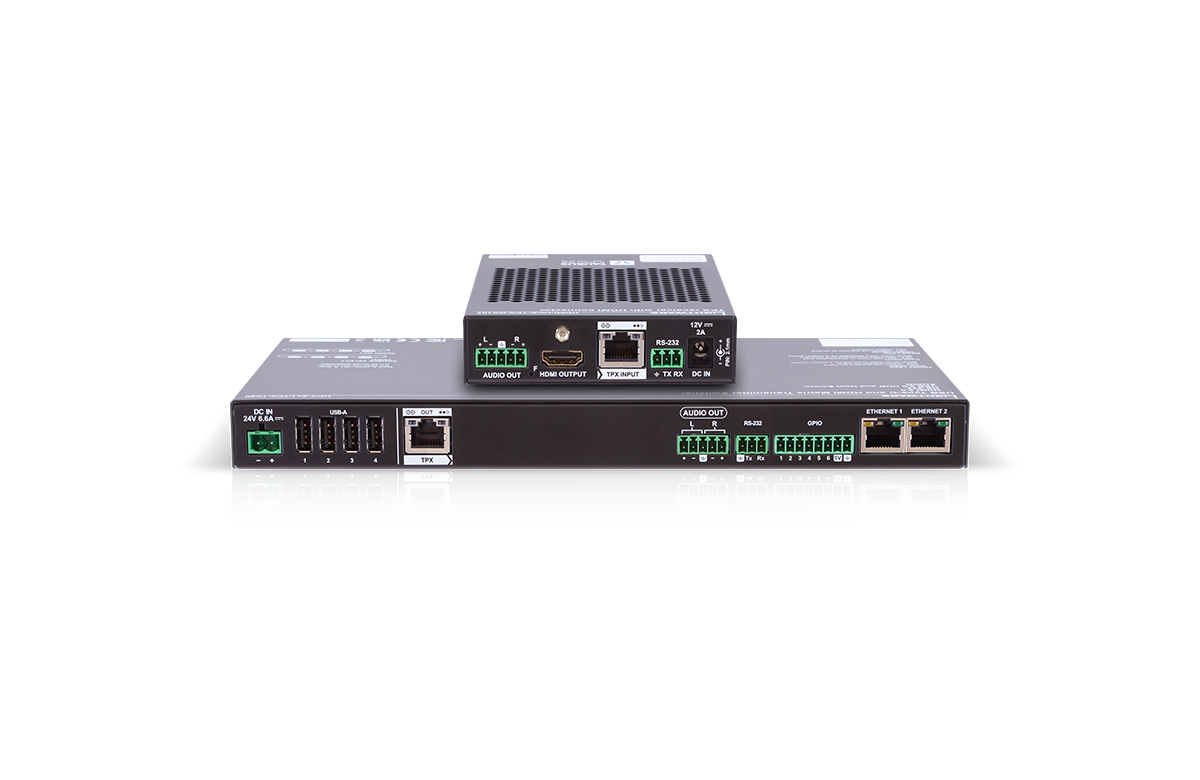

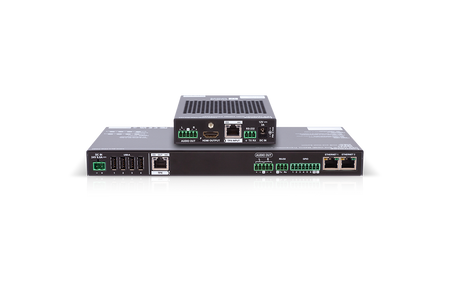

The Lightware TPX-2x1-TX20-RX107 Bundle combines the UCX-2x1-TPX-TX20 transmitter and HDMI-UCX-TPX-RX107 receiver into a single high-performance solution for extending 4K video, audio, USB, and control signals over a single CAT cable up to 100 metres. Ideal for meeting rooms, lecture theatres, and corporate installations, this bundle supports USB-C and HDMI inputs, advanced security features, and remote power delivery via PoE+ for seamless AV deployment.
Key Features
- High-Resolution Video: Supports up to 4096×2160 @60Hz RGB 4:4:4 (4K UHD) over HDMI and USB-C inputs.
- Single Cable Connectivity: Video, audio, USB 2.0, Ethernet, RS-232, and OCS signals over one CAT cable.
- USB-C Power & Data: 100W USB-C charging on TX; multiple USB 2.0 connections for cameras, speakerphones, and touch displays.
- Room Automation Ready: Supports Lightware Advanced Room Automation (LARA), welcome screens, CEC, and GPIO control.
- Audio Handling: HDMI pass-through, de-embedded 2-ch PCM, Dolby TrueHD, DTS-HD Master Audio 7.1.
- Remote Power Delivery: PoE+ powering from TX to RX up to 25.4W, simplifying installations.
- Flexible Control: Ethernet and RS-232 connectivity, occupancy sensor integration, independent USB host switching.
- Robust Build: Rack-mountable 1 mm steel enclosures with efficient cooling and reliable operation.
- Secure & Compliant: CE, UKCA, RoHS certified for professional AV environments.
- Warranty: 3-year manufacturer warranty for both TX and RX units.
Specifications
| Video Inputs | USB-C (24-pin), HDMI (19-pin) |
| Max Video Resolution | 4096×2160 @60 Hz RGB 4:4:4 (4K UHD) |
| Audio Formats | HDMI pass-through; de-embedded analog 2-ch PCM; Dolby TrueHD, DTS-HD 7.1 |
| USB Connectivity | USB 2.0 host switching; up to 4 devices |
| Control & Data Transmission | Video, audio, USB 2.0, Ethernet, OCS, RS-232 over single CAT cable, up to 100 m |
| Control Ports | Ethernet 1GBase-T; 2× RS-232; GPIO; occupancy sensor input |
| Room Automation | Supports LARA, Ethernet/serial control, GPIO, welcome screen, HDMI-CEC |
| Power Supply | External 160 W, AC 100–240 V |
| Power Consumption | 160 W |
| Enclosure | 1 mm steel, rack-mountable accessories included |
| Dimensions (W×D×H) | 271 × 140.3 × 26 mm |
| Weight | 900 g |
| Operating Temperature | 0–50 °C |
| Operating Humidity | 10–90%, non-condensing |
| Compliance | CE, UKCA, RoHS |
| Warranty | 3 years |
| Video Inputs | HDMI, TPX RJ45 |
| Max Video Resolution | 4096×2160 @60 Hz RGB 4:4:4 (4K UHD) |
| Audio Formats | HDMI pass-through; de-embedded analog 2-ch PCM; Dolby TrueHD, DTS-HD 7.1 |
| USB Connectivity | USB 2.0 host switching; up to 4 devices |
| Control & Data Transmission | Video, audio, USB 2.0, Ethernet, OCS, RS-232 over single CAT cable, up to 100 m |
| Control Ports | Ethernet 1GBase-T; 1× RS-232; GPIO; occupancy sensor input |
| Room Automation | Supports LARA, Ethernet/serial control, GPIO, welcome screen, HDMI-CEC |
| Power Supply | PoE+ powered from TX (max 25.4 W) |
| Power Consumption | 24 W |
| Enclosure | 1 mm steel, rack-mountable accessories included |
| Dimensions (W×D×H) | 151.8 × 104.9 × 26 mm |
| Weight | TBD |
| Operating Temperature | 0–50 °C |
| Operating Humidity | 10–90%, non-condensing |
| Compliance | CE, UKCA, RoHS |
| Warranty | 3 years |
Application Examples
| Small to Medium AV Installations | Extend and switch two HDMI/USB-C sources to one display with minimal cabling. |
| Boardrooms & Classrooms | Simplify AV setups while maintaining 4K video, audio, and USB connectivity. |
| Control Rooms & Collaboration Spaces | Provide reliable long-distance signal extension with remote PoE powering. |
