SKU: AD-C6T-LPZB

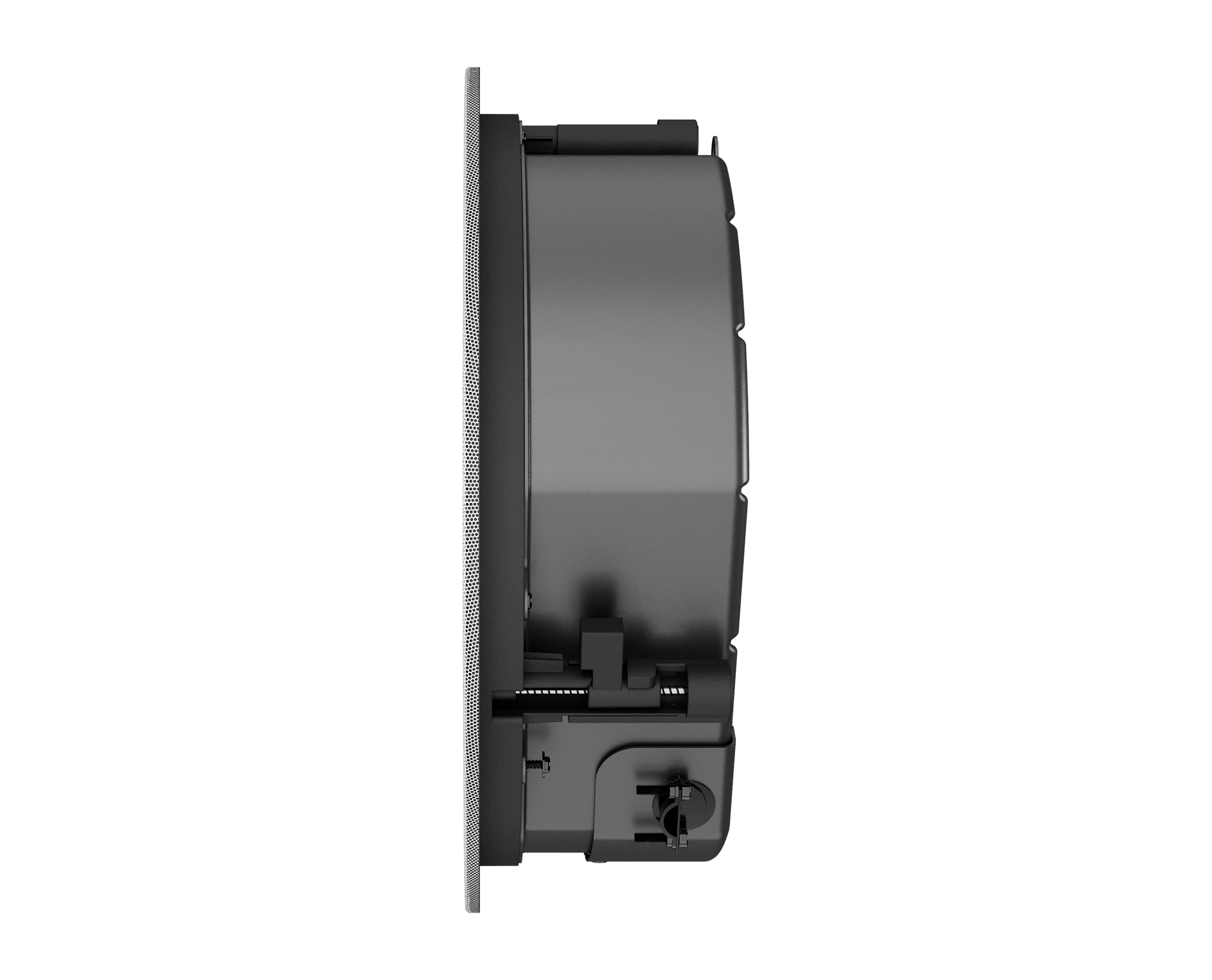

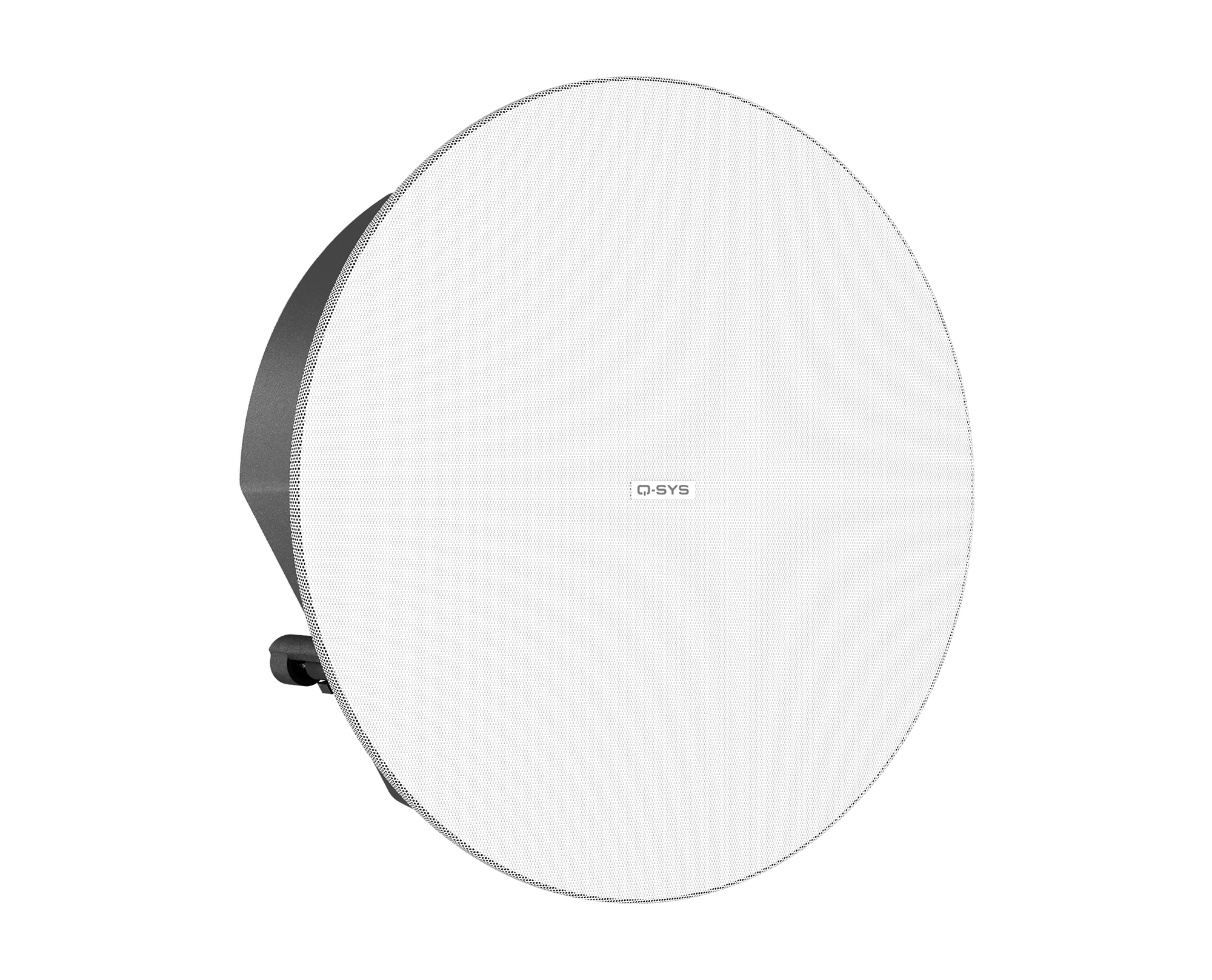

Q-SYS AD-C6T-LPZB

Q-SYS

6.5-inch, 2-way, Low profile, Zero Bezel [Sold as Pair]

The Q-SYS AD-C6T-LPZB Ceiling Loudspeaker offers a high-performance audio solution for modern architectural and professional applications. Designed for ceiling installations, it features advanced acoustic technologies and a zero-bezel aesthetic that integrates seamlessly into any environment. With certifications for ROHS, CE, and IEC60849/EN60849, the AD-C6T-LPZB is ideal for lecture halls, classrooms, and conferencing environments. Its flexibility and outstanding sound quality make it a versatile addition to any professional audio system.

Highlighted Features

  • Wide Coverage: 135° conical Directivity Matched Transition® (DMT™) waveguide ensures consistent, uniform audio distribution across the entire room.
  • Advanced Acoustic Design: Includes a 6.5-inch weather-resistant paper cone woofer and a 0.75-inch aluminium dome tweeter for precise, clear sound reproduction.
  • Multiple Mounting Options: Features a 3x double-stepped, long-travel dog-ear blind mount system for secure and flexible ceiling installations in various spaces.
  • Flexible Transformer Settings: Low-saturation, low-loss transformers support 70V/100V configurations with a 16Ω bypass for direct low-impedance connections.
  • Modern Aesthetics: Available in signal white (RAL 9003) with an optional black grille accessory to match different design preferences.
  • Certifications: Compliant with ROHS, CE, and IEC60849/EN60849 standards, making it suitable for professional and air-handling environments.
  • Removable Logo and Conduit Cover: A blemish-free removable logo and optional conduit cover plate ensure a clean and professional appearance.

The Q-SYS AD-C6T-LPZB Ceiling Loudspeaker provides an excellent solution for professional audio applications, ensuring outstanding sound quality, wide coverage, and easy installation. Its flexibility and modern design make it an ideal choice for educational institutions, corporate environments, and public spaces.

In stock
£595.20

Secure checkout

Friendly support

Hassle-free returns

The Q-SYS AD-C6T-LPZB is a high-performance ceiling loudspeaker designed for modern architectural and professional audio applications. With its elegant zero-bezel design and advanced acoustic technologies, the AD-C6T-LPZB delivers outstanding audio clarity and flexibility, making it ideal for lecture halls, classrooms, and conferencing environments. Certified for Microsoft Teams, it provides superior sound quality for hybrid learning and communication setups in the UK.

Key Features

  • Wide Coverage: 135° conical Directivity Matched Transition® (DMT™) waveguide ensures consistent, uniform audio distribution across the entire room.
  • Advanced Acoustic Design: Features a 6.5-inch weather-resistant paper cone woofer and a 0.75-inch aluminium dome tweeter for crystal-clear sound reproduction.
  • Multiple Mounting Options: Includes a 3x double-stepped, long-travel dog-ear blind mount system for secure installation in various ceiling types.
  • Flexible Transformer Settings: Low-saturation, low-loss transformers support 70V/100V operation with 16Ω bypass for direct low-impedance connections.
  • Modern Aesthetics: Available in signal white (RAL 9003), with an optional black grille accessory for environments requiring customised finishes.
  • Certifications: ROHS,CE,IEC60849/EN60849 certified for safe and reliable use in air-handling spaces, along with compliance for Microsoft Teams environments.
  • Removable Logo and Conduit Cover: A blemish-free removable logo and optional conduit cover plate provide a clean and professional appearance.

Specifications

Effective Frequency Range 65 Hz – 20 kHz
Power Output 60W (31V RMS)
Sensitivity 88 dB
Coverage 135° conical DMT™
Maximum SPL 112 dB peak
Nominal Impedance 16Ω
Transformer Taps 7.5W (70V), 15W (70V/100V), 30W (70V/100V), 60W (70V/100V), 16Ω bypass
Grille Material Powder-coated steel
Ingress Protection IP-34
Operating Temperature Range -20°C to 50°C (-4°F to 122°F)
Product Dimensions Ø 340 x 100 mm (13.37 x 3.95 in.)
Net Weight 4.3 kg (9.5 lb)
Certifications ROHS,IEC60849/EN60849, CE compliant; Microsoft Teams Certified
Accessories Included C-ring, tile rails, rail screws, Euroblock connector, cut-out template, tether grille

The Q-SYS AD-C6T-LPZB combines superior audio quality with ease of installation and aesthetic design, offering an exceptional solution for professional environments such as lecture halls and classrooms in the UK. Its wide coverage and reliable performance make it an ideal choice for modern educational and corporate spaces.
