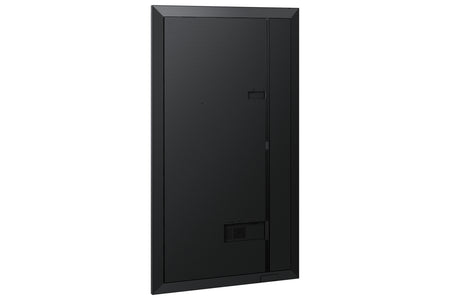

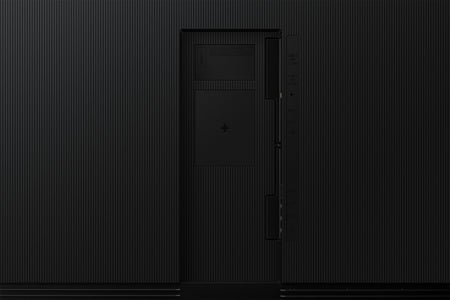

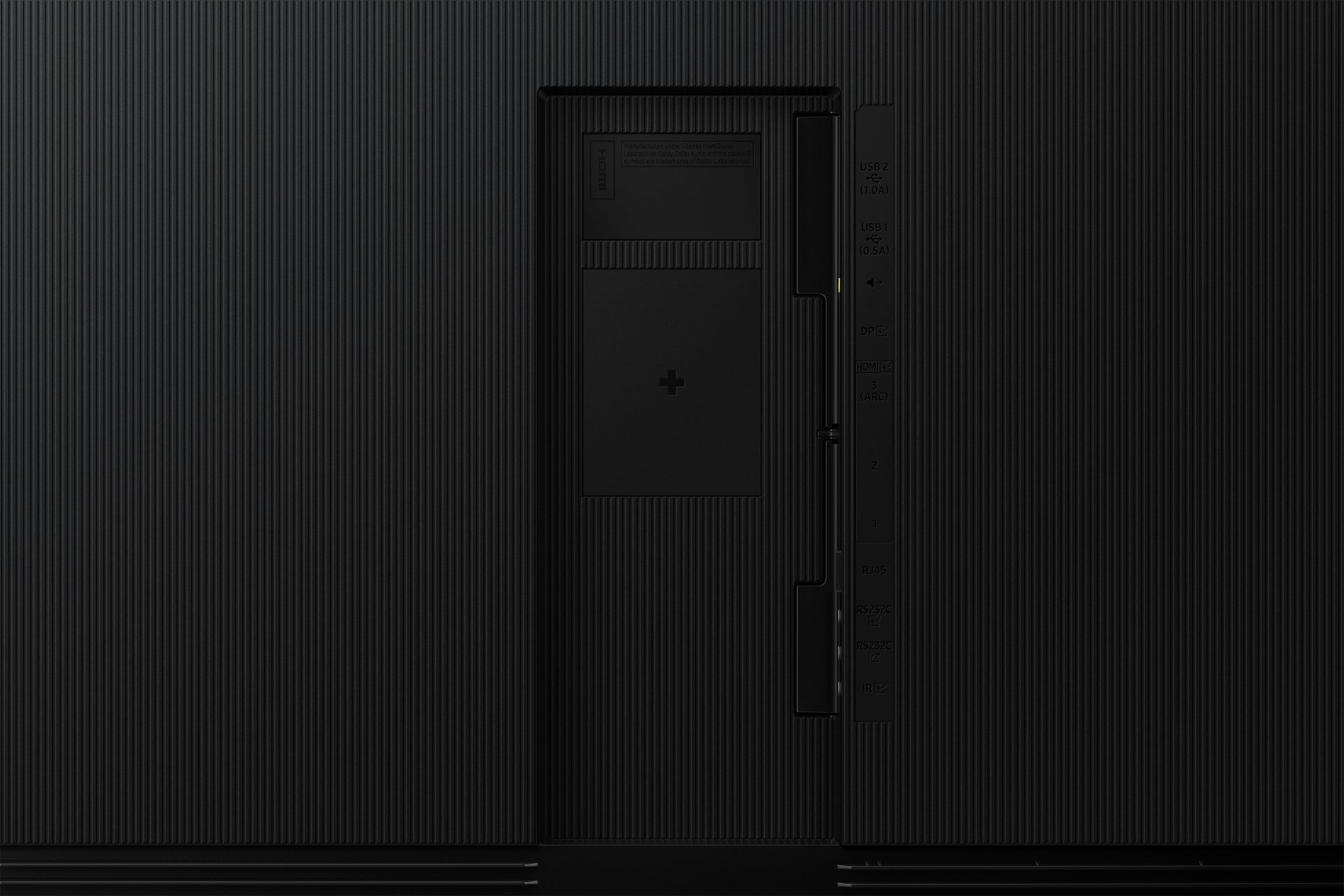

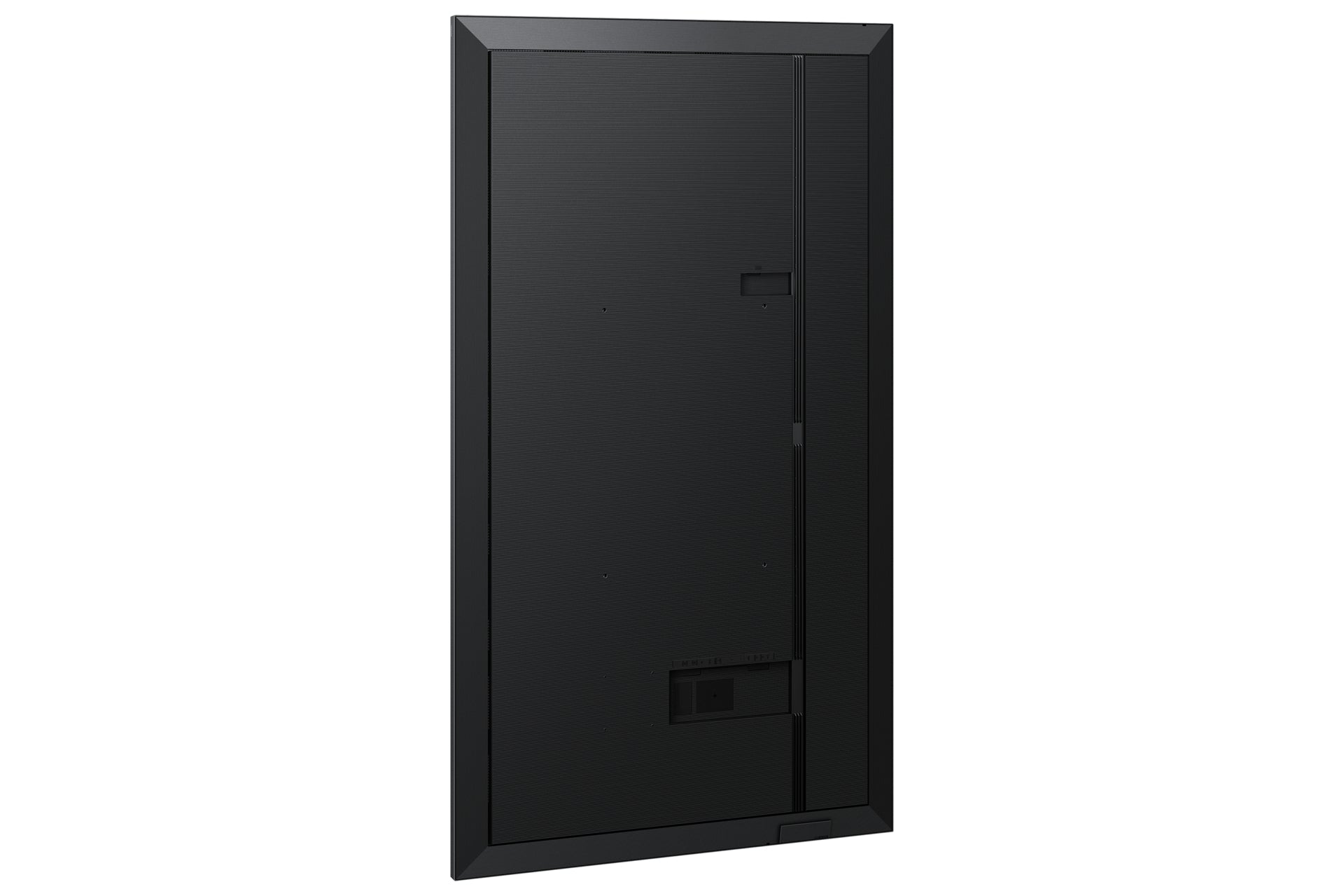

Samsung SM85HX-P 85" Spatial Signage 4K UHD Display
85" Spatial Signage with Virtual 3D and AI Studio (Tizen 7.0)
In stock
Regular price
£19,895.00
Secure Checkout
Warranty Protection
Hassle-Free Returns
The Samsung SM85HX-P 85" Spatial Signage 4K UHD Display is a 2.16 m (85") professional Spatial Signage flat panel from Samsung's SMHX-P series, engineered to bring 2D content to life in immersive 3D using Samsung's patented 3D plate technology. 3840 x 2160 4K UHD resolution, 500 cd/m² brightness, a Quantum Processor for intelligent UHD upscaling, and an anti-glare panel combine to deliver vivid, reflection-free imagery in bright retail and corporate environments. A slim 52 mm chassis, 400 x 600 mm VESA mounting, Tizen 7.0, SmartThings Pro, and Samsung VXT cloud CMS make installation, integration, and content deployment straightforward across multi-site estates.
Key Features

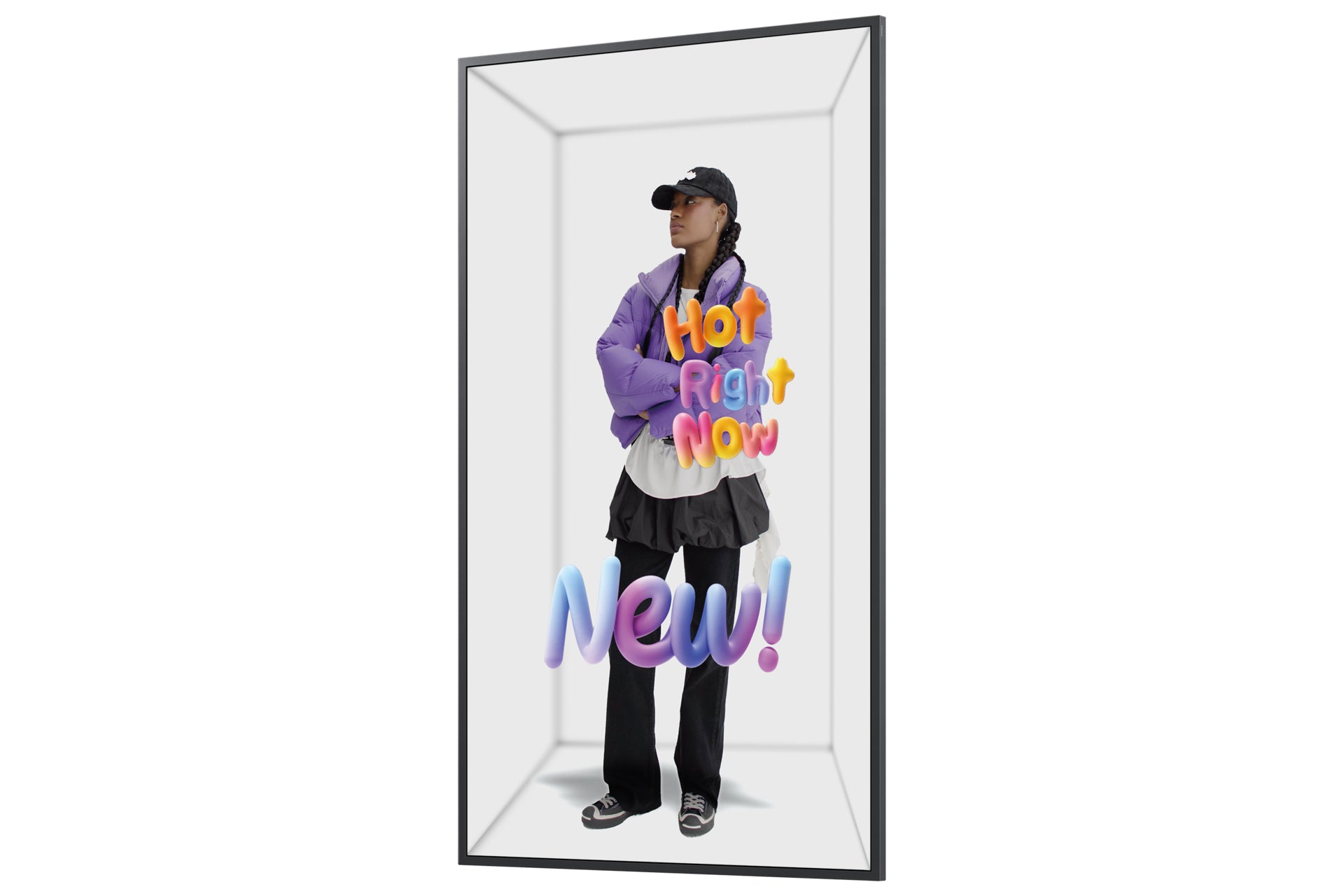

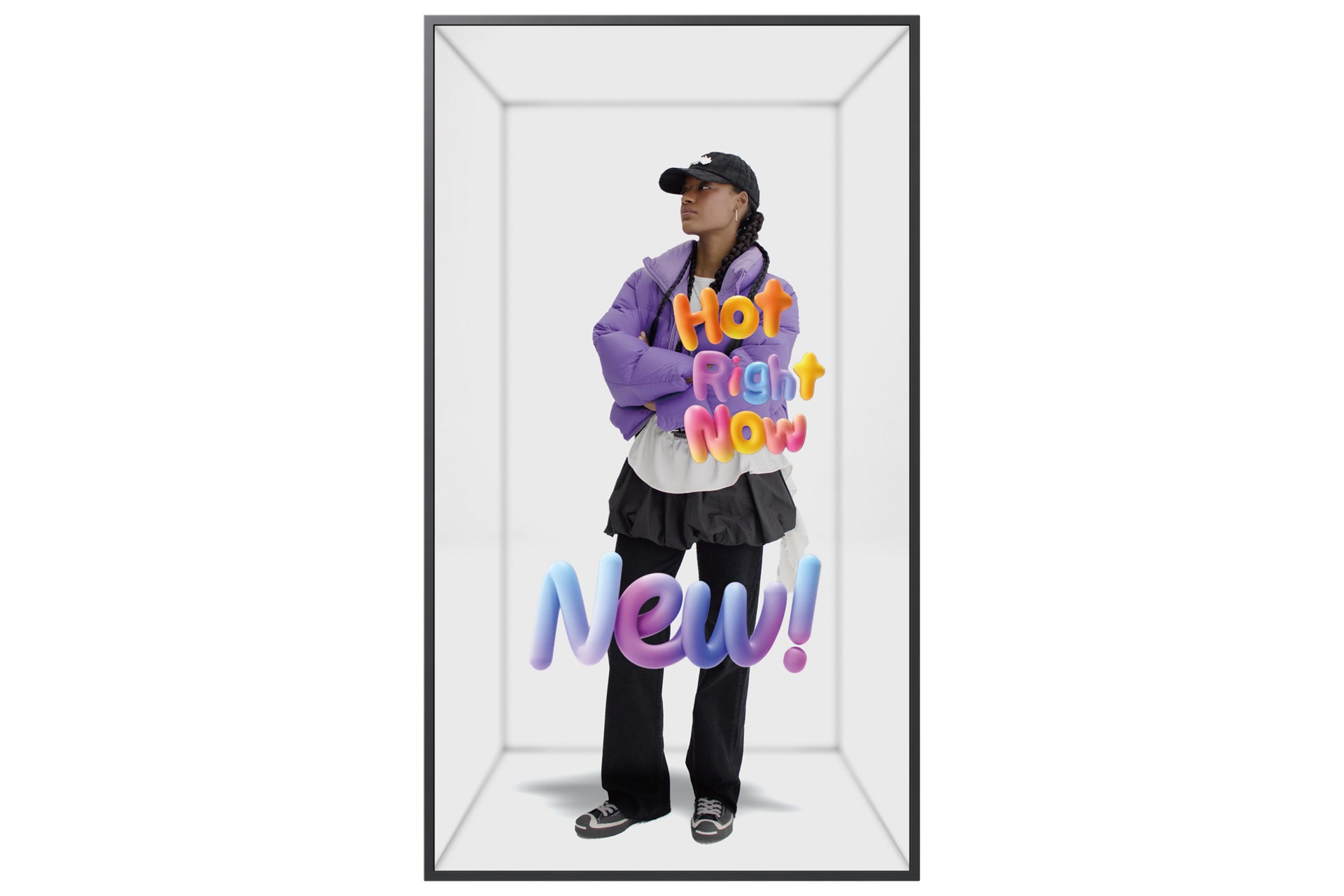

- Virtual 3D Display: Samsung's patented 3D plate technology transforms ordinary 2D content into immersive, face-to-face 3D visuals that pop out of the screen, delivering showroom-grade spatial experiences that draw viewers in.
- AI Studio 3D Content Creation: AI Studio inside Samsung VXT turns still images (2d content) into dynamic 3D-style video using nothing more than a written prompt, allowing even small teams to publish eye-catching spatial content without specialist production workflows.

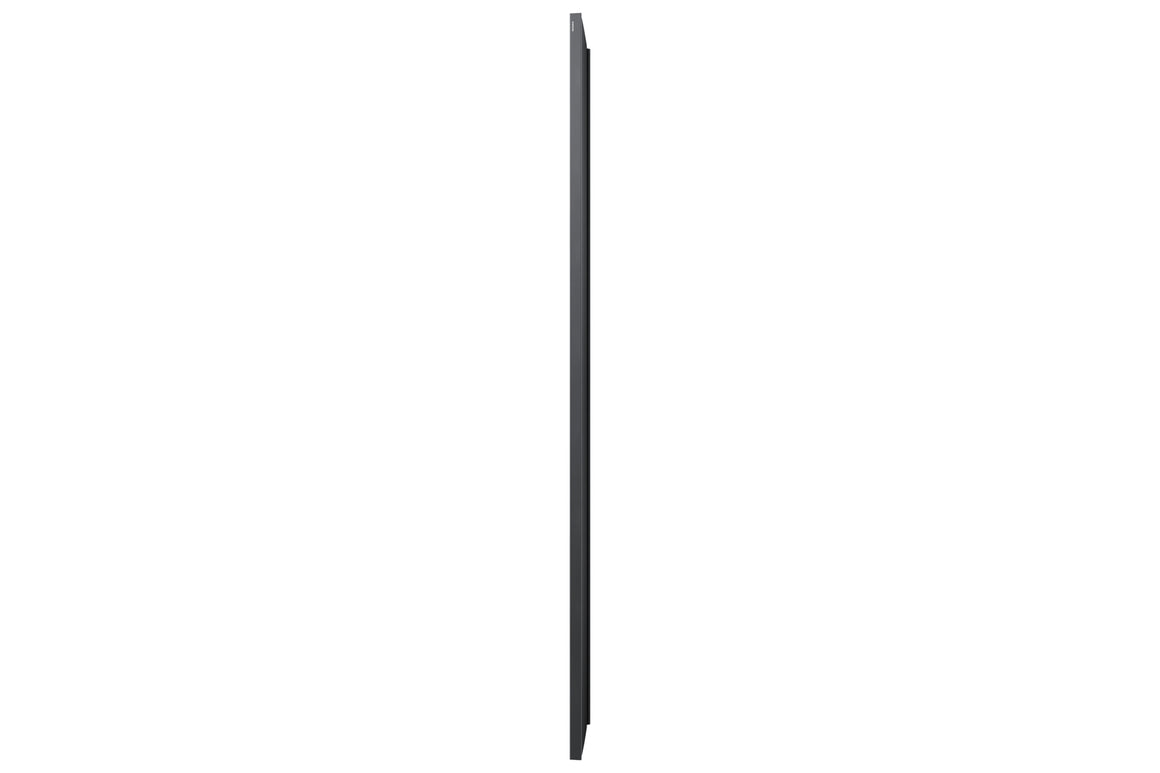

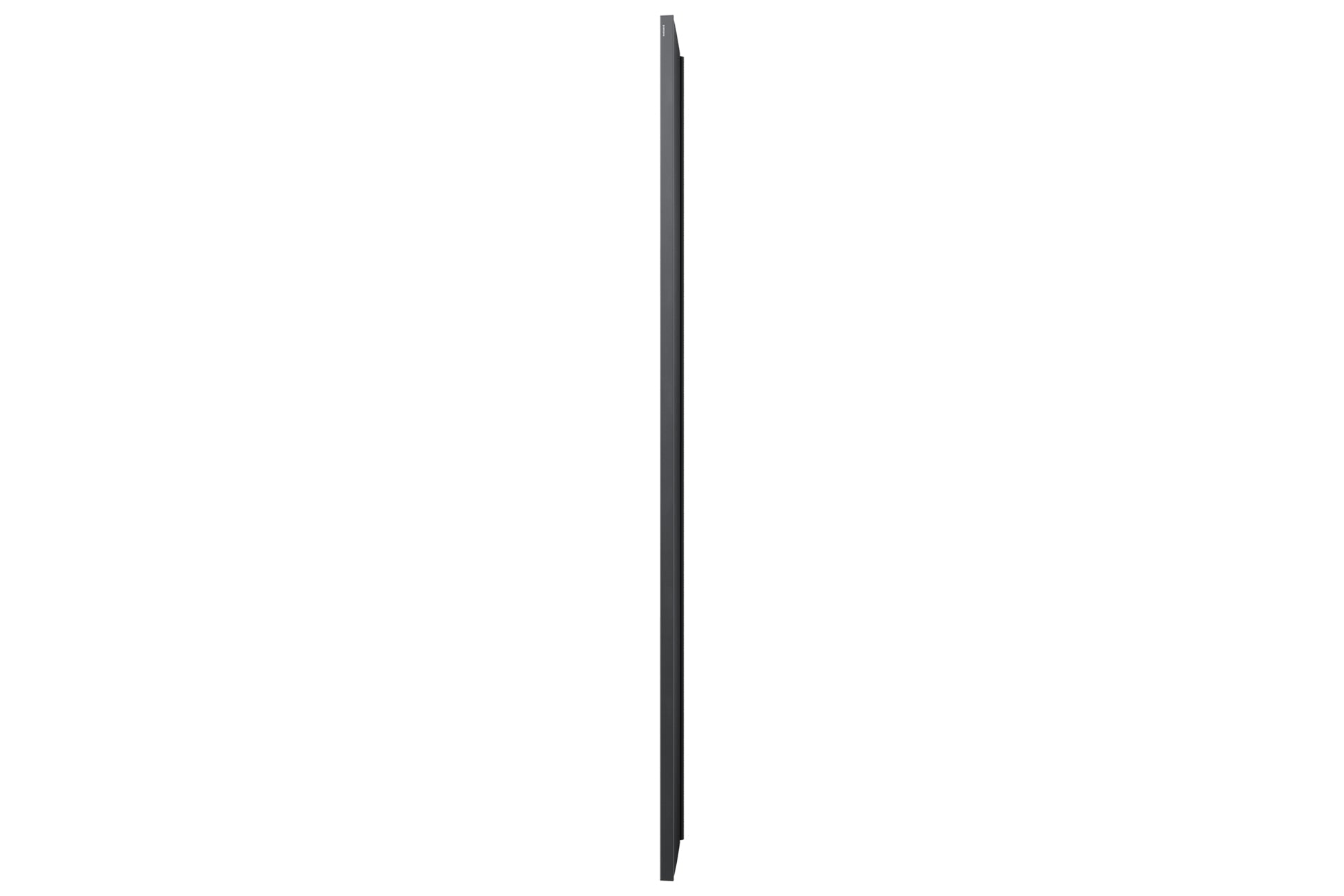

- UltraThin 52 mm Profile: A 52 mm slim chassis gives the 85" Spatial Signage the installation footprint of a standard digital signage display — easy to mount, lightweight for the category, and suitable for almost any retail or corporate environment.
- Quantum Processor with UHD Upscaling: Samsung's Quantum Processor intelligently upscales lower-resolution source content toward 4K UHD quality, ensuring clean, professional picture output from any feed driving the display.
- Anti-Glare Panel: An anti-glare panel with optimised haze reduces reflections from overhead lighting and sunlight, keeping spatial content clearly visible in flagship retail stores, showrooms, and bright open-plan offices.
- Samsung VXT Cloud CMS: The cloud-based Samsung VXT platform brings content management and remote device management together, letting operators deploy, schedule, and troubleshoot content across estates without specialist training or on-site visits.
- SmartThings Pro IoT Integration: SmartThings Pro connects the display into a wider business IoT ecosystem, allowing lighting, building systems, and other smart devices to be monitored and automated alongside the signage from a single platform.
- Tizen 7.0 Smart Signage Platform: A refreshed Tizen 7.0 home experience surfaces Favorites, Sources and Settings for one-click access to everyday controls, speeding up day-to-day operation for integrators and store teams alike.
- 4K UHD Resolution with 500 cd/m² Brightness: Native 3840 x 2160 resolution at 500 cd/m² delivers sharp, vivid images ideally suited to detailed 3D content, product close-ups, and immersive brand storytelling.
- 24/7 Commercial Operation: Engineered for 24/7 always-on commercial duty cycles, the SM85HX-P is designed to run reliably in high-footfall venues where downtime is not an option.

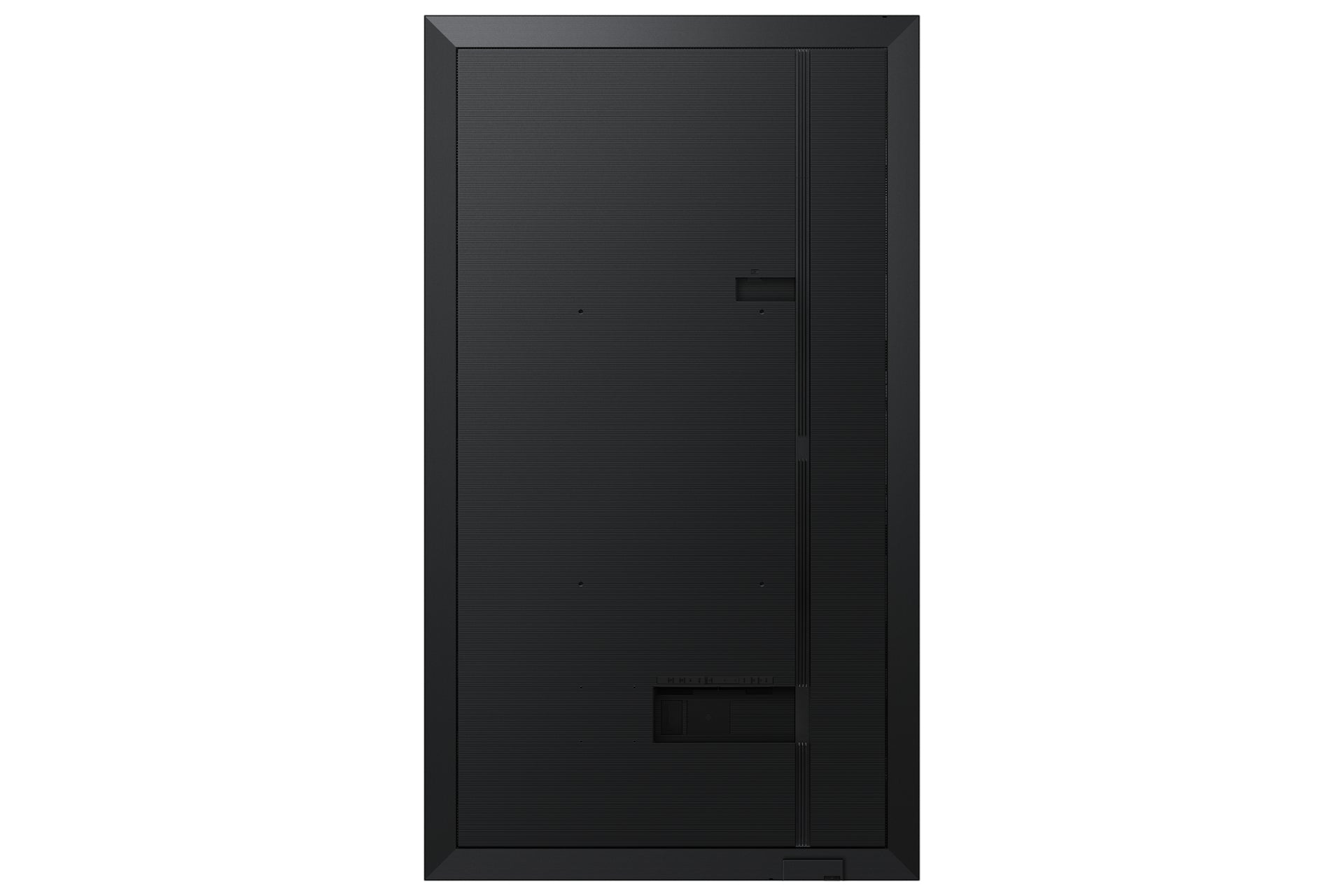

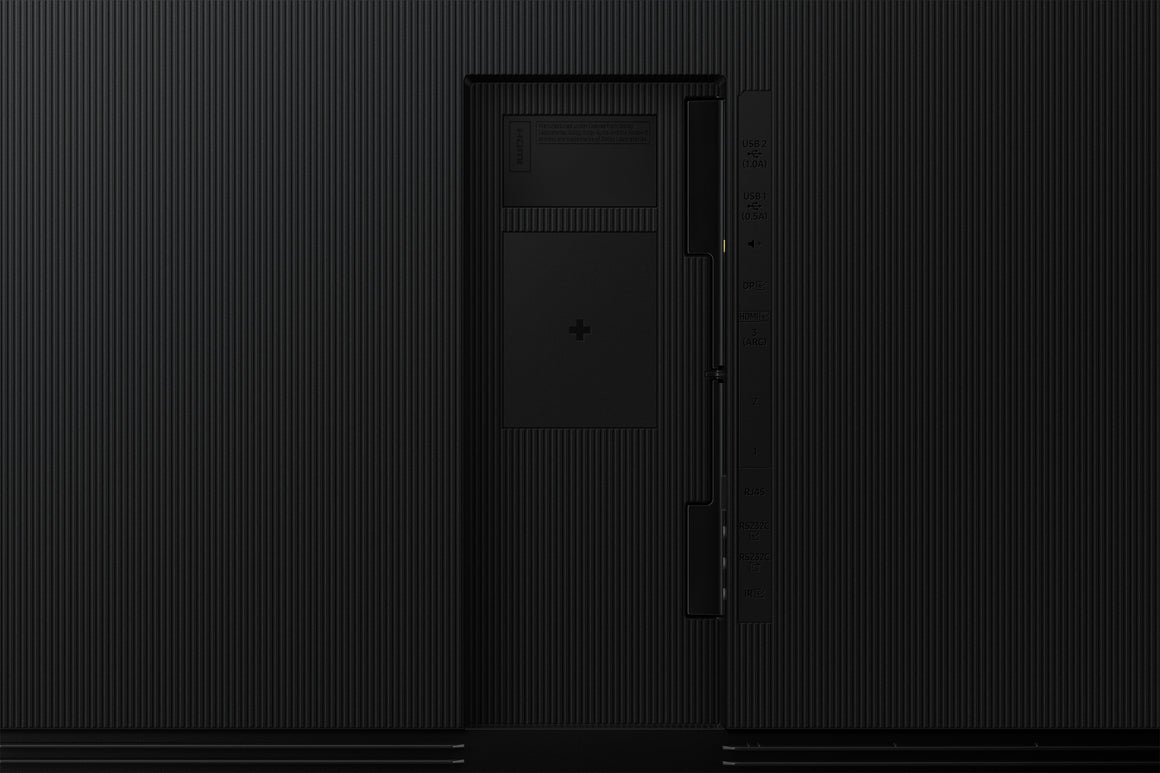

- VESA-Compatible Mounting: A 400 x 600 mm VESA mounting pattern supports secure wall installation with Samsung and third-party brackets, giving integrators flexibility in placement and orientation.
- Built-in Wi-Fi and Gigabit Ethernet: Dual-path connectivity with integrated Wi-Fi and RJ-45 Gigabit Ethernet keeps the display online for VXT content updates, firmware management, and remote support.
Specifications
| Display diagonal | 2.16 m (85") |
| Display technology | LCD (LED backlight) |
| Panel type | VA |
| Display resolution | 3840 x 2160 pixels (4K Ultra HD) |
| Display brightness | 500 cd/m² |
| Response time | 10 ms |
| Contrast ratio (typical) | 4000:1 |
| Dynamic contrast ratio | Mega Contrast |
| Orientation | Portrait |
| Pixel pitch | 0.487 x 0.487 mm |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Haze rate | 25% |
| Colour gamut | NTSC |
| 3D technology | Virtual 3D Display (Samsung patented 3D plate) |
| Anti-glare panel | Yes |

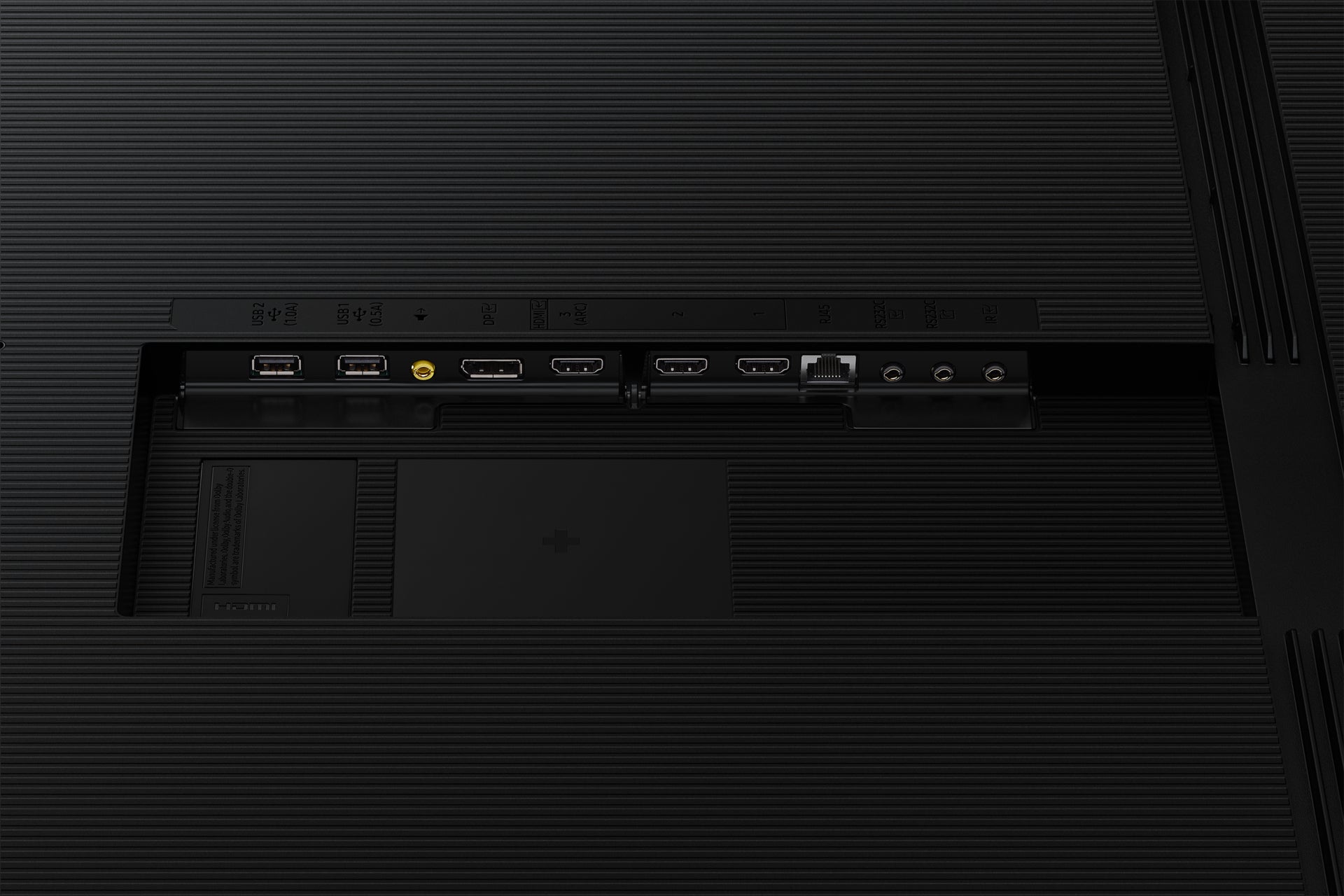

| HDMI ports | 3 x HDMI |
| DisplayPort | 1 x DisplayPort 1.2 |
| USB ports | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 interface | Yes |
| Remote (IR) input | 1 |
| HDCP | Yes (v2.2) |
| Wi-Fi | Yes |
| Product design | Digital signage flat panel |
| Placement | Indoor |
| Product colour | Black |
| VESA mounting | Yes |
| VESA mounting pattern | 400 x 600 mm |
| Purpose | Commercial |
| Operating hours | 24/7 |
| Built-in processor | Yes |
| Internal storage | 16 GB |
| Operating system | Tizen 7.0 |
| AC input voltage | 100 – 240 V, 50 / 60 Hz |
| Power consumption (typical) | 484 W |
| Power consumption (sleep) | 0.5 W |
| Display dimensions (W x D x H with stand) | 1101.2 x 52 x 1902.2 mm |
| Display weight (with stand) | 49 kg |
| Package dimensions (W x D x H) | 2093 x 220 x 1234 mm |
| Package weight | 61.9 kg |
| Operating temperature | 0 – 40 °C |
| Operating humidity | 10 – 80% |
What's in the Box
- Samsung SM85HX-P 85" Spatial Signage 4K UHD Display
- Power cable (UK)
- Remote control with batteries
- Quick setup guide
- Warranty card
Warranty
The Samsung SM85HX-P 85" Spatial Signage 4K UHD Display is backed by the Samsung 3-year commercial warranty, providing cover for professional and commercial deployments. Please review https://www.samsung.com/uk/support/warranty/ for warranty details.
Extended warranties on selected products are available to purchase, please contact support@avitdirect.co.uk.
Application Examples
| Retail Flagships and Showrooms | 3D Spatial Signage brings products to life in flagship stores and experiential showrooms, turning window displays and feature walls into standout brand moments that draw customers in. |
| Corporate Receptions and Experience Centres | The SM85HX-P transforms corporate lobbies, briefing suites, and customer experience centres into immersive spaces for storytelling, product demonstrations, and visitor engagement. |
| Hospitality and Event Venues | Hotels, conference centres, and event venues use the 85" spatial display for dramatic welcome visuals, digital artwork, and immersive content in public spaces and guest-facing areas. |
| Museums, Galleries and Exhibitions | AI Studio-generated 3D content and the Virtual 3D Display make the SM85HX-P a compelling canvas for exhibitions, interactive installations, and digital art environments. |
| Transport Hubs and Large Public Spaces | Anti-glare panel, 24/7 operation, and 4K UHD resolution suit the display to airports, stations, and civic spaces where visibility and uptime are critical. |
