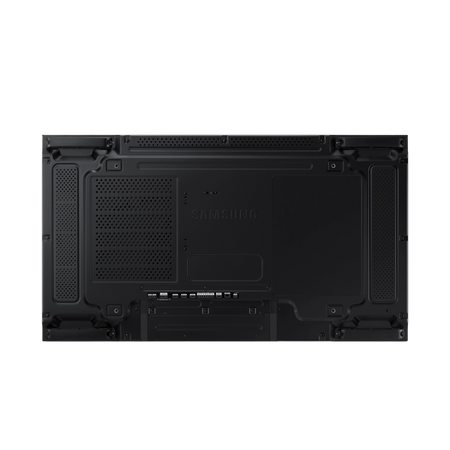

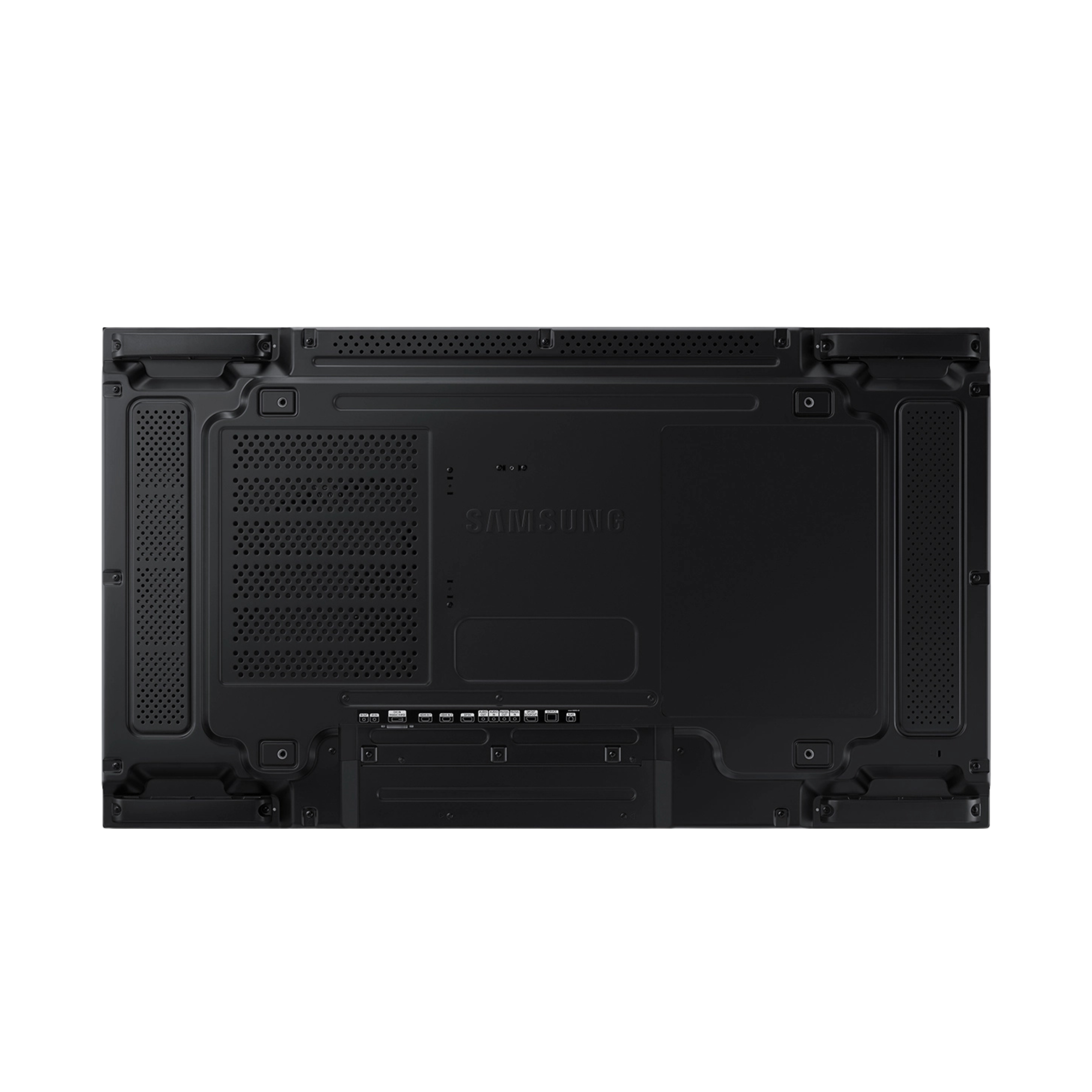

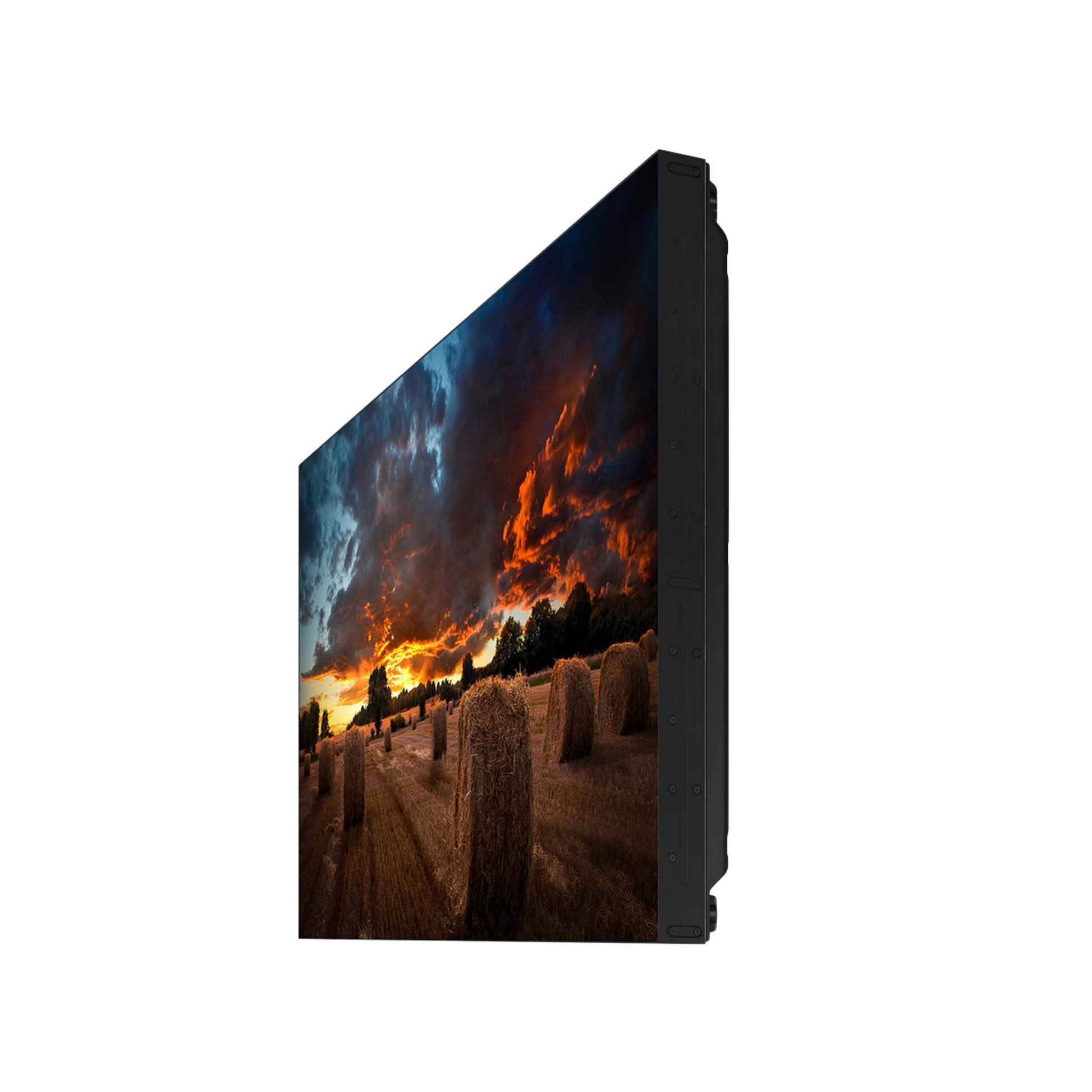

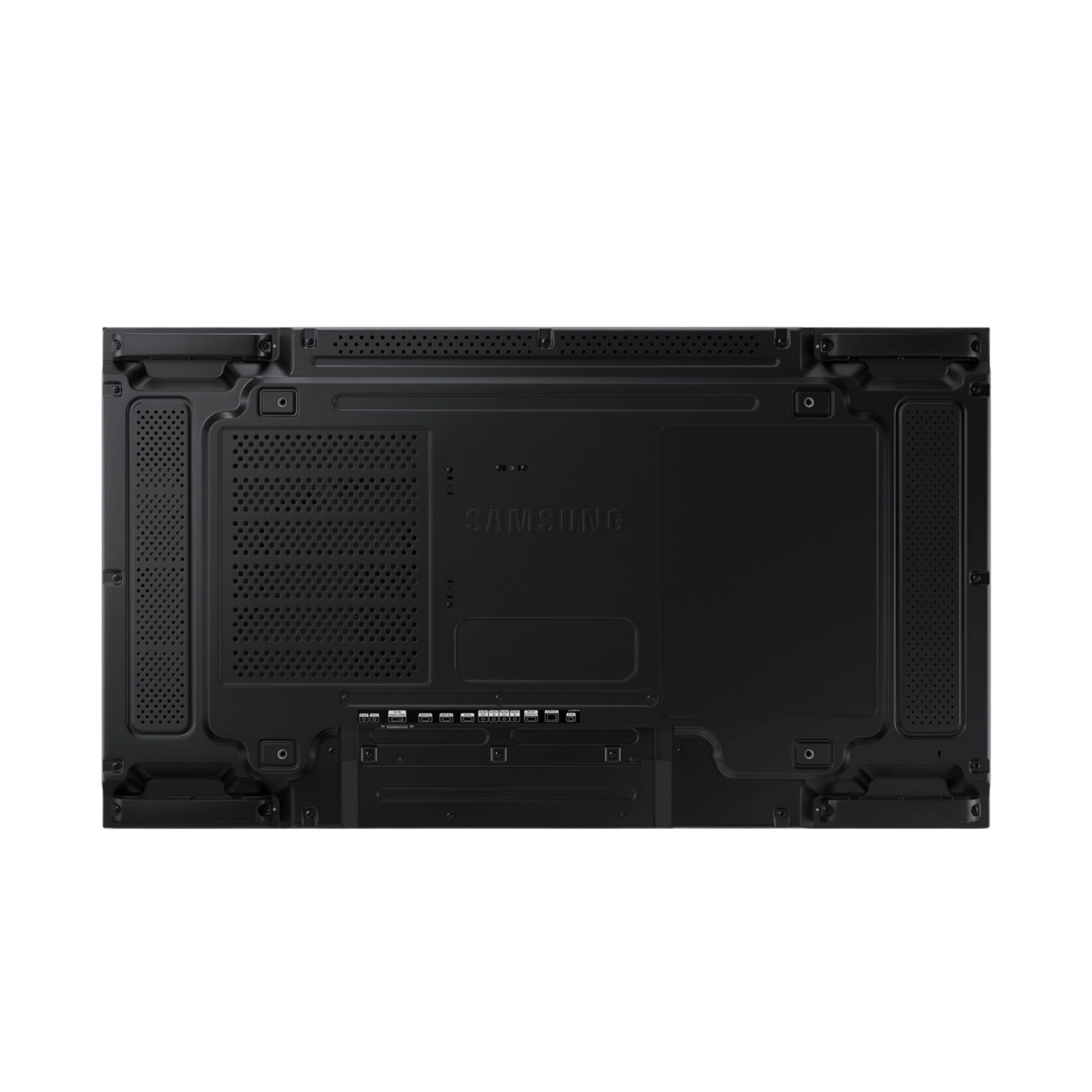

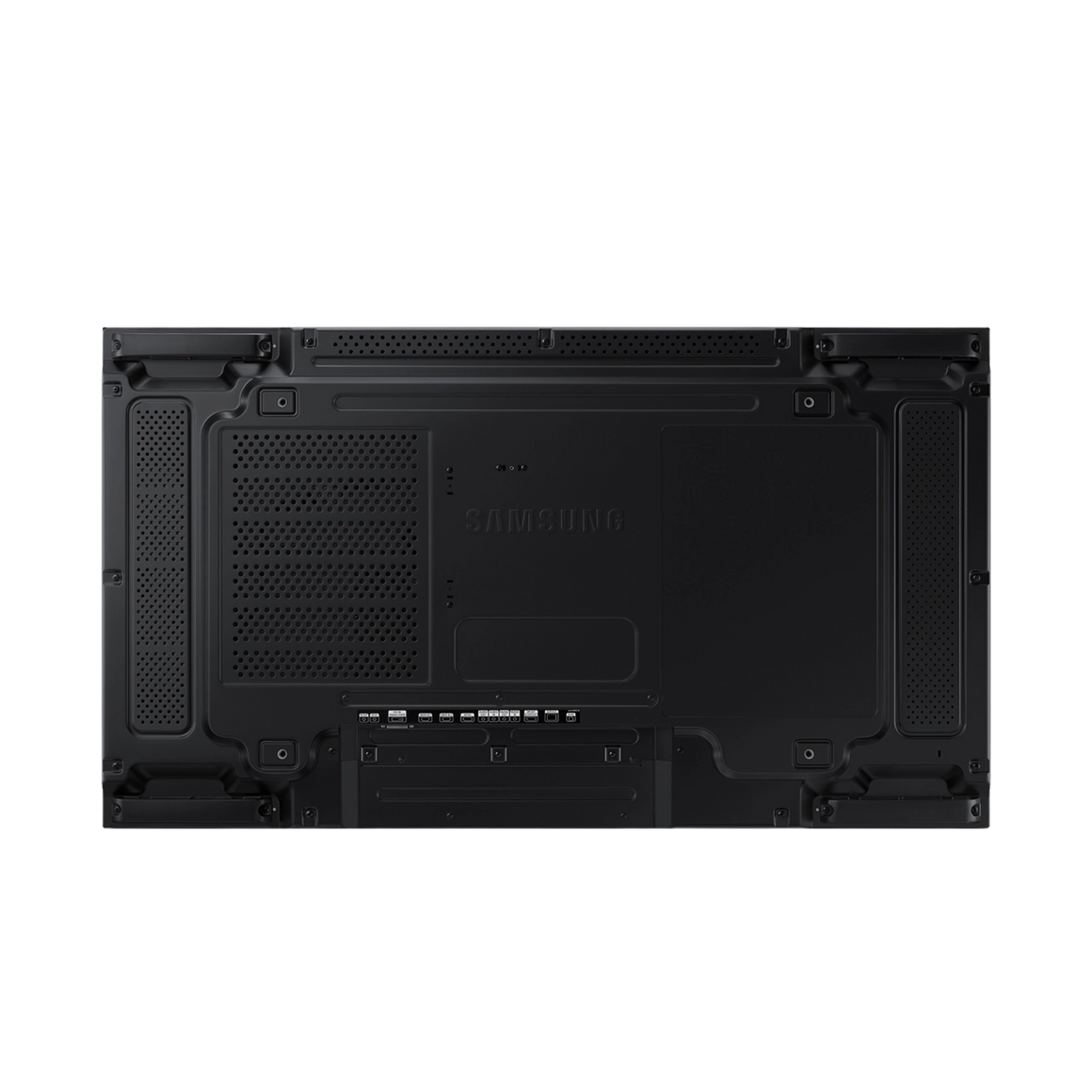

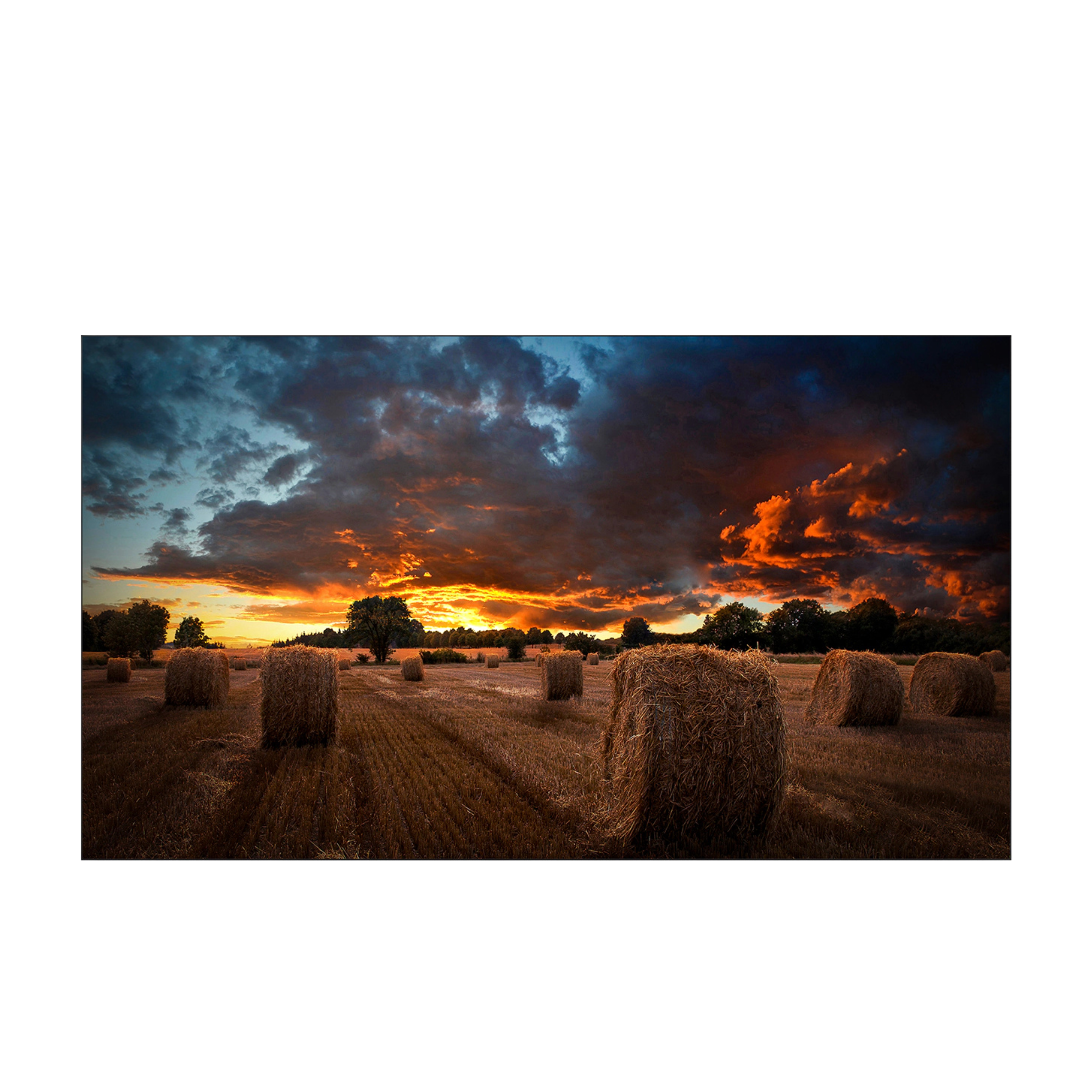

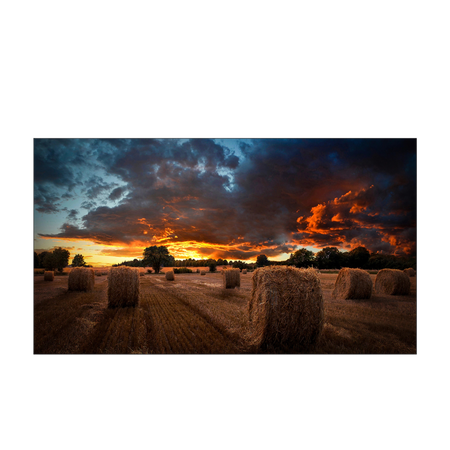

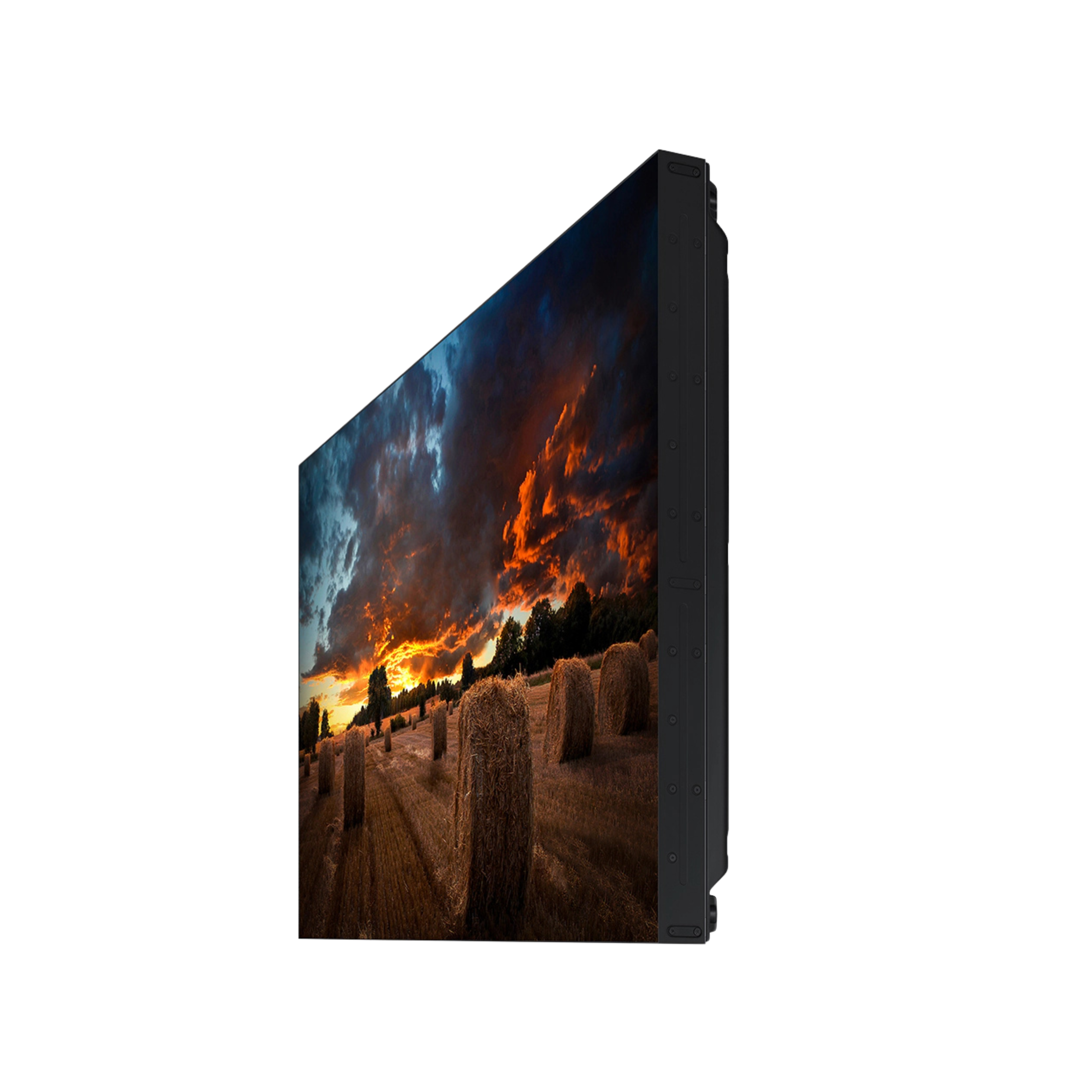

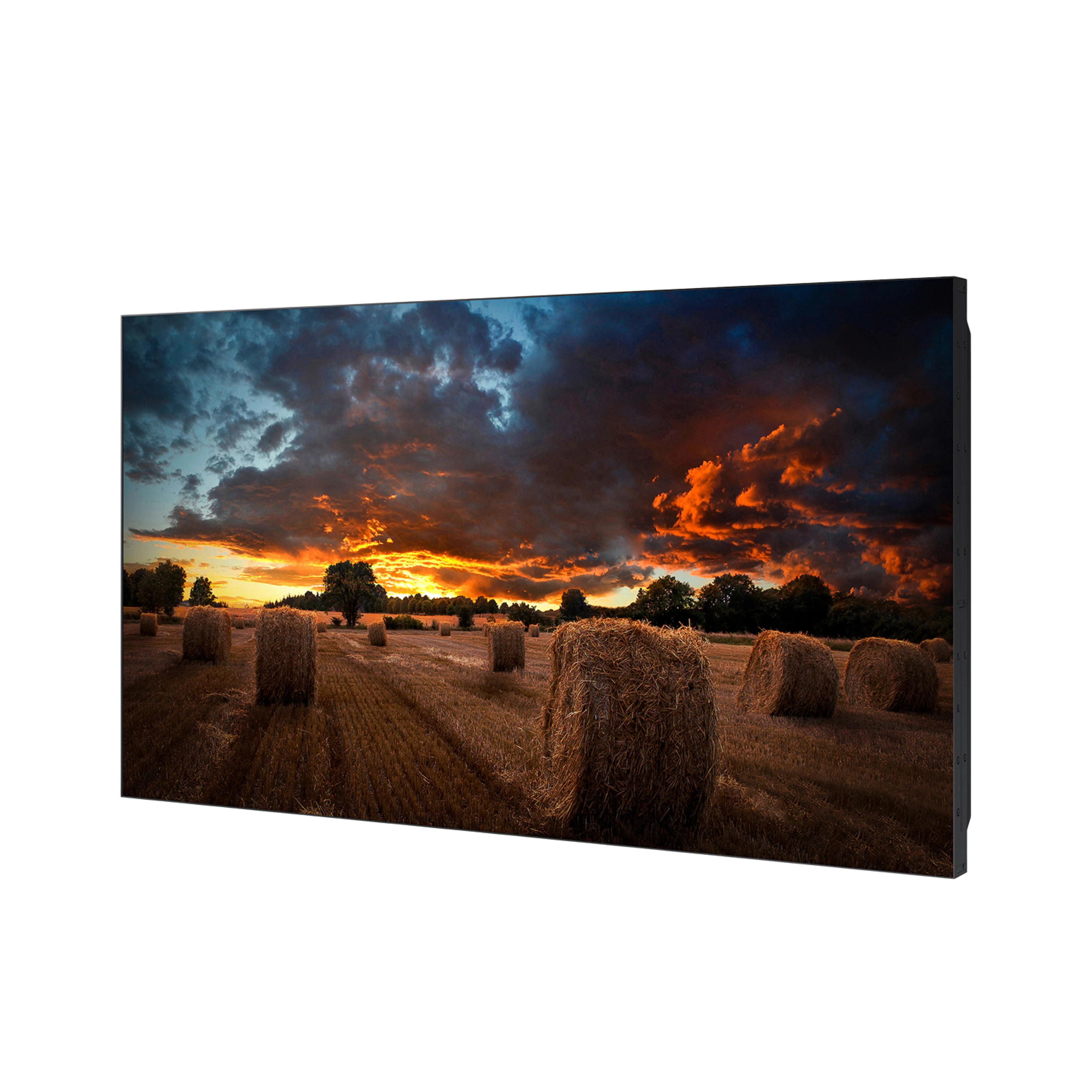

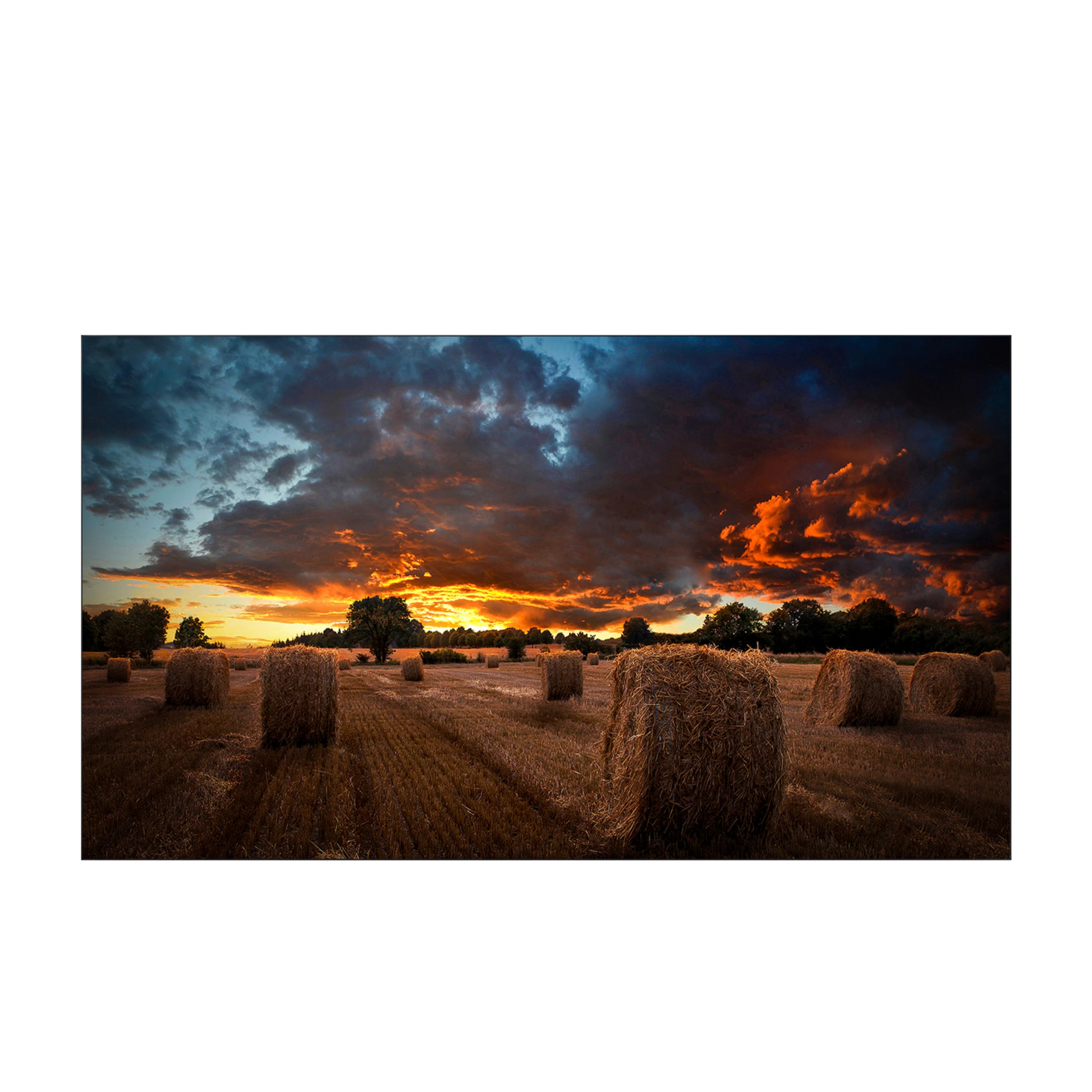

Samsung VM46B-U 46" Video Wall Display – Bezel-to-Bezel Commercial Video Wall Panel
46 inch FHD Ultra Narrow Bezel Video Wall Display (Digital Signage)
Secure Checkout
Warranty Protection
Hassle-Free Returns

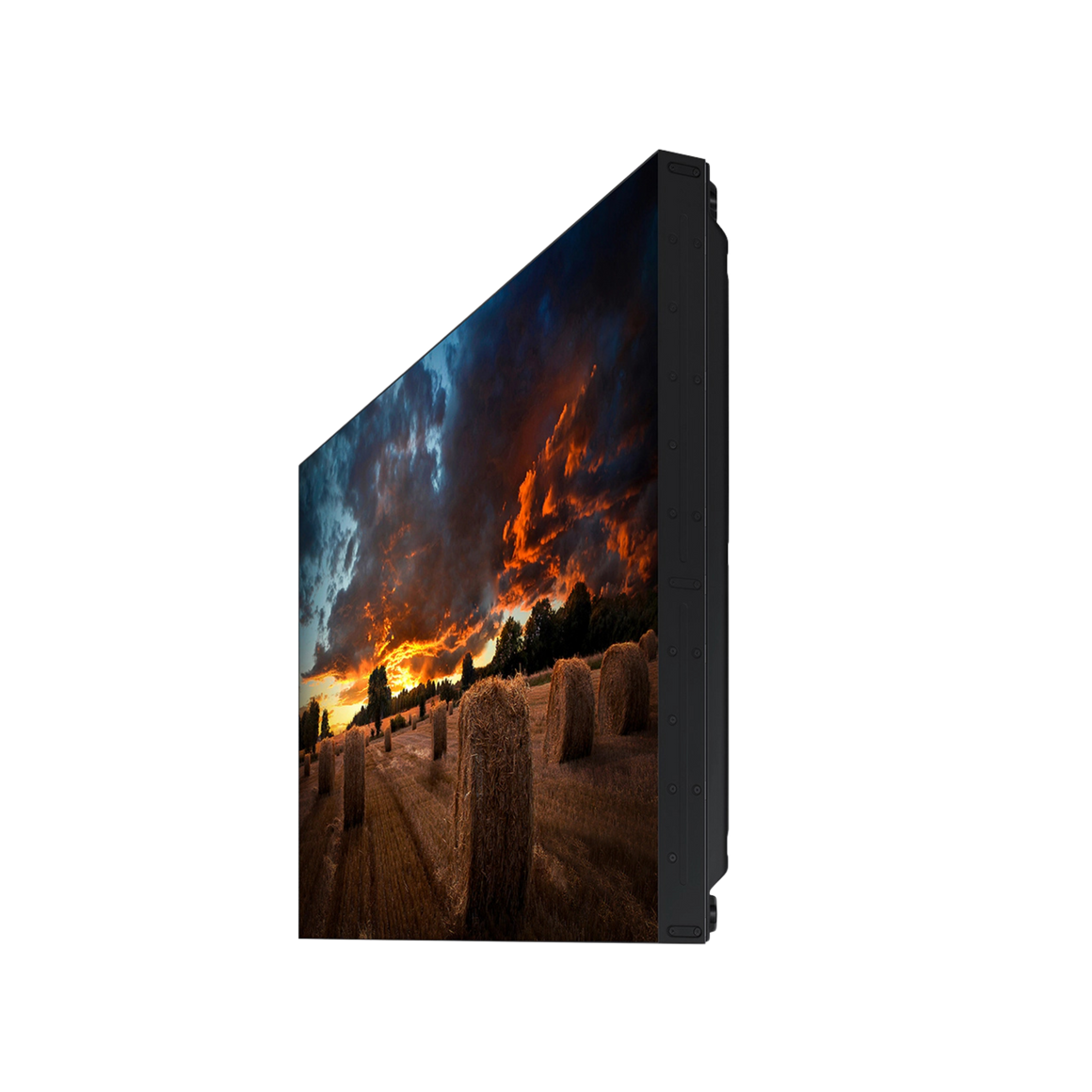

The Samsung VM46B-U is a 46-inch Full HD video wall display engineered for seamless visual performance in professional environments. Featuring ultra-narrow bezels, a 69.9 mm cabinet depth, 24/7 operation, and Samsung’s advanced image enhancement technologies, the VM46B-U delivers consistent, high-impact content for retail, control rooms, corporate spaces, transportation hubs and more. Its robust design, IP5X dust protection, and comprehensive calibration tools ensure reliable, uniform, and striking visuals in any setting.
Key Features
- Ultra-Narrow Bezel: Minimal bezels measuring 2.25 mm (upper/left) and 1.25 mm (right/bottom) reduce visual distraction and create a near-seamless video wall surface.
- Vibrant 500-nit Brightness: Ensures clear, sharp content visibility in controlled and moderately lit environments, ideal for indoor signage and control rooms.
- Non-Glare Panel: With a 25% haze panel, the VM46B-U maintains accurate, vivid visuals by reducing light reflections across multi-display installations.
- Advanced Image Enhancements: Utilising Picture Enhancer and Black Equaliser modes, the display improves contrast, sharpness, and detail visibility for more impactful content.
- 24/7 Operation: Designed for continuous use, supporting mission-critical applications requiring uninterrupted uptime.
- Comprehensive Calibration: Factory tuning plus compatibility with Samsung Color Expert Pro and Color Expert Pro Mobile ensures uniformity in brightness and colour across large video walls (up to 10×10).
- Daisy-Chain Connectivity: DP 1.2 digital daisy chain supports UHD video output across multiple displays without the need for external processors.
- Durable & Dust-Resistant: IP5X certification ensures dependable performance in public or semi-industrial environments without extra enclosure.
- Flexible Installation Options: Landscape or portrait orientation with 600×400 VESA mounting and slim-depth architecture.
Specifications
| Screen Size | 46" |
| Panel Type | IPS |
| Resolution | 1920 × 1080 (Full HD) |
| Brightness | 500 nits |
| Contrast Ratio | 1200:1 |

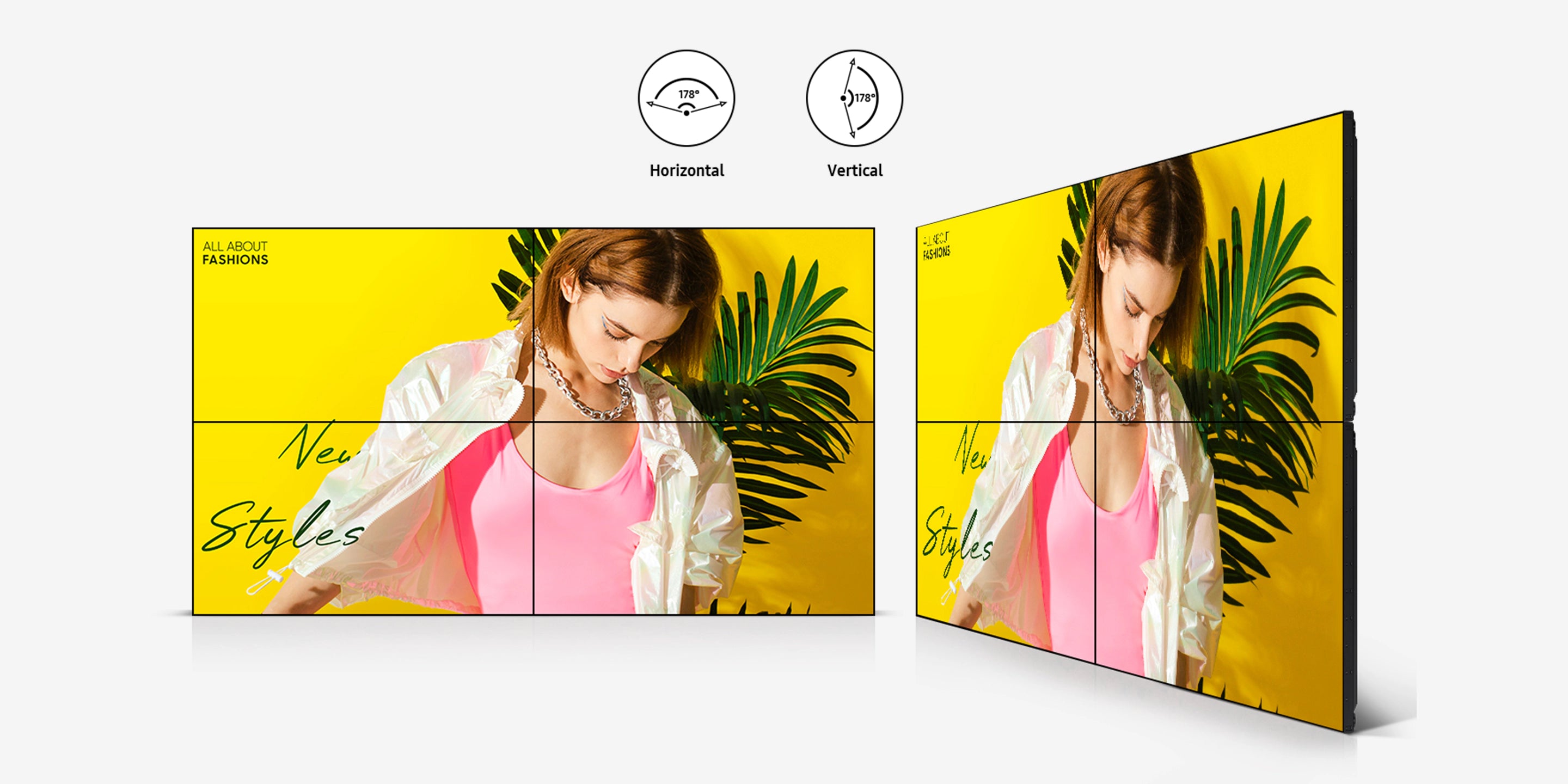

| Viewing Angle | 178°/178° |
| Haze | 25% |
| Colour Gamut | 72% |
| Pixel Pitch | 0.53 × 0.53 mm |
| Operation Time | 24/7 |
| Input Ports | HDMI 2.0 ×2, Stereo Mini Jack, USB 2.0 ×1 |
| Output Ports | DP, DVI, HDMI 1/2, Stereo Mini Jack |
| External Control | RS232C (in/out), RJ45 in |
| Speaker | N/A |
| Screen Orientation | Portrait / Landscape |
| Internal Processor / OS | N/A |
| Special H/W Features |
|
| Special S/W Features |
|
| Power Supply | AC 100–240V, 50/60 Hz |
| Power Consumption |
|
| IP Rating | IP5X |
| Dimensions (W × H × D) | 1022 × 577 × 69.9 mm |
| Dimensions (With Packaging) | 1193 × 719 × 257 mm |
| Weight | 15.7 kg |
| Weight (With Packaging) | 22.2 kg |
| Bezel Width | 2.25 mm (U/L), 1.25 mm (R/B) |
| VESA Mount | 600 × 400 mm |
| Included Accessories |
|
| Optional Accessories | WMN-46VD Wall Mount |
The Samsung VM46B-U provides a robust, high-performance video-wall solution designed for demanding commercial environments. Its slim profile, ultra-narrow bezels, and advanced calibration capabilities ensure uniform, impactful visuals across large display arrays, perfect for retail, control rooms, public information displays, and corporate communication.
