SiliconCore Mobile AIO (All-In-One) 135” HD
Discover the cutting-edge technology and unmatched performance of our 135” high-resolution LED display, perfect for collaboration rooms, engineering environments, training suites, and multi-purpose rooms.
Secure checkout
Friendly support
Hassle-free returns

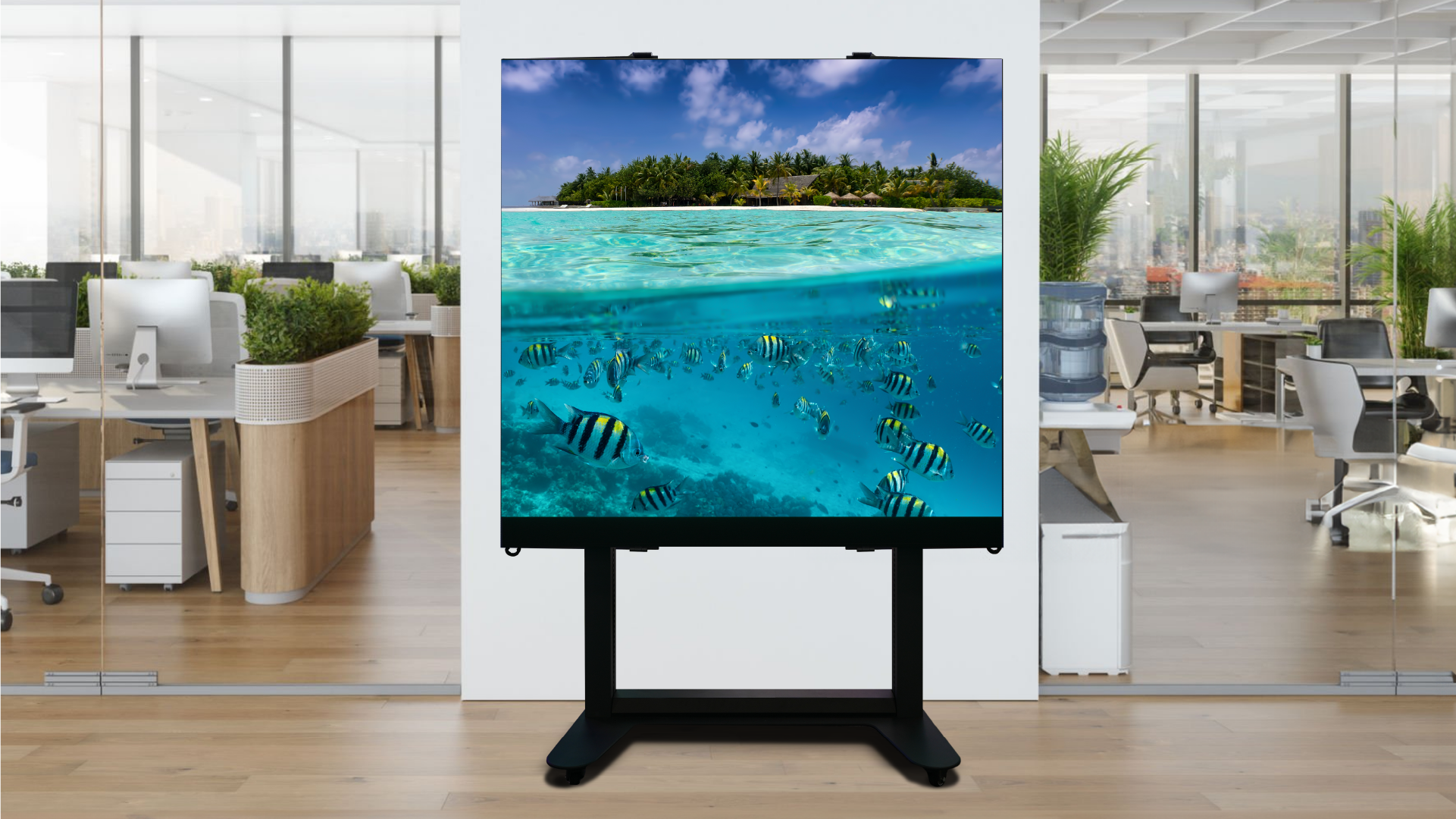

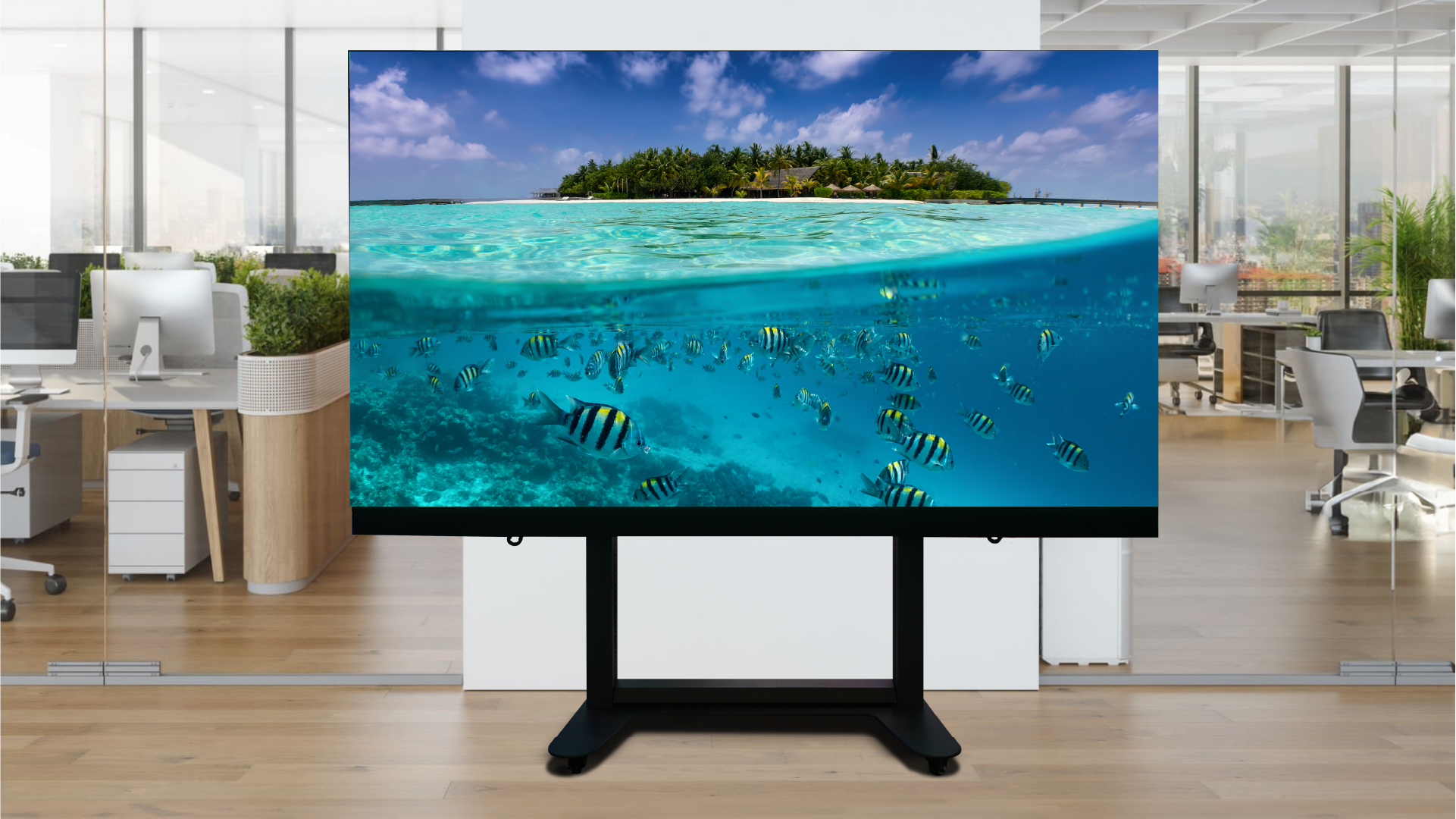

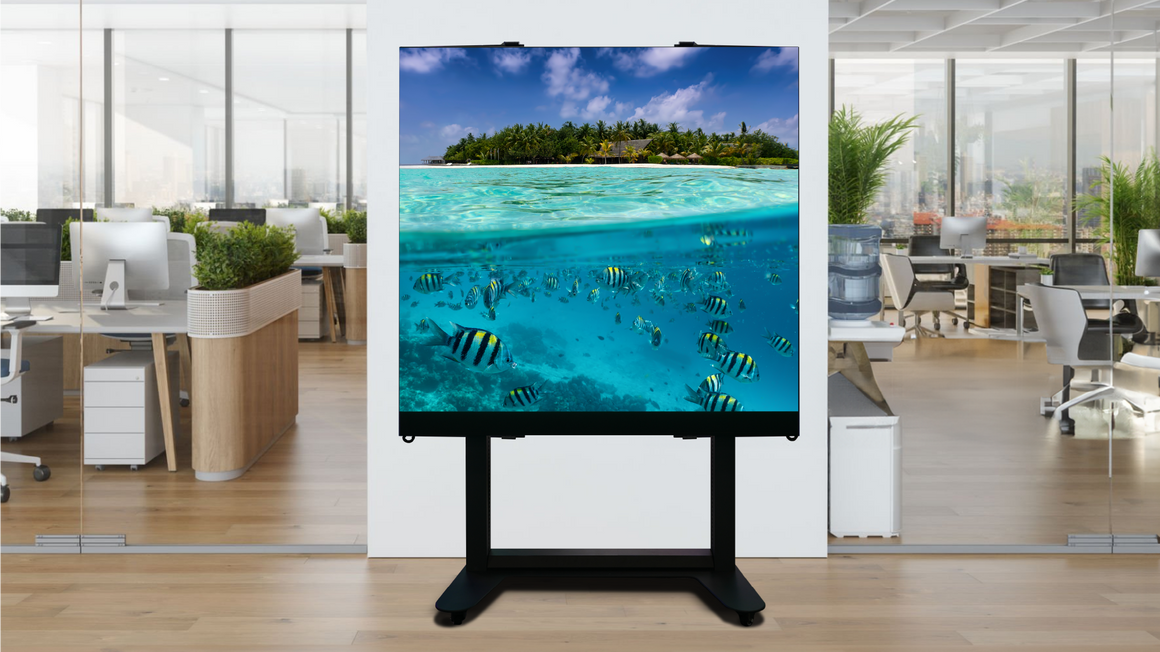

The SiliconCore Mobile AIO (All-In-One) 135″ HD is a foldable, flexible large-scale display that uses less power and saves money. It’s big and bright with elevated picture quality. It folds to fit into standard lifts and expands instantly—no installation required. Just plug in the single power lead, wheel it into any room in under five minutes, and connect wirelessly or via a wired connection. Leveraging SiliconCore’s patented dvLED technologies, this display delivers high performance in a sustainable, mobile package ideal for collaboration rooms, lobbies, engineering environments, training suites, multipurpose rooms and enterprise deployments.
Highlighted Features
- Compact & Flexible: Foldable, mobile design that fits in standard lifts.
- High Resolution: 135″ display with 1,920 × 1,080 HD resolution, ideal for close-proximity viewing.
- BYOD Connectivity: Seamless HDMI or wireless presentation, ready in seconds.
- Superior Performance: 50/60 Hz frame rate, 1,000 nits brightness, up to 40 % lower power draw.

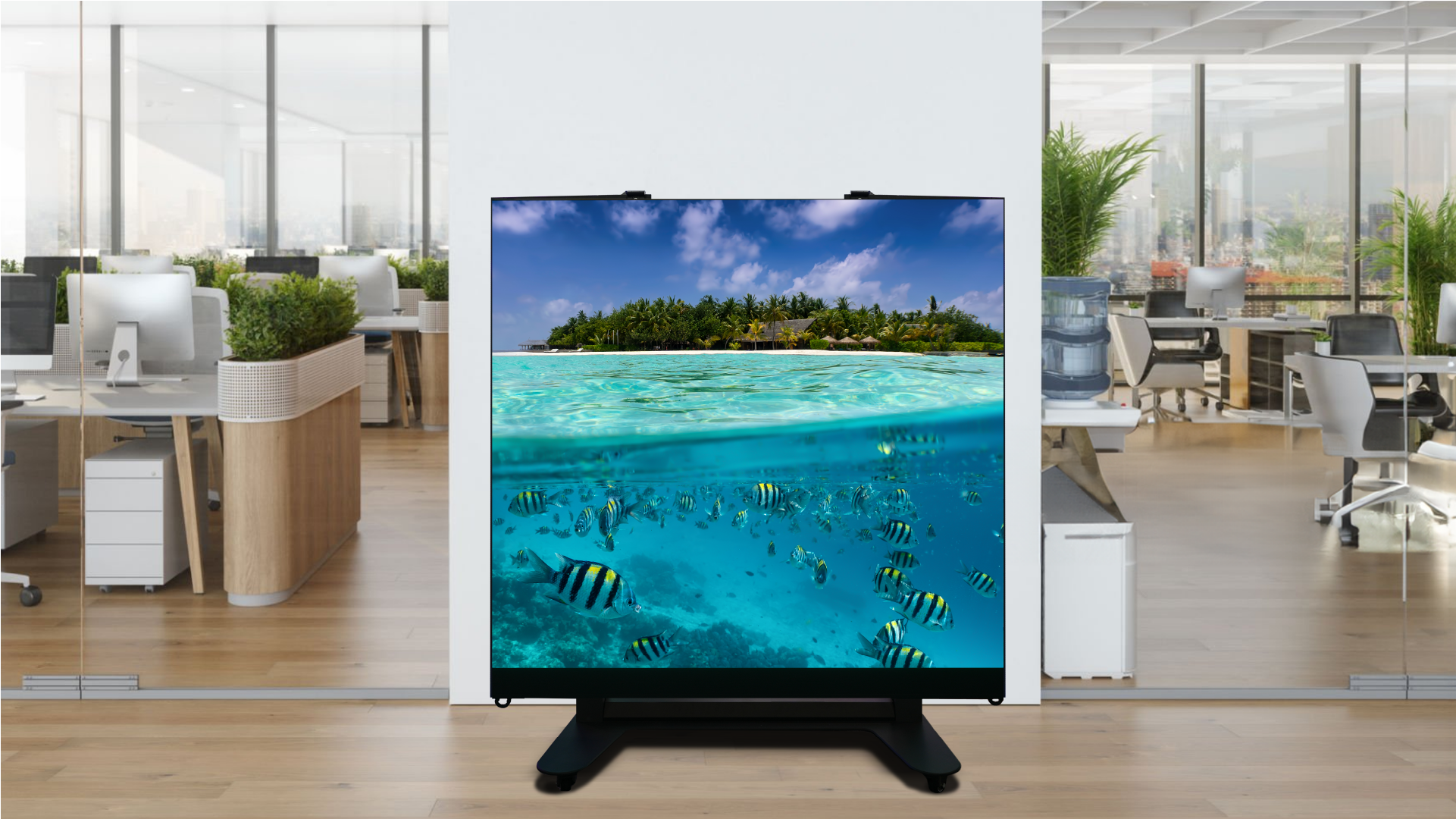

- Expandable, Mobile Design: Foldable chassis transitions from travel to setup mode at the touch of a button in under five minutes.
- High Brightness: Up to 1,000 nits full-white output for clear visibility in any lighting.
- Lower Operating Cost: Average low power consumption and longer lasting brightness protects your investment over time. One mobile unit can be transported and utilised in multiple rooms for maximum utilisation of assets.
- Ultra-Low Power: Single-cord power, averaging just 500 W at 600 nits brightness.
- Durable: SiliconCore’s durable encapsulation technology protects individual LEDs from damage, extending product lifetime in rugged environments with no compromise to brightness or colour reproduction.
- Common Cathode IQ™ LED Driver Technology: Dramatically reduces power draw while boosting brightness and extending module lifespan.
- Advanced Technology: Proprietary Common Cathode, ZACH and LISA technologies for enhanced detail, gamut and minimal reflections.
Specifications
| Screen Size | 135″ diagonal (3010 mm × 1807 mm; 9.87′ × 5.53′) |
| Resolution | 1920 × 1080 (HD) |
| Brightness | Up to 1000 nits |
| Dynamic Contrast Ratio | 20000 : 1 (< 0.05 nits low-level) |
| Aspect Ratio | 16 : 9 |
| Viewing Angle | 170° H / 170° V |
| HDR Compatibility | HDR10, HLG, Dolby Vision |
| Frame Rates Supported | 50/60 Hz |
| Internal Storage | N/A |
| Speaker Output | 3 W |
| Operating System | Android |
| Connectivity (beneath display) | HDMI 2.0, HDMI 1.4 inputs; USB 5 V / 1.5 A; LAN; USB-C; IR; Wi-Fi |
| Outputs | HDMI, Audio, S/PDIF |
| Inputs | IR; (2×) USB 5 V / 1.5 A; LAN; (2×) HDMI 2.0; (2×) HDMI 1.4; HDMI 2.1; RS-232 |
| Comm. Ports | RJ45; USB 2.0; USB 3.0 |
| Dimensions (without stand) | 3010 mm × 1807 mm (9.87′ × 5.53′) |
| Weight | 319 kg (703 lbs) |
| Shipping Dimensions | 78.74″ × 80.5″ × 34.8″ (2 000 mm × 2 045 mm × 884 mm) |
| Shipping Weight | 505 kg (1113 lbs) |
| Certifications | PSE, ETL, CE, FCC, RoHS, CCC |
| Power Consumption | Screen Max: 1 850 W; Avg: 700 W (full white) / 500 W (60 % white) Motor Moving: 330 W ± 10 %; Standby: 0.5 W |
This mobile AIO display is perfect for collaboration rooms, lobbies, engineering environments, training suites, multipurpose rooms and enterprise deployments.
