SKU: SY-KC4V-W-UK

SY Electronics KC Series Keypad

Sy Electronics

Versatile KC Series Keypads

The SY KC Series Keypad Controllers are powerful, standalone keypad controllers designed for complete room control across modern AV installations. Whether for classrooms, boardrooms, or lecture halls, the KC range offers a streamlined and intuitive interface to control AV, lighting, audio, and more — all programmable with NebulaStudio®.

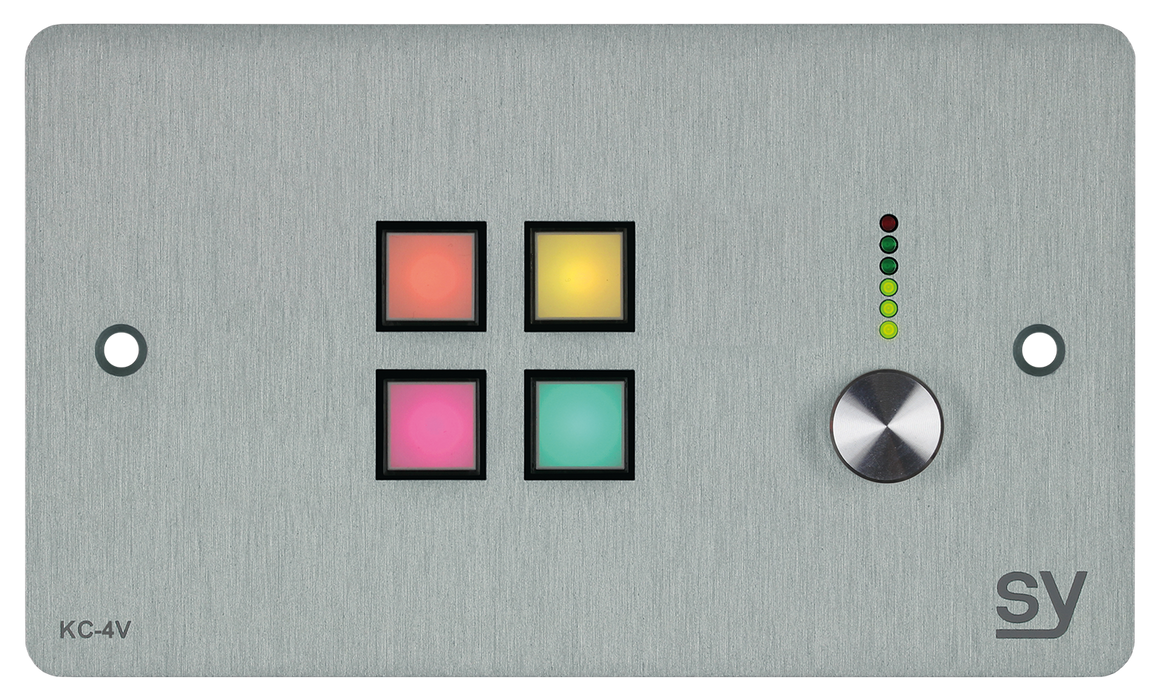

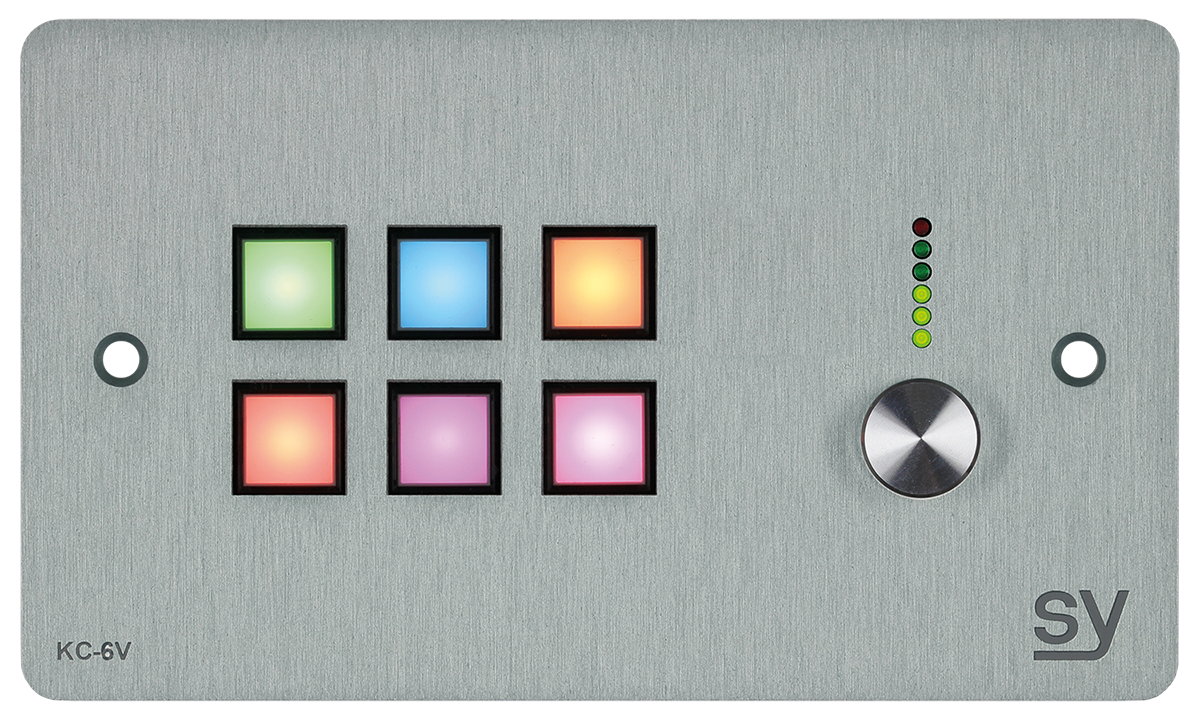

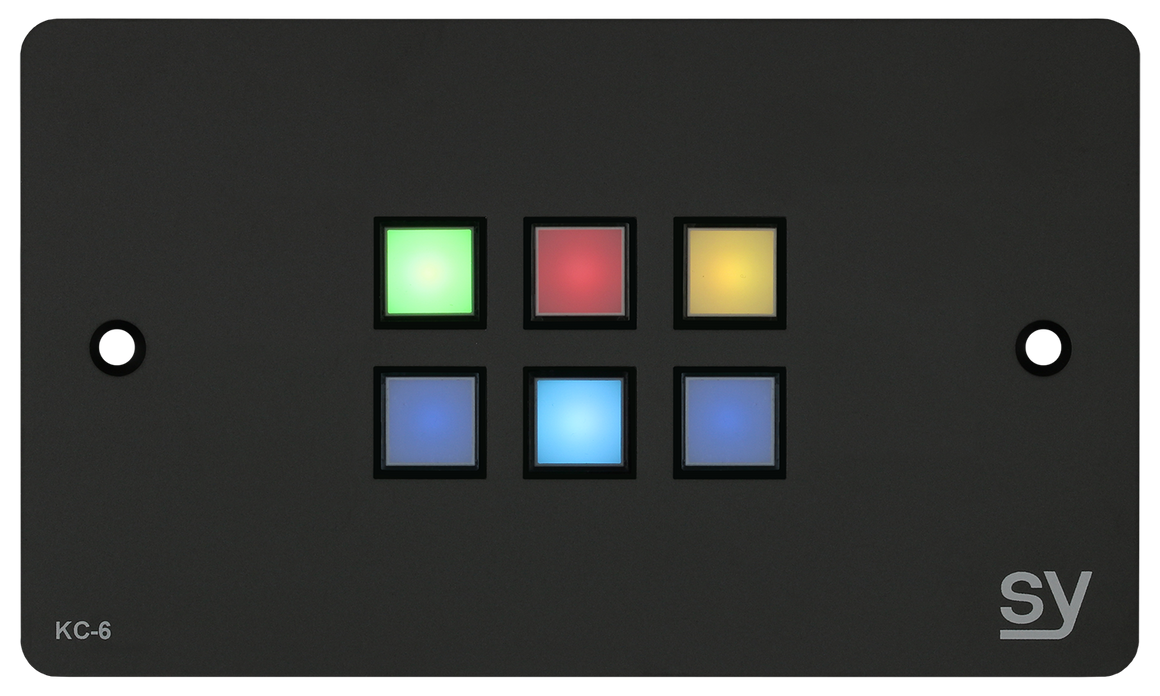

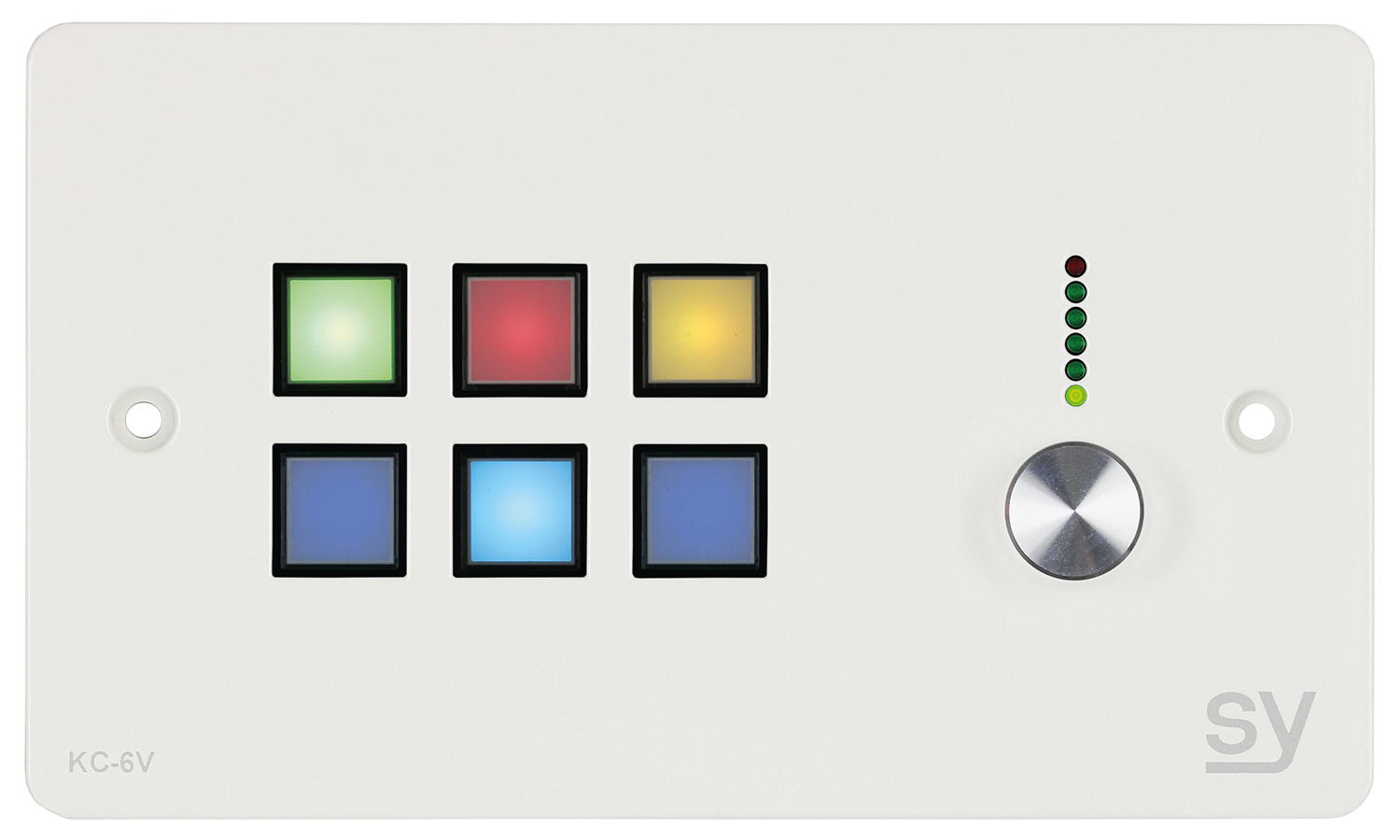

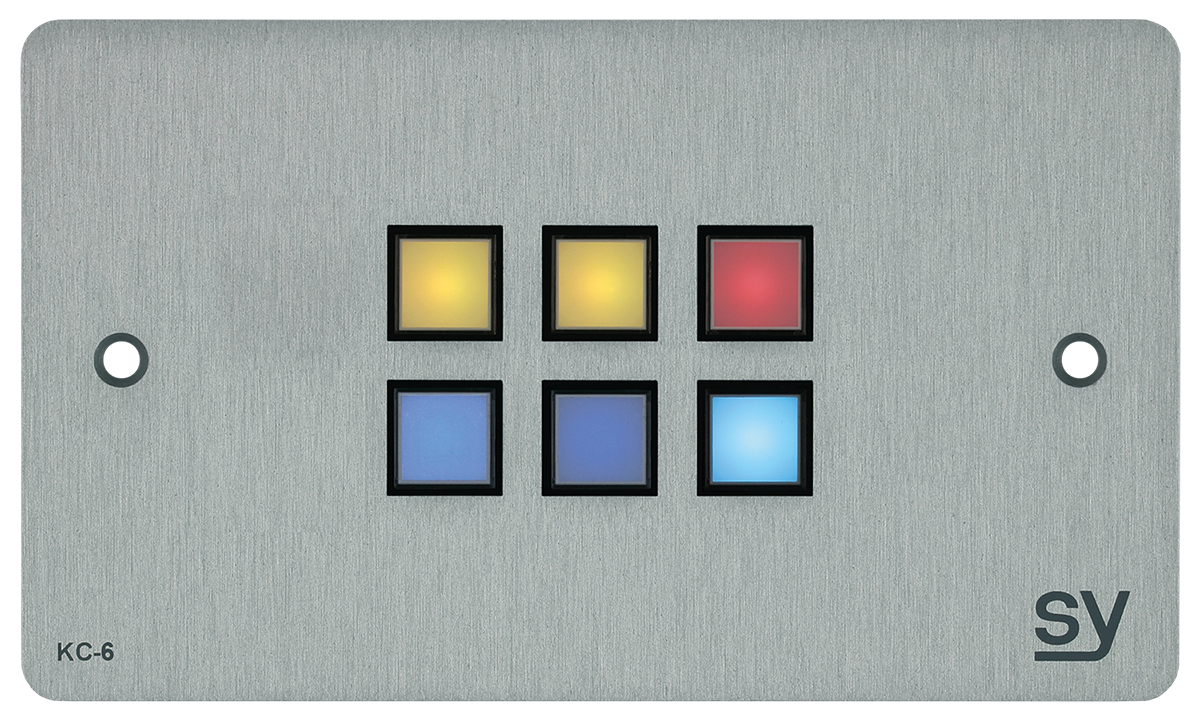

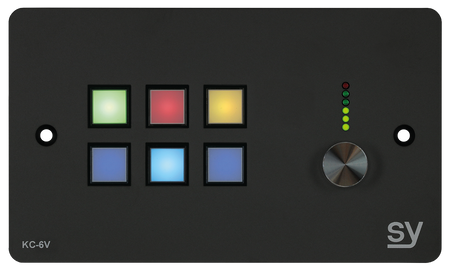

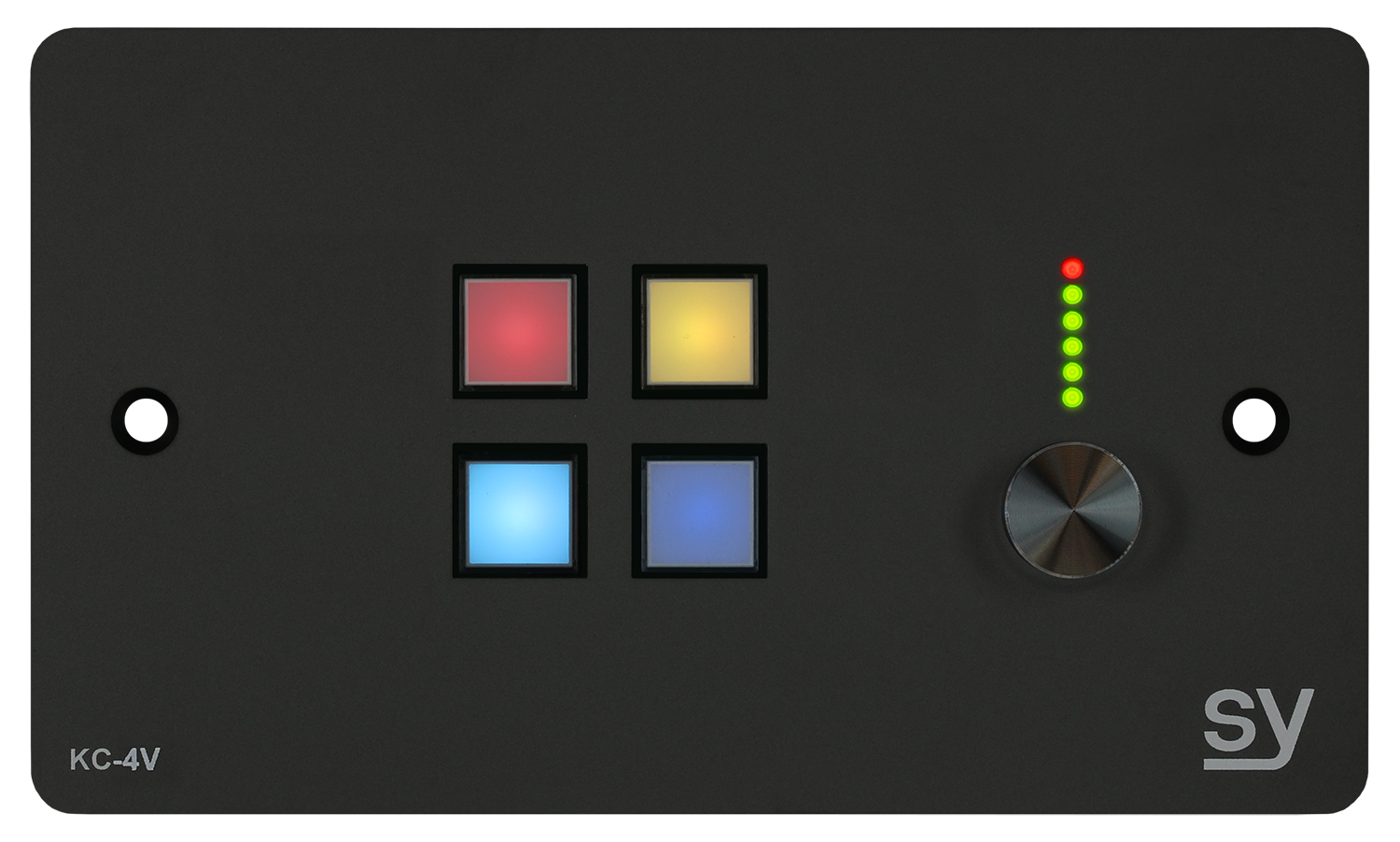

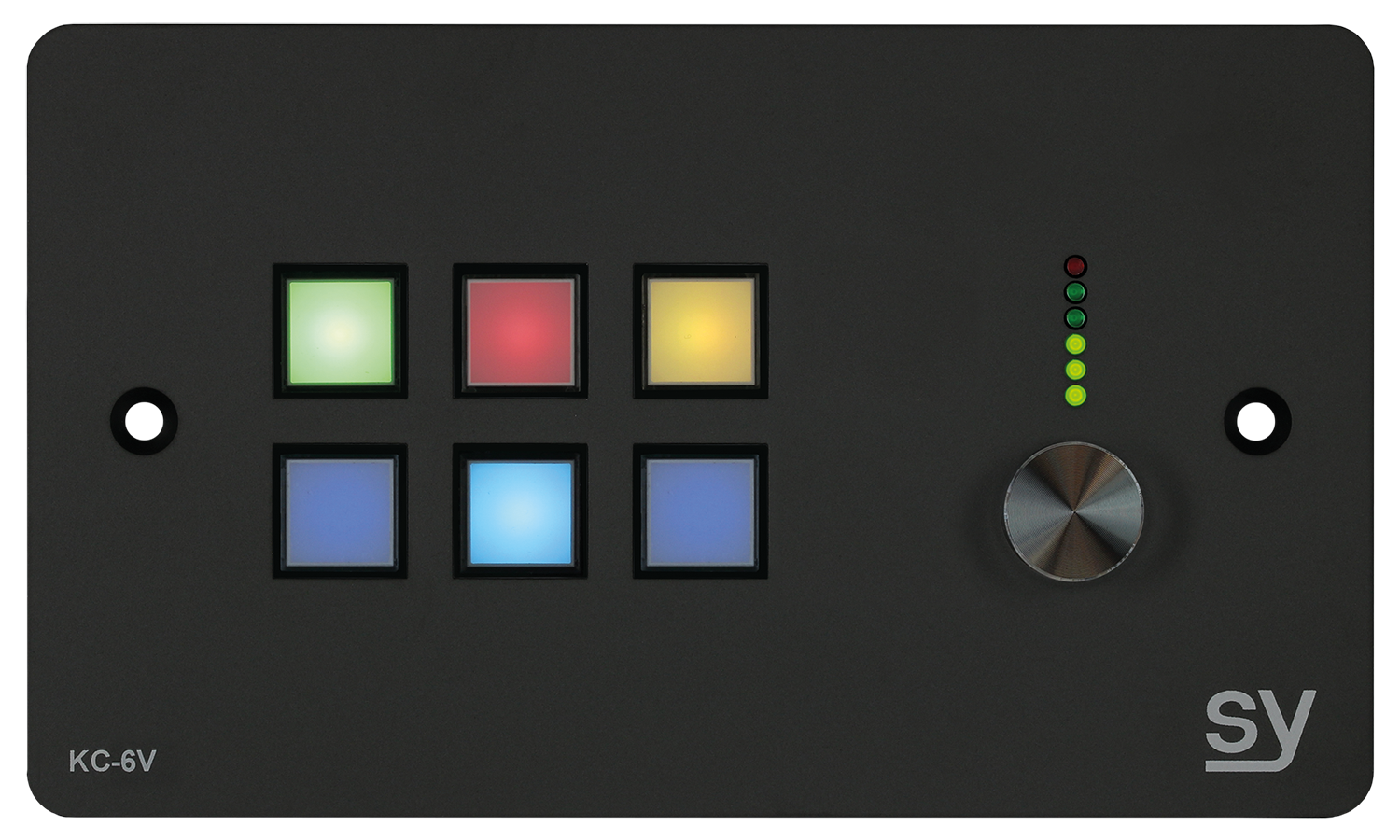

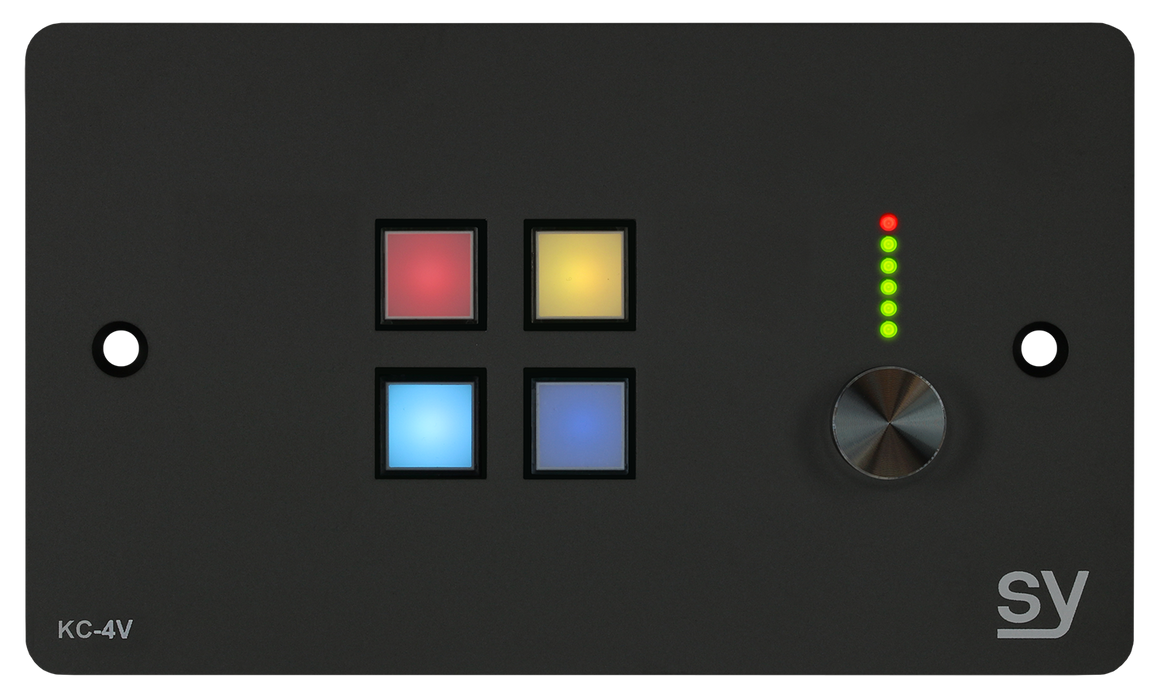

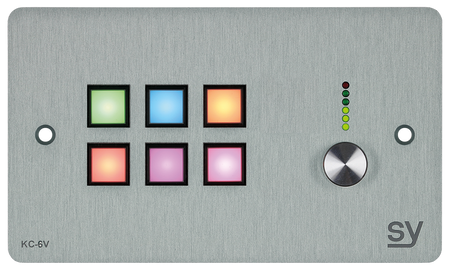

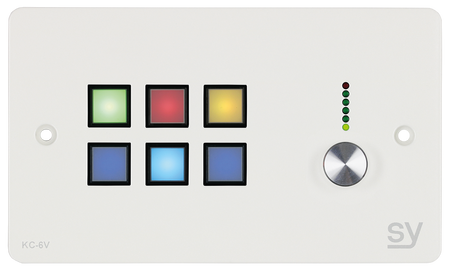

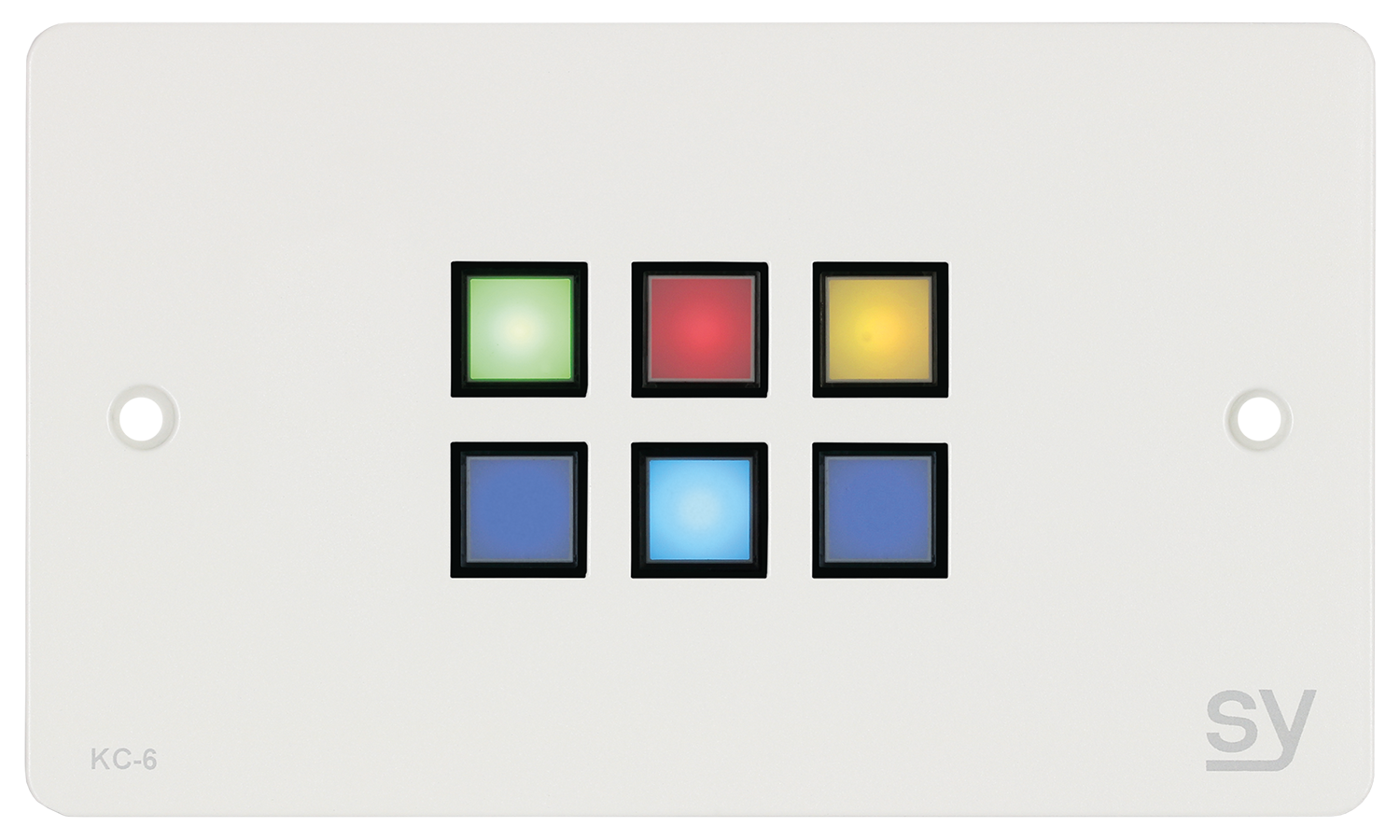

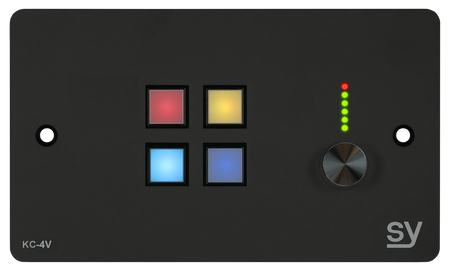

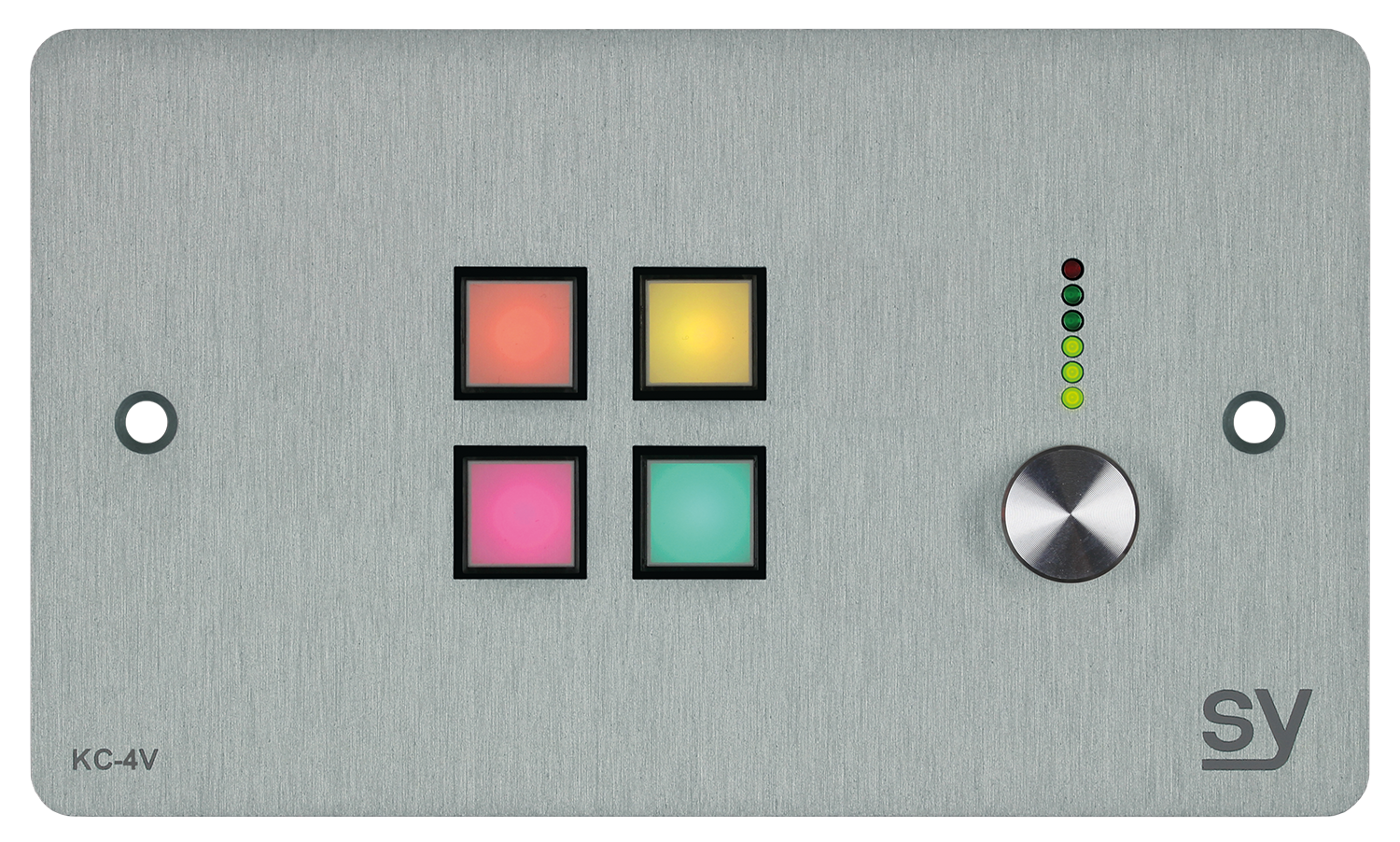

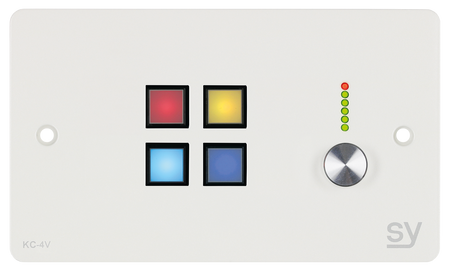

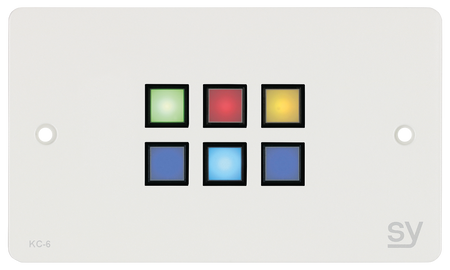

Available in UK backbox format only, the KC Series includes three UK variants: SY-KC4V-UK (4-button with rotary), SY-KC6-UK (6-button), and SY-KC6V-UK (6-button with rotary). All models are offered in three premium finishes: White (W), Black (B), and Brushed Aluminium (A). Each features full-colour RGB-backlit buttons with replaceable legends.

Key Features

  • Versatile AV Control: Control up to 32 events across AV, lighting, blinds, and other end devices.
  • Port Flexibility: 6x RS232 (2 Flexi-ports with RS485 option), 4x IR ports, 4x GPIO (24V/200mA).
  • Optional LAN Port: Adds PoE capability for network-based control and power.
  • RGB-Backlit Buttons: Easily customisable using included clear caps and legend sheet.
  • Rotary Encoder: Smooth rotary control on KC4V and KC6V models for volume or source selection.
  • Easy Programming: Create and manage scripts with NebulaStudio® — Lua scripting supported.
  • UK Faceplate Only: Designed for UK wall boxes (EU/US variants not available in this range).

*Models with Ethernet include a PoE-capable LAN port. The KC Series is available in UK format only. If you wish to purchase a model with Ethernet, please contact AVITdirect via our chat or contact page.

In stock
£392.16

Secure checkout

Friendly support

Hassle-free returns

The SY KC Series Keypad Controllers are powerful, standalone keypad controllers designed for complete room control across modern AV installations. Whether for classrooms, boardrooms, or lecture halls, the KC range offers a streamlined and intuitive interface to control AV, lighting, audio, and more — all programmable with NebulaStudio®.

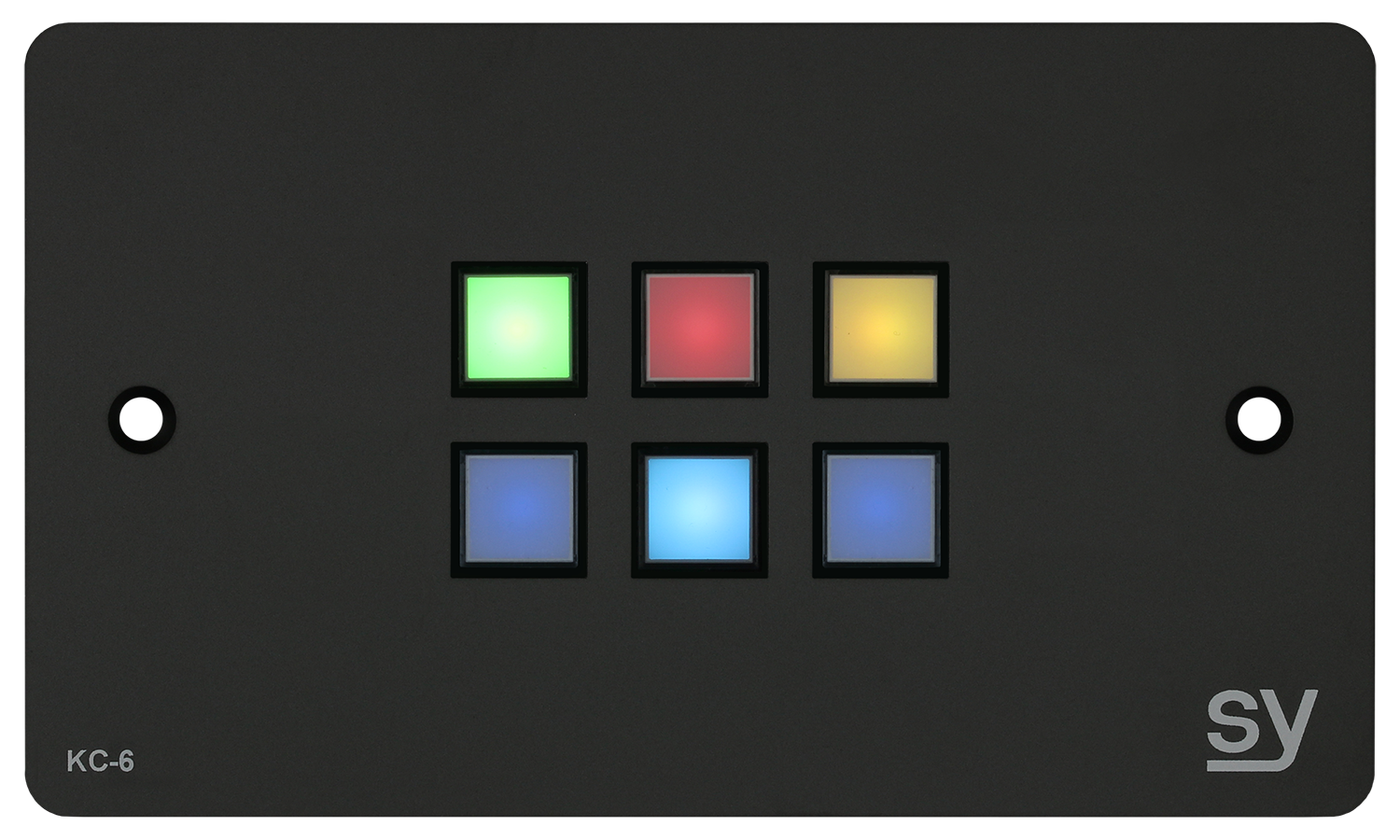

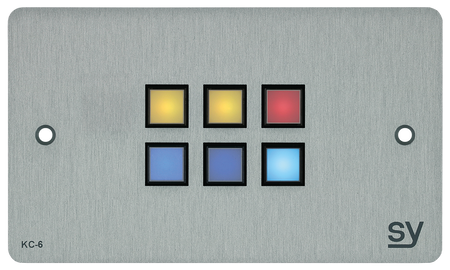

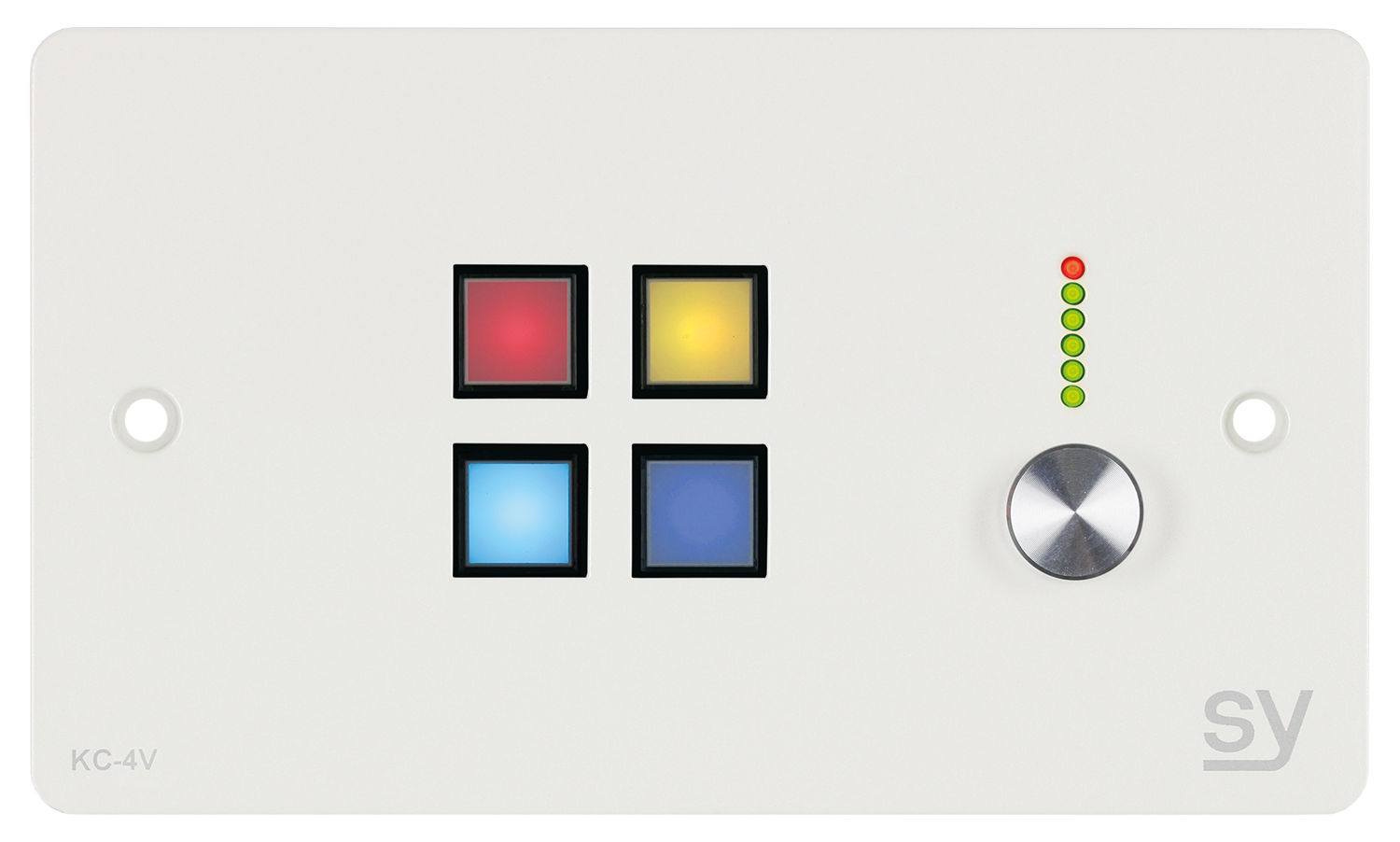

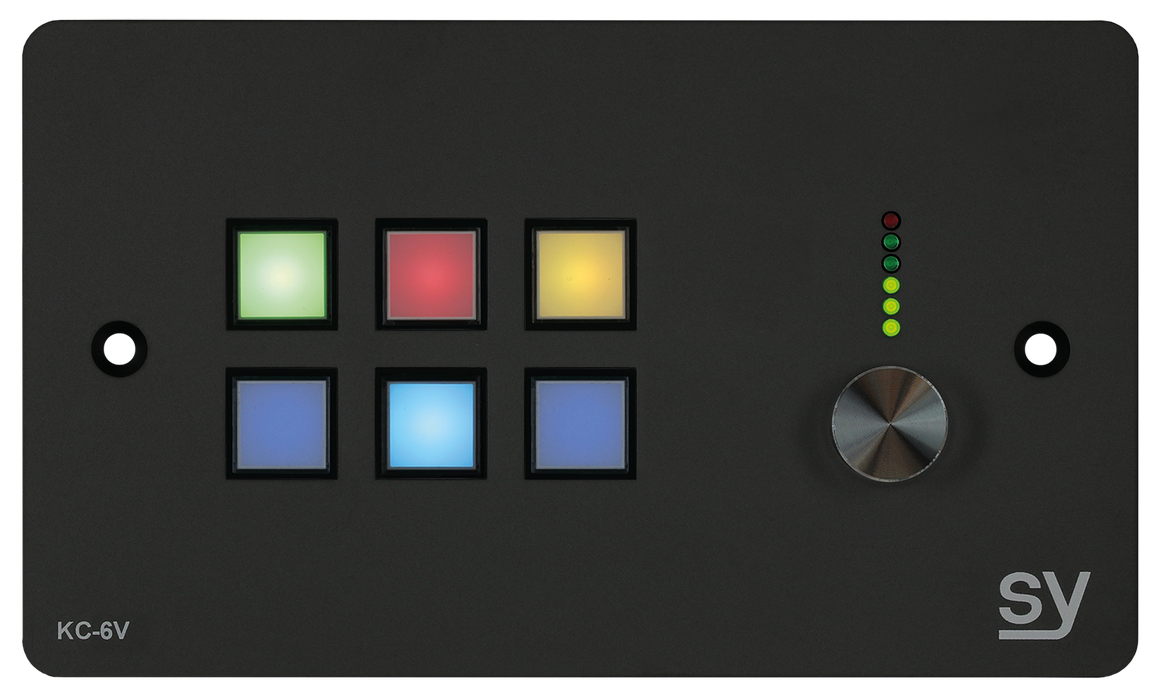

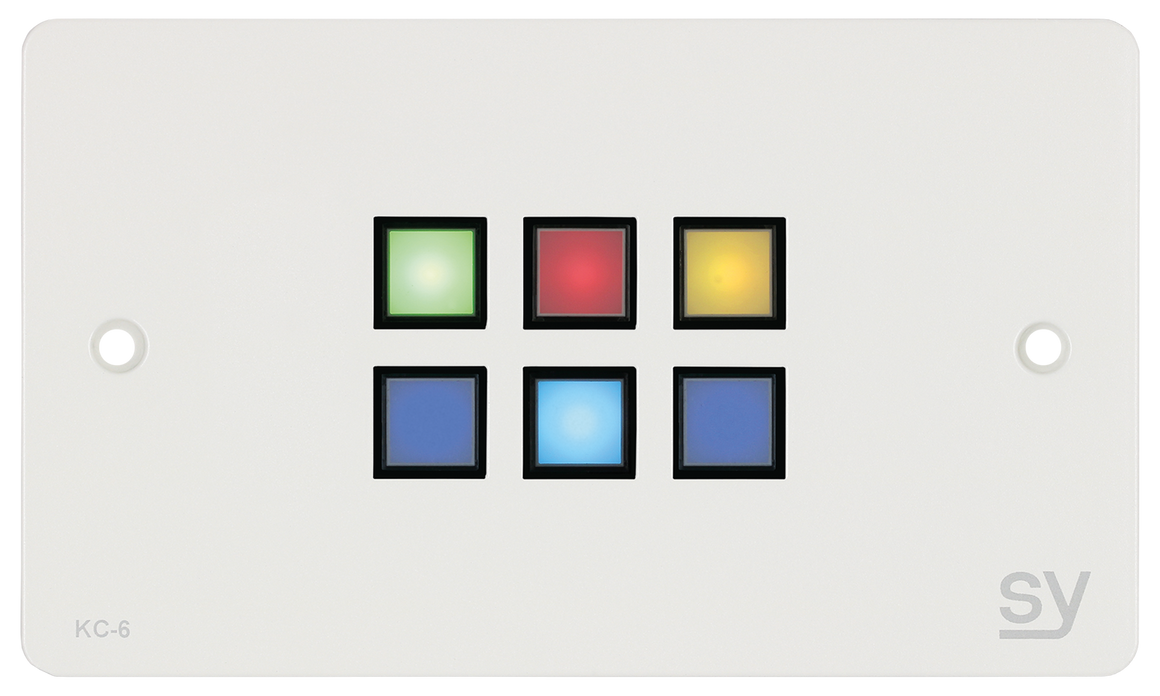

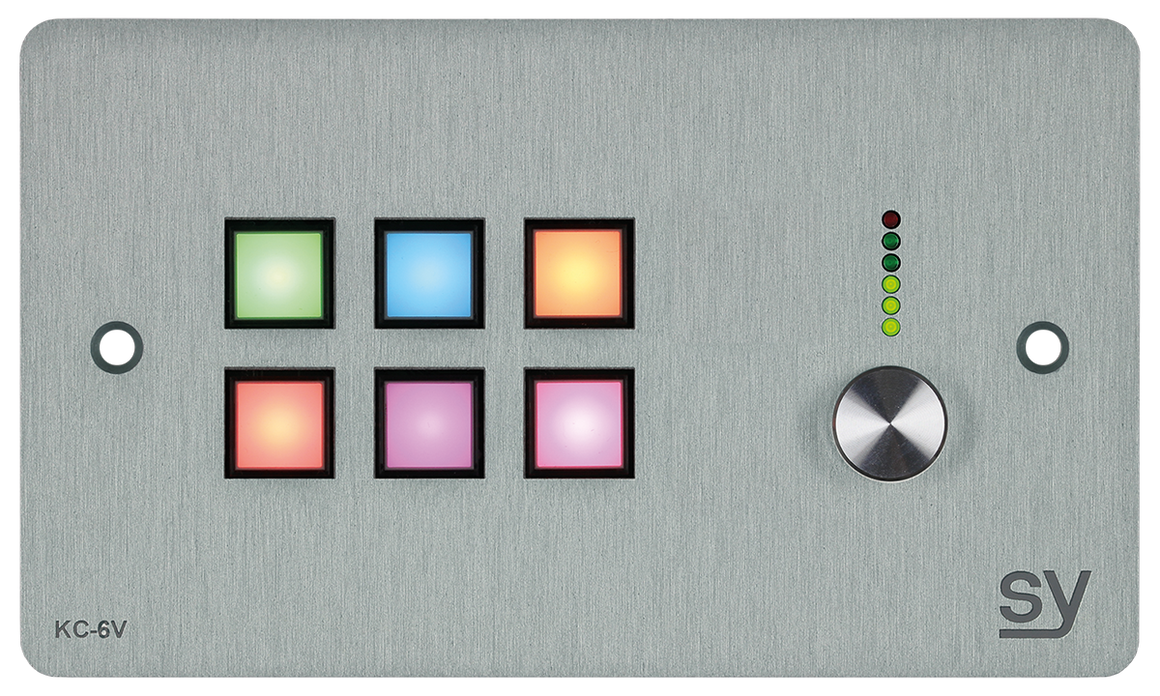

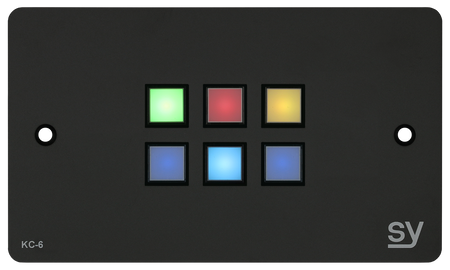

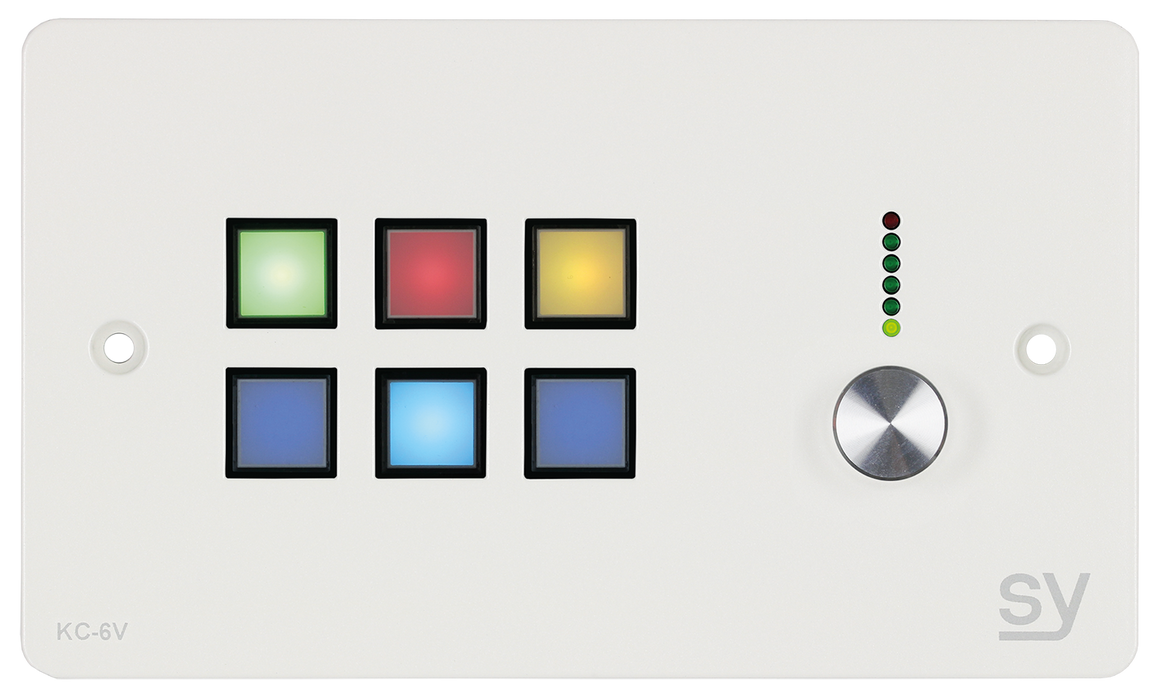

Available in UK backbox format only, the KC Series includes three UK variants: SY-KC4V-UK (4-button with rotary), SY-KC6-UK (6-button), and SY-KC6V-UK (6-button with rotary). All models are offered in three premium finishes: White (W), Black (B), and Brushed Aluminium (A). Each features full-colour RGB-backlit buttons with replaceable legends.

SY KC Series Keypads

Key Features

  • Versatile AV Control: Control up to 32 events across AV, lighting, blinds, and other end devices.
  • Port Flexibility: 6x RS232 (2 Flexi-ports with RS485 option), 4x IR ports, 4x GPIO (24V/200mA).
  • Optional LAN Port: Adds PoE capability for network-based control and power.
  • RGB-Backlit Buttons: Easily customisable using included clear caps and legend sheet.
  • Rotary Encoder: Smooth rotary control on KC4V and KC6V models for volume or source selection.
  • Easy Programming: Create and manage scripts with NebulaStudio® — Lua scripting supported.
  • UK Faceplate Only: Designed for UK wall boxes (EU/US variants not available in this range).

Specifications

Model Weight (net) Size (W×H×D)
SY-KC4V-UK 0.160 kg
0.175 kg* (with Ethernet)		 146 × 86 × 27 mm
SY-KC6-UK 0.150 kg
0.165 kg* (with Ethernet)		 146 × 86 × 27 mm
SY-KC6V-UK 0.155 kg
0.170 kg* (with Ethernet)		 146 × 86 × 27 mm

What's in the Box

  • 1× KC Keypad Controller (SY-KC4V-UK, KC6-UK, or KC6V-UK)
  • 6× 3-way pluggable connectors
  • 2× 4-way pluggable connectors
  • 1× 12V 1A DC PSU
  • Legend sheet
  • Clear caps
  • CRT (Cap Removal Tool)
  • Cleaning Cloth

*Models with Ethernet include a PoE-capable LAN port. The KC Series is available in UK format only. If you wish to purchase a model with Ethernet, please contact AVITdirect via our chat or contact page.
