SY Electronics MS51U-18G-SET 5x1 4K60 Presentation Switcher & KVM Solution with 3x HDMI, 2x USB-C & HDBaseT Receiver

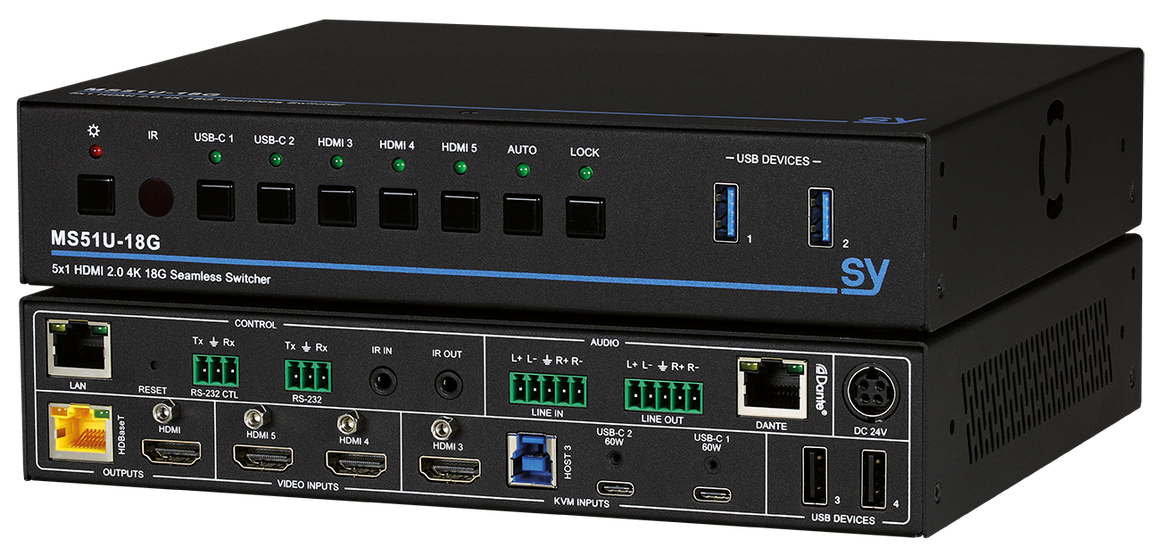

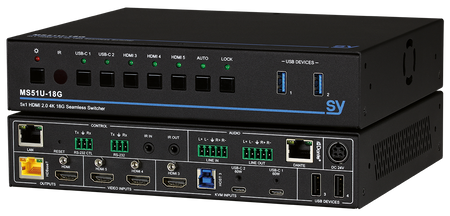

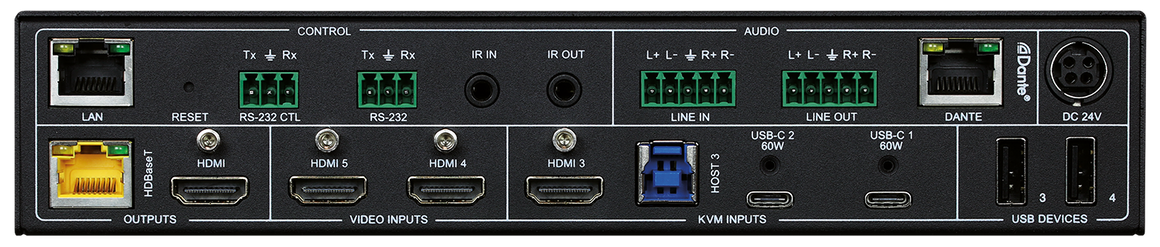

The SY-MS51U-18G-SET is a high-performance 5× Input Seamless Presentation Switcher and KVM Solution with advanced multi-view modes, dual mirrored outputs, Dante® audio integration, HDBaseT extension, and USB-C charging — supplied complete with the SY-HDBT-U3-R-18G Receiver for full end-to-end connectivity.

This powerful set is designed for modern BYOD meeting spaces, classrooms, and professional AV environments. With 3× HDMI 2.0b and 2× USB-C inputs (each supporting up to 60W charging), it offers seamless 4K60 4:4:4 switching, full KVM support between local and remote devices, and mirrored HDMI/HDBaseT outputs. Multi-view display capability (dual, triple, quad, PiP), comprehensive control options, and integrated audio management make it the perfect solution for flexible, high-quality AV installations.

Key Features

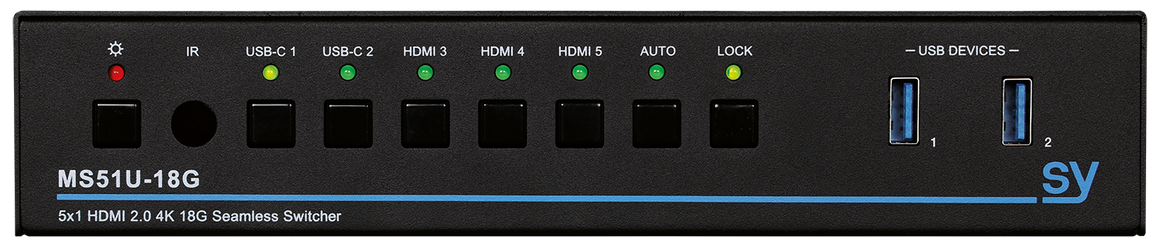

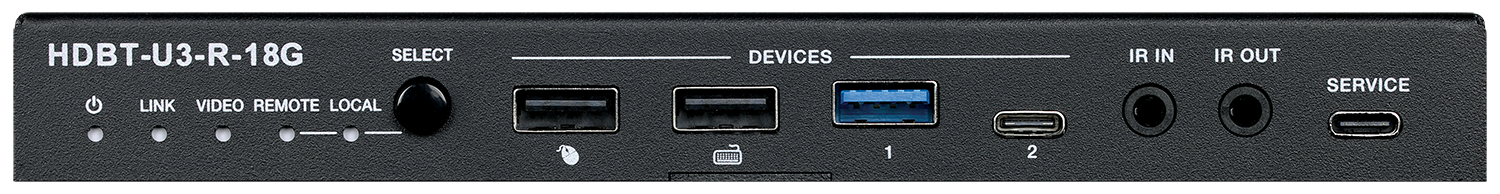

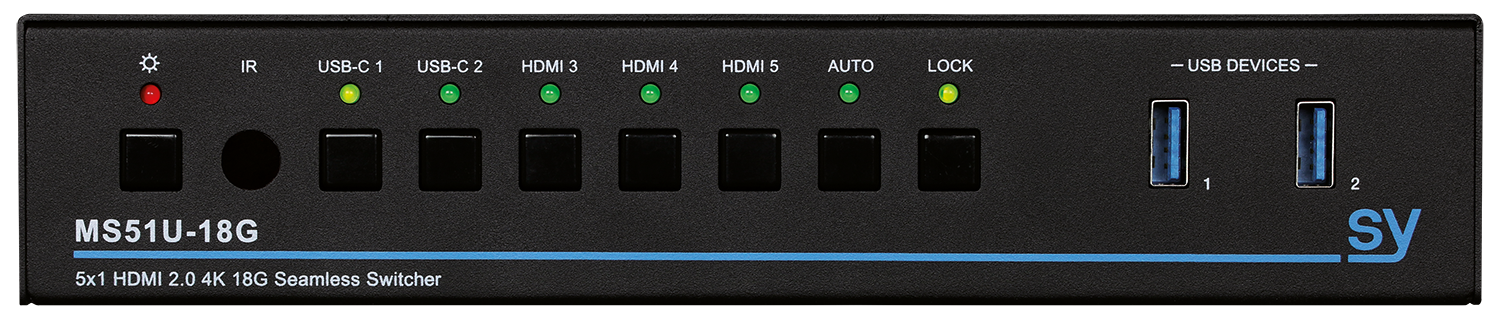

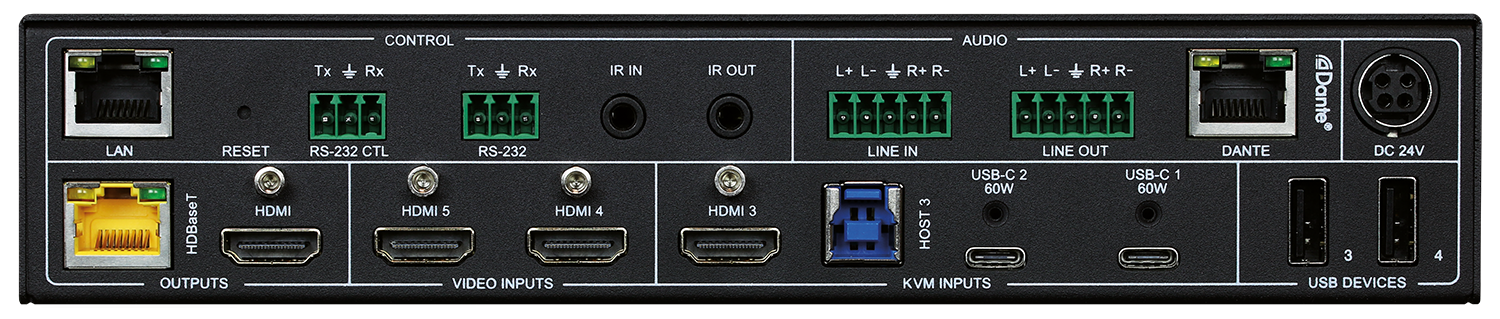

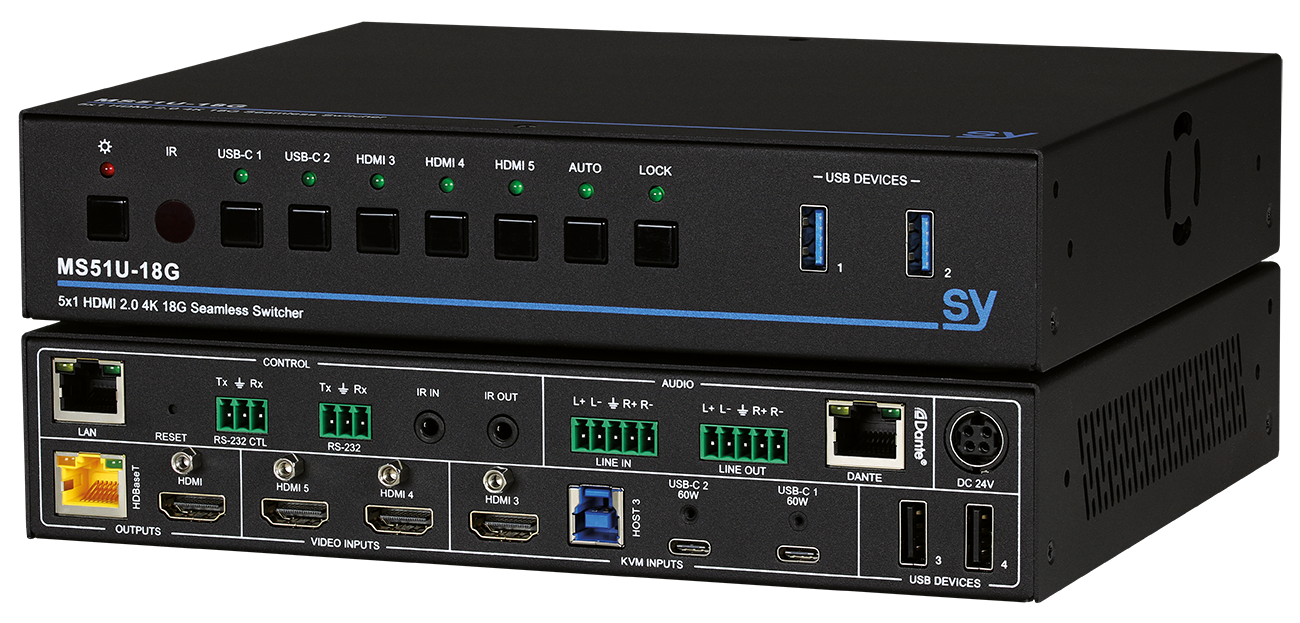

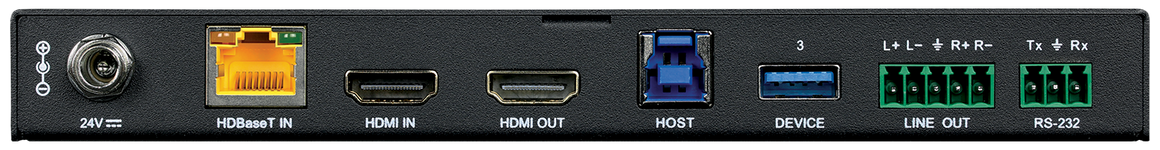

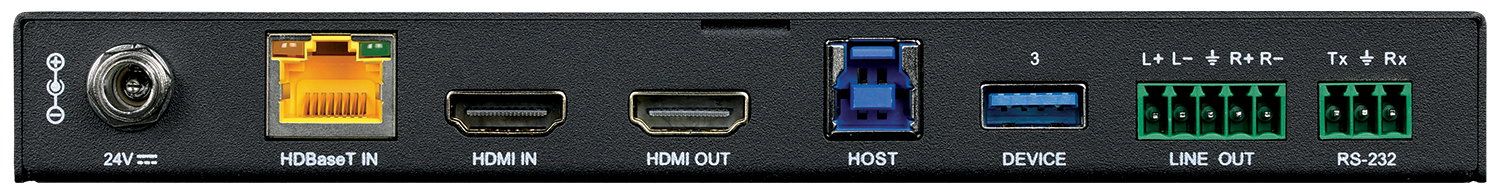

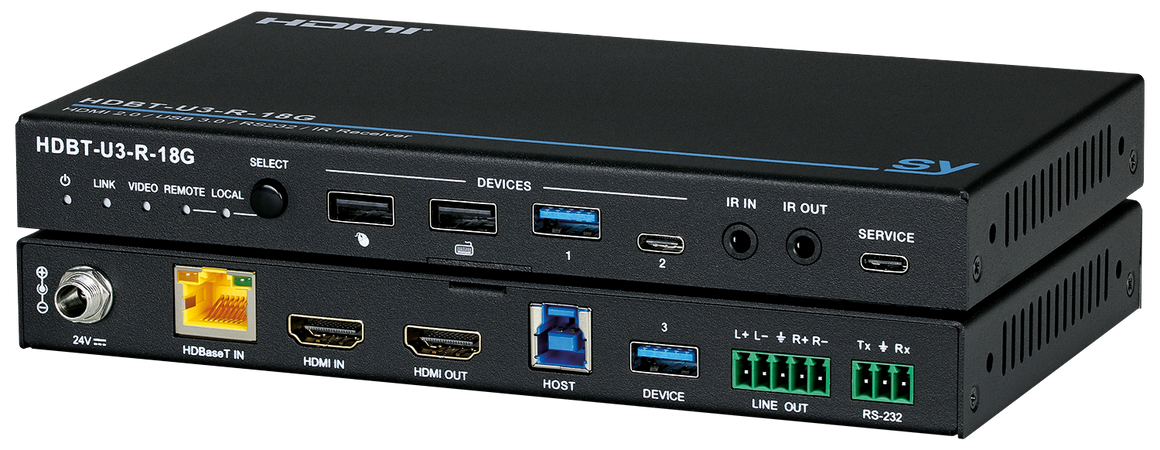

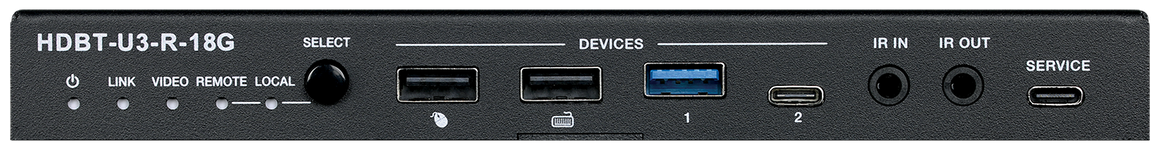

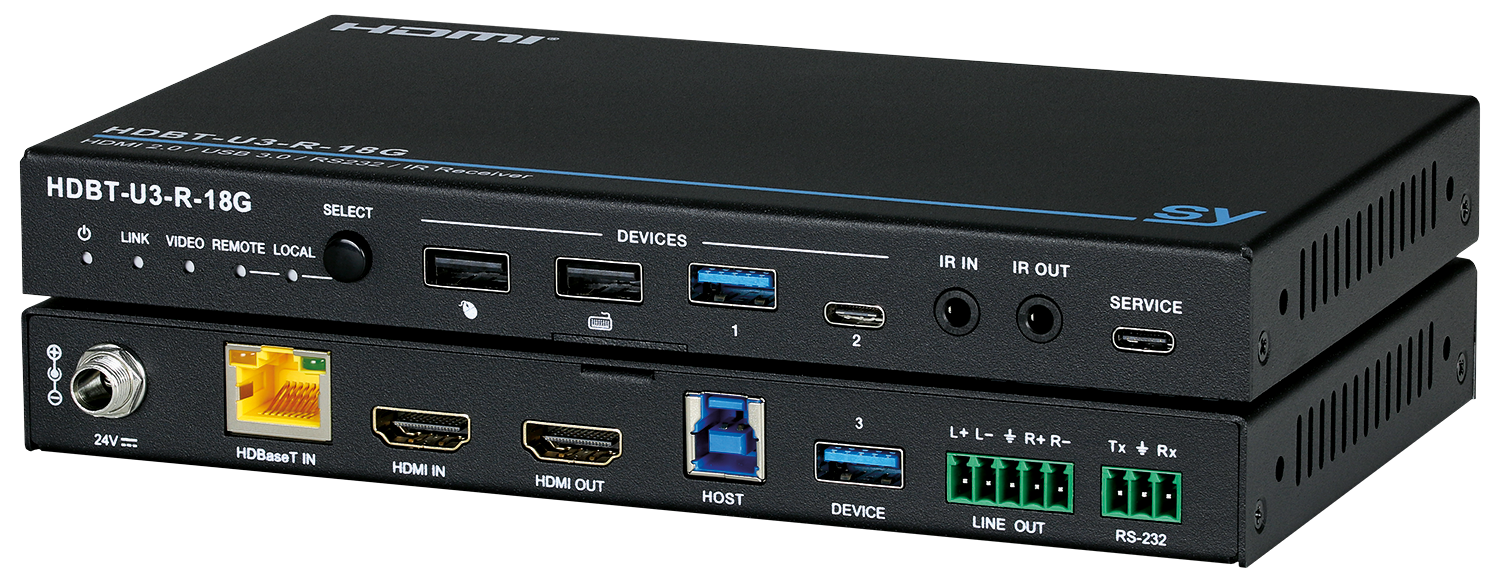

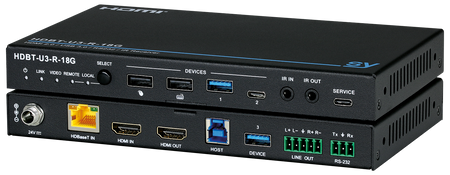

• Complete TX/RX Solution: Includes SY-MS51U-18G Switcher/Transmitter and SY-HDBT-U3-R-18G HDMI & USB KVM Receiver.
• Seamless 4K60 4:4:4 Switching: Supports 3× HDMI 2.0b and 2× USB-C inputs with ultra-fast, seamless transitions.
• USB-C Video & Charging: DisplayPort 1.4 video with up to 60W power delivery per USB-C port.
• Multi-View Output: Single, dual, triple, quad, and Picture-in-Picture (PiP) display modes with programmable presets.
• Dual Mirrored Outputs: HDMI and HDBaseT 3.0 up to 40m @ 4K60 or 70m @ 4K30 over Cat6a.
• Integrated KVM Switching: Full USB routing between local and remote PCs, controllable via hotkeys or front panel.
• Dante® Audio Integration: 2-channel Dante I/O with analogue stereo embedding/de-embedding.
• Advanced Audio Tools: Per-output volume, delay, 31-band EQ, and multiple routing options via Web GUI.
• Flexible Control: TCP/IP (Web GUI), RS232, IR remote, CEC, hotkeys, and front panel buttons.
• Full EDID Management: Preset, learned, or automatic EDID handling for optimal compatibility.
• HDR & Colour Depth Support: HDR10, HDR10+, Dolby Vision, HLG; 8, 10, and 12-bit colour modes.
• HDCP Compliance: Supports HDCP 1.4 & 2.2.

Key Uses

• Operate as a pair for complete KVM functionality across local and remote workstations.
• Control up to 3× local PCs from the transmitter (2× USB-C & 1× HDMI) plus an additional PC at the receiver end.
• Ideal for meeting rooms, hybrid classrooms, control rooms, and live event environments.
• Hotkey commands for fast switching between sources and multi-view layouts.

Multi-View Modes

Available modes include single full-screen, dual, triple, quad, and PiP. PiP windows can be moved and resized, with five programmable presets for quick recall of preferred layouts.
