SKU: SY-HX150-11-18G-SET

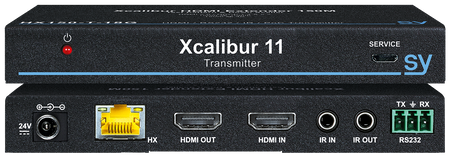

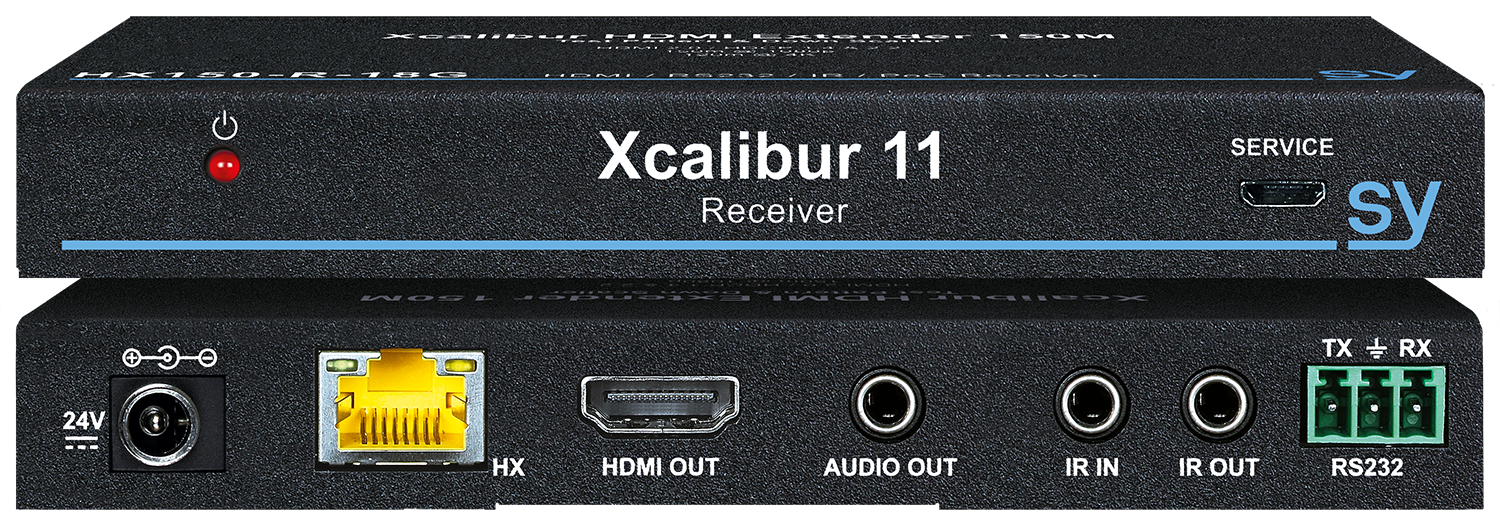

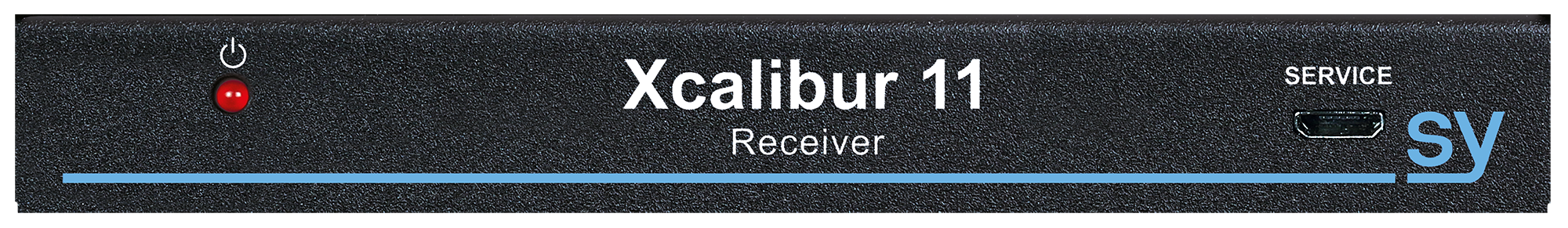

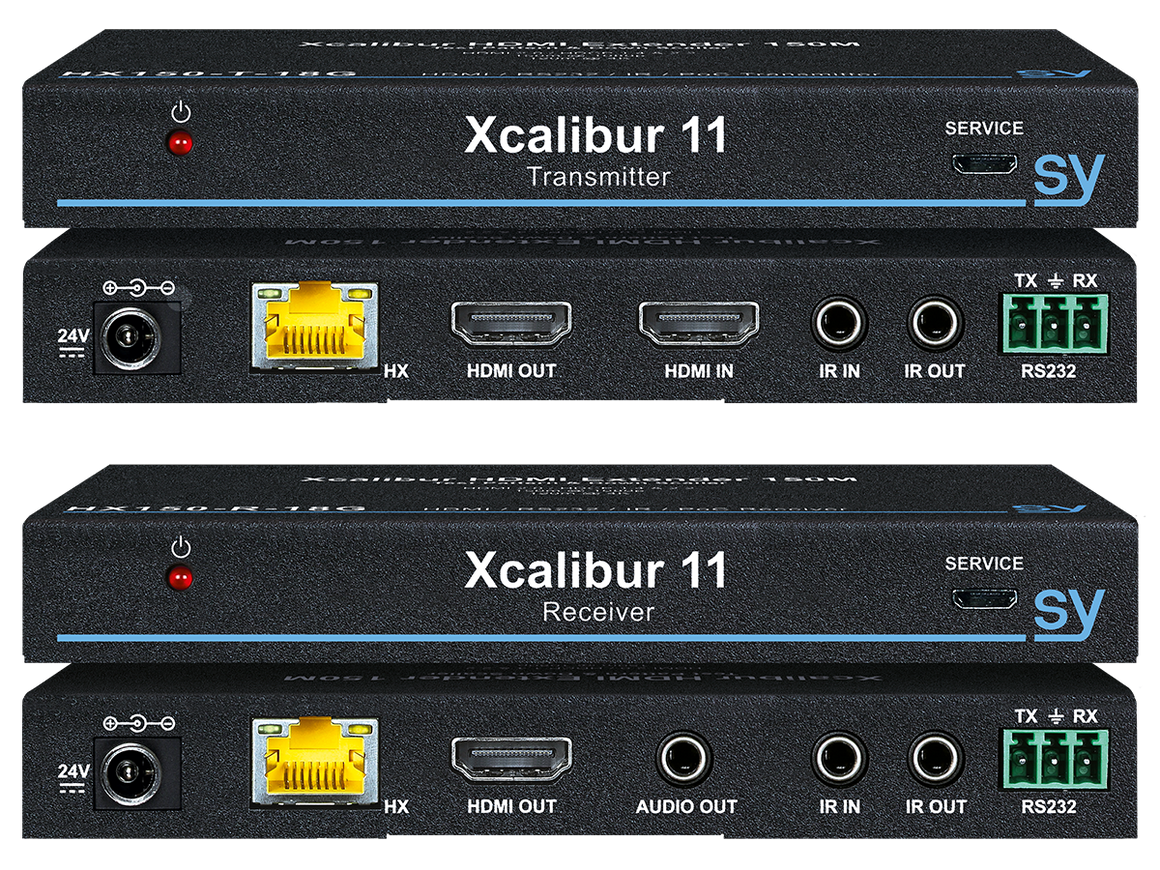

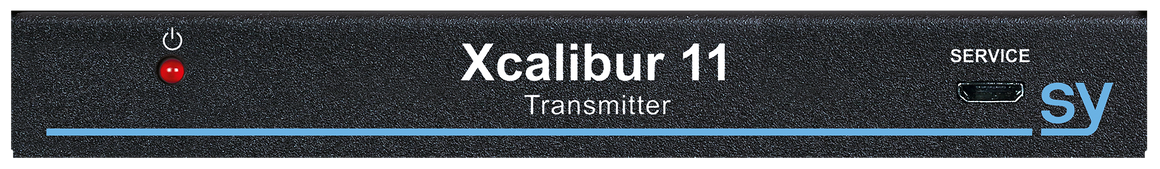

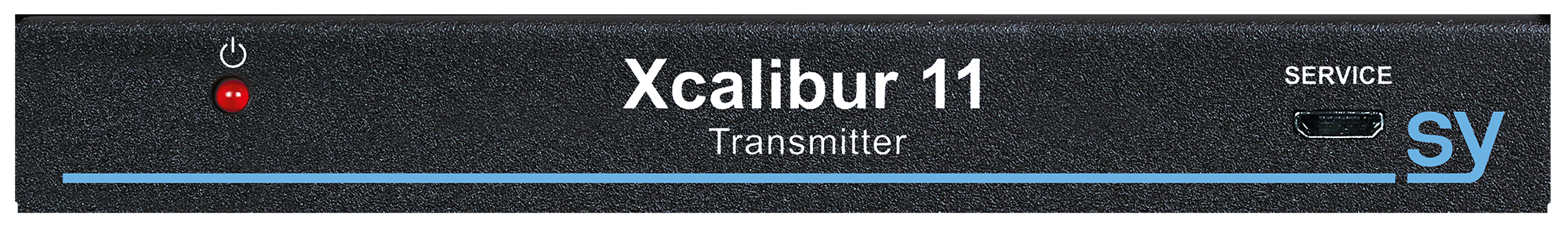

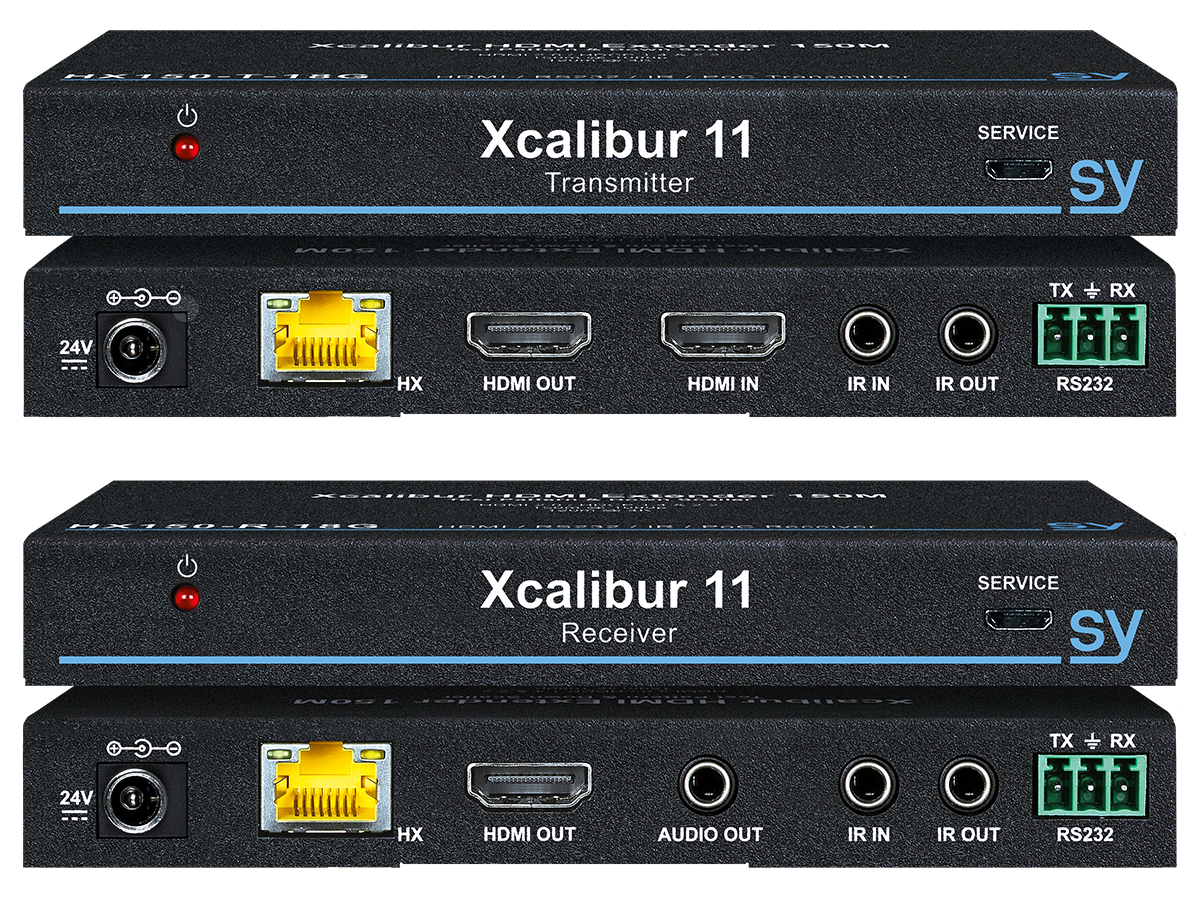

SY Electronics Xcalibur 11 Extender Pair with RS232, 2xIR & POC

Sy Electronics

4K60 HDMI Extender with Downscaling, Audio out, and Control

The Sy Xcalibur 11 (HX150‑11‑18G Extender Pair) is a high-performance HDMI 2.0 extension solution purpose-built for professional AV environments. Supporting uncompressed 4K60 4:4:4 video over CAT6 cabling at distances up to 120 m (or 150 m at 1080p), it also provides advanced features including PoC, audio de-embedding, downscaling, and control signal pass-through. With robust EDID/HDCP management and installation tools like a test pattern generator and video keep-alive, it is ideal for mission-critical AV deployments in corporate, education, and digital signage environments.

Highlighted Features

  • 4K60 4:4:4 Transmission: Supports HDMI 2.0 video with full 18Gbps bandwidth up to 120 m.
  • Built-In Downscaling: Convert 4K content to 1080p for legacy display compatibility.
  • PoC – Power from Either End: Flexible installation with power from TX or RX.
  • HDCP & EDID Management: Independent control of HDMI and HX ports for reliable handshaking.
  • Integrated Test Pattern Generator: Six patterns at 4K60/4K30/1080p60 for quick diagnostics.
  • Video Keep Alive: Maintains output even if the source disconnects — ideal for projectors.
  • Audio De-Embedding: Extracts audio via 3.5 mm analog output; supports HDMI audio up to 7.1 channels.
  • Bi-Directional IR & RS232 Pass-Through: Seamlessly extend control signals over the same CAT6 cable.
  • USB Configuration Interface: Set parameters and update firmware via USB.
  • CEC Pass-Through: Preserves HDMI CEC signaling across devices.

The HX150‑11‑18G delivers feature-rich HDMI extension tailored for professional AV environments requiring flexibility, reliability, and uncompromised video quality — all within a compact form factor backed by SY Electronics’ trusted support.

In stock
£411.31

Secure checkout

Friendly support

Hassle-free returns

The SY Xcalibur 11 HX150-11-18G Extender Pair is a professional-grade HDMI 2.0 extender solution designed for reliable long-range transmission of 4K video and audio signals. Supporting resolutions up to 4K60 4:4:4 over a single CAT6 cable, it provides robust features such as PoC, downscaling, audio de-embedding, and bi-directional IR and RS232 control, making it ideal for demanding AV installations.

Connection Diagram Xcalibur 11 HDMI Extender

Key Features

  • 4K60 4:4:4 HDMI 2.0 Support: Delivers full HDMI 2.0 bandwidth (18Gbps), transmitting ultra-HD video up to 120m at 4K60 and up to 150m at 1080p.
  • Down Scaler: Built-in downscaling from 4K60 to 1080p for enhanced compatibility with legacy displays.
  • Power over Cable (PoC): Power can be supplied from either the transmitter or receiver, simplifying installation.
  • HDCP & EDID Management: Provides discrete control for both HDMI and HX ports with support for HDCP 2.2, 1.4, or cascade mode, plus EDID pass-through or memory options.
  • Test Pattern Generator: Integrated generator with 6 patterns at 4K60, 4K30, or 1080p60 resolutions for setup and troubleshooting.
  • Video Keep Alive: Maintains HDMI output signal even when the source is disconnected — ideal for projectors.
  • Audio Pass-Through & De-Embedding: Supports HDMI audio up to 7.1 channels and includes 3.5mm analog stereo output.
  • Bi-Directional IR & RS232 Control: Allows remote control and serial communication via 3.5mm IR ports and RS232 pass-through via Micro USB.
  • USB Control Interface: Configuration of parameters is available through the USB port.
  • CEC Pass-Through: Maintains HDMI CEC communication between source and display devices.

Specifications

Maximum Resolutions Up to 4K60 4:4:4 (HDMI 2.0, 18Gbps)
Bandwidth 18Gbps
HDCP Support All versions up to HDCP 2.2

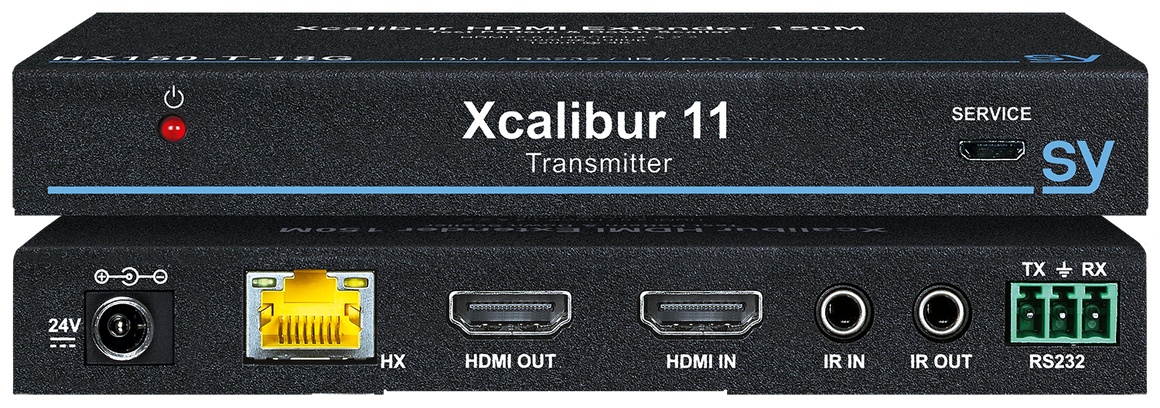

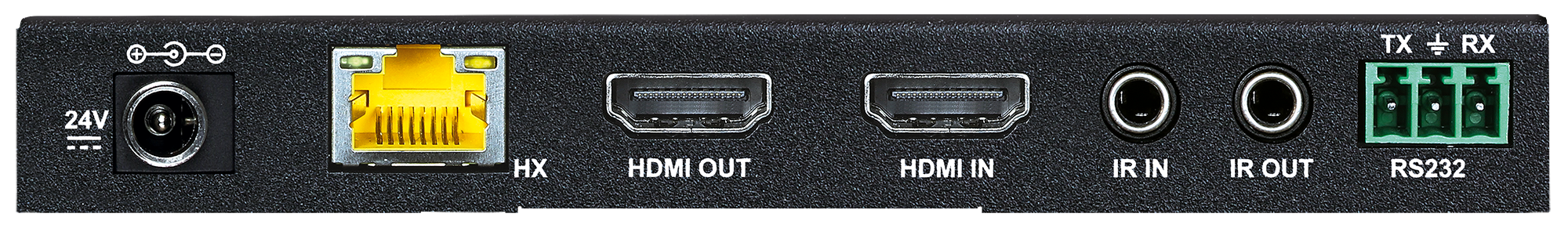

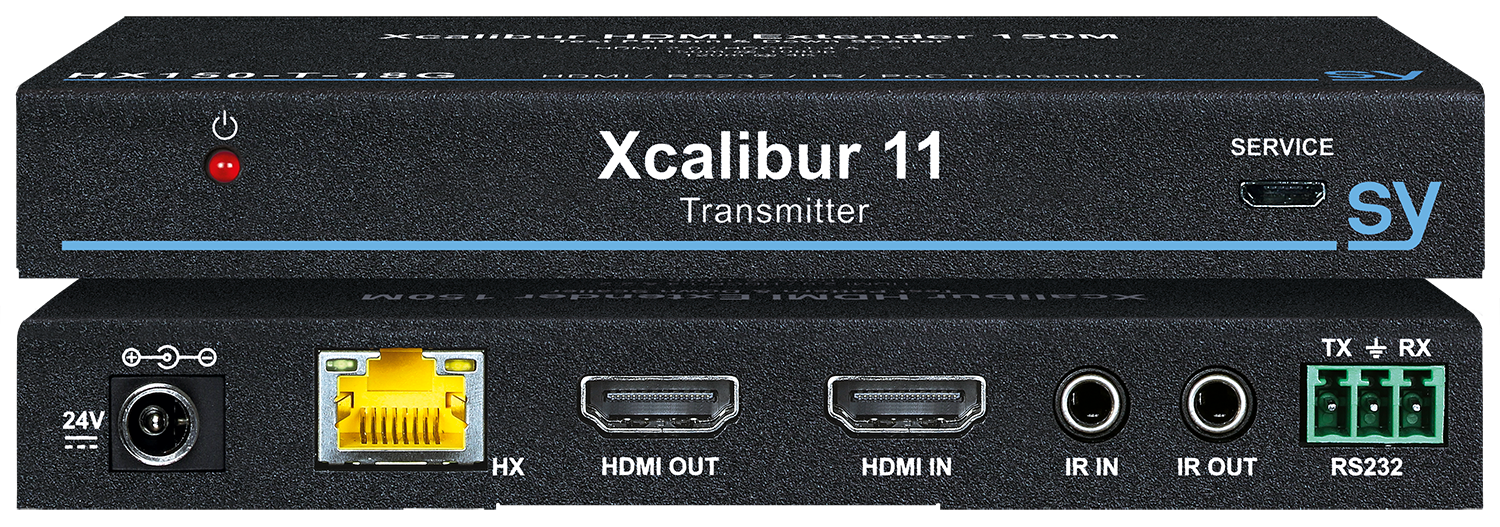

Inputs (TX) 1× HDMI 2.0
Inputs (RX) 1× RJ45 (HX)

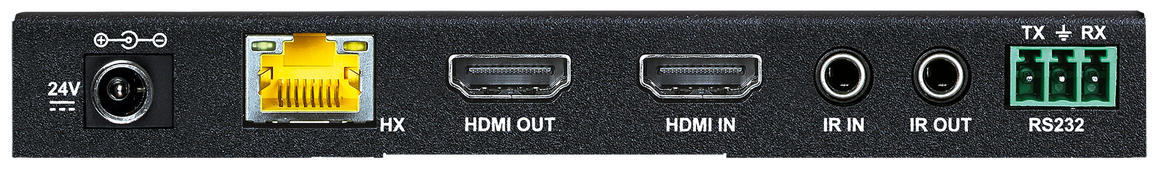

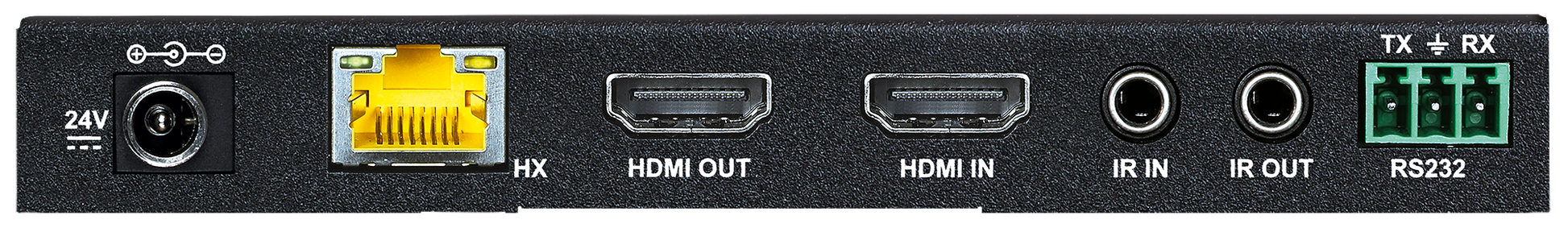

Outputs (TX) 1× RJ45 (HX), 1× HDMI 2.0

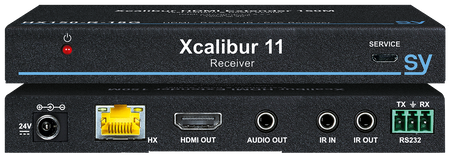

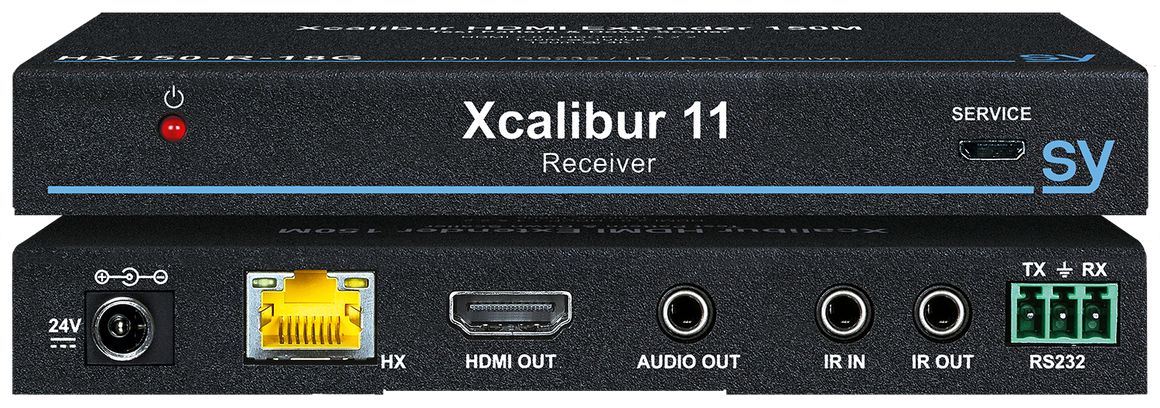

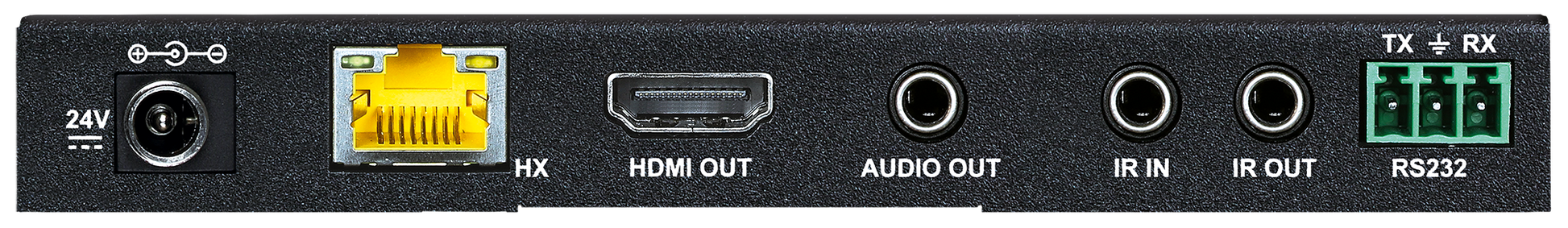

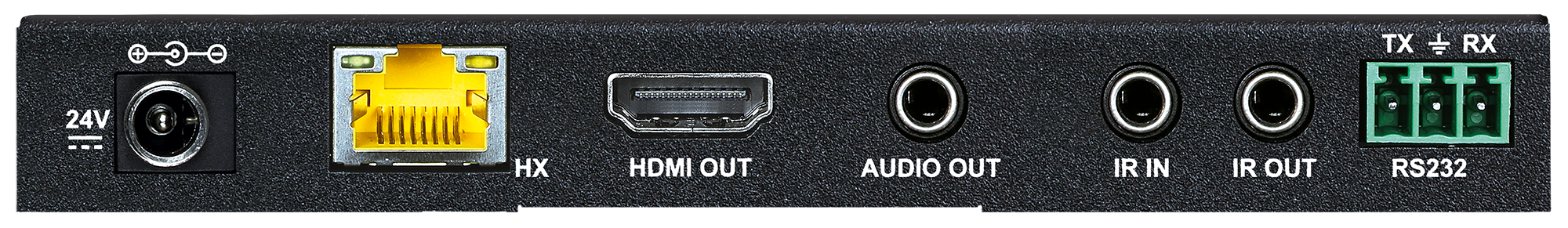

Outputs (RX) 1× HDMI 2.0, 1× 3.5mm analog audio jack
Control IR Pass-through via 3.5mm jacks, RS232 via Micro USB
Power Supply 24V DC, 1A (PoC supported)
Power Consumption 2.75W (Transmitter), 7.25W (Receiver)
Dimensions 140mm × 18mm × 65mm (W×H×D)
Weight 0.25 kg (each)

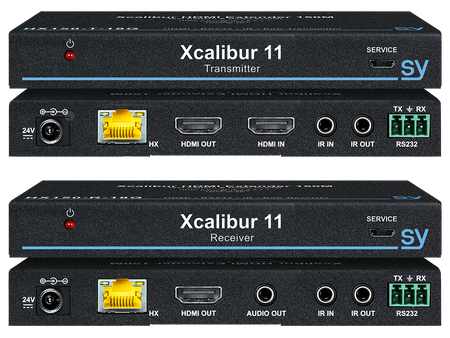

Included in the Box 1× Transmitter, 1× Receiver, 2× Mounting plates, 2× 3-way terminal connectors, 1× IR Emitter, 1× IR Receiver, 1× 24V 1A Power Supply, 1× User Manual
