SKU: SY-HX150-11U-18G-SET

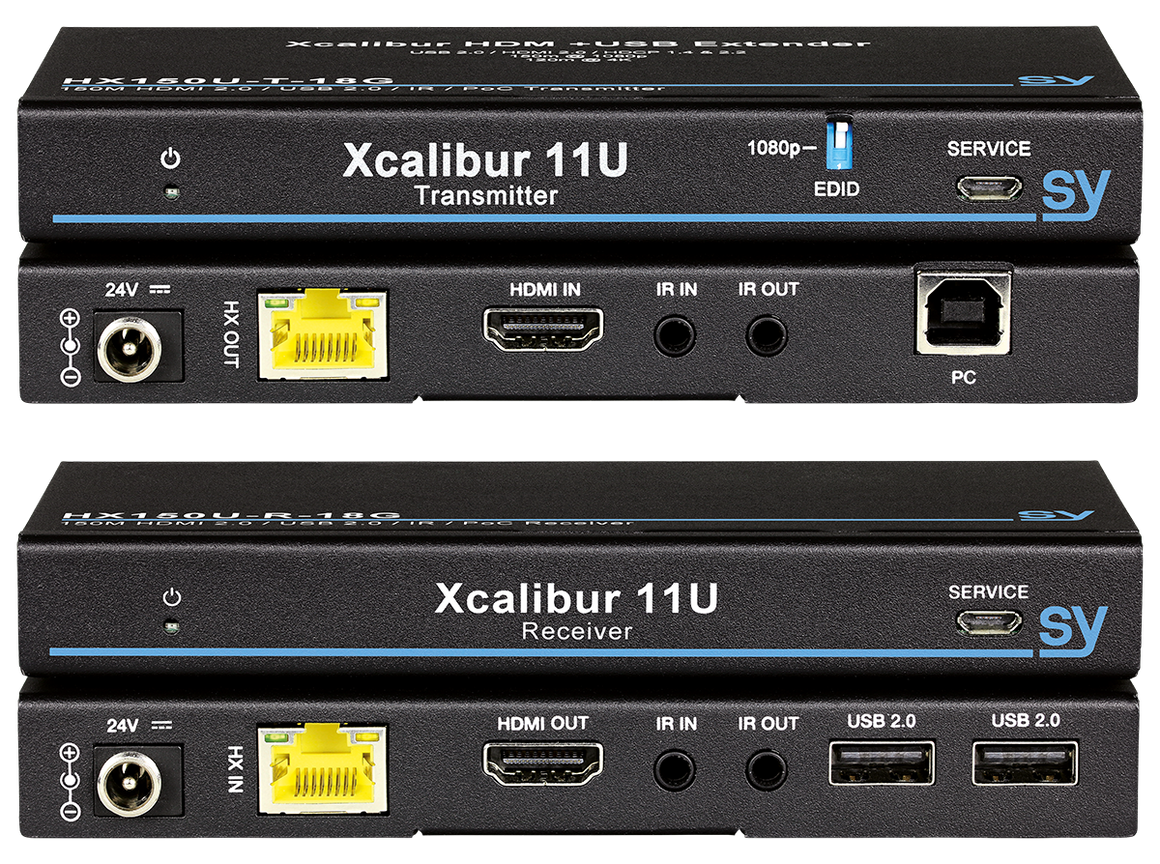

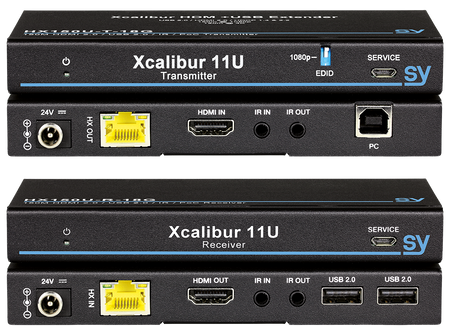

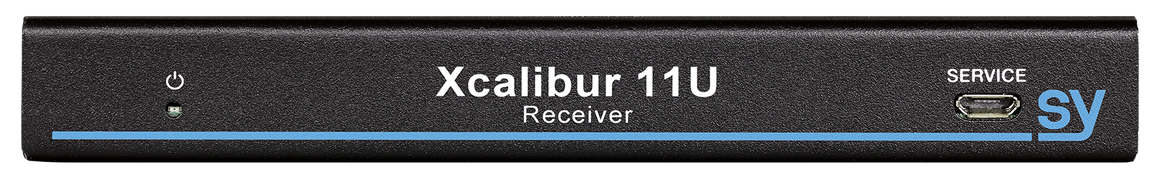

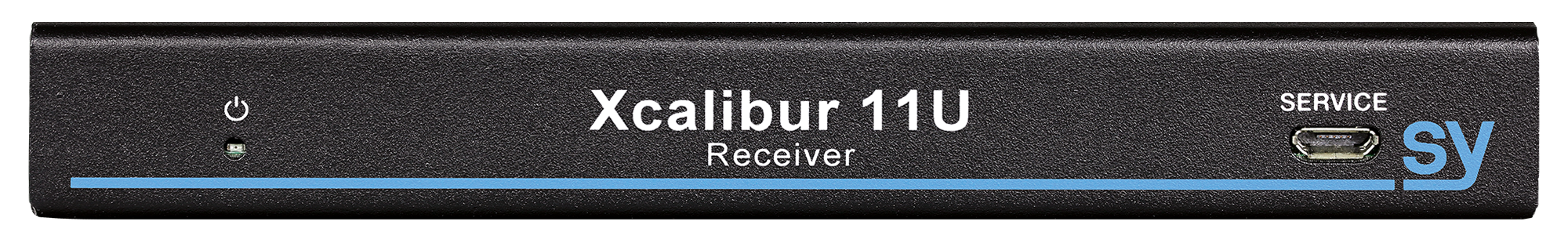

SY Electronics Xcalibur 11U Extender Pair HDMI 2.0 & USB 2.0 EXTENDER(18G)

Sy Electronics

4K60 HDMI and USB Extender with PoC, IR, Control, Downscaling.

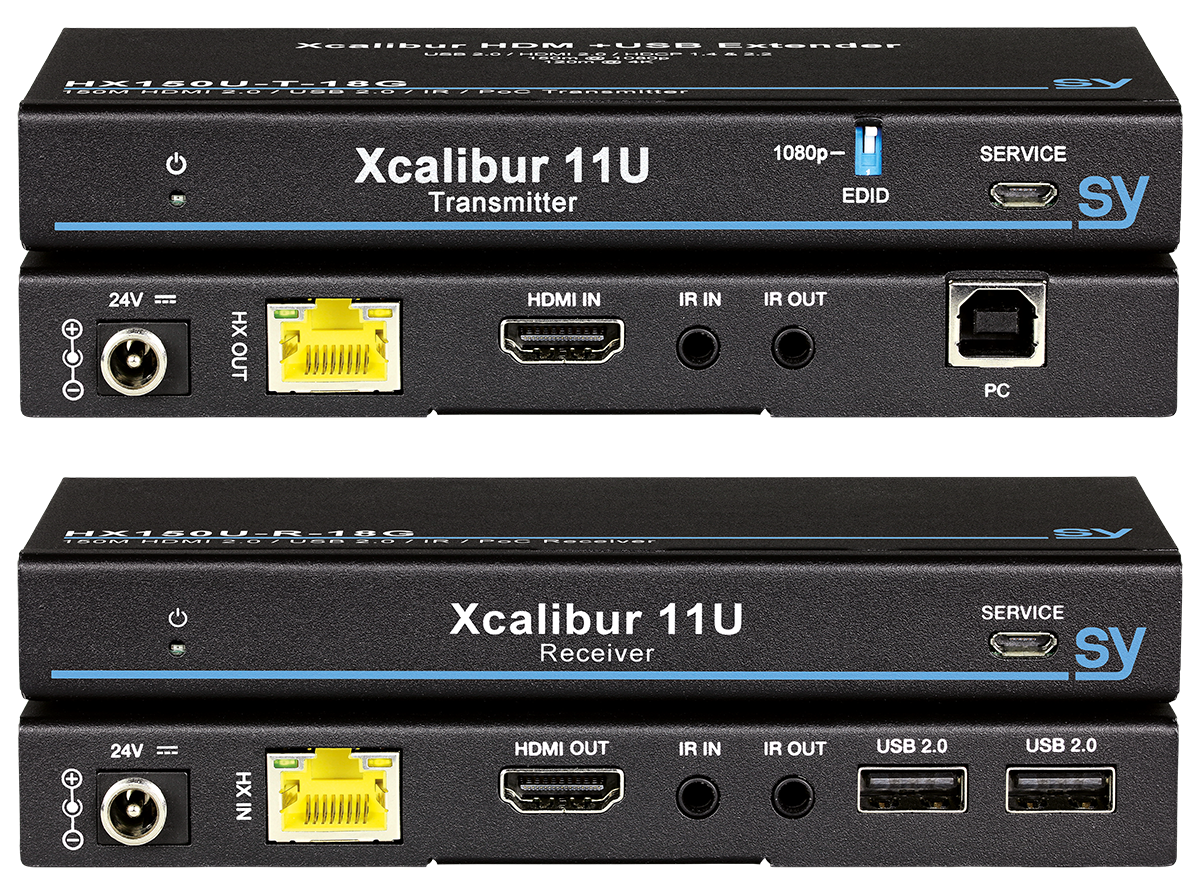

The SY Xcalibur 11U HX150-11U-18G Extender Pair is a high-performance HDMI 2.0 and USB 2.0 extension solution designed for modern AV and KVM applications. Transmitting up to 4K60 4:4:4 video and full-speed USB 2.0 over a single CAT6 cable to 100 metres, it offers intelligent downscaling, PoC, EDID and HDCP management, plus bidirectional IR and RS232 pass-through. It is the ideal choice for interactive environments, digital signage, education, and workspace connectivity where both AV and USB extension are required together.

Key Features

  • 4K60 4:4:4 HDMI 2.0 Support: Transmits uncompressed 4K60 video up to 100m over CAT6 using HX technology.
  • USB 2.0 Extension: Supports USB 2.0 devices up to 170 Mbps — ideal for KVM, webcams, mass storage, and audio interfaces.
  • Intelligent Downscaling: Automatically scales 4K60 video to 1080p for compatibility with legacy displays.
  • PoC – Power over Cable: Requires only one PSU at either the transmitter or receiver for streamlined installation.
  • HDCP & EDID Management: HDCP 1.4/2.2 support with EDID configuration via switch on the transmitter for reliable handshaking.
  • Bi-Directional IR & RS232: Extend control signals via 3.5mm IR ports and Micro USB RS232 interface over the same cable.
  • Audio De-Embedding: Provides analog stereo output via 3.5mm jack on the receiver for external audio systems.

The HX150‑11U‑18G delivers powerful HDMI and USB extension in a single, compact solution—backed by SY Electronics’ trusted reliability and ideal for any professional AV environment where video, control, and interactivity converge.

In stock
£733.59

Secure checkout

Friendly support

Hassle-free returns

The SY Xcalibur 11U HX150-11U-18G Extender Pair is a high-performance HDMI 2.0 and USB 2.0 extension solution designed for modern AV and KVM applications. Transmitting up to 4K60 4:4:4 video and full-speed USB 2.0 over a single CAT6 cable to 100 metres, it offers intelligent downscaling, PoC, EDID and HDCP management, plus bidirectional IR and RS232 pass-through. The ideal choice for interactive environments, digital signage, and workspace connectivity where AV and USB extension are required together.

Connection Diagram Xcalibur 11U HDMI Extender

Key Features

  • 4K60 4:4:4 HDMI 2.0 Support: Transmits uncompressed 4K60 video up to 100m over CAT6 using HX technology.
  • USB 2.0 Extension: Supports USB 2.0 devices up to 170 Mbps — ideal for KVM, webcams, and audio interfaces.
  • Intelligent Downscaling: Automatically scales 4K60 video to 1080p for legacy display support.
  • PoC – Power over Cable: Requires only one PSU at either the transmitter or receiver for flexible deployment.
  • HDCP & EDID Management: Supports HDCP 1.4/2.2 and EDID configuration via switch on transmitter.
  • Bi-Directional IR & RS232: Extend control signals over the same cable using 3.5mm and Micro USB interfaces.
  • Audio De-Embedding: Analog stereo output via 3.5mm jack on the receiver.

Specifications

Maximum Resolutions Up to 4K60 4:4:4 (HDMI 2.0, 18Gbps)
USB Support USB 2.0 (Bulk, Control, Interrupt, Isochronous) up to 170 Mbps
Transmission Distance 100m over CAT6 (4K60 4:4:4)
HDCP Support All versions up to HDCP 2.2

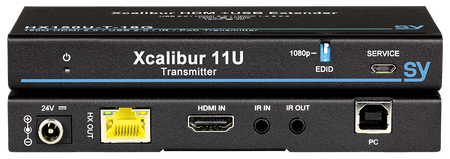

Inputs (TX) 1× HDMI 2.0

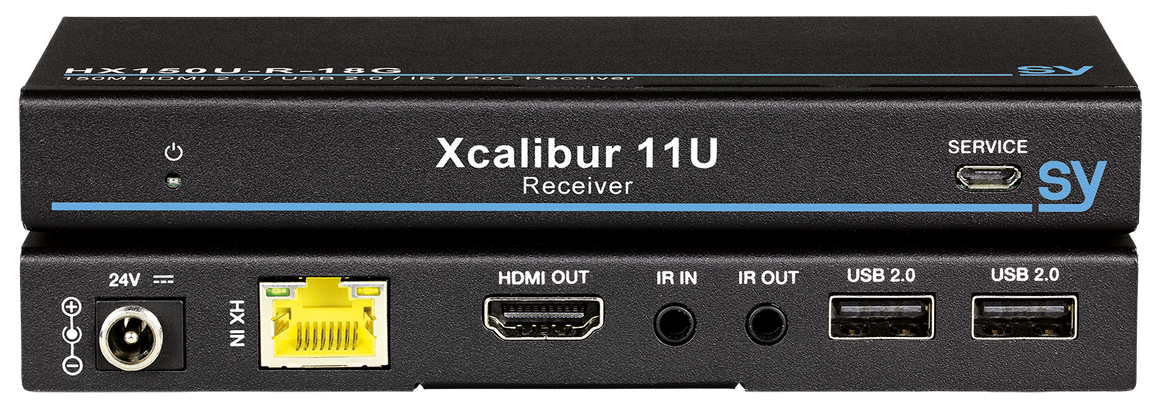

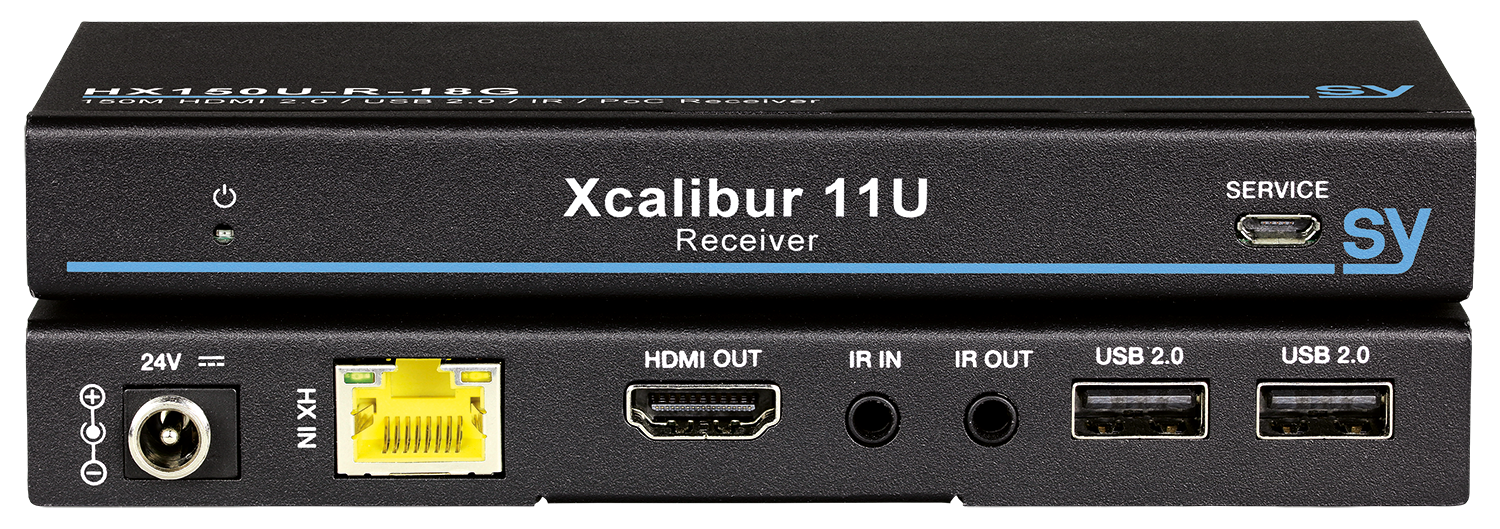

Inputs (RX) 1× RJ45 (HX), 2× USB-A ports

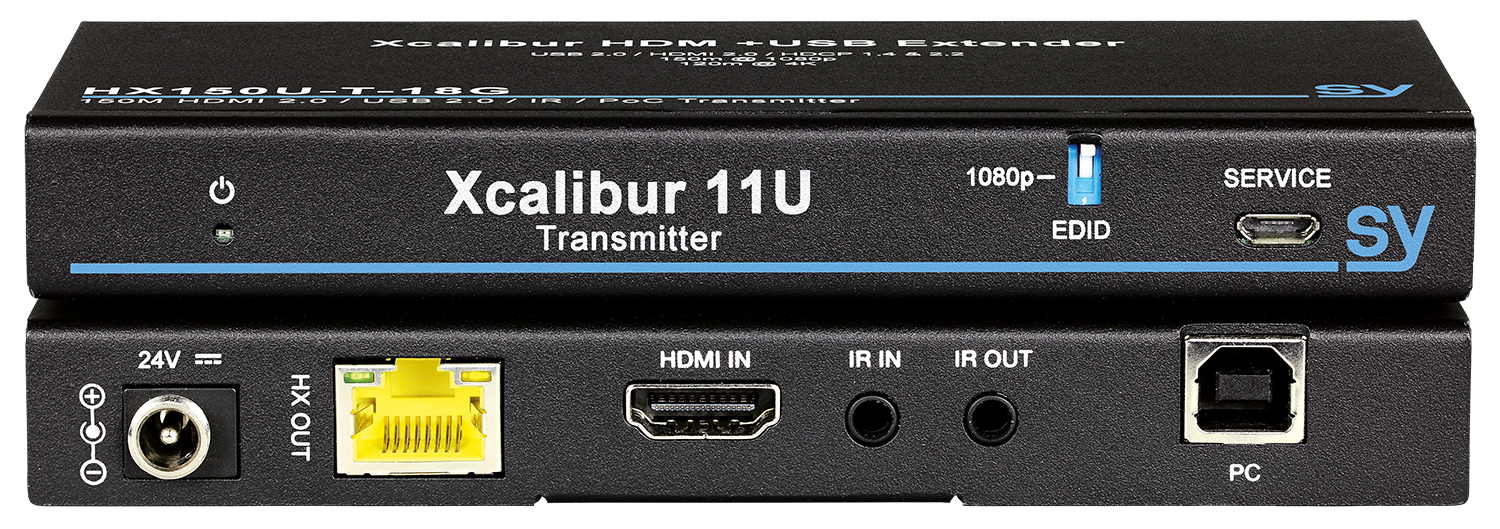

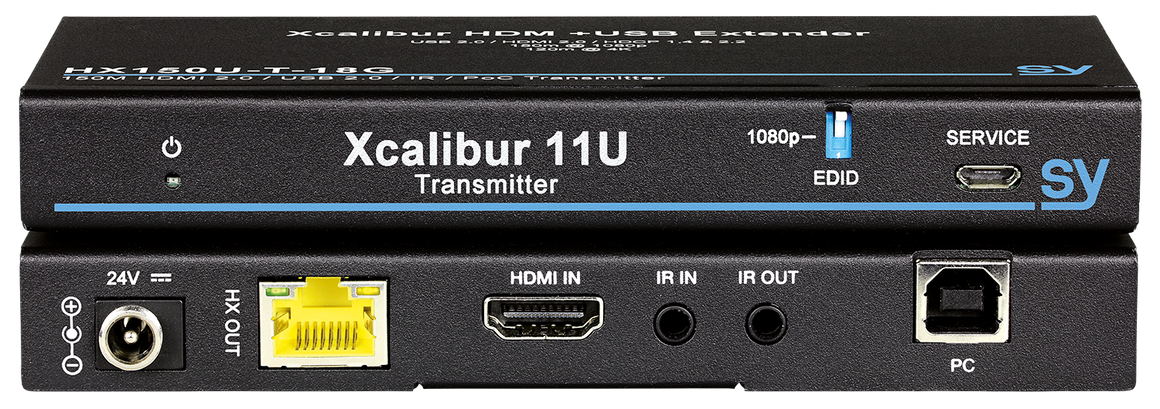

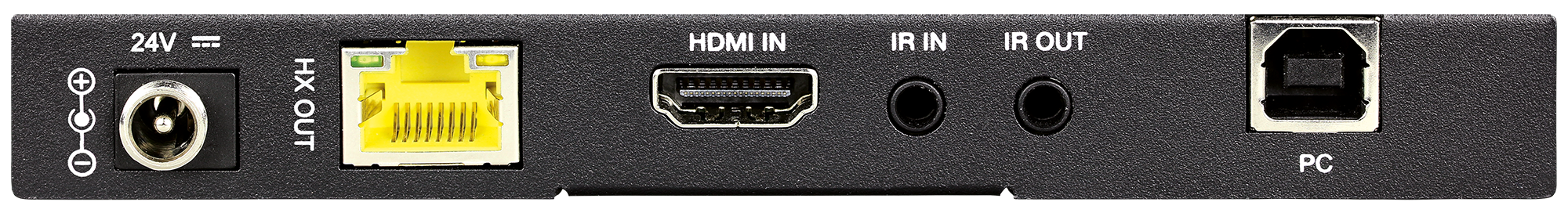

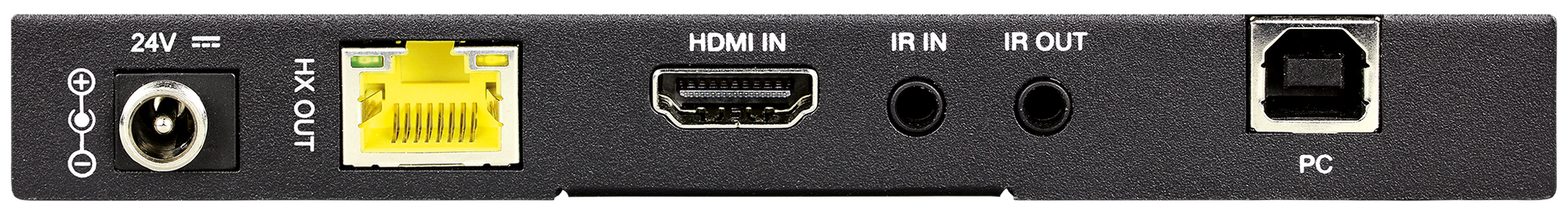

Outputs (TX) 1× RJ45 (HX), 1× HDMI 2.0, 1× USB-B (Computer Host)

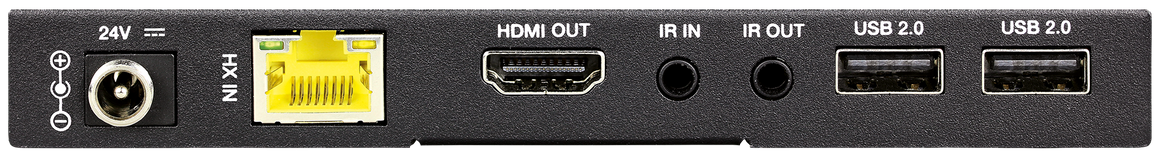

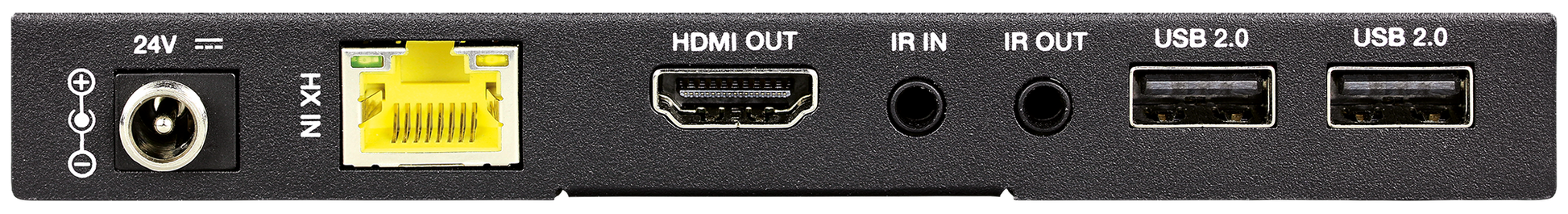

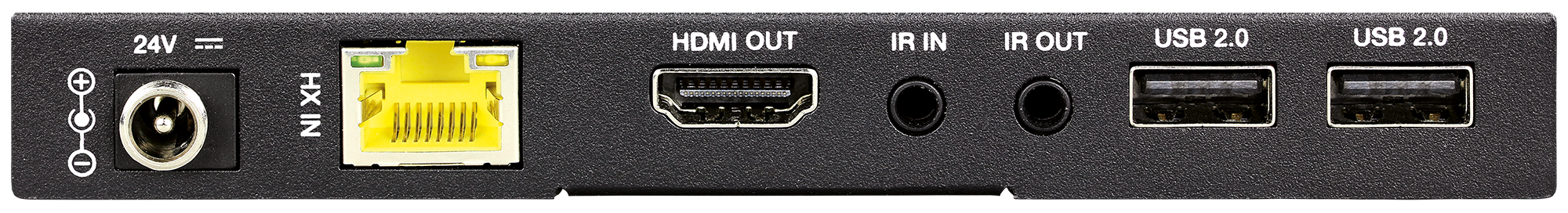

Outputs (RX) 1× HDMI 2.0, 1× 3.5mm analog audio jack

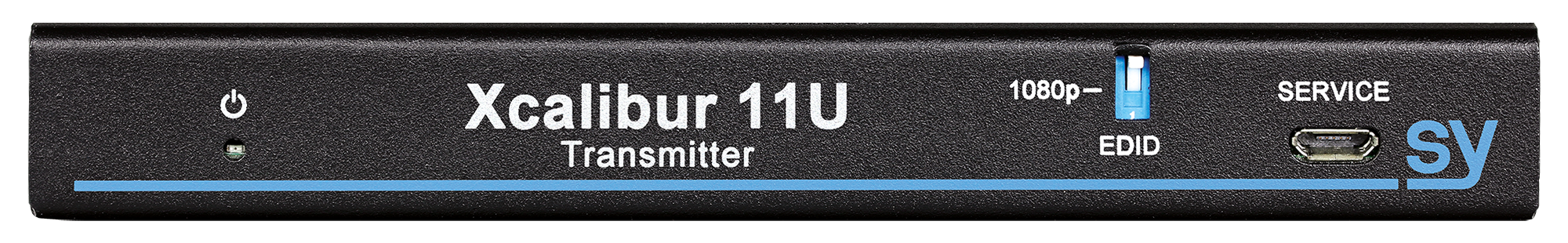

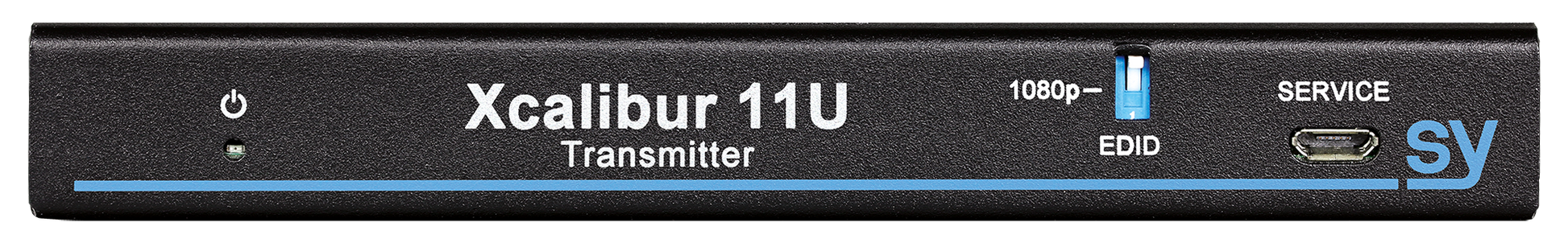

Control IR Pass-through via 3.5mm jacks, RS232 via Micro USB, EDID switch on TX
Power Supply 24V DC, 1A (PoC supported)
Power Consumption 4.5W (Transmitter), 8.5W (Receiver)
Dimensions 140mm × 18mm × 65mm (W×H×D)
Weight 0.25 kg (each)
Included in the Box 1× Transmitter, 1× Receiver, 1× IR emitter cable (1.5m), 1× IR receiver cable (1.5m), 4× mounting plates, 8× screws, 1× 24V 1A PSU
