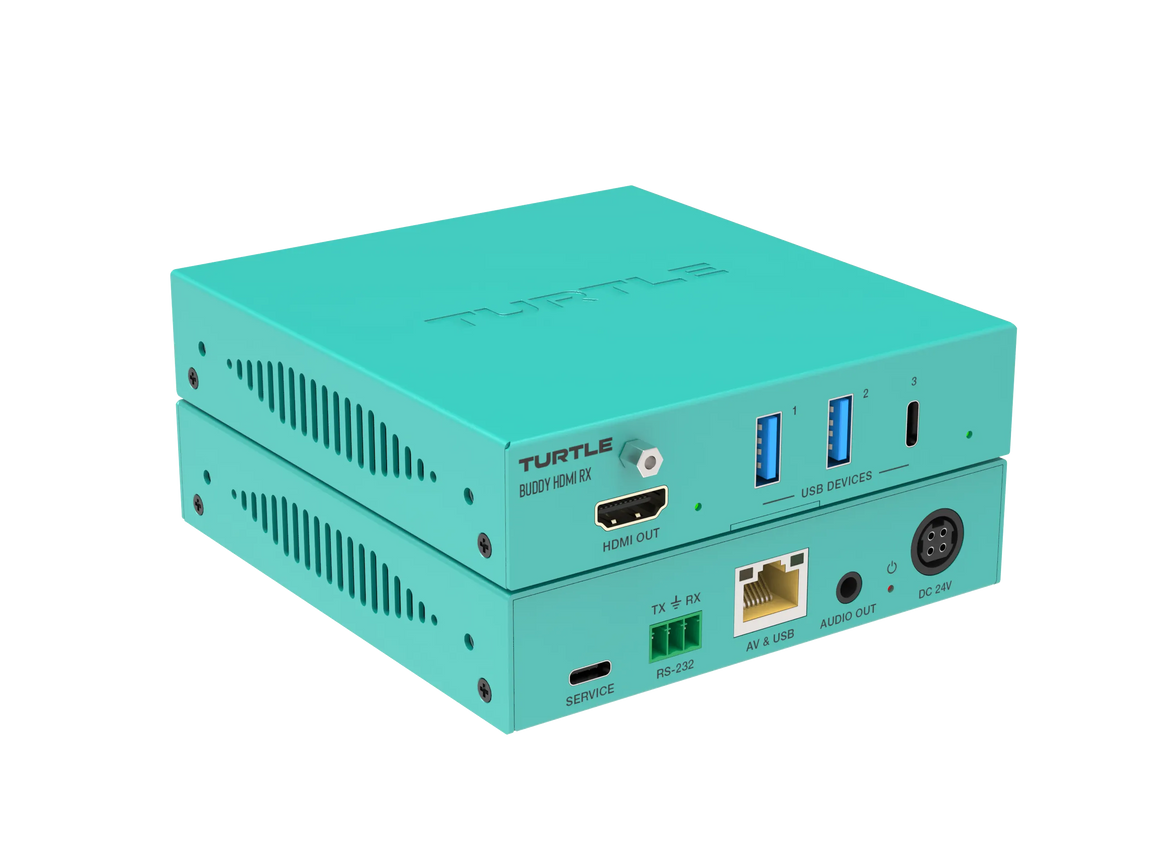

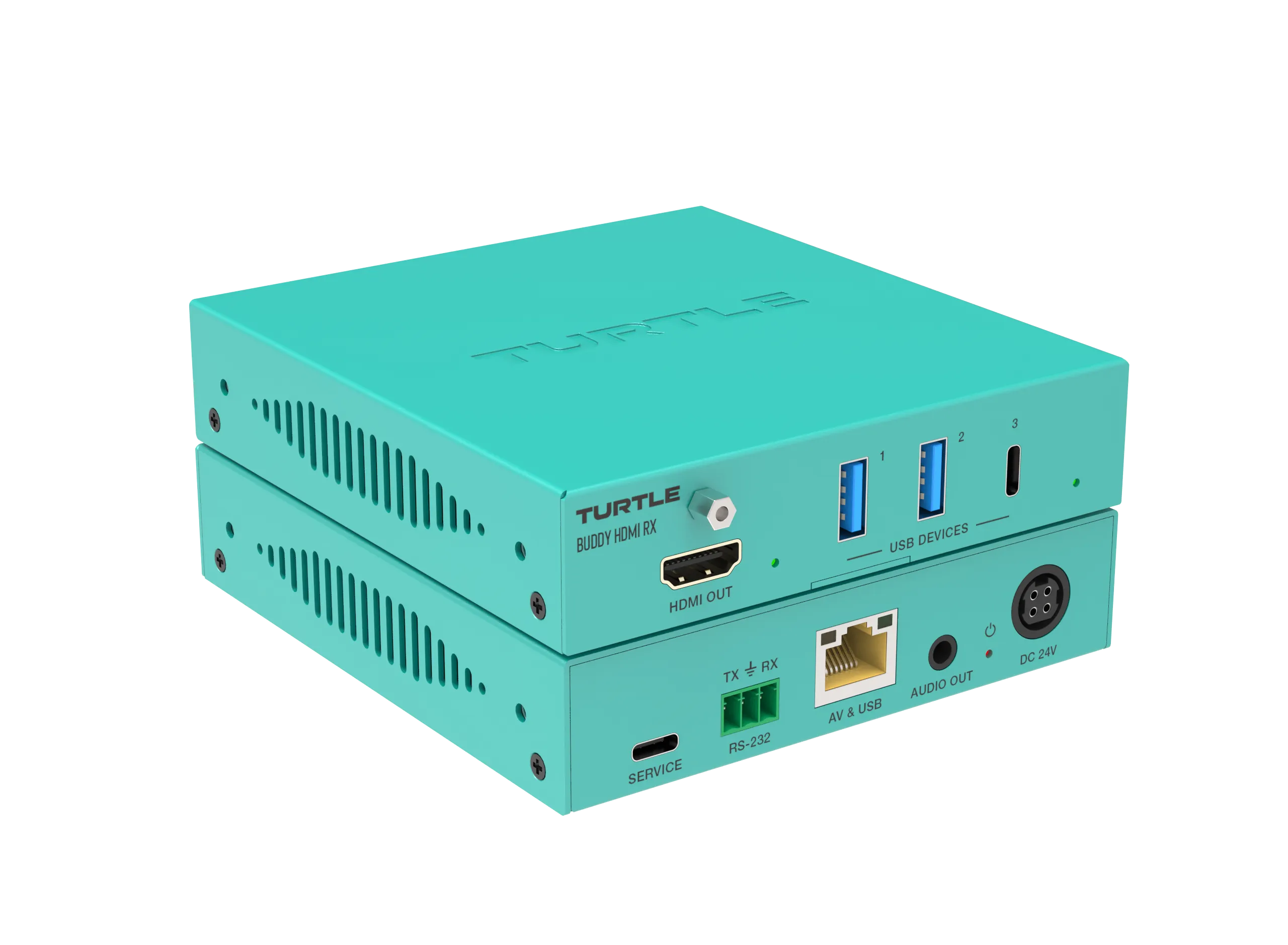

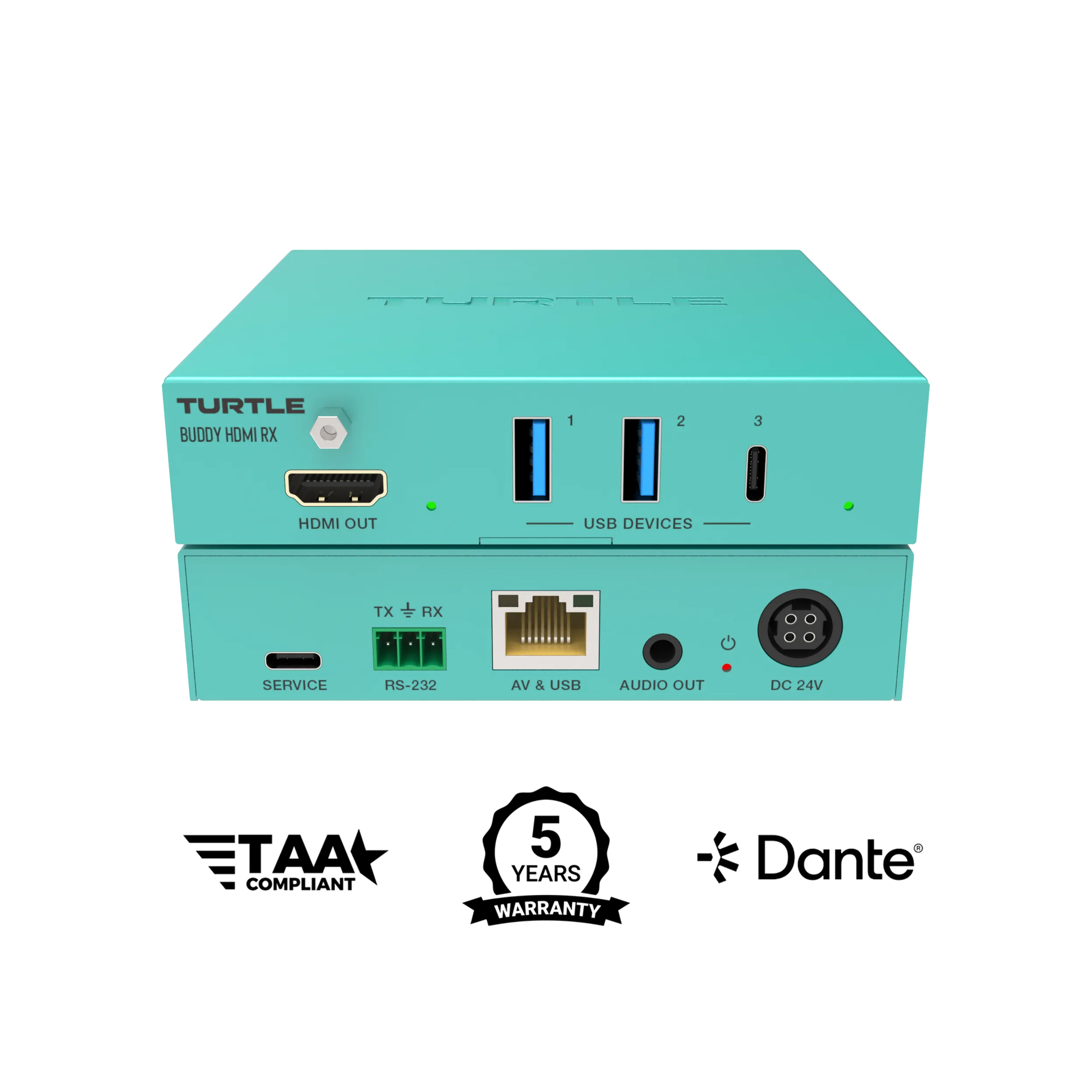

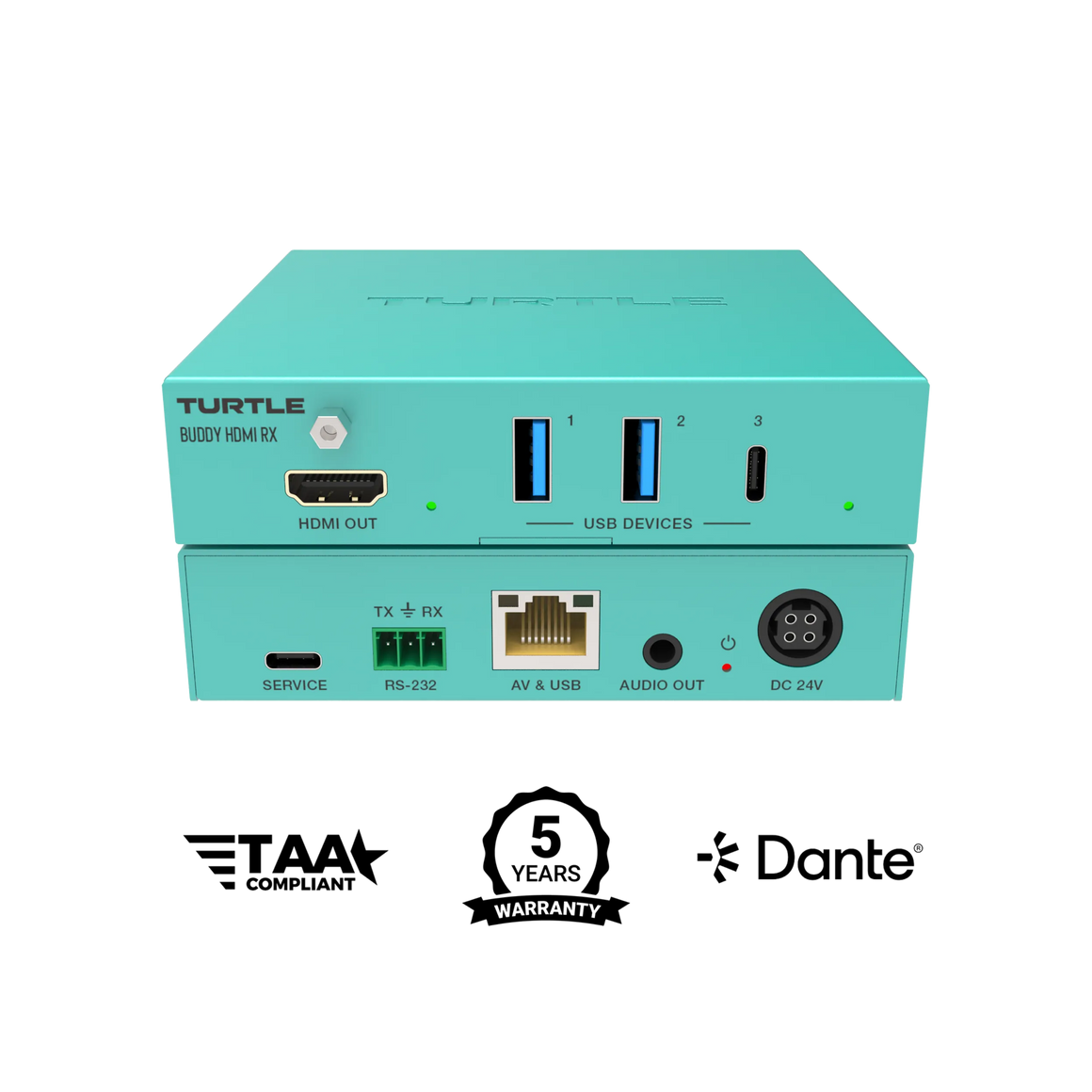

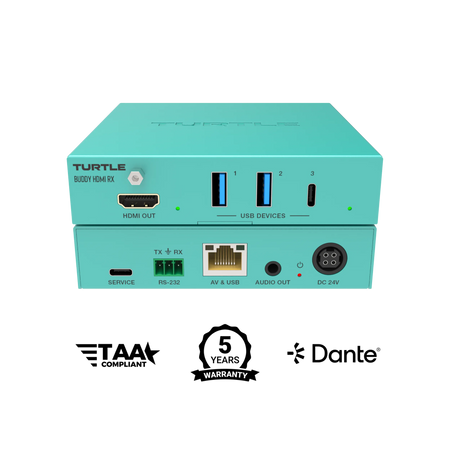

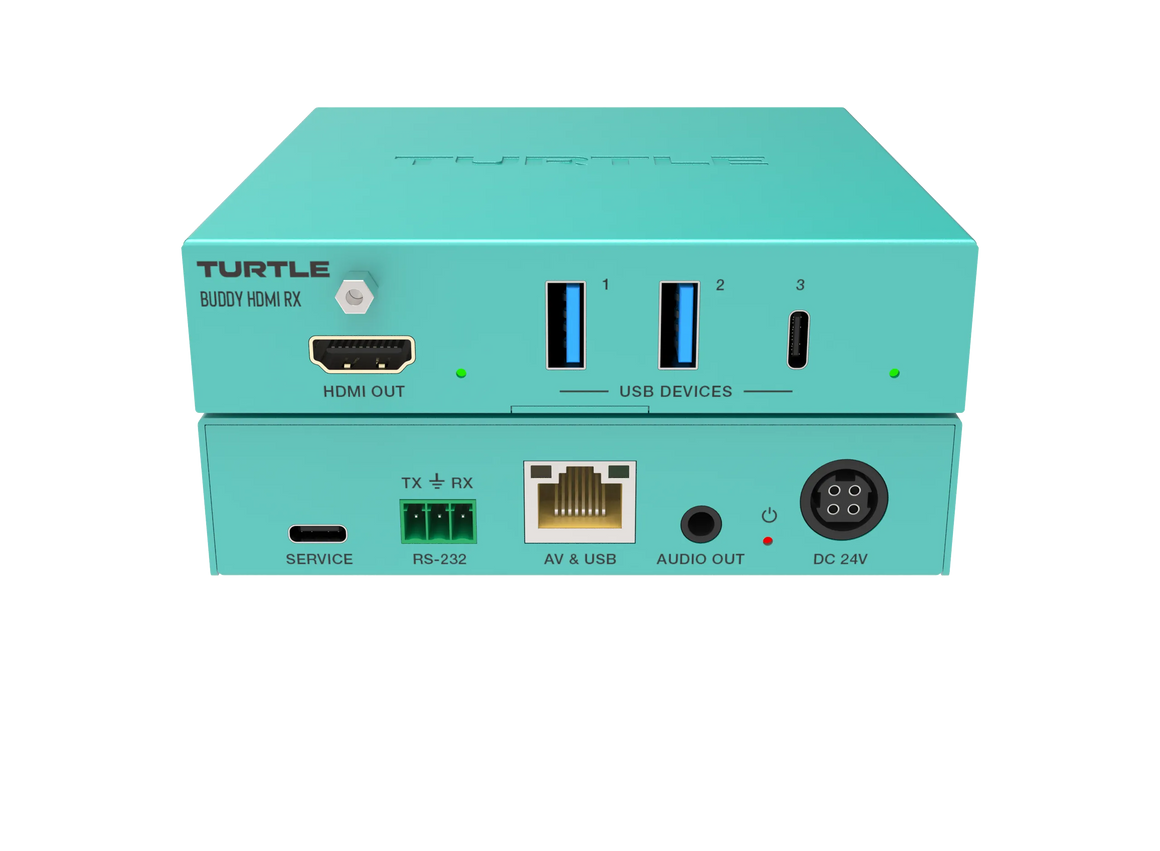

Turtle AV Boardroom Buddy HDMI RX — 4K60 HDBaseT Receiver
4K60 4:4:4 HDMI RX over single CAT cable
Secure Checkout
Warranty Protection
14 - Day Returns
The Turtle AV Boardroom Buddy HDMI RX — 4K60 HDBaseT Receiver sits at the display end of a Boardroom Buddy HDMI installation, receiving 4K60 4:4:4 HDMI video and USB 3.2 Gen 1 data from the TX over a single CAT6a cable, delivering the video to the room display via HDMI 2.0b and providing 2× USB-A and 1× USB-C downstream ports for room peripherals. The USB data returns to the presenter's device over the same CAT cable. Full signal transparency — HDCP 2.3, all resolutions, HDR10+, Dolby Vision, 8/10/12-bit colour, and all audio formats — with 3.5mm audio de-embedding, RS-232 control, and 24V PoC power from the TX complete the package.
Key Features
- HDMI 2.0b Output: Delivers 4K60 4:4:4 to the room display — full format, colour depth, and HDR pass-through from the HDMI TX

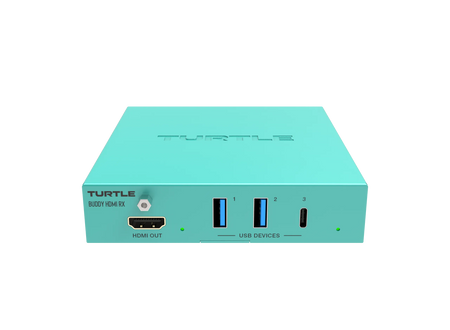

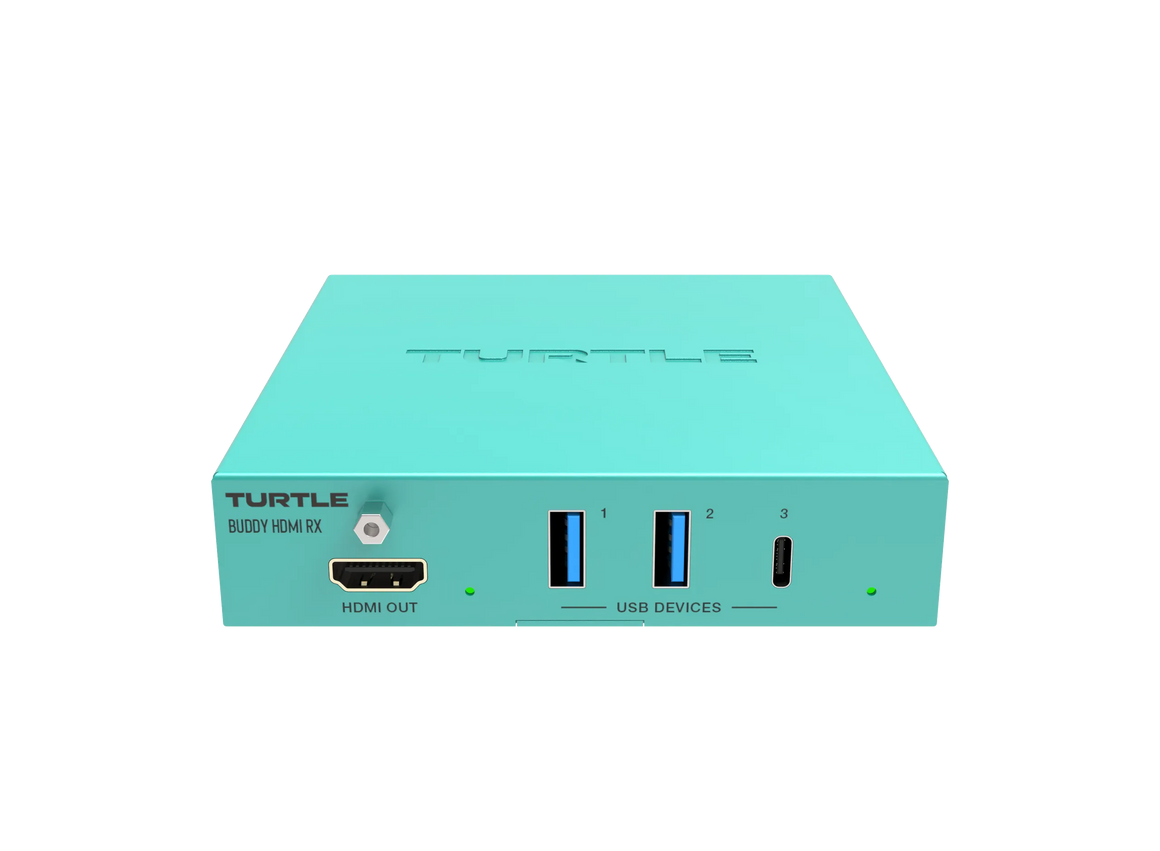

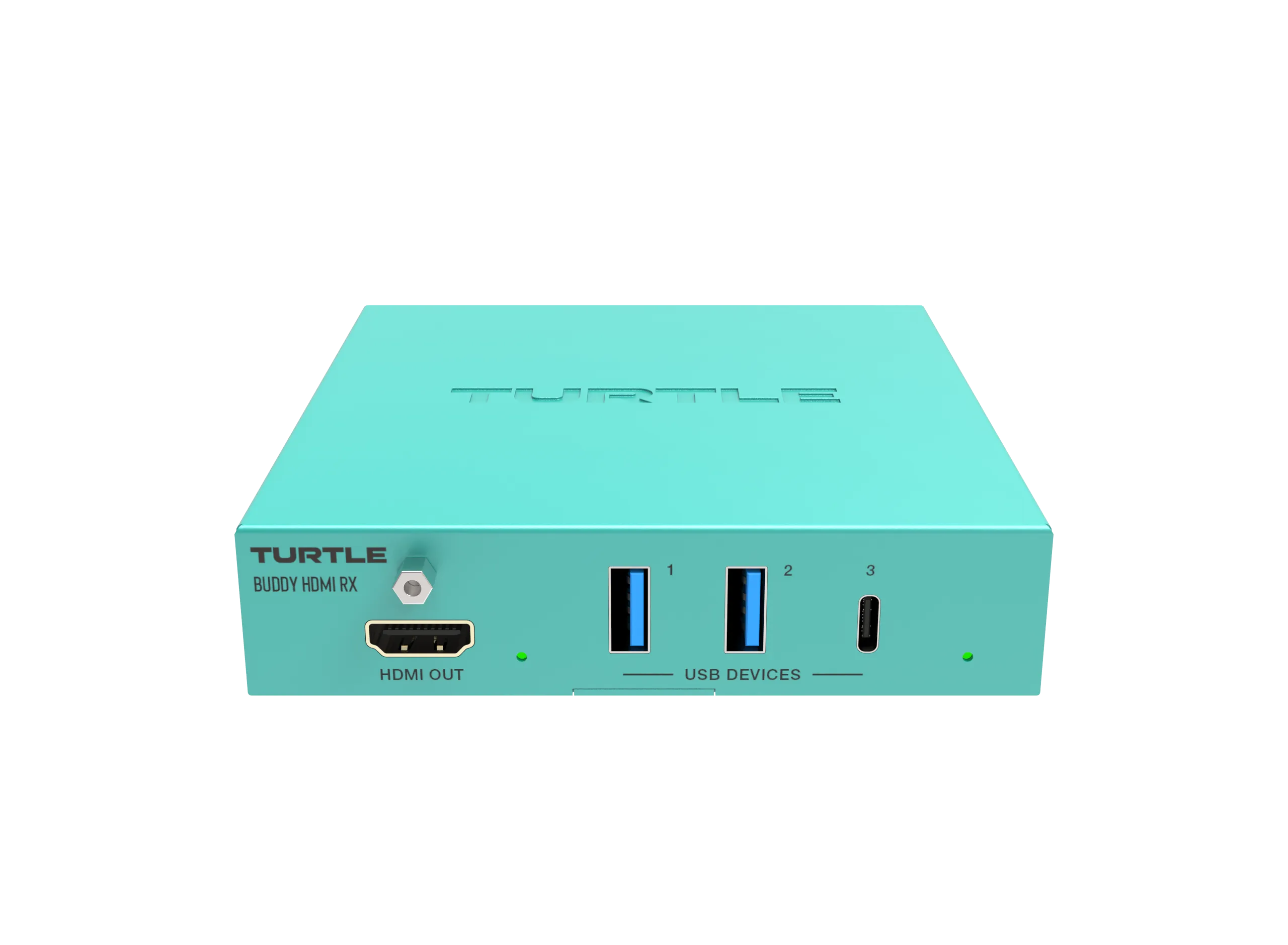

- 2× USB-A + 1× USB-C Downstream: Three USB downstream ports for room webcam, speakerphone, USB hub, and other peripherals
- USB 3.2 Gen 1 at 2.5Gbps: High-speed USB data return to the presenter's device at the TX end over the CAT cable
- 24V PoC — Powered from TX: Draws power over the CAT cable from the paired TX — no local PSU required at the display
- 3.5mm Audio Output: LPCM 2CH de-embedded audio for local speakers or PA system input
- Full HDR — HDR10+, Dolby Vision: All HDR formats including Dolby Vision and HLG passed transparently
- HDCP 2.3: Content protection for DRM-protected sources and displays
- RS-232 Control: AV control system integration at the display end
- Dimensions: 118 × 111 × 25.5mm, 383g: Identical form to the TX — mounts behind the display or in the ceiling void
Specifications
| USB Protocol | USB 3.2 Gen 1 — up to 2.5Gbps |
| HDCP | HDCP 2.3 and HDCP 1.x |
| Video Bandwidth | 18Gbps |
| Maximum Resolution | Up to 5120×2160@60Hz |
| 4K | 3840×2160 and 4096×2160 up to 60Hz |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Colour Depth | 8/10/12-bit |
| Colour Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Transmission Distance | Up to 40m / 130ft for 5K@30Hz; 35m / 115ft for 5K@60Hz via CAT6a |
| Audio | LPCM, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio — de-embedded to 3.5mm |
| Audio Output Level | Max 2.2dBu (1Vrms) |
| Audio Dynamic Range | >90dB @ 0dBu, 1kHz A-weighted |
| Audio THD+N | <0.007% @ 2.2dBu, 1kHz |
| ESD Protection | IEC 61000-4-2: ±8kV air-gap, ±4kV contact discharge |
| Housing | Metal enclosure, Turtle Aqua |
| Dimensions | 118 × 111 × 25.5mm |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 20% to 80% RH, non-condensing |
| HDMI Standard | HDMI 2.0b |

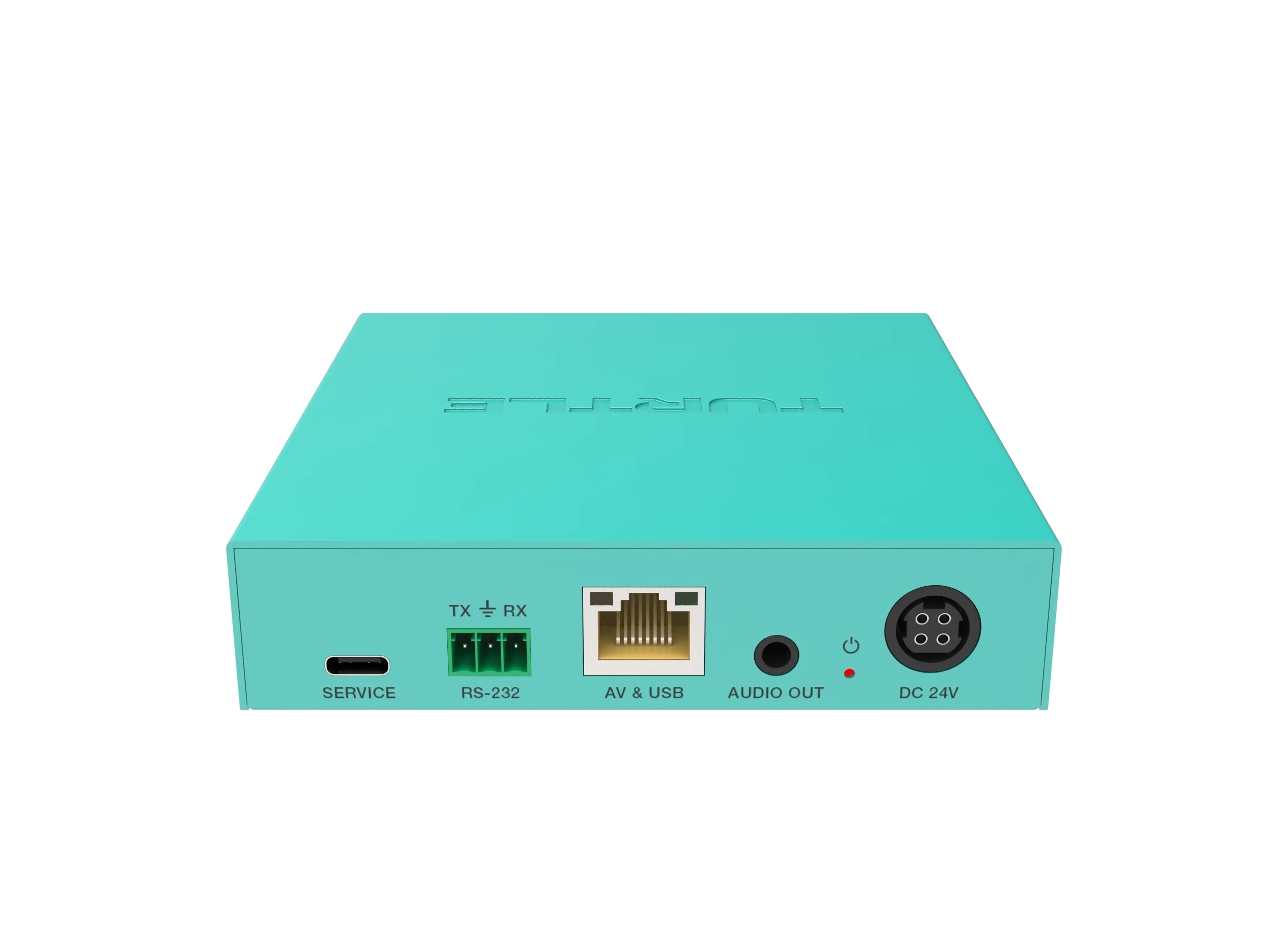

| Input | 1× AV-USB3 IN RJ45 (24V PoC) |

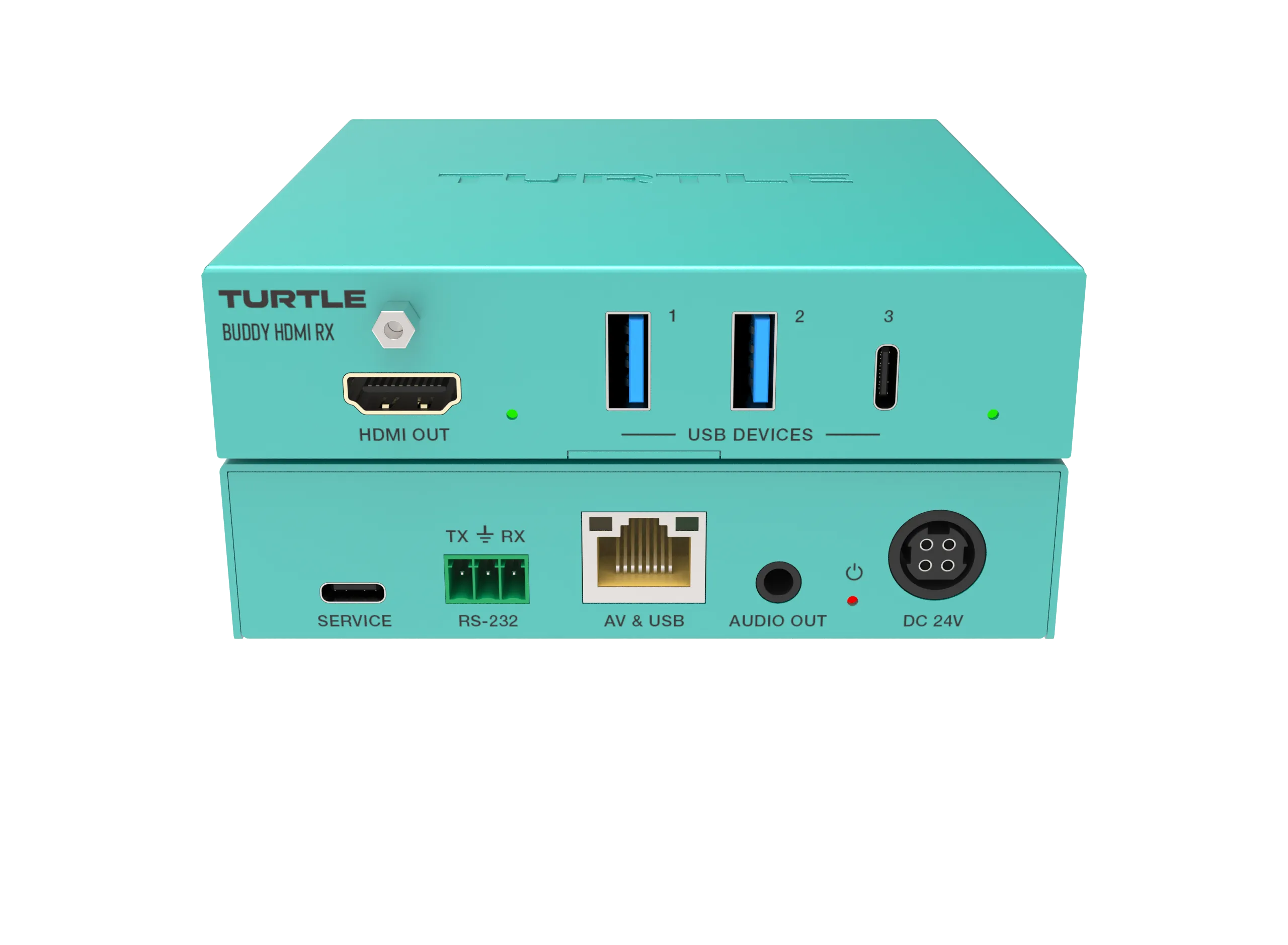

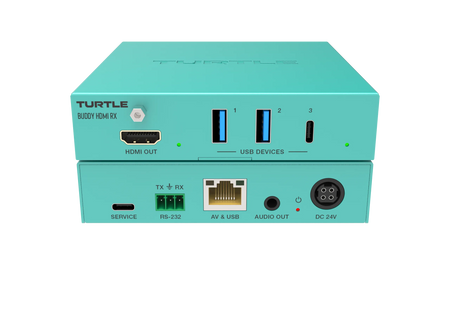

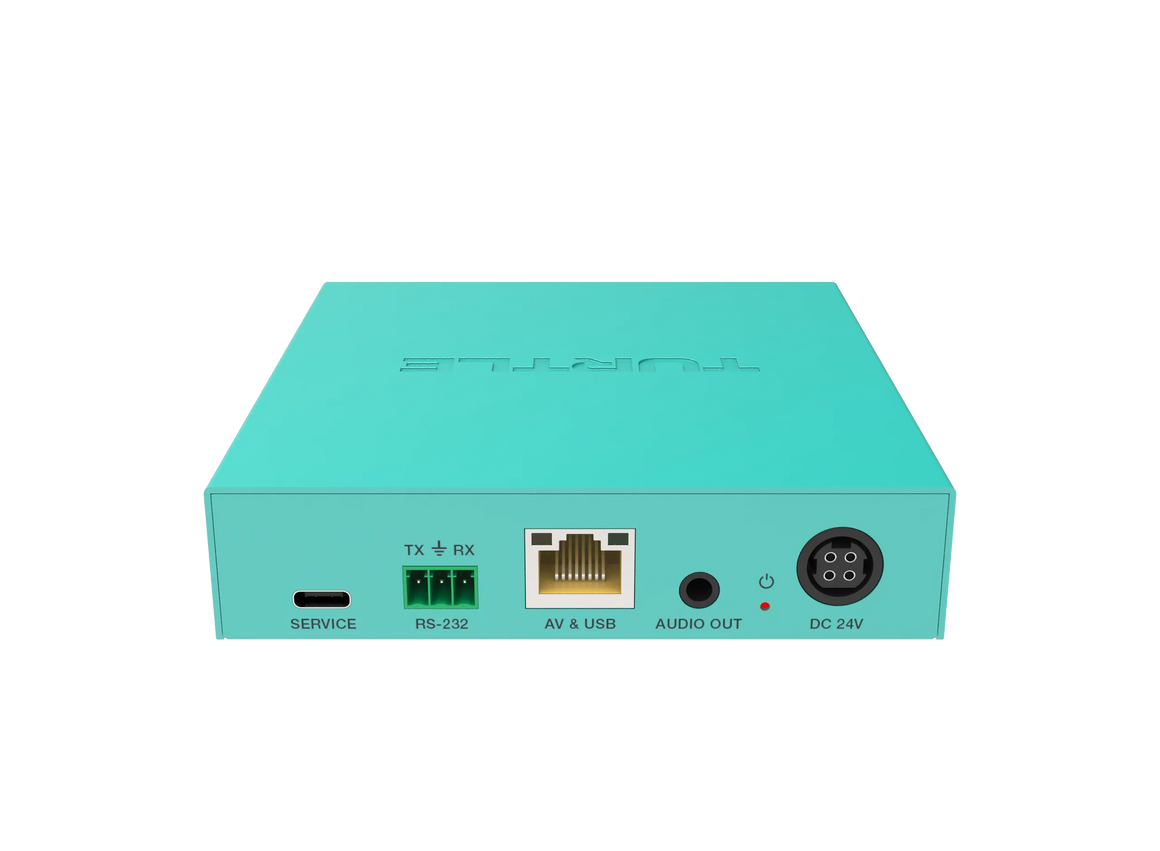

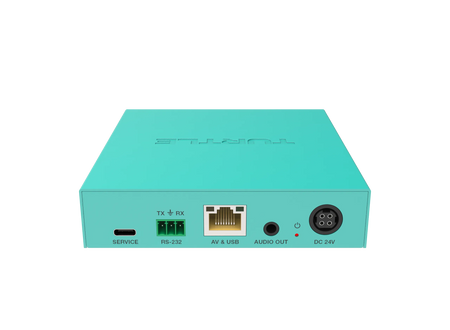

| Output | 2× USB-A downstream 9-pin female; 1× USB-C downstream 24-pin female; 1× HDMI Out type A 19-pin; 1× Audio Out 3.5mm |
| Control | RS-232 3-pin 3.5mm phoenix; USB-C service port |
| Weight | 383g |
| Power Supply | AC 100–240V; DC 24V/2A (CE/FCC/UL certified) — or powered via 24V PoC from TX |
| Power Consumption | 25.4W max |
Warranty
The Turtle AV Boardroom Buddy HDMI RX is backed by the 5-year manufacturer warranty, providing peace of mind for professional installations.
Application Examples
| Display-End Boardroom Unit | Sits behind or below the room display — connects to the display via HDMI and provides USB ports for the room's conferencing peripherals |
| Ceiling or Wall Mount | Mounts in the ceiling void or behind a wall-mounted display — powered over cable from the table transmitter, no local power needed |
| Huddle Room Receiver | Receives the HDMI feed and USB return from the presenter at the table — connects the display and the room USB hub in one compact unit |
| Education AV Receiver | Display-end receiver in lecture theatres connecting to the projector and returning USB to the presenter's laptop at the lectern |
